SCHUNK MPG-plus 10 User instructions

Assembly and operating manual

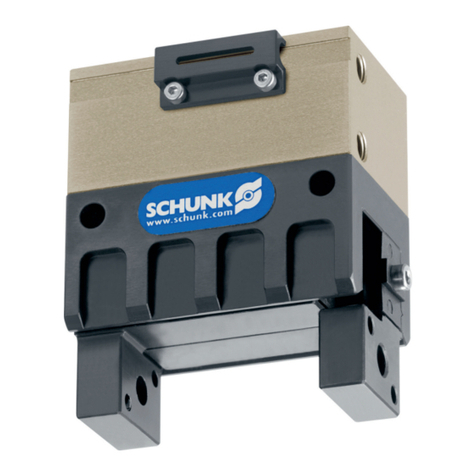

MPG-plus
2-finger parallel gripper
Translation of the original manual

Imprint
2 23.00 | MPG-plus | Assembly and operating manual | en | 389216
Imprint
Copyright:
This manual is protected by copyright. The author is SCHUNK SE & Co. KG.
All rights reserved.
Technical changes:
We reserve the right to make alterations for the purpose of technical improvement.
Document number: 389216
Version: 23.00|25/05/2023|en
Dear Customer,
Thank you for trusting our products and our family-owned company, the leading technology
supplier of robots and production machines.
Our team is always available to answer any questions on this product and other solutions. Ask
us questions and challenge us. We will find a solution!
Best regards,
Your SCHUNK team
Customer Management
Tel. [phone]
Fax [phone]
[e-mail]
Please read the operating manual in full and keep it close to the product.

Table of Contents
23.00 | MPG-plus | Assembly and operating manual | en | 389216 3
Table of Contents
1 General ............................................................................................. 5
1.1 About this manual............................................................................... 5
1.1.1 Presentation of Warning Labels ..................................................... 5
1.1.2 Applicable documents ................................................................. 6
1.1.3 Sizes........................................................................................ 6
1.1.4 Variants ................................................................................... 6
1.2 Warranty ........................................................................................... 6
1.3 Scope of delivery................................................................................. 7
1.3.1 Accessory pack........................................................................... 7
1.4 Accessories ........................................................................................ 8
1.4.1 Sealing kit ................................................................................ 8
1.4.2 Spare parts packages .................................................................. 8
2 Basic safety notes ................................................................................ 9
2.1 Intended use...................................................................................... 9
2.2 Constructional changes......................................................................... 9
2.3 Spare parts ........................................................................................ 9
2.4 Gripper fingers .................................................................................. 9
2.5 Ambient conditions and operating conditions ........................................... 10
2.6 Personnel qualification ........................................................................ 10
2.7 Personal protective equipment .............................................................. 11
2.8 Notes on safe operation........................................................................ 11
2.9 Transport........................................................................................... 12
2.10 Malfunctions ...................................................................................... 12
2.11 Disposal ............................................................................................ 12
2.12 Fundamental dangers .......................................................................... 12
2.12.1 Protection during handling and assembly ....................................... 13
2.12.2 Protection during commissioning and operation ............................... 13
2.12.3 Protection against dangerous movements ....................................... 13
2.12.4 Protection against electric shock.................................................... 14
2.13 Notes on particular risks ....................................................................... 15
3 Technical data ..................................................................................... 17
3.1 Basic data ......................................................................................... 17
4 Design and description .......................................................................... 18
4.1 Configuration ..................................................................................... 18
4.2 Description ........................................................................................ 18

Table of Contents
4 23.00 | MPG-plus | Assembly and operating manual | en | 389216
5 Assembly and settings ........................................................................... 19
5.1 Assembly and connection ..................................................................... 19
5.2 Connections ....................................................................................... 21
5.2.1 Mechanical connection................................................................ 21
5.2.2 Pneumatic connection................................................................. 23
5.3 Mounting the sensor............................................................................ 25
5.3.1 Overview of sensors .................................................................... 25
5.3.2 Switch-off hysteresis for magnetic switches ..................................... 25
5.3.3 Mounting programmable magnetic switch MMS-PI2........................... 27
5.3.4 Mounting inductive proximity switchesIN30, IN40 ........................... 30
5.3.5 For variant with protective cover: Mount inductive proximity switch
IN40 ....................................................................................... 32
5.3.6 Mounting the magnetic switch MMS 22-IOL ...................................... 34
5.3.7 Analog magnetic sensor MMS 22‑A ................................................. 36
5.3.8 Mounting the programmable magnetic switch MMS-P 22 .................... 39
5.3.9 Mounting the flexible position sensor FPS........................................ 42
5.3.10 Mounting the inductive proximity switch IN 5 .................................. 45
6 Troubleshooting................................................................................... 47
6.1 Product is not moving .......................................................................... 47
6.2 Product is not executing the complete stroke ............................................ 47
6.3 Product is opening or closing abruptly ..................................................... 47
6.4 Gripping force is dropping..................................................................... 48
6.5 Product does not achieve the opening and closing times ............................. 48
6.6 Compressed air connection is leaking ...................................................... 48
7 Maintenance ....................................................................................... 49
7.1 Notes................................................................................................ 49
7.2 Maintenance and lubrication intervals..................................................... 50
7.3 Lubricants/Lubrication points (basic lubrication) ........................................ 51
7.4 Servicing the product ........................................................................... 52
7.5 Disassembling and assembling the protective cover.................................... 53
7.6 Drawings........................................................................................... 56
7.6.1 Sizes 10-12 ................................................................................ 57
7.6.2 Sizes 16–20 ............................................................................... 58
7.6.3 Size 25-50 ................................................................................ 59
7.6.4 Size 64..................................................................................... 60
7.6.5 Variant with protective cover ........................................................ 61
8 Translation of the original declaration of incorporation ................................. 62
9 UKCA declaration of incorporation ............................................................ 63
10 Information on the RoHS Directive, REACH Regulation and Substances of Very High
Concern (SVHC) ..................................................................................... 64

General
23.00 | MPG-plus | Assembly and operating manual | en | 389216 5
1 General
1.1 About this manual
This manual contains important information for a safe and
appropriate use of the product.
This manual is an integral part of the product and must be kept
accessible for the personnel at all times.
Before starting work, the personnel must have read and
understood this operating manual. Prerequisite for safe working
is the observance of all safety instructions in this manual.
In addition to these instructions, the documents listed
under }1.1.2 [/6] are applicable.
NOTE: The illustrations in this manual are intended to provide a
basic understanding and may deviate from the actual version.
1.1.1 Presentation of Warning Labels
To make risks clear, the following signal words and symbols are
used for safety notes.
DANGER
Dangers for persons!
Non-observance will inevitably cause irreversible injury or death.
WARNING
Dangers for persons!
Non-observance can lead to irreversible injury and even death.
CAUTION
Dangers for persons!
Non-observance can cause minor injuries.
CAUTION
Material damage!
Information about avoiding material damage.

General
6 23.00 | MPG-plus | Assembly and operating manual | en | 389216
1.1.2 Applicable documents
lGeneral terms of business *
lCatalog data sheet of the purchased product *
lAssembly and operating manuals of the accessories *
The documents labeled with an asterisk (*) can be downloaded
from schunk.com.
1.1.3 Sizes
This operating manual applies to the following sizes:
lMPG-plus 10
lMPG-plus 12
lMPG-plus 16
lMPG-plus 20
lMPG-plus 25
lMPG-plus 32
lMPG-plus 40
lMPG-plus 50
lMPG-plus 64
1.1.4 Variants
This operating manual applies to the following variations:
lMPG-pluswithout gripping force maintenance
lMPG-pluswith gripping force maintenance "O.D. gripping"
(AS)
lMPG-pluswith gripping force maintenance "I.D. gripping" (IS)
lMPG-plushigh-temperature (V/HT)
lMPG-plusprecision (P)
lMPG-pluswith protective cover (HUE)
1.2 Warranty
If the product is used as intended, the warranty is valid for 24
months from the ex-works delivery date under the following
conditions:
lObserve the specified maintenance and lubrication intervals
lObserve the ambient conditions and operating conditions
Parts touching the workpiece and wear parts are not included in
the warranty.

General
23.00 | MPG-plus | Assembly and operating manual | en | 389216 7
1.3 Scope of delivery
The scope of delivery includes
l2-finger parallel gripper MPG-plus in the version ordered
lAssembly and Operating Manual
lAccessory pack
1.3.1 Accessory pack
Content of the accessory pack:
l2 x centering sleeves for mounting
l2 x O-rings for hose-free direct connection
l2 x locking screws for hose connections (not for MPG-plus 16)
l2 x set-screws (MPG-plus 16 only)
Size ID number
MPG-plus MPG-plus
high-
temperature (V/
HT)
in addition for
MPG-pluswith
protective cover
MPG-plus 10 1382755 - -
MPG-plus 12 1382763 - -
MPG-plus 16 5522565 395522565 -
MPG-plus 20 5522566 395522566 -
MPG-plus 25 5510172 1004432 1465771
MPG-plus 32 5510173 - 1465770
MPG-plus 40 5510173 - 1465759
MPG-plus
50 / 64
5510591 - -
Tab.: ID.-No. of the accessory pack

General
8 23.00 | MPG-plus | Assembly and operating manual | en | 389216
1.4 Accessories
A wide range of accessories are available for this product
For information regarding which accessory articles can be used
with the corresponding product variants, see catalog data sheet.
1.4.1 Sealing kit
Size ID number
MPG-plus MPG-plus
high-temperature (V/
HT)
MPG-plus 10 5516927 -
MPG-plus 12 5516928 -
MPG-plus 16 5522567 -
MPG-plus 20 5522568 -
MPG-plus 25 5520765 5522352
MPG-plus 32 5520766 5522353
MPG-plus 40 5520767 5522354
MPG-plus 50 5520768 5522355
MPG-plus 64 5520769 5522356
Tab.: ID.-No. of the seal kit
contents of the sealing kit,Assembly drawing.
1.4.2 Spare parts packages
Spare parts packages allow for the maintenance and repair of
individual components. For information on the range of the
spare parts packages, see www.schunk.com > Service.
The following spare parts packages are available for this product:
lSpare part package "Protective cover"
Spare part kit for "Protective
cover"
ID number
MPG-plus 25 1466542
MPG-plus 32 1466544
MPG-plus 40 1466546
Tab.: ID. No. spare part kit "Protective cover"

Basic safety notes
23.00 | MPG-plus | Assembly and operating manual | en | 389216 9
2 Basic safety notes
2.1 Intended use
The product is designed exclusively for gripping and temporarily
holding workpieces or objects.
lThe product may only be used within the scope of its technical
data, }3 [/17].
lThe product is intended for installation in a machine/
automated system. The applicable guidelines for the machine/
automated system must be observed and complied with.
lThe product is intended for industrial and industry-oriented
use. Its use outside enclosed spaces is only permitted if
suitable protective measures are taken against outdoor
exposure. The product is not suitable for use in salty air.
lThe product can be used within the permissible load limits
and technical data for holding workpieces during simple
machining operations, but is not a clamping device according
to EN 1550:1997+A1:2008.
lAppropriate use of the product includes compliance with all
instructions in this manual.
lAny utilization that exceeds or differs from the appropriate
use is regarded as misuse.
2.2 Constructional changes
Implementation of structural changes
By conversions, changes, and reworking, e.g. additional threads,
holes, or safety devices can impair the functioning or safety of
the product or damage it.
lStructural changes should only be made with the written
approval of SCHUNK.
2.3 Spare parts
Use of unauthorized spare parts
Using unauthorized spare parts can endanger personnel and
damage the product or cause it to malfunction.
lUse only original spare parts or spares authorized by SCHUNK.
2.4 Gripper fingers
Requirements of gripper fingers
Accumulated energy can make the product unsafe and risk the
danger of serious injuries and considerable material damage.

Basic safety notes
10 23.00 | MPG-plus | Assembly and operating manual | en | 389216
lExecute the gripper fingers in such a way that the product
reaches either the "open" or "closed" position in a de-
energized state.
lOnly change gripper fingers if no residual energy can be
released.
lMake sure that the product and the top jaws are a sufficient
size for the application.
2.5 Ambient conditions and operating conditions
Required ambient conditions and operating conditions
Incorrect ambient and operating conditions can make the
product unsafe, leading to the risk of serious injuries,
considerable material damage and/or a significant reduction to
the product's life span.
lMake sure that the product is used only in the context of its
defined application parameters, }3 [/17].
lPerform a compatibility test before product comes into contact
with chemicals or special chemical cleaning agents.
lPlastics (such as those on the protective cover or sensor
holder) can age more quickly under certain non-natural
lighting conditions. This can affect the life span of the product
and also its dynamic properties. In such cases, the inspection
and maintenance cycles of the product should be increased
and, if necessary, affected parts should be replaced in good
time.
2.6 Personnel qualification
Inadequate qualifications of the personnel
If the personnel working with the product is not sufficiently
qualified, the result may be serious injuries and significant
property damage.
lAll work may only be performed by qualified personnel.
lBefore working with the product, the personnel must have
read and understood the complete assembly and operating
manual.
lObserve the national safety regulations and rules and general
safety instructions.
The following personal qualifications are necessary for the
various activities related to the product:

Basic safety notes
23.00 | MPG-plus | Assembly and operating manual | en | 389216 11
Trained electrician Due to their technical training, knowledge and experience,
trained electricians are able to work on electrical systems,
recognize and avoid possible dangers and know the relevant
standards and regulations.
Qualified personnel Due to its technical training, knowledge and experience,
qualified personnel is able to perform the delegated tasks,
recognize and avoid possible dangers and knows the relevant
standards and regulations.
Instructed person Instructed persons were instructed by the operator about the
delegated tasks and possible dangers due to improper behaviour.
Service personnel of
the manufacturer
Due to its technical training, knowledge and experience, service
personnel of the manufacturer is able to perform the delegated
tasks and to recognize and avoid possible dangers.
2.7 Personal protective equipment
Use of personal protective equipment
Personal protective equipment serves to protect staff against
danger which may interfere with their health or safety at work.
lWhen working on and with the product, observe the
occupational health and safety regulations and wear the
required personal protective equipment.
lObserve the valid safety and accident prevention regulations.
lWear protective gloves to guard against sharp edges and
corners or rough surfaces.
lWear heat-resistant protective gloves when handling hot
surfaces.
lWear protective gloves and safety goggles when handling
hazardous substances.
lWear close-fitting protective clothing and also wear long hair
in a hairnet when dealing with moving components.
2.8 Notes on safe operation
Incorrect handling of the personnel
Incorrect handling and assembly may impair the product's safety
and cause serious injuries and considerable material damage.
lAvoid any manner of working that may interfere with the
function and operational safety of the product.
lUse the product as intended.
lObserve the safety notes and assembly instructions.
lDo not expose the product to any corrosive media. This does
not apply to products that are designed for special
environments.

Basic safety notes
12 23.00 | MPG-plus | Assembly and operating manual | en | 389216
lEliminate any malfunction immediately.
lObserve the care and maintenance instructions.
lObserve the current safety, accident prevention and
environmental protection regulations regarding the product's
application field.
2.9 Transport
Handling during transport
Incorrect handling during transport may impair the product's
safety and cause serious injuries and considerable material
damage.
lWhen handling heavy weights, use lifting equipment to lift
the product and transport it by appropriate means.
lSecure the product against falling during transportation and
handling.
lStand clear of suspended loads.
2.10 Malfunctions
Behavior in case of malfunctions
lImmediately remove the product from operation and report
the malfunction to the responsible departments/persons.
lOrder appropriately trained personnel to rectify the
malfunction.
lDo not recommission the product until the malfunction has
been rectified.
lTest the product after a malfunction to establish whether it
still functions properly and no increased risks have arisen.
2.11 Disposal
Handling of disposal
The incorrect handling of disposal may impair the product's
safety and cause serious injuries as well as considerable material
and environmental harm.
lFollow local regulations on dispatching product components
for recycling or proper disposal.
2.12 Fundamental dangers
General
lObserve safety distances.
lNever deactivate safety devices.
lBefore commissioning the product, take appropriate
protective measures to secure the danger zone.

Basic safety notes
23.00 | MPG-plus | Assembly and operating manual | en | 389216 13
lDisconnect power sources before installation, modification,
maintenance, or calibration. Ensure that no residual energy
remains in the system.
lIf the energy supply is connected, do not move any parts by
hand.
lDo not reach into the open mechanism or movement area of
the product during operation.
2.12.1 Protection during handling and assembly
Incorrect handling and assembly
Incorrect handling and assembly may impair the product's safety
and cause serious injuries and considerable material damage.
lHave all work carried out by appropriately qualified
personnel.
lFor all work, secure the product against accidental operation.
lObserve the relevant accident prevention rules.
lUse suitable assembly and transport equipment and take
precautions to prevent jamming and crushing.
Incorrect lifting of loads
Falling loads may cause serious injuries and even death.
lStand clear of suspended loads and do not step into their
swiveling range.
lNever move loads without supervision.
lDo not leave suspended loads unattended.
2.12.2 Protection during commissioning and operation
Falling or violently ejected components
Falling and violently ejected components can cause serious
injuries and even death.
lTake appropriate protective measures to secure the danger
zone.
lNever step into the danger zone during operation.
2.12.3 Protection against dangerous movements
Unexpected movements
Residual energy in the system may cause serious injuries while
working with the product.
lSwitch off the energy supply, ensure that no residual energy
remains and secure against inadvertent reactivation.
lNever rely solely on the response of the monitoring function
to avert danger. Until the installed monitors become effective,
it must be assumed that the drive movement is faulty, with its

Basic safety notes
14 23.00 | MPG-plus | Assembly and operating manual | en | 389216
action being dependent on the control unit and the current
operating condition of the drive. Perform maintenance work,
modifications, and attachments outside the danger zone
defined by the movement range.
lTo avoid accidents and/or material damage, human access to
the movement range of the machine must be restricted. Limit/
prevent accidental access for people in this area due through
technical safety measures. The protective cover and protective
fence must be rigid enough to withstand the maximum
possible movement energy. EMERGENCY STOP switches must be
easily and quickly accessible. Before starting up the machine
or automated system, check that the EMERGENCY STOP system
is working. Prevent operation of the machine if this protective
equipment does not function correctly.
2.12.4 Protection against electric shock
Possible electrostatic energy
Components or assembly groups may become electrostatically
charged. When the electrostatic charge is touched, the discharge
may trigger a shock reaction leading to injuries.
lThe operator must ensure that all components and assembly
groups are included in the local potential equalisation in
accordance with the applicable regulations.
lWhile paying attention to the actual conditions of the working
environment, the potential equalisation must be
implemented by a specialist electrician according to the
applicable regulations.
lThe effectiveness of the potential equalisation must be
verified by executing regular safety measurements.

Basic safety notes
23.00 | MPG-plus | Assembly and operating manual | en | 389216 15
2.13 Notes on particular risks
DANGER
Risk of fatal injury from suspended loads!
Falling loads can cause serious injuries and even death.
lStand clear of suspended loads and do not step within their
swiveling range.
lNever move loads without supervision.
lDo not leave suspended loads unattended.
lWear suitable protective equipment.
WARNING
Risk of injury from objects falling and being ejected!
Falling and ejected objects during operation can lead to serious
injury or death.
lTake appropriate protective measures to secure the danger
zone.
WARNING
Risk of injury from sharp edges and corners!
Sharp edges and corners can cause cuts.
lUse suitable protective equipment.
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
lBefore starting any work on the product: Switch off the power
supply and secure against restarting.
lMake sure, that no residual energy remains in the system.

Basic safety notes
16 23.00 | MPG-plus | Assembly and operating manual | en | 389216
WARNING
Risk of injury from crushing and impacts!
Serious injury could occur during movement of the base jaw, due
to breakage or loosening of the gripper fingers or if the
workpiece is lost.
lWear suitable protective equipment.
lDo not reach into the open mechanism or the movement area
of the product.
WARNING
Risk of injury due to spring forces!
Parts are under spring tension on products which clamp using
spring force or which have gripping force maintenance. While
disassembling components can move unexpectedly and cause
serious injuries.
lDisassemble the product cautiously.
lMake sure that no residual energy remains in the system.
WARNING
Risk of injury from objects falling during energy supply failure
Products with a mechanical gripping force maintenance can,
during energy supply failure, still move independently in the
direction specified by the mechanical gripping force
maintenance.
lSecure the end positions of the product with SCHUNK SDV-P
pressure maintenance valves.

Technical data
23.00 | MPG-plus | Assembly and operating manual | en | 389216 17
3 Technical data
3.1 Basic data
Connection data
Designation MPG-plus
10-12 16–64
Pressure medium Compressed air, compressed air quality
according to ISO 8573-1:2010 [7:4:4]
Nominal working
pressure [bar]
6
Min. pressure [bar]
without gripping
force maintenance
with gripping force
maintenance
3
-
2.5
4.0
Max. pressure [bar]
without gripping
force maintenance
with gripping force
maintenance
6
-
8.0
6.5
More technical data is included in the catalog data sheet.
Whichever is the latest version.
Ambient conditions and operating conditions
Designation MPG-plus
Ambient temperature [°C]
min.
max.
+5
+90
Protection class IP * 30
Air purity class according to DIN
EN ISO 14644-1:2015
6**
Noise emission [dB(A)] ≤70
* For use in dirty ambient conditions (e.g. sprayed water, vapors,
abrasion or processing dust) SCHUNK offers corresponding
product options as standard. SCHUNK also offers customized
solutions for special applications in dirty ambient conditions.
*
*
When using the product in a cleanroom, please note that grease
may leak from moving parts, especially the base jaws and their
guides.

Design and description
18 23.00 | MPG-plus | Assembly and operating manual | en | 389216
4 Design and description
4.1 Configuration
2-finger parallel gripper
1 Housing
2 Main air connections
3 Base jaws
4.2 Description
2-finger parallel gripper with smooth roller guides on the base
jaws

Assembly and settings
23.00 | MPG-plus | Assembly and operating manual | en | 389216 19
5 Assembly and settings
5.1 Assembly and connection
WARNING
Risk of injury due to unexpected movements!
If the power supply is switched on or residual energy remains in
the system, components can move unexpectedly and cause
serious injuries.
lBefore starting any work on the product: Switch off the power
supply and secure against restarting.
lMake sure, that no residual energy remains in the system.
CAUTION
Damage to the gripper is possible!
If the maximum permissible finger weight or the permissible
mass moment of inertia of the fingers is exceeded, the gripper
can be damaged.
lA jaw movement always has to be without jerks and bounce.
lYou must therefore implement sufficient reduction and/or
damping.
lObserve the information in the catalog data sheet.
NOTE
lObserve the requirements for the compressed air supply, }3
[/17].
lIn case of compressed air loss (cutting off the energy line),
the components lose their dynamic effects and do not remain
in a secure position. However, the use of a SDV-P pressure
maintenance valve is recommended in this case in order to
maintain the dynamic effect for some time. Product variants
are also offered with mechanical gripping force via springs,
which also ensure a minimum clamping force in the event of
a pressure drop.
1. Check the evenness of the mounting surface, }5.2.1 [/21].
2. Only open the required air connections (main connection or
direct connection), }5.2.2 [/23].

Assembly and settings
20 23.00 | MPG-plus | Assembly and operating manual | en | 389216
3. Connect the product via the hose-free direct connection.
ðUse O-rings from the accessory pack.
ðSeal main air connections which are not required with
locking screws.
4. OR: Connect compressed air lines to the main air
connections, }5.2.2 [/23].
ðScrew in air connections (plug connections).
OR: Screw on throttle valve in order to be able to perform
sufficient throttling and/or damping.
5. Screw the product to the machine/system, }5.2.1 [/21].
ðIf necessary, use appropriate connection elements
(adapter plates).
ðObserve the maximal tightening torque, admissible
screw-in depth and, if necessary, strength class.
6. Secure the gripper fingers to the base jaws, }5.2.1 [/21].
7. Connect the sensor, see assembly and operating manual of
the sensor.
8. Mount the sensor, }5.3 [/25].
