Welcome
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this guide before use and installation.
This guide contains important information on the correct use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently and dispose
of the packaging in a responsible manner.

Page 3
Index
1. Welcome ........................................................................................................................................2
2. Your Safety....................................................................................................................................4
Before Installation ................................................................................................................................................................................ 4
Electrical Cord ......................................................................................................................................................................................... 4
Receiving your rangehood................................................................................................................................................................ 4
Your Safety .............................................................................................................................................................................................. 5
Motor Features....................................................................................................................................................................................... 5
General Notes on Installation and Use.........................................................................................................................................5
Recommended Installation Distance............................................................................................................................................ 5
Minimum Mounting Height............................................................................................................................................................... 6
Avoidance of Back Flow...................................................................................................................................................................... 6
Safety of Children ................................................................................................................................................................................. 6
Replacement of supply cord............................................................................................................................................................. 6
Why Flexi-duct....................................................................................................................................................................................... 6
3. Description....................................................................................................................................7
Isodrive Motor......................................................................................................................................................................................... 7
4. Installation....................................................................................................................................8
Roof Installation .................................................................................................................................................................................... 8
Through Wall Installation................................................................................................................................................................... 10
Twin 200mm Outlet Installation Example (3200 kit required).......................................................................................... 12
Optional Back Draft Shutter Installation Through Roof ....................................................................................................... 13
Optional Back Draft Shutter Installation Through Wall ........................................................................................................ 14
Optional Weather Shield Installation Guide............................................................................................................................... 15
5. Flexible Duct .................................................................................................................................16
Shallow Roof Space..............................................................................................................................................................................17
Securing Flexible Duct........................................................................................................................................................................ 18
6. Measurements ..............................................................................................................................19
Measurements for Isodrive 3200 (Not to Scale)...................................................................................................................... 19
7. Parts List........................................................................................................................................20
Parts List for Isodrive 3200 .............................................................................................................................................................. 20
8. Maintenance .................................................................................................................................22
Roof Restoration or Cleaning........................................................................................................................................................... 22
9. Warranty / Disclaimer...................................................................................................................23

Page 4
2. Your Safety
RECEIVING YOUR RANGEHOOD
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, the supplier, nor the retailer, will be responsible
for the costs associated with the repair, replacement, removal or re-installation of
the appliances.
This appliance is not intended for use by person/s (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and/or knowledge. Unless the person has been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance, it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you fail to do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures when installing
or using the appliance.
Ensure that the location in which this appliance is installed, has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earth that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance to be installed or repaired by a qualied Schweigen Home Appliances technician.
Please see our website www.schweigen.com.au for recommended installers.
It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged, it must be
replaced by the manufacturer, service agent or a similarly qualied person in order to avoid a hazard. The power
supply cord connection MUST BE installed in such a way that access is easy in case of emergency.

Page 5
This guide is for the installation of the Isodrive motor system after the canopy/rangehood has been mounted
on the wall or ceiling. (Refer to canopy/rangehood unit installation manual).
NOTE: All PVC pipe and exi ducting measurements are referring to inside measurements, unless otherwise
mentioned.
Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using single 250mm ex duct, you should attain
up to 3200m3/hr depending on the ducting installation. The use of a smaller than 250mm (ISD) pipe would
result in a loss of airow.
• Simple installation: mounts onto a 250mm PVC pipe for ultimate strength and allows for easy Dektite roof
sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high eciency PSC type and rated at 150W costing around the same as two 70W light globes to
run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does not
cover normal wear and tear.
General Notes on Installation and Use
This fan unit is designed to be installed using 250mm (OSD) PVC pipe as the initial connection to the fan module.
The fan unit is supplied with a 250mm (OSD) PVC pipe, 250mm (ISD) exible duct. (See page 10 for installation
detail).
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 22,000mm2. When
installing, 15 metres of 250mm exi ducting MUST be used and no more than 2 to 3 bends in the exi ducting.
Where possible exible ducting must be extended suciently to present a smooth air passage with bends of at
least the radii of twice the diameter of the duct.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build up of grease
can occur and become a potential re risk. This will void warranty.
NOTE:Fan module and dual foil exi-duct are acoustically matched. Use of semi-rigid or rigid ducting will result
in increased noise and may void warranty. See installation instruction notes ‘Why exi-duct’.
Recommended Installation Distance
Isodrive 3200 motor, recommended 4 to 5 metres of exi ducting.
NOTE: Although less than 4 to 5 metres will increase extraction power this may result in a higher air noise
level. Maximum duct length 15 metres (use 250mm ducting), however please be aware that increasing the
duct length above 5 metre will decrease airow. Check with supplier if longer duct length is required. Do
not reduce the duct size at any time and avoid sharp bends.
2. Your Safety

Page 6
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part of the
fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or other open re
appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of supply cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in order to
avoid a hazard.
Why Flexi-duct
Some internet sites strongly recommend the use of rigid ducting over fully exible ducting. This
may well be the case with conventional rangehoods with internal motor rangehood but not with
external motor rangehood.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling air through
the hood and acoustically matched ducting, producing almost silent high volume ow. The use of a complete
rigid or semi-rigid ducting system will allow an organ piping eect to occur; like a didgeridoo where a noise is
produced at one end of a hollow rigid pipe and the noise is amplied out the other.
The Isodrive system places the noise outside the house and it needs to be kept there.
WARNING: Installation without the use of at least the minimum recommended length of acoustically matched
exi-ducting in the system will void performance expectations. Any installation problem must be reported
to Schweigen. Call outs relating to incorrect installation will result in a service fee direct to the customer.
Schweigen takes no responsibility for problems caused by faulty installation, this may void warranty. A
preferred installer list can be obtained from Schweigen website www.schweigen.com.au or by calling
1300 881 693.
2. Your Safety

Page 7
Isodrive Motor
Included in the box:
1. Isodrive 3200 motor
Approx. 3 metre, 10amp cable and standard male plug
2. Fire resistant 250mm OD1PVC riser pipe
NOTE: Cable cut-out at the both ends
3. Flexible ducting (250mm)
Approx. 4 metres, 250mm (260mm OD1) diameter
4. Flexible ducting (200mm)
Approx. 1.5 metres, 200mm (210mm OD1) diameter
5. 250-200mm reducer (only use when connecting the Isodrive
3200 motor to a single 200mm opening on a rangehood).
Not included in the box:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Aluminium Foil tape
• Zip ties
• Wall Mounting Kit
Included with the 3200 Kit
(for rangehoods with twin outlets only)
6. Flexible ducting (200mm)
Approx. 1.5 metres, 200mm (210mm OD1) diameter
7. Y joint (250 X 200 X 200mm)
Optional:
8. Wall plate
9. 250mm back draft stopper
10. Weather shield kit
1OD refers to outside dimension.
3. Description
1
5
76
8 9 10
2
3 4
NOTE
For more exible ducting instructions, refer page 19.

Page 8
Roof Installation
Recommended duct length: minimum 4 metres, optimal 4-5 metres.
Mount 250mm (ISD) rigid PVC pipe securely to beams, trusses or other appropriate structures: refer gure 1.
The pipe should be mounted vertically with the roof penetration being sealed using a Dektite or other appropriate
sealing membrane or device when installing through a metal nished roof. DO NOT install on a over lapping join.
Ensure that the PVC pipe protrudes at least 50mm past the top of the Dektite, checking that the fan assembly
clears the roof cladding at upper edge, refer gure 1.
Pass power cord and plug through mounting ange and pipe, then out the slotted PVC pipe for connection to the
female plug coming from the canopy/rangehood. Refer to gure 1.
Do not insert plug into socket outlet or switch on until installation has been completed. Fit fan module to pipe and
x in position using side locking screw.
Certain external installation congurations may cause audible levels of noise to be heard due to the air being
expelled from the motor. To minimize external noise disturbance you can use between 5 to 15 metres of exi duct
to place the Isodrive motor in an appropriate position.
Please be aware that the 3200 motor is capable of expelling air at 3200m3/hr.
For more information on environmental noise limit and conditions please contact your local Council. We have a list
of recommended installers available on the Schweigen website.
4. Installation4. Installation

Page 9
Figure 1 Roof Mount Option
IMPORTANT
For more exible ducting instructions, refer to page 13.
dektite
3200 motor
200mm exible duct
MUST keep taught
250-200mm reducer
Connect to power supply
4. Installation
Only use when
connecting
the motor to a
single 200mm
outlet on the
rangehood.
NOTE: Prevent any
cord bunching by
pulling cord through
from plug top end
250mm exible duct
(minimum 4 metres
ducting length fully
extended)
Dektite
250mm
PVC Pipe
Power cord
Fix pipe to fan module with
side locking screws
Fit side supports to locate
Strap to supports
50mm Pipe protrusion above
4. Installation

Page 10
Minimum protrusion
distance from wall
Recommended to x pipe to a
support structure or strapping
bracket (not included in
mounting kit).
Ensure power cable,
pipe and cover plate
slot is at the bottom.
Wall cover plate (Optional - Part Number P2025)
Power cable

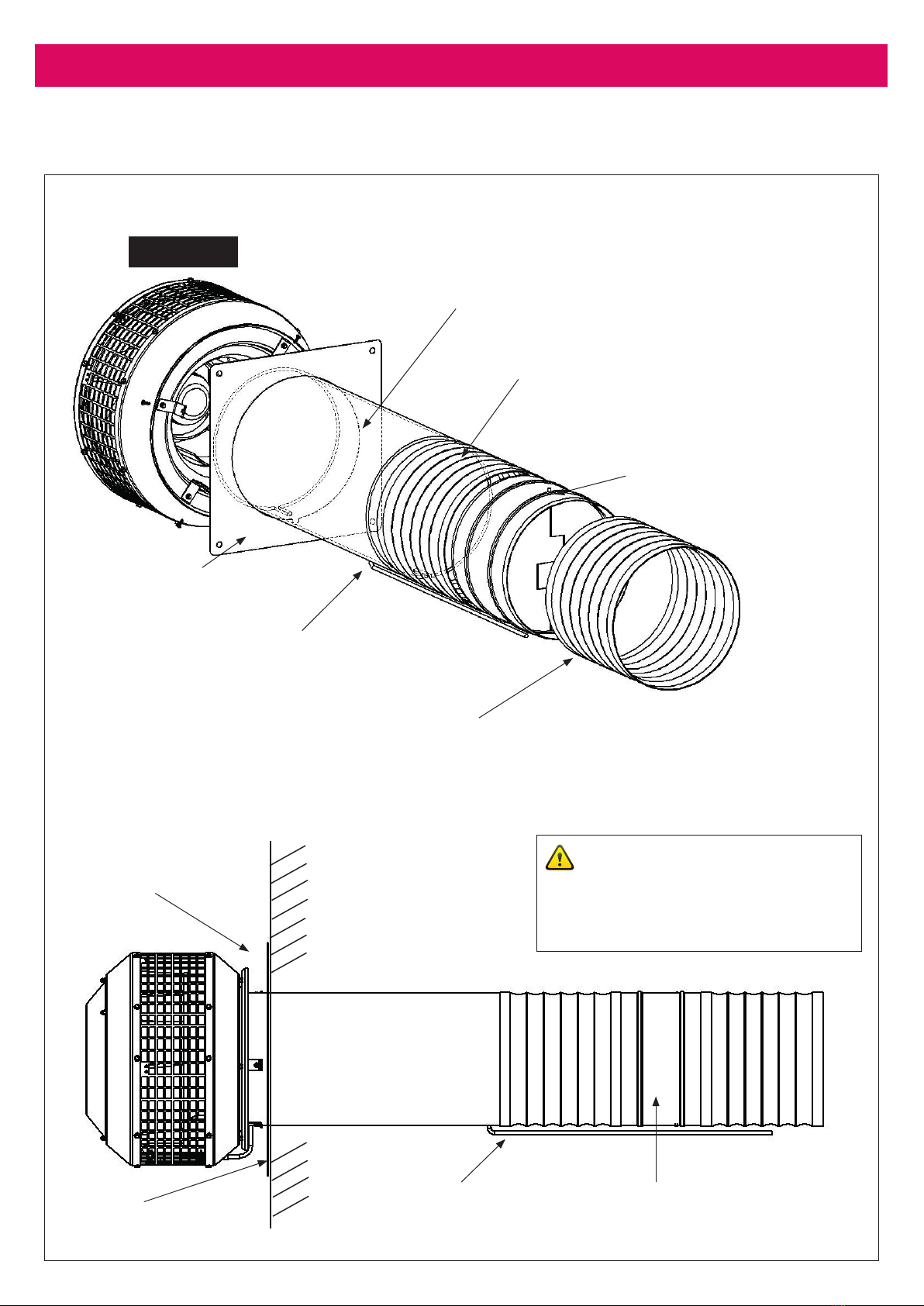

Through Wall Installation
Mounting points
Connecting pipe
NOTE: Make sure that the connecting pipe is well supported, at least 2 mounting points recommended.
4. Installation
40mm
Wall
ø 250mm
70mm (End of pipe)

Page 11
Protrude pipe to distance
(use as reference only)
Marked fastening
holes rst before
installing
Install fan
unit last Ensure slot cover
plate, power cable
and pipe slot is at
the bottom.
Fix pipe to structure or
with a strapping bracket.
Mounting points
Wall cover plate
(Optional - Part Number P2025)
4. Installation
70mm

Page 12
4. Installation
Figure 2 Roof mount option
Twin 200mm Outlet Installation Example (3200 kit required)
This is for use where one motor is to be used and there are two 200mm outlets.
Try to keep length of
exible ducting as even
as possible other wise
motors will draw air o
each other
Ensure exible ducting
is fully extended and as
short as possible. Use
smooth owing curves for
maximum air ow. Remove
excess ducting by trimming
to length.
250 x 200 x 200mm
If multi-t Y joint supplied you
will need to cut to correct size.
3200 motor
200mm exible
duct
250mm exible ducting
200mm exible ducting
200mm outlet
250
200
200

Page 13
4. Installation
Optional Back Draft Shutter Installation Through Roof
• Cut 250mm exible duct length to approximately 150mm to 200mm.
• Assemble by tting shutter assembly into the ducting.
• Check to ensure the aps close and open freely before assembling the bottom end of the ducting.
3200 motor
PVC Storm pipe
Cut existing ducting to
150mm to 200mm length
Attach ducting to back draft
shutter and secure with
duct tape and clamp
Shutter System
Reducer
Assemble ducting to bottom
end of back draft shutter
and secure with duct tape
and clap - see NOTE.
150mm to 200mm
250mm exible ducting
NOTE
Ensure the aps open upwards before assembling
ducting to bottom end of the shutter system. If
aps open downwards, the assembly is incorrect.

Page 14
4. Installation
Optional Back Draft Shutter Installation Through Wall
3200 motor
PVC storm pipe
Cut existing ducting length to 150mm to
200mm and assemble to the shutter system.
Secure with duct tape and clamp.
Back draft shutter system
Make sure the aps are vertical
Assemble existing ducting to the end of
shutter system and secure with duct tape
and clamp - see NOTE.
Ensure that power cable passes
through the cover palte notched
recess and is clear of cut edge
Wall cover plate with notch at
bottom (optional part)
NOTE
Through wall installations ap shaft will
be close to vertical and ensure aps open
towards the fan unit.
Minimum pipe
protrusion from
wall surface
Wall
Power cord Back draft shutter system
Wall cover plate
(optional part)

Page 15
4. Installation
Optional Weather Shield Installation Guide
Step 1
Remove Weather Shield (1 pc), P1128 Screws (2pcs) and P1128N Nuts (2pcs), Weather Shield Mounting Bracket
(5 pcs) and P1124 Hex Head Screws (15pcs) from packaging.
P1128N at the back
P1128
Step 2
Remove plastic cover from Weather Shield and bend
to form a circle. Fasten P1128 Screws with P1128N
Nuts at location shown.
Step 3
Place Mounting Brackets on to Fan Guard, and
fasten 2 pieces of P1124 as shown. Ensure
orientation of Bracket is mounted as shown.
Step 4
Repeat Step 3 for the rest of the Brackets.
Step 5
Mount Weather Shield and align mounting holes
with the Brackets, and fasten with P1124 (5 areas).
P1124 Fan guard
Mounting bracket
Align mounting holes with the brackets

Page 16
5. Flexible Duct
Flexible Ducting
Flexible ducting must be fully extended and cut to the required length upon installation. Maximum fan
performance will not be achieved unless the ducting is fully extended. Failure to fully extend ducting results in
a smaller air passage and lower airows. Incorrect installation may reduce airow or increase noise levels. Call
outs relating to incorrect installation will result in a service fee directed to the customer. Schweigen will take no
responsibility for problems caused by faulty installation. A list of preferred Schweigen installers can be
obtained from the Schweigen website www.schweigen.com.au.
Please keep the exi ducting taut,
4 to 5 metres in length is optimal
NOTE: In shallow roof spaces
extend exi ducting horizontally
3200 motor
Figure 4
250mm exible ducting
DO NOT reduce ducting size.

Page 17
5. Flexible Duct
Shallow Roof Space
In shallow roof spaces, do not crush or kink exible ducting, as it will reduce air ow severely. 90 degree curve
made of PVC or galvanise can be used as a substitute for the bend, refer to gure 5.
Figure 5
Figure 6
90 degree curve PVC or
galvanise curve
Important Note
Please do not crush or kink exible ducting, as it will reduce air ow and may cause noise to occur through the
system. Ducting needs to be kept taut at all times.
250mm exible ducting
DO NOT reduce ducting size.

Page 18
Securing Flexible Duct
Flexible duct must be installed with supports at maximum intervals of 1.5 metres. Flexible ductwork can be
supported by using gaer or electrical tape. Provided that it does not restrict the internal diameter of the
ducting. Ducting installed looped over hanging beams should be installed in such a manner as to ensure the
changes of direction are gradual. Support of the ducting with the use of hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Figure 7 Examples of securing ducting
Option 1
Secure the exible duct
to the beam
Option 2
Support exible duct
by using hangers.
NOTE: Care shall be
taken to minimize
sagging or snaking
of the duct between
supports.
Aluminium foil
tape
Aluminium foil tape
Hanger
5. Flexible Duct
250mm exible ducting,
DO NOT reduce ducting size.

Page 19
6. Measurements
Measurements for Isodrive 3200 (Not to Scale)
5. Measurements
400
288
250.5
440
342
15.7
50
Figure 3
Dimensions in mm
Isodrive 3200 weighs
8.3 kg without the PVC
pipe.

Page 20
7. Parts List
Parts List for Isodrive 3200
14
3
16
21
15
1
17
18
10
19
20
12
11
4
Figure 8
1
3
4
11 12
14
15
16
17
18
10
19
20
21
