Schweigen Isodrive 3200 User manual
INSTALLATION GUIDE
Isodrive 3200
Revision V1.1
HOME APPLIANCES
www.schweigen.com.au
Page 2
Index
1. Welcome ____________________________________________________________________________________________________ 3
2. Your Safety
Warning ______________________________________________________________________________________________________ 4
Before Installation __________________________________________________________________________________________ 4
Electrical Cord ______________________________________________________________________________________________ 4
Motor Features ______________________________________________________________________________________________ 5
General Notes on Installation and Use __________________________________________________________________ 5
Recommended Installation Distance ____________________________________________________________________ 5
Minimum Mounting Height ________________________________________________________________________________ 6
Avoidance of Back Flow __________________________________________________________________________________ 6
Safety of Children __________________________________________________________________________________________ 6
Replacement of Supply Cord ____________________________________________________________________________ 6
Why Flexi-duct ______________________________________________________________________________________________ 6
3. Description
Isodrive Motor _______________________________________________________________________________________________ 7
4. Installation
Roof Installation _____________________________________________________________________________________________ 9
Through Wall Installation ___________________________________________________________________________________ 10

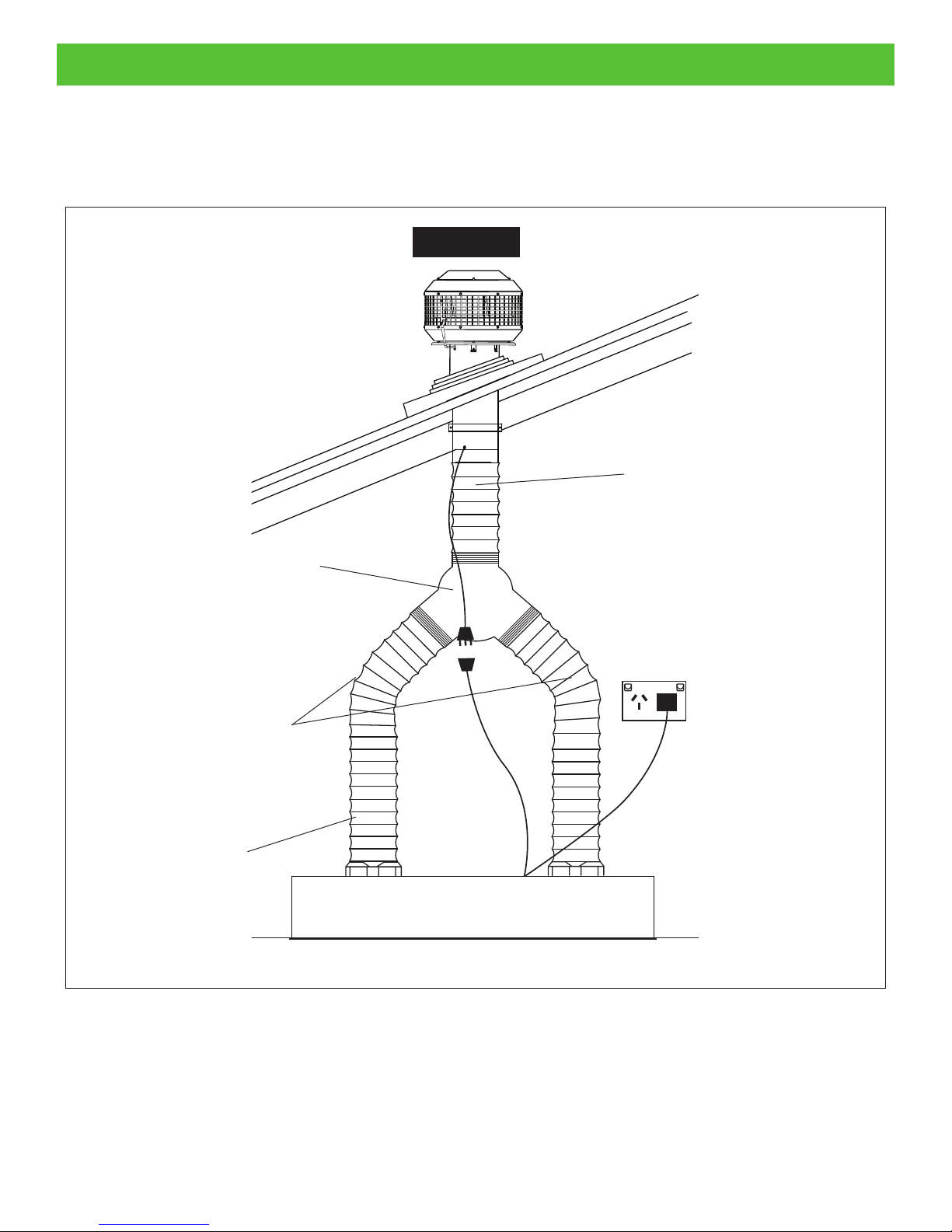

Twin 200mm Outlet Installation Example ________________________________________________________________ 12
5. Measurements

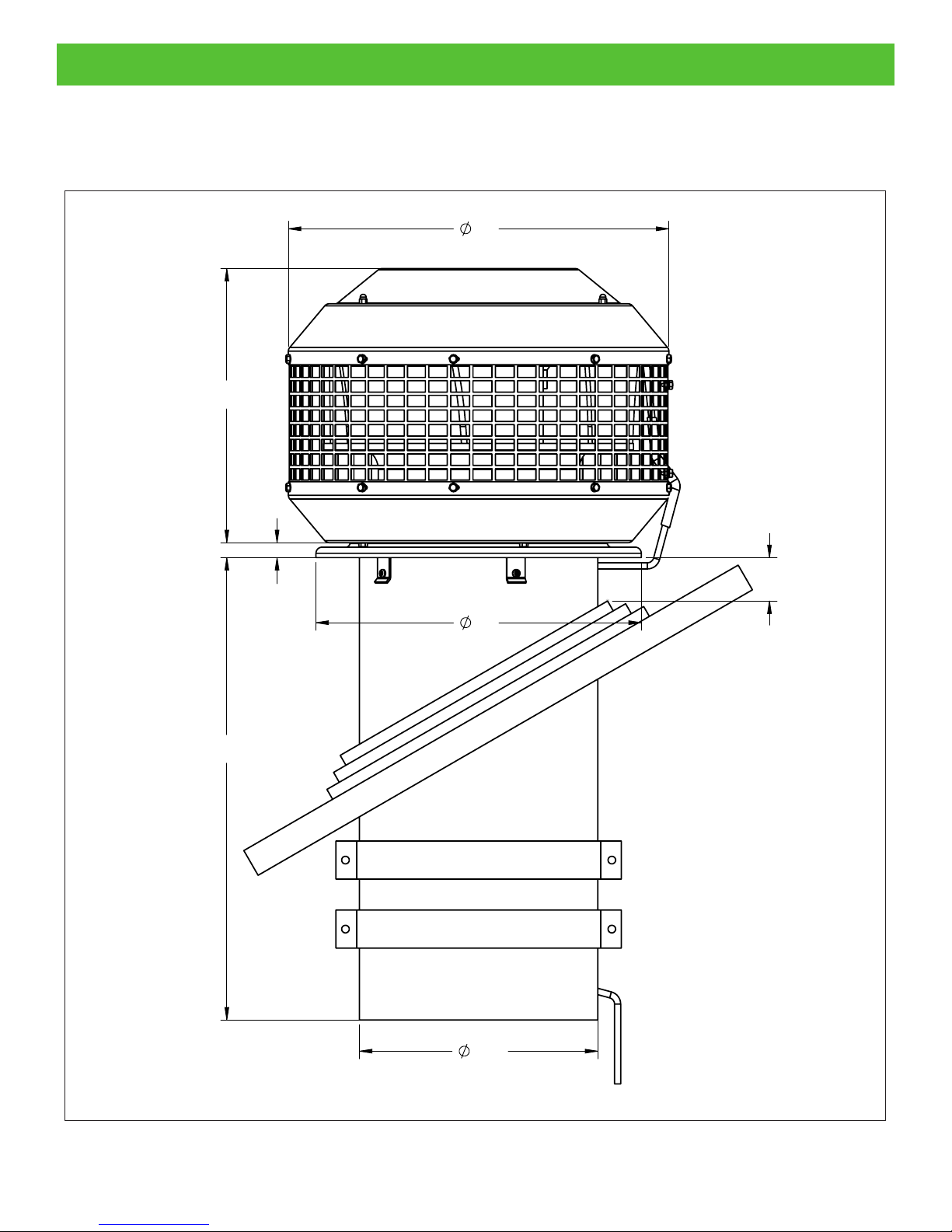

Measurements for Isodrive 3200 __________________________________________________________________________ 13
6. Flexible Duct

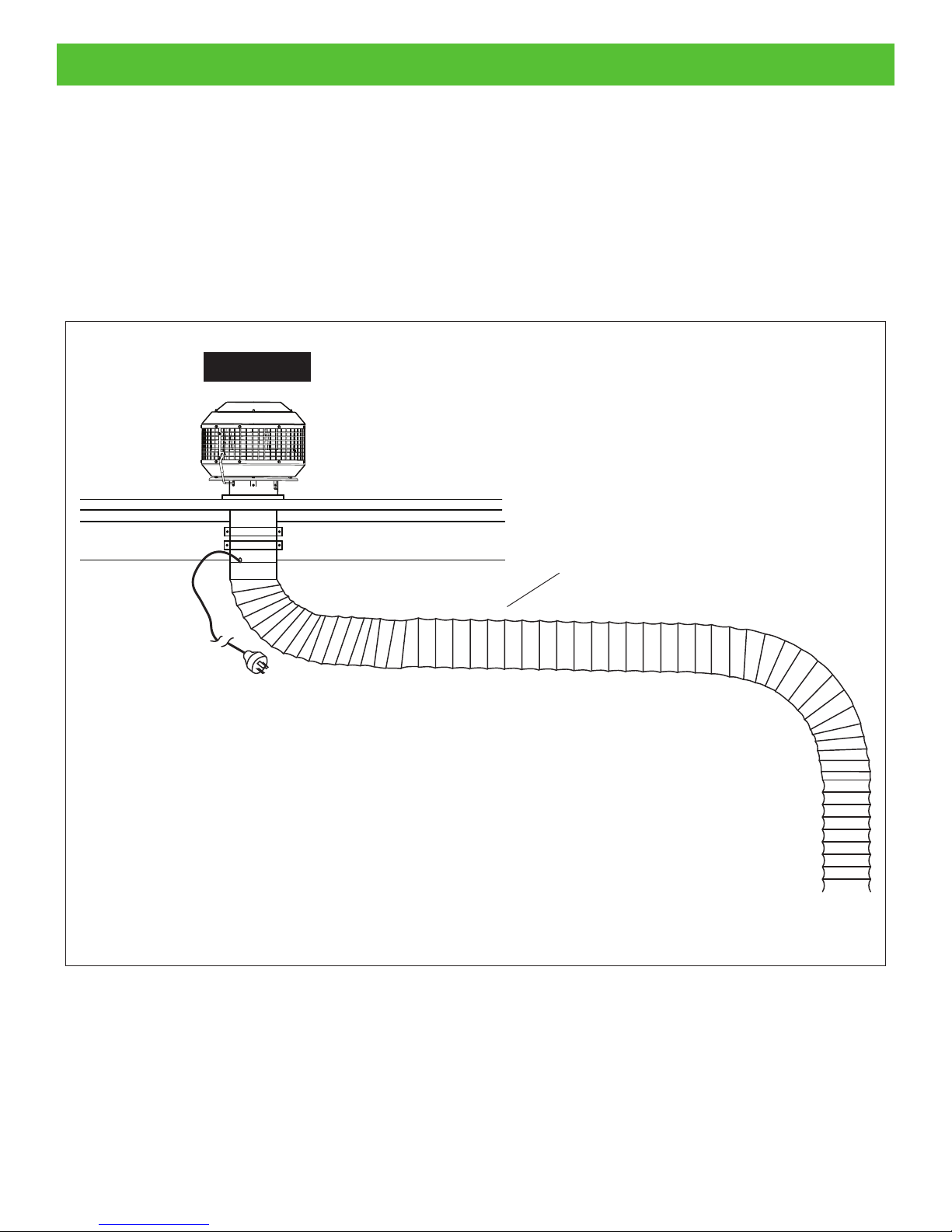

Flexible Ducting __________________________________________________________________________ 14
Shallow Roof Space ______________________________________________________________________ 15
Important Note ___________________________________________________________________________ 15
Securing Flexible Duct ____________________________________________________________________ 16
7. Parts List
Parts List for Isodrive 3200 __________________________________________________________________ 17
8. Maintenance
Roof Restoration or Cleaning ______________________________________________________________ 19
9. Warranty/Disclaimer _______________________________________________________________________________________ 19
Page 3
1. Welcome
Model
Purchase Date
Purchase Location
Thank you for purchasing your new Schweigen Isodrive system.
To get the maximum output from this unit, please read through this operating guide before use
and installation.
The operating guide contains important information on the correct use and maintenance of the unit,
as well as important safety notes. This will ensure your personal safety and the lasting value of your
Isodrive system.
We trust that you will enjoy your new Schweigen Isodrive system.
Please always retain your proof of purchase to aid in any warranty queries.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this effort to protect the environment by using the appliance efciently
and dispose of the packaging in a responsible manner.
Page 4
2. Your Safety
This appliance is not intended for use by person/s (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or knowledge, unless the person has been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance: it is not a toy.
Do not install Isodrive motor to a non-Schweigen and/or non-silent rangehood. If you do so, your
warranty will be voided.
The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
Ensure that the location in which this appliance is installed has good and permanent ventilation.
Please consult local laws and regulations and install in accordance.
Use an electrical connector with earthing that is correct for your location.
Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
Before Installation
We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
Please see our website www.schweigen.com.au for recommended installers. For further technical
assistance please call 1300 829 066.
It is dangerous to modify any part of this appliance. Modication of any kind will immediately void
the warranty.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged
it must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid
a hazard.
WARNING
Please read this section thoroughly before attempting to operate the
appliance. Inspect your product upon receipt. Any damage or defects
MUST be reported within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer,
will be responsible for the costs associated with the repair, replacement,
removal or re-installation of the appliances.
Page 5
2. Your Safety
This guide is for the installation of the Isodrive motor system after the canopy/rangehood has been
mounted on the wall or ceiling. (Refer to canopy/rangehood unit installation manual).
NOTE: All PVC pipe and exi ducting measurements are referring to inside measurements, unless
otherwise mentioned.
Motor Features
• Roof and wall mounting with IPX4 degree of weather protection.
• Super quiet, long vane, backward curved centrifugal fan.
• Airow is dependant on installation and the ducting used. Using single 250mm ex duct, you
should attain up to 3200m3/hr depending on the ducting installation. The use of a smaller than
250mm (ISD) pipe would result in a loss of airow.
• Simple installation: mounts onto a 250mm PVC pipe for ultimate strength and allows for easy
Dektite roof sealing.
• Industrial quality motor and fan made in Germany and rated at 40,000 hours.
• Motor is a high efciency PSC type and rated at 150W costing around the same as two 70W light
globes to run.
• WARRANTY 10 YEARS return to manufacturer. Covers faulty manufacturing or components. It does
not cover normal wear and tear.
General Notes on Installation and Use
This fan unit is designed to be installed using 250mm (OSD) PVC pipe as the initial connection to the
fan module. The fan unit is supplied with a 250mm (OSD) PVC pipe, 250mm (ISD) exible duct. (See
page 10 for installation detail).
This fan is suitable for connection to multiple duct runs with a minimum inlet area of 22,000mm2and
length up to 15 metres maximum (check with supplier if longer duct length required). Where possible
exible ducting must be extended sufciently to present a smooth air passage with bends of at least
the radii of twice the diameter of the duct.
WARNING: The rangehood must not be ducted into a wall cavity or a ceiling space, where a build
up of grease can occur and become a potential re risk. This will void warranty.
NOTE: Fan module and dual foil exi-duct are acoustically matched. Use of semi-rigid or rigid ducting
will result in increased noise and may void warranty. See installation instruction notes ‘Why exi-duct’.
Recommended Installation Distance
Isodrive 3200 motor, recommended 4 to 5 metres of exi ducting.
NOTE: Although less than 4 to 5 metres will increase extraction power this will result in higher noise
level. Maximum duct length 15 metres (use 250mm ducting), however please be aware that
increasing the duct length above 5m will decrease airow. Check with supplier if longer duct length
is required. Do not reduce the duct size at any time and avoid sharp bends.
Page 6
2. Your Safety
Minimum Mounting Height
This fan unit is intended for mounting at a minimum height of 2.1 metres (measured to the lower part
of the fan impeller) above a oor or the ground.
Avoidance of Back Flow
Care should be taken to avoid the back ow of gases into the room from the open ue of gas or
other open re appliances.
Safety of Children
This fan is not intended for use by young children or inrm persons without supervision.
Replacement of supply cord
If the supply cord is damaged, it must be replaced by a service agent or suitably qualied person in
order to avoid a hazard.
Why Flexi-duct
Some internet sites strongly recommend the use of rigid ducting over fully exible ducting. This may
well be the case with conventional rangehoods with internal motor rangehood but not with external
motor rangehood.
Schweigen’s unique Isodrive system works in the opposite way to conventional rangehoods, pulling
air through the hood and acoustically matched ducting, producing almost silent high volume ow.
The use of a complete rigid or semi-rigid ducting system will allow an organ piping effect to occur;
like a didgeridoo where a noise is produced at one end of a hollow rigid pipe and the noise is
amplied out the other.
The Isodrive system places the noise outside the house and it needs to be kept there.
WARNING: Installation without the use of at least the minimum recommended length of acoustically
matched exi-ducting in the system will void performance expectations. Any installation problem
must be reported to Schweigen. Call outs relating to incorrect installation will result in a service fee
direct to the customer. Schweigen takes no responsibility for problems caused by faulty installation,
this may void warranty. A preferred installer list can be obtained from Schweigen website
www.schweigen.com.au or by calling 1300 881 693.
Page 7
3. Description
Isodrive Motor
Included in the box:
1. Isodrive 3200 motor (450W x 290H mm approx.)
Approx. 3 metre, 10amp cable and standard male plug
2. Fire resistant 250mm OD1PVC riser pipe
Note: Cable cut-out at the both ends
3. Flexible ducting (250mm)
Approx. 4 metres, 250mm (260mm OD1) diameter
4. Flexible ducting (200mm)
Approx. 1.5 metres, 200mm (210mm OD1) diameter
5. 250-200mm reducer
Included with the 3200 Kit
(for rangehoods with twin outlets only)
1. Flexible ducting (200mm)
Approx. 1.5 metres, 200mm (210mm OD1) diameter
2. Y joint (250 X 200 X 200mm)
Not included in the box:
• Roof seal kit / Dektite
• Support straps for poly pipe which connects to the
roof truss
• Aluminium Foil tape
• Zip ties
• Wall Mounting Kit
1OD refers to outside dimension.
1
23
2
4
1
50mm
Dektite
Fix pipe to fan module
with side locking screws
Fit side supports to locate
pipe
250mm flexible duct
(Minimum 4 metres
ducting length fully
extended)
Power Cord
250mm PVC Pipe
Strap to supports
Note : Prevent any
cord bunching by
pulling cord
through from plug
top end
Connect to power supply
Pipe protrusion above
dektite
5
Page 8
4. Installation

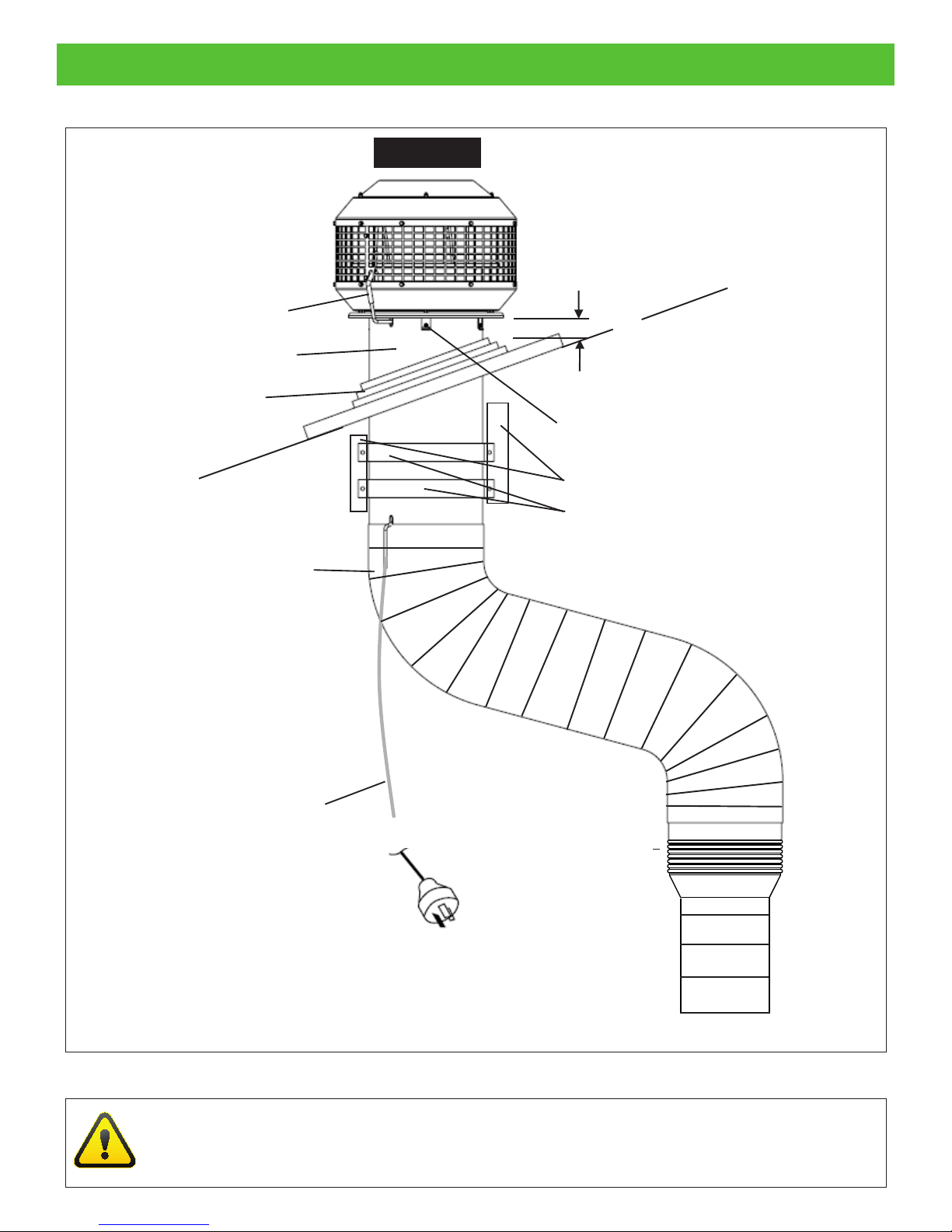

Figure 1 Roof Mount Option
IMPORANT
For more exible ducting instructions, refer to page 13.
50mm
Dektite
Fix pipe to fan module
with side locking screws
Fit side supports to locate
pipe
250mm flexible duct
(Minimum 4 metres
ducting length fully
extended)
Power Cord
250mm PVC Pipe
Strap to supports
Note : Prevent any
cord bunching by
pulling cord
through from plug
top end
Connect to power supply
Pipe protrusion above
dektite
3200 motor
200mm exible duct
Must be kept taught
250-200mm reducer
Page 9
4. Installation
Roof Installation
Recommended duct length: minimum 4 metres.
Mount 250mm (ISD) rigid PVC pipe securely to beams, trusses or other appropriate structures: refer
gure 1. The pipe should be mounted vertically with the roof penetration being sealed using a Dektite or
other appropriate sealing membrane or device.
Ensure that the PVC pipe protrudes at least 50mm past the top of the Dektite, checking that the fan
assembly clears the roof cladding at upper edge, refer gure 1.
Pass power cord and plug through mounting ange and pipe, then out the slotted PVC pipe for
connection to the female plug coming from the canopy/rangehood. Refer to gure 1.
Do not insert plug into socket outlet or switch on until installation has been completed. Fit fan module to
pipe and x in position using side locking screw.
Certain external installation congurations may cause audible levels of noise to be heard due to the
air being expelled from the motor. To minimize external noise disturbance you can use between 5 to 15
metres of exi duct to place the Isodrive motor in an appropriate position.
Please be aware that the 3200 motor is capable of expelling air at 3200m3/hr.
For more information on environmental noise limit and conditions please contact your local Council. We
have a list of recommended installers available on the Schweigen website.
Page 10
4. Installation

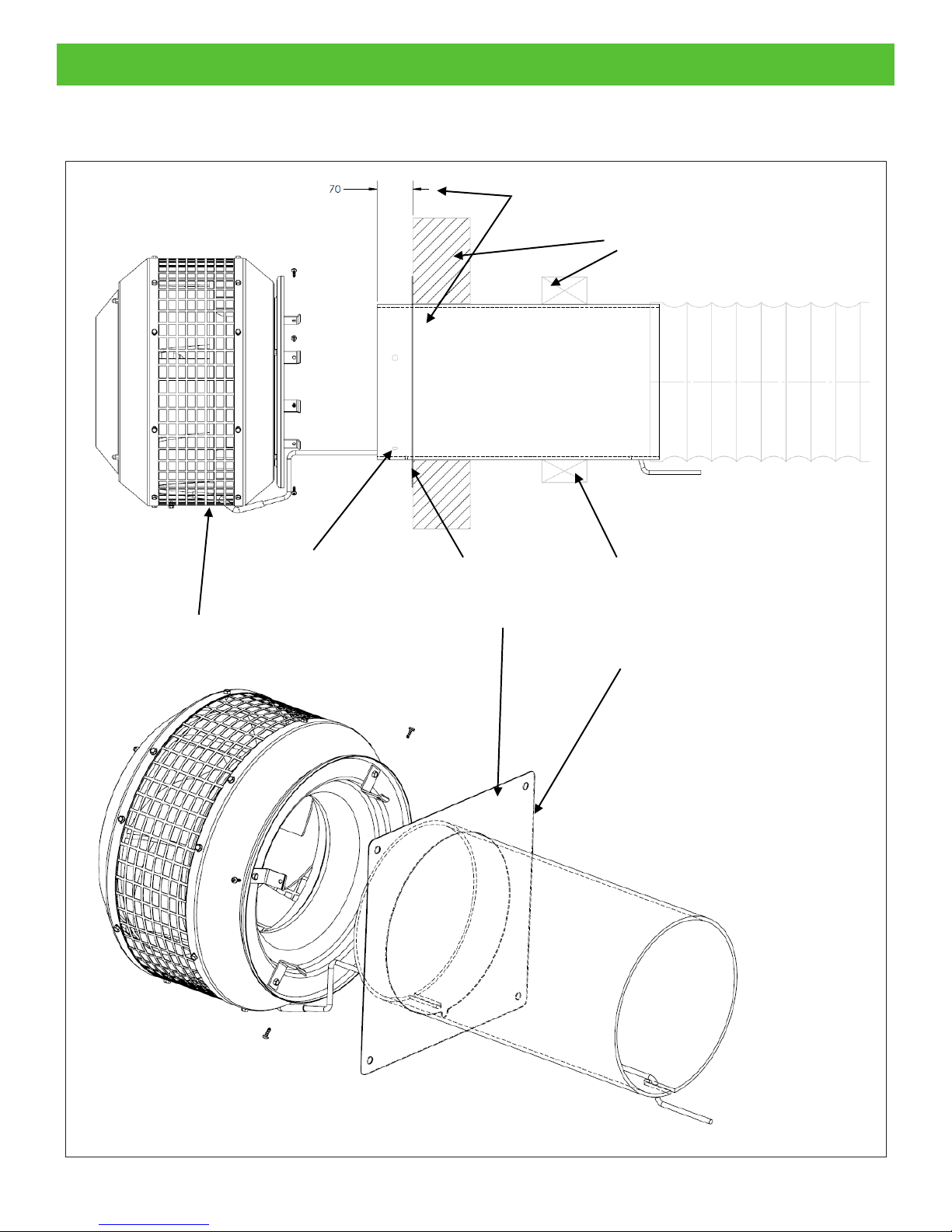

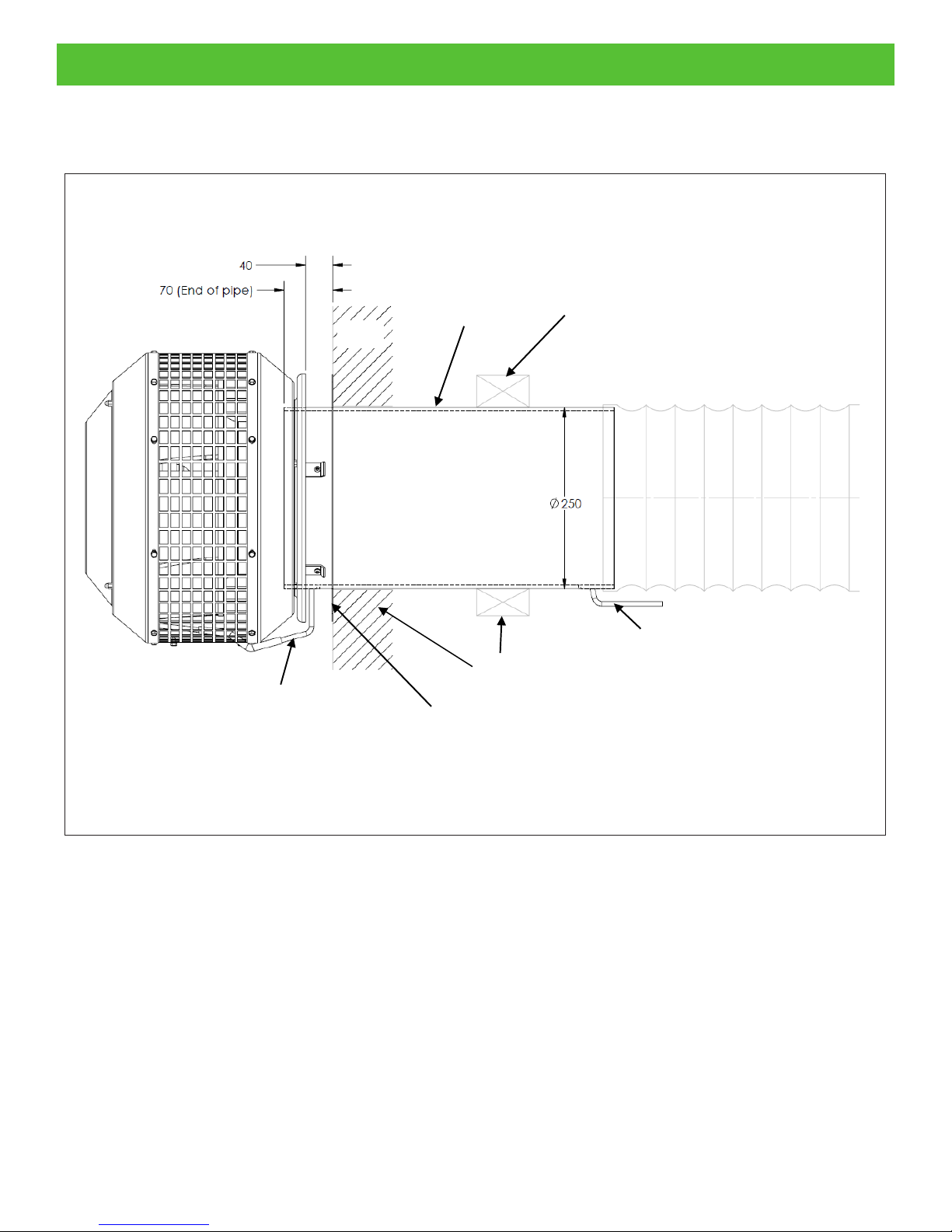

THROUGH WALL INSTALLATION
Wall
Minimum portrusion
distance from wall
Recommended to x pipe to a support
structure or strapping bracket
(not included in mounting kit).
Ensure power cable, pipe and
cover plate slot is at the bottom.
Wall cover plate
(Optional - Part Number P2025)
Power cable
Through Wall Installation
Mounting points
Connecting pipe
Note: Make sure that the connecting pipe is well supported, at least 2 mounting points recommended.
Page 11
4. Installation
Protrude pipe to distance
(use as reference only)
Marked fastening holes
rst before installing
Install fan unit last
Ensure slot cover plate,
power cable and pipe slot
is at the bottom.
Fix pipe to structure or with
a strapping bracket.
Mounting points
Wall cover plate
(Optional - Part Number P2025)
Page 12
4. Installation
Figure 2 Roof mount option
Twin 200mm Outlet Installation Example (3200 Kit required)
This is for use where one motor is to be used and there are two 200mm outlets.
Try to keep length of
exible ducting as
even as possible other
wise motors will draw
air off each other
Ensure exible ducting
is fully extended and as
short as possible. Use
smooth owing curves
for maximum air ow.
Remove excess ducting
by trimming to length.
250 x 200 x 200mm
If multi-t Y joint supplied
you will need to cut to size.
3200 motor
200mm exible
duct
Page 13
5. Measurements
Measurements for Isodrive 3200 (Not to Scale)
400
288
250.5
440
342
15.7
50
Figure 3
Dimensions in mm
Isodrive 3200 weighs
8.3 kg without the
PVC pipe.
Page 14
6. Flexible Duct
Flexible Ducting
Flexible ducting must be fully extended and cut to the required length upon installation. Maximum
fan performance will not be achieved unless the ducting is fully extended. Failure to fully extend
ducting results in a smaller air passage and lower airows. Incorrect installation may reduce airow or
increase noise levels. Call outs relating to incorrect installation will result in a service fee directed to
the customer. Schweigen will take no responsibility for problems caused by faulty installation. A list of
preferred Schweigen installers can be obtained from the Schweigen website www.schweigen.com.au.
Please keep the exi ducting taut,
4 to 5 metres in length
NOTE: In shallow roof spaces
extend exi ducting horizontally
3200 motor
Figure 4
Page 15
6. Flexible Duct
Shallow Roof Space
In shallow roof spaces, do not crush or kink exible ducting, as it will reduce air ow severely. 90
degree curve made of PVC or galvanise can be used as a substitute for the bend, refer to gure 5.
Figure 5
Figure 6
90 degree curve PVC
or galvanise curve
Important Note
Please do not crush or kink exible ducting, as it will reduce air ow and may cause noise to occur
through the system. Ducting needs to be kept taut at all times.
Page 16
6. Flexible Duct
Securing Flexible Duct
Flexible duct must be installed with supports at maximum intervals of 1.5 metres. Flexible ductwork
can be supported by using gaffer or electrical tape. Provided that it does not restrict the internal
diameter of the ducting. Ducting installed looped over hanging beams should be installed in such
a manner as to ensure the changes of direction are gradual. Support of the ducting with the use of
hangers may be required, see option 2.
NOTE: Ducting should be kept taut at all times.
Figure 7 Examples of securing ducting
Option 1
Secure the exible
duct to the beam
Option 2
Support exible duct
by using hangers.
NOTE: Care shall
be taken to
minimize sagging or
snaking of the duct
between supports.
Aluminium foil
tape
Aluminium foil tape
Hanger
Page 17
7. Parts List
Parts List for Isodrive 3200
Parts List (Isodrive 3200 )
14
2
3
6
5
16
7
8
21
15
1
13
17
18
10
19
20
12
11
4
9
7
10
Figure 8
Page 18
7. Parts List
Parts List for Isodrive 3200
Number Part Number Description Quantity
1 P1114 Capacitor 4µF 1
2 P1123 No.6 X 1 ¼ “ S/T Screw Pan Head 1
3 P40112 Terminal Box – Box Base and Lid 1
4 P807 Terminal Block 1
5 P1122 No.6 X ¾ “ S/T Screw Pan Head 2
6 P40019 Cable Clamp 1
7 P1128N M5 Hex Nut 12
8 P2002 3200 Fan Mounting Bracket 1
9 P1126 M4X8 Pan Head Machine Screws 4
10 P2010 M5X14 Hex Head Machine Screw 4
11 P1101 Fan Top Spinning 1
12 P2011 M5X8 SUS Hex Nut Cap 4
13 P2001R R4E 310 Motor 1
14 P2003 Fan Guard 1
15 P1124 M4X12 Hex Washer Head S/S ST 22
16 P2007 Fan Bottom Spinning 1
17 P2004 3200 Inlet Cone 1
18 P2005 Pipe Bracket 4
19 P1125 M4X14 Pan Head S/S TT 4
20 P2006 250mm PVC Pipe 1
21 P301 Power Cable 1
22 P2020 M5X16 Hex Head Machine Screw 4
23 P2023 Cable Protective Grommet (200mm) 1
P2025 Optional Wall Cover Plate
Page 19
8. Maintenance
Roof Restoration or Cleaning
Before doing your roof restoration or cleaning, please completely cover the outside motor system
and avoid all chemical contact.
IMPORANT
Any damages caused
by the use of chemical
products are not covered
by warranty.
Figure 9 Avoid chemical contact to motor
system.
**Images for illustration purposes only.
Applies for all motors.
Warranty (See warranty for more information)
Isodrive motor has a 10-Year replacement product warranty. This is a change over warranty. The
consumer is responsible for any charges associated with removal of the faulty unit and installation
of the new unit. The customer is also responsible for any freight charges incurred in this change
over process.
Disclaimer
Under our policy of continuous product development, product specications may change without
notice. Prospective purchasers should therefore check with the retailer to ensure this publication
correctly describes the products being offered for sale. All information supplied is to be used for
general reference purposes only and is on the understanding that Schweigen Home Appliances will
not be liable for any loss, liability or damage of whatever kind arising as a result of any reliance upon
such information. All pictures used in the guide are for illustrative purposes only.
For further technical assistance please call 1300 829 066.
HOME APPLIANCES
Distributed by: Unit 102/45 Gilby Road,
Mt Waverley 3149 Victoria.
1300 881 693 (EST)
www.schweigen.com.au
Other manuals for Isodrive 3200
2
Table of contents
Other Schweigen Engine manuals
