Schweitzer Engineering Laboratories SEL-734 User manual
SEL-734 Meter Instruction Manual Date Code 20090730
Equipment components are sensitive to electrostatic discharge
(ESD). Undetectable permanent damage can result if you do
not use proper ESD procedures. Ground yourself, your work
surface, and this equipment before removing any cover from
this equipment. If your facility is not equipped to work with
these components, contact SEL about returning this device and
related SEL equipment for service.
!
CAUTION
There is danger of explosion if the battery is incorrectly
replaced. Replace only with Ray-O-Vac®no. BR2335 or
equivalent recommended by manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
!
CAUTION
Use of controls or adjustments, or performance of procedures
other than those specified herein, may result in hazardous
radiation exposure.
!
CAUTION
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
!
CAUTION
Disconnect or de-energize all external connections before
opening this device. Contact with hazardous voltages and
currents inside this device can cause electrical shock resulting
in injury or death.
!
DANGER
Contact with instrument terminals can cause electrical shock
that can result in injury or death.
!
DANGER
Have only qualified personnel service this equipment. If you are
not qualified to service this equipment, you can injure yourself
or others, or cause equipment damage.
!
WARNING
Use of this equipment in a manner other than specified in this
manual can impair operator safety safeguards provided by this
equipment.
!
WARNING
This device is shipped with default passwords. Default
passwords should be changed to private passwords at
installation. Failure to change each default password to a
private password may allow unauthorized access. SEL shall not
be responsible for any damage resulting from unauthorized
access.
!
WARNING
Les composants de cet équipement sont sensibles aux
décharges électrostatiques (DES). Des dommages permanents
non-décelables peuvent résulter de l’absence de précautions
contre les DES. Raccordez-vous correctement à la terre, ainsi
que la surface de travail et l’appareil avant d’en retirer un
panneau. Si vous n’êtes pas équipés pour travailler avec ce type
de composants, contacter SEL afin de retourner l’appareil pour
un service en usine.
!
ATTENTION
Il y a un danger d’explosion si la pile électrique n’est pas
correctement remplacée. Utiliser exclusivement Ray-O-Vac®
No. BR2335 ou un équivalent recommandé par le fabricant. Se
débarrasser des piles usagées suivant les instructions du
fabricant.
!
ATTENTION
L’utilisation de commandes ou de réglages, ou l’application de
tests de fonctionnement différents de ceux décrits ci-après
peuvent entraîner l’exposition à des radiations dangereuses.
!
ATTENTION
Les changements ou modifications qui ne sont pas
expressément approuvés par l'autorité responsable de se
prononcer sur la conformité pourraient annuler le pouvoir de
l'usager à actionner l'équipement.
!
ATTENTION
Débrancher tous les raccordements externes avant d’ouvrir cet
appareil. Tout contact avec des tensions ou courants internes à
l’appareil peut causer un choc électrique pouvant entraîner des
blessures ou la mort.
!
DANGER
Tout contact avec les bornes de l’appareil peut causer un choc
électrique pouvant entraîner des blessuers ou la mort.
!
DANGER
Seules des personnes qualifiées peuvent travailler sur cet
appareil. Si vous n’êtes pas qualifiés pour ce travail, vous
pourriez vous blesser avec d’autres personnes ou endommager
l’équipement.
!
AVERTISSEMENT
L'utilisation de cet appareil suivant des procédures différentes
de celles indiquées dans ce manuel peut désarmer les
dispositifs de protection d'opérateur normalement actifs sur
cet équipement.
!
AVERTISSEMENT
Cet appareil est expédié avec des mots de passe par défaut. A
l’installation, les mots de passe par défaut devront être
changés pour des mots de passe confidentiels. Dans le cas
contraire, un accés non-autorisé á l’équipement peut être
possible. SEL décline toute responsabilité pour tout dommage
résultant de cet accés non-autorisé.
!
AVERTISSEMENT
© 2003–2009 by Schweitzer Engineering Laboratories, Inc. All rights reserved.
All brand or product names appearing in this document are the trademark or registered trademark of their respective holders. No SEL
trademarks may be used without written permission. SEL products appearing in this document may be covered by US and Foreign patents.
Schweitzer Engineering Laboratories, Inc. reserves all rights and benefits afforded under federal and international copyright and patent laws in
its products, including without limitation software, firmware, and documentation.
The information in this manual is provided for informational use only and is subject to change without notice. Schweitzer Engineering
Laboratories, Inc. has approved only the English language manual.
This product is covered by the standard SEL 10-year warranty. For warranty details, visit www.selinc.com or contact your customer service
representative. PM734-01
Courtesy of NationalSwitchgear.com
Date Code 20090730 Instruction Manual SEL-734 Meter
Table of Contents
List of Tables ........................................................................................................................................................ v

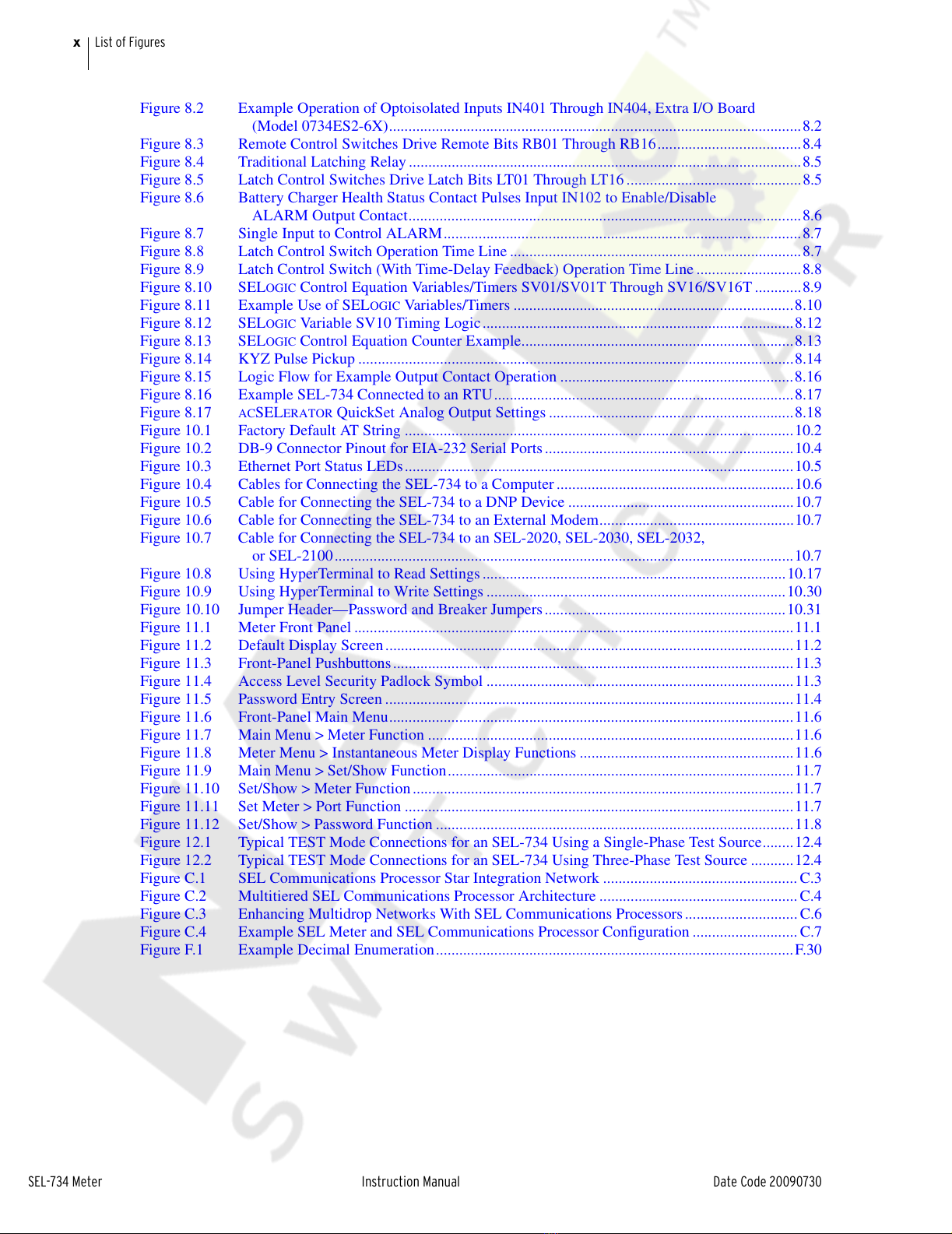

List of Figures..................................................................................................................................................... ix

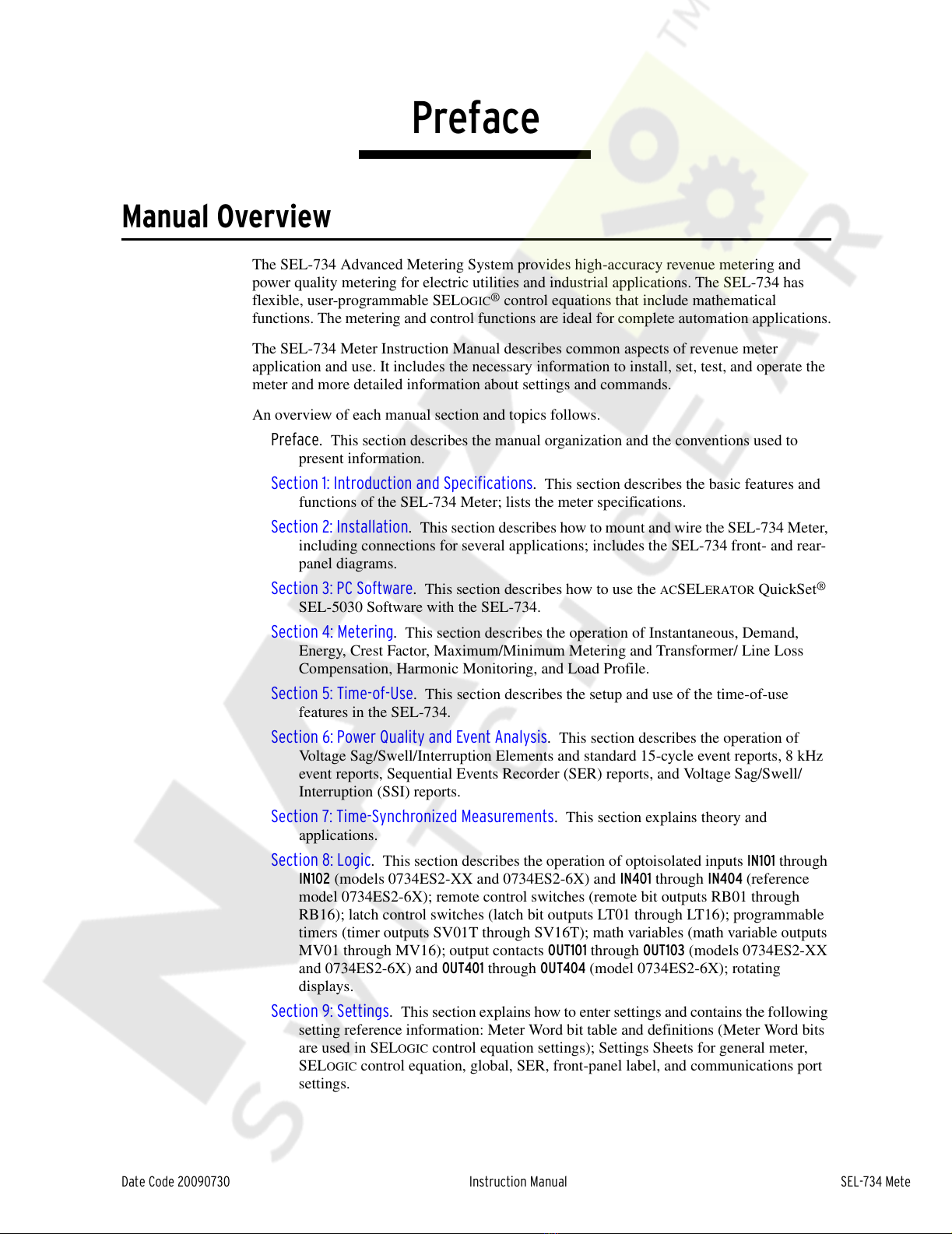

Preface .................................................................................................................................................................. xi
Section 1: Introduction and Specifications
Overview ......................................................................................................................................................... 1.1
SEL-734 Meter Forms and Models ................................................................................................................. 1.1
Applications..................................................................................................................................................... 1.3
Hardware Connection Features ....................................................................................................................... 1.4
Communications Connections......................................................................................................................... 1.6
Specifications .................................................................................................................................................. 1.7
Section 2: Installation
Overview ......................................................................................................................................................... 2.1
Meter Mounting............................................................................................................................................... 2.1
Connection Diagrams ...................................................................................................................................... 2.3
Making Rear-Panel Connections ..................................................................................................................... 2.6
Circuit Board Connections ............................................................................................................................ 2.14
Section 3: PC Software
Overview ......................................................................................................................................................... 3.1
Installing the Computer Software.................................................................................................................... 3.1
Installation ....................................................................................................................................................... 3.2
Starting ACSELERATOR QuickSet ................................................................................................................... 3.2
Section 4: Metering
Overview ......................................................................................................................................................... 4.1
Four-Quadrant VAR Metering......................................................................................................................... 4.2
Instantaneous Metering ................................................................................................................................... 4.3
Demand Metering............................................................................................................................................ 4.5
Energy Metering............................................................................................................................................ 4.13
Energy Interface ............................................................................................................................................ 4.14
Maximum/Minimum Metering...................................................................................................................... 4.16
Crest Factor Metering.................................................................................................................................... 4.18
Harmonic Metering ....................................................................................................................................... 4.19
Transformer/Line Loss Compensation .......................................................................................................... 4.21
Load Profile Report ....................................................................................................................................... 4.28
Metering Calculations ................................................................................................................................... 4.36
Section 5: Time-of-Use
Introduction ..................................................................................................................................................... 5.1
Settings ............................................................................................................................................................ 5.1
TOU Setup....................................................................................................................................................... 5.2
TOU Glossary................................................................................................................................................ 5.11
Section 6: Power Quality and Event Analysis
Overview ......................................................................................................................................................... 6.1
Event Reports .................................................................................................................................................. 6.2
Example Standard 15-Cycle Event Report...................................................................................................... 6.6
Sequential Events Recorder (SER) Report...................................................................................................... 6.8
Example Sequential Events Recorder (SER) Report..................................................................................... 6.10
Sag/Swell/Interruption (SSI) Report ............................................................................................................. 6.11
Courtesy of NationalSwitchgear.com
ii
SEL-734 Meter Instruction Manual Date Code 20090730
Table of Contents
Section 7: Time-Synchronized Measurements
Overview..........................................................................................................................................................7.1
Meter Configuration for High-Accuracy Timekeeping ...................................................................................7.1
Synchrophasor Measurements .........................................................................................................................7.3
Power Flow Analysis .......................................................................................................................................7.9
State Estimation Verification .........................................................................................................................7.11
Section 8: Logic
Overview..........................................................................................................................................................8.1
Optoisolated Inputs ..........................................................................................................................................8.2
Remote Control Switches ................................................................................................................................8.4
Latch Bits.........................................................................................................................................................8.5
SELOGIC Control Equation Variables/Timers..................................................................................................8.9
Math Variables ...............................................................................................................................................8.11
Counter Variables...........................................................................................................................................8.11
KYZ Outputs..................................................................................................................................................8.13
Output Contacts .............................................................................................................................................8.15
Analog Output................................................................................................................................................8.17
Rotating Display ............................................................................................................................................8.18
Section 9: Settings
Overview..........................................................................................................................................................9.1
Settings Changes Via the Serial Port ...............................................................................................................9.2
Meter Word Bits (Used in SELOGIC Control Equations).................................................................................9.3
Settings Explanations.....................................................................................................................................9.11
Settings Sheets ...............................................................................................................................................9.12
Section 10: Communications
Overview........................................................................................................................................................10.1
Communications Options ..............................................................................................................................10.1
Port Connector and Communications Cables ................................................................................................10.4
Communications Protocols ............................................................................................................................10.8
Command Summary ....................................................................................................................................10.12
Command Explanations ...............................................................................................................................10.14
SEL-734 Meter Command Summary ..........................................................................................................10.33
Section 11: Front-Panel Operation
Front-Panel Layout ........................................................................................................................................11.1
Normal Front-Panel Display ..........................................................................................................................11.2
Front-Panel Automatic Messages ..................................................................................................................11.2
Front-Panel Menus and Operations ...............................................................................................................11.2
Front-Panel Main Menu.................................................................................................................................11.6
Section 12: Testing and Troubleshooting
Overview........................................................................................................................................................12.1
Testing Philosophy.........................................................................................................................................12.1
Testing Methods and Tools ............................................................................................................................12.3
Gain Adjustment ..........................................................................................................................................12.11
Meter Self-Tests ...........................................................................................................................................12.12
Meter Troubleshooting.................................................................................................................................12.14
Meter Calibration.........................................................................................................................................12.15
Factory Assistance .......................................................................................................................................12.15
Appendix A: Firmware and Manual Versions
Firmware .........................................................................................................................................................A.1
Instruction Manual..........................................................................................................................................A.7
Courtesy of NationalSwitchgear.com
iii
Date Code 20090730 Instruction Manual SEL-734 Meter
Table of Contents
Appendix B: SEL Distributed Port Switch Protocol (LMD)
Overview .........................................................................................................................................................B.1
Settings ............................................................................................................................................................B.1
Operation .........................................................................................................................................................B.1
Appendix C: SEL Communications Processors
SEL Communications Protocols......................................................................................................................C.1
SEL Communications Processor .....................................................................................................................C.3
SEL Communications Processor and Meter Architecture...............................................................................C.5
SEL Communications Processor Example......................................................................................................C.7
Appendix D: Setting SELOGIC Control Equations
Overview ........................................................................................................................................................ D.1
Meter Word Bits ............................................................................................................................................. D.1
SELOGIC Control Equations........................................................................................................................... D.1
Processing Order and Processing Interval ...................................................................................................... D.4
Appendix E: Distributed Network Protocol
Overview .........................................................................................................................................................E.1
Configuration...................................................................................................................................................E.4
EIA-232 Physical Layer Operation ...............................................................................................................E.13
Ethernet Operation.........................................................................................................................................E.14
Data-Link Operation......................................................................................................................................E.14
Data Access Method......................................................................................................................................E.15
Device Profile ................................................................................................................................................E.15
Object Table...................................................................................................................................................E.17
Data Map .......................................................................................................................................................E.19
Appendix F: Modbus RTU Communications Protocol
Overview ......................................................................................................................................................... F.1
Modbus RTU Communications Protocol ........................................................................................................ F.1
Appendix G: MIRRORED BITS Communications
Overview ........................................................................................................................................................ G.1
Operation ........................................................................................................................................................ G.1
MIRRORED BITS Protocol for Pulsar 9600 Baud Modem ............................................................................... G.4
Settings ........................................................................................................................................................... G.4
Appendix H: Analog Quantities
Glossary
Index
SEL-734 Meter Command Summary
Courtesy of NationalSwitchgear.com
Date Code 20090730 Instruction Manual SEL-734 Meter
List of Tables
Table 1.1 SEL-734 Form Numbers ........................................................................................................ 1.1
Table 1.2 SEL-734 Feature Availability................................................................................................. 1.2
Table 2.1 SEL-734 Power Supply Fuse Requirements .......................................................................... 2.7
Table 2.2 Expansion Slot C (#1) Circuit Board Jumper J7 Information.............................................. 2.11
Table 2.3 Communication Cables Used to Connect the SEL-734 to Other Devices ........................... 2.12
Table 2.4 Optical Port Probes............................................................................................................... 2.13
Table 3.1 System Requirements for ACSELERATOR QuickSet .............................................................. 3.1
Table 4.1 Metering Quantity Definitions ............................................................................................... 4.3
Table 4.2 Demand Meter Settings and Settings Ranges ........................................................................ 4.8
Table 4.3 Time = 5 Minutes Intervals .................................................................................................... 4.8
Table 4.4 Time = 10 Minutes Intervals .................................................................................................. 4.8
Table 4.5 Time = 15 Minutes Intervals .................................................................................................. 4.9
Table 4.6 Demand Meter Settings and Settings Range........................................................................ 4.10
Table 4.7 Example ANGCUT Setting..................................................................................................4.13
Table 4.8 Energy Interface Table ......................................................................................................... 4.14
Table 4.9 MET H Command................................................................................................................ 4.21
Table 4.10 Meter Power Calculation Corrections According to Meter Position ................................... 4.22
Table 4.11 Analog Values Affected by Transformer/Line Loss Compensation..................................... 4.22
Table 4.12 Required User Input ............................................................................................................. 4.23
Table 4.13 Settings for Example Loss Calculations............................................................................... 4.26
Table 4.14 Load Profile Recorder Settings and Commands .................................................................. 4.28
Table 4.15 LDP Serial Port Commands ................................................................................................. 4.29
Table 4.16 LDP File Transfer Commands .............................................................................................4.31
Table 4.17 LDP Field Format................................................................................................................. 4.31
Table 4.18 Meter Configuration Record ................................................................................................ 4.32
Table 4.19 SEL-734 Load Profile Record Response.............................................................................. 4.34
Table 4.20 Record Type 0065—Present Values..................................................................................... 4.34
Table 4.21 Record Type 0066—Meter Status ........................................................................................ 4.34
Table 4.22 Record Type 0067—LDP Data ............................................................................................ 4.35
Table 4.23 Status Nibble Definitions ..................................................................................................... 4.35
Table 4.24 Record Type 0068—SER Data............................................................................................. 4.36
Table 4.25 Record Type 0069—LDP Error ........................................................................................... 4.36
Table 5.1 Available Time-of-Use Data................................................................................................... 5.9
Table 6.1 Example EVE Commands...................................................................................................... 6.3
Table 6.2 Standard Event Report Current, Voltage, and Frequency Columns ....................................... 6.5
Table 6.3 Example SER Serial Port Commands .................................................................................... 6.9
Table 6.4 Sequence of Events Recorder Explanation .......................................................................... 6.10
Table 6.5 Element Status Columns ...................................................................................................... 6.13
Table 6.6 Status SSI Column ............................................................................................................... 6.13
Table 7.1 Required Synchrophasor Settings .......................................................................................... 7.4
Table 7.2 PMDATA Setting for Synchrophasor Fast Message Data Selection (Form 9 Meter) ............ 7.5
Table 7.3 SEL Fast Message Protocol Format ....................................................................................... 7.6
Table 7.4 Unsolicited Write Message Transmission Rates .................................................................... 7.6
Table 7.5 Minimum Bandwidth Requirements ...................................................................................... 7.7
Table 7.6 Unsolicited Fast Message Enable Packet ............................................................................... 7.8
Table 7.7 Unsolicited Fast Message Disable Packet .............................................................................. 7.8
Table 7.8 Meter Voltage and Current Measurement .............................................................................. 7.9
Table 8.1 SEL-734 Logic Inputs and Outputs........................................................................................8.1
Table 8.2 Operator Precedence ............................................................................................................ 8.10
Table 8.3 Counter Inputs and Outputs.................................................................................................. 8.11
Table 8.4 KYZ Energy Values.............................................................................................................. 8.13
Table 8.5 KYZ Output Settings and Ranges ........................................................................................ 8.14
Table 8.6 Analog Output Settings ........................................................................................................ 8.17
Table 8.7 Example Connection Details................................................................................................ 8.18
Courtesy of NationalSwitchgear.com
vi List of Tables
SEL-734 Meter Instruction Manual Date Code 20090730
Table 8.8 Display Point Test Definitions..............................................................................................8.19
Table 8.9 Display Point Formatting......................................................................................................8.20
Table 9.1 Serial Port SET Commands....................................................................................................9.1
Table 9.2 Set Command Editing Keystrokes..........................................................................................9.2
Table 9.3 SEL-734 Meter Word Bits ......................................................................................................9.3
Table 9.4 SEL-734 Meter Word Bit Definitions.....................................................................................9.5
Table 10.1 SEL-734 Meter Models and Available Serial Ports..............................................................10.1
Table 10.2 Modem Settings....................................................................................................................10.2
Table 10.3 Useful AT Commands ..........................................................................................................10.3
Table 10.4 Useful Dialing Modifiers......................................................................................................10.3
Table 10.5 Ethernet Port LED Description.............................................................................................10.5
Table 10.6 Pinout Functions for EIA-232 Serial Ports 2, 3, and 4 .........................................................10.5
Table 10.7 Serial Communications Port Pin/Terminal Function Definitions.........................................10.8
Table 10.8 Serial Port Automatic Messages.........................................................................................10.11
Table 10.9 MET CF Command Displayed Quantities..........................................................................10.19
Table 10.10 MET D Command Displayed Values .................................................................................10.19
Table 10.11 MET E Command Displayed Quantities ............................................................................10.20
Table 10.12 MET Command Displayed Magnitudes .............................................................................10.22
Table 10.13 MET M Command Displayed Quantities...........................................................................10.23
Table 10.14 MET PM Displayed Quantities ..........................................................................................10.23
Table 10.15 SHO Command Options.....................................................................................................10.24
Table 10.16 STA Abbreviation Definitions ............................................................................................10.25
Table 10.17 TAR Command Options .....................................................................................................10.26
Table 10.18 SEL-734 Meter Word and Its Correspondence to TAR Command ....................................10.26
Table 10.19 SEL-734 Meter Control Subcommands .............................................................................10.29
Table 10.20 Factory Default Passwords .................................................................................................10.31
Table 10.21 Main Board Jumpers...........................................................................................................10.32
Table 10.22 STA S Command ................................................................................................................10.32
Table 10.23 STA SC and STA SR Command.........................................................................................10.33
Table 10.24 Command Summary ...........................................................................................................10.33
Table 11.1 Front-Panel Automatic Messages .........................................................................................11.2
Table 11.2 Front-Panel Pushbutton Functions........................................................................................11.3
Table 12.1 Meter Testing Features .........................................................................................................12.3
Table 12.2 Default Meter Test Pulse Weights ........................................................................................12.7
Table 12.3 IEEE Recommended Test Pulses........................................................................................12.10
Table 12.4 Values Affected by WGAIN and VARGAIN .....................................................................12.11
Table 12.5 Meter Self-Tests..................................................................................................................12.13
Table A.1 Firmware Revision History.................................................................................................... A.1
Table A.2 Instruction Manual Revision History.....................................................................................A.7
Table C.1 Supported Serial Command Sets ...........................................................................................C.1
Table C.2 Compressed ASCII Commands............................................................................................. C.2
Table C.3 SEL Communications Processors Protocol Interfaces .......................................................... C.4
Table C.4 SEL Communications Processor Port 1 Settings................................................................... C.7
Table C.5 SEL Communications Processor Data Collection Auto-messages........................................ C.8
Table C.6 SEL Communications Processor Port 1 Automatic Messaging Settings .............................. C.8
Table C.7 SEL Communications Processor Port 1 Region Map............................................................ C.8
Table C.8 Communications Processor METER Region Map ................................................................ C.9
Table D.1 SELOGIC Control Equation Operators (Listed in Processing Order) ....................................D.2
Table D.2 SELOGIC Control Equation Settings Limitations for the SEL-734 Meter Model .................D.3
Table D.3 Processing Order of Meter Elements and Logic (Top to Bottom).........................................D.4
Table E.1 VSSI Record Status Report Definitions ................................................................................ E.3
Table E.2 Phase SSI Column Definitions .............................................................................................. E.3
Table E.3 SEL-734 DNP3 Default Data Map ........................................................................................ E.4
Table E.4 SEL-734 DNP3 Default Variations........................................................................................ E.4
Table E.5 DNP3 Device Profile ............................................................................................................. E.5
Table E.6 DNP-IP Specific Settings .................................................................................................... E.14
Table E.7 Data Access Methods .......................................................................................................... E.15
Table E.8 SEL-734 DNP3 Device Profile............................................................................................ E.15
Courtesy of NationalSwitchgear.com
viiList of Tables
Date Code 20090730 Instruction Manual SEL-734 Meter
Table E.9 SEL-734 DNP Object List....................................................................................................E.17
Table E.10 Event Causes ........................................................................................................................E.19
Table E.11 Fault Type.............................................................................................................................E.19
Table E.12 Control Field ........................................................................................................................E.19
Table F.1 Modbus Query Fields ............................................................................................................. F.1
Table F.2 SEL-734 Meter Modbus Function Codes............................................................................... F.2
Table F.3 SEL-734 Meter Modbus Exception Codes............................................................................. F.2
Table F.4 01h Read Coil Status Commands...........................................................................................F.3
Table F.5 Meter Responses to 01h Read Coil Query Errors .................................................................. F.3
Table F.6 02h Read Input Status Command...........................................................................................F.4
Table F.7 SEL-734 Meter Inputs............................................................................................................ F.4
Table F.8 Responses to 02h Read Input Query Errors ........................................................................... F.4
Table F.9 03h Read Holding Register Command................................................................................... F.5
Table F.10 Responses to 03h Read Holding Register Query Errors ........................................................ F.5
Table F.11 04h Read Holding Register Command................................................................................... F.6
Table F.12 Responses to 04h Read Holding Register Query Errors ........................................................ F.6
Table F.13 05h Force Single Coil Command ........................................................................................... F.6
Table F.14 SEL-734 Meter Output Coils (FC05h)................................................................................... F.7
Table F.15 Responses to 05h Force Singe Coil Query Errors.................................................................. F.7
Table F.16 06h Preset Single Register Command.................................................................................... F.7
Table F.17 Responses to 06h Preset Single Register Query Errors.......................................................... F.7
Table F.18 08h Loopback Diagnostic Command..................................................................................... F.8
Table F.19 Responses to 08h Loopback Diagnostic Query Errors........................................................... F.8
Table F.20 10h Preset Multiple Registers Command............................................................................... F.8
Table F.21 Responses to 10h Preset Multiple Registers Query Errors .................................................... F.9
Table F.22 Modbus Conversion.............................................................................................................. F.10
Table F.23 Modbus Register Map .......................................................................................................... F.11
Table F.24 Sequence of Event Enumerations.........................................................................................F.29
Table F.25 Load Profile Status Enumeration ......................................................................................... F.29
Table F.26 Load Profile Record Status Bits ........................................................................................... F.30
Table F.27 Example Load Profile Status Enumeration .......................................................................... F.30
Table G.1 Using the SPEED Setting to Control MIRRORED BIT Rates ................................................. G.4
Table G.2 Matching RX_ID of Local Meter to TX_ID of Remote Meter............................................. G.5
Table H.1 Instantaneous and RMS Quantities ....................................................................................... H.2
Table H.2 Demand Metering.................................................................................................................. H.4
Table H.3 Peak Demand Metering......................................................................................................... H.5
Table H.4 Energy Metering.................................................................................................................... H.7
Table H.5 Maximum/Minimum Metering ............................................................................................. H.8
Table H.6 Harmonics Metering.............................................................................................................. H.9
Table H.7 Flicker Metering.................................................................................................................. H.10
Table H.8 Diagnostics .......................................................................................................................... H.10
Table H.9 Date/Time ............................................................................................................................ H.10
Table H.10 SELOGIC Counters .............................................................................................................. H.10
Table H.11 SELOGIC Math Variables..................................................................................................... H.11
Table H.12 DNP Remote Analog Output Objects ................................................................................. H.11
Table H.13 Transformer Ratio Settings ................................................................................................. H.11
Table H.14 Prefix and Qualifier Descriptions........................................................................................ H.11
Table H.15 Time-of-Use ........................................................................................................................ H.11
Courtesy of NationalSwitchgear.com
Date Code 20090730 Instruction Manual SEL-734 Meter
List of Figures
Figure 1.1 SEL-734 Applied at Billing Points Throughout the Power System....................................... 1.3
Figure 1.2 SEL-734 Inputs, Outputs, and Communications Ports .......................................................... 1.4
Figure 1.3 SEL-734 Extra I/O Board (Expansion Slot #2)...................................................................... 1.5
Figure 1.4 SEL-734 Communications Connection Examples................................................................. 1.6
Figure 2.1 SEL-734 Horizontal Panel-Mount Dimensions ..................................................................... 2.1
Figure 2.2 SEL-734 Vertical Panel-Mount Dimensions .......................................................................... 2.2
Figure 2.3 SEL-734 Easily Extractable Meter (EXM) Mounting Dimensions ....................................... 2.2
Figure 2.4 SEL-734 Horizontal Front-Panel Drawing............................................................................. 2.3
Figure 2.6 Rear-Panel Drawings for Model 0734ES2-6X....................................................................... 2.5
Figure 2.7 Grounding Terminal Symbol.................................................................................................. 2.6
Figure 2.8 Form 9, 3-Element, 4-Wire Wye ............................................................................................ 2.9
Figure 2.9 Form 5, 2-Element, 3-Wire Delta......................................................................................... 2.10
Figure 2.10 J7 Internal Telephone Modem Jumper Positions ................................................................. 2.11
Figure 2.11 J7 Location on the Auxiliary Communication Board .......................................................... 2.11
Figure 2.12 Connector and Major Component Locations on the SEL-734 Main Board
(Models 0734ES2-XX and 0734ES2-6X) ........................................................................ 2.14
Figure 4.1 IEEE VAR Sign Convention................................................................................................... 4.2
Figure 4.2 SEL-734 Power Flow Notations............................................................................................. 4.3
Figure 4.3 Response of Thermal, Rolling, and Block Demand Meters to a Step Input
(Setting DMTC=15 Minutes) ............................................................................................. 4.6
Figure 4.4 Voltage VS Applied to Series RC Circuit .............................................................................. 4.7
Figure 4.5 PREDAL Logic .................................................................................................................... 4.10
Figure 4.6 Demand Current Logic Outputs ...........................................................................................4.11
Figure 4.7 FAULT and DFAULT Meter Word Bit Logic....................................................................... 4.17
Figure 4.8 Meter and Billing Positions.................................................................................................. 4.21
Figure 4.9 Example System Values ....................................................................................................... 4.25
Figure 5.1 Setup Page .............................................................................................................................. 5.2
Figure 5.2 Rate Schedules Page............................................................................................................... 5.3
Figure 5.3 Schedule Drop-Down Menu................................................................................................... 5.3
Figure 5.4 Deleting a Rate Schedule ....................................................................................................... 5.4
Figure 5.5 Renaming a Rate Schedule..................................................................................................... 5.4
Figure 5.6 Modifying a Rate Schedule.................................................................................................... 5.5
Figure 5.7 Calendar Page......................................................................................................................... 5.6
Figure 5.8 Calendar Entry Drop-Down Menu ......................................................................................... 5.7
Figure 5.9 Calendar Entry Editor............................................................................................................. 5.7
Figure 5.10 Calendar Entry Editor............................................................................................................. 5.7
Figure 5.11 Quick Set Menu...................................................................................................................... 5.8
Figure 5.12 TOU Data Page ...................................................................................................................... 5.8
Figure 5.13 Total At/Since Demand Reset .............................................................................................. 5.11
Figure 5.14 Peak Cumulative Demand .................................................................................................... 5.12
Figure 6.1 Standard Event Report Summary........................................................................................... 6.2
Figure 6.2 Typical Auto Message Response............................................................................................ 6.5
Figure 6.3 Example Standard 15-Cycle Event Report 1/16-Cycle Resolution (Wye-Connected PTs)... 6.7
Figure 6.4 Example Sequential Events Recorder (SER) Event Report ................................................. 6.10
Figure 6.5 ACSELERATOR QuickSet VSSI Report With CBEMA/ITIC and Disturbance Analysis..... 6.11
Figure 6.6 Example SSI Response in ACSELERATOR QuickSet ........................................................... 6.12
Figure 6.7 Example Sag/Swell/Interruption (SSI) Report (Meter Form 9)........................................... 6.13
Figure 6.8 Example Sag/Swell/Interruption (SSI) Report (Meter Form 5)........................................... 6.14
Figure 7.1 High-Accuracy Timekeeping Connections ............................................................................ 7.2
Figure 7.2 500 kV Three Bus Power System........................................................................................... 7.9
Figure 7.3 Power Flow Solution ............................................................................................................ 7.11
Figure 8.1 Example Operation of Optoisolated Inputs IN101 Through IN102
(Models 0734ES2-XX and 0734ES2-6X) .......................................................................... 8.2
Courtesy of NationalSwitchgear.com
xList of Figures
SEL-734 Meter Instruction Manual Date Code 20090730
Figure 8.2 Example Operation of Optoisolated Inputs IN401 Through IN404, Extra I/O Board
(Model 0734ES2-6X)..........................................................................................................8.2
Figure 8.3 Remote Control Switches Drive Remote Bits RB01 Through RB16.....................................8.4
Figure 8.4 Traditional Latching Relay .....................................................................................................8.5
Figure 8.5 Latch Control Switches Drive Latch Bits LT01 Through LT16 .............................................8.5
Figure 8.6 Battery Charger Health Status Contact Pulses Input IN102 to Enable/Disable
ALARM Output Contact.....................................................................................................8.6
Figure 8.7 Single Input to Control ALARM............................................................................................8.7
Figure 8.8 Latch Control Switch Operation Time Line ...........................................................................8.7
Figure 8.9 Latch Control Switch (With Time-Delay Feedback) Operation Time Line ...........................8.8
Figure 8.10 SELOGIC Control Equation Variables/Timers SV01/SV01T Through SV16/SV16T ............8.9
Figure 8.11 Example Use of SELOGIC Variables/Timers ........................................................................8.10
Figure 8.12 SELOGIC Variable SV10 Timing Logic................................................................................8.12
Figure 8.13 SELOGIC Control Equation Counter Example......................................................................8.13
Figure 8.14 KYZ Pulse Pickup ................................................................................................................8.14
Figure 8.15 Logic Flow for Example Output Contact Operation ............................................................8.16
Figure 8.16 Example SEL-734 Connected to an RTU.............................................................................8.17
Figure 8.17 ACSELERATOR QuickSet Analog Output Settings ...............................................................8.18
Figure 10.1 Factory Default AT String ....................................................................................................10.2
Figure 10.2 DB-9 Connector Pinout for EIA-232 Serial Ports ................................................................10.4
Figure 10.3 Ethernet Port Status LEDs....................................................................................................10.5
Figure 10.4 Cables for Connecting the SEL-734 to a Computer .............................................................10.6
Figure 10.5 Cable for Connecting the SEL-734 to a DNP Device ..........................................................10.7
Figure 10.6 Cable for Connecting the SEL-734 to an External Modem..................................................10.7
Figure 10.7 Cable for Connecting the SEL-734 to an SEL-2020, SEL-2030, SEL-2032,
or SEL-2100......................................................................................................................10.7
Figure 10.8 Using HyperTerminal to Read Settings ..............................................................................10.17
Figure 10.9 Using HyperTerminal to Write Settings .............................................................................10.30
Figure 10.10 Jumper Header—Password and Breaker Jumpers..............................................................10.31
Figure 11.1 Meter Front Panel .................................................................................................................11.1
Figure 11.2 Default Display Screen.........................................................................................................11.2
Figure 11.3 Front-Panel Pushbuttons.......................................................................................................11.3
Figure 11.4 Access Level Security Padlock Symbol ...............................................................................11.3
Figure 11.5 Password Entry Screen .........................................................................................................11.4
Figure 11.6 Front-Panel Main Menu........................................................................................................11.6
Figure 11.7 Main Menu > Meter Function ..............................................................................................11.6
Figure 11.8 Meter Menu > Instantaneous Meter Display Functions .......................................................11.6
Figure 11.9 Main Menu > Set/Show Function.........................................................................................11.7
Figure 11.10 Set/Show > Meter Function ..................................................................................................11.7
Figure 11.11 Set Meter > Port Function ....................................................................................................11.7
Figure 11.12 Set/Show > Password Function ............................................................................................11.8
Figure 12.1 Typical TEST Mode Connections for an SEL-734 Using a Single-Phase Test Source........12.4
Figure 12.2 Typical TEST Mode Connections for an SEL-734 Using Three-Phase Test Source ...........12.4
Figure C.1 SEL Communications Processor Star Integration Network .................................................. C.3
Figure C.2 Multitiered SEL Communications Processor Architecture ................................................... C.4
Figure C.3 Enhancing Multidrop Networks With SEL Communications Processors ............................. C.6
Figure C.4 Example SEL Meter and SEL Communications Processor Configuration ........................... C.7
Figure F.1 Example Decimal Enumeration............................................................................................F.30
Courtesy of NationalSwitchgear.com
Date Code 20090730 Instruction Manual SEL-734 Meter
Preface
Manual Overview
The SEL-734 Advanced Metering System provides high-accuracy revenue metering and
power quality metering for electric utilities and industrial applications. The SEL-734 has
flexible, user-programmable SELOGIC®control equations that include mathematical
functions. The metering and control functions are ideal for complete automation applications.
The SEL-734 Meter Instruction Manual describes common aspects of revenue meter
application and use. It includes the necessary information to install, set, test, and operate the
meter and more detailed information about settings and commands.
An overview of each manual section and topics follows.
Preface. This section describes the manual organization and the conventions used to
present information.
Section 1: Introduction and Specifications.This section describes the basic features and
functions of the SEL-734 Meter; lists the meter specifications.
Section 2: Installation.This section describes how to mount and wire the SEL-734 Meter,
including connections for several applications; includes the SEL-734 front- and rear-
panel diagrams.
Section 3: PC Software.This section describes how to use the ACSELERATOR QuickSet®
SEL-5030 Software with the SEL-734.
Section 4: Metering.This section describes the operation of Instantaneous, Demand,
Energy, Crest Factor, Maximum/Minimum Metering and Transformer/ Line Loss
Compensation, Harmonic Monitoring, and Load Profile.
Section 5: Time-of-Use.This section describes the setup and use of the time-of-use
features in the SEL-734.
Section 6: Power Quality and Event Analysis.This section describes the operation of
Voltage Sag/Swell/Interruption Elements and standard 15-cycle event reports, 8 kHz
event reports, Sequential Events Recorder (SER) reports, and Voltage Sag/Swell/
Interruption (SSI) reports.
Section 7: Time-Synchronized Measurements.This section explains theory and
applications.
Section 8: Logic.This section describes the operation of optoisolated inputs IN101 through
IN102 (models 0734ES2-XX and 0734ES2-6X) and IN401 through IN404 (reference
model 0734ES2-6X); remote control switches (remote bit outputs RB01 through
RB16); latch control switches (latch bit outputs LT01 through LT16); programmable
timers (timer outputs SV01T through SV16T); math variables (math variable outputs
MV01 through MV16); output contacts OUT101 through OUT103 (models 0734ES2-XX
and 0734ES2-6X) and OUT401 through OUT404 (model 0734ES2-6X); rotating
displays.
Section 9: Settings.This section explains how to enter settings and contains the following
setting reference information: Meter Word bit table and definitions (Meter Word bits
are used in SELOGIC control equation settings); Settings Sheets for general meter,
SELOGIC control equation, global, SER, front-panel label, and communications port
settings.
Courtesy of NationalSwitchgear.com
xii
SEL-734 Meter Instruction Manual Date Code 20090730
Preface
Conventions
Section 10: Communications.This section describes serial port connector pinout/terminal
functions, communications cables, communications protocol, serial port commands,
and Ethernet port commands.
Section 11: Front-Panel Operation.This section describes the front-panel operation of
pushbuttons and correspondence to serial port commands and rotating displays.
Section 12: Testing and Troubleshooting.This section describes the general testing
philosophy, methods, and tools, as well as meter self-tests and troubleshooting.
Appendix A: Firmware and Manual Versions.This appendix lists the present meter
firmware version and details differences among the present and previous versions.
Provides a record of changes made to the instruction manual since the initial release.
Appendix B: SEL Distributed Port Switch Protocol (LMD).This appendix describes how to
perform settings and operation of the LMD to permit multiple SEL meters to share a
common communications channel.
Appendix C: SEL Communications Processors.This appendix describes how SEL
communications processors and PC software use SEL protocols optimized for
performance and reliability.
Appendix D: Setting SELOGIC Control Equations.This appendix describes how to set the
control elements (Meter Word bits) in the SELOGIC control equations.
Appendix E: Distributed Network Protocol.This appendix describes DNP and includes
the DNP Port Settings Sheets.
Appendix F: Modbus RTU Communications Protocol.This appendix describes Modbus®
RTU communications features supported by the SEL-734 Meter communications
port.
Appendix G: MIRRORED BITS Communications.This appendix contains a summary of
MIRRORED BITS®settings and describes how MIRRORED BITS function with the
SEL-734.
Appendix H: Analog Quantities.This appendix contains a summary of analog quantities
available for use in load profile, displaying points, etc.
SEL-734 Meter Command Summary.This section briefly describes the serial port
commands that are described in detail in Section 10: Communications.
Conventions
Typographic Conventions
There are three ways to communicate with the SEL-734:
➤Using ACSELERATOR QuickSet Software.
➤Using a command line interface on a PC terminal emulation window.
➤Using the front-panel menus and pushbuttons.
The instructions in this manual indicate these options with specific font and formatting
attributes. The following table lists these conventions.
Courtesy of NationalSwitchgear.com
xiii
Date Code 20090730 Instruction Manual SEL-734 Meter
Preface
Safety and General Information
Examples This instruction manual uses several example illustrations and instructions to explain how to
effectively operate the SEL-734. These examples are for demonstration purposes only; the
firmware identification information or settings values included in these examples may not
necessarily match those in the current version of your SEL-734.
Safety and General Information
Safety Information
This manual uses three kinds of hazard statements, formatted as follows:
Symbols The following symbols from EN 61010-1 are often marked on SEL products.
Laser The SEL-734 is a Class 1 LED Product and complies with IEC 60825-1:1993 + A1:1997 +
A2:2001. The following figure shows the compliance label that is located on the left side of
the device (when facing the front of the device). Figure 2.4 shows the location of the Class 1
LED, PORT F (the front optical port), on the front panel of the SEL-734.
Typographic Conventions
Example Description
STATUS Commands typed at a command line interface on a PC.
<Enter> Single keystroke on a PC keyboard.
<Ctrl+D> Multiple/combination keystroke on a PC keyboard.
Start > Settings PC dialog boxes and menu selections. The > character indicates submenus.
RESET Meter front-panel pushbuttons.
ENABLE Meter front- or rear-panel labels.
MAIN > METER Meter front-panel LCD menus and meter responses. The > character indicates submenus.
Indicates a potentially
hazardous situation
that, if not avoided,
may result in minor or
moderate injury or
equipment damage.
!
CAUTION
!
WARNING
Indicates a potentially
hazardous situation
that, if not avoided,
could result in death or
serious injury.
Indicates an
imminently hazardous
situation that, if not
avoided, will result in
death or serious injury.
!
DANGER
Symbol 14
Consult Documentation for Additional Information
Symbol 6
Protective (Safety) Ground Conductor Terminal
Symbol 1
Direct Current
Symbol 2
Alternating Current
Symbol 3
Direct and Alternating Current
Symbol 5
Earth (Ground) Terminal
!
Courtesy of NationalSwitchgear.com
xiv
SEL-734 Meter Instruction Manual Date Code 20090730
Preface
Safety and General Information
!
WARNING
Indicates a potentially
hazardous situation
that, if not avoided,
could result in death or
serious injury.
FCC CLASS A WARNING
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Class 1 LED Product Compliance Label and Location
The following table shows LED information specific to the SEL-734.
SEL-734 LED Information
Item Detail
Max Optical Output: 3.8 mW
Incorporated LED
Peak Wavelength: 870 nm
Radiant Power: 40 mW typ. (Ifa= 100 mA, tpb= 20 ms)
aIf = Forward current
btp = Pulse duration
Max Radiant Intensity: 400 mW/sr (Ifa= 100 mA, tpb= 20 ms)
Radiant Intensity: 1600 mW/sr (Ifa= 1A, tpb= 100 us)
Courtesy of NationalSwitchgear.com
xv
Date Code 20090730 Instruction Manual SEL-734 Meter
Preface
Safety and General Information
Safety Warnings and Precautions
Use of controls or
adjustments, or
performance of
procedures other than
those specified herein,
may result in
hazardous radiation
exposure.
!
CAUTION
➤Do not look into the optical port.
➤Do not perform any procedures or adjustments that are not described in this manual.
➤During installation, maintenance, or testing of the optical ports only use test
equipment classified as Class 1 laser products.
➤Incorporated components such as transceivers and laser/LED emitters are not user
serviceable. Units must be returned to SEL for repair or replacement.
Instructions for Cleaning and Decontamination
Use care when cleaning the SEL-734. Use a mild soap or detergent solution and a damp cloth
to clean the chassis. Do not use abrasive materials, polish compounds, or harsh chemical
solvents (such as xylene or acetone) on any surface.
Technical Assistance
Obtain technical assistance from the following address:
Schweitzer Engineering Laboratories, Inc.
2350 NE Hopkins Court
Pullman, WA 99163-5603 USA
Telephone: +1.509.332.1890
Fax: +1.509.332.7990
Internet: www.selinc.com
E-mail: info@selinc.com
Courtesy of NationalSwitchgear.com
Date Code 20090730 Instruction Manual SEL-734 Meter
Section 1
Introduction and Specifications
Overview
This section includes the following overviews of the SEL-734 Advanced
Metering System:
➤SEL-734 Meter Forms and Models
➤Applications
➤Hardware Connection Features
➤Communications Connections
➤Specifications
SEL-734 Meter Forms and Models
This instruction manual covers the following SEL-734 Meter Forms and
Models.
Model numbers are derived from the SEL-734 Model Option Table. For the
available options, associated option codes, or to order an SEL-734, refer to the
Model Option Table for this product at the SEL website.
The SEL-734 offers two options for current classes, CL10 or CL20. The
internal hardware of the SEL-734 is identical for both classes. Therefore, a
CL10 meter will meter accurately up to the CL20 meter rating of 20 amps.
The only difference between an SEL-734 CL10 and CL20 is the configuration
label on the front panel. SEL recommends using a CL20 meter unless a
specification calls for a CL10 meter.
Throughout this manual, meter model 0734ES2-6X (Expansion Slot #2 = 6X)
and model 0734ES2-8X (Expansion Slot #2 = 8X) are used to show the
difference from model 0734ES2-XX (Expansion Slot #2 = XX) when
necessary for discussion. The only difference is that meter models
0734ES2-6X and 0734ES2-8X have an extra I/O board (see Figure 2.6).
Meter models 0734ES1-XX and 0734ES1-2X show the difference between an
empty expansion slot #1 and slot #1 with an optional communications card.
Ta b l e 1 . 1 S E L - 7 3 4 Fo r m N u m b e r s
Meter Form Type
Form 5 3 wire delta
Form 9 4 wire wye
Courtesy of NationalSwitchgear.com
1.2
SEL-734 Meter Instruction Manual Date Code 20090730
Introduction and Specifications
SEL-734 Meter Forms and Models
The presence of certain features in a particular SEL-734 varies according to
the firmware revision, serial number, and the Power Quality model option.
This manual describes features that are not present in some model variations.
These features and their specifications are shown in Table 1.2.
Table 1.2 SEL-734 Feature Availability
Configurations
Part Number 07340 07340 0734P 0734P
Firmware Revision R101–R525 R126 and later
R526 and later
R130 and later
R530 and later
R130 and later
R530 and later
Serial Number 20082259999 and
below
20082260000 and
above
20082259999 and
below
20082260000 and
above
Memory 2 MB 2MB 2MB 6MB
Load Profile
LDP (1st recorder)
Storage Capacitya
aIn number of days at 5-minute intervals.
35 35 35 135
Acquisition Rate Options 1 m, 5 m, 10 m, 15 m,
30 m, 60 m
1 m, 5 m, 10 m, 15 m,
30 m, 60 m
3–59 s, 1 m, 5 m, 10 m,
15 m, 30 m, 60 m
3–59 s, 1 m, 5 m, 10 m,
15 m, 30 m, 60 m
Number of Channels 16 16 64 192
Number of Recorders 1 1 4 12
Flicker Measurement NNY, P ST, PLT Y, PST, PLT
Harmonic Measurement—
Highest Order
15th 15th 50th 50th
Waveform Capture Standard
Event Reports
Storage Capacityb
bIn number of events.
4 4 1–29
(Varies with event
duration)
9–90
(Varies with event
duration)
Event Duration 15 cycles 0.25 sec 0.25, 0.5, or 1 sec 0.25, 0.5, or 1 sec
Sample Rate 16 samples per cycle 1 kHz 1 kHz or 8 kHz 1 kHz or 8 kHz
Courtesy of NationalSwitchgear.com
Other manuals for SEL-734
1
Table of contents
Other Schweitzer Engineering Laboratories Measuring Instrument manuals
