Schweitzer Engineering Laboratories SEL-734 User manual
Optical port, communications
and test mode LED
User-defined site information
Menu pushbuttons for alternate
display and settings
Programmable LCD
Enable LED
Programmable local-
control button
Potential LEDs
Programmable LEDs
Figure 1. Front-panel layout
Making Electric Power Safer, More Reliable, and More Economica
l
®
SEL-734 Advanced Metering System
Quick-Start Guide
I. Introduction
This Quick-Start Guide explains how
to install, configure, test, and operate
the SEL-734 Advanced Metering System.
For detailed information on these topics,
please refer to the SEL-734 Advanced
Metering System Instruction Manual
located at www.selmeters.com.
II. SEL-734 Overview
This section outlines essential
installation information, including
front-panel layout, rear-panel layout, labels, and dimensions.
A. Front-Panel Layout
The front-panel interface consists of three programmable LEDs, an LCD, a seven-button keypad, and an
optical communications port.
Courtesy of NationalSwitchgear.com
2
B. Rear-Panel Layout
Removable connectors allow easy wiring for PT circuits, I/O, communications, and the auxiliary power
supply. The CT circuits require ring terminals for safety.
I/O board: 4 outputs (EM or SS),
4 inputs or 4 analog outputs,
4 SS outputs
Communications board: EIA-485,
telephone modem, EIA-232
Note: Functions as one port
PT board: VA, VB, VC, N Main board: Ethernet, IRIG-B,
EIA-232
CT board: IA, IB, IC, IN
Ground terminal
Power supply board: Auxiliary
power supply inputs, 3 outputs,
2 inputs
Mechanical sealing mechanism
Figure 2. Rear-panel layout
Figure 3. Labels and dimensions
C. Labels and Dimensions
The top and side labels
depict important information,
including auxiliary power
supply input voltage.
The cutout dimensions for
the horizontal and vertical
meter chassis are identical. The
vertical chassis is designed to
fit into existing panel cutouts
with an optional retrofit bezel.
7.32 in (186 mm)
5.43 in (138 mm)
Control input voltage
Part number
Serial number
Compliance
marks
Auxiliary power
supply input
voltage
ANSI Configuration Label
FM: Form designation
CL: Current class
V: Rated voltage
W: Wires
Hz: Frequency (hertz)
TA: Test amperes
Kh: Watt-hour meter constant
Kt: Watt-hour meter test constant
CA: Accuracy class
Courtesy of NationalSwitchgear.com
3

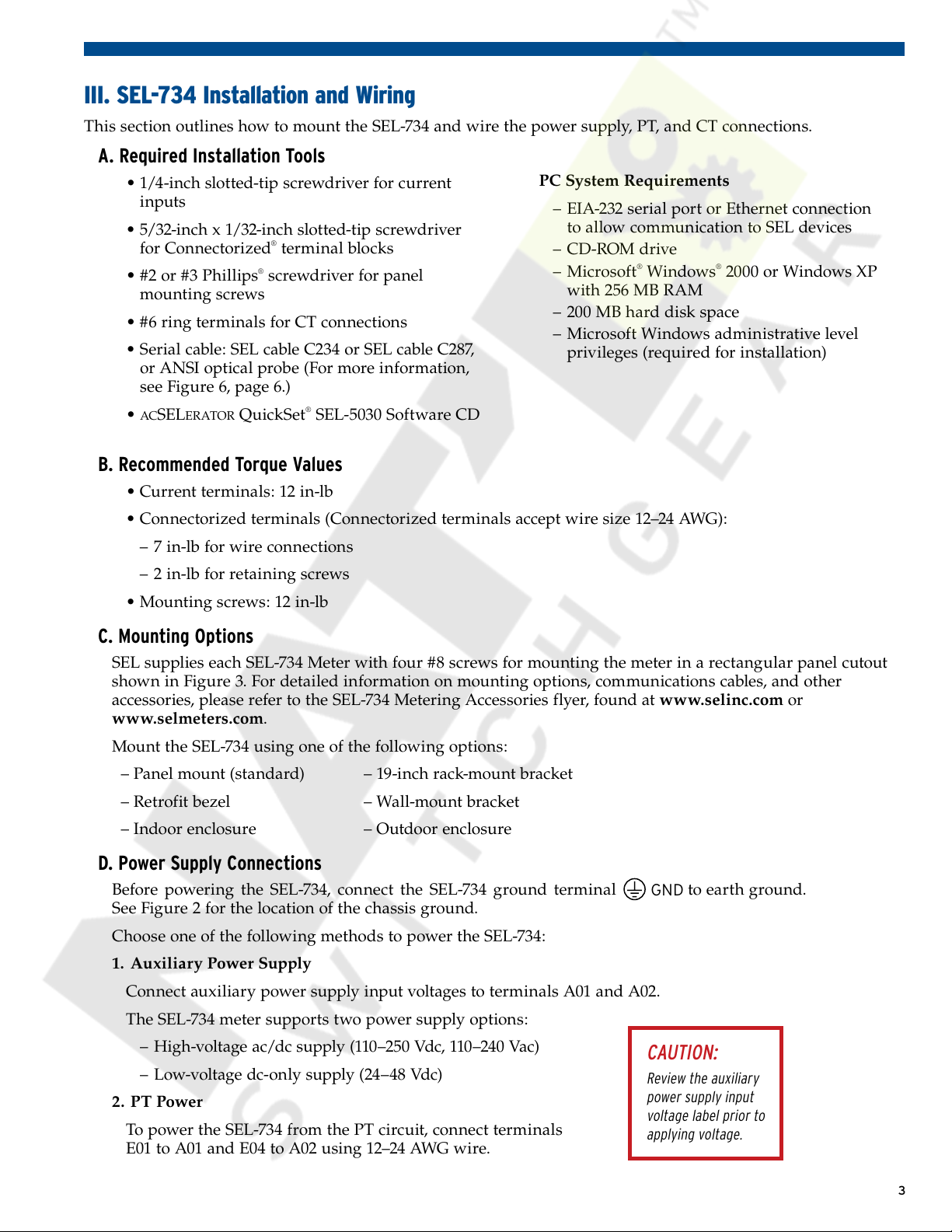

III. SEL-734 Installation and Wiring
This section outlines how to mount the SEL-734 and wire the power supply, PT, and CT connections.
A. Required Installation Tools
•1/4-inchslotted-tipscrewdriverforcurrent
inputs
•5/32-inchx1/32-inchslotted-tipscrewdriver
for Connectorized®terminal blocks
•#2or#3Phillips®screwdriver for panel
mounting screws
•#6ringterminalsforCTconnections
•Serialcable:SELcableC234orSELcableC287,
or ANSI optical probe (For more information,
seeFigure6,page6.)
•a c SELE r a t o r QuickSet®SEL-5030SoftwareCD
PC System Requirements
–EIA-232serialportorEthernetconnection
to allow communication to SEL devices
– CD-ROM drive
– Microsoft®Windows®2000orWindowsXP
with256MBRAM
–200MBharddiskspace
– Microsoft Windows administrative level
privileges(requiredforinstallation)
B. Recommended Torque Values
•Currentterminals:12in-lb
•Connectorizedterminals(Connectorizedterminalsacceptwiresize12–24AWG):
– 7 in-lb for wire connections
–2in-lbforretainingscrews
•Mountingscrews:12in-lb
C. Mounting Options
SELsupplieseachSEL-734Meterwithfour#8screwsformountingthemeterinarectangularpanelcutout
shown in Figure 3. For detailed information on mounting options, communications cables, and other
accessories, please refer to the SEL-734 Metering Accessories flyer, found at www.selinc.com or
www.selmeters.com.
MounttheSEL-734usingoneofthefollowingoptions:
–Panelmount(standard) –19-inchrack-mountbracket
– Retrofit bezel – Wall-mount bracket
– Indoor enclosure – Outdoor enclosure
D. Power Supply Connections
Before powering the SEL-734, connect the SEL-734 ground terminal to earth ground.
SeeFigure2forthelocationofthechassisground.
ChooseoneofthefollowingmethodstopowertheSEL-734:
1. Auxiliary Power Supply
ConnectauxiliarypowersupplyinputvoltagestoterminalsA01andA02.
TheSEL-734metersupportstwopowersupplyoptions:
–High-voltageac/dcsupply(110–250Vdc,110–240Vac)
–Low-voltagedc-onlysupply(24–48Vdc)
2. PT Power
To power the SEL-734 from the PT circuit, connect terminals
E01toA01andE04toA02using12–24AWGwire.
CAUTION:
Review the auxiliary
power supply input
voltage label prior to
applying voltage.
2411_IM_0000_Symbol6_a.eps
GND
Courtesy of NationalSwitchgear.com
4
Form 5, 3-wire delta connection
Voltages
Wirethephase-to-phasevoltagestoterminalsE01andE03.
ConnecttheneutralwiretoterminalsE02andE04.
Currents
WirethecurrentstoterminalsZ01–Z02andZ05–Z06.
E. Voltage and Current Connections
TheSEL-734supportsbothForm9(4-wirewye)andForm5(3-wiredelta)connections.
Form 9, 4-wire wye connection
Voltages
Wirethephase-to-neutralvoltagestoterminalsE01,E02,
andE03.ConnecttheneutralwiretoterminalE04.
Currents
WirethecurrentstoterminalsZ01–Z02,Z03–Z04,and
Z05–Z06.
N
C
B
LINE
LOAD
A
B
C
3-Phase
4-Wire Wye
A
734_IS_0002_Form9RSwitchboard_b.eps
01
02
03
04
E
01
02
03
04
05
06
07
08
Z
N
C
B
A
500
SEL-734 Current Inputs SEL-734 Voltage Inputs
A
B
C
3-Phase
3-Wire Delta
734_IS_0003_Form5RSwitchboard_c.eps
C
B
LINE
LOAD
A
01
02
03
04
E
01
02
03
04
05
06
07
08
Z
C
B
A
500
SEL-734 Current Inputs SEL-734 Voltage Inputs
Courtesy of NationalSwitchgear.com
5
IV. a c SELE r a t o r QuickSet SEL-5030 Software
A. Overview
SEL ships all SEL-734 Meters with a c SELE r a t o r QuickSet
Software. Use a c SELE r a t o r QuickSet to perform the
followingtasks:
•ReadandsendconfigurationsettingswithanSEL-734.
•SaveandopenconfigurationsettingsonaPC.
•Monitorreal-timepowersystemdata.
•Controlthemeterremotely.
•Configurethecommunicationsports.
•RetrievetheLDP,SER,andSSIreports.
•Displaywaveformsfromeventreports.
B. Install a c SELE r a t o r QuickSet
Install a c SELE r a t o r QuickSet Software with the enclosed CD, or download from www.selinc.com
or www.selmeters.com. On the SEL website, click on the Download Area link, click on Download, save,
andthenrunSEL-5030.exe.Awizardwillguideaninstallationoranupgradeofa c SELE r a t o r QuickSet
Software.
C. Configure a c SELE r a t o r QuickSet Communications
From a Windows PC, open a c SELE r a t o r QuickSet Software by clicking Start>Programs>SEL Applications>
a c SELE r a t o r QuickSet or by double-clicking the a c SELE r a t o r QuickSet icon. For initial communications,
connectanyavailableserialoropticalportonthemetertothePCusinganANSIopticalprobe,oraC234or
C287serialcable.
TheSEL-734supportsvariousopticalprobes.Table1listscompatibleprobesandanyspecialrequirements.
SEL-734 Compatible
Optical Probes Connector Special Instructions
ABACUSELECTRICSA6Z
(SELpartnumberC660) DB-9 None
ABACUSELECTRICSA7Z DB-9 DTR Off
ABACUSELECTRICSA9U
(SELpartnumberC661) USB DTR Off; requires software driver
Elster/ABBUNICOM™III DB-9 DTR Off
GESmartCouplerSC-1A DB-9 DTR Off
Microtex Electronics FR3 USB Maximum19200bpsrate;requiressoftwaredriver
P+ETechnikK01-USB USB Requires software driver;
Cannot use to upgrade firmware
uDataNetPM500-300 DB-9 DTR Off; requires power from ac adapter or
connector for mouse or keyboard
Table 1. Optical port probes
Courtesy of NationalSwitchgear.com
6
To access the communications parameters
in a c SELE r a t o r QuickSet Software, select
Communications>Parameters. Figure 4 shows the
default serial port parameters for the SEL-734.
D. Settings Editor
This section discusses how to read, modify, save, and send configuration settings within a c SELE r a t o r
QuickSet Software.
1. Toolbar and Icon Functions
a c SELE r a t o r QuickSet Software allows access to features through both menus and icons. This document
describes how to access features using the menu structure. Figure 7 illustrates the icon functions in the
a c SELE r a t o r QuickSet toolbar.
Figure 4. Default communications parameters
Figure 6. Cables for the SEL-734Figure 5. SEL-734 Serial Port 3
New
settings editor
(Ctrl+N)
Open settings
(Ctrl+O)
Save settings
to database
(Ctrl+S)
Read settings
from device
Send active
settings
Back up
one settings
screen
Communications
port parameters
(Ctrl+R)
Human-machine
interface
Go to next
settings
screen
Search for
a setting
or element
(Ctrl+F)
Database
manager
Terminal
(Ctrl+T)
Quick Tip:
Hover over icons
to view the title
and function.
Quick Tip:
Press F1 in
a c
SEL
E r a t o r
for help.
Figure 7. Icon functions
Getting
started with
QuickSet
Courtesy of NationalSwitchgear.com
7

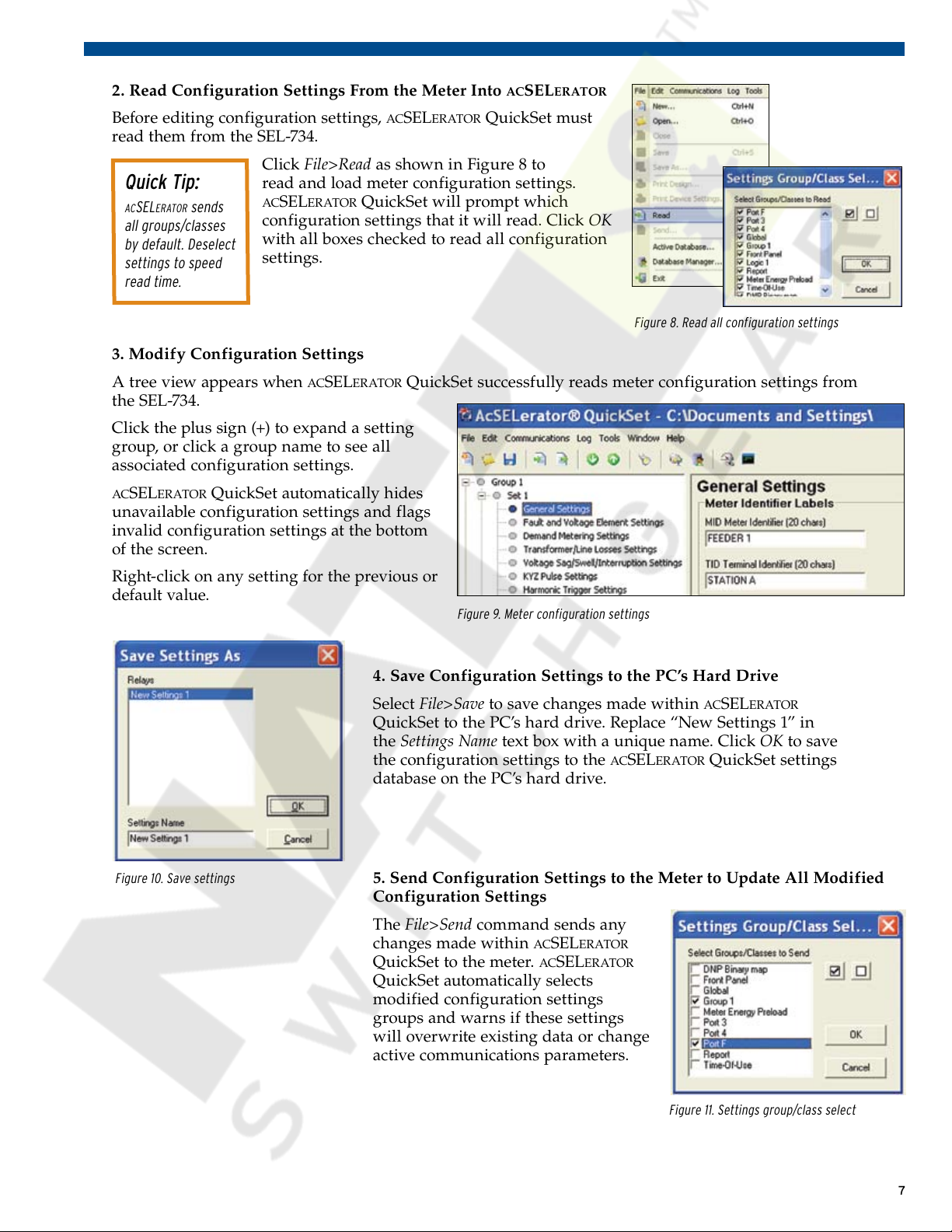

5. Send Configuration Settings to the Meter to Update All Modified
Configuration Settings
The File>Send command sends any
changes made within a c SELE r a t o r
QuickSet to the meter. a c SELE r a t o r
QuickSet automatically selects
modified configuration settings
groups and warns if these settings
will overwrite existing data or change
active communications parameters.
2. Read Configuration Settings From the Meter Into a c SELE r a t o r
Beforeeditingconfigurationsettings,a c SELE r a t o r QuickSet must
read them from the SEL-734.
Click File>ReadasshowninFigure8to
read and load meter configuration settings.
a c SELE r a t o r QuickSet will prompt which
configuration settings that it will read. Click OK
with all boxes checked to read all configuration
settings.
Figure 8. Read all configuration settings
Quick Tip:
a c
SEL
E r a t o r
sends
all groups/classes
by default. Deselect
settings to speed
read time.
3. Modify Configuration Settings
A tree view appears when a c SELE r a t o r QuickSet successfully reads meter configuration settings from
the SEL-734.
Clicktheplussign(+)toexpandasetting
group, or click a group name to see all
associated configuration settings.
a c SELE r a t o r QuickSet automatically hides
unavailable configuration settings and flags
invalid configuration settings at the bottom
of the screen.
Right-click on any setting for the previous or
default value.
Figure 9. Meter configuration settings
Figure 10. Save settings
Figure 11. Settings group/class select
4. Save Configuration Settings to the PC’s Hard Drive
Select File>Save to save changes made within a c SELE r a t o r
QuickSettothePC’sharddrive.Replace“NewSettings1”in
the Settings Name text box with a unique name. Click OK to save
the configuration settings to the a c SELE r a t o r QuickSet settings
database on the PC’s hard drive.
Courtesy of NationalSwitchgear.com
8
E. Commonly Used Configuration Settings
Thissectionoutlinescommonlyusedmeterconfigurationsettings,including:MeterandTerminalIdentifier,
Current and Potential Transformer Ratios, Demand Metering, KYZ Pulse, Daylight Savings Time, Load
Profile, Front Panel Display, and Communications.
1. General Settings
The General Settings include the MID Meter Identifier,TID Terminal Identifier, and Current and Potential
Transformer Ratios (CTR and PTR).
To access General Settings, expand Group 1>Set 1>General Settings from the a c SELE r a t o r QuickSet settings
editor tree.
a. MID and TID Settings
Meter reports include the MID and TID
for easy meter identification. These
configuration settings help uniquely
identify each meter within a system.
b. Current and Potential Transformer Ratios
The CTR and PTR configuration settings scale
the following meter reports from secondary to primary
quantities:
–MeterReports(MET)
–MeterandControlInterface(HMI)
–LoadProfile(LDP)
–DisplayPoints(DP)
–DistributedNetworkProtocol(DNP)
– Front-Panel LCD
Modbus®and SELo g i c ®control equations are
secondary quantities and are unaffected by CTR
and PTR values.
To set the CT and PT ratios, choose Group 1>
Set 1>General Settings from the a c SELE r a t o r
QuickSet settings editor tree. Note that the CTR
and PTR values are net ratios. For example, a
1200:5CTratioequatestoaCTRsettingof240.
Figure 12. MID and TID settings
Figure 13. CTR and PTR settings
Figure 14. Demand metering
2. Demand Metering
TheSEL-734supportsThermal,Rolling,andBlock
demandtypeswithintervalsof1,5,10,15,30,and
60minutes.
To configure demand metering, choose Group 1>
Set 1>Demand Metering Settings from the
a c SELE r a t o r QuickSet settings editor tree.
Quick Tip:
The MID setting
must match the
MV-90
®
Master
File Device ID
setting.
Courtesy of NationalSwitchgear.com
9
3. KYZ Pulse Settings
The KYZ Pulse Settings define the KYZ pulse
weight.Figure15depictstheKYZsettingsthat
configure1.8kWh/pulse.Type2, 3, or 4 in
the EKYZ Enable KYZ Pulse Settings box to add
additional KYZ pulses.
4. Map KYZ Pulse Settings
BeforetheKYZoutputswilloperate,theuser
mustmaptheKYZD1settingtocreateaFormA
KY output contact or a Form C KYZ output contact
asshowninExample1.1andExample1.2.TheSEL-
734 supports four Form A outputs or two Form
C outputs. Please verify that the meter contains
solid-state output contacts prior to configuring
KYZ outputs. Electromechanical contact outputs
areonlyratedfor10,000closures.WithdefaultKYZ
configurationsettingsand5Aand120Vapplied,
10,000closuresoccurinjust30hours.
Example 1.1, Map a Form A KY Pulse Setting to OUT401:
Step1:SelectGroup 1>Logic 1>Output Contacts from the a c SELE r a t o r
QuickSet settings editor tree.
Step2:TypeKYZD1 in the OUT 401 Output Contact 401 equation box.
Step3:Ifnecessary,repeatsteps1and2toaddadditionalKYoutputs.
Example 1.2, Map a Form C KYZ Pulse Setting to OUT401/OUT402:
Step1:SelectGroup 1>Logic 1>Output Contacts from the a c SELE r a t o r
QuickSet settings editor tree.
Step2:TypeKYZD1 in the OUT 401 Output Contact 401 equation box.
Step3:TypeNOT KYZD1 in the OUT 402 Output Contact 402 equation box.
Step4:Ifnecessary,repeatsteps1–3toaddanadditionalKYZoutput.
Figure 15. KYZ pulse settings
Quick Tip:
The KE1 Units
setting KILO
is equivalent
to kilowatt-
hours.
Quick Tip:
KYZ pulses
require solid-
state output
contacts.
Quick Tip:
If the number
of KYZ outputs
is half the
expected value,
divide the KE1
setting by two.
Figure 16. Output contact 401 equation
Figure 17. Output contact 401/402 equations
Courtesy of NationalSwitchgear.com
10
5. Date and Time Configuration Settings
a. Set the Date and Time
TheSEL-734internaltimeclockisaccurateto100secondspermonth.Useoneofthemethodslisted
below to improve time-clock drift.
–ConfigureMV-90tosettheclockduringeveryread.
– Connect an SEL communications processor to Port 3.
– Set the time periodically using the DNP or Modbus protocol.
– Set the time with a c SELE r a t o r QuickSet Software.
–ConnectanIRIG-Btime-codeinputtothe2-pinterminalonthebackoftheSEL-734.SeeFigure2.
b. Daylight Savings Time (DST)
Bydefault,themetershipswiththe2006UnitedStatesDSTcalendar.The
meterbeginsDSTonthefirstSundayinAprilat2:00a.m.andendsDSTon
thelastSundayinOctoberat2:00a.m.
To enable DST, choose Daylight Savings Time from the a c SELE r a t o r QuickSet
settings editor tree and select Enable Daylight Savings Time Settings. Enter or
accept the default Start Time and Stop Time, then click Start Dates and Stop Dates
to select the present DST schedule.
If the meter is connected to an external time source, disable the DST setting in the SEL-734 to avoid
time-source conflicts.
c. Time Configuration Settings With MV-90
If using the Auto TimesetoptionasanMV-90MasterFilesetting:
– Disable the Enable Daylight Savings option in the SEL-734.
– Do not connect an external time source. This keeps the meter clock synchronized with the PC
clockandMV-90.
Figure 18. Daylight Savings Time settings
Quick Tip:
In 2007, the DST
start and stop dates
changed. Modify the
SEL-734 DST settings
accordingly.
Courtesy of NationalSwitchgear.com
11
6. Load Profile (LDP) and MV-90
TheSEL-734Psupportsupto24LDPchannels,withanacquisitionrateof3–59secondor1–60minute
intervals. The Load Profile Settings LDLIST tool presents a list of all available LDP values.
Meter reading software built into a c SELE r a t o r QuickSet quickly retrieves, graphs, and exports LDP data
ineither.HHFor.CSVformat.Inaddition,third-partymeterreadingsoftware,suchasMV-90fromItron,
can automatically read LDP data from the SEL-734. The data are also available through the SEL YMODEM,
Modbus,andDNPprotocols.SeeSection9,page13fordetailsonconfiguringtheSEL-734forMV-90
compatibility.
CAUTION:
Sending new LDP
settings clears the
LDP records stored in
the SEL-734.
Figure 19. Load profile settings
The SEL-734 follows the IEEE power flow notation as depicted in
Figure20.VerifythisnotationwhenselectingLDPquantities.
Power Plant
Transmission
Substation
Substation With
Distribution
Bus
Factory
High-Voltage
Transmission Lines
Power
Substation
Transformer
Power
Poles
BP1
BP2
BP3
BP4
Figure 20. IEEE power flow notation with billing points (BP) shown
IN (Delivered)
OUT (Received)
IN (Delivered)
Courtesy of NationalSwitchgear.com
12
7. Scaling and Display Settings
The DECPL, SCALE, and DND configuration settings affect the number of decimal places, the scaling, and
the number of digits shown in a c SELE r a t o r QuickSet meter reports. The FP_DECPL, FP_SCALE, and FP_
DNDconfigurationsettingsaffecttheSEL-734front-panelLCDreports.RefertoTable2fordetailsonhow
these configuration settings scale each communications interface.
Interface Scaling Number
of Digits
Number
of Decimal
Places
MEGA KILO UNITY Primary Secondary Rollover Max.
Digits
Front-Panel
LCD
FP_
SCALE F P_ DND FP_ DECPL • • • • • 11
a c SELE r a t o r
QuickSet
Energy
SCALE DND DECPL • • • • • 8
a c SELE r a t o r
QuickSet LDP – – 2• • • 9
Modbus Energy x100 –2• • • 9
Modbus LDP x100 –2• • • 9
DNP Counters – – DECPLE
or per point • • •
232or216
depending on
variation
DNP LDP
Counters x100 –2• • • 9
Fast Meter – – FLOAT32 • • 6
Fast Message – – 0• • • 9
Table 2. Energy scaling table
Courtesy of NationalSwitchgear.com
13
8. Communications and Protocol Settings
The SEL-734 supports the communications protocols listed in Table 3. The Ethernet port supports three
simultaneousModbusTCPorTelnet(SELASCII)communicationssessions,includingoneDNP3LAN/WAN
session. Port 4 supports three communications options, but only one is available at a time.
To change the communications parameters, click on the desired communications port followed by
Communications in the a c SELE r a t o r QuickSet settings editor tree. Note that some options are unavailable
for different protocols.
9. MV-90 Compatibility
TheSEL-734supportsMV-90connectionsthrough
all communications paths, including Ethernet.
Figure21andTable4describehowtoconfigure
Port 4 in the SEL-734 to communicate with
MV-90,utilizingtheoptionaltelephonemodem.
Refer to SEL Application Guide 2005-01, MV-90
Integration With an SEL-734 Meter, for a thorough
description of how to configure the SEL-734 and
MV-90.Itisavailableintheliteraturesectionof
www.selmeters.com.
10. Send and Save Configuration Settings
After completing all configuration settings in
a c SELE r a t o r QuickSet, save and send them as
detailedinSectionIV.D.
Figure 21. Configuration settings for MV-90
Table 4. Configuration settings for MV-90 compatibility
SEL-734 Setting MV-90 Setting Value
MID Device ID User defined, MID must match Device ID
LDLIST(ListofChannels) Number of Channels to Add 1–12
LDAR Intervals Per Hr User defined (minutes per interval in
SEL-734;intervalsperhourinMV-90)
PROTO, Port 4 N/A MODM
COMINF, Port 4 N/A Modem
RDRPWD, Port 4 Reader Password User defined
Protocols Ethernet (Port 1*) Serial: EIA-485, Modem, and
EIA-232 (Port 2, Port 3, Port 4*) Front Port (Port F)
SEL ASCII • • •
MODM • • •
Modbus RTU • •
Modbus TCP •
DNP3* • • •
Table 3. Available communications protocols * Additional cost option
Courtesy of NationalSwitchgear.com
14
V. Human-Machine Interface (HMI)
The a c SELE r a t o r QuickSet HMI displays
instantaneous meter information, captures reports,
and allows test and control of the SEL-734. To access
the Meter and Control interface, choose
Tools>HMI>HMI in the main a c SELE r a t o r
QuickSet window.
To maneuver through the windows, click on the HMI
tree-view list until the required display appears on the
right-handside.PressF1intheHMIwindowtoview
help on each interface.
A. Device Overview
The Device Overview window simulates the
front-panel interface of the SEL-734 and updates
approximately every second. This window displays
instantaneous metering information, and contact
I/O and front-panel LED status.
B. Phasors
Phasor diagrams are a powerful troubleshooting tool. Technicians and
engineers can quickly determine and resolve wiring issues at a glance.
This section contains phasor diagrams from three example installations.
Example 3 depicts a phasor diagram from a properly wired installation.
Examples4and5depictthemostcommonwiringissues.
1. Example 3, Correct Phase Rotation:
Figure23illustratesabalanced,three-phase,ABCrotationinstallation
with lagging power factor. Study the phasors in a counterclockwise
directionandnotethattheyreadasA-B-C.TheSEL-734registers
watt-hours delivered for this condition.
Use the Phase Rotation button at the bottom of the screen to switch
phasorcalculationreferencebetweenclockwiseABCandcounterclock-
wiseACBphaserotation.Clickthebuttonstotherightofthephasor
quantities to hide individual phase vectors.
2. Example 4, Incorrect Phase Rotation:
Figure24illustratesthephasordiagramofabalanced,three-phase
installation with lagging power factor and two swapped phases. Note that
thephasordiagramreadscounterclockwiseA-C-B.Thisphasorresponse
indicatesthattheVB/VCandIB/ICconnectionsareswapped.The
systemrespondswithunexpectedACBphaserotationinsteadoftheIEEE
standardABCrotation.TheSEL-734stillregistersenergycorrectly,butthe
power quality functions will not operate correctly.
3. Example 5, Reversed CT Connections:
Many times CT polarity convention varies from site to site, which can
lead to reversed CT connections. The top label of the SEL-734 indicates
CT polarity convention with a dot that denotes current flow out of the
instrumentation transformer and into the SEL-734 CT terminal.
Figure25illustratesthephasordiagramofabalanced,three-phase
installationwithlaggingpowerfactorandreversedIA,IB,andIC
connections. Note the abnormal position of the phase currents with
respect to their phase voltages. The SEL-734 incorrectly registers watt-
hours received for this condition.
Figure 22. Device Overview window
Figure 23. Correct phase rotation
Figure 24. Incorrect phase rotation
Figure 25. Reversed CT connections
Courtesy of NationalSwitchgear.com
15
C. LDP and SSI
The a c SELE r a t o r QuickSetHMIdisplaysLoadProfileandVoltageSag/Swell/Interruptionreports.
To capture any of these reports, select the required date range and click Export.
1. Load Profile (LDP)
The meter adds an entry to the load profile
recorder at the interval set by the LDAR setting.
This entry contains the time stamp, the present
value of the selected LDLIST analog quantities,
and a checksum.
2. Voltage Sag/Swell/Interruption (SSI)
The SEL-734 Meter records voltage sags, swells,
andinterruptionswith1msaccuracy.Enable
andconfigureSSIintheVoltageSag/Swell/
Interruption Settings window of a c SELE r a t o r
QuickSet Software.
D. Test Mode
The a c SELE r a t o r QuickSet HMI allows simple test mode interaction
and eliminates the need to navigate through the front panel to
enable test mode. While in test mode, the SEL-734 stops collecting
LDP and Demand data and places an asterisk next to records in the
LDP report.
To place the meter into test mode, select a
Test Mode Quantity from the drop-down
box and click Enter Test Mode. The test mode
window depicts an optical port that pulses a
redtestpulseinconjunctionwiththeactual
front optical port. Click Exit Test Mode at the
end of an accuracy test to restore normal
meter operation.
E. Control Window
The control window provides an interface to set the date and time,
reset data, and test output contacts. For example, to set the time,
click Set next to the Time edit box to update the time in the meter.
a c SELE r a t o r QuickSet Software prompts
fora2ACpasswordbeforeitwillcontrolthe
meterorresetdata.SeetheVI.Securityand
Passwords section for additional information.
Figure 27. Test mode
Figure 28. Control window
Quick Tip:
The QuickSet HMI
supports all rear-panel
communications ports
when in test mode.
Quick Tip:
To reset the Peak
Demand, click the
Reset button under
Peak.
Figure 26. Graph of LDP in HMI
Courtesy of NationalSwitchgear.com
Pullman, Washington USA
Tel: +1.509.332.1890 • Fax: +1.509.332.7990 • www.selinc.com • info@selinc.com
© 2008 by Schweitzer Engineering Laboratories, Inc. PM734-04 • 20081231
VI. Security and Passwords
A. Security
The SEL-734 supports four access levels to prevent unauthorized entry. The table below describes the default
passwords and the capabilities of each access level. The user must enter the ACC access level before entering
theEACor2ACaccesslevels.
Access
Level
Terminal
Prompt
Default
Password
Password Change
Command
Capability
0AC =NA NA Entry access level
ACC => OTTER PAS1“PASSWORD” Viewconfigurationsettingsandmeterdata
EAC E=> BLONDEL PASE“PASSWORD” Reset demands and perform all ACC
commands
2AC =>> TAIL PAS2“PASSWORD” Change configuration settings, reset all data,
andperformallEACand2ACcommands
B. Changing Passwords
To prevent unauthorized access, set strong passwords as described in the steps below. For example, the
password “OTTER” is weak because it is a six-character word found in the dictionary. The password
“O # h”pVw & ” is strong because it is random, undefined,
and contains eight characters.
Step1:ClickTools>Terminal in a c SELE r a t o r QuickSet
to open the Terminal window.
Step2:TypeACC <ENTER> at the terminal prompt.
Step3:EntertheACClevelpassword,OTTER.
Step4:Type2AC <ENTER> at the terminal prompt.
Step5:Enterthe2AClevelpassword,TAIL.
Step6:TypePAS 1 0||3R to change the ACC level password from OTTER to 0||3 R .
Step7:TypePAS E B10nd31 to change the EAC level password from BLONDEL to B10nd3l.
Step8:TypePAS 2 |^i1tochangethe2AClevelpasswordfromTAIL to |^il.
Step9:TypePAS to review and verify the passwords.
Step10:Recordthenewpasswordsonapieceofpaperandstoreinasecureplace.
Step11:TypeQUItosetthemeterbackto0AClevel.
VII. Factory Support
We appreciate your interest in SEL metering products and services. If you have questions or comments,
pleasecontactusat:
Directmetersupportline:+1.509.334.8793
Metersupportemail:metersupport@selinc.com
Meteringwebsite:www.selmeters.com
Table 5. Default passwords and access levels
FEEDER 1 Date: 09/06/07 Time: 15:40:56:350
STATION A Time Source: int
Level 2
->>PAS 1 weak
Set
->>PAS E StrONg
Set
->>PAS 2 0#h”pVw&
Set
->>PAS
1:weak
E:StrONg
2:0#h”pVw&
->>
*PM734-04*
Courtesy of NationalSwitchgear.com
Other manuals for SEL-734
1
Table of contents
Other Schweitzer Engineering Laboratories Measuring Instrument manuals
