Elcomponent EnergyPro EP600i User manual

EnergyPro EP600i
6 channel Energy Analyser
User's Guide

EnergyPro EP600i User's Guide
Copyright © 2010 ELCOMPONENT INSTRUMENTS.
All Rights Reserved.
The information in this document is subject to change without notice.
ELCOMPONENT has made every effort to ensure the accuracy of this manual.
However, ELCOMPONENT makes no warranties with respect to this
documentation and disclaims any implied warranties of merchantability and
fitness for a particular purpose. ELCOMPONENT assumes no responsibility
for any errors that may appear in this document.
Trademarks
All product names are copyright and may be trademarks and/or registered
trademarks of their respective companies.
ELCOMPONENT
Unit 5 Southmill Trading Centre
Southmill Road
Bishop‟s Stortford
Herts
CM23 3DY
Document number: CID1003.10
Date: 20 April 2011

Table of contents
Introduction.........................................................................................1
Safety .................................................................................................2
Firmware Feature...............................................................................3
Connection Check .......................................................................3
RMS Data Storage.......................................................................3
Power Calculations......................................................................3
Frequency....................................................................................3
Energy Usage Display .................................................................3
Logger Connection.............................................................................4
Connection panel.........................................................................4
LED Indicators....................................................................................4
Green Charging LED indicator.....................................................4
Red Logging LED Indicator..........................................................4
Green Charged LED indicator .....................................................5
Logger Operation ...............................................................................5
Main Screen.................................................................................5
Turning On and Off......................................................................7
Memory Card...............................................................................7
Clock Setup..................................................................................8
CT Setup......................................................................................9
Storage Rate Setup ...................................................................10
Memory card warning.............................................................10
Voltage / Current / Power Factor Display..................................11
Power Display............................................................................12

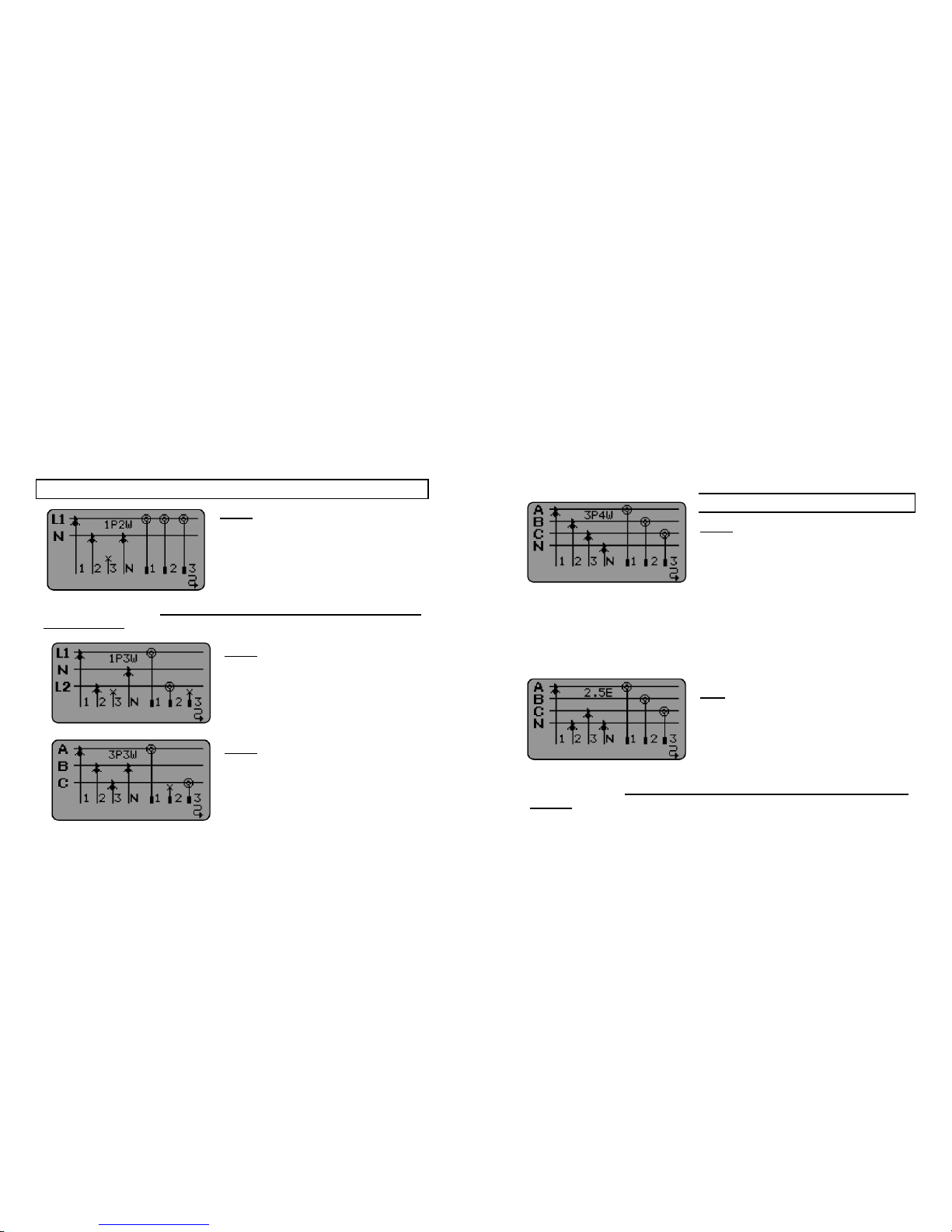

Hook-up Configurations.............................................................13
1P2W......................................................................................13
1P3W......................................................................................14
3P4W......................................................................................14
2.5E ........................................................................................14
Connection Icons.......................................................................15
Start and Stop logging ...............................................................16
Data Download.................................................................................17
Notes................................................................................................18

EnergyPro Energy Analyser
Introduction
The EnergyPro represents leading edge technology in operator
interfaces. Data can be viewed in real time on the front panel, or for
more detail, PowerView software can be used to examine data
collected by the EnergyPro.
The EnergyPro:
▪Record RMS voltage, current, power (real and reactive), true
power factor, energy, THD, harmonics and three phase unbalance.
▪Has graphical display.
The EnergyPro is a 6 channel data logger. It monitors 3 phases of
voltage and current and calculates the neutral current.
A memory card interface is used to store recorded data on a
removable memory card. The EnergyPro will not begin a survey
without a memory card installed. Once a survey has been started the
memory card may not be removed until the survey has been stopped.
1

EnergyPro Energy Analyser
Safety
Although this instrument is designed to be as safe as possible, safety
is ultimately the responsibility of the operator. This instrument should
only be operated by suitably qualified and authorized personnel.
Please read and UNDERSTAND the following information before
operating this instrument
▪The EnergyPro uses a membrane keypad that could be damaged
if a sharp object is brought into contact with it.
▪Frequently inspect the test leads and the instrument for damage.
If the instrument shows any signs of physical damage or functions
improperly, it should not be used.
▪Never work alone with high voltage circuits. Ensure that a
qualified observer is mindful of your activities.
▪When performing any measurements involving high voltage
circuits, all connections should be made to the circuits while the
power is off. To ensure personal safety, the test leads and related
connectors should not be handled while the circuit is energized.
▪Do not attempt to measure any voltage higher than the maximum
rating of 600V RMS. Failure to observe the maximum rating could
result in damage to the equipment or personal injury.
▪Refer servicing of this instrument to qualified personnel only.
Potentially lethal voltages may be present inside the case. If any
of the protective circuitry is improperly repaired, the safety of this
product could be compromised. Disconnect supply power before
servicing.
▪Do not expose the EnergyPro directly to outdoor elements.
▪If the unit requires cleaning, use only a slightly damped towel.
Disconnect supply power before cleaning.
▪The following international symbol is used on the equipment and in
this manual:
See explanation in manual to find out the nature of the
potential HAZARD and any actions to be taken.
2
EnergyPro Energy Analyser
Firmware Features
Connection Check
Before a survey is started the user can set the voltage and current
connections from the hook-up screen (press the button). See
the Hook-Up Configuration section of this manual for more details.
RMS Data Storage
The EnergyPro stores RMS data at set intervals which can be
adjusted from 1 second to 30 minutes. The minimum, maximum and
average values are stored at the end of each storage interval. The
averaged values are calculated from the sum of the RMS values
(updated every second) over the preceding storage interval. The
minimum and maximum values are updated every second over the
storage interval.
Power Calculations
The power calculations are updated every second. The average
values of power are recorded. Power factor displayed is the true
power factor (not the displacement power factor) and is calculated as
the ratio of the real power (KW) divided by the apparent power (KVA).
Frequency
The system frequency is measured from the signal on V1 input and is
updated every second. The minimum, maximum and average values
are stored at the end of each storage interval.
Total Harmonic Distortion (THD)
THD is calculated as the ratio between the square root of the squared
sum of the harmonic magnitudes (for harmonics 2…16) divided by the
fundamental value. The THD calculations are updated every second.
The minimum, maximum and average values are stored at the end of
each storage interval. The individual harmonic information is stored
with the data and is available for viewing in software.
Three Phase Voltage and Current Unbalance
Unbalance is calculated as the ratio of the negative sequence
component divided by the positive sequence component. The
unbalance calculations are updated every second. The minimum,
maximum and average values are stored at the end of each storage
interval.
3

EnergyPro Energy Analyser
Firmware Features
Energy Usage Display
The EnergyPro displays the total energy usage during the survey.
The total KWHR and the average KW/HR are displayed.
Logger Connection

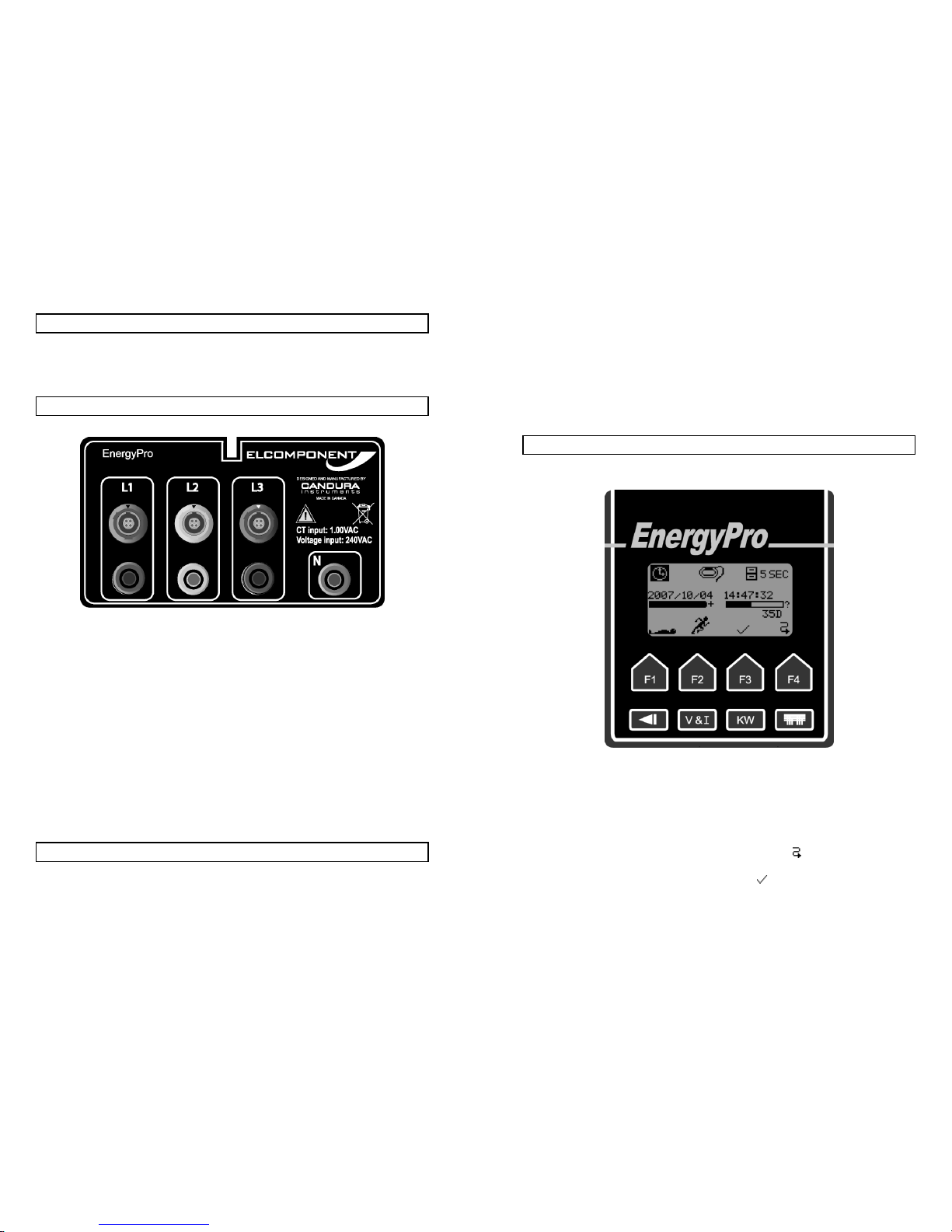

Connection panel
The voltage and current connections are colour coded according to
individual phases.
Either clamp CT‟s or Flex CT may be used to monitor current.
The EnergyPro is powered from the voltage between V1 and V2
(between 115V and 600 Vac). If a single phase voltage is being
measured then V2 should be connected to neutral in order to receive
power from the measured voltage. The EnergyPro has an internal
battery that will supply power to the instrument when there is no
voltage between V1 and V2. The internal power supply will power the
instrument when V1-V2 is between 115V and 150V but will not charge
the battery. To charge the battery when the voltage is less than 150V
the EnergyPro must be turned off.
LED Indicators
Green Charging LED indicator
The Green Indicator will come on when the internal power supply is
operating.
Red Logging LED Indicator
This Red LED will flash when the logger is recording data.
Green Charged LED indicator
This Green LED will come on when the internal battery of the logger is
fully charged.
4 EnergyPro Energy Analyser
Logger Operation
Main Screen
The main screen of the EnergyPro is a collection of icons that provide
access to various configuration setup screens. It also displays general
status of the logger such as battery charge state, available memory,
and logging status.
The top row of keys change function depending on the active screen
on the display. In the main screen, the scroll key (F4) is used to
navigate the top row of icons on the display. When an icon is
highlighted pressing the checkmark key (F3) selects the function.
This enables setting the time, the CT range (clamp CT only), and the
storage rate.

In the middle section of the main screen, there are two status bars
displayed below the date and time field. The right status bar indicates
memory used, and the left status bar indicates battery charge state.
Below the memory status bar is the maximum survey duration in
number of days. This number will change depending on the storage
rate and memory card size.
5
EnergyPro Energy Analyser
Logger Operation
The three icons in the top row of the main screen access the basic
configurations of the logger:
▪Clock icon - Set clock.
▪Clamp CT icon - Set clamp CT range. This setting
must match the clamp range being used.
▪Not range adjustable, measurement range is 0.2A to
2500A. Flex CT connection is automatically
detected when the Flex CT is plugged in.
▪Filing cabinet icon - Set storage rate,
The main screen displays the CT range and storage rate beside their
respective icons. Once a change is made, the value beside the icon
will be updated automatically. For changes in storage rate, the
maximum survey duration display under the memory status bar will
also be updated automatically.
Example: The main screen display shown at the beginning of this
section indicates that the logger is set for Flex CT and 5 seconds
storage rate. The survey duration is 35 days.
The bottom row of keys have fixed functions:
▪Return to the main screen.
▪Display voltage, current, power factor, frequency,
THD, and Unbalance.
▪Display real, reactive and apparent power, total
energy consumption (KWHR).
▪Display the hook-up configuration.
6 EnergyPro Energy Analyser
Logger Operation
Turning On and Off
The logger is turned on by pressing any key on the keypad for 1
second. Once the logger is on, a title screen will appear on the
display, followed by the main screen.
The logger is turned off by pressing the sleep key (F1) from the
main screen.
The EnergyPro will shut itself off after 2 minutes of keypad inactivity if
it is not recording. While recording the EnergyPro will turn off the LCD
after 2 minutes of keypad inactivity.
Memory Card
If there is no memory card the EnergyPro will not record data and the
„running‟icon will not appear on the main screen. When a memory
card is inserted the „running‟icon will appear and the EnergyPro is
ready to record data. When recording is started the EnergyPro
reformats the memory card and any data from a previous survey will
be erased.
The memory card should NEVER be removed while data is being
recorded. ALWAYS stop recording before removing the memory
card, otherwise data on the card may be corrupted.

7
EnergyPro Energy Analyser
Logger Operation
Clock Setup
The clock setup screen will appear when the clock icon on the main
screen has been selected. The scroll key (F4) is used to scroll through
the fields: year, month, day, hour, minute or second. The + and - signs
(F1 and F2) are used to increase or decrease the value. Press the
checkmark key (F3) to confirm changes and return to the main screen.
8 EnergyPro Energy Analyser
Logger Operation
Clamp CT Setup
The CT setup screen will appear when the CT icon on the main screen
has been selected. The scroll function key (F4) is used to select the
desired CT range. The checkmark key (F3) is used to confirm the
selection and return to the main screen.

9
EnergyPro Energy Analyser
Logger Operation

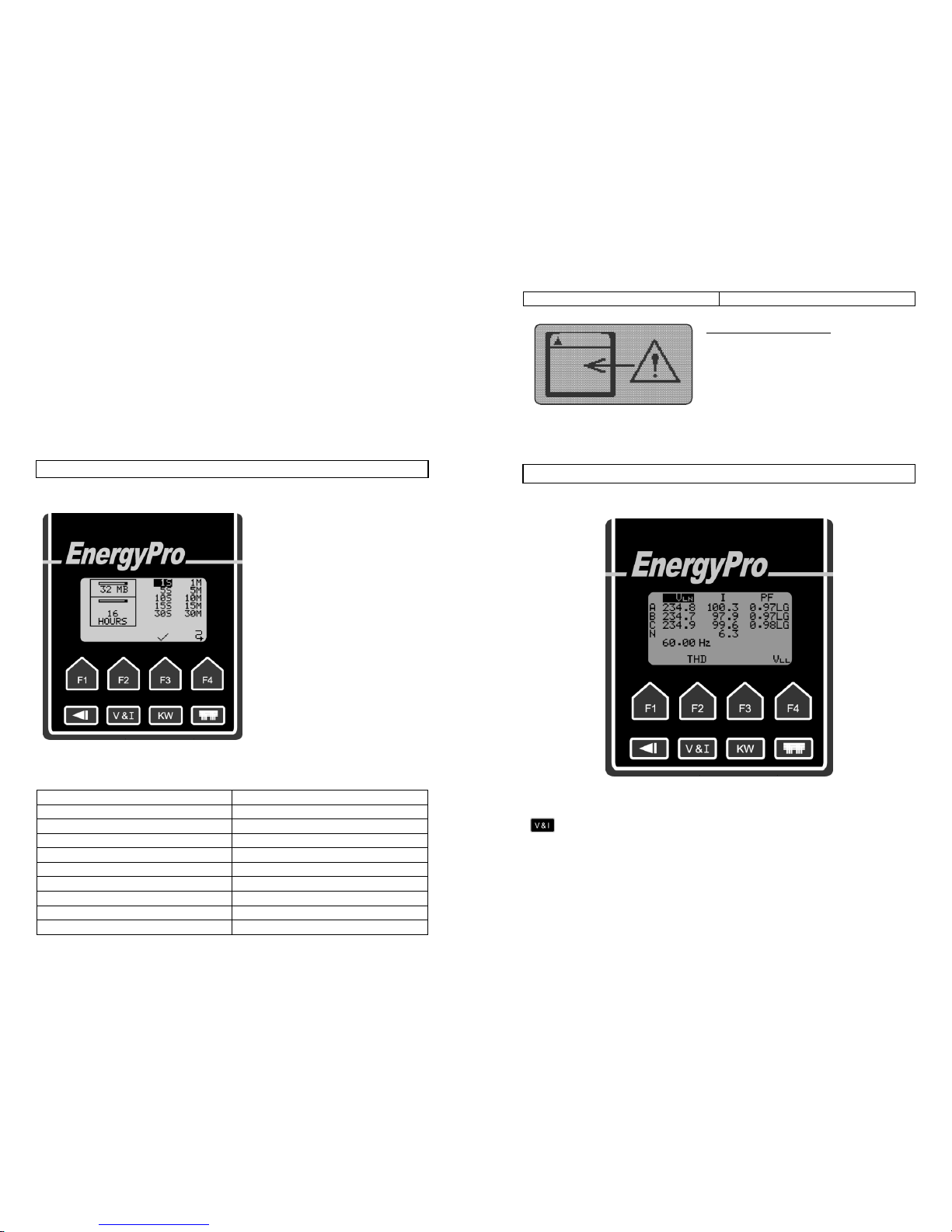

Storage Rate Setup
The storage rate setup screen
will appear when the filing
cabinet icon on the main
screen has been selected. The
scroll key (F4) is used to select
the storage rate for the survey.
The maximum survey duration,
displayed in the lower drawer
of the filing cabinet, will change
when the storage rate is
changed. The checkmark key
(F3) is used to confirm the
change and return to the main
screen.
The length of the maximum
survey period for each storage
rate is calculated based on the size of the memory card. For example,
a 1GB memory card can have the following survey durations:
Storage rate
Maximum Survey duration
1 Second
7 Days
5 Seconds
35 Days
10 Seconds
70 Days
15 Seconds
105 Days
30 Seconds
210 Days
1 Minute
420 Days
5 Minutes
999 Days
10 Minutes
999 Days
15 Minutes
999 Days
30 Minutes
999 Days
Memory card warning
This graphic will appear if there is a
write error or if a memory card not
supported by the logger is inserted.
10 EnergyPro Energy Analyser
Logger Operation
Voltage / Current / Power Factor Display
The voltage/current/power factor screen will appear after pressing the
button. It displays RMS voltage, RMS current, and power factor
for each phase. Switch between Line-to-Neutral voltage (VLN) and Line-
to-Line voltage (VLL) by pressing F4. Note that VLL is not present in the
1P2W configuration.
Leading power factor is displayed with “LD” and lagging power factor is
displayed with “LG”. It also displays frequency and calculated neutral
current.

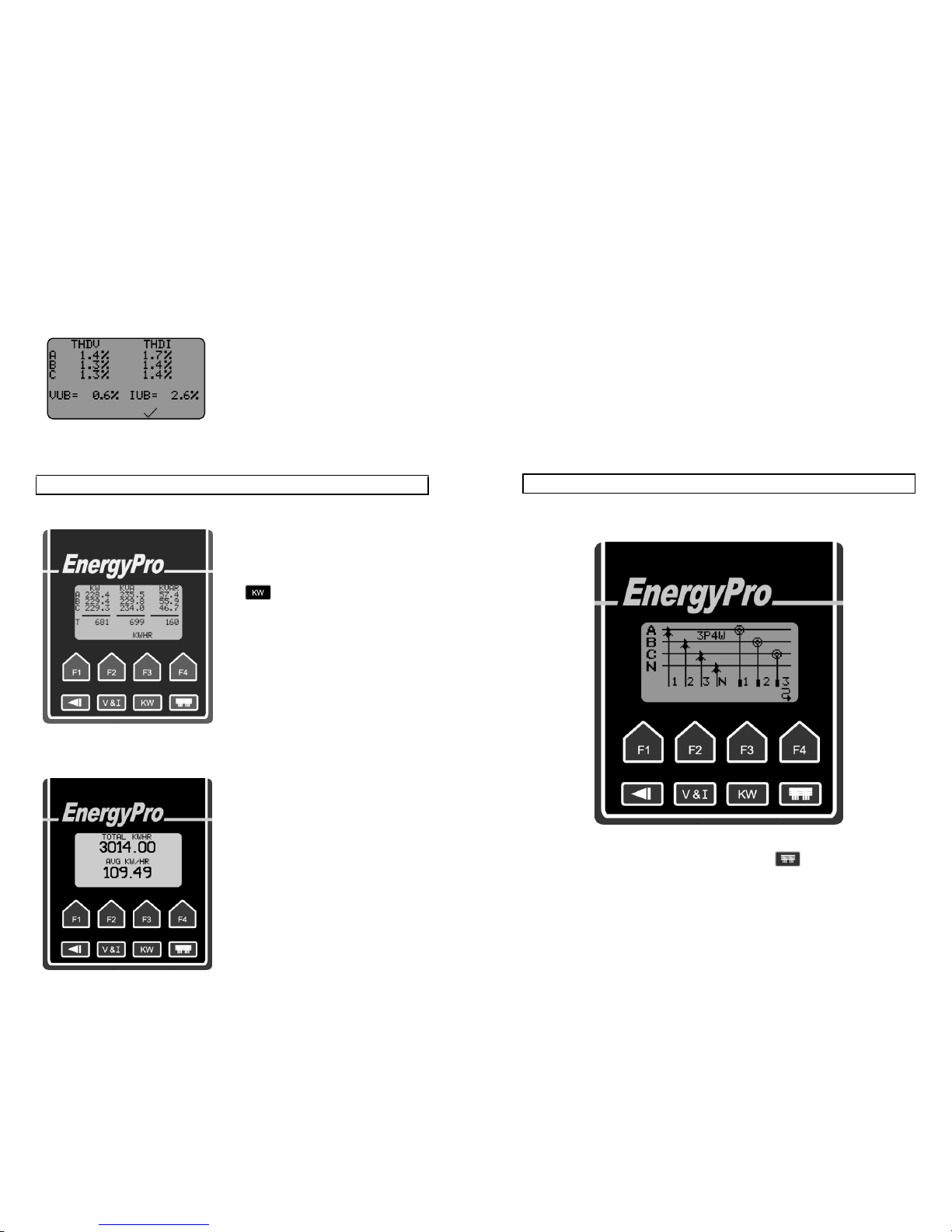

THD / Unbalance Display
THD and Unbalance measurement
are displayed by pressing F2 in the
V&I screen.
11
EnergyPro Energy Analyser
Logger Operation
Power Display
The Power screen will appear when
the button is pressed. It
displays real, apparent and reactive
power for each phase.
The KWHR key (F3) selects the total
energy consumption screen.
The total energy consumption screen
is zeroed at the start of each survey.
The maximum KWHRs that can be
accumulated is 9,999,999 KWHR.
12 EnergyPro Energy Analyser
Logger Operation
Hook-up Configurations
The hook-up screen will appear when the button is pressed.
Before a survey is started this screen can be used to set the type of
connection. There are five different connection types available:
1P2W, 1P3W, 3P3W, 2.5E and 3P4W. Press „F4‟ to scroll through
different connection types.

13
EnergyPro Energy Analyser
Logger Operation
1P2W
This is for a single phase circuit. The
EnergyPro assumes that V1 and
CT1 (and CT2, CT3 if used) are
connected to the same phase. The
1P2W mode allows the use of CT2
and CT3 for monitoring multiple
single phase loads. V2 is connected to neutral for the internal
power supply.
1P3W
This is for a split phase circuit.
Usually 120V from each line -
neutral and 240V from line - line.
3P3W
This is a three phase circuit that
does not have a neutral (delta
system). For direct connection the
voltages are connected. A-B (ch1)
and C-B (ch3) and the CTs are
connected to A (ch1) and C (ch3). Vca is calculated from the two
voltage measurement and Ibis calculated from the two current
measurements.
Note 1. V2 and neutral are both connected to Phase B. V2 is
connected for the internal power supply and neutral is connected for
measurement purposes.
Note 2. For direct connection in a delta system the 3P4W connection
can be used with the neutral connection floating or connected to
ground.
Note 3. If the voltage and current inputs are connected to external
CTs and PTs, then the external PTs must be connected A-B and C-B
and the external CTs connected to A and C. The EnergyPro should
be configured for 3P3W, V1 connected to A secondary, V3 connected
to C secondary, V2 and neutral connected to the PT secondary
common.
14 EnergyPro Energy Analyser
Logger Operation
3P4W
This is for a three phase circuit where
three voltages, line to neutral, and
three currents are measured. If a
neutral connection is not available the
neutral input may be left floating or connected to ground. Line –Line
voltage measurements are available on the EnergyPro front panel and
in software.
2.5E
Used when there are two voltage (line
–neutral) measurements and three
phase current measurements.
EnergyPro assumes that the two
voltage measured are phases A and
C, and the voltage for phase B is calculated from measurements of
phase A and C. V2 is connected to neutral for the internal power
supply.

15
EnergyPro Energy Analyser
Logger Operation
Start and Stop logging
Before logging, make sure that all connections from the voltage leads
and current clamps are secured to the EnergyPro. Remember to
insert a memory card and make sure all configurations are set
properly.
To start recording press and hold the F2 key while in the main screen
(under the „running‟ icon) for 5 seconds. The „checkmark‟ icon and the
„scroll‟ icon will disappear and the „sleep‟ icon will be replaced by a
„stop‟ icon.
The EnergyPro starts recording on an even minute. While waiting for
the recording to synchronize to the time the „running‟ icon will be
animated to „run‟ on the spot. After the first record is recorded the
„running‟ icon will be animated to move across the bottom of the screen
and the red „logging‟ LED will flash.
To stop recording press and hold the F1 key while in the main screen
(under the „stop‟ icon) for 5 seconds. When the recording has stopped
the main screen will return to the normal setup display.
16 EnergyPro Energy Analyser
Data Download
Use a CompactFlash card reader
or a PCMCIA adapter to open
the data file (*.TSE) with
PowerView. The data file will be
processed and saved on the
computer. For more details, see
manual „PowerView for EP600‟.

17
EnergyPro Energy Analyser
Specifications
Measurement
Specifications
Comment
V1, V2, V3
0 - 600 VAC
0.5 % of full scale
-
I1, I2, I3
0 - 1V (Clamp)
0 - 100mV (Flex)
0.5% of full scale
CT‟s are voltage
output
Sampling
32 sample/cycle
45 - 65Hz
Recording
Specifications
Comment
Storage Rate
1, 5, 10, 15, 30 sec
or
1, 5, 10, 15,10, 30
min
-
Memory
32M - 1G removable
memory card
Maximum recording
duration 18 hours up
to 20000 days
Power Supply and Battery Charger
Specifications
Comment
Internal Power
Supply
Input (V1-V2): 100-
600 VAC
50-60 Hz, 10.5mA
-
Battery Run Time
48 hours
-
18 EnergyPro Energy Analyser
Specifications
Environmental
Specifications
Comment
Operating
Temperature
-20oC to 60oC
-
Humidity
Max 80% relative
non condensing
-
Altitude
Max 2000m
-
Safety
Specifications
Comment
Approval
Pollution Degree 2
Normally only non-conductive
pollution occurs. However,
temporary conductivity
caused by occasional
condensation must be
expected.
600V CAT-IV
Measurement category IV is
for measurements performed
in the building installation.

19
EnergyPro Energy Analyser
Notes
20
