Scion-Tech SC03.1404 User manual
User Manual
Version 1.1
User Manual
Scion Tech SC03.1404
4:1 Quad Multi-Viewer
with Seamless Switching
User Manual
Scion Tech SC03.1404
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric
shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and
extend the life of your equipment.
Table of Contents
1. Introduction…………………………………………………….…………………………….…….…………….……………………….
2. Features……………………………………………………………………………………………………….……….…………….……..
3. Package Contents…………………………………….……………………………………………………………….……….………..
4. Specifications…………………………………………………………………….………………………………………………….……
5. Panel Description……………………………….….………….…………………………………………….…………….……………
6. Infrared Remote Control.….…………………………………….…….…………….…………….…………………………………
7. Connection Diagram………………………………………………………….…………………….………………………….………
8. Segmentations.…………………………………………………….….….…………….…………………….………….……………….
9. Maintenance………………………………………………………….….……….……………………………….…………………….
9.1. Servicing……………………………………………….…….…………………………………………….……….…….………..
9.2. Warranty……………………………………………………………….……………………….…….………….………………..
9.3. Returning a Product……………………………………..….…………………………….…….……………………………..
9.4 Warranty Limits and Exclusions……………………………………….………………….….….………………………
1
1
1
2
3
4
4
5
6
6
6
6
7
User Manual
Scion Tech SC03.1404
1. Introduction
The SC03.1404 quad multi-viewer has 12 segmentation modes for viewing 4 x HDMI signals on the same screen,
including 4 equal segments as one of the modes. The unit can also be used as a seamless switch for viewing individual
inputs. When the screen is split into segments, audio can be switched independently for any of the 4 inputs. Switch
modes are selected using the buttons located on the front panel or using the infra-red remote supplied.
For installations were the 4 sources are located in a remote location, we recommend a Scion SC05.6000 HDMI
extender to keep the number of products and cables behind the screen to a minimum.
The switch requires no setting up or adjustments making a simple plug & play solution. This switch is ideal for general
TV viewing, public displays, CCTV and much more.
2. Features
●4 x HDMI Inputs / 1 x HDMI Output
●1080p/60Hz, 4:4:4, HDMI 1.3, HDCP 1.4
●Seamless switching between inputs
●Supports PCM 2CH
●Independent audio switching
●12 segmentation modes
●Control: front panel buttons & infrared
●No software, just plug & play
3. Package contents
Page 1
Transmitter
1 x Main Unit
1 x 12V/1A Power Adaptor
1 x IR Remote Control
1 x Rack Ears (set)
1 x User Manual
User Manual
Scion Tech SC03.1404
Page 2
4. Specifications
Input Connectivity
Signal: 4 x HDMI Type A, 19-Pin Female
Power: DC Jack Socket
Output Connectivity
Signal: 1 x HDMI Type A, 19-Pin Female
Signal
Signal Input: HDMI
Standards: HDMI 1.3, HDCP 1.4
Bandwidth: 4.95Gbps
Video Resolutions: 1080p/60Hz
HDMI Cable Lengths: Input 8m and Output 15m
Audio: PCM, Dolby Digital™ and DTS Digital Surround™
Infra-Red Control: Frequency 30KHz to 56KHz (940nm)
Power
Type: AC to DC Mains Adaptor
Input: 100~240V AC 50/60Hz
Output: 12V/2.5A DC
Consumption: 7 Watts
Environment
Operating Temperature: -5° to 35°C
Operating Humidity: 5 to 90% RH (no condensation)
Dimensions: (W) 190 x (D) 113 x (H) 17
Weight: 480g
Colour: Black
VESA Resolutions
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1680 x 1050, 1920 x 1080, 1280 x 720, 1360 x 768, 1920
x 1200, 1280 x 1024
Page 3
User Manual
Scion Tech SC03.1404

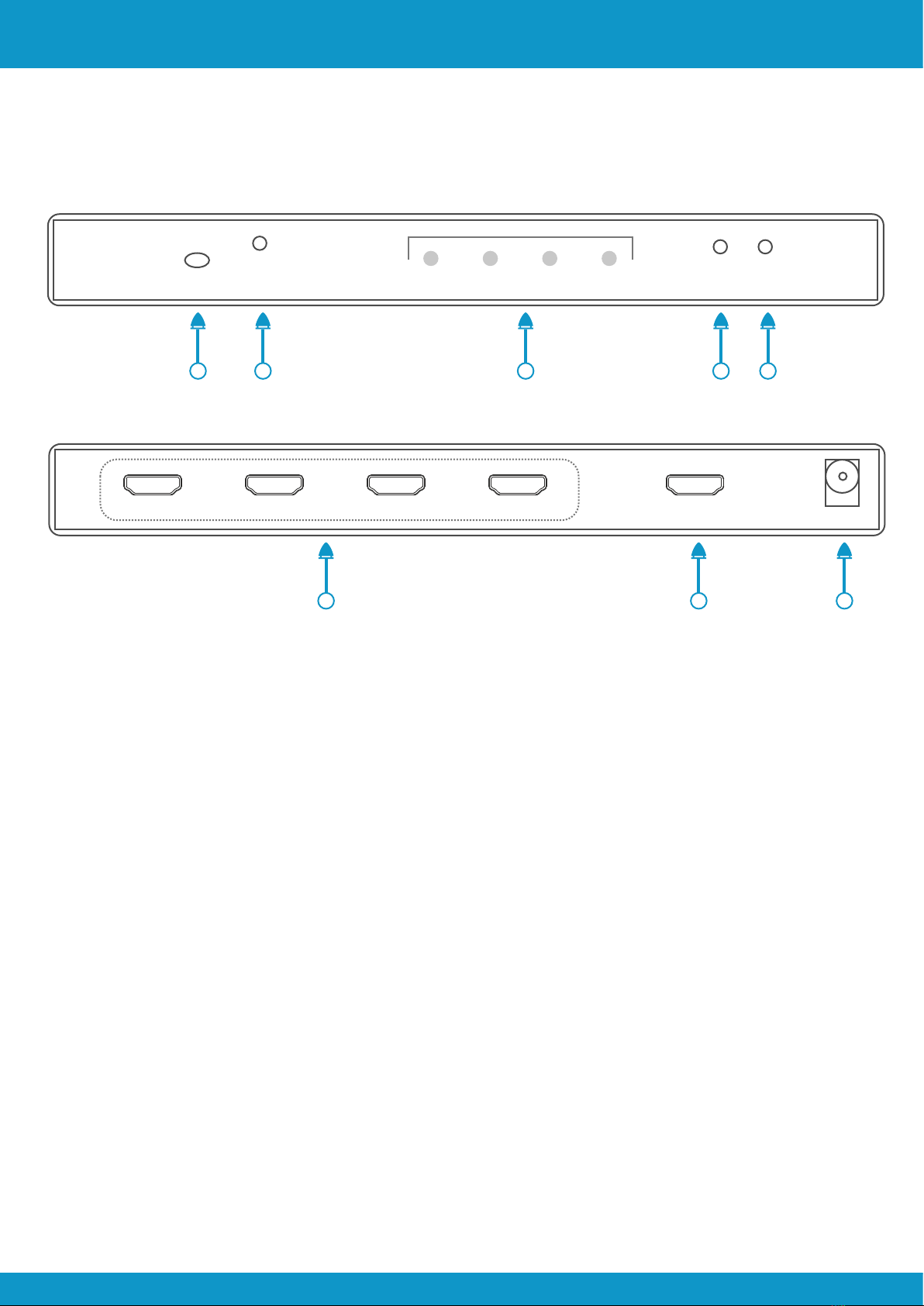

5. Panel Description
DC 12V
HDMI Output
Input 1
4 5
6 7 8
Power
1
IR
1 2 3
SCION
SC03.1404
1:4 Multiviewer
234
Audio Mode
Input 2 Input 3 Input 4
1. Infrared receiver window
2. Power LED
3. HDMI input LED indicators
4. Audio selection switch
5. Mode selection switch
6. HDMI Inputs 1 to 4
7. HDMI Output
8. DC Power input
User Manual
Scion Tech SC03.1404

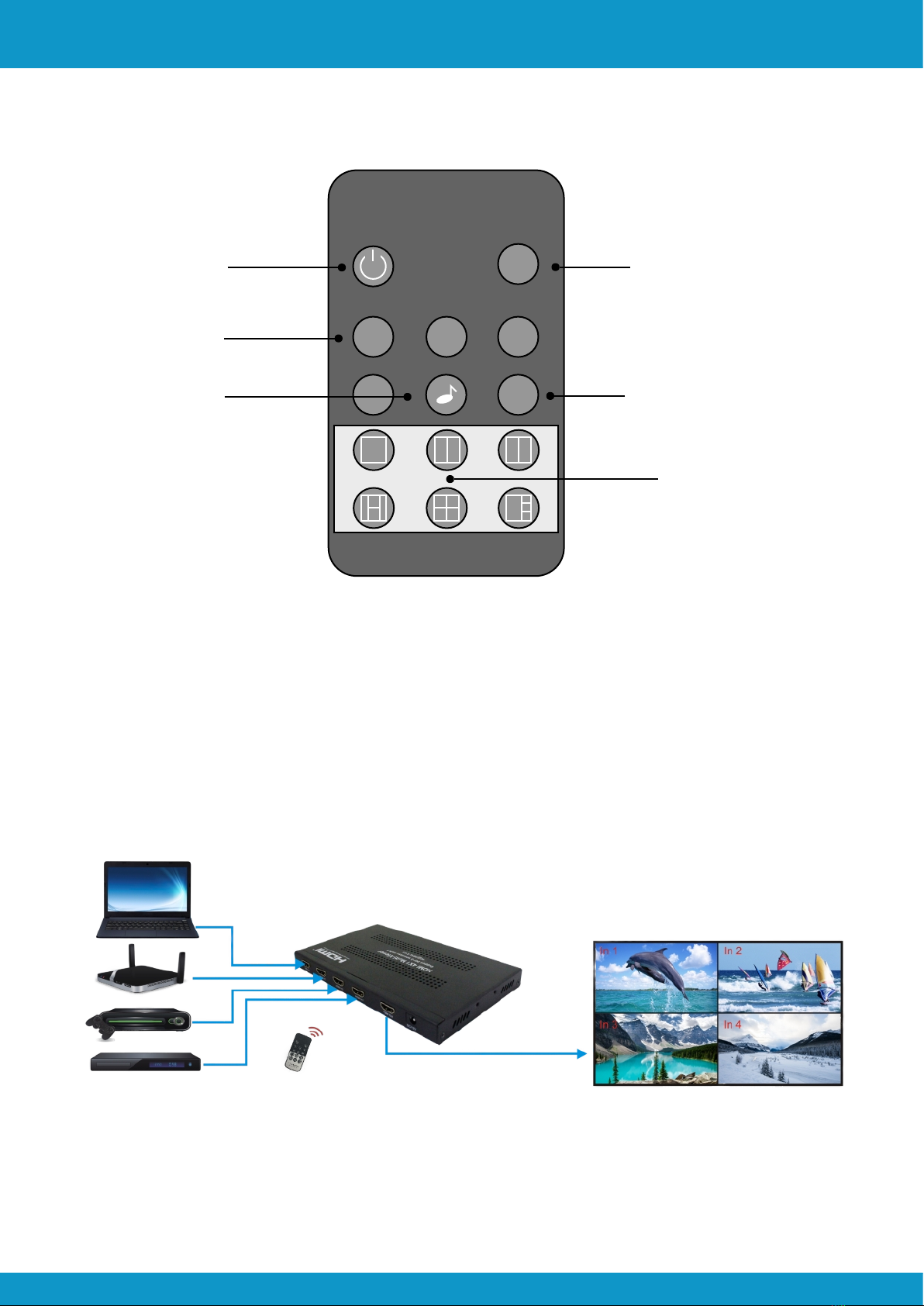

6. Infrared Remote Control
Page 4
1 2 3
720p
1080p
4Mute
1 2 3 4
4 x 1 Quad Multi-Viewer
Remote Control
Power / Standby
Outputs 1 - 4
Audio Switch
720p / 1080p Switch
Audio Mute
Output Mode Selection

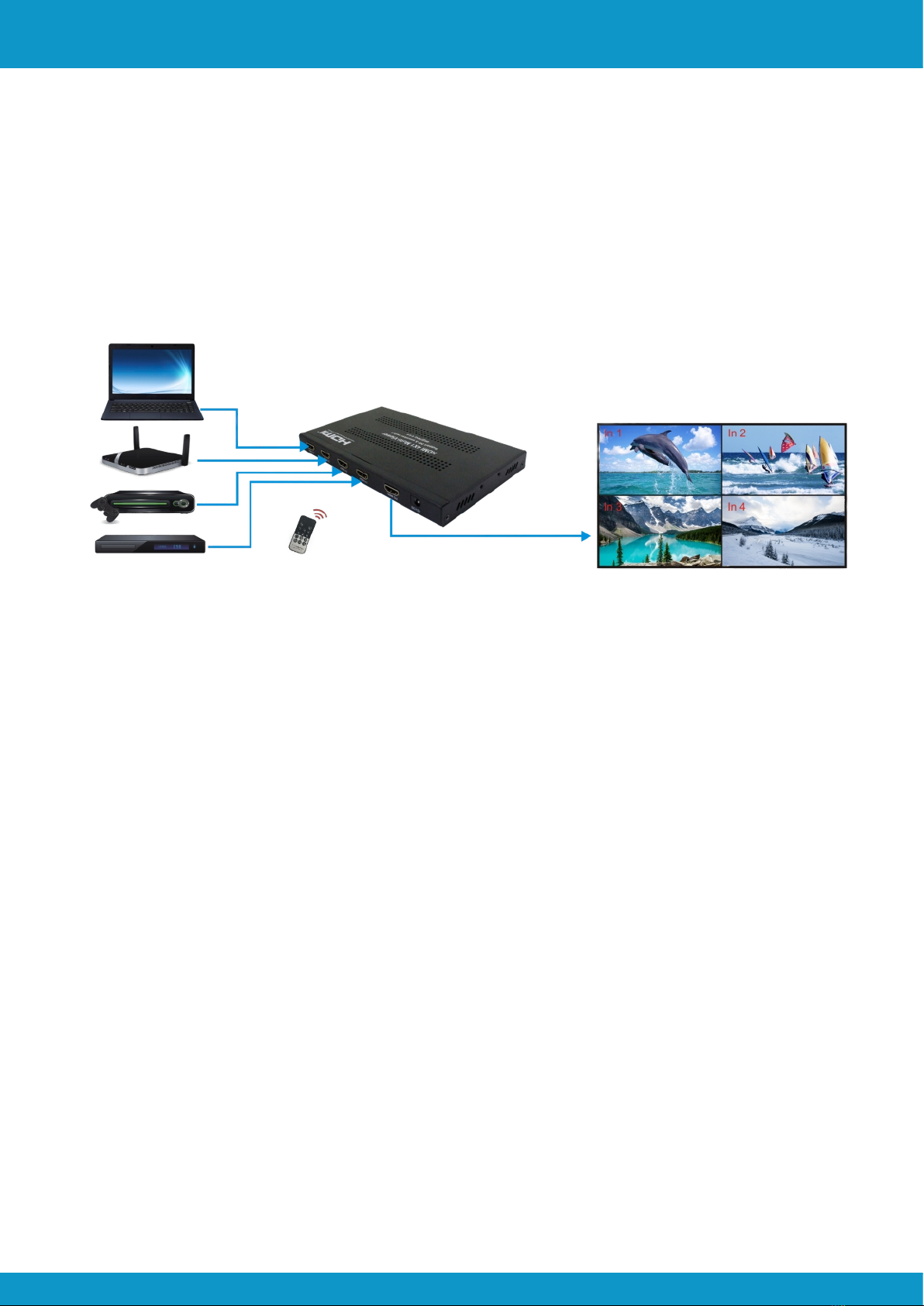

7. Connection Diagram
Page 5
User Manual
Scion Tech SC03.1404
IN 1 IN 2 IN 3 IN 4
IN 1 IN 2 IN 3 IN 4 IN 1
IN 2
IN 3
IN 4
IN 1 IN 2
IN 3 IN 4
IN 1
IN 2
IN 3
IN 4
IN 2
IN 3
IN 3
IN 3IN 1
IN 1
IN 1
IN 2
IN 2IN 4
IN 4
IN 4
8. Segments Options
Page 6
User Manual
Scion Tech SC03.1404
9. Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices.
9.1 Servicing
Damage requiring service: This product should be serviced by a qualified service engineer if:
●The DC power cord or AC adaptor has been damaged.
●Objects or liquids have entered the housings.
●The product has been exposed to rain.
●The product has stopped working or shows signs of significant change in operating performance or function.
●The unit has been dropped or severely damaged externally.
Servicing personnel: Do not attempt to service the product beyond that described in these instructions. Refer all other
servicing to authorised serving personnel.
Replacement parts: When parts need replacing ensure the service engineer uses parts specified by the manufacture or
parts that have the same characteristics as the original parts. Unauthorised substitutes may result in fire, electric shock
or other hazards.
Safety check: After a repair or service, ask the engineer to perform safety checks to confirm the product is in proper
working condition.
9.2 Warranty
If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as
"the warrantor" ) will , for the length of the period indicated as below, (Parts and labour 2 years) which starts with the
date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or
refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will be made by
the warrantor.
During the "Labour" Limited Warranty period there will be no charge for labour. During the "Parts" warranty period,
there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is
extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of
original purchase date is required for Limited Warranty service.
9.3 Returning a Product
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton.
Include a letter detailing the complaint and provide a day time phone number and/or email address where you can be
reached.
User Manual
Scion Tech SC03.1404
Page 7
9.4 Limited warranty limits and exclusions
This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, maladjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone
other than a Factory Service centre or other authorized service engineer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service, loss of or damage to media or images, data or other recorded
content. The items listed are not exclusive, but are for illustration only).
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY. This returns policy does not affect your legal rights. Details of your legal rights are available from
Trading Standards or Citizens Advice Consumer Service.
Scion Tech Limited
Thatcham, Berkshire, United Kingdom
