ScreenBeam 960 User manual

ScreenBeam 960
Wireless Display
Receiver
Firmware 9.15.44.0
User Manual
V0.0
For Catalog # SBWD960A

Table of Contents
Part I Getting Started ...................................................................................................................... 1
1.1 Contents in the Box ....................................................................................................... 1
1.2 Meeting ScreenBeam 960 ............................................................................................. 1
1.2.1 ScreenBeam 960 ................................................................................................... 2
1.3 System Re uirements ................................................................................................... 2
1.3.1 System Re uirements............................................................................................ 2
1.3.2 Network Re uirements ......................................................................................... 3
1.3.3 Setup Re uirements .............................................................................................. 3
1.3.4 Legacy Device Support .......................................................................................... 3
Part II Installing the Receiver ........................................................................................................... 4
2.1 Connecting the Receiver to an HDTV ............................................................................ 4
2.2 Connecting the Receiver to a Network ......................................................................... 6
2.2.1 Wired Connection ................................................................................................. 6
2.2.2 Wireless Connection ............................................................................................. 7
Part III Connecting Client Device .................................................................................................... 10
3.1 Overview of Wireless Display Network Modes ........................................................... 10
3.1.1 Wi-Fi Miracast ..................................................................................................... 10
3.1.2 Wireless Display over existing LAN...................................................................... 11

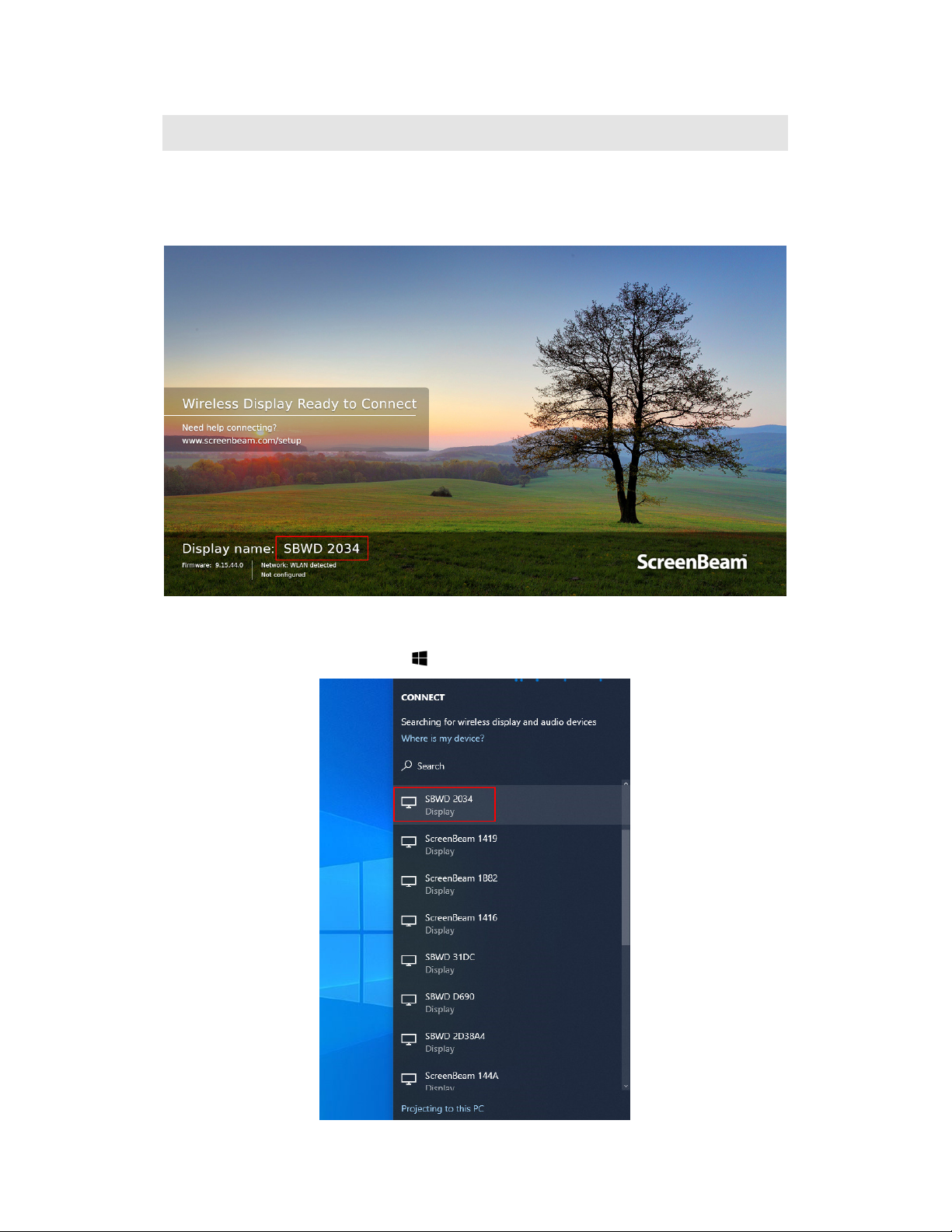

3.2 Connect using Wi-Fi Miracast...................................................................................... 12
3.3 Connect using Existing Wireless Network or LAN ....................................................... 15
3.4 Connecting using ScreenBeam Cast on Windows 7 .................................................... 21
3.5 Connecting using ScreenBeam Cast on Mac OSX ........................................................ 25
3.6 Tips for Optimal Performance ..................................................................................... 27
Part IV Display and Control Options ............................................................................................... 28

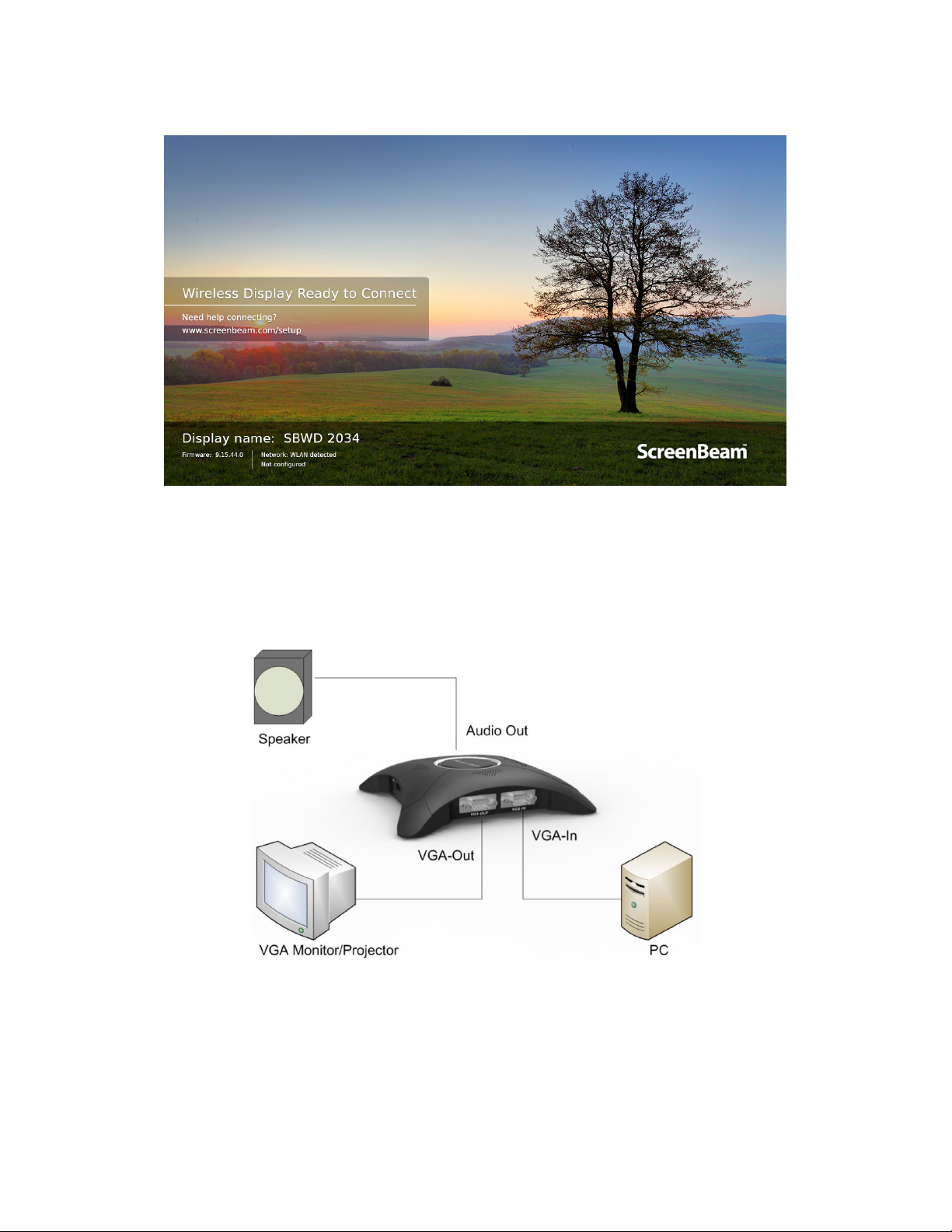

4.1 VGA Use Case .............................................................................................................. 28
4.2 Display Mode .............................................................................................................. 28
4.3 USB over Network Control .......................................................................................... 30
Part V Device Management for IT Administrator........................................................................... 31
5.1 Using ScreenBeam CMS Software ............................................................................... 31
5.2 Using Local Management on ScreenBeam .................................................................. 31
5.2.1 Method 1: Wireless P2P Direct Connection (AGO) ............................................. 32
5.2.2 Method 2: Network Connection via DHCP .......................................................... 33
5.2.3 Method 3: ScreenBeam Local Wi-Fi Network (NGO) .......................................... 34
5.2.3.1 When SSID Broadcast is Disabled ................................................................ 34
5.2.3.2 When SSID Broadcast is Enabled ................................................................. 39
5.2.4 Log Out ................................................................................................................ 40
5.3 Configuring ScreenBeam ............................................................................................. 41
5.3.1 General Settings .................................................................................................. 41
5.3.1.1 Changing Local Management Interface’s Display Language........................ 41
5.3.1.2 Renaming the Receiver ............................................................................... 42
5.3.1.3 Setting up the Login Username and Password ............................................ 43

5.3.1.4 Setting up the Receiver’s Display Language ................................................ 44
5.3.1.5 Setting up Time Zone .................................................................................. 45
5.3.2 Wireless Display over LAN ................................................................................... 46

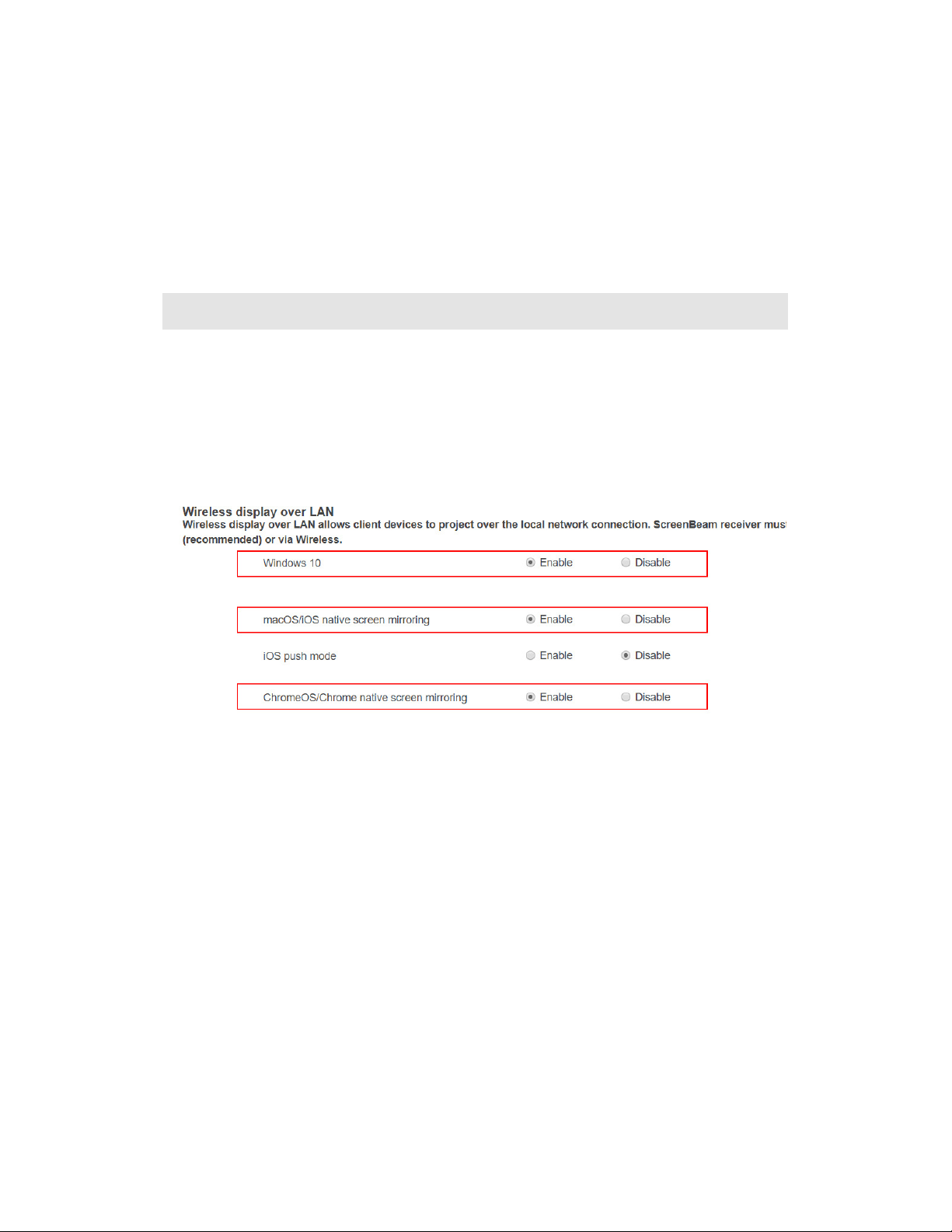

5.3.2.1 Setting up Wireless Display over LAN for Windows 10 Devices .................. 46
5.3.2.2 Setting up Wireless Display over LAN for Mac OS or Windows 7 Devices .. 47
5.3.2.3 Setting up Native Screen Mirroring for macOS/iOS Devices ....................... 48
5.3.3 P2P Wireless Settings .......................................................................................... 50
5.3.3.1 Setting up P2P Connection Mode (AGO or NGO) ........................................ 50
5.3.3.2 Setting up P2P Operating Channel (AGO Mode Only) ................................. 51
5.3.3.3 Setting up Transmit Power .......................................................................... 52
5.3.4 Security Settings .................................................................................................. 53

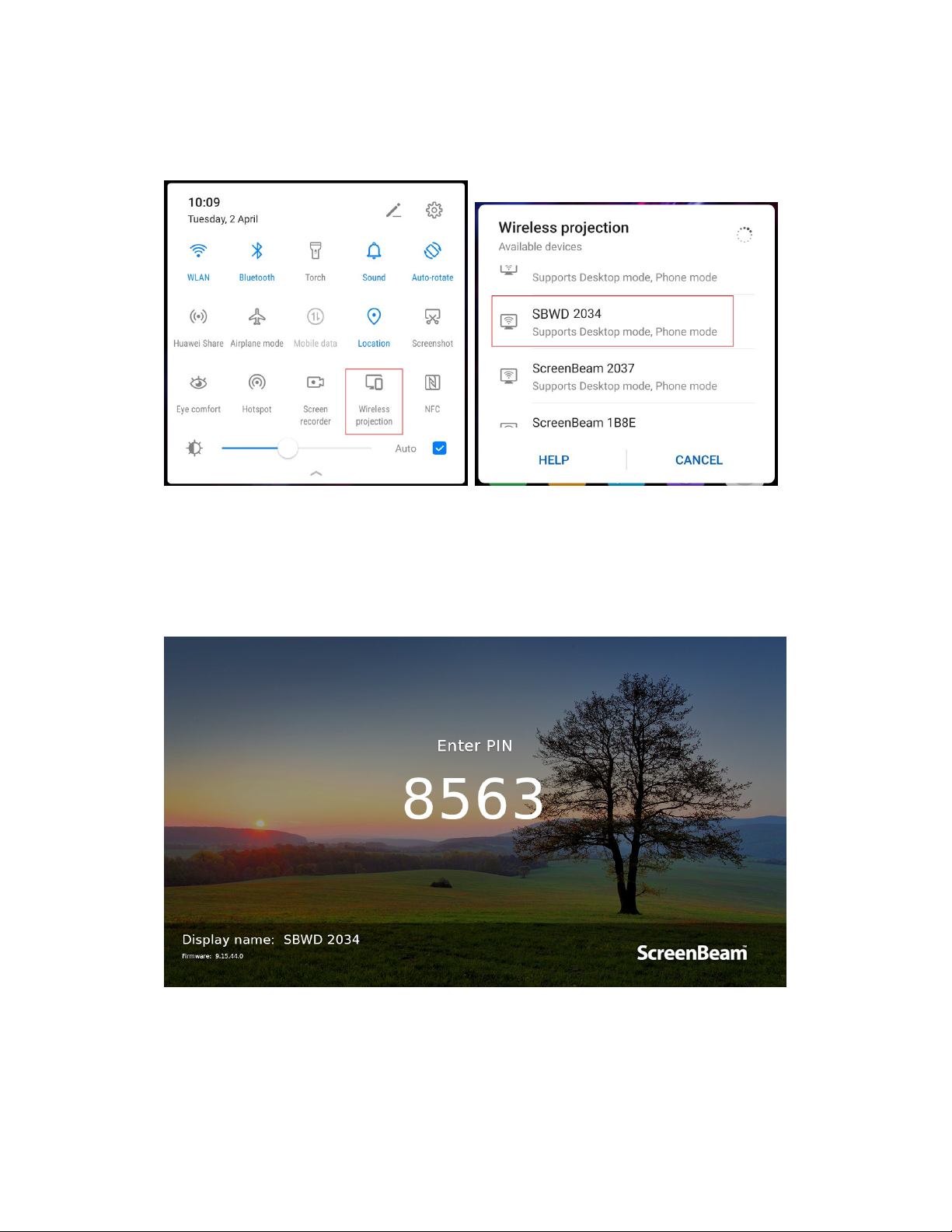

5.3.4.1 Setting up PIN Pairing Method .................................................................... 53
5.3.5 Display Settings ................................................................................................... 55
5.3.5.1 Setting up Display Sharing Mode ................................................................ 55
5.3.5.2 Setting up Receiver Name Display for Quick Switch ................................... 56
5.3.5.3 Managing HDMI/VGA Port Output.............................................................. 58
5.3.5.4 Waking up the Receiver .............................................................................. 59
5.3.5.5 Setting up VGA Compatibility Mode ........................................................... 60
5.3.5.6 Setting up Default VGA Format ................................................................... 61
5.3.5.7 Adjusting TV Screen Size ............................................................................. 63
5.3.5.8 Setting up HDMI-CEC ................................................................................... 64
5.3.5.9 Updating the Receiver’s Background Image ............................................... 65
5.3.5.10 Updating the Receiver’s Screen Saver Image ...................................... 67
5.3.5.11 Setting up Network Information Display on TV Screen ....................... 69
5.3.5.12 Hiding Ready to Connect Information ................................................. 70
5.3.6 Local Management Settings ................................................................................ 72
5.3.6.1 Setting up Local Management Interface Access.......................................... 72
5.3.6.2 Setting up Allow Access via LAN .................................................................. 73
5.3.6.3 Modifying the Receiver’s Local Wi-Fi Settings ............................................ 74
5.3.6.4 Setting up Broadcast Network Name .......................................................... 75
5.3.6.5 Specifying a Local Management Communication Port for the Receiver ..... 76
5.3.6.6 Setting up USB Auto Configuration ............................................................. 77
5.3.7 Remote Management Settings ............................................................................ 78
5.3.7.1 Modifying the Receiver’s Host Name .......................................................... 78
5.3.7.2 Setting up the Receiver’s IP Address ........................................................... 79
5.3.7.3 Specifying a DNS Server for the Receiver .................................................... 80
5.3.7.4 Specifying ScreenBeam CMS for the Receiver ............................................ 81
5.3.7.5 Setting up UPnP Discovery .......................................................................... 82
5.4 Updating Firmware for the Receiver ........................................................................... 83
5.4.1 Updating Firmware Wirelessly ............................................................................ 83
5.4.2 Updating Firmware Locally .................................................................................. 85
5.5 Receiver Maintenance ................................................................................................ 87
5.5.1 Setting up Receiver Auto Reboot ........................................................................ 87
5.5.2 Setting up Receiver Logging ................................................................................ 88

5.5.3 Exporting Receiver Log with LMI ......................................................................... 89
5.5.4 Rebooting the Receiver ....................................................................................... 90
5.5.5 Resetting the Receiver to Default........................................................................ 90
Appendix I Troubleshooting and FAQs .......................................................................................... 92
Troubleshooting .......................................................................................................................... 92
FAQs ............................................................................................................................................ 94
Appendix II Notices ...................................................................................................................... 100
Warranty ................................................................................................................................... 100
GPL Info ..................................................................................................................................... 100
EU CE Declaration of Conformity .............................................................................................. 100
Technical Support ...................................................................................................................... 101

1
Part I Getting Started
Thank you for your purchase of ScreenBeam 960 Wireless Display Receiver (hereinafter
refer to as “ScreenBeam 960”).
ScreenBeam 960 wireless display receiver enables native screen mirroring from your
Windows, Android, and Apple devices - without apps or wires. ScreenBeam 960 lets you
wirelessly stream what’s on your Wi-Fi Certified Miracast™ compatible device to your HDTV,
including movies, videos, photos, music, and more. The receiver frees your eyes from a tiny
screen.
The receiver boasts some great features, including fast connect, quick switch, enhanced
security and IT manageability, smooth video playback, 1080p full HD support, ultra-low delay,
Windows 8.1/10 optimization, versatile compatibility, low power consumption, and more.
ScreenBeam 960 also supports legacy windows devices (such as Windows 7) and Mac
OSX devices.
For optimal wireless display experience, we strongly recommend you update your receiver
to the latest firmware. Check firmware update now on https://support.screenbeam.com.
1.1 Contents in the Box
Contents in the Receiver’s package are listed below:
ScreenBeam 960 receiver (1)
HDMI
®
Cable (1)
AC Power Adapter (1)
Product documentation
1.2 Meeting ScreenBeam 960
This manual is applicable to the following catalog #s:
SBWD960A

2
1.2.1 ScreenBeam 960
ETHERNET, for connecting to ScreenBeam Central Management System via Ethernet
for receiver management
HDMI OUT, for connecting to HDTV/projector with an HDMI port for video and audio
output
POWER, for power supply
RESET, for resetting the receiver to default settings
LED Indicator, indicating power supply status
AUDIO OUT, for outputting audio to speaker (available for both HDMI out and VGA out)
USB, for provisioning CMS connection data, firmware update, and USB over network
control (UIBC)
VGA-OUT, for connecting to an HDTV/projector with a VGA port for video output
VGA-IN, VGA input for VGA bypass
1.3 System Requirements
System requirements for the receiver are shown below:
1.3.1 System Requirements
Client device from 2015 or newer with one of the following operating systems:
Windows 10 build 1709 (and later)
macOS X 10.10 (and later)
iOS 9 (and later)
Android 4.4 (and later) with Miracast

3
1.3.2 Network Requirements
For wireless display over the existing wireless network or LAN:
Ethernet: 100BASE-T 10/100 connection (1 Gbps is recommended)
Wireless: 802.11ac (5 GHz is strongly recommended)
Multicast DNS (mDNS) support is required for auto-discovery of ScreenBeam
Required ports
• 5353 (UDP) for Multicast DNS (mDNS) discovery
• 7100 (TCP) for macOS, iOS and Windows 10 mirroring
• 7250 (TCP) for Miracast over LAN data stream
• 47000 (TCP) for Airtunes in AirPlay
• 18000-18009 (TCP) for macOS and iOS AV data
Note: Additional network configuration is not required for Wi-Fi Miracast enabled device to
connect. Verify Group Policy and firewall settings allow Wi-Fi Direct groups or hosted
networks.
1.3.3 Setup Requirements
ScreenBeam 960 receiver
Display with an available HDMI input or VGA input
(Optional) Touchscreen with USB touch cable
An Ethernet network connection with DHCP IP or a Wi-Fi router
Note: This is used for wireless display over LAN and management.
1.3.4 Legacy Device Support
The receiver is also compatible with the following devices:
Non-Miracast ready laptops and PCs (Windows 7) with ScreenBeam USB Transmitter 2
(SBT200DI) or ScreenBeam USB Transmitter (SBT100U)
Windows 7 devices with ScreenBeam SBCast software
Apple Mac OSX (Yosemite, El Capitan, Sierra, High Sierra) devices with ScreenBeam
SBCast app

4
Part II Installing the Receiver
This chapter explains how to connect the receiver to a display such as an HDTV or projector.
Make sure you have all the contents from the receiver’s package available before starting.
2.1 Connecting the Receiver to an HDTV
It is quite easy and fast to set up the receiver. You can complete the setup by your own.
To connect the Receiver to an HDTV:
1. Get the Receiver, AC power adapter, and HDMI cable from the receiver’s package.
2. Plug one end of the HDMI cable into the HDMI port (“HDMI-OUT”) on the receiver, and
the other end into an available HDMI port on the HDTV.
3. (Optional) If the display has USB HID touch capability, insert the HID USB connector
into a USB port on the ScreenBeam receiver. (USB cable is not included).
4. (Optional) Connect one end of the Ethernet cable to the receiver’s Ethernet port and
connect the other end to the network switch with DHCP IP. (Ethernet cable is not
included).
Note: Refer to Section 2.2 for more information on setting up a network connection.
5. Plug the connector of the power cord to the receiver’s power input port labeled
“POWER”, and plug the power adapter to a power outlet.
When the above steps are complete, the hardware should be connected as shown in
the figure below:
Note: Power adapter may vary in different region.
6. Turn on the HDTV and set it to display the input from the correct HDMI port (the one you
have plugged into in Step 2).

5

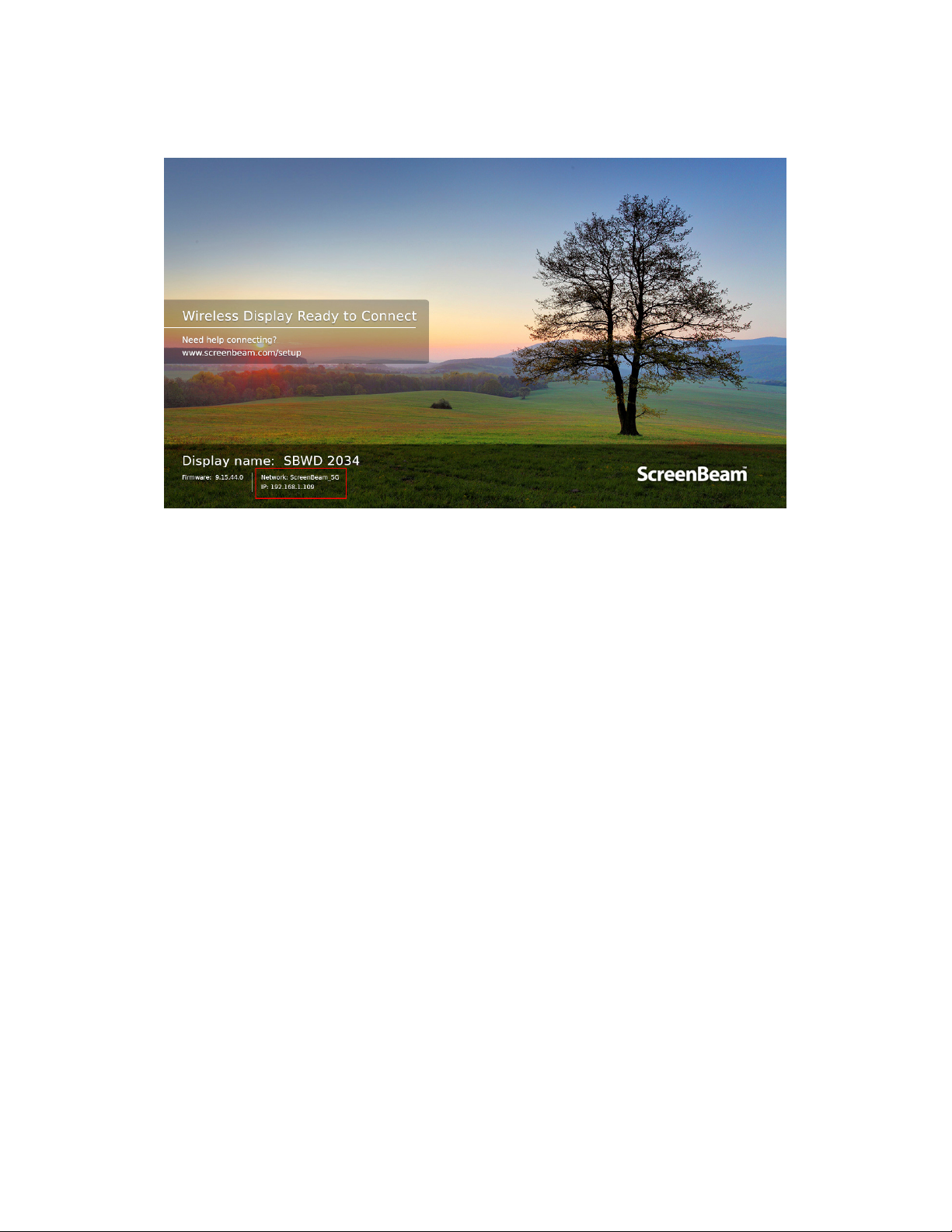

7. Verify that the “Wireless Display Ready to Connect” screen appears on the HDTV.
The receiver is connected to the HDTV, and it is ready for use.
Note: Connections to other display devices are similar.
8. (Optional) VGA bypass setup is shown below. Refer to Section 4.1 VGA Use Case for
details about how the input and outputs work.

6
2.2 Connecting the Receiver to a Network
ScreenBeam 960 receiver supports both wired and wireless connections. You can deploy
ScreenBeam 960 receivers based on your network requirements.
Note: The setups in this section are optional.
2.2.1 Wired Connection
ScreenBeam 960 receiver provides a built-in Ethernet port, allowing direct connection to an
Ethernet network.
To connect the receiver to a network, follow this procedure:
1. Go to the receiver’s Local Management Interface, and set IP address assignment and
DNS assignment to auto in the Remote Management tab page.
Note:
If you want to set the receiver’s IP address or DNS server to static, consult your
network administrator.
Refer to Section 5.2 Using Local Management on ScreenBeam for detail on how to log
into the receiver’s Local Management Interface.
Refer to Section 5.3.7.2 Setting up the Receiver’s IP Address for detail on how to set
up the receiver’s IP address.
Refer to Section 5.3.7.3 Specifying a D S Server for the Receiver for detail on how to
set up the receiver’s DNS server.
2. Connect your ScreenBeam receiver to your network with a quality Ethernet cable.
3. The receiver will be assigned an IP address after a few seconds, if a DHCP server is
available in your network.

7
2.2.2 Wireless Connection
ScreenBeam 960 receiver provides a built-in WLAN Adapter, which allows the receiver to
wirelessly connect to your network. It is required to set up the wireless connection
parameters before starting the connection.
To connect the receiver to a wireless network, follow this procedure:
1. Go to the receiver’s Local Management Interface (LMI), and set IP address assignment
and DNS assignment to auto in the Remote Management tab page.
Note:
If you want to set the receiver’s IP address or DNS server to static, consult your
network administrator.
Refer to Section 5.2 Using Local Management on ScreenBeam for detail on how to log
into the receiver’s Local Management Interface.
Refer to Section 5.3.7.2 Setting up the Receiver’s IP Address for detail on how to set
up the receiver’s IP address.
Refer to Section 5.3.7.3 Specifying a D S Server for the Receiver for detail on how to
set up the receiver’s DNS server.
2. Go to LMI > Remote Management > Wireless Connection Settings, and configure
the parameters according to specific requirements.
Network Name: The SSID of the wireless router (AP).
Security Type: Select a security type, the one you have selected on your wireless
router. Available security types are Open, Shared, WPA-PSK[TKIP], WPA2-PSK[AES],
WPA-PSK[TKIP]+WPA2-PSK[AES], PEAP/MSCHAPV2, and EAP-TLS.
Status: It displays the connection states.
When Shared, WPA-PSK[TKIP], WPA2-PSK[AES], or WPA-PSK[TKIP]+WPA2-PSK[AES]
is selected,
User Name: Not used.
Password: The pre-shared password for the wireless SSID.
When PEAP/MSCHAPV2 is selected,
User Name: This is for authentication through a RADIUS server. It is RADIUS account
User Name.
Password: It is RADIUS account password.

8
When EAP-TLS is selected, the following items are available:
User Name: It is the User Principal Name or RADIUS Identity (if necessary).
Note: The User Name supports these characters: a-z, A-Z, 0-9, @, ., and _.
Password: It is the password of the Private Key.
System Date & Time: It is used to set date and time for the receiver. Users should set
the date and time according to the validity period of the certificates.
CA Certificate: It is the root certificate. Click the Browse button to browse and add the
certificate.
User Certificate: It is the user certificate. Click the Browse button to browse and add
the certificate.
Private Key: It is the user’s private key. Click the Browse button to browse and add the
certificate.
Validity Period: It displays the effective period of the certificates.
Note:
Currently, only certificates in the “.pem” format are supported, and the certificates
must be generated using the “DER encoded binary X.509” method.
The length of the certificate file name must not exceed 64 bytes, and the file size
must be less than 100 KB.
All the three certificates are required for authentication.
User should select the right certificate file for each type of certificate.
3. Click the Apply button, and then click K on the pop-up message box to save the
network connection parameters. The WLAN adapter will connect to the wireless router
(AP) in a few seconds when the receiver is idle or when it is not connected to an
Ethernet network.

9
Note: The CMS WLAN Adapter may take some time to connect to your network, depending
on your network environment.

10
Part III Connecting Client Device
This section provides the instructions on how to connect to ScreenBeam using the native
screen mirroring from the most common operating systems and using ScreenBeam SBCast
app.
Refer to www.screenbeam.com/setup for details and instructions for common operating
systems.
Note: The web page will display instructions based on the client-device OS. Use the links at
the bottom of the web page to select OS-specific instructions.
3.1 Overview of Wireless Display Network Modes
The ScreenBeam 960 allows presenters with Windows 10, macOS, iOS, or Android device
to wirelessly display without requiring any apps. ScreenBeam 960 supports Wi-Fi Miracast
and wireless display over existing infrastructure network.
3.1.1 Wi-Fi Miracast
The Wi-Fi Miracast mode allows compatible Wi-Fi Miracast devices to connect directly to
ScreenBeam, even when connected to an infrastructure wireless network. Miracast is
commonly available on Windows 10/8.1 and Android 4.4 (and later) devices since 2015.
Users can enjoy wireless display and Internet access if the client device is already
connected to Wi-Fi.

11
3.1.2 Wireless Display over existing LAN
ScreenBeam 960 can be connected to the existing wireless or wired network and supports
wireless display for client devices on either network. This is a common setup to support
client devices that need access to network resources. Additional port and network
configurations may be required for this mode to work seamlessly.

12
3.2 Connect using Wi-Fi Miracast
This section explains how to connect a client device to ScreenBeam 960 using Wi-Fi
Miracast.
1. Select the ScreenBeam receiver name as shown on the TV display.
For Windows 10
Select Connect from the Action Center by swiping from right or simultaneously
pressing the Windows key and K.

13
For Android
Select the Screen Mirroring option from the quick access menu and follow the
connection instructions.
Note: Different Android device manufacturers may have different names for their
wireless display apps.
2. Enter in the PIN if required. If the PIN code is not displayed, try the hidden PIN 1234
(default).
Note: You should consult your network administrator if no PIN is displayed on the
connected display device.

14
Windows 10
Android
3. Select duplicate or extended screen mode if prompted.
4. If the display has touch functionality, Windows 10 devices can take advantage of the
touch and inking feature by selecting Allow mouse…. (Refer to section 4.3 USB over
Network Control for more details.)

15
Note:
To disconnect, follow instructions in step 1 to return to the screen mirroring menu and
select mirroring off.
Some Android devices do not support PIN and will fail to connect. Refer to Section
5.3.4.1 Setting up PIN Pairing Method for instructions on how to configure
ScreenBeam and disable PIN enforcement.
3.3 Connect using Existing Wireless Network or LAN
This section explains how to connect a client device to ScreenBeam 960 using existing
wireless network or LAN.
1. Make sure that the Wireless display over LAN feature is enabled for Windows 10
and/or macOS/iOS AirPlay screen mirroring. Refer to section 5.3.2 Wireless Display over
LA for detail.
Note: You can also configure your receiver with CMS.
2. Connect the ScreenBeam receiver to a known network where your client device can
communicate over Wi-Fi. Refer to Section 2.2 Connecting the Receiver to a etwork for
detail.
