Sea Ray 300 Select Ex Quick setup guide

Specic
Information
Manual
300 Select Ex

300 Select Ex i
300 Se l e c t exIn f o r m a t I o n ma n u a l
Ta b l e o f Co n T e n T s
1. Load Capacity..........................................................1
2. Passenger Locations ...............................................1
3. Safety Label Locations ............................................2
4. Basic Boat Dimensions and Clearances ................. 5
5. Function and Location of Through-Hull Cutouts ...... 6

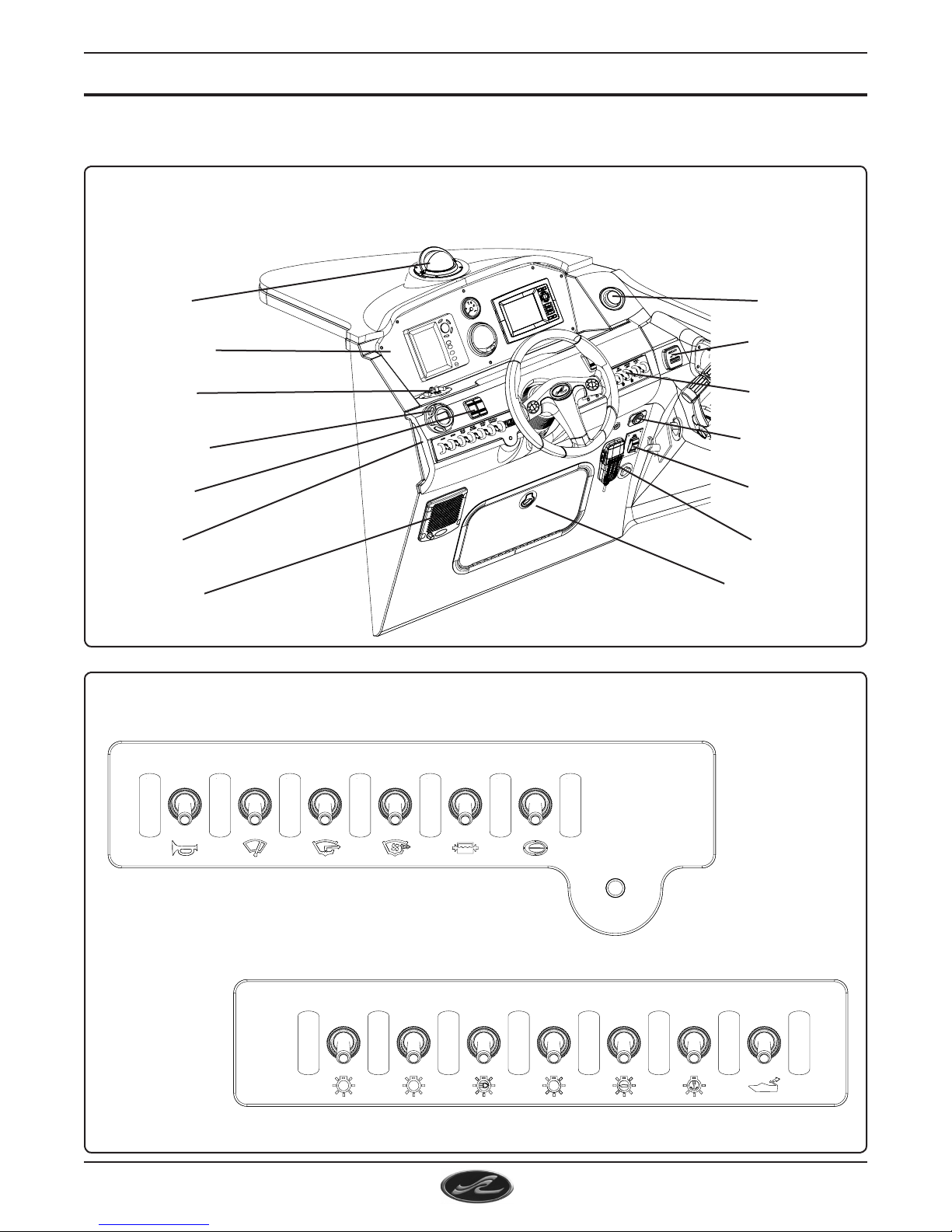

6. Helm, Gauge & Switch Layout................................7
7. Deck Layout ............................................................. 8
8. Cleats....................................................................... 9
9. Navigation and Anchor Lights..................................9
10. Lighting ..................................................................9
11. Bilge Layout .........................................................10
12. Fire Extinguishing System ...................................11
13. Fuel System.........................................................11
A. Gasoline Fuel System.....................................11
B. Diesel Fuel System (Optional) ........................ 11
14. Water System ......................................................11
15. Aft Facing Transom Seats....................................11
16. Entertainment System .........................................12
17. Canvas.................................................................12

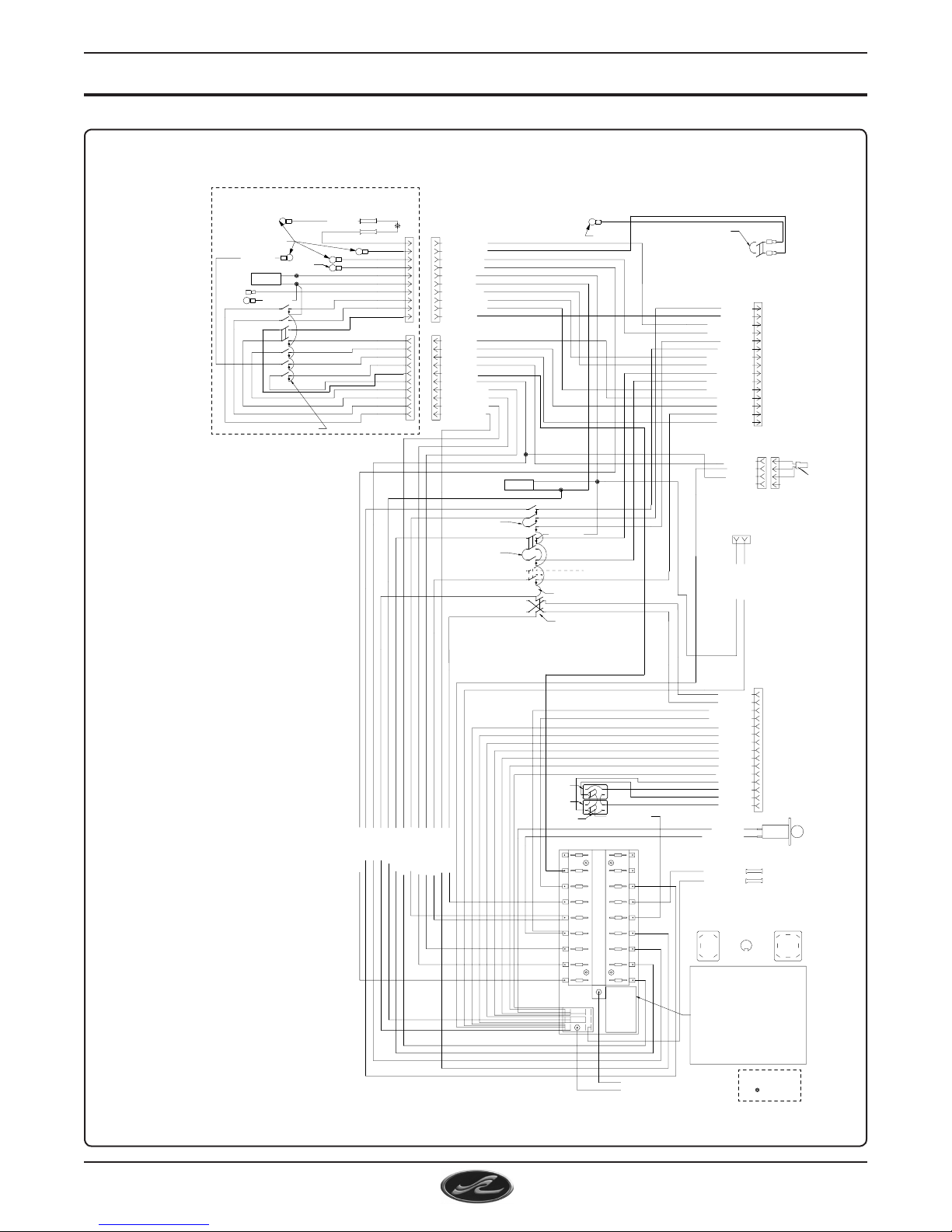

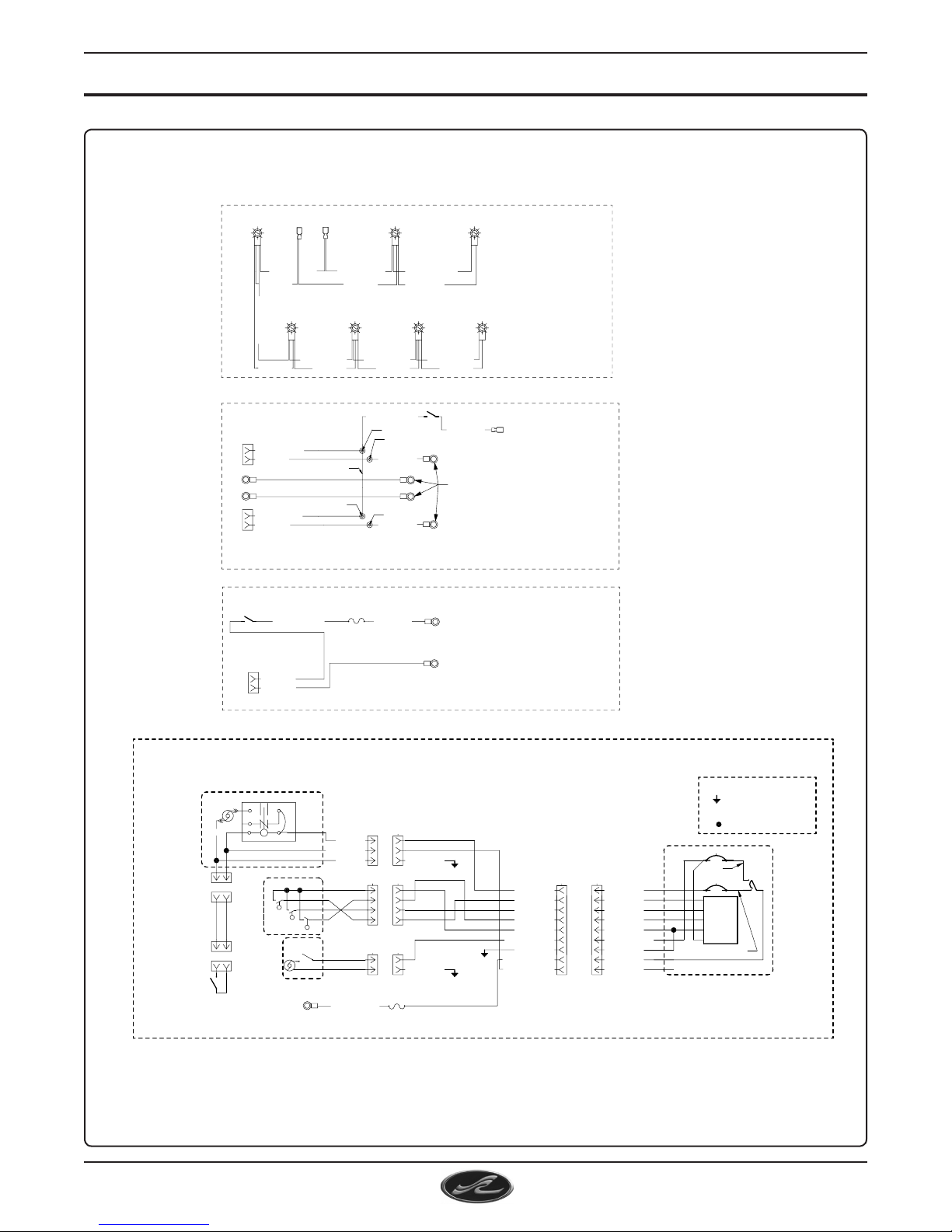

18. Electrical Schematics........................................... 12
Information in this publication is based upon the latest product specifications available at printing. Sea Ray®
Boats, Inc. reserves the right to make changes at any time, without notice, in the colors, equipment, specifications,
materials and prices of all models, or to discontinue models. Should changes in production models be made, Sea
Ray® is not obligated to make similar changes or modifications to models sold prior to the date of such changes.
Owner’s Manual
300SLX
Printed in the U.S.A. June 2008
© Sea Ray Boats, Inc. • A Brunswick Company
Sea Ray Boats, Inc. 0 Sea Ray Blvd., Knoxville, TN 37914
For information call 1-800-SRBOATS or fax [phone]
(International 1-314-216-3333)
Internet Address: http://www.searay.com
Note: Not all accessories shown in pictures or described herein are
standard equipment or even available as options.
Options and features are subject to change without notice.
The following are registered trademarks of the Brunswick Corporation: Sea Ray®& The SR Wave Logo

300 Select Exii
THIS PAGE INTENTIONALLY LEFT BLANK

1
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
1. lo a d Ca p a C i T y
Refer to the General Information Manual for a
detailed explanation of Load Capacity.
C
1360
300 SLX
12
Bu I l d e r ’SPl a t e (I n t e r n a t I o n a l )
(fI g . 1.1)
BOAT MANUFACTURER MFR’S MODEL
DESIGNATION
MAXIMUM NUMBER
OF PASSENGERS
MAXIMUM LOAD
CAPACITY
Never carry more weight or passengers than indicated
on the certification plate, regardless of weather or
water conditions.
The boat can capsize, swamp or sink.
! DANGER
Pa S S e n g e r lo c a t I o n S
(fI g . 1.2)
Rotating propellers can injure or kill you.
Shut off engine when persons are in water near
boat, or on swim platform or ladder.
!DANGER
ACCOMMODATION DECK
(DECK AREA INTENDED FOR
OCCUPATION DURING NORMAL
OPERATION)
DO NOT STAND OR WALK ON THIS
AREA WHILE UNDERWAY.
Rear facing transom seats MUST NOT be used while
engine is running or boat is moving.
! WARNING
2. pa s s e n g e r lo C a T i o n s
Refer to the General Information Manual for a
detailed explanation of Passenger Locations.
Boat motion can be erratic.
You can fall overboard or be injured by hitting
something in or on the boat.
All persons must be in cockpit area or cabin and be
prepared for sudden boat movement.
Use front or bow deck area only during anchoring,
mooring or emergencies.
! WARNING
Wet decks are slippery.
You can be seriously injured if you slip and fall.
Wear slip resistant footwear secured to your feet and
hold on to rails or boat structure.
! WARNING

2
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
I
H
G
ONLY ON BOATS WITHOUT AN OPTIONAL
AUTOMATIC FIRE SUPPRESSION SYSTEM
MRP #1744762 SR-766
!DANGER
Carbon monoxide (CO) can cause brain damage
or death.
Engine and generator exhaust contains odorless
and colorless carbon monoxide gas.
Carbon monoxide will be around the back of the
boat when engines or generators are running.
Move to fresh air, if you feel nausea, headache,
dizziness, or drowsiness. NW-206-05
x
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO CO
CO
!WARNING
Carbon monoxide (CO) can cause brain damage or death.
Engine and generator exhaust contains odorless and colorless carbon monoxide gas.
Signs of carbon monoxide poisoning include nausea, headache, dizziness, drowsiness,
and lack of consciousness.
Get fresh air if anyone shows signs of carbon monoxide poisoning.
See Owner's Manual for information regarding carbon monoxide poisoning.
NW-204-05
x
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO
CO CO
CO
CO
CO
CO
CO
CO
CO
CO
3. sa f e T y la b e l lo C a T i o n s
C
D
A
EF
G
JB
C D
A
EF
J
B
C
MRP 1743571 SR-7102
DANGER
!
TRANSOM DOOR MUST BE
CLOSED AND SECURE WHEN
ENGINE IS RUNNING
MRP 1745125 SR-7111
WARNING
!
USE CAUTION WITH SKIER IN TOW
AS TOW ROPE MAY BACKLASH INTO
COCKPIT WHEN RELEASED
MRP 1745158 SR-7119B
DANGER
!
NO SMOKING
GASOLINE VAPORS ARE EXPLOSIVE
LPG Appliances can ignite gasoline
vapor causing fire or explosion.Turn off
all LPG appliances while fueling.
NOTICE
GASOLINE RECOMMENDATION
Minimum octane rating of 87 AKI.
Refer to the engine owner’s manual for
additional information.
IF SWITCH IS TURNED OFF WHILE
ENGINE IS RUNNING ALTERNATOR
WILL BE DAMAGED.
MRP # 1746901 SR-7167
ON BATTERY SWITCH PANEL
CAUTION
!
TO AVOID RISK OF SERIOUS INJURY OR DEATH
SHUT OFF ENGINE WHEN NEAR SWIMMERS
OR PRIOR TO USING SWIM PLATFORM AND
BOARDING LADDER.
MRP 1745519 SR-7214
DANGER
!
MRP 1747493 SR-7135
LEAVING WINDOW OPEN COULD
INDUCE EXHAUST FUMES
INTO CABIN RESULTING IN SEVERE
PERSONAL INJURY OR DEATH
DANGER
!
Sa f e t y la B e l lo c a t I o n S
(fI g . 2.1)
H
I

3
300 Se l e c t exow n e r S ma n u a l
300 Select Ex

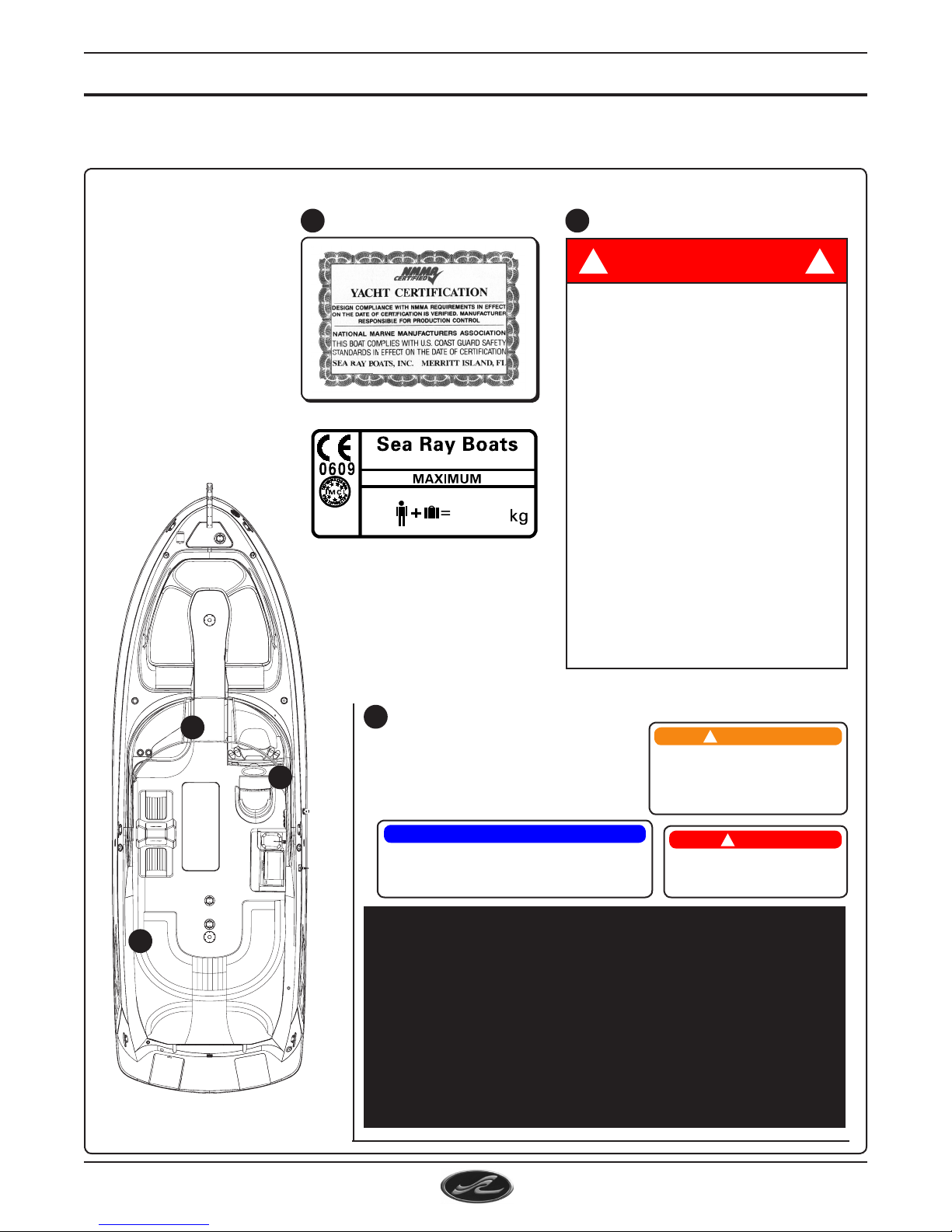

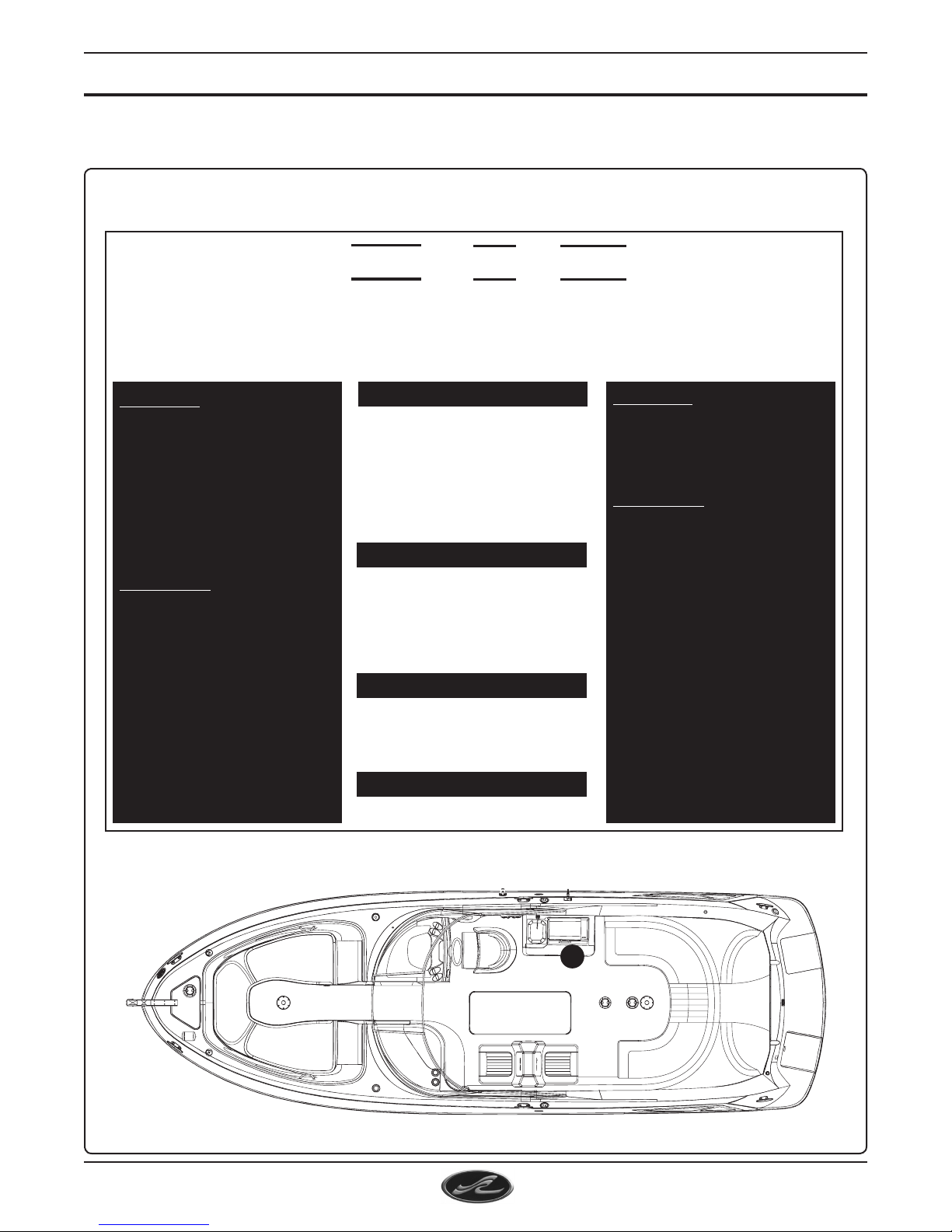

sa f e T y la b e l lo C a T i o n s (Co n T i n u e d )
Sa f e t y la B e l lo c a t I o n S
(fI g . 3.1)
C
C
1360
300 SLX
12
THIS TAG INSTALLED WHEN BOAT IS ORDERED
WITH CE INTERNATIONAL OPTION
NMMA CERTIFICATION TAG
A
B
A
CHECK BATTERY CELL FLUID LEVEL
APPROXIMATELY EVERY 4 WEEKS, AND MORE
OFTEN IN SUMMER AND HOT ZONES.
MRP # 1746895 SR-7139
NOTICE
STAY CLEAR OF MOVING PARTS
WHILE ENGINE IS RUNNING.
MRP 1745512 SR-7149
DANGER
!
LEAKING FUEL IS A FIRE AND EXPLOSION
HAZARD. INSPECT SYSTEM REGULARLY.
EXAMINE FUEL TANKS FOR LEAKS OR
CORROSION AT LEAST ANNUALLY.
MRP 1745513 SR-7151
WARNING
!
DISCHARGE OF OIL PROHIBITED
THE FEDERAL WATER POLLUTION CONTROL ACT PROHIBITS THE
DISCHARGE OF OIL OR OILY WASTE INTO OR UPON THE NAVIGABLE
WATERS OF THE UNITED STATES OR THE WATERS OF THE CONTIGUOUS
IF SUCH DISCHARGE CAUSES A FILM OR SHEEN UPON OR A
DISCOLORATION OF THE SURFACE OF THE WATER OR CAUSES A
SLUDGE OR EMULSION BENEATH THE SURFACE OF THE WATER.
VIOLATORS ARE SUBJECT TO A PENALTY OF $5,000.
MRP 1744737 SR-744
B
AVOID COLLISIONS-
• Maintain lookout as required by “Rules of the Road”.
• Visibility can be limited by high boat trim angles, persons,
gear, weather and light conditions.
• At all times proceed at a Safe Speed so that you can take
proper and effective action to avoid hazardous conditions.
Such issues are considered under the control of the operator.
CARBON MONOXIDE CAN BE FATAL-
In all gasoline powered boats, engine and generator exhaust
systems produce colorless and odorless carbon monoxide gas
(“CO”). Direct prolonged exposure can result in CO poisoning
which may be harmful or FATAL. To prevent excess exposure
and reduce the possibility of accumulations of CO in the cabin
and cockpit of the boat, the operator should insure adequate
ventilation in each the cabin and cockpit areas, through
utilization of cabin hatches, cabin doors, cabin windows, cockpit
windshield windows and side windshield vents to increase air
movement through the cabin areas. The following conditions
tend to increase the accumulation of CO in and about the boat
and require the operator’s particular attention:
1. Operation at slow speeds or dead in water.
2. Operation with a high bow angle attitude.
3. Utilization of canvas tops, side curtains and back
curtains.
4. Contributing climatic conditions, such as a head wind.
5. Operation of engines and/or generator in confined
spaces or a dockside.
6. Any blockage of hull exhaust outlets.
Indications of excessive exposure to CO concentrations may include
nausea, dizziness, and drowsiness.
AVOIDRISKOFINJURYORDEATH,SHUTOFFENGINE NEARSWIMMERS
OR PRIOR TO USING SWIM PLATFORM AND BOARDING LADDER.
MRP# 1749696
!DANGER !
C

4
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
LOCATED ON INSIDE OF WET BAR CABINET DOOR
Save Our Seas
It is illegal to dump plastic trash anywhere into the ocean or navigable
waters of the United States. Violation of these requirements may result
in civil penalty up to $25,000, a fine of $50,000 and imprisonment for up
to five years.
PLASTIC - Includes but is
not limited to: plastic bags,
styrofoam cups and lids, six-
pack holders, stirrers, straws,
milk jugs, egg cartons, syn-
thetic fishing nets, ropes, lines,
and bio or photo degradable
plastics.
GARBAGE - Means paper,
rags, glass, metal, crockery
(generated in living spaces
aboard the vessel-what we
normally call trash), and all
kinds of food, maintenance and
cargo-associated waste.
“Garbage” does not include
fresh fish or fish parts, dishwa-
ter, and gray water.
DUNNAGE- Material used to
block and brace cargo, and is
considered a cargo associated
waste.
DISHWATER- Means the liquid
residue from the manual or au-
tomatic washing of dishes and
cooking utensils which, have
been pre-cleaned to the extent
that any food particles adher-
ing to them would not normally
interfere with the operation of
automatic dishwashers.
GRAYWATER - Means drain-
age from a dishwasher, shower,
laundry, bath, and washbasin,
and does not include drainage
from toilets, urinals, hospitals,
and cargo spaces.
(and in U.S. Lakes, Rivers,
Bays and Sounds)
PLASTICS
DUNNAGE, LINING AND PACKING
MATERIALS THAT FLOAT
ANY GARBAGE EXCEPT DISHWATER/
GRAYWATER/FRESH FISH PARTS
PLASTICS
DUNNAGE, LINNING AND PACKING
MATERIALS THAT FLOAT
ANY GARBAGE NOT GROUND TO LESS
THAN ONE SQUARE INCH
PLASTICS
DUNNAGE, LINING AND PACKING
MATERIALS THAT FLOAT
PLASTICS
3 TO 12 MILES
INSIDE 3 MILES
12 TO 25 MILES
12 TO 25 MILES
sa f e T y la b e l lo C a T i o n s (Co n T i n u e d )
Sa f e t y la B e l lo c a t I o n S
(fI g . 4.1)

5
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
(D) 10’ 10½” (3.31 m)
4. ba s i C bo a T di m e n s i o n s a n d Cl e a r a n C e s
Bo a t dI m e n S I o n S a n d cl e a r a n c e S
(fI g . 5.1)
(A) Overall Length
With Std. Swim Platform......... 29ft. 6in. 8.99 m
(B) Beam (Width)........................... 9ft. 8in. 2.95 m
(C) Draft (Stern Drive Down) ......... 38in.* 96.5 cm*
Draft (Stern Drive Up).................... 27in.* 68.5 cm*
* MINIMUM WATER DEPTH TO PREVENT RUNNING AGROUND
Dry Weight..................................... 7,700 lbs. 3,493 kg.
Fuel Capacity................................. 130 gal. 492 liters
Usable Fuel ................................... 117 gal. 442 liters
Fresh Water Capacity .................... 24 gal. 90.8 liters
Holding Tank .................................. 20 gal. 75.7 liters
Dead Rise...................................... 21°
300 Select ex SpecificationS HeigHt DimenSionS
(D) Keel to Top of Mast Light ...............10ft. 10½in. 3.31 m
(E) Waterline to Top of Mast Light........8ft. 7½in. 2.63 m
(F) Waterline to Top of Spoiler .............7ft. 6½in. 2.30 m
(G) Waterline to Top of Windshield ......5ft. 2¾in. 1.59 m
(A) 29’ 6” (8.99 m)
WATERLINE
KEEL
(E) 8’ 7½” (2.63 m)
(C) 38”
(96.5 cm)
(B)
9’ 8" (2.95 m)
(F) 7’ 6½” (2.30 m)
(G) 5’ 2¾” (1.59 m)

6
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
5. fu n C T i o n a n d lo C a T i o n o f Th r o u g h -hu l l Cu T o u T s
Po r t th r o u g h -hu l l cu t o u t S
(fI g . 6.1)
BI l g e th r o u g h -hu l l cu t o u t S
(fI g . 6.3) tr a n S o m th r o u g h -hu l l cu t o u t S
(fI g . 6.4)
St a r B o a r d th r o u g h -hu l l cu t o u t S
(fI g . 6.2)
ROPE LOCKER DRAIN
SUMP PUMP
BILGE PUMP HOLDING TANK VENT
HATCH DRAIN
COCKPIT LINER DRAINS
CORSA EXHAUST
(OPT)
DOCKING LIGHT (OPT)
COCKPIT LINER DRAINS
BILGE PUMPS
WATER TANK VENT
COOLER DRAIN
DOCKING LIGHT (OPT)
WETBAR SINK DRAIN
WETBAR GRILL PAN
(OPT)
LP GAS STORAGE LOCKER
(OPT)
MANUAL PUMP (C.E. OPT )
GARBOARD DRAIN
OIL DRAIN (TWIN ENG OPT)
UNDER WATER LIGHTS
(P&S) (OPT )
WASTE DISCHARGE SEACOCK (OPT)TRANSDUCER

7
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
WATER
PUMP
THRU-HULL
EXHAUST
HORN WIPER BILGE
BLOWER
BILGE
PUMP
AUTOMATIC EXTINGUISHING SYSTEM
LIGHT ON - UNIT CHARGED
LIGHT OFF - UNIT DISCHARGED
IF SYSTEM DISCHARGES,
SHUTDOWN ENGINE,
BLOWER, AND ELECTRICAL SYSTEM.
6. he l m , ga u g e & sw i T C h la y o u T
he l m
(fI g . 7.1)
co n t r o l St a t I o n Sw I t c h Pa n e l S
(fI g . 7.2)
PORT SWITCH PANEL
* OPTIONAL EQUIPMENT
PORT
SWITCH PANEL
INSTRUMENT PANEL
COMPASS
STEREO REMOTE
VHF SPEAKER*
SPOT LIGHT
CONTROL*
WINDLASS
CONTROL*
VHF RADIO*
SPEAKER
STARBOARD
SWITCH PANEL
COMPONENT BOARD &
FUSE BLOCK ACCESS
DTS IGNITION
SWITCH
12V ACCESSORY
OUTLET
HULL LIGHTS
SWITCH*
NAV
LIGHTS
COCKPIT
LIGHTS
DOCKING
LIGHTS
ANCHOR
LIGHT
HATCH
LIFT
ARCH
LIGHTS
COMPT/BILGE
LIGHTS
STARBOARD SWITCH PANEL

8
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
7. de C k la y o u T
ge n e r a l la y o u t
(fI g . 8.1)
SWIM LADDER
SIDE PANEL
STORAGE
AFT SEAT
(W/ STORAGE BELOW)
AFT FACING
TRANSOM SEATS
SPOT LIGHT (OPT)
COCKPIT FLOOR
STORAGE
BOW TABLE BASE
SATELLITE STEREO
ANTENNA
PORT NAV LIGHT
COCKPIT TABLE
BASE
WASTE WATER
PUMP OUT
TRANSOM SHOWER
SPRAYER
ENCLOSED HEAD
COMPARTMENT
BOW SEATING
(W/ STORAGE BELOW)
ANCHOR DAVIT
CONVERTIBLE
SEAT/LOUNGER
TRANSOM
WALK-THRU
SHORE POWER
HOOK-UP (OPT)
STERN NAVIGATION/
ANCHOR LIGHT
12V RECEPTACLE (IN
SIDE PANEL STORAGE)
CONTROL STATION
ROPE LOCKER
STARBOARD NAV LIGHT
WET BAR
FUEL LINE
ACCESS PLATE
FUEL FILL
SWIM PLATFORM
INTEGRATED
COOLER BELOW
CUSHION
GRILL
NAVIGATION SYSTEM
ANTENNA
ADJUSTABLE
HELM SEAT
INTEGRATED
STORAGE
HORN
FRESH WATER
FILL

9
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
8. Cl e a T s
Cleats must not be used for lifting the boat; they
are intended for docking or mooring use only.
cl e a t lo c a t I o n S
(fI g . 9.1)
CLEATCLEATCLEAT
CLEATCLEATCLEAT
9. na v i g a T i o n a n d an C h o r li g h T s
See General Information Manual for a detailed
explanation of the anchor lights.
NAV
LIGHTS
COCKPIT
LIGHTS
DOCKING
LIGHTS
ANCHOR
LIGHT
HATC H
LIFT
ARCH
LIGHTS
COMPT/BILGE
LIGHTS
NAVIGATION
LIGHT SWITCH
ANCHOR LIGHT
SWITCH
na v I g a t I o n a n d an c h o r lI g h t S
(fI g . 9.2)
REMOVABLE STERN
NAVIGATION/
ANCHOR LIGHT (STD)
PORT & STBD
NAVIGATION
LIGHTS
STARBOARD
SWITCH PANEL
10. li g h T i n g
See General Information Manual for a detailed
explanation of the lighting.
BULB REPLACEMENT
BULB# GE2641L
12V R 10W
A
PORT & STBD
NAV. LIGHTS STERN NAV. / ANCHOR LIGHT
BULB REPLACEMENT
FUSE TYPE BULB
#12V10WPERKO
B
RECTANGLE LIGHT
BULB
REPLACEMENT
BULB#CEC1141
D
COCKPIT LIGHT
BULB REPLACEMENT
FUSE TYPE BULB
#12V10WPERKO #70-0
C
lI g h t S
(fI g . 9.3)
A
B
C
D
A
C
C
D

10
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
11. bi l g e la y o u T
BI l g e la y o u t
(fI g . 10.1)
FRESH WATER
TANK
FRESH WATER
PUMP
WASTE WATER
HOLDING TANK (OPT)
GREY WATER
HOLDING TANK (OPT)
WASTE VENT FILTER
FWD SUMP
MACERATOR (OPT)
VACUUM GENERATOR
(OPT)
AFT SUMP PUMP
FUEL TANK
BATTERIES
TRANSDUCER
EMERGENCY HIGH
WATER BILGE PUMP
WASTE DISCHARGE
SEACOCK (OPT)
BILGE PUMP
TRIM TAB PUMP
POWER TRIM PUMPS
BILGE BLOWERS
FIRE EXTINGUISHER

11
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
13. fu e l sy s T e m
a. ga s o l i n e fu e l sy s T e m
The standard gasoline fuel system on your 290SXL
consists of a 130 gal. (492 liter) fuel tank, fuel tank
vent, electronic fuel sender, anti-siphon valve,
engine fuel supply line and fuel fill.
The optional twin engine gasoline fuel system uses
a single tank with two electronic fuel senders, anti-
siphon valves and engine fuel supply lines.
b. di e s e l fu e l sy s T e m (op T i o n a l )
The optional diesel fuel system consists of a 130
gal. (492 liter) fuel tank, fuel tank vents, engine fuel
supply and return lines, fuel filter and fuel fill.
ga S o l I n e fu e l Sy S t e m (tw I n en g I n e Sh o w n )
(fI g . 11.1)
FUEL TANK
FUEL TANK VENT
FUEL FILL
ENGINE FUEL SUPPLY
15. af T fa C i n g Tr a n s o m se a T s
The aft facing transom seats are intended for use
only when the engine is not running and the boat
is not underway.
You can die or be seriously injured by breathing carbon
monoxide or by the propeller if you fall overboard.
Rear facing transom seats must not be used while
engine is running or boat is moving.
! WARNING
14. wa T e r sy s T e m
The fresh water system on the 300SLX consists of
a 24 gal. (90.8 liter) tank, 12v water pump, faucet
(head compartment), sprayer (wet bar) and 2 pullout
sprayers (bow and stern). Refer to the General
Information Manual for a detailed explanation of
the water system.
12. fi r e ex T i n g u i s h i n g sy s T e m
Your 300SLX has an automatic fire extinguisher
system installed standard. Refer to the General
Information Manual for a detailed explanation of the
automatic fire extinguisher system.

12
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
17. Ca n v a s
The standard canvas on the 300SLX consists of:
Cockpit Cover w/ Tonneau
The optional canvas package consists of:
Aft Curtain Front Curtains
Side Curtains
! DANGER
Exhaust fumes from engines contain deadly carbon
monoxide gas (CO). Boats enclosed with canvas or with
poor ventilation are most likely to collect fumes.
CO sickness symptoms include headache, nausea
and dizziness. Do not mistake these symptoms for
sea sickness.
Ventilate boat. See Section 1.4, Carbon Monoxide, for
more details.
Do not use the rear (aft) curtain while engine is
running or boat is moving.
18. el e C T r i C a l sC h e m a T i C s
This owner's manual contains electrical schematics
and wiring harness illustrations for your boat.These
electrical schematics were generated by electrical
CAD designers at the engineering division for
technical reference and service technicians. Sea
Ray®does not recommend that you attempt to work
on the boat’s electrical system yourself. Instead,
we recommend that you take your boat to your
authorized Sea Ray®dealer for service. Sea Ray®
reserves the right to change or update the electrical
system on any model at any time without notice to
the consumer and is NOT obligated to make any
updates to units built prior to changes.
16. en T e r T a i n m e n T sy s T e m
The standard entertainment system on your 300SLX
consists of a 12V AM/FM single CD & satellite radio
receiver, a remote MP3 port, amplifier, 6 waterproof
speakers and digital cockpit remote control. An
optional 6-disc CD changer is available.
An optional Premium Cockpit Sound System is
available.It includes a 6-disc CD changer, upgraded
speakers, subwoofer, amplifier and transom stereo
remote.

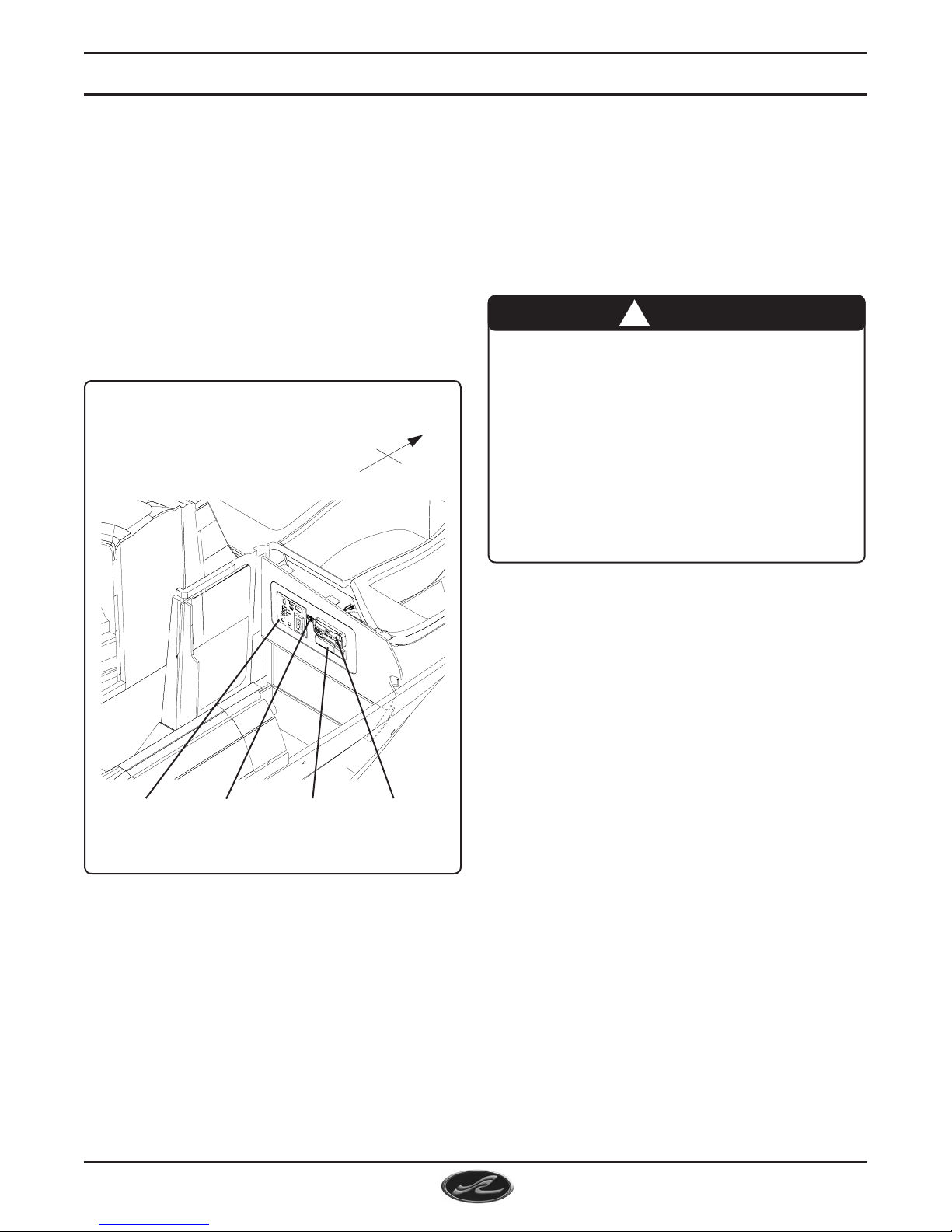

St a r B o a r d St o r a g e co m P o n e n t Bo a r d
(fI g . 12.1) FWD
STBD
PORT
Dash Removed for Clarity
MDP PANEL
(OPT)
MP3 PORT CD CHANGER
(OPT)
STEREO
RECEIVER

13
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
Warning:
DO NOT attempt to
work on the electrical system
of this boat without professional
assistance.
dc wI r I n g dI a g r a m (1 o f 3)
(fI g . 13.1) drawIng no. 09-601 (1 o f 3)
609A-16 RED/VIO
STEREO
REMOTE
TRIM
TABS
SWITCH
4
LIGHT
INVERTER
C1
503-16 RED/VIO
212-16 BLK
5
240A-16 ORN
526-16 YEL
WIRE HARNESS
SH2
606A-16 BLK
.250
NAV LIGHTS
3
A1A
DELPHI
METRI-PACK
280 SERIES
WIRE
HARNESS
SH 2
527-14 BLU
C5
605A-16 BLU
4
220B-16 ORN/BLK
525-16 GRN
618-16 BLK
400A-16 YEL/RED
110B-6 RED/VIO
B4
F
C2
213-16 GRY/WHT
2
2
A
B3
C3
225-16 GRN/WHT
= SPLICE
C4
1
STBD
16 RED/VIO
JUMPER
LEGEND
221-16 BLK
547A-16 RED/VIO
508-16 BLK
A4
B1
PORT
ANCHOR LIGHT
306A-16 BRN
1
A2
DOCKING LIGHTS
#10
523-14 RED/VIO
WATER PUMP
3
152-16 BLK
101-8 BLK
5
936B-16 ORN
B2
400B-16 YEL
230A-16 BLU
211-16 GRY
524-16 RED
210-16 RED/VIO
A3
B5
A5
6
AIB
DELPHI
METRI-PACK
280 SERIES
WIRE HARNESS
SH2
6
609B-16 BLU
A1
220A-16 ORN/BLK
305-16 BRN/RED
COCKPIT LIGHTS
230B-16 BLU
2 ACCY 15A
4 STBD BLOWER 7.5A
6 BILGE PUMP 5A
8 RECEPT 15A
10 LIGHTS 15A
12 HATCH LIFT 20A
14 REFRIGERATOR 10A
16 PORT BLOWER 7.5A
18 ACCY
9
5
3
111
10
6
7
16
8
15
2412 14
13
1 HORN 5A
3 NAV LT 10A
5 WIPER 5A
7 WATER PUMP 10A
9 TRIM TABS 20A
11 SPOTLIGHT 15A
13 DOCKING LTS 10A
15 VHF 10A
17 CHART 1A
959D-16 VIO
B4
B3
A4
B1
A2
B2
A3
B5
A5
A1
C5
C2
C3
C4
C1
231A-16-BLK
4
1
6
2
336
2
4
1
9
DOUBLE POLE BODY
TOP
8
7
CARLING LT TOGGLE SWITCH INDEXING
SWITCHES VIEWED FROM BACK
SWITCH BUSHING
SEE NOTE
SINGLE POLE BODY
TOP
578-14 RED/VIO
547B-16 BRN/WHT
506-16 BLU/WHT
3
2
9
8
HATCH LIFT
16 BLK LIGHT JUMPERS
JUMPERS PART OF SWITCH
1
7
574A-16 YEL
575A-16 ORN
151-16 RED/VIO
532A-16 BLK
CONTROL STATION
12V RECEPTACLE
531A-16 RED/VIO
18
17
1 HORN 5A 3 NAVLT 10A 5WIPER 5A 7W ATERPUMP 10A 9TRIM TABS 20A
11 SPOTLIGHT 15A 13 DOCKING LT S 10A 15VHF 10A 17 CHART 1A
2 ACCY 4 STBD BLOWER 7.5A 6 BILGEPUMP 5A 8 RECEPT 15A 10 LIGHTS 15A 12 HATCHLIFT 20A
14 REFRIGERATOR 10A 16 PORT BLOWER 7.5A 18 ACCY
532B-14 BLK
531B-14 RED/VIO
EXTINGUISHER INT LT
A
I
H
D
F
B
G
C
J
E
503-16 RED/VIO
964-16 RED/VIO
LIGHT
INVERTER 606B-16 BLK
605B-16 BLU
506-16 BLU/WHT
B
I
H
D
F
B
G
C
J
E
A
547B-16 BRN/WHT
HORN
STBD BILGE BLOWER
BILGE PUMP
THRU-HULL EXHAUST
WIPER
220B-16 ORN/BLK
306A-16 BRN
400B-16 YEL
936A-16 ORN
936B-16 ORN
240B-16 ORN
240A-16 ORN
305-16 BRN/RED
400A-16 YEL/RED
220A-16 ORN/BLK
547A-16 RED/VIO
16 BLK LIGHT JUMPERS
A2A A2A
A2B A2B
DELPHI METRI-PACK
150 SERIES
DELPHI
METRI-PACK
150 SERIES
PORT SWITCH PANEL
16 GA
JUMPERS
TYP
579-14 BLK
D
E
#10
#10
#10
#10
NOTE 6
NOTE 7
964-16 RED/VIO
COMPT/BILGE LIGHTS
ARCH LIGHTS
225-16 GRN/WHT
LED LIGHTS (OPT)610A-16 BLK
16 RED/VIO
JUMPER
609D-16 RED/VIO
624-14 BLU
626-14 BLU
B
B3A
B3A
WIPER
241-14 BLK
242-14 YEL
240-14 ORN
C
A
D
C
B
A
COMPASS
LIGHT
605B-16 BLU
610B-16 BLK
J2B
DELPHI
WEATHER-PACK
NOTE 5
J2B
309A-14 BLK
F
.250
F
.250
549A-14 ORN
550A-14 YEL
#10
16 RED/VIO
JUMPER
SPOTLIGHT
700-16 RED/YEL
701-16 BLK/YEL
NOTE 8
#10
400A-16 YEL
400A-16 YEL 400A-16 YEL
PORT BILGE BLOWER
NOTE 7NOTE 7

14
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
Warning:
DO NOT attempt to
work on the electrical system
of this boat without professional
assistance.
dc wI r I n g dI a g r a m (2 o f 3)
(fI g . 14.1) drawIng no. 09-601 (2 o f 3)
AA
YPORT COMPT LT
J3P
B
J3P
J3R J3R
STBD COMPT LT
A
A
615B-16 BLK
B
TRIM INDICATOR
614B-16 BLU/WHT
A2
506-16 BLU/WHT 624-14 BLU
A3
547B-14 BRN/WHT
A1
225-16 GRN/WHT
A5
211-14 GRY 503-16 RED/VIO
B3
B2
A4
230-14 BLU
B1
626-14 BLU
TO 14 PIN
MERCURY
CONNECTO R
XX
627-14 BLK
OIL PRESS
WATER TEMP
COIL
PORT ENGINE
B
A
J3F J3F
A
B
SPOILER
LIGHTS
B
M1B
A
HIGH WATER TEMP SWITCH
C
614A-16 BLU/WHT
615A-16 BLK
110B-6 RED/VIO
CONTROL STAT ION FUSE BLOCK REF SH 1
WA STE SYSTEM REF SH 3
110A-8 RED
15
POS
MDP
NEG
122B-10 RED/VIO
544A-10 RED
2/0 BLK
550-6 RED
WINDLASS
BREAKER
2/0 RED
2/0 RED NEG
PORT BAT T
2/0 RED
STBD BATT
15
POS
517C-10 RED
517A-10 RED
SEE NOTE
MDP
2/0 RED
BATT SWITCH
TERMINAL
POST "A"
BANK #2
10AMP
-
123-10 BLK
BANK #1
10AMP
-
121-10 BLK
+
120A-10 RED
MAIN DC
NEGATIVE
BUS
802-14/3
+
CHARGER
30/10 AMP
122A-10 RED
WINDLASS
703-8 GRN
555A-4 BLK
739-8 GRN
702-8 GRN
740-6 GRN
DISCHARGE
101-4 BLK
700-8 GRN
CONTROL STATION
BREAKER
CONTROL STAT ION
FUSE BLOCK
DRAIN PLUG
FUEL TA NK
120B-10 RED/VIO
50
WINDLASS
2/0 BLK
936B-14 ORN 400B-14 YEL
A1
220-16 ORN/BLK
C2 B5
609B-14 BLU
C1
213-16 GRY/WHT
C3
575A-14 ORN
C4
574A-14 YEL
306A-14 BRN
A2
C5
202-16 RED
D1A
A
E
E3A
M-VDC
H1A
C
EXTINGUISHER
D
B
A
201-16 BLK
E3A
M-VDC
B
200-16 PINK
F
225-16 GRN/WHT
226-16 BLK
B1
C5
221-16 BLK
B4
578-14 RED/VIO
B2
C3
618-14 BLK 212-14 BLK
B5
579-14 BLK
B3
524-16 RED
C4
AIB
DELPHI
METRI-PACK
280 SERIES
SWITCH PANEL
SH1
531B-14 RED/VIO
L
A3
A4
525-16 GRN 309A-16 BLK
C2
231-14-BLK 532B-14 BLK 526-16 YEL
A5
C1
527-14 BLU
548-14 BLK
579-14 BLK
B A
M-VDC
528-14 BLK
C7C
578-14 RED/VIO
B4A
C3A
HATCH ACTUAT OR
3
221-16 BLK
C7C
1
S
400A-14 YEL
B
547B-14 BRN/WHT
574B-12 YEL
B
M-VDC
2
M-VDC
TRIM TA B PUMP
R
REFRIGERAT OR
4
401B-14 BLK
A
575B-12 ORN
401A-14 BLK
B4A
400B-14 YEL
M-VDC
A
220-16 ORN/BLK
531C-10 RED/VIO
PORT
12V RECEPTACLE
532C-1O BLK
M
C1B
C1B
HIGH WATER ALARM
Z
309-14 BRN
A
305-14 BLK
308C-14 BRN
M-VDC
E4B
AB
E4B
B
N
211-14-GRY
212-14-BLK P
J1A
STBD NAV LIGHT
212B-16-BLK
211B-16-GRY
212A-16-BLK
APORT NAV LIGHT
B
A
J1BJ1B
211A-16-GRY
J1A
B
EMERGENCY BILGE PUMP
FLOAT
SWITCH
C
B
230-14 BLU
231-14-BLK 231A-14-BLK
230A-14-BLU A
J1F J1F
STBD DOCKING LIGHT
B
231B-14-BLK
PORT DOCKING LIGHT
J1G
A
J1G
B
230B-14-BLU
309B-16 RED
303B-14 BRN/RED
GND TA B
20
339A-14 RED
609B-14 BLU
618-14 BLK
938-14 RED/VIO
339B-14 BRN/ORN
EMGNCY
BILGE
PUMP
5
AMP
308B-14 BRN/RED
B
303A-14 RED
A
623-16 BLK
J3E
501B-14 YEL
324A-14 RED
501A-14 RED
622-16 BLU COCKPIT LT #5
(STEP LT )
AMPLIFIER
FUSE#1
25
AMP
AMPLIFIER
FUSE#2
25
AMP
620-16 BLU
J3C
612-16 BLU
Y
613-16 BLK B
621-16 BLK
X
A A
J3B
B
COCKPIT LT #3 (PORT AFT COCKPIT LT )
COCKPIT LT #2 (STBD AFT COCKPIT LT )
324B-14 BRN/ORN
J3C
J3E
J3B
A
A
FWD SUMP PUMP #2
BC1G
C1G
A
E4G
B1A
506-16 BLU/WHT
A
B
A
STBD BLOWER
M-VDC
C1H
WATER PUMP
FLOAT SWITCH
E4G
PORT BLOWER
FWD
SUMP
PUMP
HORN
B
324B-14 BRN/ORN
C1H
B
325-14 BLK
324C-14 BRN/ORN
M-VDC
B1B
COCKPIT LT
#1 (BOW STBD
COCKPIT LT)
B
J3D
A
M-VDC
619A-14 BLU
611B-16 BLK
METRI-PACK 150 SERIES
J3D
STEREO AMPLIFIER
G
620A-16 BLK
K
610B-16 BLU
308-14 RED
519-16 BLU/WHT
520-16 BLK
517B-10 RED/VIO
CC
517D-10 RED/VIO
B A
B
J2G
J2G
APORT BILGE
LIGHT
B
J2F
J2F
AA
B
STBD BILGE LIGHT
H
E4A
A
C1A
E4A
B
B
303B-14 BRN/RED
BILGE PUMP
M-VDC
C1A
303C-14 BRN
304-14 BLK
FLOAT SWITCH
A
M-VDC
J
B
J2E
5009-16 GRN/BLK
+
-
501B-14 YELLOW
J2C
+
E
A
J2E
5008-16 GRN
5013-16 LT BLU/BLK
5014-16 LT BLU
5015-16 LT BLU/BLK
-
F
518-8 BLK
5012-16 LT BLU
-
522C-16 BLU/WHT
C H
5011-16 PUR/BLK
M-VDC
+
K D A G
5010-16 PUR
517E-8 RED/VIO
-
J
+
A
SPORT SPOILER HARNESS
A
214A-16 BLK
A3B X
A
A3A
J1C
M-VDC
J1C
A
214A-14 BLK
A3B
M-VDC
213B-14 GRY/WHT
B
213A-14 GRY/WHT
B
A
ALL
ROUND
LIGHT
B
ALL
ROUND
LIGHT
B
B
214B-14 BLK
213-16 GRY/WHT
J4A
B
J4A
A
B
AHEAD
LIGHT
B
H
5000-16 WHT G
503-16 RED/VIO
522-16 BLU/WHT
F
D
5001-16 WHT/BLK
-
M-VDC
E
+
505-14 BLK C
PORT BOW
SPEAKER
LEGEND
= MAIN DC NEGATIVE BUS
5005-16 WHT/BLK
N
-
5006-16 GRY
P
-
+
R
5007-16 GRY/BLK
-
K
5003-16 GRY/BLK
S
STBD BOW
SPEAKER
5004-16 WHT L
M
+
STBD FWD
SPEAKER
+
PORT FWD
SPEAKER
J
5002-16 GRY
616-16 BLU
617-16 BLK
PORT AFT
SPEAKER
SUB-
WOOFER A
STBD AFT
SPEAKER
SUB-
WOOFER B
= SPLICE
340-14 BLK
619B-16 BLU
B
619C-16 BLU
620C-16 BLK
620B-16 BLK
306A-14 BRN
STEREO
MEMORY
15
AMP
B4
C3A
FWD
SUMP#2
5
AMP BILGE
PUMP
5
AMP
FWD
SUMP
PUMP
5
AMP
MERCATHODE
FUEL TANK
306B-14 BRN
B1B
MERCAT HODE
FUSE HOLDER
(PLANT TO PROVIDE)
LOW OIL PRESSURE SWITCH
H1A
D1A
B1A
A1A
DELPHI
METRI-PACK
280 SERIES
SWITCH PA NEL
SH 1
+
-
BANK #3 10AMP
125-10 BLK
124A-10 RED
15
TRANSOM STEREO REMOTE
SPLICE "ZZ"
PORT POWER TRIM PUMP
936D-16 ORN
936C-16 ORN
SPLICE D
30
104A-10 RED
104-10 RED
104B-10 RED
400A-14 YEL
STBD THRU-HULL
EXHAUST
PORT THRU-HULL
EXHAUST
702-8 GRN
SPLICE "F"
938A-14 RED/VIO
FUEL FILL 705-8 GRN
DTS SWITCHED ACCY TERMINAL BLOCK
COCKPIT LT #4 (STBD FWD COCKPIT LT )
A
J3A J3A
B
628-16 BLU
629-16 BLK
631-16 BLK
630-16 BLU A
B
A
B
STBD STG
LT
J4B
J4B

15
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
Warning:
DO NOT attempt to
work on the electrical system
of this boat without professional
assistance.
dc wI r I n g dI a g r a m (3 o f 3)
(fI g . 15.1) drawIng no. 09-601 (3 o f 3)
WASTE SYSTEM HARNESS
AIR PUMP
10
PORT UNDERWATER LIGHT
J3L
WEATHER-PACK
12015792
AIR PUMP
C5A
WEATHER-PACK
12015792
610E-16 LT BLU
695-10 RED
611F-16 BLK611E-16 BLK
SPLICE A
B
546B-12 RED/VIO
F
610A-16 LT BLU
#10
TERMINAL POST "A"
PORT LIGHT #3
A
F
695C-14 RED/VIO
ACCY SW
548-12 BLK
STBD LIGHT #2STBD LIGHT #1
611C-16 BLK
PORT LIGHT #1
#10
DC MAIN NEG BUS
#10
DC MAIN NEGATIVE BUS
750-8 GRN
B
A
B
547-12 BRN
STBD BOW LT
610D-16 LT BLU
UNDERWATER LIGHT (OPT) HARNESS
AIR COMPRESSOR HARNESS
610C-16 LT BLU
696A-14 BLK
695B-14 RED/VIO
696C-14 BLK
611A-16 BLK
611D-16 BLK
INDIRECT BLUE LED HARNESS
695A-10 RED/VIO
F
.250
LIGHT SWITCH
610F-16 LT BLU
PORT LIGHT #2
.250
CONTROL STATION FUSE BLOCK
ACCY POSITION
610G-16 LT BLU
696B-10 BLK
PORT BOW LT
546A-12 RED
A
610B-16 LT BLU
.250
FUSE BLOCK
NEG
751-8 GRN
AIR PUMP SW
611G-16 BLK
611B-16 BLK
STBD UNDERWATER LIGHT
J3K
WEATHER-PACK
12015792 SPLICE D
SPLICE B
SPLICE C
696-10 BLK
695C-10 RED/VIO
86
RED
85
BLK
30
87A
87
DISCHARGE PUMP
14-BLK/YEL
M5
C
M7
-
A
14-BLK 525-14 BLK
B
-
14-BRN -
VACUUM
GENERATOR
EMPTY
F10
SEACOCK SW
SHOWN W/SEACOCK
IN CLOSED POSITION
FULL
M6
4
B
1
-
A
545-14 BLK
3
2
AB
HOLDING TANK
LEGEND
C21
A
544-14 RED/VIO
AMP MATE N LOK
9 POS DISCHARGE
PUMP
FULL540-16 GRN
C21
B
A
14 RED
G
F
540-16 GRN
524-14 ORN
EMPTY
546-16 BLK
C
M-VDC
A
AMP MATE N LOK
9 POS
544-14 RED/VIO
KEY
SWITCH
541-16 WHT
B
POWERF
= SPLICE
E543-16 BLK
G
E
10524-14 ORN
D
10
1/2
14 ORN
541-16 WHT
D
= MAIN DC NEGATIVE BUS
546-16 BLK
C
M-VDC
HEAD
543-16 BLK
542-16 YEL 542-16 YEL
NEGATIVE
M-VDC
M-VDC
AB
M9
MACERATOR
-
527-10 RED/VIO H527-10 RED/VIOH
523-16 BLK/YEL I523-16 BLK/YELI
526-10 RED/VIO
#10
TERMINAL POST "A"
WASTE SYSTEM
20

16
300 Se l e c t exow n e r S ma n u a l
300 Select Ex
Warning:
DO NOT attempt to
work on the electrical system
of this boat without professional
assistance.
dc wI r I n g dI a g r a m (tw I n en g I n e ) (1 o f 3)
(fI g . 16.1) drawIng no. 09-602 (1 o f 3)
NOTE 7 EMERGENCY START
SWITCH
609A-16 RED/VIO
STEREO
REMOTE
TRIM
TABS
SWITCH
4
LIGHT
INVERTER
C1
503-16 RED/VIO
212-16 BLK
5
240A-16 ORN
526-16 YEL
WIRE HARNESS
SH2
606A-16 BLK
.250
NAV LIGHTS
3
A1A
DELPHI
METRI-PACK
280 SERIES
WIRE
HARNESS
SH 2
527-14 BLU
C5
605A-16 BLU
4
220B-16 ORN/BLK
525-16 GRN
618-16 BLK
400A-16 YEL/RED
110B-6 RED/VIO
B4
F
C2
213-16 GRY/WHT
2
2
A
B3
C3
225-16 GRN/WHT
= SPLICE
C4
1
STBD
16 RED/VIO
JUMPER
LEGEND
221-16 BLK
547A-16 RED/VIO
508-16 BLK
A4
B1
PORT
ANCHOR LIGHT
306A-16 BRN
1
A2
DOCKING LIGHTS
#10
523-14 RED/VIO
WATER PUMP
3
152-16 BLK
101-8 BLK
5
936B-16 ORN
B2
400B-16 YEL
230A-16 BLU
211-16 GRY
524-16 RED
210-16 RED/VIO
A3
B5
A5
6
AIB
DELPHI
METRI-PACK
280 SERIES
WIRE HARNESS
SH2
6
609B-16 BLU
A1
220A-16 ORN/BLK
305-16 BRN/RED
COCKPIT LIGHTS
230B-16 BLU
2 ACCY 15A
4 STBD BLOWER 7.5A
6 BILGE PUMP 5A
8 RECEPT 15A
10 LIGHTS 15A
12 HATCH LIFT 20A
14 REFRIGERATOR 10A
16 PORT BLOWER 7.5A
18 ACCY
9
5
3
111
10
6
7
16
8
15
2412 14
13
1 HORN 5A
3 NAV LT 10A
5 WIPER 5A
7 WATER PUMP 10A
9 TRIM TABS 20A
11 SPOTLIGHT 15A
13 DOCKING LTS 10A
15 VHF 10A
17 CHART 1A
959D-16 VIO
B4
B3
A4
B1
A2
B2
A3
B5
A5
A1
C5
C2
C3
C4
C1
231A-16-BLK
4
1
6
2
336
2
4
1
9
DOUBLE POLE BODY
TOP
8
7
CARLING LT TOGGLE SWITCH INDEXING
SWITCHES VIEWED FROM BACK
SWITCH BUSHING
SEE NOTE
SINGLE POLE BODY
TOP
578-14 RED/VIO
547B-16 BRN/WHT
506-16 BLU/WHT
3
2
9
8
HATCH LIFT
16 BLK LIGHT JUMPERS
JUMPERS PART OF SWITCH
1
7
574A-16 YEL
575A-16 ORN
151-16 RED/VIO
532A-16 BLK
CONTROL STATION
12V RECEPTACLE
531A-16 RED/VIO
18
17
1HORN 5A 3NAV L T 10A 5WIPER 5A 7W ATERPUMP 10A 9TRIM TABS 20A
11SPOTLIGHT 15A 13DOCKING L T S 10A 15VHF 10A 17CHART 1A
2A CCY
4STBD BLOWER 7.5A 6BILGE PUMP 5A 8RECEPT 15A 10LIGHTS 15A 12HATCH LIFT 20A 14REFRIGER ATOR 10A 16PORT BLOWER 7.5A 18A CCY
532B-14 BLK
531B-14 RED/VIO
EXTINGUISHER INT LT
A
I
H
D
F
B
G
C
J
E
503-16 RED/VIO
964-16 RED/VIO
LIGHT
INVERTER 606B-16 BLK
605B-16 BLU
506-16 BLU/WHT
B
I
H
D
F
B
G
C
J
E
A
547B-16 BRN/WHT
HORN
STBD BILGE BLOWER
BILGE PUMP
THRU-HULL EXHAUST
WIPER
220B-16 ORN/BLK
306A-16 BRN
400B-16 YEL
936A-16 ORN
936B-16 ORN
240B-16 ORN
240A-16 ORN
305-16 BRN/RED
400A-16 YEL/RED
220A-16 ORN/BLK
547A-16 RED/VIO
16 BLK LIGHT JUMPERS
A2A A2A
A2B A2B
DELPHI METRI-PACK
150 SERIES
DELPHI
METRI-PACK
150 SERIES
PORT SWITCH PANEL
16 GA
JUMPERS
TYP
579-14 BLK
D
E
#10
#10
#10
#10
NOTE 6
964-16 RED/VIO
COMPT/BILGE LIGHTS
ARCH LIGHTS
225-16 GRN/WHT
LED LIGHTS (OPT)610A-16 BLK
16 RED/VIO
JUMPER
609D-16 RED/VIO
624-14 BLU
626-14 BLU
B
B3A
B3A
WIPER
241-14 BLK
242-14 YEL
240-14 ORN
C
A
D
C
B
A
COMPASS
LIGHT
605B-16 BLU
610B-16 BLK
J2B
DELPHI
WEATHER-PACK
NOTE 5
J2B
309A-14 BLK
F
.250
F
.250
549A-14 ORN
550A-14 YEL
#10
16 RED/VIO
JUMPER
SPOTLIGHT
700-16 RED/YEL
701-16 BLK/YEL
NOTE 8
#10
400A-16 YEL
400A-16 YEL 400A-16 YEL
PORT BILGE BLOWER
