Seacraft FUTURE User manual

POWER CONVERTER
USER MANUAL
FUTURE | GHOST
01.06.2021

Disclaimer
This document is protected by international copyright laws.
The content is proprietary to Marine Tech SA (“Marine Tech”), and no ownership rights are
hereby transferred. No part of this document shall be used, reproduced, translated,
converted, adapted, stored in a retrieval system, communicated or transmitted by any means,
for any commercial purpose, including without limitation, sale, resale, license, rental or lease,
without the prior express written consent of Marine Tech.
Marine Tech makes no representations, warranties or guarantees, express or implied, as to
the accuracy or completeness of the manual. Users must be aware that updates and
amendments will be made from time to time to the manual. It is the user‘s responsibility to
determine whether there have been any such updates or amendments. Marine Tech nor any
of their directors, ocers, employees or agents shall be liable in contract, tort or in any other
manner whatsoever to any person for any loss, damage, injury, liability, cost or expense of
any nature, including without limitation incidental, special, direct or consequential damages
arising out of or in connection with the use of the manual.
Marine Tech accepts no liability for damages and/or injuries caused by improper use of the
Seacraft scooter as well as a result of its use in a manner contrary to or deviating from
principles set out in this manual.
Marine Tech accepts no liability for accidents and damage resulting from incorrect use of the
scooter resulting from failure to read the scooter manual or lack of knowledge on the content
of labels and pictograms, warning and information signs.
Marine Tech accepts no liability for damages and/or injuries caused by defects or improper
handling of external devices connected to the scooter.
This manual is no substitute for a proper training in how to dive with an underwater scooter.
Should you have any questions or comments regarding this manual, please contact:
MANUFACTURER
MARINE TECH SA
ul. Żwirki i Wigury
17 38-400 Krosno
Poland
Email: info@seacraft.eu
Web: www.seacraft.eu
Local Distribution
The local (translated) version of this manual is made available by the responsible distributor.
Please check the Marine Tech website for your local distributor.
Document Information
Title: Seacraft Power Converter Manual
Version: v1.0
Language: English
Publication Date: 01.06.2021

Table of conTenTs
Table of contents
1. Introduction
2. General Safety Rules
3. Using the power converter
3.1. General 3-1
3.2. Connecting and controlling an external device 3-2
3.3. Troubleshooting 3-4

Table of conTenTs

Seacraft Power Converter v1.0 | 1-3
INTRODUCTION
1. INTRODUCTION
CONGRATULATIONS!
By choosing the optional Seacraft power converter for your scooter, you will benet from
additional exibility and power for your external devices, as 12V light systems (as Seacraft
SLS2),12V heating systems, or other compatible devices.
In the following sections, all aspects of the optional Seacraft power converter will be
explained.
Should you have any questions regarding this accessory, or should you require support, please
see Seacraft support website: www.support.seacraft.eu.

1-4 | Seacraft Power Converter v1.0
INTRODUCTION

Seacraft Power Converter v1.0 | 2-1
GeNeRal SafeTy RUleS
2. General Safety Rules
Please note, that the Seacraft power converter was developed as a comfort add-on to your
Seacraft scooter. Please treat it as such and observe the following:
Caution!
Only use compatible external devices (6-12 V, max. 140 W / 12 A).
Caution!
Make sure, the power converter adapter cable and the cable of your external
device are securly attached to the scooter, in order not to get into the
scooter’s propeller.
Caution!
Please do not use the power converter as the only power supply for your
external devices. When you plan your dive, provide for redundant power
supply, in order to be able to switch to a backup, if a component should fail.
Caution!
Take into account your power requirements in relation to the distance to be
covered with the scooterduring your dive.
Plan for ample power reserves, and during the dive, regularly check the
remaining runtime and battery capacity.

2-2 | Seacraft Power Converter v1.0
GeNeRal SafeTy RUleS

Seacraft Power Converter v1.0 | 3-1
USING The pOweR CONveRTeR
3. Using the power converter
3.1. General
The Secraft power converter is an optional accessory, that may be ordered with any new
Seacraft scooter model FUTURE or GHOST or retrot to scooters from serial number 129 on.
Note!
Retrotting a scooter with the power converter requires that DPV is equipped
with hermetic charging port.
Please note that the presence of a hermetic charging port does not necessarily
mean, that there is a power converter installed.
Look out for the e/o cord symbol in the scooter’s main screen. It tells you, that
the scooteris equipped with a power converter.
The power converter is integrated into the scooter’s electronic compartment and converts the
battery voltage down to 6-12 V.
You can choose during the dive between 5 levels of voltage output, tuned to correspond with
20%, 40%, 60%, 80% and 100% heating power of 12V systems.
It corresponds with voltage steps of 6.0V, 7.5V, 9.4V, 10,7V, 12V.

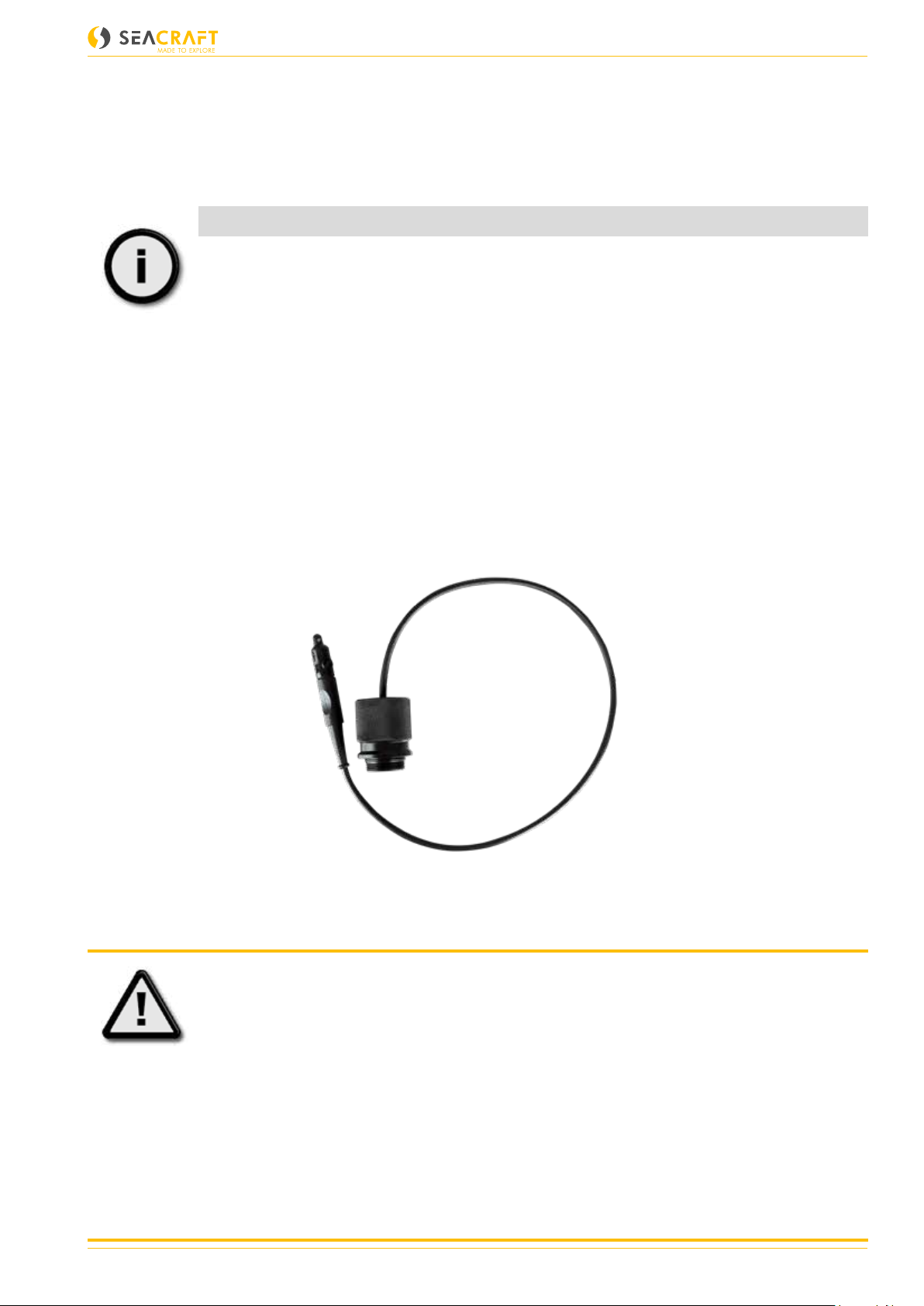

Power converter adapter cable
You may connect external devices to the power converter by means of the included adapter
cable (70 cm, from the DPV’s charging port to standard e/o):
Caution!
Only connect compatible external devices to the power converter:
• Operating voltage: 6-12 V
• Max. power drain: 140 W
• Max. current: 12 A
The power converter is connectred to the scooter’s safety circuits and
protects the battery from excessive power drain, short circuits, surges etc.
but please note, that the manufacturer accepts no liability for damages to
the scootercaused by improper or faulty external devices connected to the
scooter.

3-2 | Seacraft Power Converter v1.0
USING The pOweR CONveRTeR
The power transferred via the power converter may be controlled via the scooter’s control
display (see next section).
3.2. Connecting and controlling an external device
Proceed as follows, in order to connect and use an external device with your Seacraft scooter:
1. Select a device matching the technical specications.
This could be a drysuit heating system, a hand-held or xed light (e. g. Seacraft SLS2).
2. If required, securely mount the device to the scooter.
3. Remove the scooter’s charging port plug and store it for later use.
4. Make sure, the scooter is switched o, and connect the charging port adapter cable to the
scooter’s hermetic charging port, and screw it in hand-tight.
Caution!
Make sure that adapter is correctly aligned, and pressed gently into the
charging port while screwing in. In case of wrong angle, and force usage
it is possible to irreversibly damage the thread of adapter.
6. Attach the adapter cable securely to the scooter, and connect it to the external device.
Ensure that there is no possibility of swallowing t

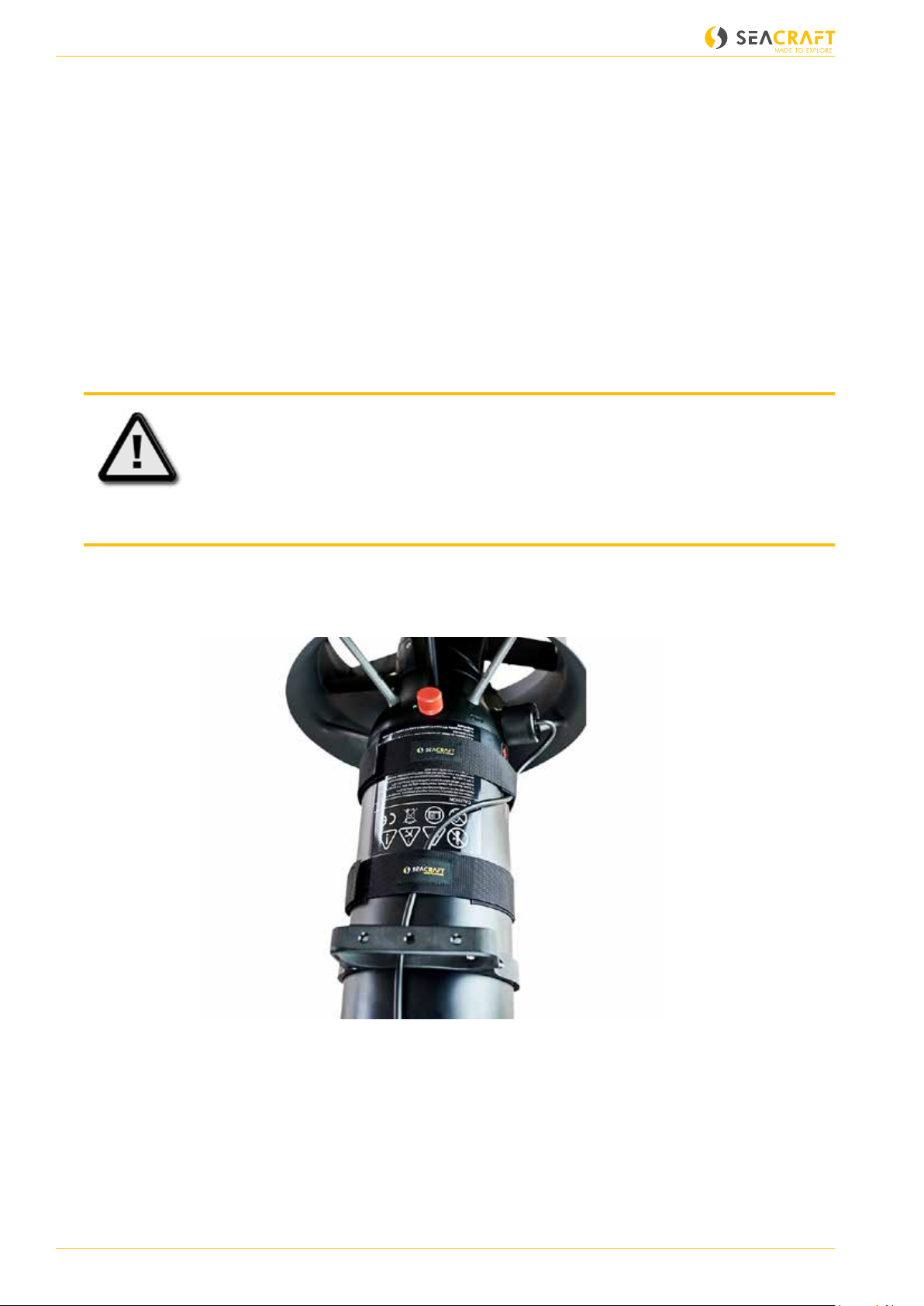

Adapter cable secured to the scooter (used for Seacraft SLS2 light system)
7. Switch on the scooter by turning the main switch by 90 °.

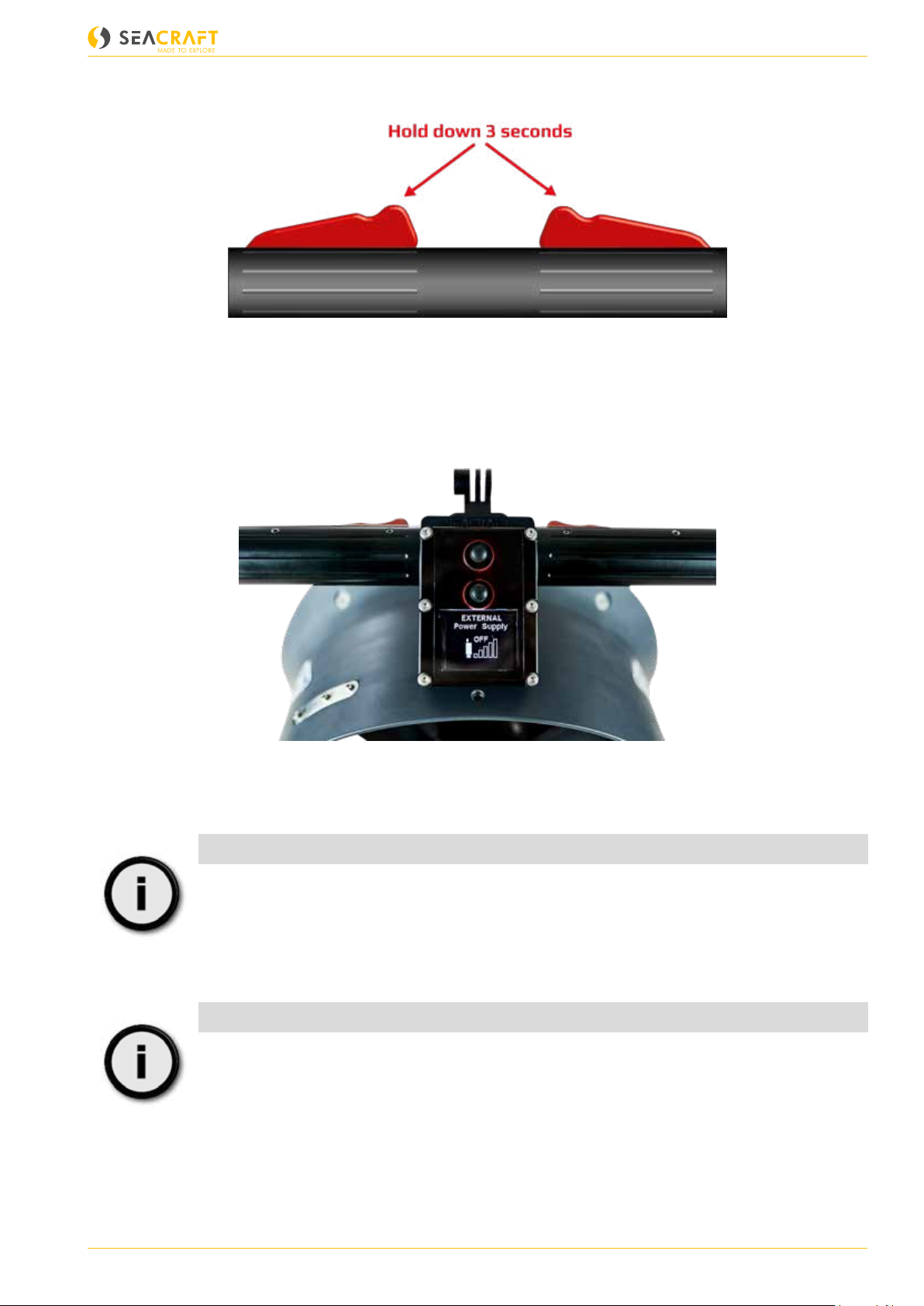

8. While in gear 0, hold both triggers pressed for 3 seconds, until the power converter control
screen is displayed:

Seacraft Power Converter v1.0 | 3-3
USING The pOweR CONveRTeR
Power converter control screen
9. You may now select the desired power output in steps of 20 %, by pressing the upper or
lower piezo button on the scooter’s control display.
Note!
Your external device might require a certain minimum voltage to be activated,
so check, on which displayed power level your device will be switched on.
10.Press any of the triggers shortly, or wait 5s in order to return to the standard screen.
Note!
If you would like to change the power output during the dive, simply carry out
steps 7 to 9.

3-4 | Seacraft Power Converter v1.0
USING The pOweR CONveRTeR
3.3. Troubleshooting
Should the external device powered by the scooter’s battery not work as expected, proceed as
follows to determine the problem:
1. Check, if the scooteris switched on and working normally.
2. Check, if the external device meets the technical specications to be powered by the
scooter.
3. Switch to the power converter control screen, and check if a power level has been set.
If yes, try to change the power level to the maximum setting.
4. Check the e/o connection to the external device.
5. Check, if the adapter cable is correctly plugged in and secured.
6. Check, if the external device needs to be switched on separately.
7. Check the cable connection(s) of the external device.
8. Check, if the external device works with a dierent power source (e. g. battery tank).
9. Connect a dierent external device to the scooter, and check if it works.
If non of the above steps is successful, please visit the Seacraft support website
www.support.seacraft.eu
Use the contact form, or create a service ticket, so we can help you to solve the problem.
