Seagull Models GLASAIR Sportsman GS-2 User manual

“Graphics and specifications may change without notice”.
MS:158
ASSEMBLY MANUAL
Specifications:
Wingspan------------------------------70.9in(180cm).
Wing area -----------------644.8sq.in(41.6sq dm).
Weight------------------------9.5-11.5lbs(4.3-5.2kg).
Length ------------------------------49.2n(125.0cm).
Engine ------------------0.75-0.91cu.in-----2-stroke.
0.91-1.10cu.in -----4-stroke.
Radio ------------------- 6 channels with 8 servos.
Electric conversion: optional

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
2
INTRODUCTION.
Thankyou forchoosingtheGLASAIR SPORTSMAN G2-2ARTFbySEAGULLMODELSCOMPANY
LTD. The GLASAIR SPORTSMAN G2-2 was designed with the intermediate/advanced sport flyer
in mind. It is a semi scale airplane which is easy to fly and quick to assemble. The airframe is
conventionally built using balsa, plywood to make it stronger than the average ARTF , yet the design
allows the aeroplane to be kept light. You will find that most of the work has been done for you
already.The motor mount has been fitted and the hinges are pre-installed . Flying the GLASAIR
SPORTSMAN G2-2 is simply a joy.
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your GLASAIR SPORTSMAN G2-2 . Use the parts
listing below to identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
If you are inexperienced with basic R/C flight we strongly recommend you contact your R/C supplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
procedures designed to help the new pilot on his way to successful R/C flight. They will also be able
to advise on any insurance and safety regulations that may apply.
KIT CONTENTS
7
7
1
2
3
55
6
6
8
9
10
11
12
13
14
15
16
17
17 4
19 17 18
18

3
www.seagullmodels.com
ADDITIONAL ITEMS REQUIRED.
 0.75- 0.91 2-stroke.
0.91 - 1.10 4-stroke.
Computer radio with 8 servos.
Glow plug to suit engine.
Propeller to suit engine.
Protective foam rubber for radio
system.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90°square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
1 Fuselage
2 Left wing panel
3 Right wing panel
4 LED lights
5 Tail set
6 Wheel pants(2)
7 Seat(2)
8 landing gear
9 Tail wheel
10 Struts
11 Cowling
12 Fuel tank
13 canopy
14 Wheels and spinner
15 Aluminum wing tube
16 Pilots
17 Hardware bag included
18 Ep conversion pack
19 Engine mount
KIT CONTENTS.TS
INSTALL THE AILERONS CONTROL
HORN.
Epoxy
Fiberglass control horn.
Aileron control horn.
Epoxy
Install the flap control horn using the same
method as same as the aileron control horns.
INSTALL FLAP CONTROL HORN.
Fiberglass control horn.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
4
INSTALL ELEVATOR CONTROL
HORN.
Epoxy
Epoxy
Elevatorcontrol horn.
INSTALL RUDDER CONTROL HORN.
Epoxy.
Repeat steps to install the rudder control horn
as same as steps done for ailerons.
Rudder control horn.
Epoxy
Fiberglass control horn.
Fiberglass control horn.
Epoxy
Epoxy
Flap control horn.

5
www.seagullmodels.com
Thread locker glue.
ENGINE MOUNT INSTALLATION.
1) Locate the items necessary to install the
engine mount included with your model. .
2) Use four 4x30mm head bolts and four 4mm
washers to attach the engine mount rails to
the firewall. Tighten the screws . Make sure to
use threadlock on the screws to help prevent
them from vibrating loose.
4x30mm.
INSTALLING THE STOPPER ASSEMBLY.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2” protruding from the rear of the
stopper. This will be the fuel pick up tube.
A.
Vent tube. Fuel pick up tube.
Fuel fill tube.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
6
9) Connect the lines from the tank to the engine
and muffler. The vent line will connect to the
muffler and the line from the clunk to the
carburetor.
Fuel tank.
Vent tube.
Fuel pick up tube.
Fuel fill tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
4) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place,
the weighted pick-up should rest away from
the rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.

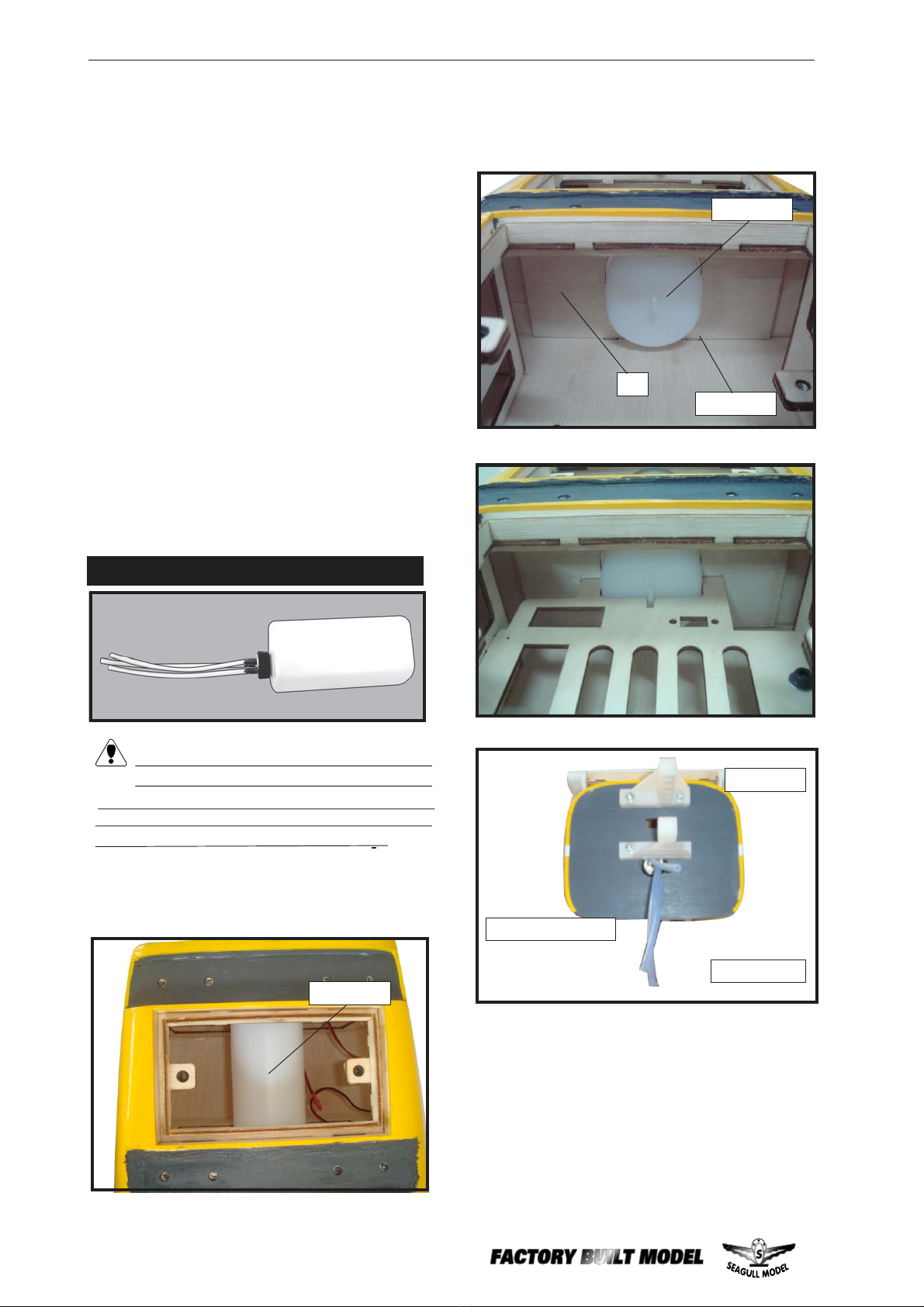

FUEL TANK INSTALLATION.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
Fuel tank.
8) Use plywood template to hold in place
the fuel tank with C/A glue to secure the fuel
tank inside the fuselage.
A.
C/A glue.

7
www.seagullmodels.com
Blow through one of the lines to en-
sure the fuel lines have not become kinked
inside the fuel tank compartment. Air
should flow through easily.

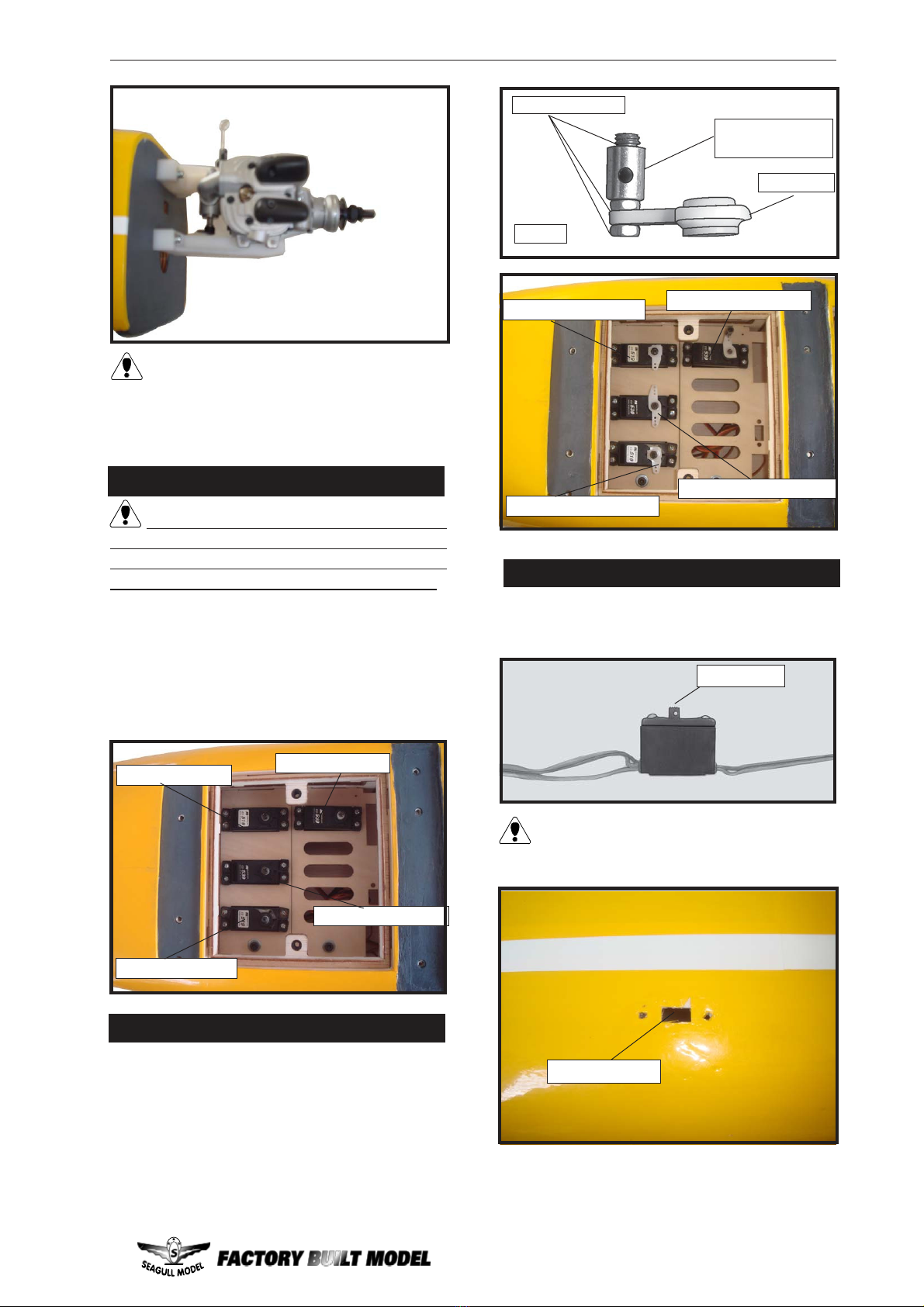

INSTALLING THE FUSELAGE SERVOS.
Throttle servo.
Elevator servo.
Tailwheel servo.
1) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
2) Secure the servos with the screws pro-
vided with your radio system.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
Rudder servo.
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm as same as picture below:
Adjustable Servo
connector.
Servo arm.
Loctite secure.
1 PCS.
Throttle servo arm.
Elevator servo arm.
Tailwheel servo arm.
Rudder servo arm.
INSTALLING THE SWITCH.
3/ 32” Hole.
Install the switch into the precut hole in the
side, in the fuselage.
Cut Covering.
Recomend mounting switch inside fuselage if
using floats.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
8

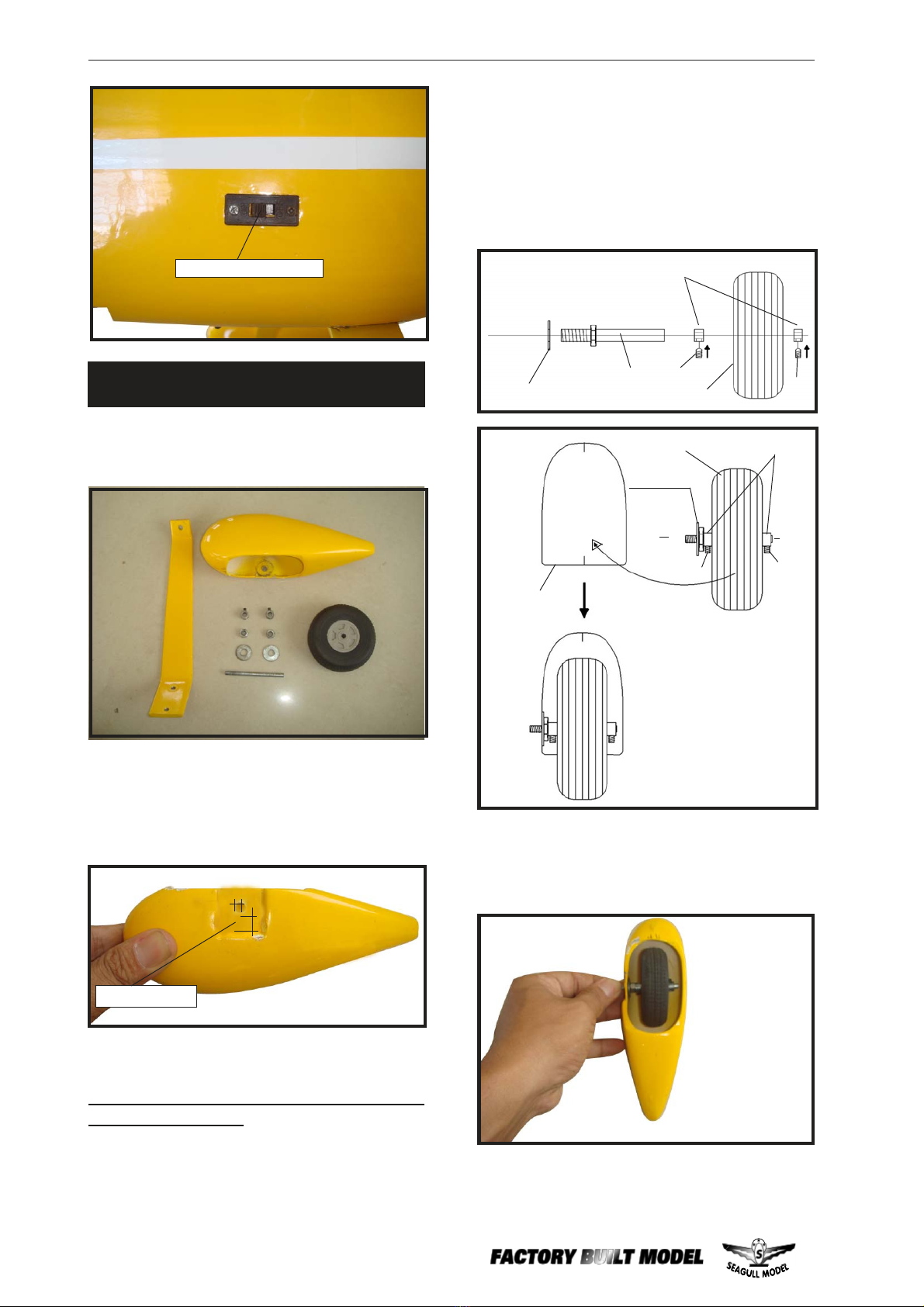

1) Locate the items neccessary to install
the wheel and wheel pants to the landing gear
as shown.

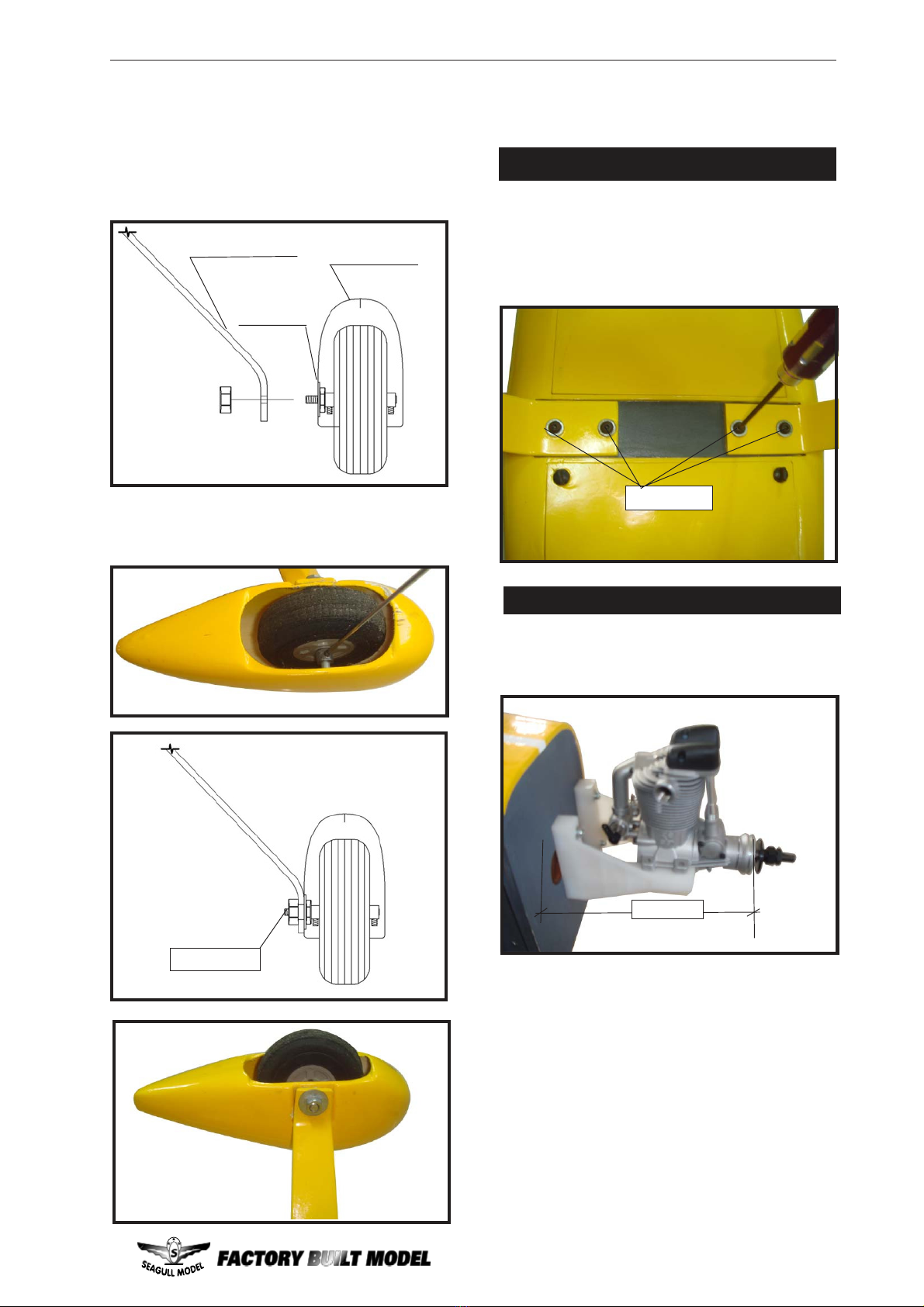

WHEEL AND WHEEL PANTS
INSTALLATION.
2) Follow diagram below for wheel pant
installation:
Use a drill and 4.2mm drill bit to drill a hole in
the wheel pants.
8mm.
14mm.
3) You have to trim each axle using a tool
cutting and cut-off wheel.
Caution when cutting the axles and wear
protective goggles.
Drill a hole.
wheel collar.
wheel.
Axle.
Washer.
M3.
wheel Pant.
wheel.
M3.
M3.
wheel collar.
nut. Axle.
Washer.
M3.
4) Slide the collar to the axle and setscrew
the collars to secure the collar to the axle and
then slider the wheel on the axle with a drop of
oil on the axle so the wheel will spin freely when
installed. Prepare a second collar and tighten
the setscrew using hex wrench to secure the
collar to the axle.
5) Place the wheel assembly in the wheel
pants. The threaded portion of the axle will fit
the notch of the wheel pant as shown.
Switch Installation.

9
www.seagullmodels.com
1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount the
main landing gear to the fuselage.
INSTALLING THE MAIN LANDING GEAR.
6) Slide the threaded end of the axle
through the hole in the bottom of the landing
gear leg. Use a washer and locknut to tighten
the axle to the landing gear. Make sure to use
threadlock on the nut so it won’t vibrate loose
in flight as shown.
C/A glue.
Landing Gear. wheel Pant.
Locker glue.
7) Tighten the setcrews using a hex
wrench to secure the collars on the axle over
the flat spot to retain the wheel as shown.
Repeat steps as above to attach remain-
ing wheel pants to the landing gear.
4x20 mm.
145mm.

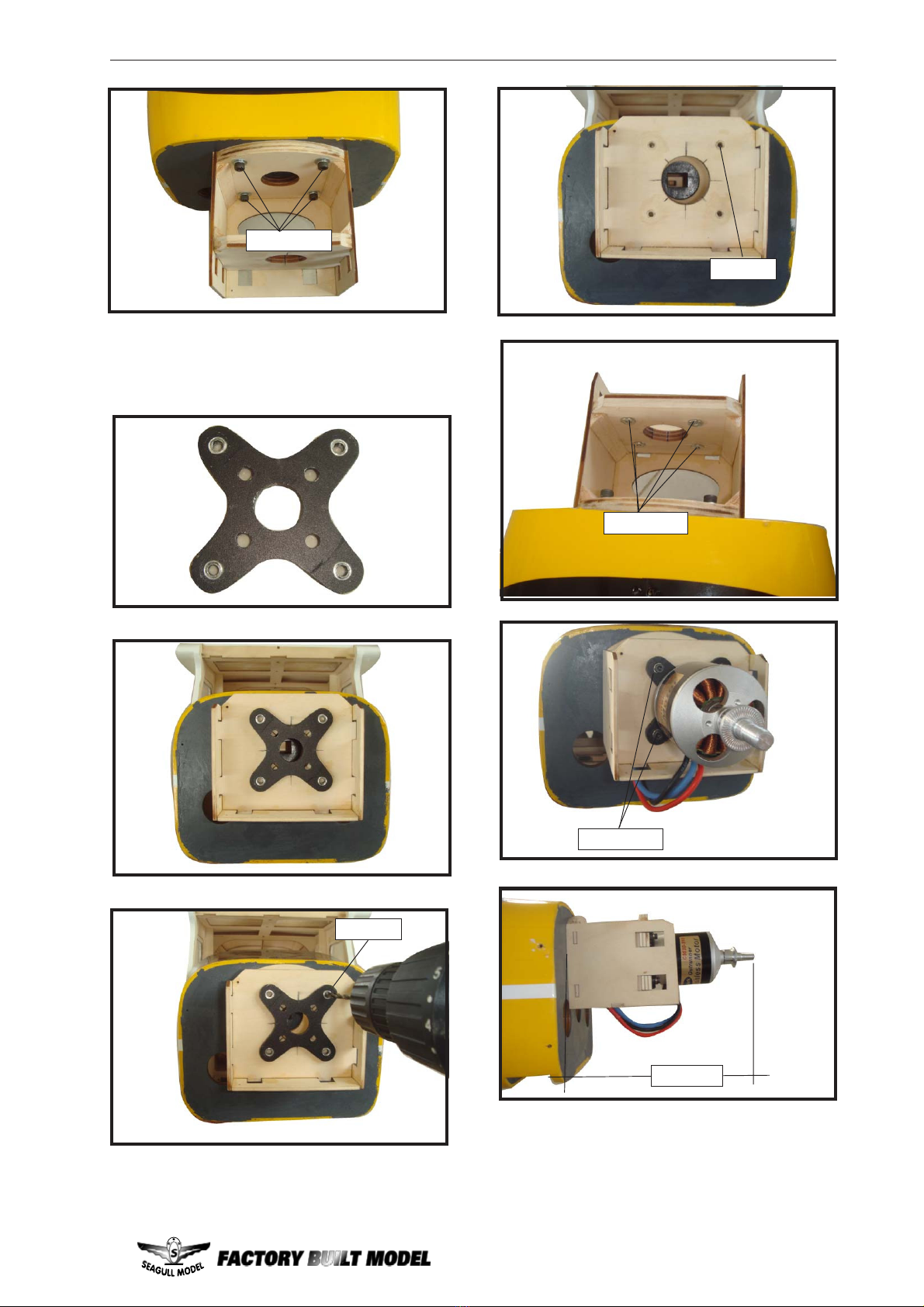

MOUNTING THE ENGINE.
1) Position the engine with the drive washer
(145mm) forward of the firewall as shown.
2) Use a pin drill and 4mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
10
5) Slide the pushrod tube in the firewall and
guide it through the fuel tank mount. Use
medium C/A to glue the tube to the firewall and
the fuel tank mount.
6) Connect the Z-bend in the 450mm throttle
pushrod to the outer hole of the carburetor arm.
Pushrod tube hole.
7) Slide the throttle pushrod wire into the tube.
Position the engine between the mounts. Use
four M4x30mm machine screws to secure the
engine to the mount as shown.
Machine screw M4x30mm.
Pushrod wire.
9) Move the throttle stick to the closed position
and move the carburetor to closed. Use a 2.5mm
hex wrench to tighten the screw that secures
the throttle pushrod wire. Make sure to use
threadlock on the screw so it does not vibrate
loose.
3) Use a drill to drill the four holes in the engine
mount rails.
4) On the fire wall has the location for the
throttle pusshrod tube (pre-drill).
4.5mm.
4mm.

11
www.seagullmodels.com
Trim and cut.

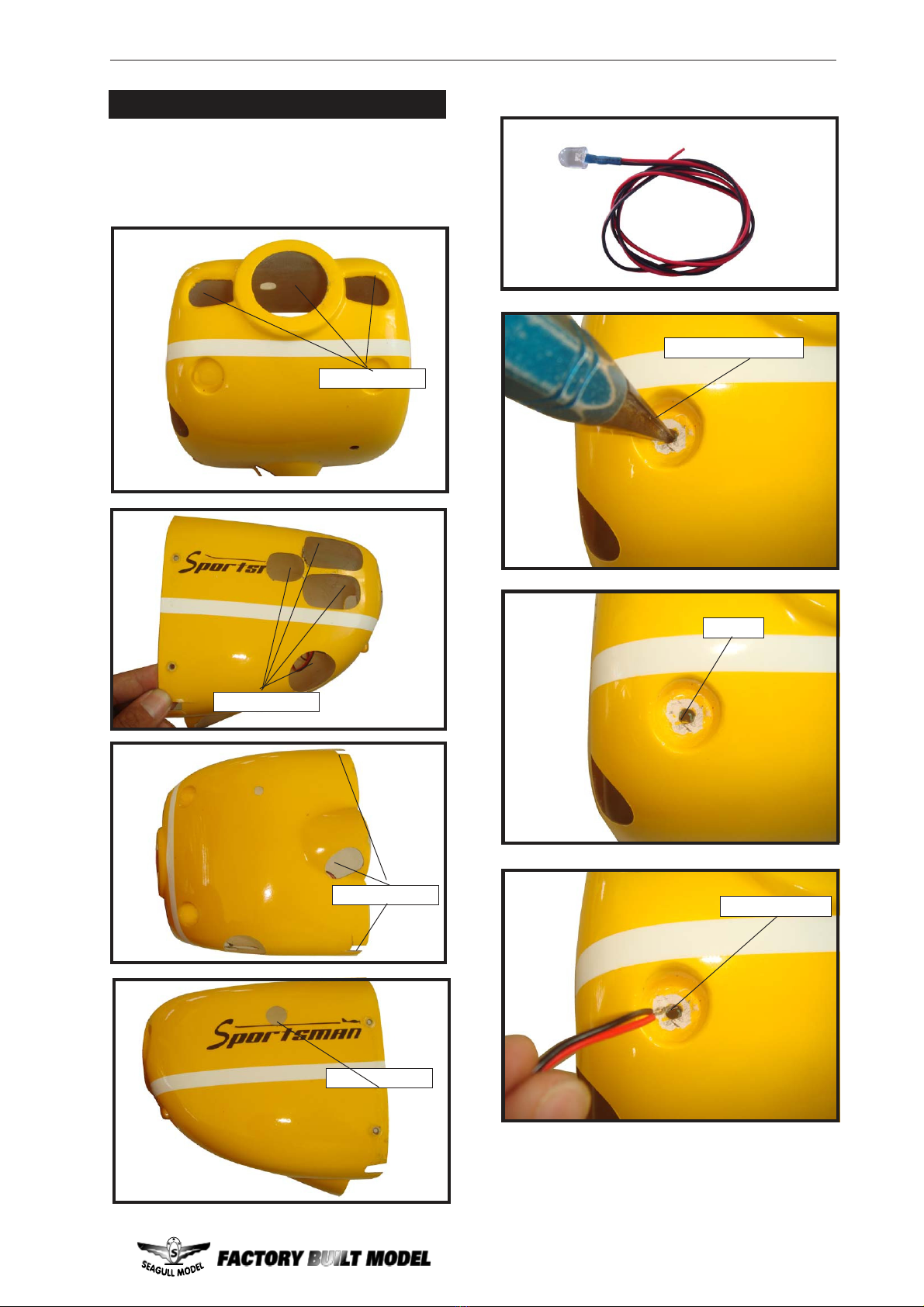

COWLING.
Trim and cut.
1)Slide the fiberglass cowl over the engine
and line up the back edge of the cowl with the
marks you made on the fuselage then trim and
cut as shown.
Trim and cut.
Trim and cut.
2)Install LED lights at the top Cowling.
Electric wire.
5mm.
Drill a hole 5mm.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
12

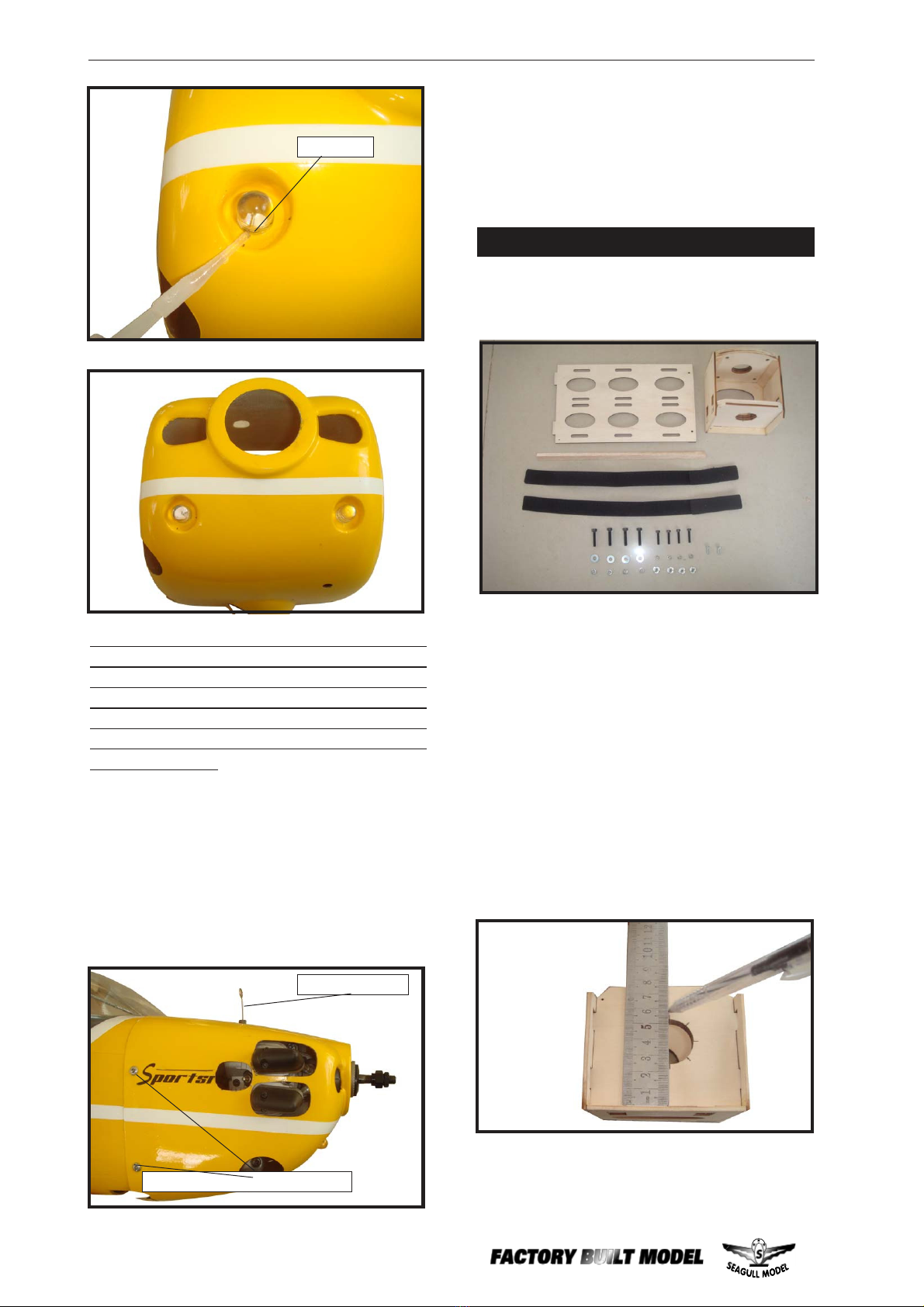

3) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve. Secure the cowl to fuse-
lage using the M3x10mm screws.

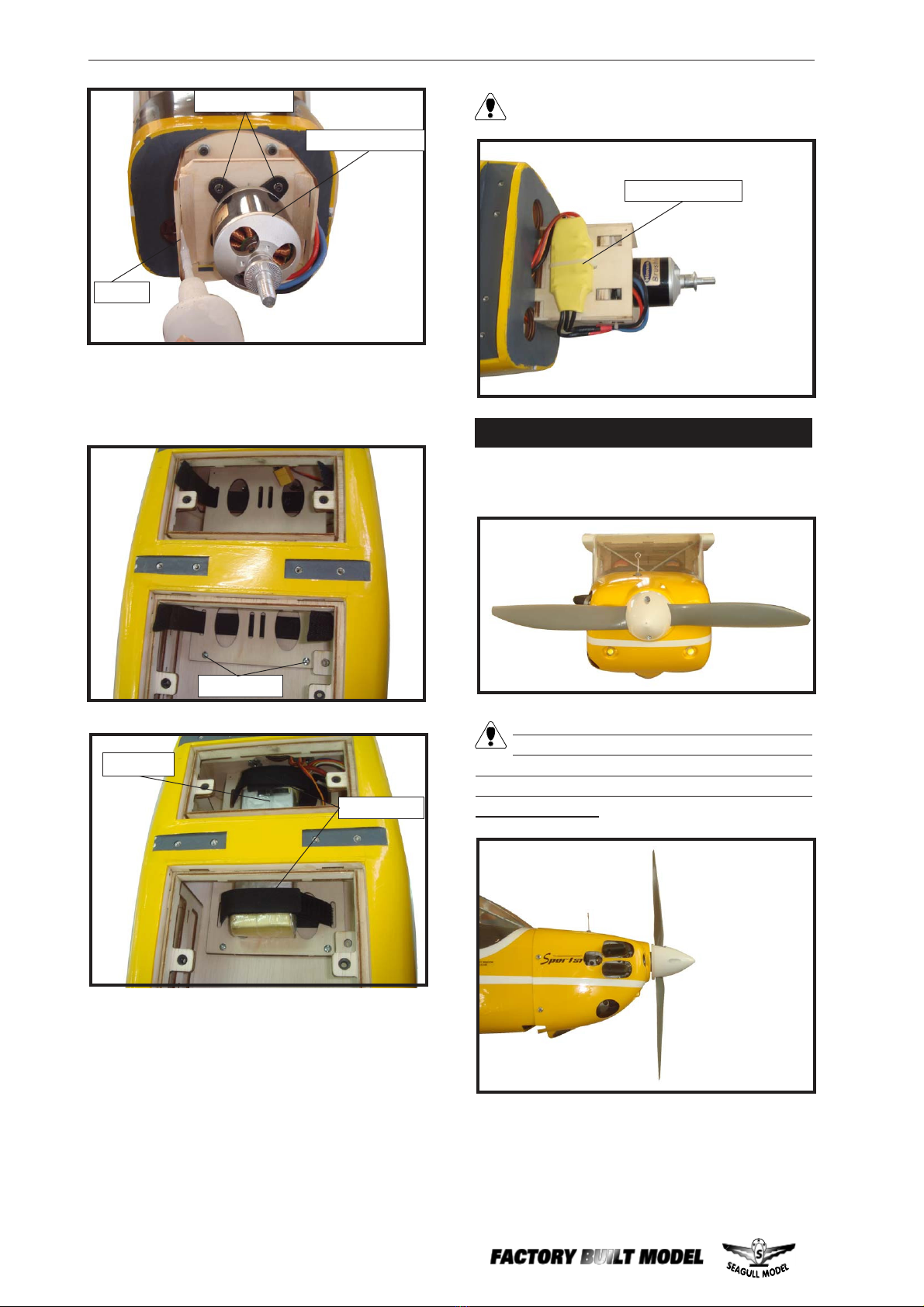

ELECTRIC POWER CONVERSION.
1) Locate the items neccessary to install the
electric power conversion included with your
model.
Machine screw M3x10mm.
Needle valve.
1) Recommendation EP parts as shown (not
included with your model).
2) While keeping the back edge of the
cowl flush with the marks, align the front of
the cowl with the crankshaft of the engine. The
front of the cowl should be positioned so the
crankshaft is in nearly the middle of the cowl
opening. Use the spinner backplate as a guide.
Hold the cowl firmly in place using pieces of
masking tape.
Because of the size of the cowl, it may be nec-
essary to use a needle valve extension for the
high speed needle valve. Make this out of suf-
ficient length 1.5mm wire and install it into the
end of the needle valve. Secure the wire in
place by tightening the set screw in the side of
the needle valve.
2) Attach the electric motor box to the firewall
suitable with the cross lines drawn on the electric
motor box and firewall. Using epoxy and balsa
stick to secure the motor box to the firewall.
Please see pictures below.
- Model size: .75-.90 size models
- Motor: 50mm 310 rev per volt
- Propeller: 14x10 ~ 15x10
- ESC: 60A
- Lipo Batteries: 8 cell 3200mA
C/A glue.

13
www.seagullmodels.com
4mm.
3) Attach the motor to the front of the electric
motor box using four 4mm blind nut, four
M3x15mm hex head bolts to secure the motor.
Please see picture shown.
M4x20mm
4mm.
M3x15mm.
145mm.
Blind nut.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
14
INSTALLING THE SPINNER.
Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
Speed control.
Tie wraps.
Battery.
5) Attach the speed control to the side of the
motor box using two-sided tape and tie wraps.
Connect the appropriate leads from the speed
control to the motor. Make sure the leads will
not interfere with the operation of the motor.
Balsa stick.
Electric motor.
4) Locate the plywood battery tray to the
fuselage. Tighten the screws using machine
screws M3x15mm to secure the tray in position.
Epoxy.
M3x15mm.
Recomend Mounting Speed Control inside
Fuselage If Flying off Water.

15
www.seagullmodels.com

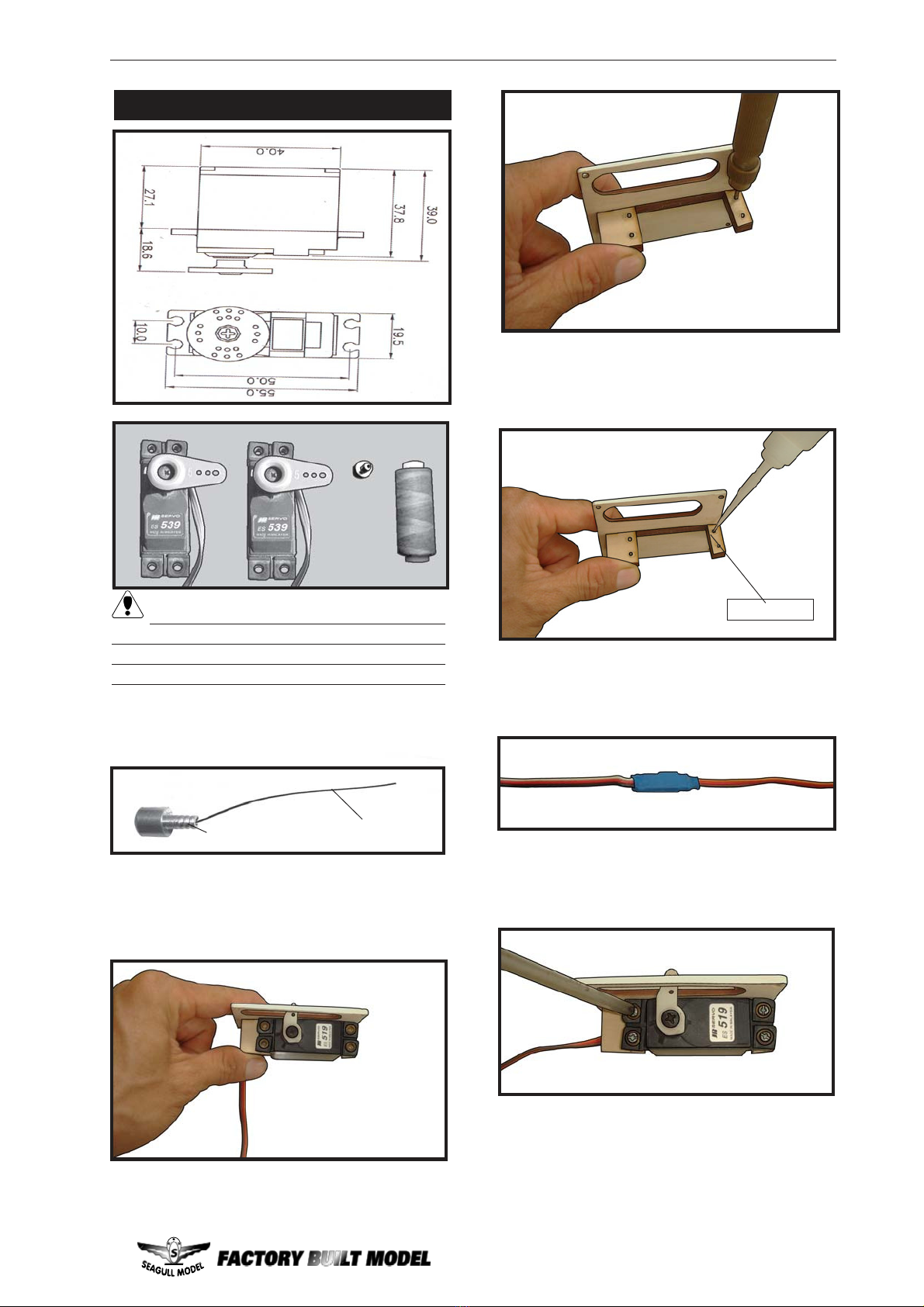

INSTALLING THE AILERON - FLAP SERVOS.
String.
Small weight.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a pencil
to mark the mounting hole locations on the
blocks.
Servos. Small weight.
Thread.
1) Using a small weight ( Weighted fuel pick-up
works well ) and string, feed the string through
the wing as indicated.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
3) Use drill bit in a pin vise to drill the mouting
holes in the blocks.
4) Apply 2-3 drops of thin C/A to each of the
mounting holes. Allow the C/A to cure without
using accelerator.
5) Use dental floss to secure the connection
so they cannot become unplugged.
6) Secure the servo to the aileron hatch using
Phillips screwdriver and the screws provided
with the servo.
7) Apply 1-2 drops of thin C/A to each of the
mounting tabs. Allow the C/A to cure without
using accelerator.
C/A glue.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
16
8) A string has been provided in the wing to
pull the aileron lead through to the wing root.
Remove the string from the wing at the servo
location and use the tape to attach it to the
servo extension lead. Pull the lead through the
wing and remove the string.
C/A glue.

17
www.seagullmodels.com
9) Set the aileron hatch in place and use a
Phillips screw driver to install it with four wood
screws.
AILERON PUSHROD HORN INSTALLATION
M2 lock nut.
M2 clevis.
40mm.
70mm.
Wing.
Aileron.
M2 lock nut.
INSTALLING THE FLAP SERVO
Repeat the procedure for the aileron servo.
Wing.
Flag.
M2 lock nut.
M2x10mm
Aileron .
Wing .
Aileron .
Repeat the procedure for the other aileron servo.
Wing .

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
18
When cutting through the covering to re-
move it, cut with only enough pressure
to only cut through the covering itself. Cutting
into the balsa structure may weaken it.
Epoxy.
6) Using a modeling knife, carefully re-
move the covering that overlaps the stabilizer
mounting platform sides in the fuselage. Re-
move the covering from both the top and the
bottom of the platform sides.
7) When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 Minute Epoxy. Apply a thin layer to the
top and bottom of the stabilizer mounting area
and to the stabilizer mounting platform sides
in the fuselage. Slide the stabilizer in place
and realign. Double check all of your mea-
surements once more before the epoxy cures.
Hold the stabilizer in place with T-pins or mask-
ing tape and remove any excess epoxy using
a paper towel and rubbing alcohol.
Pen.
Trim and cut.
5) Remove the stabilizer. Using the lines
you just drew as a guide, carefully remove the
covering from between them using a model-
ing knife.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
INSTALLING THE HORIZONTAL STABILIZER.
1) Using a ruler and a pen, locate the
centerline of the horizontal stabilizer, at the trail-
ing edge, and place a mark. Use a triangle
and extend this mark, from back to front,
across the top of the stabilizer. Also extend
this mark down the back of the trailing edge of
the stabilizer.
Draw center line.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal sta-
bilizer ( both side of fuselage).
Cut.
3) Slide the stabilizer into place in the pre-
cut slot in the rear of the fuselage. The stabi-
lizer should be pushed firmly against the front
of the slot.

19
www.seagullmodels.com
INSTALLING VERITICAL STABILIZER.
1) Using a modeling knife, remove the
covering from over the precut hinge slot cut
into the lower rear portion of the fuselage.
Remove covering.
Fill epoxy.
Epoxy.
2) While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
3) Slide the vertical stabilizer back in
place. Using a triangle, check to ensure that
the vertical stabilizer is aligned 90º to the hori-
zontal stabilizer.
Epoxy.
Epoxy.
4) When you are sure that everything is
aligned correctly, mix up a generous amount of
Flash 30 Minute Epoxy. Apply a thin layer to the
mounting slot and to bottom of the vertical sta-
bilizer mounting area. Apply epoxy to the bot-
tom and top edges of the filler block and to the
lower hinge also. Set the stabilizer in place
and realign. Double check all of your measure-
ments once more before the epoxy cures. Hold
the stabilizer in place with T-pins or masking
tape and remove any excess epoxy using a
paper towel and rubbing alcohol. Allow the ep-
oxy to fully cure before proceeding.
Epoxy.

GLASAIR SPORTSMAN G2-2 . Instruction Manual.
20
ELEVATOR PUSHROD HORN
INSTALLATION.
Elevator control horn.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on
the both side of elevator.
4) Elevator and rudder pushrods assembly
as pictures below.
3) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
Control horn.
M2 lock nut.
Metal clevis.
Rudder pushrod.
Rudder pushrod.
RUDDER PUSHROD HORN
INSTALLATION.
Rudder control horn.
M2 lock nut.
M2 clevis.
660mm.
690mm.
