VACUUM TOILET
OWNER’S MANUAL
VacuFlush®140 Series Toilets
This manual must be read and
understood before adjustment,
maintenance, or service is
performed. Modication of this
product can result in property
damage.
WARNING
!
IMPORTANT NOTICE
VacuFlush®sanitation systems
must be installed according to
Dometic’s recommended procedures.
Do not attempt installation without
rst contacting a SeaLand
Product certied dealer or
Dometic Corporation.
Dometic Corporation, Sanitation Systems
13128 State Rt 226, PO Box 38, Big Prairie, OH 44611
SeaLand Product Hotline [phone]
www.Dometic.com

2
PRODUCT FEATURES
Dometic brings the technology, comfort and efciency of SeaLand®toilet systems with VacuFlush®
technology in an easy-to-use and easy-to-maintain package.
• Freshwater Flush
• Eliminates the unpleasant sulde odors which plague saltwater systems.
• Eliminates the need to draw ush water through the through-hull, seacock and vented loop.
• Signicantly extends life of system components by eliminating salt water and impurities from
accumulating in the system over time.
•Efcient Design
• Consumes a little over a pint of water per ush and allows boat owners to use a small waste tank.
The VacuFlush system lls a 10-gallon tank in the same time that an electric toilet lls a 40-gallon
(113.6 liter) tank.
• Uses only 4-6 amps per ush on 12VDC.
• Delightful Operation
• Simple one-lever ush control. No complex instructions needed.
• Comfortable adult-sized seat.
• Large water surface maintains clean bowl.
• Vitreous china bowl.
•Reliability is Built-In
• USCG Certied Type III Marine Sanitation Device when installed with holding tank.
• No impellers or macerators – vacuum pump motor can run dry without burning up. No dynamic
seals.
• Vacuum tank and vacuum generator design eliminates clogging problems associated with other
systems.
• Dispose of Sewage Conveniently and Safely
• Toilet can be used without discharging sewage into sensitive waters.
• Holding tank discharge is at a dockside pump or at sea with optional overboard discharge.
• No portable toilet tanks to haul or dump.
•Backed by the Best in Service and Quality
• The VacuFlush system is from Dometic – the leader in marine sanitation.
• Worldwide parts availability and technical support.
Dometic reserves the right to change specications without notice.
TABLE OF CONTENTS
Vacuum Tester ........................6
Service Tip ...........................6
Convenience Products .................7
Ordering Parts ........................7
Toilet Dimensions ......................7
Troubleshooting Guide ..............8 - 10
Customer Service.....................11
One-Year Limited Warranty .............12
Product Features ......................2
Key System Components................3
Toilet Model Identication ................4
Toilet Operation .......................4
Proper Cleaning .......................5
Winterizing ...........................5
Clearing Discharge Lines ................5
Maintenance .........................6
WARNING – HIGH VOLTAGE SYSTEM.
Turn off electrical power before servicing.
WARNING – PUMP STARTS AUTOMATICALLY.
Turn off electrical power before servicing.

3

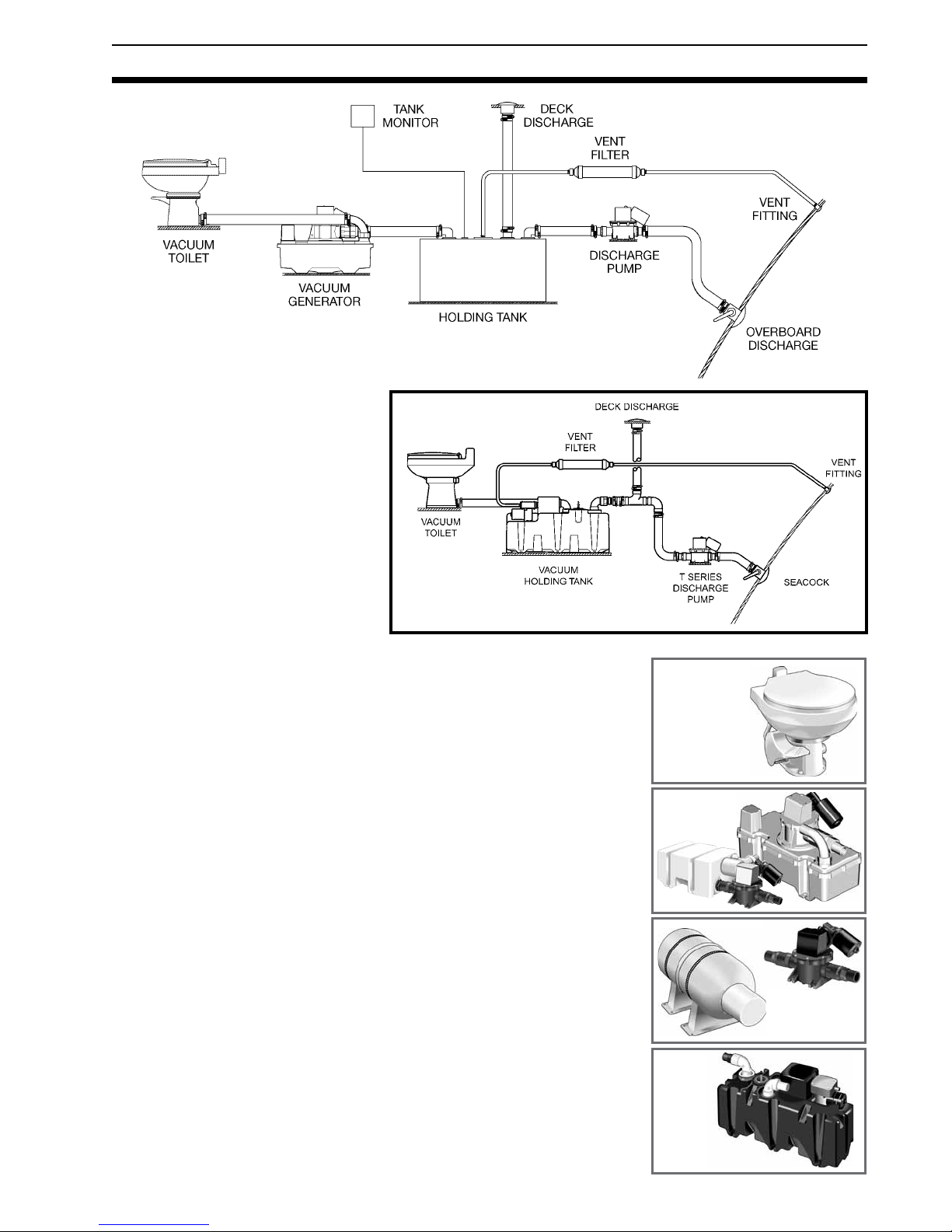

KEY SYSTEM COMPONENTS
Vacuum Toilet: The VacuFlush toilet operates in a way different from
other marine toilets. VacuFlush systems use a small amount of water (a
little more than a pint) per ush in addition to a simple vacuum. The toilet
is connected to a pressurized freshwater system. Fresh water is the key
to an odor-free bathroom compartment. VacuFlush toilets are equipped
with an integral vacuum breaker which prevents the possible contamination
of the potable water supply.
Vacuum Generator: The vacuum generator combines a vacuum tank and
vacuum pump in one unit. It greatly reduces installation time and elimi-
nates the hose run between the tank and pump. Its compact size makes
it especially well-suited to smaller crafts.
Vacuum Tank: The vacuum tank stores vacuum energy. System vacuum
level is monitored by a vacuum switch located on the vacuum tank. When
this switch senses a drop in vacuum in the system, it automatically signals
the pump to energize and bring the vacuum to operating level. This process
is normally completed in less than one minute. In a properly operating
system, the stored vacuum will leak down between ushes, causing the
vacuum pump to run for a short period.
Vacuum Pump: The vacuum pump is an electric, straight-through bellows
type. It is manufactured of long-lasting polypropylene and draws only 4 to 6
amps of current at 12VDC. This unique pump design is both an efcient air
and liquid pump, and handles solids without a problem. It has two duckbill
valves on each side of the pump chamber.
Vacuum Holding Tank: A vacuum holding tank combines the vacuum tank,
vacuum pump and holding tank. Refer to the Vacuum Holding Tank Owner’s
Manual (part no. 600343026) for installation and other information.
VACUUM HOLDING TANK
SYSTEM
Model 148
VacuFlush
Toilet
Vacuum
Generators
Vacuum Tank
and Pump
Vacuum
Holding Tank

4
SYSTEM START-UP
1. Turn on electrical power to system.
2. Flush water into system by depressing ush lever until water starts owing to the vacuum pump, about
15 seconds. This wets the pump interior for efcient operation. If vacuum pump does not run, check for
loose electrical connections.
3. The vacuum pump will run for approximately 30 to 90 seconds until system reaches operating vacuum level
and then will shut off.
TOILET OPERATION
IMPORTANT INFORMATION BEFORE OPERATION
1. Fill freshwater tank and add deodorant to holding tank through toilet bowl.
(See System Start-Up section.)
2. Make sure all guests understand the operation of the VacuFlush system
and the instruction label is in plain sight and easy for guests to read. If
this label is not included in this manual, please contact the SeaLand
Product Customer Service Department immediately.
3. Remember the vacuum pump starts automatically. Shut off the system before servicing and do not leave
the boat with toilet system breaker on.
4. Never use drain openers, alcohol, solvents, etc. in the system.
5. If the system does not function properly, refer to the Troubleshooting section of this manual and repair as
necessary. If problem persists, contact your local SeaLand product dealer.
1. To add water to the toilet before
using, raise flush lever until desired
water level is reached. Generally, more
water is required only when ushing
solids.
2. To flush toilet, press flush lever
sharply down to the oor. A sharp pop-
ping noise is normal when the vacuum
seal is broken. Hold lever down for
three (3) seconds. After ushing, let
ush lever snap back into original
position. If ush lever is accidentally
released before waste clears bowl, do
not attempt to ush toilet again until
vacuum pump stops running. A small
amount of water should remain in the
bowl after ushing.
3. Do not dispose of sanitary napkins
or other non-dissolving items in toilet,
such as facial tissue or paper towels.
These items can cause plugging of
the system.
NORMAL OPERATION
The toilet model identication label is located on the toilet base and will show
the model number and serial number.
NOTE: Make sure all guests understand the operation of the SeaLand toilet, and that the instruction label is
easy to read and in plain sight.
TOILET MODEL IDENTIFICATION

5
PROPER TOILET CLEANING
At the end of each season, the SeaLand toilet should be winterized for
storage, by either draining or using potable water-safe antifreeze in the
system.
To drain:
1. Thoroughly ush system with fresh water.
2. Empty holding tank.
3. Shut off water supply to toilet(s), and remove inlet waterline (Fig. B).
Do not remove cap on bottom of valve.
4. Press ush lever until all water is drained from toilet(s).
To use antifreeze:
1. Drain potable water tank.
2. Add freshwater antifreeze to potable water tank.
3. Flush potable water antifreeze and water mixture through toilet(s) and into the waste holding tank. Each
installation is different, so amounts may vary. User discretion is required to assure adequate protection.
4. Empty holding tank.
NOTE: Use nontoxic antifreeze designated for potable water systems. (See vehicle owner’s manual.)
CAUTION: Never use automotive-type antifreeze in freshwater systems.
WINTERIZING
CLEARING DISCHARGE LINES
Sanitation hoses should be cleared if toilet will not be needed for an extended period of time (more than two weeks).
1. Fill toilet bowl with water and add 4 oz. (120 ml) of biodegradable laundry detergent (should NOT contain bleach).
2. Flush toilet, holding pedal down for about two minutes. Close ush ball.
3. Turn off water supply to toilet.
4. Flush the toilet without water, allowing the vacuum pump to shut off after the ush. Repeat three times.
(This procedure will minimize any remaining water in the sanitation hoses.)
5. Turn off power to the vacuum pump.
6. Completely pump out holding tank.
If system will be subjected to freezing temperatures, please follow above procedure, then winterize system.
For stubborn stains, use SeaLand® Toilet Bowl Cleaner (Fig. A). It’s manufac-
tured especially for use with SeaLand toilets. In certain locations where water
is hard, a build-up of lime may dull the toilet bowl nish. Restore the shine
with this SeaLand cleaner. If you cannot nd it in your area, contact Dometic
for your nearest dealer. If the cleaner is not available, you can also use most
non-abrasive bathroom and toilet bowl cleaners (Bar Keeper's Friend®spray
cleaner, Clorox®toilet bowl cleaner, SaniFlush®toilet bowl cleaner, etc.). Please
follow label instructions.
To avoid damaging the Teon®-coated seal, DO NOT USE:
– abrasives (Comet®, Soft Scrub®cleansers etc.)
– caustic chemicals (Drano®clog remover, etc.)
– lubricants and cleaners containing alcohols or petroleum distillates
(Pam®cooking spray, Pine-Sol®cleaner, WD-40®lubricant, etc.).
® Bar Keepers Friend is a registered trademark of SerVaas Laboratories Inc.
® Clorox, Pine-Sol and Soft Scrub are registered trademarks of The Clorox Co.
® Comet is a registered trademark of Prestige Brands International.
® Drano is a registered trademark of S.C. Johnson & Son Inc.
® Pam is a registered trademark of ConAgra Foods.
® Sani-Flush is a registered trademark of Reckitt Benckiser Inc.
® Teon is a registered trademark of DuPont Co.
® WD-40 is a registered trademark of WD-40 Company.
Fig. A
Fig. B

6
MAINTENANCE
Maintenance intervals and normal parts replacement vary widely depending on numerous factors such as:
type of vessel, frequency of system use, quality of ushing water, etc. The chart below is intended strictly as a
general guideline. Owner discretion and consideration of actual usage must be the rst basis for determining
proper maintenance levels.
*See Base Assembly - Page 8.
VACUUM TESTER
Dometic has developed a simple tool to assist in identifying
the location of vacuum leaks. The vacuum tester consists of a
vacuum gauge and a cone-shaped plug. Inserting the plug in the
inlet of the vacuum tank or generator isolates the toilet from the
system. In this way a troublesome leak can easily be located
in either system.
Order only the Vacuum Tester (part number 318530002) or
as part of the complete system VacuFlush®maintenance kit
(part number 385310228).
Vacuum Tester
SERVICE TIP
Checking for leaks behind or under toilets or other appliances can make it difcult to locate the source. Dripping
water at room temperature makes it difcult to feel wetness. Taking four or ve sheets of toilet tissue and wiping
all seams and waterline connections offers a simple means of locating the general area of the leakage. Start at
the top of the unit since gravity will cause a leak to run downward. When the tissue comes in contact with the
leaking water, it will immediately change texture.
Maintenance Procedure
Follow cleaning procedures above.
Tighten all clamps, including base clamp ring.*
Check all wire connections.
Check & tighten water valve mounting screws.
Clean lter screen in water valve.
Check vacuum pump and in-line duckbill valves.
Check toilet seals.
Check vacuum breaker.
Check water valve.
Approximate Maintenance Level
Monthly
Annually
Annually
Annually
Annually
2-3 years or as needed
3-5 years or as needed
3-5 years or as needed
3-5 years or as needed

7
ORDERING PARTS
Dometic is ready to assist you in the event service is required. Before calling, please have the following infor-
mation available. Your cooperation in having this information ready is appreciated and allows our Customer
Service Department to better meet your needs. When you call, we will direct you to the nearest stocking parts
distributor.
1. Toilet Model Number
2. Serial Number
3. Part Number, Description and Quantity (See Parts List for information.)
TOILET DIMENSIONS
Models 147, 148, 149
Toilet dimensions may vary
±3/8 inch (10 mm).
CONVENIENCE PRODUCTS
Your marine dealer has SeaLand deodorants, tissue and other accessories on hand to make using and
maintaining your VacuFlush toilet system as easy as possible.
14 1/4-inch
[362mm]
18 1/4-inch
[464mm]
14 1/2-inch [368mm]
13 1/2-inch
[343mm]
SeaLand®Liquid
Deodorant
Four 8-oz. bottles
Part No.
379700029
SeaLand®
Rapid-Dissolving
Toilet Tissue
Four 500-sheet rolls
Part No.
379441204
SeaLand®
Cleaner
16-oz. bottle
Part No.
379314016
SeaLand®
Clean ‘n Green
Bowl Cleaner &
Tank Deodorant
12-2 oz. drop-in pouches
Part No. 379512602

8
TROUBLESHOOTING GUIDE
1. Water will not stay in bowl.
2. Plastic ush ball will not close
completely.
3. Flush ball will not open.
4. Water does not shut off in
toilet (toilet overows).
5. Water does not enter toilet
bowl properly.
6. Water leaking from water
valve.
a. Loose clamp ring.
b. Improper seal around ush ball due
to dirt or debris on underside of ball
seal.
c. Worn or damaged seal.
d. Worn or damaged ush ball.
a. Too much friction between ush ball
and ball seal.
b. Water valve screws are too tight.
c. Defective spring cartridge.
a. Broken shaft.
b. Shaft not fully engaged in the
spring cartridge.
a. Dirt lodged in water valve seal.
a. Insufcient water ow rate at toilet.
b. Water valve clogged.
c. Plugged rim wash holes in toilet.
a. Water valve body cracked due to
freeze damage.
b. Water line connection is loose or not
seated properly.
c. Defective water valve.
d. Stripped threads.
a. Tighten clamp ring adjusting nut.
b. Inspect ush ball and underside of
seal for foreign objects. Clean
under seal if needed.
c. Replace seal.
d. Replace ush ball.
a. Lubricate between ush ball and ball
seal with furniture polish or cooking
spray.
b. Loosen screws slightly.
c. Check spring tension by pushing
ush lever down, then release it
suddenly. If lever does not snap
back into original position, replace
spring cartridge.
a. Replace shaft.
b. Put pressure on shaft from under
the ush ball (pushing into spring
cartridge) until it engages. You may
have to rotate ush ball slightly until
shaft lines up with square in
spring cartridge.
a. Disassemble and clean water
valve.
a. Check water ow rate at toilet. Rate
should be 2 gpm (7.6 lpm) at toilet.
b. Remove and clean screen located
at inlet of water valve.
c. Clean holes. If still a problem,
replace the toilet bowl.
a. Replace water valve.
b. Insure that threads are not cross-
threaded and tighten.
c. Replace water valve.
d. Replace water valve.
Problem Possible Cause Service Instructions
BASE ASSEMBLY REAR VIEW, VACUUM TOILET
VACUUM
BREAKER
HOSE
CONNECTION
VACUUM BREAKER/BOWL CONNECTION
ADJUSTING NUT
FLUSH BALL
SPRING
CARTRIDGE
WATER VALVE ASSEMBLY
TOP VALVE CAP
FILTER SCREEN
VALVE SEAT
WATER
VALVE
SCREWS
VALVE BODY
SHAFT
FLUSH PEDAL
PEDAL
COVER
CLAMP RING
BALL SEAL

9
7. Water leaking from rear of
toilet bowl.
8. Water is leaking from the
base/toilet connection.
9. Vacuum pump running too
often between ushes.
(See Vacuum Tester
Information on page 6.)
10.Vacuum pump will not
shut off.
11. Vacuum pump will not run.
12.Vacuum pump is running too
slow, overheating, blowing
fuses or circuit breaker.
a. Worn or defective vacuum breaker.
b. Loose vacuum breaker.
c. Cracked or defective toilet bowl.
a. Clamp ring my be loose.
b. Ball seals may be worn or defective.
a. Water leaks out of bowl between
ush ball and ball seal.
b. Vacuum line leak.
a. A vacuum leak exists.
b. Insufcient vacuum (pump creates
less than 10 inches Hg).
c. Faulty vacuum switch (pump creates
more than 10 inches Hg).
d. Improper wiring.
e. Bellows not pumping.
a. No electrical power.
b. Loose or broken electrical wiring.
c. Improper electrical connections.
d. Faulty vacuum switch.
e. Faulty motor.
f. Shut-down relay prevents pumping.
a. Gear motor is worn or defective.
b. Plugged vent line or vent lter.
c. Blockage in discharge line.
d. Improper wire size.
e. Improper voltage.
f. Vacuum pump bellows clogged with
tissue.
a. Remove vacuum breaker cover and
look into top of vacuum breaker.
Flush toilet. If water leaks during
ush, vacuum breaker needs to be
replaced.
b. Secure vacuum breaker connection.
c. Replace toilet bowl.
a. Remove plastic base cover (on
applicable models) and tighten the
clamp ring.
b. Replace ball seals.
a. Leave small amount of water in
bowl. If water is sucked from bowl,
see problems 1 and 2.
b. Tighten all connections at toilet,
vacuum generator or vacuum hold-
ing tank (including hose clamps
and threaded spin nuts). If leaks
persists, contact SeaLand Product
Customer Service.
a. See problem 8b.
b. Isolate pump and use vacuum
gauge to check vacuum levels.
Could be a plugged discharge line
or worn duckbill valves.
c. Replace vacuum switch.
d. See wiring diagram to check for
proper wiring.
e. Tighten set screw in eccentric to
motor shaft. Otherwise, check for
damage to bellows and motor shaft.
Replace if necessary.
a. Check input power, circuit breaker
and fuse.
b. Tighten or reconnect wires at
vacuum pump and tank, vacuum
generator, or vacuum holding tank.
c. Be sure wires at vacuum switch are
connected to “B” terminals.
d. Check vacuum switch. Short across
“B” terminals with jumper wire.
e. Replace motor.
f. Empty the holding tank.
a. Check motor and replace if
necessary.
b. Disassemble and clean out vent
line. Replace vent lter if
necessary.
c. Disassemble and clean discharge
line. Be certain that in-line valves
(duckbill valves) and seacock are in
proper position.
d. Wire size too small. Check electri-
cal diagram for proper wire size for
voltage of pump used.
e. Check input power for low voltage.
f. Remove and clean bellows as-
sembly. (When ushing toilet, use
of more water may alleviate this
problem.)
Problem Possible Cause Service Instructions
TROUBLESHOOTING GUIDE (cont’d)

10
13. Toilet will not ush.
(No vacuum.)
See problems 3 and 14
if necessary.
14.Blockage between toilet and
vacuum generator.
15.Pump emits odor.
a. There is a blockage in the system.
b. Pump will not run.
c. Duckbill valves in vacuum pump
are inverted due to blocked dis-
charge line or an attempt to pump
out against closed seacock.
a. Collapsed vacuum line.
b. Sharp bends or kinks in vacuum
hose.
c. Improper operation of toilet.
d. Foreign objects were ushed down
toilet.
a. Loose or defective hose
connection on pump.
b. Loose intake or discharge ttings
on pump.
c. Worn, torn or punctured pump
bellows (vacuum generator) or
diaphragm (vacuum holding tank).
a. Open ush ball and check the 1-inch
(25mm) orice at the bottom of the
base for blockage and dislodge it.
Never use drain-opening or other
household plumbing chemicals.
If blockage is not in base, it may be
found in these locations:
• inlet of vacuum generator
• diptube of vacuum generator
• inlet of vacuum pump
• outlet of vacuum tank
b. See problem 11.
c. Replace duckbill valves, making
sure they point in the correct
direction.
a. Inspect vacuum line for collapsed
condition and replace line if needed.
b. Inspect vacuum hose for kinks
or bends. If less than 8.5-inches
(216mm) radius on any bend,
reposition hose to achieve
minimum 8.5-inch bend radius.
c. Make sure each person using toilet
knows correct procedure.
d. DO NOT ush any non-dissolving
items (i.e. sanitary napkins, facial
tissue, wet strength tissue, paper
towels, etc.) or excessive toilet
tissue. Rapid-dissolving SeaLand
brand toilet tissue is best.
a. Tighten connections or replace hose
and make new connections.
b. Tighten intake or discharge ttings
on pump. Replace nipples or
adapters if necessary.
c. Replace pump bellows or
diaphragm.
Problem Possible Cause Service Instructions
TROUBLESHOOTING GUIDE (cont’d)

11
CUSTOMER SERVICE
A strong, worldwide network assists in servicing and
maintaining your sanitation system. For the Autho-
rized Service Center near you, please call from 8:00
a.m. to 5:00 p.m. (ET) Monday through Friday.
You may also contact or have your local dealer con-
tact the Parts Distributor nearest you for quick response
to your replacement parts needs. They carry a complete
inventory for the SeaLand product line.
Telephone: [phone] U.S.A. and Canada
330-439-5550 International
Fax: [phone] U.S.A. and Canada
330-439-5567 International
Website: http://www.Dometic.com
http://www.SeaLand-Online.com

12
® Registered; ™ Trademark of Dometic Corporation.
© Dometic Corporation
600343590 02/13
MANUFACTURER’S ONE-YEAR LIMITED WARRANTY
Dometic Corporation warrants, to the original purchaser only, that this product, if used for personal, family or
household-like purposes, and if installed according to Dometic’s recommended procedures, is free from defects
in material and workmanship for a period of one (1) year from the date of purchase.
If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only,
to be free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.
Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic,
to be defective in material or workmanship. All labor and transportation costs or charges incidental to warranty
service are to be borne by the purchaser-user.
EXCLUSIONS
IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR
DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT,
ABUSE, ALTERATION OR USE OF UNAUTHORIZED COMPONENTS. THIS INCLUDES FAILURES
WHICH MAY RESULT FROM NOT FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURES AS
DESCRIBED IN THIS MANUAL. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF
ONE YEAR FROM DATE OF PURCHASE.
IMPLIED WARRANTIES
No person is authorized to change, add to, or create any warranty or obligation other than that set forth
herein.
Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one (1)
year from the date of purchase for products used for personal, family or household purposes, and ninety (90)
days from the date of purchase for products placed in commercial or business use.
OTHER RIGHTS
Some states do not allow limitations on the duration of an implied warranty and some states do not allow
exclusions or limitations regarding incidental or consequential damages; so, the above limitations may not
apply to you. This warranty gives you specic legal rights, and you may have other rights which may vary from
state to state.
To obtain warranty service, rst contact your local dealer from whom you purchased this product.
Dometic Group is a customer-driven, world-leading
provider of leisure products for the RV, automotive,
truck and marine markets. We supply the industry
and aftermarket with a complete range of air condi-
tioners, refrigerators, awnings, cookers, sanitation
systems, lighting, mobile power equipment, comfort
and safety solutions, windows, doors and other
equipment that make life more comfortable away
from home.
Dometic Group supplies a wide range of workshop
equipment for service and maintenance of built-in
air conditioners. Dometic Group also provides
specially designed refrigerators for hotel rooms,
ofces, wine storage and transport and storage of
medical products.
Our products are sold in almost 100 countries and
are produced mainly in wholly-owned production
facilities around the world.
Dometic Corporation
Sanitation Systems
13128 State Rt 226, Big Prairie, OH 44611
SeaLand Product Hotline [phone]
www.Dometic.com
[email protected]
