SeaLand 712-TM09 User manual

1
Dometic Sanitation Corporation
13128 State Rt 226, PO Box 38
Big Prairie, OH 44611
SeaLand Product Customer Service: 1-800-321-9886
(8:00 a.m. - 5:00 p.m. ET)
This manual must be read and understood
before adjustment, maintenance, or service
is performed. Modication of this product
can result in property damage.
WARNING
!
Specications .........................2
Installation ........................ 2-4
Toilet Operating Instructions . . . . . . . . . . . . . . 4
Toilet Maintenance. . . . . . . . . . . . . . . . . . . . . . 4
Preparing for Summer Use . . . . . . . . . . . . . . 4
Model Identication .....................4
Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Tank Level Indicator Instructions . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . 5 - 6
OrderingParts ........................7
CustomerService......................7
Deodorants and Special Tissue . . . . . . . . . . . 7
Warranty .............................8
Table of Contents
SeaLand®
GRAVITY DISCHARGE TOILET
OWNER’S MANUAL
SeaLand®712-TM09 Toilet

2
Tank:
1. Select position in bathroom where unit can be
installed in socket fitting and operate properly.
Allow room for using the ush lever and clearance
for raising the seat and lid.
2. Position the tank against three walls. Mark four
holes at mounts on tank base. After holes are
marked, remove tank, and drill pilot holes. Slide
tank back into position. Secure the tank with four
screws and washers on all tank mounts.
3. Insert 1-1/2 inch (38mm) I.D. PVC vent pipe into a
rubber sealing grommet in either corner of the tank,
no more than 1/2 inch (13mm) into tank. Be sure to
plumb vent pipe correctly to desired outside location.
SPECIFICATIONS
Product Name: 712-TM09 SeaLand Toilet
System:
Average water consumption per ush . 1 qt. (.95 L)
Minimum water consumption per ush. 1 pt. (.47 L)
Holding tank capacity . . . . . . . . . . . . .9 gal. (34.1 L)
Water supply pressure . 5-80 PSI (.35-5.62 Kg/cm2)
Water inlet size . . . . . . . . . . . . . . 1/2" (13 mm) NPT
Holding tank discharge tting . . . .3" (76 mm) spigot
Vent tting. . . . . . . . for 1-1/2" (38 mm) ID PVC pipe
Unit weight . . . . . . . . . . . . . . . . . . . . 41 lbs. (19 Kg)

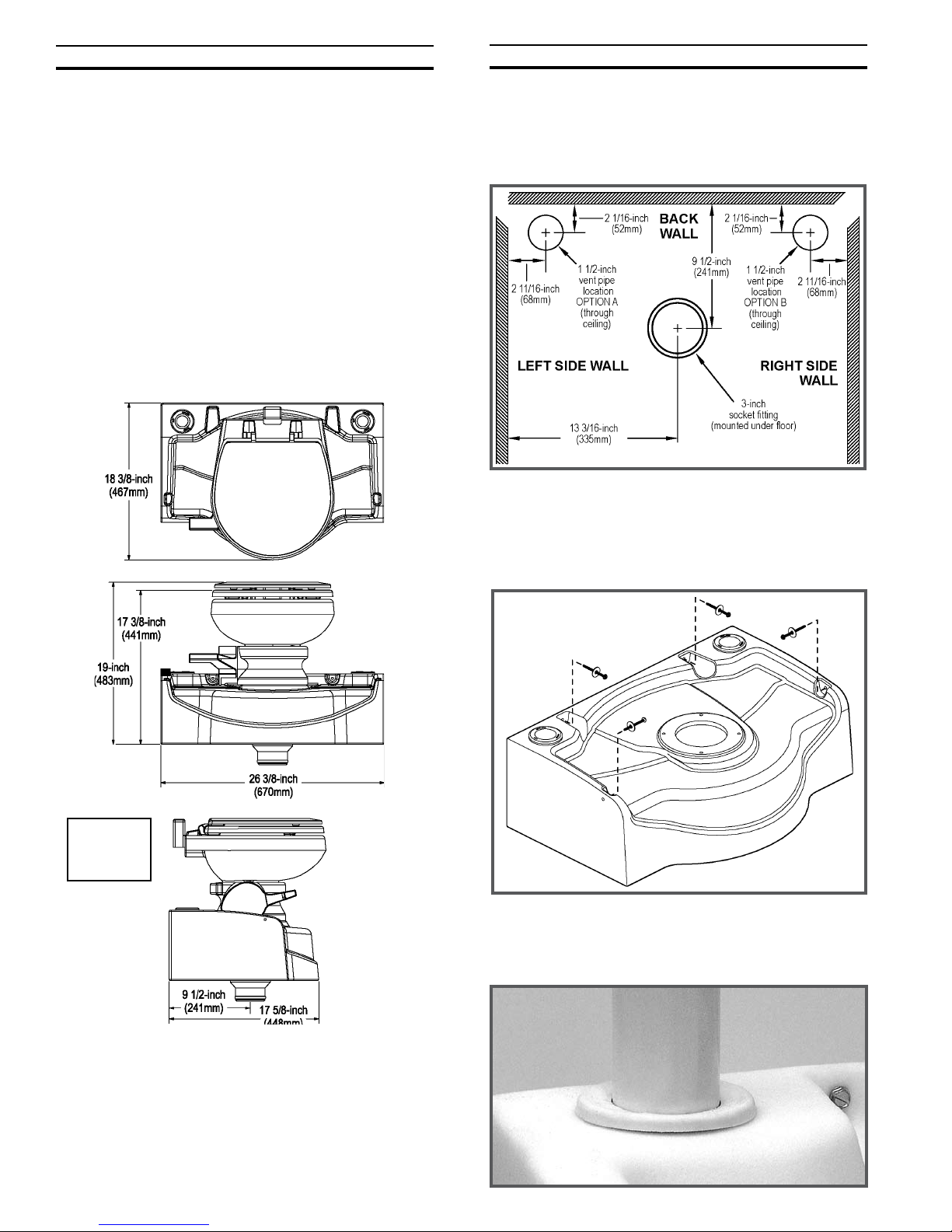

Dimensions:
INSTALLATION INSTRUCTIONS
Overall height
with seat lid up is
31 1/4-inch
(794mm)
All dimensions +/-3/8-inch (10mm)

3
Toilet Installation:
4. Remove plastic pedestal cover from toilet base.
5. Install the (4) 1/4-20 x 1-3/4" long studs in inserts on
the tank top.
6. Place oor ange seal on studs, aligning the studs
with bumps on seat. Note: “THIS SIDE UP” should
face upwards.
7. Place toilet on studs and secure with four washers
and four nuts. There should be no gap between the
bottom of the toilet base and the top of the tank.
Water line:
8. Locate water valve at rear of ush lever.
9. Attach water supply line from water system to inlet
tting on back of water valve.
Flush pedal cover:
10. Place outer pedal cover over metal lever. Push pedal
down, and secure inner pedal cover to outer cover with
supplied fasteners.
Pedestal cover:
11. Slide back side of pedestal cover around rear of
toilet base and snap in groove. Close front half of
pedestal cover and snap in groove.
INSTALLATION INSTRUCTIONS (cont’d)

4
Your SeaLand 712-TM09 toilet is designed for years of
dependable trouble-free service. However, during the life
of the product, certain parts may require replacement.
The following is a list of parts kits which may be required
for maintenance purposes.
MODEL IDENTIFICATION
The model identication label is located on the toilet base
under the pedestal cover.
TOILET OPERATING INSTRUCTIONS
To properly use the SeaLand toilet, follow these simple
instructions:
1. Use biodegradable tissue such as SeaLand®brand.
2. To add water to the toilet before using, lift or raise
the ush pedal.
3. To ush toilet, push pedal all the way down until
sewage leaves the toilet bowl. Water ow pressures
vary at different locations and therefore, holding the
ush lever down 4-8 seconds may be required. A ow
of 2-4 GPM (8-15 Lpm) is recommended for proper
rim and bowl wash.
4. Allow ush pedal to snap back, which permits positive
sealing around the ush ball.
5. A small amount of water should remain in the bowl.
Note: Holding the ush pedal down longer than neces-
sary results in excessive water usage.
CAUTION: Do not dispose of sanitary napkins or other
non-dissolving items in the toilet.
TOILET MAINTENANCE
CLEANING
The SeaLand toilet should be cleaned regularly for
maximum sanitation and operational efciency.
Clean the toilet bowl with a mild bathroom cleaner,
such as SeaLand®Toilet Bowl Cleaner. Do not use
chlorine or alcohol-based caustic chemicals such as
drain opening types, as they will damage the seals.
If an odor is apparent from the toilet:
1. Clean out system by ushing several gallons of fresh
water through with one cup of liquid laundry soap.
2. Add odor control deodorant in amount specied for
your holding tank capacity after cleaning and every
few days during use.
PREPARING FOR SUMMER USE
To prepare the SeaLand toilet for summer use, turn on
water supply and check system for leaks. Flush toilet,
check for leaks and repair as necessary. Your SeaLand
toilet is now ready for use.
DOMETIC CORPORATION
P.O. BOX 38, 13128 STATE RT 226 [phone]
BIG PRAIRIE, OH 44611 USA
MODEL NO. 000
SERIAL NUMBER
000000
SPARE PARTS
Part Number Description
385318162 Ball, Shaft & Cartridge Kit
385310677 Seal Kit
385314349 Water Valve Kit
385316906 Vacuum Breaker Kit
WINTERIZING
At the end of each season, the SeaLand toilet should be
winterized for storage by either draining or using potable
water-safe antifreeze in the system.
To drain:
1. Thoroughly ush system with fresh water.
2. Empty holding tank.
3. Shut off water supply to toilet. Disconnect water line.
4. Press pedal until all water is drained from toilet.
To use antifreeze:
1. Thoroughly ush system with fresh water.
2. Empty holding tank.
3. Drain potable water tank.
4. Add freshwater antifreeze and water mixture
through toilet and into the waste holding tank. Each
installation is different, so amounts may vary. User
discretion is required to assure adequate protection.
5. Empty holding tank.
Note: Use nontoxic antifreeze designated for potable
water systems.
CAUTION: Never use automotive-type antifreeze in
freshwater systems.
Tank Level Indicator:
12. Lubricate inside surface of rubber sealing grommet
and outside surface of probe body with liquid dish-
washing detergent. Insert level indicator into rubber
sealing grommet.
INSTALLATION INSTRUCTIONS (cont’d)

5

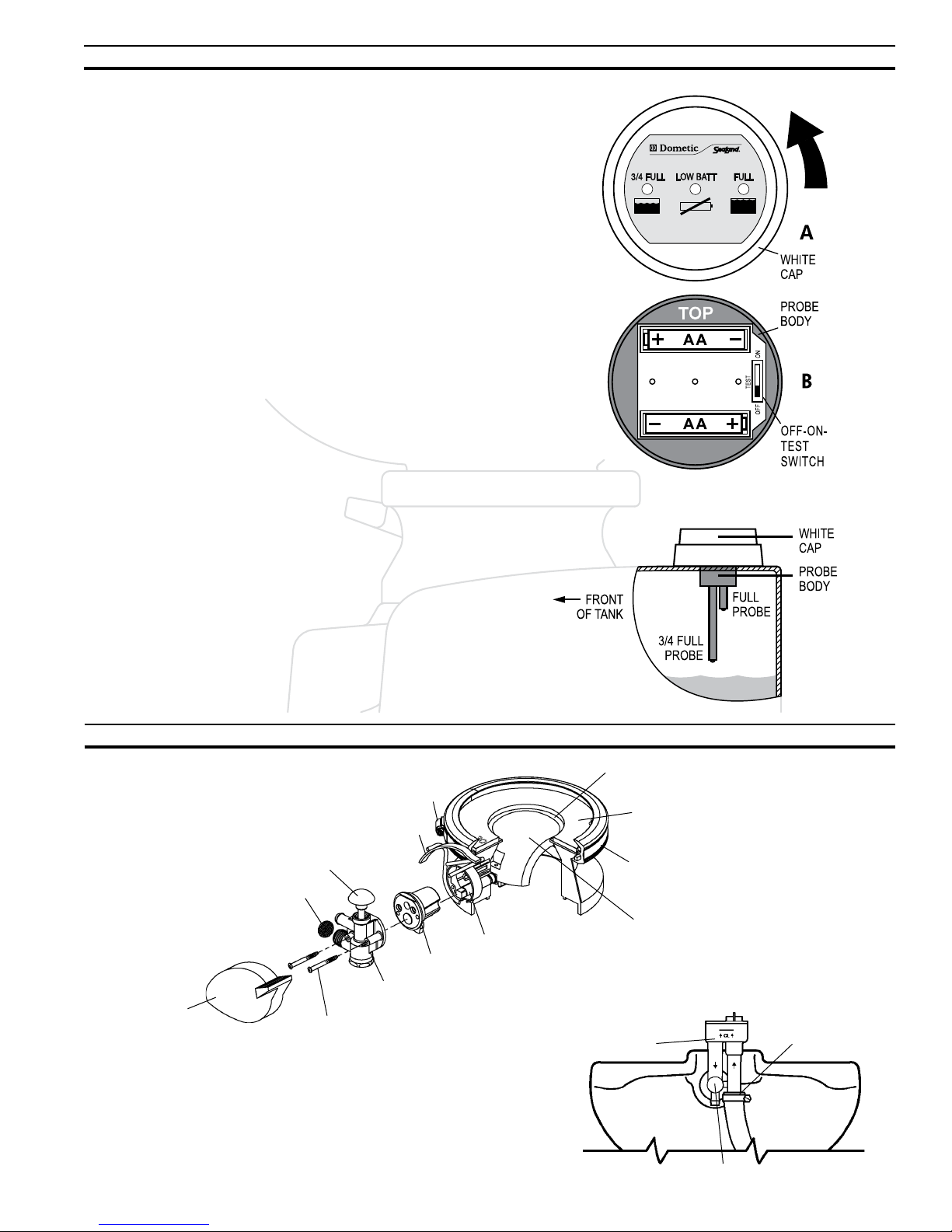

SEALAND TOILET
BASE ASSEMBLY BAND CLAMP
FASTENER
SPRING
CARTRIDGE
WATER VALVE ASSEMBLY
TOP VALVE CAP
FILTER SCREEN
WATER VALVE SCREWS
VALVE BODY
SHAFT
PEDAL
COVER
BAND CLAMP
SEAL
FLUSH BALL
CAM STRAP
DISK
SEALAND TOILET BOWL, REAR VIEW
(Model 712)
VACUUM
BREAKER
WATER VALVE HOSE
CONNECTION
VACUUM BREAKER/BOWL CONNECTION
TROUBLESHOOTING
Operation
1. Twist white cap counterclockwise until it stops (A). Lift off
cap.
2. Slide switch from OFF to TEST to assure fresh batteries and
proper operation. In TEST mode, the “3/4 FULL” (left) and
“FULL” (right) lights should illuminate. The “LOW BATT” (center)
light will not illuminate. Slide switch to ON for operation. The
level indicator can be turned off if the toilet will not be used for
an extended time.
3. Replace white cap.
Indicator Lights
When the holding tank level reaches about 3/4 full, the yellow
“3/4 FULL” light illuminates.
When the holding tank is full, the red “FULL” light illuminates.
The holding tank should be emptied before the toilet is used again.
If the holding tank lls up and the indicator lights do not glow, the
probe ends may need to be cleaned. See CLEANING PROBES.
When emptying the tank, the indicator lights may remain lit until
after the efuent drains from the sensing probes. If the lights con-
tinue to remain lit after a few minutes, the probe ends may need
to be cleaned. See CLEANING PROBES.
Cleaning Probes
1. To remove probes from holding tank, twist off white cap and
set aside.
2. Twist and pull black probe body up to remove it from rubber
grommet. After cleaning probes, be sure to put probe back into
rubber grommet with the word “TOP” toward back of tank.
Batteries
When the batteries become weak, the red “LOW BATT” light will
illuminate. Replace with AA alkaline batteries, making sure to
position new batteries as shown.
TANK LEVEL INDICATOR INSTRUCTIONS

6
TROUBLESHOOTING (cont’d)
1. Odor when ush ball is open.
2. Water will not stay in bowl.
3. Flush ball will not close
completely.
4. Flush ball will not open.
5. Water does not shut off in
toilet (toilet overows).
6. Water does not enter toilet
bowl properly.
7. Water leaks from water
valve.
8. Water leaks from bottom of
toilet base.
9. Water leaks from rear of
toilet bowl.
10. Water leaks from the base/
toilet connection.
a. Odor emitting from holding tank.
a. Loose band clamp.
b. Improper seal between ush ball
and seal due to dirt or debris.
c. Worn or damaged seal.
d. Worn or damaged ush ball.
a. Too much friction between ush
ball and seal.
b. Water valve screws are too tight.
c. Flush pedal does not snap back
into original position.
a. Shaft not fully engaged in the
spring cartridge.
b. Broken shaft.
c. Worn or defective spring cartridge.
a. Not enough clearance between
cam strap and top of water valve
cap.
b. Dirt lodged in lubricant between
cam strap and top valve cap on
water valve.
c. Worn or defective water valve.
a. Water valve clogged.
b. Insufcient water ow rate at toilet.
c. Plugged rim wash holes in toilet.
a. Water line connection is loose or
not seated properly.
b. Stripped threads on water valve.
c. Water valve body cracked due to
freeze damage.
d. Defective water valve.
a. Toilet is not secured to tank.
b. Distorted or defective toilet
mounting seal.
c. Cracked toilet base.
a. Worn or defective vacuum
breaker.
b. Loose vacuum breaker.
c. Cracked or defective toilet bowl.
a. Band clamp may be loose.
a. Use SeaLand holding tank deodorant.
a. Tighten band clamp fastener.
b. Clean between ush ball and seal.
c. Replace seal.
d. Replace ush ball.
a. Lubricate ush ball with spray
lubricant (e.g. spray silicone,
furniture polish).
b. Loosen screws slightly.
c. Replace spring cartridge.
a. Put pressure on shaft from under the
ush ball (pushing into spring cartridge)
until it engages. You may have to rotate
ush ball slightly until shaft lines up with
square in spring cartridge.
b. Replace with new ball, shaft &
cartridge kit.
c. Replace with new spring cartridge kit.
a. Adjust cam strap to have .02" - .06"
(.5mm - 1.5mm) clearance with top of
water valve cap.
b. Remove water valve. Clean top cap and
cam strap. Apply lubricant to top of cap.
Re-install water valve.
c. Replace water valve.
a. Remove and clean screen
located at inlet of water valve.
b. Check water ow rate at toilet. Rate
should be 2 gpm (7.6 lpm) at toilet.
c. Clean holes. If still a problem, replace
the toilet bowl.
a. Insure that threads are not cross-
threaded and tighten.
b. Replace water valve.
c. Replace water valve.
d. Replace water valve.
a. Tighten toilet mounting bolts. No gap
between toilet base and tank should
remain.
b. Replace seal between toilet base and
tank.
c. Replace toilet base assembly.
a. Remove vacuum breaker cover. Flush
toilet while watching vacuum breaker.
If water leaks during ush, replace
vacuum breaker.
b. Secure vacuum breaker connection.
If loose, push breaker into bowl.
c. Replace toilet bowl.
a. Remove plastic base cover and tighten
the band clamp.
Problem Possible Cause Service Instructions

7
ORDERING PARTS
Dometic is ready to assist you in the event service is required. Before calling, please have the following information
available. Your cooperation in having this information ready is appreciated and allows us to better meet your needs.
1. Toilet Model Number
2. Serial Number
3. Part Number, Description and Quantity (see separate Parts List)
CUSTOMER SERVICE
There is a strong, worldwide network to assist in servicing and maintaining your sanitation system. For the
Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET) Monday through Friday.
Telephone: [phone] U.S.A. and Canada
330-496-3211 International
Email: [email protected]
Fax: [phone] U.S.A. and Canada
330-496-3220 International
DEODORANTS AND SPECIAL TISSUE
SeaLand toilets require the regular addition of a deodorant product to reduce holding tank malodors and to help break
down holding tank contents. Several factors should be considered in selecting a deodorant product.
Liquid or Granulated: Liquid products obviously work more quickly by readily going into solution. Granulated powder
formulations, on the other hand, have the advantage of requiring less storage space and are less likely to leak if the
package is inadvertently damaged.
Formaldehyde versus Non-Formaldehyde: Dometic manufactures both types of deodorants. Generally speaking,
formaldehyde formulas control odor very effectively at all temperatures and with all degrees of water hardness. SeaLand
Environment-Friendly brand, which is formaldehyde free, is similarly effective.
How Much Deodorant and How to Add It: The deodorant is added directly into the toilet bowl, then ushed into the
holding tank. Follow bottle or package instructions. Conditions of extremely warm weather, longer waste holding time
and larger tank capacities may require more deodorant treatment. Also, to maintain optimum efciency in odor control,
the waste holding tank should be cleaned thoroughly at least once or more each season depending on use.
Why Not Use Household Toilet Paper in Your SeaLand Toilet. Household tissues often contain adhesives which
bond together the paper bers from which the tissue is made. The adhesives prevent the tissue from breaking apart,
and their use in “ultra-low ow” systems can cause system clogging. SeaLand tissue is especially designed for use in
low water toilet systems. Its rapid dissolving properties minimize the amount of residual paper in the holding tank and
allow deodorizers to work more efciently.
SeaLand Brand versus Other Brands: We constantly strive to provide our system owners with effective products that
have minimal environmental impact and good value. Many deodorant products do not measure up to our standards of
performance and value.
SeaLand®Granulated
Deodorant
Six 2-oz. pouches
Part No.
379626002
Dometic®Liquid
Deodorant
Two 8-oz. bottles
Part No.
379224008
SeaLand®
Cleaner
16-oz. bottle
Part No.
379314016
SeaLand®Liquid
Deodorant -
Environment Friendly
32-oz. bottle
Part No.
379114032
SeaLand®
Rapid-Dissolving
Toilet Tissue
Four 400-sheet rolls
Part No. 379441204

8
® Registered; ™ Trademark of Dometic Corporation
© Dometic Corporation
600345228 12/06
Dometic is a customer driven, world-leading provider of innovative
leisure products for the caravan, motorhome and marine markets.
Dometic offers a complete range of air conditioners, refrigerators,
awnings, cookers, sanitation systems, lighting, windows, doors and
other equipment that makes leisure life more comfortable away
from home.
Dometic also provides refrigerators for specic use in hotel rooms,
ofces and for storage of medical products and wine. Dometic’s
products are sold in almost 100 countries and are produced mainly
in Dometic’s own production facilities around the world. Dometic
has more than 4,400 employees.
Dometic Corporation warrants, to the original purchaser only, that this SeaLand®gravity discharge toilet, if used for
personal, family or household-like purposes, is free from defects in material and workmanship for a period of two (2)
years from the date of purchase.
Dometic also warrants, to the original purchaser only, that the ceramic portion of the toilet bowl will not discolor, stain,
scratch or craze for a period of ten (10) years if used for personal, family or household-like purposes, and is regularly
cleaned as described in the product’s owner’s manual.
If this Dometic product is placed in commercial or business use, it will be warranted, to the original purchaser only, to be
free of defects in material and workmanship for a period of ninety (90) days from the date of purchase.
Dometic reserves the right to replace or repair any part of this product that proves, upon inspection by Dometic, to be
defective in material or workmanship. All labor and transportation costs or charges incidental to warranty service are
to be borne by the purchaser-user.
EXCLUSIONS
IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, FOR DAMAGES
RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY NEGLECT, ABUSE, ALTERA-
TION, OR USE OF UNAUTHORIZED COMPONENTS. THIS INCLUDES FAILURES WHICH MAY RESULT FROM NOT
FOLLOWING THE WINTERIZATION OR CLEANING PROCEDURE AS DESCRIBED IN THIS OWNER’S MANUAL. ALL
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE (1) YEAR FROM DATE OF PURCHASE.
IMPLIED WARRANTIES
No person is authorized to change, add to, or create any warranty or obligation other than that set forth herein.
Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one (1) year
from the date of purchase for products used for personal, family or household-like purposes, and ninety (90) days from
the date of purchase for products placed in commercial or business use.
OTHER RIGHTS
Some states do not allow limitations on the duration of an implied warranty, and some states do not allow exclusions
or limitations regarding incidental or consequential damages; so, the above limitations may not apply to you. This
warranty gives you specic legal rights, and you may have other rights which vary from state to state.
To obtain warranty service, rst contact your local dealer from whom you purchased this product.
MANUFACTURER’S TWO-YEAR AND TEN-YEAR LIMITED WARRANTIES
Dometic Sanitation Corporation
13128 State Rt 226, PO Box 38
Big Prairie, OH 44611
SeaLand Product Customer Service: 1-800-321-9886
(8:00 a.m. - 5:00 p.m. ET)
Email: [email protected]
www.DometicSanitation.com
