www.sealevel.com
PO Box 830 Liberty, SC 29657
864.843.4343

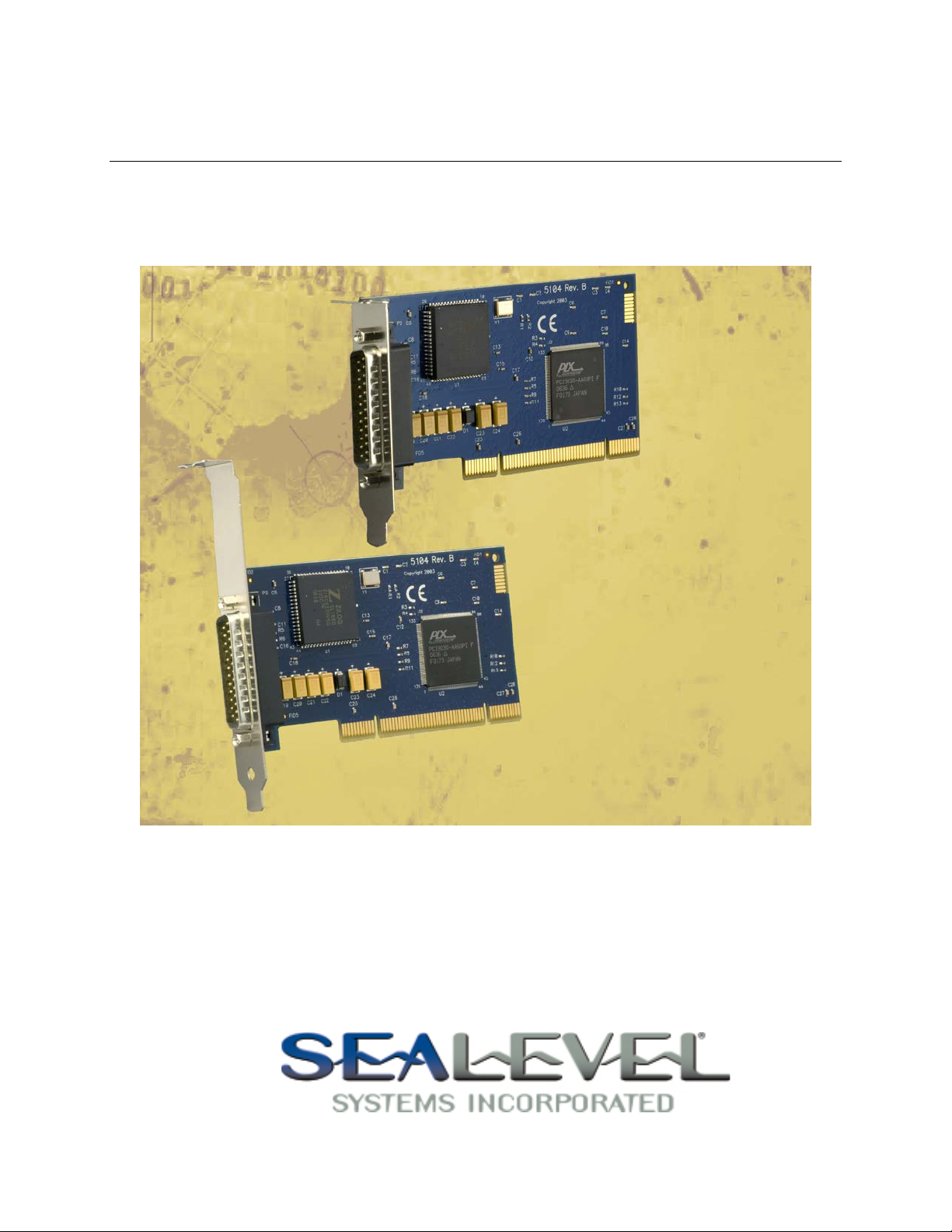

ACB-ULTRA.LPCI User Manual
Part Numbers
5104
5104S
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
SL9076 Revision 8/2017
ACB-ULTRA.LPCIUserManual
Table of Contents
Introduction................................................................................................................................... 1
ACB-ULTRA.LPCI.................................................................................................................... 1
Other Sealevel Sync Products..................................................................................................... 1
Before You Get Started................................................................................................................ 2
What’s Included.......................................................................................................................... 2
Optional Items............................................................................................................................. 2
Software Installation..................................................................................................................... 3
Windows 2000/XP Installation................................................................................................... 3
Physical Installation...................................................................................................................... 4
Technical Description................................................................................................................... 5
Features....................................................................................................................................... 5
Z16C32 IUSC™ ......................................................................................................................... 5
RAM ........................................................................................................................................... 5
Control and Status Registers Defined......................................................................................... 6
Control and Status Name Definition........................................................................................... 6
Interface Selection ...................................................................................................................... 8
Reset Circuit................................................................................................................................ 8
TSET Clock Select...................................................................................................................... 8
Z16C32 Register Access............................................................................................................. 8
I/O Signal Derivation.................................................................................................................. 9
25 Pin Connector Signal Layouts (DB-25 Male)........................................................................ 9
RS-232 Signals...................................................................................................................... 10
RS-485 or RS-485T............................................................................................................... 11
RS-530 (RS-422) ................................................................................................................... 12
RS-530A ................................................................................................................................ 13
V.35 Signals .......................................................................................................................... 14
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
SL9076 Revision 8/2017
ACB-ULTRA.LPCIUserManual
Specifications............................................................................................................................... 15
Environmental Specifications ............................................................................................... 15
Manufacturing....................................................................................................................... 15
Power Consumption.............................................................................................................. 15
Physical Dimensions............................................................................................................. 15
Appendix A – Troubleshooting.................................................................................................. 16
Appendix B - How To Get Assistance....................................................................................... 17
Appendix C – Electrical Interface............................................................................................. 18
RS-232................................................................................................................................... 18
RS-422................................................................................................................................... 18
RS-485................................................................................................................................... 19
RS-530 / 530A....................................................................................................................... 19
V.35....................................................................................................................................... 19
Appendix D – Silk Screen – 5104 PCB...................................................................................... 21
Appendix E - Compliance Notices............................................................................................. 22
Federal Communications Commission Statement.................................................................... 22
EMC Directive Statement ..................................................................................................... 22
Warranty ..................................................................................................................................... 23
Trademarks........................................................................................................................... 24
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 1 -
ACB-ULTRA.LPCIUserManual
Introduction
ACB-ULTRA.LPCI
The ACB-ULTRA.LPCI adapter provides the PC with a single channel high-speed
multi-protocol serial interface suitable for the most popular communication
protocols. This sync/async card provides an ideal solution for high-speed applications
including LAN/WAN connectivity. Utilizing the Zilog Z16C32 (IUSC™) on chip
DMA controller eliminates bus bandwidth constraints that are placed on typical
interface adapters, allowing data rates to reach 10M bps in burst mode. By utilizing
the Z16C32's 32 byte FIFO buffer coupled with 256K of on board memory, higher
data rates are achieved.
The ACB-ULTRA.LPCI meets the PCISIG size requirements for an MD1 Low
Profile adapter. This allows the ACB-ULTRA.LPCI to be used in a variety of modern
systems, including low profile servers, network appliances and ‘All in One’ desktop
computers. A standard height bracket is available for implementations in a standard
height PCI slot. The ACB-ULTRA.LPCI is a ‘Universal Bus’ adapter, allowing for
use in either +5 or +3.3V PCI slots and provides compliance with the PCISIG PCI
Bus Specification Revision 2.2/2.3, which requires ATX power support for both 5V
and 3.3V.
Other Sealevel Sync Products
•PC/104
ACB-104 (P/N 3512) - Z85230 RS-232/422/485/530/530a/V.35
ACB-104.ULTRA (P/N 3514) - Z16C32 RS-232/422/485/530/530a/V.35
•Low Profile PCI
ACB-MP.LPCI (P/N 5102) - Z85230 RS-232/422/485/530/530a/V.35
ACB-232.LPCI (P/N 5103) - Z85230 RS-232
•PCI
ACB-MP.LPCI (P/N 5102S) - Z85230 RS-232/422/485/530/530a/V.35
ACB-232.LPCI (P/N 5103S) - Z85230 RS-232
•PCMCIA
PC-ACB-MP (P/N 3612) - Z85233 RS-232/422/485/530/530a/V.35
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 2 -
ACB-ULTRA.LPCIUserManual
Before You Get Started
What’s Included
The ACB-ULTRA.LPCI is shipped with the following items. If any of these items is
missing or damaged please contact Sealevel for replacement.
•ACB-ULTRA.LPCI Adapter
•5104 includes low profile PCI bracket
•5104S includes standard size PCI bracket
•Sealevel Software CD – with SeaMAC V4 Software & Documentation
Optional Items
Depending upon your application, you are likely to find one or more of the following
items useful for interfacing the ACB-ULTRA.LPCI to real-world signals. All items
can be purchased from our website (http://www.sealevel.com) or by calling 864-843-
4343.
•CA-178 – A 6’ shielded cable with a DB-25F connector to an ITU-T ISO-2593
style connector (V.35), and converts the Sealevel DB-25 implementation to the
ITU-T V.35 mechanical standard.
•CA-104 – A 6’ extension cable with one DB-25M connector and one DB-
25Fconnector, pinned one-to-one, for use with RS-232 and RS-530.
•CA-107 – A 10” shielded cabling adapter with a DB-25F (RS-530) to a DB-37M
(RS-449 DTE). RS-530 is replacing RS-449 in Telecom applications, but there is
still a very large installed base of equipment that still uses the RS-449 pin-out.
Both standards use RS-422 to define the electrical specifications and are
interchangeable via this adapter cable.
•CA-159 – A 6’ shielded cable with a DB-25F (RS-530) to a DB-15M (X.21), and
converts the standard DB-25 implementation of RS-530 or RS-422 to the ITU-T
X.21 standard.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 3 -
ACB-ULTRA.LPCIUserManual
Software Installation
Windows 2000/XP Installation
Do not install the Adapter in the machine until the software has been fully
installed.
1. Start Windows.
2. Insert the Sealevel Systems CD in to your CD drive.
3. If ‘Auto-Start’ is enabled for this drive the software will automatically launch.
Otherwise, point your browser to the ‘Index.htm’ on the root directory of the CD
4. Select ‘Install Software’.
5. Select the Part Number for your adapter from the listing.
6. Select ‘Windows 98/ME/2000/XP’. The setup file will automatically detect the
operating environment and install the proper components. Next (depending on
the OS version) select the ‘Run this program from its current location’ or ‘Open’
option. Follow the information presented on the screens that follow.
7. A screen may appear with the declaration: “The publisher cannot be determined
due to the problems below: Authenticode signature not found.” Please select the
‘Yes’ button and proceed with the installation. This declaration simply means
that the Operating System is not aware of the driver being loaded. It will not
cause any harm to your system.
8. During setup the user may specify installation directories and other preferred
configurations. This program also adds entries to the system registry that are
necessary for specifying the operating parameters for each driver. An uninstall
option is also included to remove all registry/INI file entries from the system.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 4 -
ACB-ULTRA.LPCIUserManual
Physical Installation
The adapter can be installed in any PCI (5V or 3.3 V) expansion slot.
Do not install the Adapter in the machine until the software has been fully
installed.
1. Turn off power. Disconnect the power cord.
2. Remove the PC case cover.
3. Locate an available PCI slot and remove the blank metal slot cover.
4. Gently insert the PCI adapter into the slot. Make sure that the adapter is seated
properly.
5. Replace the screw. (This is required to ensure FCC Part 15 compliance.)
6. Replace the cover.
7. Connect the power cord and power up the machine.
The ACB-ULTRA.LPCI is now ready for use.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 5 -
ACB-ULTRA.LPCIUserManual
Technical Description
The ACB-ULTRA.LPCI adapter was designed for seamless integration into any PCI
based system. The ACB-ULTRA.LPCI adapter requires a PCI slot, one IRQ, an 8
byte block of I/O address and a 16K block or 256K block of memory address and
additionally, the IUSC requires a 256 byte block of memory. The memory range of
this adapter can be configured to reside in the lower 1 Megabyte memory only or
anywhere in upper memory. Low memory (not available on PCI 2.2 or higher
systems) must to be configured as 16 X 16K blocks of page memory. High memory
can be configured as a 256K linear block or 16K paged memory.
Features
•Single channel high speed sync/async wide area network (WAN) interface
•RS-232, RS-422/449, EIA-530, V.35 and RS-485 serial interface capability with
versatile cabling options
•Multi-protocol capable including: PPP (point-to-point protocol), Frame Relay,
X.25, high-speed Async, Bi-Sync, Mono-Sync, HDLC, SDLC, etc.
•Ideal for T1, Fractional T1, E1, and ISDN and other WAN applications
•On-board Z16C32 (IUSC™) with built in DMA controller and 32 byte FIFO
buffer
•Up to 10 Mbps burst mode
•256K of on-board RAM
•Link list DMA supported
•32-bit data path
•OEM Security feature available as an option
Z16C32 IUSC™
The ACB-ULTRA.LPCI is based on a single Zilog Z16C32 IUSC (Integrated
Universal Serial Controller). The IUSC has a built-in DMA controller that allows
high-speed data transfers directly to and from the 256K block of on-board memory.
The IUSC’s built-in DMA controller supports 4 different modes of DMA transfer:
Single Buffer, Pipelined, Array, and Link List. An on-board 20MHz oscillator clocks
the IUSC.
RAM
The memory window is located by BIOS PCI setup or the Set PCI function. The
window size is a 16K paged or 256K linear block. In paged mode the registers are
located in the I/O registers.
•Low Memory options: 16 pages of 16K memory blocks totaling 256K (not
available on PCI 2.2 or later systems).
•High Memory options: 16 pages of 16K memory blocks totaling 256K or one
linear block of 256K memory
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 6 -
ACB-ULTRA.LPCIUserManual
Control and Status Registers Defined
The control and status registers occupy 8 consecutive locations. The following tables
provide a functional description of the bit positions.
Address
Mode
D7
D6
D5
D4
D3
D2
D1
D0
Base+0
RD
{0}
{0}
{0}
{1}+
P17
P16
P15
P14
Base+0
WR
ACCEN
MEM/IUC
X
X
P17
P16
P15
P14
Base+1
RD
{0}
{0}
{0}
{0}
{0}
{0}
{0}
{0}
Base+1
WR
X
X
X
X
X
X
X
X
Base+2
RD
LIN/PAGED
{0}
{1}
{0}
{0}
{0}
{0}
{0}
Base+2
WR
LIN/PAGED
X
X
X
X
X
X
X
Base+3
RD
{0}
{0}
INTPEND
RESTAT
{1}
{0}
{0}
{0}
Base+3
WR
SW Board Reset
X
X
X
X
X
X
X
Base+4
RD
{0}
IRQEN
{0}
{0}
{0}
{0}
{0}
{0}
Base+4
WR
X
IRQEN
X
X
X
X
X
X
Base+5
RD
LL
RL
{0}
{0}
M3
M2
M1
M0
Base+5
WR
LL
RL
X
X
M3
M2
M1
M0
Base+6
RD
SD7
SD6
SD5
SD4
SD3
SD2
SD1
SD0
Base+7
RD
SD15
SD14
SD13
SD12
SD11
SD10
SD9
SD8
X = do not care { }= always this value
Control and Status Name Definition
Field
Description
ACCEN
1 = Host access to RAM or IUSC enabled; 0 = Host access to RAM or IUSC disabled. (0 on power-up)
MEM/IUC
1 = Enable Host access to RAM; 0 = Enable Host access to IUSC. (0 on power-up)
P17-P14
These bits select which of sixteen 16K RAM pages is visible at the address selected by MA18-MA14.
IRQEN
1 = Interrupts enabled, 0 = Interrupts disabled. (0 on power-up)
INTPEND
IUSC interrupt status: 1 = No interrupt pending on IUSC; 0 = Interrupt pending on IUSC.
RESTAT
Reset status: 1 = On-board reset inactive; 0 = On-board reset active.
RL
Remote loopback
LL
Local loopback
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 7 -
ACB-ULTRA.LPCIUserManual
M0-M3
I/O mode select to SP505 (all 0 on power-up)
See Interface Selection table for valid interface options
SD0-SD15
Optional security feature. Unique value per customer or application. (default value = FFFF)
LIN/PAGE
1=256K linear block in high memory only, 0=16X16K pages in low or high memory, (0 on power-up)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 8 -
ACB-ULTRA.LPCIUserManual
Interface Selection
The ACB-ULTRA.LPCI supports a variety of electrical interfaces. Reference the
Control and Status Registers Defined section of this manual for this bit description.
There is line termination on RXD, RXC, and TXC in the following modes: RS-530,
RS-530A, RS-485T, and V.35.
Reset Circuit
Writing any value to base+3 will reset the Z16C32. Only one write is required. This
starts a reset sequence, which lasts about 320 ns. During the reset sequence base+3
bit D4 will read 0. When the reset is complete, base+3 bit D4 will read 1.
The Z16C32 should not be accessed until the reset sequence is complete.
TSET Clock Select
Port5 of Z16C32 is used to select TSET clock source.
•0 selects 16C32 TXC as source
•1 selects received TXC as source
Z16C32 Register Access
Pin
Source
Port0
20 MHz clock
Port1
20 MHz clock
D/C (data/control)
Address SA6
S/D (serial/DMA)
Address SA7
DMA channel registers
Base + 0-127
Serial controller base +
128-255
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 9 -
ACB-ULTRA.LPCIUserManual
I/O Signal Derivation
The ACB-ULTRA.LPCI input/output signals are directly generated via the Zilog
16C32 IUSC. The following table defines these signals, their origin pin and signal
name following the conventions set by the 16C32 user’s manual. If using a Sealevel
Systems, Inc. supplied driver, this is for informational use only.
Signal
Source
Transmit Data
16C32 TXD Pin
Request To Send
16C32 Port7 Pin
Data Terminal Ready
16C32 Port6 Pin
Transmit Signal Element Timing
16C32 TXC Pin
Receive Data
16C32 RXC Pin
Clear To Send
16C32 CTS Pin
Data Set Ready
16C32 RXREQ Pin
Data Carrier Detect
16C32 DCD Pin
Transmit Clock
16C32 TXCO Pin
Receive Clock
16C32 RXCO Pin
Ring Indicator
16C32 TXREQ Pin
25 Pin Connector Signal Layouts (DB-25 Male)
In all modes, Pin 1 has a 1K ohm resistor to GND and pin 25 has a 1K ohm resistor
to +5V connection. This is useful for RS-485 biasing. If this presents a problem in
your implementation, please contact Sealevel Systems’ Technical Support for aid in
removing.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 10 -
ACB-ULTRA.LPCIUserManual
RS-232 Signals
Base+5, M3-M0=2, 0010
Pin #
Signal
Name
Mode
2
TD
Transmit Data
Output
3
RD
Receive Data
Input
4
RTS
Request To Send
Output
5
CTS
Clear To Send
Input
6
DSR
Data Set Ready
Input
7
GND
Ground
8
DCD
Data Carrier Detect *
Input
15
TXC
Transmit Clock
Input
17
RXC
Receive Clock
Input
18
LL
Local Loopback
Output
20
DTR
Data Terminal Ready
Output
21
RL
Remote Loopback
Output
22
RI
Ring Indicator
Input
24
TSET
Transmit Signal Element Timing
Output
25
TM
Test Mode
Input
*When in External Sync mode, the external sync signal is fed into DCD.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 11 -
ACB-ULTRA.LPCIUserManual
RS-485 or RS-485T
Base+5, M3-M0=4, 0100 (With termination)
Base+5, M3-M0=5, 0101 (Without termination)
Pin #
Signal
Name
Mode
2
TDA TX–
Transmit Negative
Output
3
RDA RX–
Receive Negative
Input
7
GND
Ground
9
RXCB RXC+
Receive Clock Positive
Input
11
TSETB TSET+
Transmit Signal Element Timing +
Output
12
TXCB TXC+
Transmit Clock Positive
Input
14
TDB TX+
Transmit Positive
Output
15
TXCA TXC–
Transmit Clock Negative
Input
16
RDB RX+
Receive Positive
Input
17
RXCA RXC–
Receive Clock Negative
Input
18
LL
Local Loopback
Output
20
DTRA DTR–
Data Terminal Ready Negative
Output
21
RL
Remote Loopback
Output
23
DTRB DTR+
Data Terminal Ready Positive
Output
24
TSETA TSET–
Transmit Signal Element Timing –
Output
Note: The RX+/- lines do not have pull up or pull down biasing. For high baud rates or long
distances, add 1K Ω resistor from RX- to GND, and add 820 Ω resistor from RX+ to +5V
DTR (depending on state of DTR in application – do not toggle DTR).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 12 -
ACB-ULTRA.LPCIUserManual
RS-530 (RS-422)
Base+5, M3-M0=D, 1101
Pin #
Signal
Name
Mode
2
TDA TX–
Transmit Negative
Output
3
RDA RX–
Receive Negative
Input
4
RTSA RTS–
Request To Send Negative
Output
5
CTSA CTS–
Clear To Send Negative
Input
6
DSRA DSR–
Data Set Ready Negative
Input
7
GND
Ground
8
DCDA DCD–
Data Carrier Detect Negative *
Input
9
RXCB RXC+
Receive Clock Positive
Input
10
DCDB DCD+
Data Carrier Detect Positive *
Input
11
TSETB TSET+
Transmit Signal Element Timing +
Output
12
TXCB TXC+
Transmit Clock Positive
Input
13
CTSB CTS+
Clear To Send Positive
Input
14
TDB TX+
Transmit Positive
Output
15
TXCA TXC–
Transmit Clock Negative
Input
16
RDB RX+
Receive Positive
Input
17
RXCA RXC–
Receive Clock Negative
Input
19
RTSB RTS+
Request To Send Positive
Output
20
DTRA DTR–
Data Terminal Ready Negative
Output
22
DSRB DSR+
Data Set Ready Positive
Input
23
DTRB DTR+
Data Terminal Ready Positive
Output
24
TSETA TSET–
Transmit Signal Element Timing –
Output
*When in External Sync mode, the external sync signal is fed into DCD.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 13 -
ACB-ULTRA.LPCIUserManual
RS-530A
Base+5, M3-M0=F, 1111
Pin #
Signal
Name
Mode
2
TDA TX–
Transmit Negative
Output
3
RDA RX–
Receive Negative
Input
4
RTSA RTS–
Request To Send Negative
Output
5
CTSA CTS–
Clear To Send Negative
Input
6
DSRA DSR–
Data Set Ready Negative
Input
7
GND
Ground
8
DCDA DCD–
Data Carrier Detect Negative *
Input
9
RXCB RXC+
Receive Clock Positive
Input
10
DCDB DCD+
Data Carrier Detect Positive *
Input
11
TSETB TSET+
Transmit Signal Element Timing +
Output
12
TXCB TXC+
Transmit Clock Positive
Input
13
CTSB CTS+
Clear To Send Positive
Input
14
TDB TX+
Transmit Positive
Output
15
TXCA TXC–
Transmit Clock Negative
Input
16
RDB RX+
Receive Positive
Input
17
RXCA RXC–
Receive Clock Negative
Input
18
LL
Local Loopback
Output
19
RTSB RTS+
Request To Send Positive
Output
20
DTRA DTR–
Data Terminal Ready Negative
Output
21
RL
Remote Loopback
Output
24
TSETA TSET–
Transmit Signal Element Timing –
Output
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 14 -
ACB-ULTRA.LPCIUserManual
V.35 Signals
Base+5, M3-M0=E, 1110
Pin #
Signal
Name
V.35
Mode
2
TDA TX–
Transmit Negative
P
Output
3
RDA RX–
Receive Negative
R
Input
4
RTS
Request To Send
C
Output *
5
CTS
Clear To Send
D
Input *
6
DSR
Data Set Ready
E
Input *
7
GND
Ground
B
8
DCD
Data Carrier Detect
F
Input *
9
RXCB RXC+
Receive Clock Positive
X
Input
11
TSETB TSET+
Transmit Signal Element Timing +
W
Output
12
TXCB TXC+
Transmit Clock Positive
AA
Input
14
TDB TX+
Transmit Positive
S
Output
15
TXCA TXC–
Transmit Clock Negative
Y
Input
16
RDB RX+
Receive Positive
T
Input
17
RXCA RXC–
Receive Clock Negative
V
Input
18
LL
Local Loopback
Output *
20
DTR
Data Terminal Ready
H
Output *
21
RL
Remote Loopback
Output *
22
RI
Ring Indicator
J
Input *
24
TSETA TSET–
Transmit Signal Element Timing –
U
Output
Note: All modem control signals are single ended (un-balanced) with RS-232 signal levels.
Technical Note:Please terminate any control signals that are not going to be used. The most
common way to do this is connect RTS to CTS and RI. Also, connect DCD to DTR and DSR.
When in External Sync mode, the external sync signal is fed into DCD. Terminating these
pins, if not used, will help insure you get the best performance from your adapter.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 15 -
ACB-ULTRA.LPCIUserManual
Specifications
Environmental Specifications
Specification
Operating
Storage
Temperature
Range
0º to 70º C
(32º to 158º F)
-50º to 105º C
(-58º to 221º F)
Humidity
Range
10 to 90% R.H.
Non-Condensing
10 to 90% R.H.
Non-Condensing
Manufacturing
All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are
100% electrically tested. These printed circuit boards are solder mask over bare
copper or solder mask over tin nickel.
Power Consumption
Supply line
+3.3VDC
+5 VDC
Rating
350 mA
100mA
Physical Dimensions
Board length 4.721 inches (11.991 cm)
Board Height including Goldfingers 2.536 inches (6.441 cm)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

© Sealevel Systems, Inc.
- 16 -
ACB-ULTRA.LPCIUserManual
Appendix A – Troubleshooting
Following these simple steps can eliminate most common problems.
1. Read this manual thoroughly before attempting to install the adapter in your
system.
2. Install software first. This places the required installation files in the correct
locations. After installing the software, proceed to the physical installation
section of this manual.
3. Make sure the Sealevel Systems adapter is securely installed.
4. Identify all I/O adapters currently installed in your system. This includes
your on-board serial ports, controller cards, sound cards, etc. The I/O
addresses used by these adapters, as well as the IRQ (if any) should be
identified.
5. Configure your Sealevel Systems adapter so that there is no conflict with
currently installed adapters. No two adapters can occupy the same I/O
address.
6. Try the Sealevel Systems adapter with a unique IRQ. While the Sealevel
Systems adapter does allow the sharing of IRQs, many other adapters (i.e.,
SCSI adapters and on-board serial ports) do not.
7. For Windows 2000/XP, the diagnostic tool ‘WinSSD’ is installed the
SeaMAC folder on the Start Menu during the setup process. First find the
ports using the Device Manager, then use ‘WinSSD’ to verify that the ports
are functional.
8. Always use Sealevel Systems diagnostic software when troubleshooting a
problem. This will eliminate any software issues from the equation.
If these steps do not solve your problem, please call Sealevel Systems’ Technical
Support, [phone]. Our technical support is free and available from 8:00AM-
5PM Eastern Time, Monday through Friday. For email support contact:
mailto:[e-mail].
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
