Sealite SL-SIGN-20 Supplement

Version 1.1

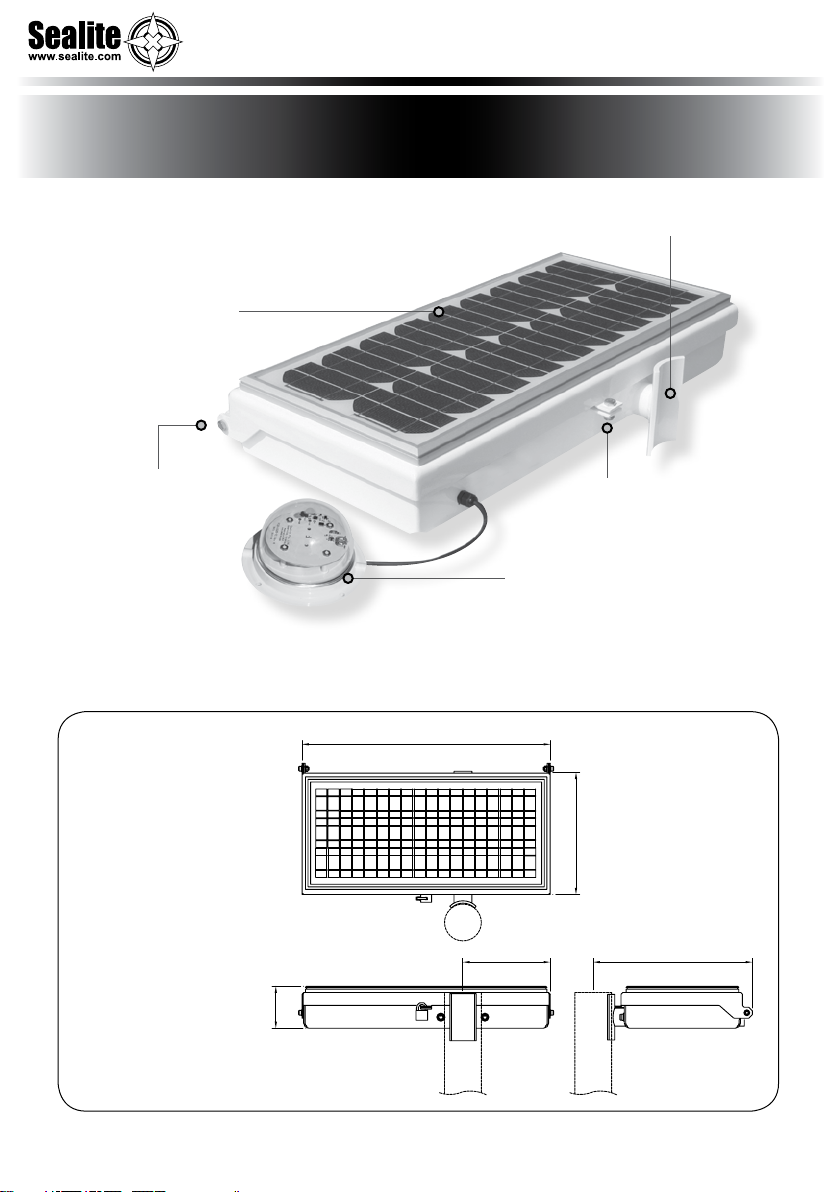

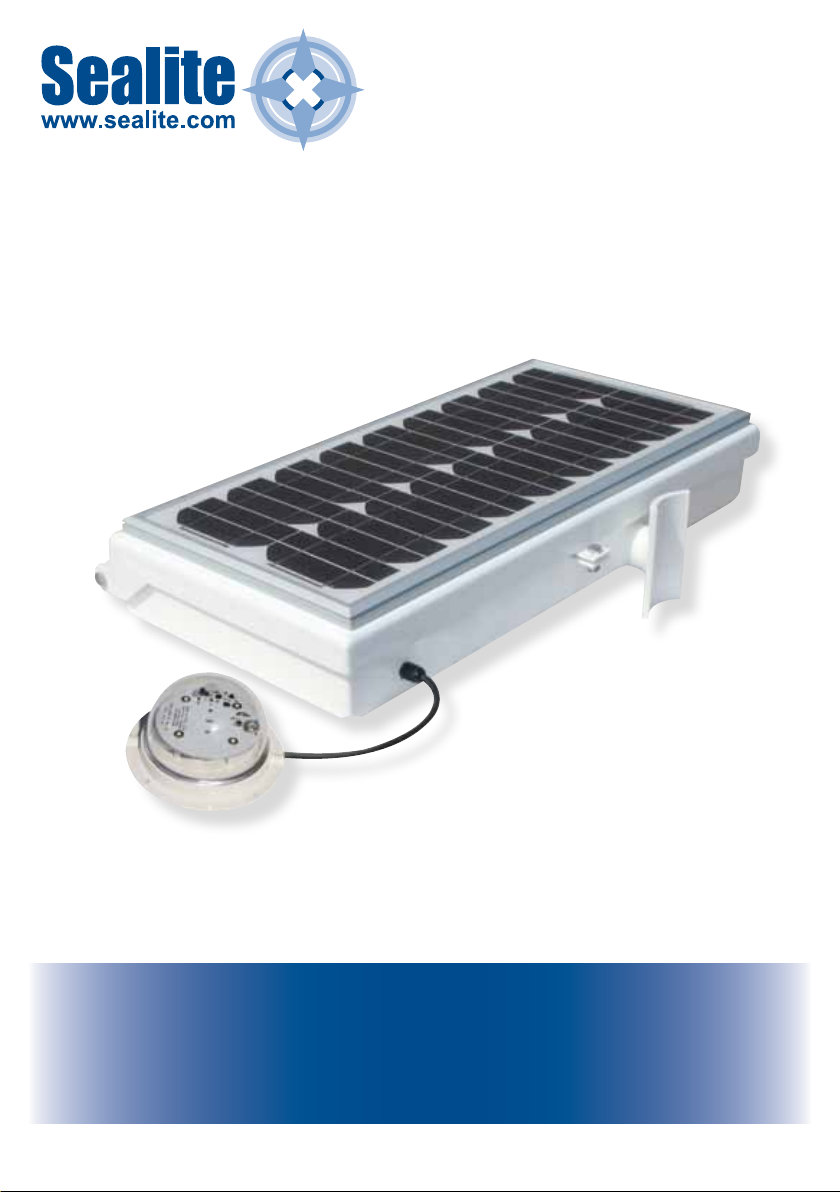

SL-SIGN-20
Solar-Powered LED Sign Light
Installation & Service Manual

SL-SIGN-20
Solar-Powered LED Sign Light

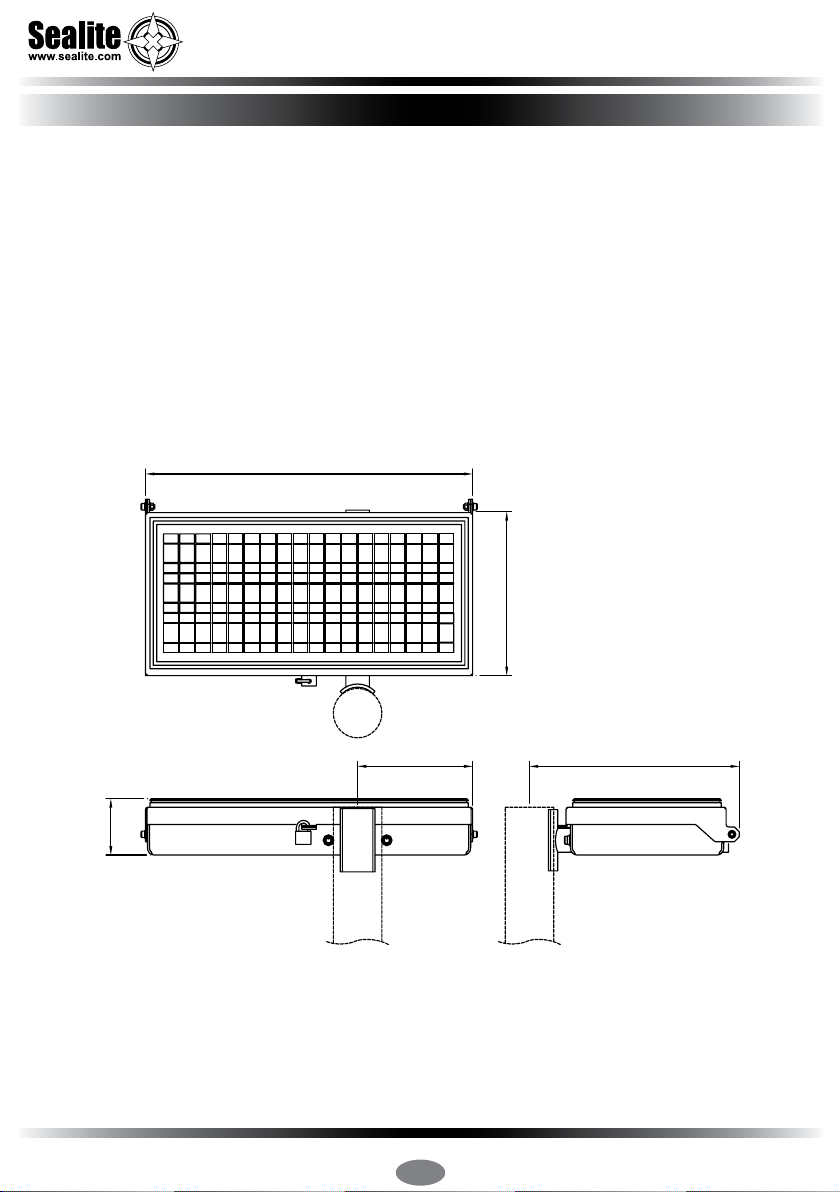

SL-SIGN-20-1
674
332
432 typical
237
114,2
(9.3") (17.0")
(26.5")
(13.1")
(4.5")
Shown with post side mount
as standard
20watt multicrystalline
solar module
Hinged assembly for
easy internal access
to battery and driving
circuitry
Convenient
pole mount
Lockable, heavy-duty,
powder-costed, aluminium
assembly
Domed luminaire (SL09) with
3watt surface mounted,
ultra-high intensity LED for
optimal area illumination
(>120 degrees)

Latest products and information available at www.sealite.com
3
SL-SIGN-20
Solar-Powered LED Sign Light
Table of Contents
Version No. Description Date Approved
1.0 Manual Launch May 2010 A. Dixon
1.1 Update: Spec table May 2012 J. Dore
Introduction..........................................................................................Page 4
Operating Principle .............................................................................Page 4
Technology...........................................................................................Page 4
SL-SIGN-20 Model ...............................................................................Page 5
Installation............................................................................................Page 6
Activation .............................................................................................Page 8
Maintenance and Servicing ................................................................Page 9
Replacing the Battery..................................................................Page 9
Trouble Shooting.................................................................................Page 9
Sealite LED Light Warranty ..............................................................Page 10

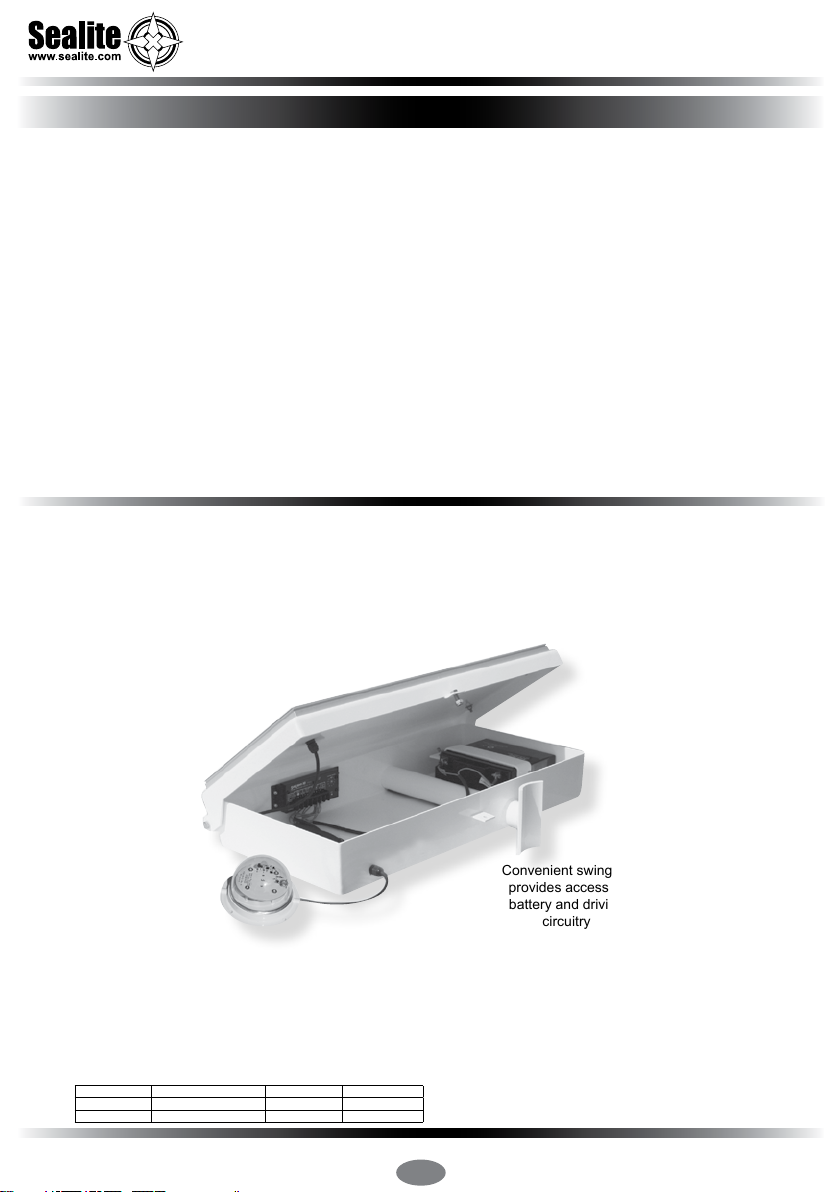

Convenient swing-lid
provides access to
battery and driving
circuitry

Latest products and information available at www.sealite.com
4
SL-SIGN-20
Solar-Powered LED Sign Light
Introduction
Congratulations! By choosing to purchase a Sealite lantern you have become the owner of
one of the most advanced LED marine lanterns in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been independently
certied as complying with the requirements of ISO 9001:2008 quality management system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To
Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
lantern, and be able to maximise its operating function.
Please remember to complete the Sealite warranty registration card accompanying your lantern.
Operating Principle
The solar module of the power box converts sunlight to an electrical current that is used to charge the battery.
The battery provides power to operate the light at night.
The asher unit has very low current requirements. A microprocessor drives an array of ultra bright LED’s
through a DC/DC converter, which enables the LED’s to operate within the manufacturer’s specications. The
battery is protected from over-charging within the circuit to ensure maximum battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute will turn on.
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and offer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement staff ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. Complex shapes such as
the SL70, BargeSafe™ and 16-segment multi-focus lenses are a testament to the company’s superior
in-house lens manufacturing capabilities and outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.

Latest products and information available at www.sealite.com
5
SL-SIGN-20
Solar-Powered LED Sign Light
SL-SIGN-20 Model
Sealite’s Solar-Powered LED Sign Light is a remote solar-powered signage light designed to
suit a range of signage illumination installations where mains power is not available.
The unit can be tted with up to 2 domed LED light xtures, each featuring a single 3watt
surface mounted ultra-high intensity LED for maximum illumination with an even 120 degree
light spread.
The light xture also features a domed UV-stabilised LEXAN® polycarbonate lens and base,
and convenient mounting bracket ensuring exibility and ease of installation.
The power box, consisting of a 20watt multi-crystalline solar module, 18Ah SLA battery and
charge regulator, is made from 7-stage powder-coated aluminium making the unit extremely
robust. The Solar-Powered LED Sign Light is designed to withstand a range of environmental
conditions, and once installed requires minimal maintenance.
All this is backed by Sealite’s industry leading 3-year warranty.
•Specications subject to change or variation without notice *Subject to standard terms and conditions
Light Characteristics
Light Source Up to 2 domed LEXAN® luminaires each containing 1 x 3watt
ultra-high intensity surface-mounted LED
(standard SL-SIGN-20 comes with 1 domed luminaire)
Light Spread Approx 120 degrees
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Current Draw (mA) Up to 250mA per domed luminaire (dependent on numbers)
Circuit Protection Integrated
Nominal Voltage (v) 12
Autonomy (days) 6
Temperature Range -40 to 80°C
Solar Characteristics
Solar Module Type Multicrystalline
Output (watts) 20
Solar Module Efciency (%) 14
Charging Regulation Integrated charge regulator
Power Supply
Battery Type SLA (Sealed Lead Acid)
Battery Capacity (Ah) 18
Nominal Voltage (v) 12
Physical Characteristics
Body Material (Domed Luminaire) LEXAN® Polycarbonate – UV stabilised
Lens Material LEXAN® Polycarbonate – UV stabilised
Body Material (Power Box) 7-stage powder-coated aluminium
Mounting Post mount as standard (optional stake mount available)
Length (mm/inches) 674 / 261/2
Width (mm/inches) 332 / 131/8
Mass (kg/lbs) 12 / 261/2
Product Life Expectancy Up to 12 years
Certications
CE EN61000-6-3:1997. EN61000-6-1:1997
Quality Assurance ISO9001:2008
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • Mounting assemblies
• Up to 2 domed luminaires
• External ON/OFF Switch
SPECIFICATIONS •
