Seamax Bimini Top 3 Bow User manual

BIMINI TOP
Adventure On Water
3 Bow Bimini Top
4 Bow Bimini Top
Seamax Bimini Top has a built-in aluminum eye-end fitting to install on a standard oar lock pin (diameter is
10mm / 0.4 inch) of an inflatable boat. Standard Bimini Package includes 2 nylon deck mounts for aluminum
boat or fibreglass boat use. Seamax aluminum eye-end fitting can turn 360 Degree, it is rigid and more flexible
comparing other types in the market.
Seamax is a professional inflatable boat builder, so we have good knowledge to make our own style of Bimini.
Our solution is the best in the market and offers PVC and Hypalon both. The product is accepted by many
end-users and resellers in the market. Our Bimini system can support 30 knots boating speed with no problem.
Important Notice:
• Product keeps out of reach of children.
• Please fold the Bimini top when Vessel Speed + Wind Speed exceed 30 miles (50 km) per hour.
• Seamax Portable Bimini can be fast assembled and disassembly by its Quick Release Spring Lock Buttons.
• Seamax Bimini Top is designed for Inflatable boats with a standard oar lock set, if your boat doesn’t have such an oar
lock installed, or you are looking for the perfect condition of the installation, you can purchase our Bimini Accessories –
Pontoon Patch Kit. An extra installation job is required.
• If you have an aluminum boat or fibreglass boat, you can use our Bimini Top as well; Our Bimini Accessories – Deck
Mount Kit is necessary. An extra installation job is required.
www. seamaxmarine.com
3 BOW - Size A / B / C 4 BOW - Size D / E / F

1
6 8
2
2
1 1
4
4
4
18
6
6
4
1
3 Bow Frame
4 Bow Frame
Crossbars
Canopy
Thumb Screw
Deck Mount
Stainless Steel Saddle
Self Tapping Screw
Bolt SS316
Hexagonal Nut SS316
Hexagonal Wrench
Straps with Stainless
Steel Hook & Webbing Adjuster
Rear Support Pole 1
4
4
4
18
8
4
4
1
3
BOW
4
BOW
With Rear
Support Pole
+2
+2
-2
+2
-2
Package Check List
Black Grey

Use the Spring Lock Button
to connect the poles and V- Stand together.
Step 1: Connect the V-Stand Pole with side
bows. Easy to use the Spring Lock Button to
connect the poles and V- Stand together.
UNPACK ALL THE PARTS AND ENSURE YOU HAVE EVERYTHING
NEEDED FOR ASSEMBLY AND INSTALLATION.
Use the Spring Lock Button
to connect the poles and V- Stand together.
Repeat this step for the remaining pairs of bow pieces.
2
Step 2: Pass medium bow assembly
through the sleeve in front of the top,
and then assemble the side bow and
Crossbars by clicking on the Spring
Lock Button.
Step 3: Repeat this procedure for all
the bows.
Insert the assembled bows into
the appropriate pockets. 4BOW
Bimini Top

3
Step 4: Please give the Bimini Top a final adjustment on
your boat for the best result. Please tighten the bolts and
fasten the strap before using it.
Attach webbing straps with allen wrench
Insert the assembled bows into
the appropriate pockets.
3BOW
Bimini Top
3 bow and 4 bow are installed in the same way

4
Bimini top 4 bow &
Black Canopy shown
Without Rear Support Pole
With Rear Support Pole
Bimini top 3 bow &
Grey Canopy shown

Other Professional Bimini Accessories (Optional)
Seamax Bimini Top is first designed for use on inflatable boats, the standard fittings for
mounting is for use on standard oar locks, if your inflatable boat doesn’t have oar locks or has a
special kind of oar lock, you can purchase the Pontoon Patch Kit for Inflatable Boats.
If your boat is not an inflatable boat, (such as the aluminum boat or fibreglass boat), you may
need to purchase the Deck Mount Kit for Rigid Hull Boats.
To support your Bimini Top better, you can use our Rear Support Poles of Bimini. Please know
the Rear Support Poles will require the Pontoon Patch or Deck Mount to be first installed on
your boat.
Bimini Top spare parts are always available from Seamax, please contact us if your product
missing part or damaged. ([email protected])
Warranty:
Two (2) years Parts Limited Warranty within USA & Canada. 90 days free replacement guaran-
tee on any defective parts. You can contact us to return the product or parts to the retailer that
you purchased them from. If you purchase it from Amazon or eBay, you can contact Seamax for
seller support. Please visit our website at www.seamaxmarine.com or email us at
[email protected].
Toll-Free 1877-907-7766 (Mon-Fri 10 AM to 6 PM Western Time)

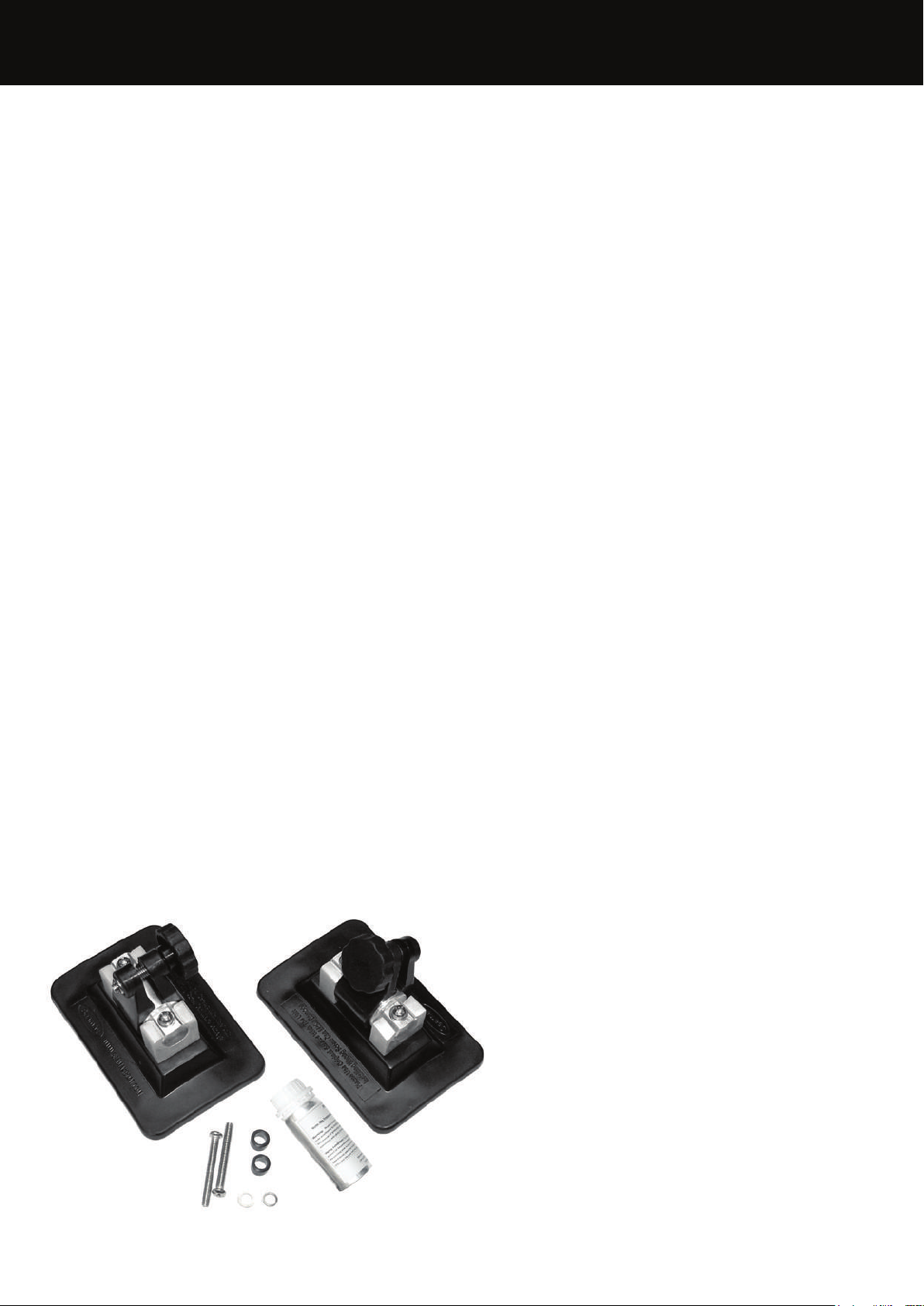

Traditional Bimini Top sellers had no good solution
for Inflatable Boats, they are either weak to support
or hard to install. Seamax developed this special
Bimini Pontoon Fitting Kit for all inflatable boats,
Installation Dimensions are 3”x 5”.
The patch has the curve interface to attach on the
pontoon; it is also built-in a strong stainless bracket
to support the Bimini weight up to 100Lbs and 30
knots wind speed. The fitting can turn at 180 degree
wide angle, it has no limitation to installing it at any
position. Zodiac dealers recognized its design and
quality as the best solution.
This package also comes with stainless steel
hardware, including bolts, lock pins and wind nuts.
You can choose different hardware for your Bimini
top as a temporary or permanent installation
solution. PVC & Hypalon boat compatible. Glue is
included in the package.
Pontoon Patch Kit for Inflatable Boats:
Additional Fitting & Accessories
5
