Sears Kenmore 11070232002 Operating instructions

COIN-OPERATED
COMMERCIAL
GASDRYER
OWNER'S MANUAL
and
INSTALLATION
INSTRUCTIONS
SEARS,ROEBUCKANDCO.
HoffmanEstates,IL 60179
www.sears.com
TABLE OF CONTENTS
Dryer Safety ............................................................ 2
Installation Instructions ......................................... 4
Electrical requirements ........................................ 4
Gas supply requirements ..................................... 4
Exhaust requirements .......................................... 5
Recessed area/closet
installation instructions......................................... 7
Mobile home exhaust
requirements ........................................................ 7
Installing the dryer ............................................... 8
Operating the dryer ............................................... 12
Troubleshooting .................................................... 13
Service and Assistance ........................................ 16
For Sears warranty information or to contact a Sears Service
Center, call 1-800-4-MY HOME S_(1-800-4694663).
IMPORTANT: Read and follow all safety, installation, and
operating instructions before first use of this product.
If you need SERVICE or PARTS for your
Kenmore coin-operated dryer:
When requesting service, be ready to give the model
number, serial number (located on a tag in the door well
behind the door) and date of purchase. Record below.
Model No
Serial No.
Date of Purchase
Record Coin Box
Key Number
Key number is on key and/or coin box.
3405345
PRINTEDIN THEU S A 4/99

DRYER SAFETY
I WARNING: For your safety the information in this manual must be followed to
minimize the risk of fire or explosion or to prevent property damage, personal
injury or death.
-Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in your building.
•Clear the room, building or area of all occupants.
•Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
I
* Facilities where gas dryers are installed should post the following boxed statement where cleady visible to
customers. In addition, instructions to be followed ifa customer smells gas should be obtained from the local gas
supplier and posted where clearly visible to customers.
I FOR YOUR SAFETY I
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
IMPORTANT: The gas installationmust conform with local codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1.
The dryer mast be electrically grounded in accordance with local codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.
2

YOUR SAFETY AND THE SAFETY OF OTHERS IS VERY IMPORTANT.
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING". These words mean:
You wil__lbe killed or seriously injured if you don't
follow instructions.
You cart be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the
dryer, follow basic precautions, including the following:
• Read all instructions before using
the dryer.
• Do not place items exposed to cooking
oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical
reaction that could cause a load to catch
fire.
• Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, other flammable, or explosive
substances as they give off vapors that
could ignite or explode.
• Do not allow children to play on or in
the dryer. Close supervision of children
is necessary when the dryer is used
near children.
• Before the dryer is removed from service
or discarded, remove the door to the dry-
ing compartment.
• Do not reach into the dryer if the drum
is moving.
• Do not install or store the dryer where
it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in this Use and
Care Guide or in published user-repair
instructions that you understand and have
the skills to carry out.
• Do not use fabric softeners or products to
eliminate static unless recommended by
the manufacturer of the fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each load.
• Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the dryer and exhaust vent
should be cleaned periodically by
qualified service personnel.
• See Installation Instructions for grounding
requirements.
SAVE THESE INSTRUCTIONS
3

INSTALLATION
INSTRUCTIONS
Read the "Dryer Safety" section of this Owner's Manual
and completely read these Installation Instructions before
beginning installation.
IMPORTANT: Observe all governing codes and
ordinances.
• The dryer must not be installed where it can be
exposed to water and/or weather.
• Check code requirements. Some codes limit or do not
permit installation of clothes dryers in garages, closets,
mobile homes, or sleeping quarters. Contact your local
building inspector.
Tools needed for installation:
Adjustable wrench or Pliers
Open-end wrench
Pipe wrench
Duct tape
Phillips screwdriver
Flat-head screwdriver
Level
Pipe joint compound resistant to LP gas
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
• A 120 volt, 60 Hz, AC only, 15 or 20 ampere fused
electrical supply is required.
• Time-delay fuse or circuit breaker is recommended.
• It is recommended that a separate circuit serving only
this appliance be provided.
NOTE: This dryer is equipped with a power supply cord
1.5 m (5 ft) in length. Be sure wall receptacle is within
reach of dryer's final location.
4
3 prong
grounding
plug
3 prong
grounding
type wall
(/_11_/ _receptacle
Ground prong
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of
least resistance for electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug. The power supply cord must be plugged
into an appropriate outlet that is properly installed
and grounded in accordance with all local codes
and ordinances.
WARNING: Improper connection of the equip-
ment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician
or service representative or personnel if you are
in doubt as to whether the appliance is
properly grounded. Do not modify the plug on the
power supply cord; if it will not fit the outlet, have
a proper outlet installed by a qualified technician.
SAVE THESE INSTRUCTIONS
Explosion Hazard
Use anew AGA approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make
sure gas pressure does not exceed 13" (33 cm)
water column.
Examples of a qualified person include licensed
heating personnel, authorized gas company
personnel, and authorized service personnel.
Failure to do so can result in death, explosion,
or fire.

• Make certain that this dryer is equipped with the
correct burner for the particular gas in the facility. This
information is found on the rating plate in the door
well. If this information does not agree with the type of
gas available, contact your local Sears store or Sears
Service Center.
• The design of this dryer has been certified by the
American Gas Association for use at altitudes up to
10,000 feet above sea level at the B.T.U. rating indi-
cated on the model/serial number plate. Burner input
adjustments are not required when dryer is operated
up to this level.
• When installed above 10,000 feet, a four percent (4%)
reduction of the burner B.T.U. rating shown on the
model/serial number plate is required for each 1,000
foot increase in elevation. For assistance when
converting to other gas types and/or installing above
10,000 feet elevation contact your local service
company.
• Connect exhaust vent to dryer before gas supply is
connected. (see the "Exhaust requirements" section.)
• Provide a gas supply line of ½in gas pipe to the
machine location. For lengths over 20 ft, larger tubing
should be used. If local codes permit, use flexible
stainless steel tubing (Design Certified by the
American Gas Association) to connect your dryer to
the gas supply line.
• The gas supply line should be equipped with a shut-off
valve. This valve should be located in the same room
as the dryer and in a location that allows ease of
opening and closing. Do not block access to shut-off
valve.
• Pipe joint compounds that resist the action of L.R gas
must be used. Do not use Teflon tape.
• A W-inch NPT plugged tapping, accessible for test
gauge connection, must be installed immediately
upstream of the gas supply connection to the dryer.
The dryer must be disconnected from the gas supply
piping system during any pressure testing of that
system.
NOTES:
• Do not connect this dryer to any type of gas other than
natural gas, without the appropriate conversion kit.
Conversion of dryer, installation and service must be
performed by a qualified installer, service agency, or
the gas supplier.
• Installation of the gas supply lines, the fuel conversion
kit, if required, and the connection of the gas dryer to
the supply, must only be carried out by a fully qualified
and licensed gas installer. Any change to the burner
must also be made by a qualified installer
The dryer must be properly installedand vented to
achieve maximum drying efficiency. Install the dryer in a
well-ventilated room where the temperature is always
above 45°E Also make sure that the dryer is
leveled. If the dryer is not properly installed and vented,
it will not be covered under the warranty.
NOTE: Service calls caused by improper venting will be
paid for by the customer, whether it was a paid installa-
tion or self-installed. For paid installation, call the
company that installed the vent for adjustment.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions can result in
death or fire.
WARNING: To reduce the risk of fire, this dryer
MUST BE EXHAUSTED OUTDOORS.
• Do not exhaust dryer into a chimney, a wall, a ceiling,
or a concealed space of a building.
• The diameter of the heavy metal vent must be 4-inch.
• Do not use an exhaust hood with a magnetic latch.
If using an existing exhaust system, remove lint. Make
sure exhaust hood is not plugged with lint.
• Disconnect vent from the dryer and clean one section
at a time until you reach the exhaust hood.
• Use the hose attachment on your vacuum, or a pole
with a feather duster or rag attached, to clean out lint.
• Be sure the flapper on the outside end of vent moves
freely.
• When cleaning is complete, be sure to follow these
Installation Instructions for final product check.
Clean exhaust vent periodically, depending on use, but
at least every 2 years, or when installing your dryer in a
new location.
5

Useducttapetosealalljoints.Donotusescrewsto
securevent.Lintmaycatchonscrews.
Use4-inchdiameterheavymetalorflexiblemetalvent.
Donotkinkorcrushflexiblemetalvent.Itmustbefully
extendedtoallowadequateexhaustairtoflow.Check
ventafterinstallation.
Theexhaustventcanberoutedup,down,left,right,or
straightoutthebackofthedryer.Spacerequirements
arelistedlaterinthissection.
Usethestraightestpathpossiblewhenroutingthe
exhaustvent.Usethefewestnumberofelbowsand
turns.Allowasmuchroomaspossiblewhenusing
elbowsormakingturns.Bendventgraduallytoavoid
kinking.Removeexcessflexibleventtoavoidsagging
andkinkingthatmayresultinreducedairflow.
Good
Exhaust airflow
Maximum length of the exhaust system depends upon
the type of vent used, number of elbows, and the type
of exhaust hood. The maximum length for both heavy
and flexible metal vent is shown in the following chart.
See figure 1 for exhaust outlet location (at rear of
the dryer) and dimensions. Minimum side and rear
clearances appear on model and rating plate on back
of dryer.
Determining vent length
The maximum length of the exhaust system depends
upon:
• The type of vent (heavy or flexible metal).
• The number of elbows (90° turns) used.
To determine maximum vent length:
1. See the Exhaust Hood Type chart that matches your
type hood for the maximum vent lengths you can use.
Do not use vent runs longer than
specified in exhaust vent length chart,
Exhaust systems longer than specified will:
• Shorten the life of the dryer.
• Reduce performance, resulting in longer drying
times and increased energy usage.
2. Determine the number of elbows you will need.
3. In the column listing the type of metal vent you are
using (heavy or flexible), find the maximum length of
metal vent on the same line as the number of elbows.
EXHAUST HOOD TYPE
Numberof _ "_ _-_
90° Turns
Maximum length of 4-inch diameter heavy metal vent.
0 64 ft. 64 ft. 58 ft.
1 54 ft. 54 ft. 48 ft.
2 44 ft. 44 ft. 38 ft.
3 35 ft. 35 ft. 29 ft.
4 27 ft. 27 ft. 21 ft.
Maximum length of 4-inch diameter flexible metal vent.
0 36 ft. 36 ft. 28 ft.
1 31 ft. 31 ft. 23 ft.
2 27ft. 27ft. 19ft.
3 25ft. 25ft. 17ft.
4 23ft. 23ft. 15ft.
NOTE: Check periodically to ensure that the outside
exhaust hood is not blocked.
Exhaust Outlet
Location
(Rear of Dryer)
4'¸ DFa
,
FIGURE 1
6

Multiple dryer exhausting guide
Many multiple-family dwellings are furnished with
provisions in the building for washing and drying laundry
with automatic washers and dryers. The exhausting of
the individual clothes dryers can be accomplished with
a central exhaust vent system. The following is a list of
factors for possible consideration in the design of a
central vent system for this type of installation.
Each room where dryers are located should have
make-up air equal to or greater than the CFM of all
dryers in the room.
This information is intended for general guide purposes
only and does not necessarily include all factors which
may be required for consideration in a given situation.
If specific information on multiple exhausting is required,
contact a local sheet metal contractor.
1. Provide all dryers with individual lint screens before
connecting to any central exhaust vent system.
2. Exhaust individual dryers to the central exhaust vent
system with proper sized venting to assure adequate
performance of each dryer. (Dryer has 4-inch exhaust
vent connection.)
3. Install barometric dampers on each individual dryer
exhaust vent. These dampers may be used for bal-
ancing out the overall vent system. Dampers may be
secured or built locally from a sheet metal fabricator.
4. Make all gas and electric supply connections to
individual dryers in accordance with manufacturer's
installation instructions and applicable local codes
requirements.
NOTE: Check code requirements. Some codes limit or do
not permit installation of clothes dryers in garages, closets,
mobile homes, or sleeping quarters. Contact your local
building inspector.
• Refer to the chart below for recommended installation
requirements. This will ensure you have an adequate
clearance for service and proper operation including
flow of combustion and ventilation air, and that you
have a sufficient distance from combustible construc-
tion.
• Be sure your location allows for a proper exhaust
installation. A gas dryer must be exhausted to the
outdoors. See "Exhaust requirements."
NOTE: No fuel-burning appliances may be installed in
the same closet as a dryer.
Installation Clearances
Use recommended clearance for easier installation
Recommended/Minimum
Back Sides Top Front
Recessed 5 in/0 in 1 in/0 in 18 in/18 in
Closet 5 in/4 in 1 in/0 in 18 in/18 in 1 in/1 ir
NOTE: Check code requirements. Some codes limit or do
not permit installation of clothes dryers in garages, closets,
mobile homes, or sleeping quarters. Contact your local
building inspector.
• Use at least the minimum installation clearances
shown in the chart. This will ensure you have an
adequate clearance for service and proper operation
including flow of combustion and ventilation air, and
that you have a sufficient distance from combustible
construction.
• Special provisions must be made for the introduction
of outside air into the dryer when installed in a mobile
home. The area of any opening for the introduction of
outside air (such as a nearby window) should be at
least twice as large as the dryer exhaust opening.
This dryer is suitable for mobile home installations. The
installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280 (formerly the Federal Standard for Mobile Homes
Construction and Safety, Title 24, HUD Part 280).
• Dryer exhaust vent must not be connected or secured
with screws or other devices which extend into the
interior of the vent.
•A gas dryer must be exhausted outdoors. The exhaust
vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not
terminate beneath the mobile home.
For mobile home use, gas dryers must be securely
fastened to the floor. Order Mobile Home Installation Kit
346764 from your Sears store or Sears Service Center.
Kit includes the necessary fastening hardware and
detailed installation instructions. Exhaust system hard-
ware is also available through your Sears store or Sears
Service Center.
7

Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above
the floor for a garage installation.
Failure to do so can result in death, explosion,
or fire.
NOTES:
* Do not move dryer by grasping console.
* Rough handling or moving dryer over rough floor can
result in damage to leveling feet.
* Slide dryer onto cardboard or hardboard before
moving across floor.
1. Open dryer and remove any shipping tape that
secures the dryer drum. Remove all parts, packages,
and leveling feet.
2. Move dryer close to permanent location.
3. Install leveling legs:
* Take two of the cardboard corners from the carton
and place them on the floor in back of the dryer.
Firmly grasp the body of the dryer and gently lay it
back on the cardboard corners.
* Check leg for diamond marking. This is how far the
leg should go intothe hole. Start to screw legs into
holes by hand. A little liquid detergent applied to the
legs will help lubricate them.
* Use a 1-in wrench to finish turning the legs until you
reach the diamond mark.
Cardboard
Icorners
I
I
I
Diamond
ig
4.
Leveling leg
Level dryer:
• Stand the dryer up and move it close to its final
location. Leave enough room to connect the
exhaust vent.
• Check levelness of dryer by placing a level on top of
the dryer, first side-to-side; then front-to-back.
• If the dryer is not level, prop the dryer up using two
stacked cardboard corner posts.
• Use a wrench to adjust the legs up or down until the
top of the dryer is level.
8

Installing coin-slide mechanism
NOTE: If the coin-slide mechanism is installed, skip this
step and proceed to coin-box adjustment.
Remove the service door from the meter case by unlock-
ing the service lock with the key shipped with the dryer.
Carefully insert coin-slide mechanism into opening and
guide into holes. Secure the coin slide with bolt from
inside the meter case.
4.
5.
Open the shut-off valve in the supply line. (The valve
is open when the handle is even along pipe.)
Test all the external gas connections for leaks by
brushing on a soapy water solution. (Liquid detergent
also works well.) Bubbles will show a leak. If a leak
is found, shut off gas supply line valve and correct
leak.
6.
7.
Plug dryer power supply cord into a grounded wall
receptacle.
Turn on the dryer to remove air from gas supply line.
Using a full heat program, let the dryer run for at least
5 minutes. If the burner does not ignite and you can
feel no heat inside the dryer drum, shut off the dryer
and wait 15 minutes.
Check to be sure all gas supply valves are open and
electric supply is connected. Repeat Step 7 until the
burner ignites.
NOTE: Removing timer from mounting screws may
facilitate inserting the bolt.
Replace the service door. Be sure the lock is located
toward the rear of the case.
Coin box adjustment
The tight fit of the money box is set at the factory.
Customer may loosen fit as desired by loosening the
slotted nuts.
Keep a record of all coin-box key numbers. A lost key
can only be replaced if ordered by key number from Sears
Parts. The key number is located both on the key and
behind the end panel of the coin box. If the key number
is not available, the lock must be drilled out to remove
the coin box.
Replace the meter case access panel.
Final installation connection
1. Connect exhaust vent to exhaust outlet of the dryer.
2. Carefully move dryer into permanent location.
Provide at least the minimum installation clearances
between dryer and rear wall. See the chart. This will
ensure you have an adequate clearance for service
and proper operation including flow of combustion
and ventilation air, and that you have sufficient
distance from combustible construction.
3. Connect gas supply to dryer. If flexible metal tubing is
used, be certain that there are no kinks. To prevent
kinking, you may need an elbow and a connector
between the stainless steel tubing and the dryer gas
pipe. The gas pipe that comes out through the rear of
your dryer has a K-inch male pipe thread.
Starting the dryer without using the coin
mechanism
1. Close the dryer door.
2. Push the PUSH TO START button frmly.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
3. If the dryer does not start, remove the meter-case
service door.
4. Push the ratchet arm towards the rear of the dryer
until it stops, then release.
5. Replace the meter-case service door. Be sure the
lock is located toward the rear of the case.
6. Push the PUSH TO START button firmly.
9

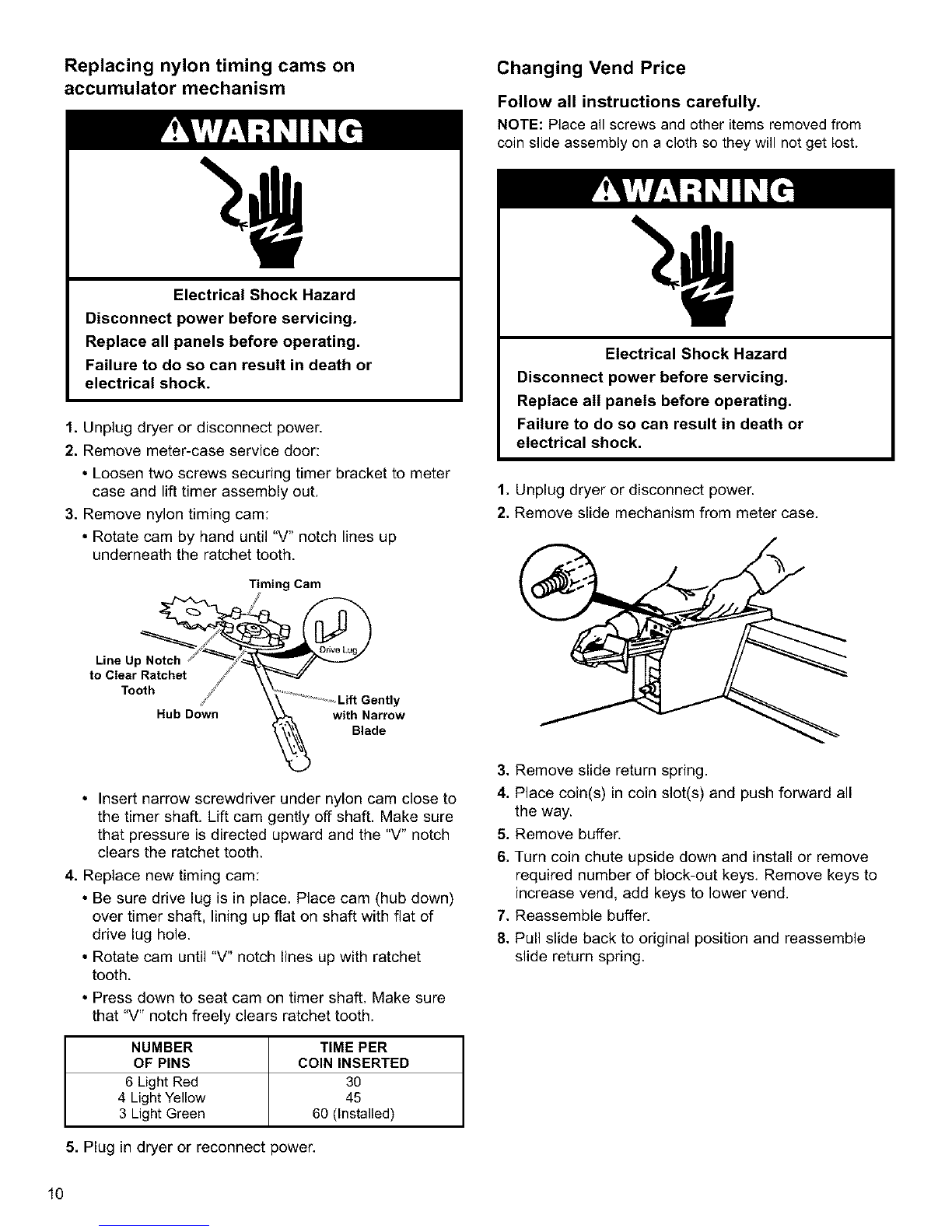

Replacing nylon timing cams on
accumulator mechanism
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating,
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Remove meter-case service door:
• Loosen two screws securing timer bracket to meter
case and lift timer assembly out.
3. Remove nylon timing cam:
• Rotate cam by hand until "V" notch lines up
underneath the ratchet tooth.
Timing Cam
Changing Vend Price
Follow all instructions carefully.
NOTE: Place all screws and other items removed from
coin slide assembly on a cloth so they will not get lost.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Remove slide mechanism from meter case.
Line Up Notch
to Clear Ratchet
Tooth
Hub Down with Narrow
Blade
• Insert narrow screwdriver under nylon cam close to
the timer shaft. Lift cam gently off shaft. Make sure
that pressure is directed upward and the "V" notch
clears the ratchet tooth.
4. Replace new timing cam:
• Be sure drive lug is in place. Place cam (hub down)
over timer shaft, lining up flat on shaft with fiat of
drive lug hole.
• Rotate cam until "V" notch lines up with ratchet
tooth.
• Press down to seat cam on timer shaft. Make sure
that "V" notch freely clears ratchet tooth.
NUMBER TIME PER
OF PINS COIN INSERTED
6Light Red 30
4 Light Yellow 45
3 Light Green 60 (Installed)
5. Plug in dryer or reconnect power.
3. Remove slide return spring.
4. Place coin(s) in coin slot(s) and push forward all
the way.
5.
6.
7,
8.
Remove buffer.
Turn coin chute upside down and install or remove
required number of block-out keys. Remove keys to
increase vend, add keys to lower vend.
Reassemble buffer.
Pull slide back to original position and reassemble
slide return spring.
10

9. Set new vend price by adding or removing the
appropriate block-out keys and/or dime inserts
according to Table of Vend Prices.
TABLE OF VEND PRICE
VEND COIN Sl.O3"a
PRICE qms46eTe
oIIIIIIII
I0¢DIIIIIII
25¢ IIDIIIII
35¢DIDIIIII
5o¢IIDDIIII
60¢DIDDIIII
75¢IIDDDIII
85¢DIDDDIII
•I.oo IIDDDDII
=1.1o ulDDDDII
=1.25 IDDDDDII
=1.35 ulDDDDDI
=1.5o IDDDDDDI
=1.eo uDDDDDDI
=1.75 IDDDDDDD
=I.e5 uDDDDDDD
=a.oo IDDDDDDD
NOTES:
* Black slots are closed off by block-out key. To remove
block-out keys, pull straight up.
* Be sure block-out keys and/or dime inserts are
seated properly and ratchet dog is in place with its
spring connected. Be sure the proper coin sizing block
is in place.
Part # 20-3007 for up to 7 quarters and 1 dime
Part # 20-3006 for up to 8 quarters and 0 dimes
* Unless otherwise ordered, all coin chutes are supplied
with Part 20-3006 in place.
10. Plug in dryer or reconnect power.
NOTE: Refer to the product information sheet provided
with the coin box for additional information.
Opening dryer top
Electrical Shock Hazard
Disconnect power before servicing.
Replace all panels before operating,
Failure to do so can result in death or
electrical shock.
1. Unplug dryer or disconnect power.
2. Open meter-case access door with top-lock key.
3. Loosen the two timer bracket mounting screws (do not
remove) and lift timer and mounting bracket out of
meter case.
4. Remove nut and tee spacer from the stud.
_//' Security
Top Lock
Tee Spacer
5. Unlock the security top lock located in the front right
corner of the dryer top with the key provided.
6. Remove two screws under lint lid.
7. Press in the top locks located 2½ inches in from each
side of the dryer with a putty knife.
8. Lift the top as you press the locks. The top is hinged
at the rear. Hold the top open. If you let go, the top
could fall back and damage the console.
11

To close dryer top:
1. Push down on top until front locks catch.
2. Relock security top lock with key.
3. Replace screws under lint lid.
4. Replace tee spacer and nut on stud inside meter
case.
5. Replace timer and bracket in meter case. Tighten
mounting screws.
6. Replace and lock timer access door.
7. Plug in dryer or reconnect dryer.
OPERATING THE
DRYER
Read operating instructions before operating the dryer.
(Located on console.)
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Do not dry anything that has ever had anything
flammable on it (even after washing).
Failure to follow these instructions can result in
death, explosion, or fire.
Fire Hazard
No washer can completely remove oil.
Do not dry anything that has ever had any type of
oil on it (including cooking oils).
Items containing foam, rubber, or plastic must be
dried on a clothesline or by using an Air Cycle.
Failure to follow these instructions can result in
death or fire.
12
1. Dryer will not operate with the door open.
2. Keep lint screen and exhaust system clear of lint.
A blocked screen or exhaust will cause slow drying
and other problems.
3. If the dryer will not operate, check the following to
be sure:
• Electrical supply is connected.
• Fuse is good and fits tightly.
• Door is closed.
• Proper coins are inserted. Push slide in and
slowly pull out.
Removing accumulated lint
Periodically inspect motor and blower for lint accumula-
tion. Large quantities of lint in these areas will affect the
performance of the dryer. Cleaning should be done by a
qualified service person.
Drying Time
The following charts are provided to give a general guideline
on typical full loads and suggested times for these loads.
TYPICAL FULL LOAD
The following chart gives examples of typical full loads:
LOAD LOAD
TYPE INCLUDES TYPE INCLUDES
Mixed 2 sheets Heavy 4 pairs jeans
Load 4 pillow cases Work 4 pairs work pants
2 shirts Clothes 1 denim jacket
6 shorts 1 coverall
2 blouses
8 handkerchiefs
TYPE OF LOAD SUGGESTED DRY TIME*
Mixed Cottons 40-55 minutes
Towels 50-65 minutes
Denims - Work Clothes 50-70 minutes
Permanent Press 30-45 minutes
Synthetic Knits - Delicates 20-35 minutes
*Times are approximate based on average-size loads.
NOTE: When drying Permanent Press loads, make sure
the clothes are left in the dryer until the FINISHING light
goes off.
Lubrication Instructions
Every Kenmore automatic dryer is thoroughly lubricated
at the time of assembly with lubricants designed to last
the normal life of the product. Under normal operating
conditions further lubrication should not be required.
In those instances where dryer operating time accumu-
lates rapidly, noise level may be reduced and bearing life
extended by proper lubrication. If repairs are performed
on the machine, then complete lubrication of the repaired
assemblies is desirable.
Effective, long-lasting lubrication of a dryer requires
lubricants designed for the particular application. The
following chart lists the recommended lubricant. This
lubricant is available from any Sears Parts Department.
APPLICATION 1RECOMMENDED LUBRICANT_
_Rollers / _ Oil /
Idler Assembly | /

TROUBLESHOOTING
Before servicing the dryer, always check out the
machine to substantiate the complaint for which the
service call was created. In many cases, it may just be a
customer-instruct problem.
Will not run
• Power supply
Check line fuses and line switches.
•Main wiring harness
Check for loose or broken terminal.
•Door switch
Make continuity check on switch contacts.
•Main motor
Check motor.
•Timer
Make continuity check on timer contacts Y to BG.
•PUSH TO START button
Check start switch for continuity.
• Power relay
Check power relay for open coil or bad contacts.
Clothes not drying
• Operating thermostat
Check for open switch contacts.
•Main motor
Check motor centrifugal switch M2 to M3 for open
contact.
•Timer
Check timer switch contacts Y to R for continuity.
Also Y to BR, if used on timer.
•Main wiring harness
Check for voltage at 1V, 2V, and 3V. Check harness
for shorted or broken wire.
• Drum belt
Check belt. May be worn, broken, or off pulley. Faulty
idler assembly.
• Drum seals
Check front and rear drum seals. Must be properly
positioned on the drum and flange surface.
•Exhaust fan
Check fan for proper RPM, lint.
•Gas burner
Check for function.
• Lint screen
Check lint screen for lint.
•Exhaust vent
Check exhaust vent for lint blockage.
• Power supply
Check line fuses and switches.
• Load
Check for size and type of load.
• Improperly grounded
Check for control panel being grounded.
Drum will not rotate
• Drum belt
Check for broken belt. Be sure it is properly posi-
tioned on motor pulley.
Will not shut off
•Timer
Check timer motor for function and timer for welded
contacts.
• Operating thermostat
Check for correct thermostat in dryer. Check for
failed thermostat.
Blowing fuses
•Electrical ground
Check motor, electrical components, and harness
for ground.
•Fuse box
Defective fuse-box assembly. Improperly fused.
Moisture retention unsatisfactory
• Blocked exhaust
Inspect exhaust system for lint.
• Thermostats
Check reason for improper cycling.
• Improperly grounded control panel
Check grounding of control panel.
Will not heat
•Main wiring harness
Check main harness at element terminals.
• Operating and high limit thermostats
Install jumper across terminals and test dryer,
or make continuity test on switch contact.
•Main motor
Check motor centrifugal switch 2M to 3M for
continuity.
•Timer
Check continuity of timer contacts Y to R.
Also Y to BR if used on timer.
•Gas burner
Check for function.
•Power supply
Check line fuses and switches.
• No gas flow
Check for closed gas supply valves.
13

Drying temperature too high
•Operating thermostat
Check for lint that may insulate thermostat from
exhaust air. Check thermostat for function.
Motor runs with door open
•Door switch
Check door switch for function and switch clip
actuating arm for proper switch plunger actuation.
Noise
• Loose components
Secure component.
• Idler assembly
Check alignment and bearing assembly.
• Belt
Replace belt.
•Motor
Check motor.
•Lint
Remove lint from rear drum groove.
• Front drum bearings
Lubricate or replace bearings. If loose, fasten Delrin
bearing ring to drum flange with silastic or, if needed,
replace Delrin ring.
•Support roller assemblies
Replace roller and/or shaft.
• Baffle
Tighten assembled baffle.
•Blower
Foreign matter in blower housing.
Clothes "bailing" complaints
• Large garments (sheets, spreads) "bailing"
instead of tumbling
Check to see ifdryer is being overloaded. Check
drum speed (48 + 3 RPM).
If you need an additional parts list, contact your
nearest Sears Service Center or Parts
Department. Make sure to order by complete
Model Number when ordering.
CHANGING VEND PRICE?
To change vend price, detach and mail the lower
portion to: Customer Service Department
Greenwald Industries Inc.
212 Middlesex Ave.
Chester, CT 06412
THE COIN CHUTE HAS BEEN PRE_SET AT THE FACTORY
WHEN INCREASING IN $.25 PRICING
Follow instructionson page 10--no extra parts required.
WHEN DECREASING IN $.25 PRICING
or
CHANGING TO $.10 PRICING
(coin sizing block required, see page 11)
Order required parts using this tear-off. Block-out keys
will be shipped to you at no charge. Follow product
information instructions.
QUANTITY: _EXISTING VEND PRICE $
NEW VEND PRICE $
NAME
COMPANY
ADDRESS
CITY
DAYTIME PHONE
PURCHASE DATE
14

15

For major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOM EsM(1-800-469-4663)
Para pedir servicio de reparacibn a domicilio -1-800-676-5811
For the repair or replacement parts you need:
Call 6 a.m. - 11 p.m. CST, 7 days a week
PartsDirect
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicilio -1-800-659-7084
For the location of a Sears Service Center in your area:
Call 24 hours aday, 7days a week
1-800-488-1222
To purchase or inquire about a Sears Maintenance Agreement:
Call 7 a.m. -- 5p.m. CST, Monday -- Saturday
1-800-827-6655
SEARS
HomeCentral"
