CRAFTSMAN
BATTERY OPERATED
BACKUP SUMP PUMP
owner’s
manual
MODEL NO.
572.826122
CAUTION:
Read all instructions
carefully before starting
the installation.
Save this Manual for
future reference.
F642-9511 (Rev. 12/8/98) PRINTED IN U.S.A. SEARS CANADA INC. TORONTO CANADA M5B 2B8
• Installation
• Operation
• Repair Parts

Carefully read and follow all safety instructions in this
manual or on pump.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one
of the following signal words and be alert to the potential
for personal injury!
DANGER warns about hazards that will
cause serious personal injury, death or major property
damage if ignored.
WARNING warns about hazards that can
cause serious personal injury, death or major property
damage if ignored.
CAUTION warns about hazards that will or
can cause minor personal injury or property damage if
ignored.
The word NOTICE indicates special instructions which
are important but not related to hazards.
1.To avoid risk of serious bodily injury and property
damage, read safety instructions carefully before
installing pump.
2.Follow local and/or national plumbing and electrical
codes when installing pump. A ground fault circuit
interrupter (GFCI) is recommended for use on any
electrical appliance submerged in water.
3.Use this pump only for backup sump pump duty in a
residential application. It is not designed as a primary
sump pump.
4. Hazardous Voltage. Can cause severe or
fatal electrical shock. Do not plug in or unplug battery
charger while standing on a wet floor or in water. Be
sure one hand is free when plugging in or unplugging
charger. If basement floor is wet, disconnect power to
basement before walking on floor.
5.Do not lift pump by electrical cord.
6.Pump water only with this pump.
7.Do not run pump dry. To do so will damage seals and
can cause leaking and property damage.
8.Pump is permanently lubricated at the factory. Do not
try to lubricate it!
9.Keep battery charger and battery box in a dry, cool,
well ventilated area.
NOTICE: Install any Carbon Monoxide (CO) sensor at
least 15 feet away from battery charger in order to
avoid nuisance CO alarms. Please refer to your CO
detector’s installation guidelines for more information.
10.To avoid danger of fire or explosion, keep sparks and
flame away from battery.
11. Battery acid is corrosive. Do not spill on
skin, clothing, or battery charger. Wear eye protec-
tion when working on battery.
12.Maximum vertical pumping distance is 15 feet (4.6M).
13.Make sure sump is clear of debris.
2
CONTENTS
INTRODUCTION/WARRANTY.......................................2
SAFETY...........................................................................2
PERFORMANCE..............................................................3
CHARGER OPERATIONS................................................3
BATTERY REQUIREMENTS.............................................4
INSTALLATION/OPERATION.........................................4
ELECTRICAL....................................................................5
SERVICE/TROUBLESHOOTING......................................6
PARTS.............................................................................7
INTRODUCTION
Please take a few minutes to read our instructions before
installing your Backup Sump Pump. It will help to assure
perfect installation and help you avoid needless service
expenses.
LIMITED WARRANTY
ALL PARTS.......................TWO (2) YEARS
ALL LABOUR .....................ONE (1) YEAR
Sears will repair or replace the pump free of charge if it fails due to manufacturing defects.
Damage caused by improper installation is not covered by this warranty.
This warranty is in addition to any statutory warranty.
For service return pump to the nearest Sears outlet.
SEARS CANADA INC. TORONTO M5B 2B8
RULES FOR SAFE INSTALLATION AND OPERATION

3
CHARGER OPERATION
Backup pump will start automatically when sump water
level rises far enough to trip float switch. After a delay of
about 4 seconds, alarm will sound. Silence alarm by
pushing ALARM TEST/RESET button. In normal (switch ac-
tuated) operation, alarm is locked out until about 4
seconds after float switch has dropped to OFF position;
cycle can then begin again.
Test alarm by pushing ALARM TEST/RESET button when
alarm is not sounding. Alarm will then sound as long as
button is held down. Pushing ALARM TEST/RESET button
to test alarm overrides lockout, so alarm can be tested at
any time.
If alarm sounds, check operation of primary pump, which
may need service. If battery backup operation is due to a
power outage, alarm will sound, but no service is likely to
be required to primary pump.
Battery charger has capacity to run pump and charge
battery at the same time as long as power to the charger is
not interrupted. If power to charger circuit is interrupted,
the length of time that the backup pump will run depends
on the Ampere-hour capacity of the battery used.
Extended periods of operation (for example, during an ex-
tended power outage) may exhaust the battery. However,
once the load is removed, usually it will self-regenerate far
enough to allow the charger to start. The battery charger
will begin charging the battery as long as the battery has a
charge of at least 1/2 volt.
After power is restored, charger will automatically re-
charge battery fully in about six hours.
NOTICE: If battery has not reached a satisfactory voltage
after 24 hours of charging, alarm will sound. In this case
alarm cannot be reset. Possible causes are:
PROBLEM ACTION
Back-up pump has run Push ’Reset’. Check main pump.
Power out more than Disconnect charger from battery.
24 hours Call power company.
Continuous charging Disconnect charger from battery.
more than 24 hours Check for defective battery.
Loose connection or Disconnect charger from battery.
no power to charger Check plug, receptacle, and
power at main breaker.
After restoring power or replacing battery, alarm can be
reset.
BASIC TOOLS AND MATERIALS NEEDED
Pipe Wrenches Screwdriver Hacksaw 1-1/4" Check Valve
Adjustable Wrench Teflon Tape Knife 12-volt Battery
TABLE I Performance Chart
VERTICAL PUMPING DISTANCE
8 FEET 10 FEET 12 FEET
Battery Size 27M 24M 27M 24M 27M 24M
Gallons Per Hour 1,080 1,080 870 870 690 690
Hours Available 9.6 8.3 9.9 8.3 6.8 5.7
Total Gallons Pumped 7,212 6,055 5,557 4,939 3,727 3,189
2,5 METERS 3,0 METERS 3,5 METERS
Battery Size 27M 24M 27M 24M 27M 24M
Litres Per Hour 4 088 4 088 3 293 3 293 2 612 2 612
Hours Available 9.6 8.3 9.9 8.3 6.8 5.7
Total Litres Pumped 27 297 22 918 21 033 18 694 14 107 12 070
GENERAL INFORMATION
The Battery-Powered Back-up Sump Pump is not a sub-
stitute for your primary sump pump. It is designed as a
backup pump to pinch-hit for your primary sump pump
during a power outage or other problem which prevents
normal operation. Do not use it to pump flammable
liquids or chemicals. If pumping salt water, flush the
pump with clear water after use.
Keep battery charger dry and protected from damage.
In an emergency (such as an extended power outage)
which depletes the system battery, your automobile
battery may be temporarily substituted. Be sure to replace
the system battery as soon as possible.

BATTERY REQUIREMENTS
Hazardous electrical current. Can cause
severe burns and start a fire if battery terminals are short
circuited. Install battery in box. To prevent accidental
shorting across battery terminals, strap cover securely on
battery box. Do not leave battery uncovered. Do not
allow children to play around sump pump installation.
Your Backup Sump Pump depends on the battery used
with it for power. The better the battery, the better the
performance of the pump. We recommend use of a SEARS
DieHard Size 27M or 24M Deep-Cycle Marine battery.
This battery will perform well for many hours and stands
up well to long periods of little or no use.
In an emergency a SEARS DieHard Size 27M or 24M stan-
dard automobile battery may be used. However, an auto-
motive battery may require charging after only 1 to 2
hours of continuous use, and the repeated charging cycles
may cause early plate failure in the battery.
Use only a new, fully charged battery that will fit in the
battery box (maximum size 12-5/8" long, 7" wide and 9-
3/8" high (320.7mm x 177.8mm x 238mm) including
terminals).
PUMP INSTALLATION and OPERATION
NOTICE: We recommend a trial fitting of all components
before gluing anything. This will allow you to check pump
mounting height, float switch clearance, etc., while
adjustments can still be easily made.
1.Mark side of sump six inches (154mm) down from top.
2.Fill sump until primary sump pump starts; normal high
water level should not be above mark made in step 1.
If it is higher, backup float switch may not swing far
enough for proper operation. To lower high water
level, adjust switch on primary sump pump. See
primary pump owner’s manual.
3.Drain sump. Measure down 11 inches (279.4mm)
from top of sump; mark this point on side of sump.
Install tee with center of threaded inlet at least this far
below top of sump to allow sufficient room for float
switch to swing (see Figure 1A).
4.Make sure that installation will not interfere with
primary sump pump operation as follows:
A. Backup pump installation must not interfere with
primary sump pump float switch swing.
B. Normal high water level must never be high
enough to start backup sump pump.
C. Install a check valve (SEARS Stock No. 2789) in the
main sump pump discharge pipe between the
pump and the backup mounting tee (see Figure 1).
Flow through this check valve must be away from
the main sump pump; don’t install it backwards!
This check valve will prevent recirculation into the
sump during battery-powered pump operation.
5.Cut rigid discharge pipe from primary sump pump to
length. Use PVC piping. Tee supplied is 1-1/2" slip fit;
if necessary use 1-1/4" bushings supplied.
NOTICE: Use any tee that fits sump pump discharge
line; the adapter that is supplied will fit any galvanized
or plastic 1-1/4" tee. Do not glue the tee until all parts
have been trial fitted.
6.Thread adapter into tee (Figure 1B). When installed,
molded-in ‘up’ should be on top.
7.Install backup pump check valve in adapter. Tab on
backup pump check valve fits into notch at top of
adapter.
8.For trial assembly, slip pump into backup pump check
valve to check pump mounting height and to make
sure that there is no interference with float switch
operation on either pump; be sure floats will not rub
on side of sump, catch between pump and sump wall,
interfere with each other, etc.
9.Remove pump from adapter; remove tee.
10.Using PVC glue, permanently reinstall tee in primary
sump pump discharge pipe.
4
Check
Valve
Grounded
Electrical
Outlet
"Turn On"
Water Level
12" Min.
(305mm)
7" Min.
(178mm)
1380 1194
Tether Length 2"
(51mm)
TOP VIEW
Check
Valve

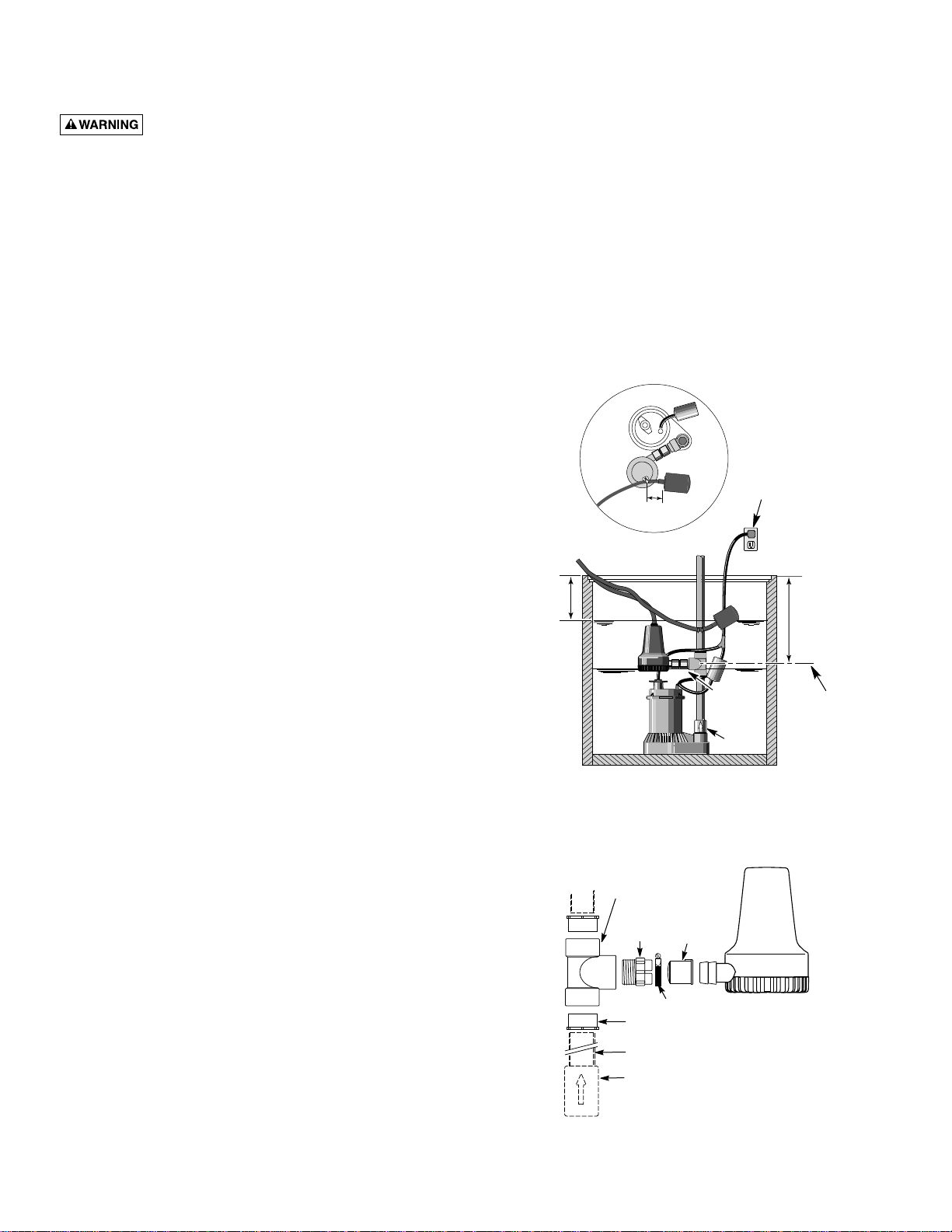

Figure 1A – Typical Installation
Figure 1B – Installation Diagram
Reducer Bushing (2 Supplied)
1-1/2x1-1/2x1-1/4
Tee - PVC
Pipe
Adapter
Hose Clamp
Check
Valve
Main Pump Discharge Pipe
Check Valve to Prevent
Recirculation into Sump
1464 0195

5
Hazardous fumes. Follow cement manu-
facturer’s instructions. Use PVC cement only in a well
ventilated place away from fire or flame.
11.Put clamp on adapter; leave loose. Mount backup
pump check valve in adapter; thread assembly into
tee.
12.Slip pump into check valve. Tighten clamp.
13.Make sure battery is fully charged; then check opera-
tion by disconnecting power to primary sump pump
and filling sump until Backup Sump Pump starts. Run
Backup Pump through one complete cycle.
ELECTRICAL CONNECTIONS
Hazardous voltage. Can cause serious or
fatal electrical shock. Review safety instructions, Page 2,
before operating charger.
If your outlet is not grounded, install a copper wire (at
least 14 gauge) from the outlet box to a cold water pipe.
Use ground clamp on pipe. BE SURE that the cold water
pipe used has metal continuity to electrical ground. Do
not modify cord or plug; do not use an extension cord.
CHARGER/BATTERY INSTALLATION
NOTICE: Alarm will sound when charger is first
connected to battery. Press ALARM TEST/RESET button on
charger. If alarm continues to sound, disconnect one
charger lead from the battery and reconnect it. Press
ALARM TEST/RESET again; alarm will stop sounding.
1. Connect charger as shown in Figure 2.
A. Connect Positive (+) lead from charger to positive
battery post.
B. Connect Negative (–) lead from charger to negative
battery post.
C. Third lead from charger is factory connected to
lead from pump motor/float switch.
NOTICE: If charger is connected backwards, pump
will not operate properly, battery will not charge.
2. Plug in power cord to a 115-125 Volt AC outlet deliv-
ering at least 2 amps. Do not use a switch controlled
outlet. Mark circuit in main power panel “Backup
sump pump power supply; do not turn off”.
3. With charger properly connected and plugged in, the
panel on the front of the charger will appear as in one
of the following:
A. If battery is dead, charger will supply about 10
amps power (see Figure 3A).
B. If battery is near full charge, charger will deliver
about 5 amps power (see Figure 3B).
C. If battery is fully charged, charging current will be
0 amps and green LED lamp will be lighted (see
Figure 3C).
4. The charger is equipped with a self-resetting circuit
White
Black Negative
(Black)
Positive
Battery Clamp
Negative
Battery Clamp
Brown Sensor
Sensor
Black
Positive
(Black w/
Red Tracer)
Fuse
Holder
1411 1194
–
+
–
+
+
Backup
Pump

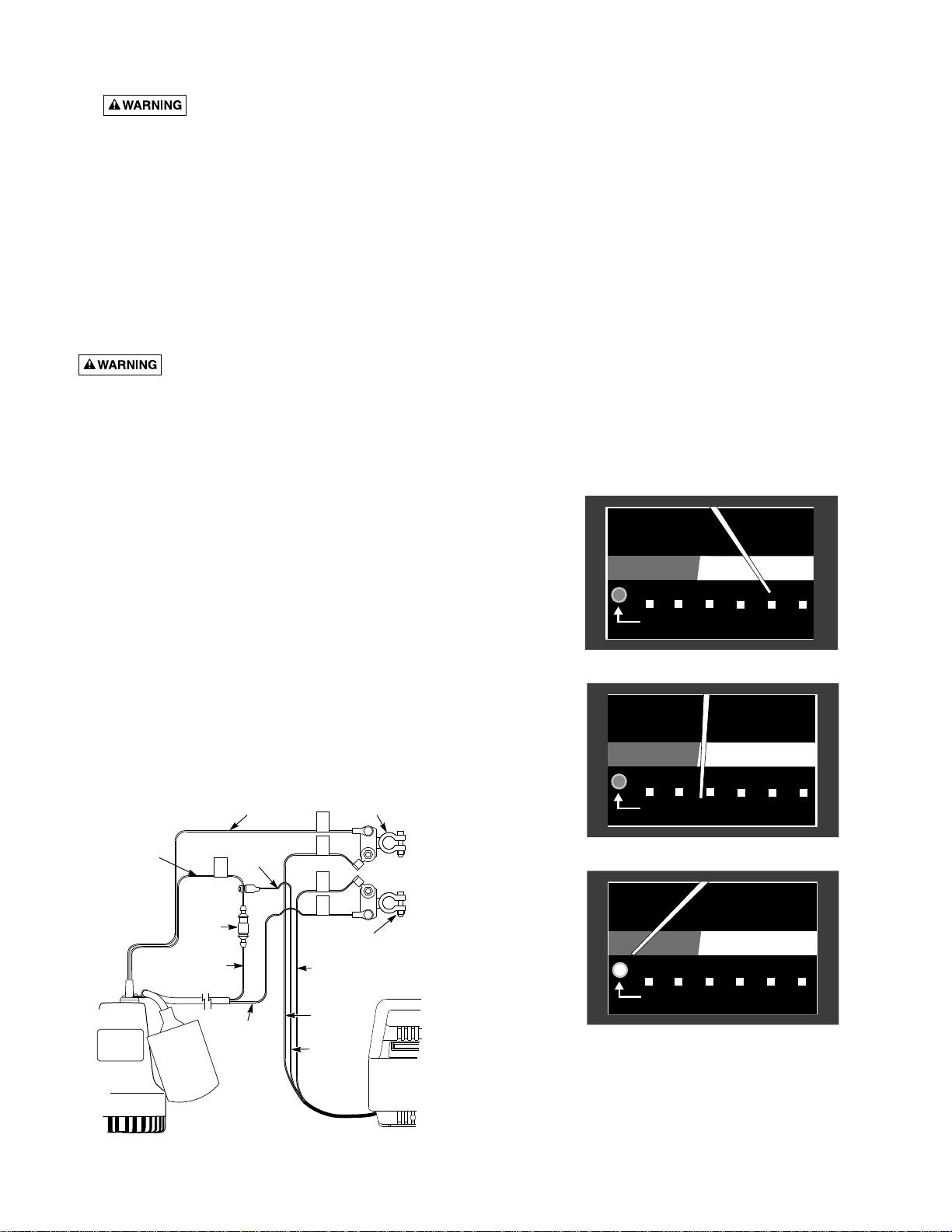

Figure 2 – Wiring Connections
DC AMPS
CHARGED CHARGING
2 4 6 8 10 12
CHARGE COMPLETE
CHARGED CHARGING
DC AMPS
2 4 6 8 10 12
CHARGE COMPLETE
1413 1194
DC AMPS
CHARGED CHARGING
2 4 6 8 10 12
CHARGE COMPLETE
CHARGED CHARGING
2 4 6 8 10 12
CHARGE COMPLETE
Figure 3 – Battery Backup Control Panel
A. Battery depleted - charging current 10 amps.
B. Battery nearly charged - current about 5 amps.
C. Charge complete - current 0 amps, LED lights
up.
A.
B.
C.

breaker which protects it from temporary overloads. In
case of an overload, the circuit breaker will open. It
automatically resets after a short cool-down period. In
some conditions where the overload is extended the
breaker will cycle , repeating the open/reset process
indefinitely. When this happens, normally the charger
will emit a clicking sound as the breaker opens and
resets.
NOTICE: If the clicking sound continues for more than
30 minutes or so, check for reversed charger con-
nections to the battery and for shorted cells in the
battery.
BATTERY MAINTENANCE
NOTICE: To protect battery case from chipping and
gouging, do not let battery sit on concrete floor. Install
battery on a shelf or protective pad (plywood, 2x4s, etc.).
Always install battery in a dry location that is protected
from flooding.
Every three months, check battery as follows to maintain
battery in best condition:
1. Unplug battery charger.
2. On batteries with removable top caps, measure
specific gravity of the electrolyte. Use a hydrometer
(available at auto parts stores). If the specific gravity of
any cell is less than 1.225 or if there is more than .050
variation between cells, replace the battery.
3. Check electrolyte level and refill as needed.
4. Check battery terminals and clamps for tightness and
corrosion. Clean and tighten as needed.
5. Plug in battery charger.
TROUBLESHOOTING
Pump won’t run.
1. Check all connections.
2. Check for low or defective battery.
3. Check that automatic switch is free to swing up and
down.
4. Blown fuse in switch circuit. Unplug pump and check
to see if impeller is free to turn. If impeller is locked,
remove the housing around the impeller and remove
the obstruction. Reassemble pump and reconnect.
Replace fuse.
Motor hums but pump won’t run:
1. Check for low or defective battery.
Pump runs but pumps very little or no water:
1. Make sure a check valve is installed and functioning
between primary pump discharge and Backup Sump
Pump tee.
2. Check for obstruction in discharge pipe.
3. Discharge pipe length and/or height exceeds capacity
of pump. See Table I, Page 3, for pump capacity.
4. Check for low or defective battery.
Pump cycles too frequently:
1. Tether length too short on automatic float switch. Make
sure that tether is at least 2" (51mm); see Figure 1.
2. Main check valve located between discharge of primary
pump and the Backup Sump Pump tee or check valve
not installed or working properly. Install or repair as
required.
6

7
SWITCH REPLACEMENT
1. Unplug battery charger from wall outlet.
2. Disconnect both battery clamps from battery
terminals.
3. Unbolt black switch wire from battery clamp.
4. Unplug fuse holder in white wire; save fuse.
5. Make a note of tether length (see Figure 1) before
loosening cord clamp.
6. Remove cord from cord clamp and replace with new
cord. Make sure tether length is the same as the old
switch’s tether.
7. Strip insulation off of white wire on new switch,
leaving 3/8" (9.5mm) bare wire exposed at the wire
end (see Figure 4).
8. Insert stripped wire end in small end of fuse holder
half; crimp holder onto wire and check crimp for
tightness (Figure 5).
NOTICE: Be sure that fuse holder half which you are
installing will mate with fuse holder half on pump
wire.
9. Insert fuse into holder and snap halves of housing
together (Figure 6).
10.Remount block on band and cord clamp assembly on
pump.
11.Strip black switch wire back 3/8" (9.5mm) from end of
wire. Crimp wire terminal onto end of wire and check
for tightness.
12.Bolt black switch wire onto battery terminal clamp.
13.Reinstall battery clamps:
A. Black switch wire clamps to positive battery
terminal.
B. Black pump wire clamps to negative battery
terminal.
NOTICE: DO NOT reverse terminal connections.
14.Turn pump upside down; unclip and remove screen.
Do not remove screw-mounted bottom plate. Lift
switch to momentarily ”bump” pump. Check for
correct operation and rotation (pump must rotate
counter-clockwise when looking at end of shaft -
Figure 7). If not, reverse wires to battery and recheck.
15.Replace screen.
16.Plug in charger to wall outlet.
17.Fill sump with water and check switch action. Adjust
tether if necessary.
DO NOT test run pump for more than 5
seconds without water in it. Running pump dry for
extended periods could damage pump and voids
warranty.
Figure 4
Figure 5
Figure 6
Figure 7
3340 1198
Figure 8 – Thread battery strap tie-down buckle as
shown

8
SEARS Battery Backup Sump Pump
Model 572.826122
White
Black
Negative
Black w/
Red Tracer
Positive Battery Clamp
Negative Battery Clamp
Brown Sensor
Black
1
234,5
6A 6B
7
12
8
9
10
11
Positive
12
1412 1194
Sensor
–
–
+
+
+
REPAIR PARTS LIST
Key No. Part No. Part Description
1 PS217-5E Switch Assembly #
2 PS17-41 Pump Complete***
3 CC0030-13 Cord Clamp
4 U17-1148 Fuse Holder
5 U17-1149 15-Amp Time-Delay Fuse (2 supplied†)
6A ** Wire Terminal (4 Req.)
6B ** Battery Terminal Clamps (2 Req.)
* PS17-100 Battery Case (includes strap and strap brackets)
7 PS117-77A Charger***
8 PS22-1 Check Valve
9 ** Hose Clamp 1" min. - 2" max. S.S.
10 PS78-3P Pipe Adapter
11 U78-846P Tee 1-1/2 x 1-1/2 x 1-1/4 PVC
12 U78-876P Reducer Bushing (2 Req.)
* F642-9511 Owner’s Manual
# When ordering, also order Key Nos. 4 (Fuse Holder) and 5 (Fuse) required for installation.
* Not illustrated.
** Standard Hardware Item; purchase locally.
*** No component parts available for pump or battery charger.
† Second fuse is supplied as spare.
