HYDROGLASS®
HIGH PRESSURE
SPRINKLER PUMP
®
Form No. F642-04710 (8/6/04)
MODEL NOS.
390.2622
390.262553
MODEL NO. 390.2623

2
CONTENTS
INTRODUCTION/WARRANTY ..........................................2
SAFETY ...............................................................................2
PREPARATION....................................................................3
INSTALLATION................................................................3-4
ELECTRICAL.....................................................................5-6
OPERATION........................................................................7
MAINTENANCE ...............................................................8-9
TROUBLESHOOTING .......................................................10
REPAIR PARTS ..................................................................11
INTRODUCTION
Please take a few minutes to read our instructions before you
install and use your pump. This will help you obtain the full
benefits from this pump. It will also help you avoid any need-
less service costs that result from causes we cannot control
and cannot cover in our warranty.
Carefully read and follow all safety instructions in this
manual or on pump.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for per-
sonal injury!
DANGER warns about hazards that will cause
serious personal injury, death or major property damage if
ignored.
WARNING warns about hazards that can
cause serious personal injury, death or major property dam-
age if ignored.
CAUTION warns about hazards that will or can
cause minor personal injury or property damage if ignored.
The word NOTICE indicates special instructions which are
important but not related to hazards.
1.To avoid risk of serious bodily injury and property dam-
age, read safety instructions carefully before installing
pump.
2.Follow local and/or national plumbing and electrical
codes when installing pump.
3.Keep the well covered while installing pump to prevent
leaves and other debris from falling into well, contami-
nating well and possibly damaging pump.
4.Protect pump and piping system from freezing. Allowing
pump or water system to freeze could severely damage
pump and voids warranty.
Hazardous Voltage. Can shock, burn,
cause death, or start fires.
5.Disconnect electrical power source before installing or
working on pump.
6.Ground pump with a ground wire run from grounding lug
on motor to a grounded lead in the service panel.
7.Line voltage and frequency of electrical power supply
must agree with motor nameplate.
8.Use of fuses or wire smaller than size recommended in
owner’s manual can cause overheating, possible fires, and
will void warranty.
9.Pump water only with this pump.
10.Do not run pump dry. To do so will damage seals and can
cause leaking and property damage.
FULL ONE YEAR WARRANTY ON CRAFTSMAN®SPRINKLER PUMPS
For one year from the date of purchase, Sears will repair or replace this pump, free of charge, if defective in materi-
als or workmanship.
LIMITED WARRANTY ON CRAFTSMAN®HYDROGLASS®SPRINKLER PUMP
After one year and through two years from the date of purchase, Sears will furnish, free of charge, a replacement
part for any defective part. You pay for labor.
This warranty does not cover repairs on replacement parts necessary because of abuse or negligence including fail-
ure to install, adjust and operate this pump according to the instructions in the owner’s manual.
LIMITATION OF LIABILITY
SEARS WILL NOT BE LIABLE FOR LOSS OR DAMAGE TO PROPERTY OR ANY INCIDENTAL OR CONSEQUENTIAL
LOSS OR EXPENSE FROM PROPERTY DAMAGE DUE DIRECTLY OR INDIRECTLY FROM THE USE OF THIS
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation
or exclusion may not apply to you.
WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPART-
MENT IN THE UNITED STATES.
This warranty applies only while the product is in the United States.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
RULES FOR SAFE INSTALLATION AND OPERATION!

PREPARATION INSTALLATION (Continued)
BASIC TOOLS AND MATERIALS NEEDED
Pipe Wrenches Screwdriver
Hacksaw Check Valve
Adjustable Wrench Teflon Tape
Knife
NOTICE: Depth to water must not be more than 20’.
1. Long runs and many fittings increase friction and reduce
flow. Locate pump as close to water source as possible:
use as few elbows and fittings as possible.
2. Be sure water is clear of sand. Sand will plug the pump
and void the warranty.
3. Protect pump and all piping from freezing. Freezing will
split pipe, damage pump and void the warranty. Check lo-
cally for frost protection requirements (usually pipe must
be 12” below frost line and pump must be insulated).
4. Be sure all pipes and foot valve are clean and in good
shape.
5. No air pockets in suction pipe.
6. No leaks in suction pipe. Use Teflon tape or Plasto-Joint
Stik1to seal pipe joints.
7. Unions installed near pump and water source will aid in
servicing. Leave room to use wrenches.
8. Pump body may explode if used as a
booster pump. DO NOT use in a booster application.
1Lake Chemical Co., Chicago, Illinois.
INSTALLATION
NOTICE: Use the installation method below which matches
your well type.
CASED WELL INSTALLATION
1. Inspect foot valve to be sure it works freely. Inspect
strainer to be sure it is clean.
2. Connect foot valve and strainer to the first length of suc-
tion pipe and lower pipe into well. Add sections of pipe
as needed, using Teflon tape on male threads. Be sure that
all suction pipe is leakproof or pump will lose prime and
fail to pump. Install foot valve 10 to 20 feet below the low-
est level to which water will drop while pump is operat-
ing (pumping water level). Your well driller can furnish
this information.
3. To prevent sand and sediment from entering the pump-
ing system, the foot valve/strainer should be at least 5 feet
above the bottom of the well.
4. When the proper depth is reached, install a sanitary well
seal over the pipe and in the well casing. Tighten the bolts
to seal the casing.
5. When using a foot valve, a priming tee and plug as shown
in Figure 1 are recommended.
DUG WELL OR OPEN WATER
INSTALLATION
1. Follow cased well installation, steps 1, 2, 3 and 5.
DRIVEN POINT INSTALLATION
1. Connect the suction pipe to the drive point as illustrated in
Figure 2. Keep horizontal pipe run as short as possible. Use
Teflon tape on male pipe threads. Multiple well points may
be necessary to provide sufficient water to pump.
2. Install a check valve in piping as shown in Figure 2. Flow
arrow on check valve must point toward pump.
HORIZONTAL PIPING FROM WELL TO
PUMP
1. Never install a suction pipe that is smaller than the suc-
tion tapping of the pump.
3
Well
Casing
Foot
Valve
Sanitary
Well Seal
Suction Pipe
10'
Min.
5–10'
Strainer
2590 0996
Priming Tee
and Plug
Figure 1 – Cased/Dug Well Installation
Drive
Coupling
Drive
Point
Check
Valve
Drive point
below water
level
Suction Pipe
to Pump
2589 0996
Figure 2 – Driven Point Installation

INSTALLATION (Continued)
2. To aid priming on driven point installations, install a line
check valve as shown in Figure 2. Be sure check valve
flow arrow points toward pump.
DISCHARGE PIPE SIZES
1. If increasing discharge pipe size, install reducer in pump
discharge tapping. Do not increase pipe size by stages.
2. When the pump is set away from the points of water use,
the discharge pipe size should be increased to reduce
pressure losses caused by friction.
• Up to 100’ run: Same size as pump discharge tapping.
• 100’ to 300’ run: Increase one pipe size.
• 300’ to 600’ run: Increase two pipe sizes.
LAWN SPRINKLING APPLICATION
This pump is designed for lawn sprinkling. It is designed to
deliver plenty of water at full sprinkler pressure. It can pump
from a pond, cistern or well points.
Pump discharge can be divided to supply two (2) or more
sprinkler systems. A suggested multiple discharge to service
is shown in Figure 3.
Do not use in a pressure tank or booster pump
application.
Pump/Piping Installation
PUMP INSTALLATION
NOTICE: Use Teflon tape supplied with the pump for mak-
ing all threaded connections to the pump itself. Do not use
pipe joint compounds on the pump: they can react with
the plastic in the pump components.
1. Bolt pump to solid, level foundation.
2. Support all piping connected to the pump.
3. Wrap 1-1/2 to two layers of Teflon tape clockwise (as you
face end of pipe) on all male threads being attached to
pump.
4. Tighten joints hand tight plus 1-1/2 turns. Do not over-
tighten.
NOTICE: Install pump as close to water source as possible.
Long piping runs and many fittings create friction and re-
duce flow.
Use schedule 80 or iron pipe. See “Well Pipe Installation” for
more information.
4
P
846 0494
Gate
Valve
Check
Valve
To
Service
Priming
Plug
Figure 3 – Multiple Discharge
P
843 0494
P
841 0494
Figure 4 – Bolt Pump
Down
Figure 5 – Independently
Support All Piping
Attached To Pump
TABLE II – PERFORMANCE CHART (IN GALLONS PER MINUTE)
390.2622 390.262553 390.2623
DISCHARGE 1 H.P. 1-1/2 H.P. 2 H.P.
PRESSURE DISTANCE ABOVE TO WATER
PSI 5’ 10’ 15’ 20’ 5’ 10’ 15’ 20’ 5’ 10’ 15’ 20’
10 55 49 48 45 67 61 56 46 69 67 65 62
15 51 46 45 44 66 58 55 45 65 63 60 58
20 45 42 39 37 61 56 54 44 59 56 54 52
25 38 35 32 29 55 52 51 43 52 50 48 45
30 31 28 24 20 48 45 44 37 47 45 42 40
35 23 19 16 11 39 37 34 28 42 38 35 32
40 17 13 8 – 33 27 20 11 34 30 27 23
45 ––––18148–25181310
50 ––––––––147––
DISCHARGE
PIPE TAPPING 1-1/2” NPT 1-1/2” NPT 2” NPT
SUCTION
PIPE TAPPING 1-1/2” NPT 1-1/2” NPT 2” NPT

ELECTRICAL
5
Hazardous voltage. Can shock, burn, or
cause death. Disconnect power to motor before working on
pump or motor. Ground motor before connecting to power
supply.
WIRING
Ground motor before connecting to electrical
power supply. Failure to ground motor can cause
severe or fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electri-
cal connections.
Supply voltage must be within ±10% of name-
plate voltage. Incorrect voltage can cause fire or
damage motor and voids warranty. If in doubt consult
a licensed electrician.
Use wire size specified in Wiring Chart (Page 6).
If possible, connect pump to a separate branch
circuit with no other appliances on it.
Wire motor according to diagram on motor
nameplate. If nameplate diagram differs from
diagrams above, follow nameplate diagram.
1. Install, ground, wire and maintain this pump in accor-
dance with electrical code requirements. Consult your
local building inspector for information about codes.
2. Provide a correctly fused disconnect switch for protec-
tion while working on motor. Consult local or national
electrical codes for switch requirements.
A
L1
230 Volts
115 Volts
230 Volt to 115 Volt Conversion, Plug-in Type:
Pull plug
straight
out from
terminal
board;
1.
1.
2.
2.
Plug in again
with arrow
on plug
pointing to
'115 Volts'.
Ground
Screw
A
L1
230 Volts
115 Volts
Clamp the power cable to prevent
strain on the terminal screws.
Connect the green (or bare copper) ground
wire to the green ground screw.
Clamp the power cable to prevent
strain on the spade connectors.
Connect the green (or bare copper) ground
wire to the green ground screw.
Move plug to change voltage.
115 V
230 V
Power Supply Wires
L1
L2
230 115
L1
L2
230 115
L1
L2
230 115
Grounding Point
3782 1000

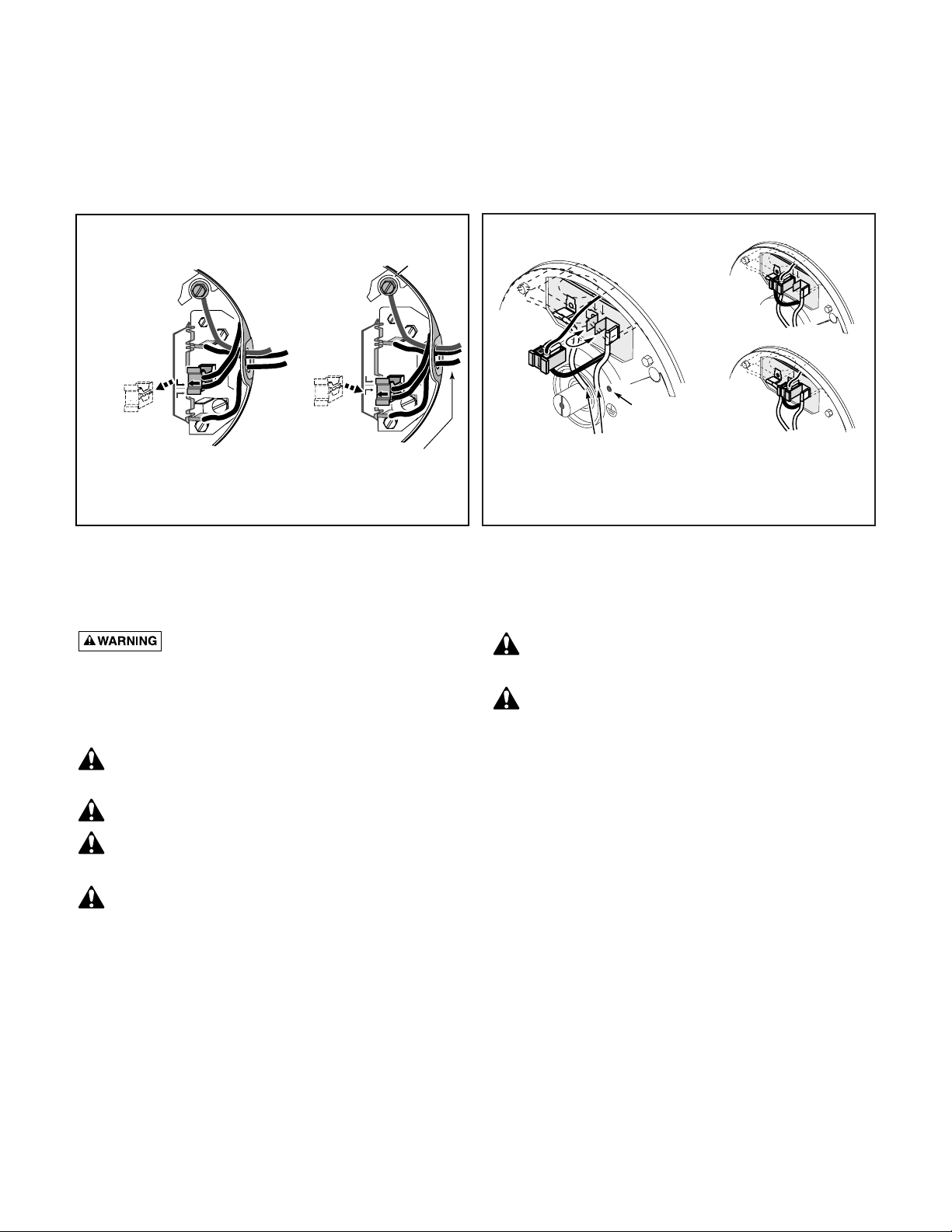

230 Volt to 115 Volt Conversion, Plug-in Type:
Connection diagram for dual voltage, single-phase motors.
Your dual-voltage motor’s terminal board (under the motor
end cover) will match one of the diagrams below. Follow
that diagram if necessary to convert motor to 115 Volt
power.
Connect power supply wires to L1 and L2. For 3-phase mo-
tors, or if motor does not match these pictures, follow the
connection diagram on the motor nameplate.
Figure 6 – 115/230V Dual Voltage Single Phase Wiring Diagram.

ELECTRICAL (Continued)
3. Disconnect power before servicing motor or pump. If the
disconnect switch is out of sight of pump, lock it open
and tag it to prevent unexpected power application.
4. Ground the pump permanently using a wire of the same
size as that specified in wiring chart (below). Make
ground connection to green grounding terminal under
motor canopy marked GRD. or .
5. Connect ground wire to a grounded lead in the service
panel or to a metal underground water pipe or well cas-
ing at least 10 feet long. Do not connect to plastic pipe or
insulated fittings.
6. Protect current carrying and grounding conductors from
cuts, grease, heat, oil, and chemicals.
7. Connect current carrying conductors to terminals L1 and
L2 under motor canopy. When replacing motor, check
wiring diagram on motor nameplate against Figure 6. If the
motor wiring diagram does not match the diagrams in
Figure 6, follow the diagram on the motor.
IMPORTANT: 115/230 Volt single phase models are
shipped from factory with motor wired for 230 volts. If
power supply is 115 volts, remove motor canopy and re-
connect motor as shown in Figure 6. Do not try to run motor
as received on 115 volt current.
8. Motor has automatic internal thermal overload protec-
tion. If motor has stopped for unknown reasons, thermal
overload may restart it unexpectedly, which could cause
injury or property damage. Disconnect power before ser-
vicing motor.
9. If this procedure or the wiring diagrams are confusing,
consult a licensed electrician.
6
WIRING CHART
Recommended Wire and Fuse Sizes
DISTANCE IN FEET FROM MOTOR TO METER
Branch 0’ 51’ 101’ 201’ 301’ 401’
Max. Fuse* Min. TO TO TO TO TO TO
Pump Load Rating* Wire 50’ 100’ 200’ 300’ 400’ 500’
Model HP Volt Amps Amps Size WIRE SIZE
115 14.2 20 12 12 12 8664
390.2622 1230 7.6 15 14 14 14 14 14 12 10
115 19.2 25 10 10 10 8644
390.262553 1-1/2 230 9.6 15 14 14 14 14 12 10 10
390.2623 2230 12.0 15 14 14 14 14 12 10 10
*Dual element or Fusetron time delay fuses recommended for all motor circuits.

OPERATION
PRIMING THE PUMP
NOTICE: ‘Priming’ refers to the pump expelling all air in the
system and beginning to move water from its source out into
the system. It does not refer only to pouring water into the
pump (although pouring water in is usually the first step).
NOTICE: NEVER run pump dry. Running pump without
water in it will damage seals and can melt impeller and dif-
fuser. To prevent damage, fill pump with water before
starting.
1. Remove priming plug (Figure 7).
2. Make sure suction and discharge valves and any hoses on
discharge side of pump are open.
3. Fill pump and suction pipe with water.
4. Replace priming plug, using Teflon tape on thread;
tighten plug.
NOTICE: If a priming tee and plug have been provided
for a long horizontal run, be sure to fill suction pipe
through this tee and replace plug. (Don’t forget to Teflon
tape the plug.)
5. Start pump: water should be produced in 10 minutes or
less, the time depending on depth to water (not more
than 20’) and length of horizontal run (10’ of horizontal
suction pipe = 1’ of vertical lift due to friction losses in
the pipe).
If no water is produced within 10 minutes, stop pump,
release all pressure, remove priming plug, refill and try
again.
Hazardous pressure and risk of explo-
sion and scalding. If pump is run continuously at no
flow (that is, with discharge shut off or without prim-
ing), water may boil in pump and piping system.
Under steam pressure, pipes may rupture, blow off of
fittings or blow out of pump ports and scald anyone
near.
To prevent explosion, do the following:
A. Be sure discharge (valve, pistol grip hose nozzle, etc.) is
open whenever pump is running.
B. If pump fails to produce water when attempting to prime,
release all pressure, drain pump and refill with cold water
after every two attempts.
C. When priming, monitor pump and piping temperature. If
pump or piping begin to feel warm to the touch, shut off
pump and allow system to cool off. Release all pressure
in system and refill pump and piping with cold water.
7
P
867 0494
P
858 0494
1117 0993

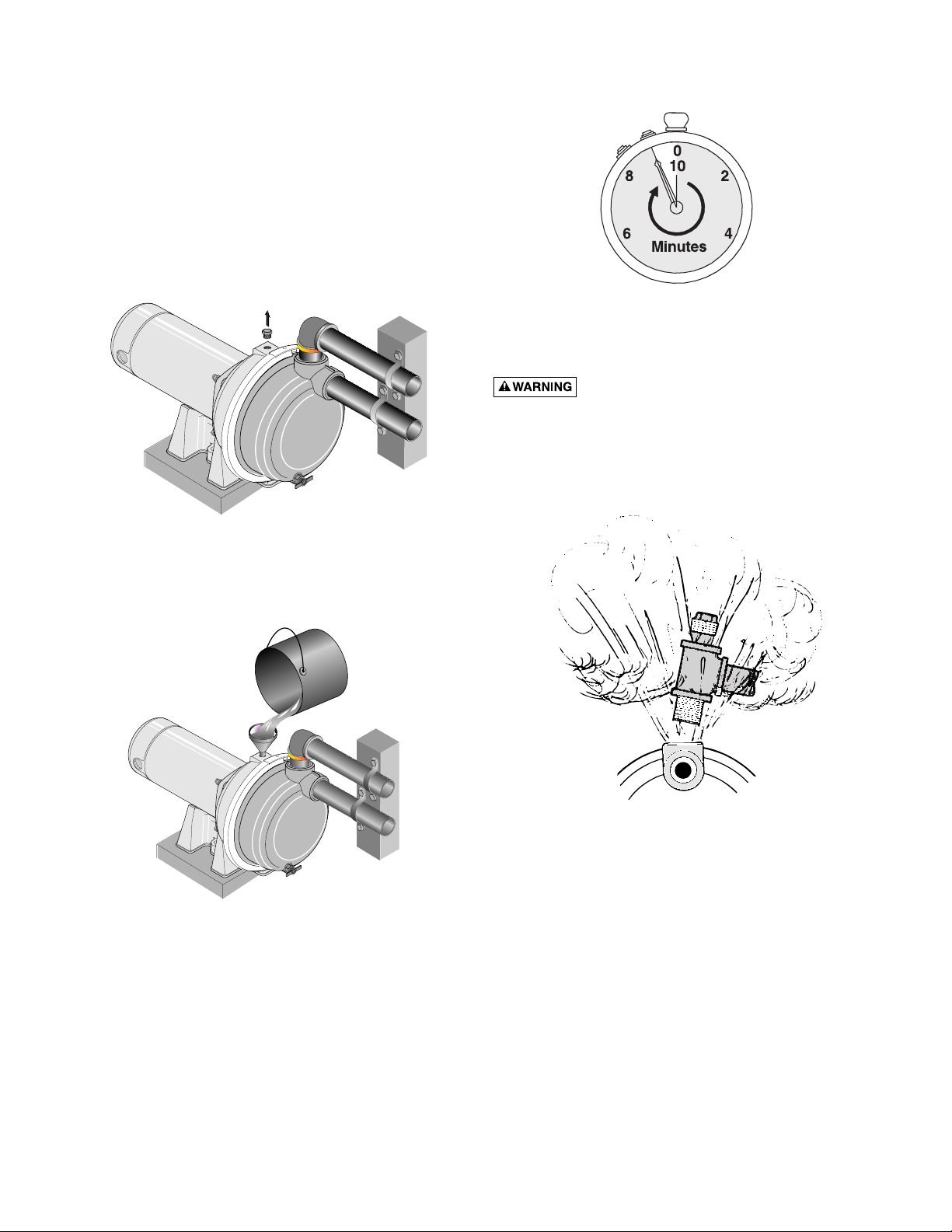

Figure 8 – Fill Pump Before Starting
Figure 10 – Do Not Run Pump With Discharge
Shut Off
Figure 7 – Remove Priming Plug
Figure 9 – Run Ten Minutes Or Less

MAINTENANCE
Pump and piping need not be disconnected to repair or re-
place motor or seal (see Figure 12). If motor is replaced, re-
place the shaft seal (Key No. 6, Page 11). Keep one on hand
for future use.
Be sure to prime pump before starting.
NOTICE: Check motor label for lubrication instructions.
The mechanical shaft seal in the pump is water lubricated
and self-adjusting.
NOTICE: Drain pump when disconnecting from service or
when it might freeze.
PUMP DISASSEMBLY
1. Disconnect power to motor.
NOTICE: Mark wires for correct assembly.
2. Remove clamp (see Figure 12).
3. Remove pump base mounting bolts. Motor assembly and
back half of pump can now be pulled away from pump
front half (Figure 12). CAREFULLY remove O-Ring.

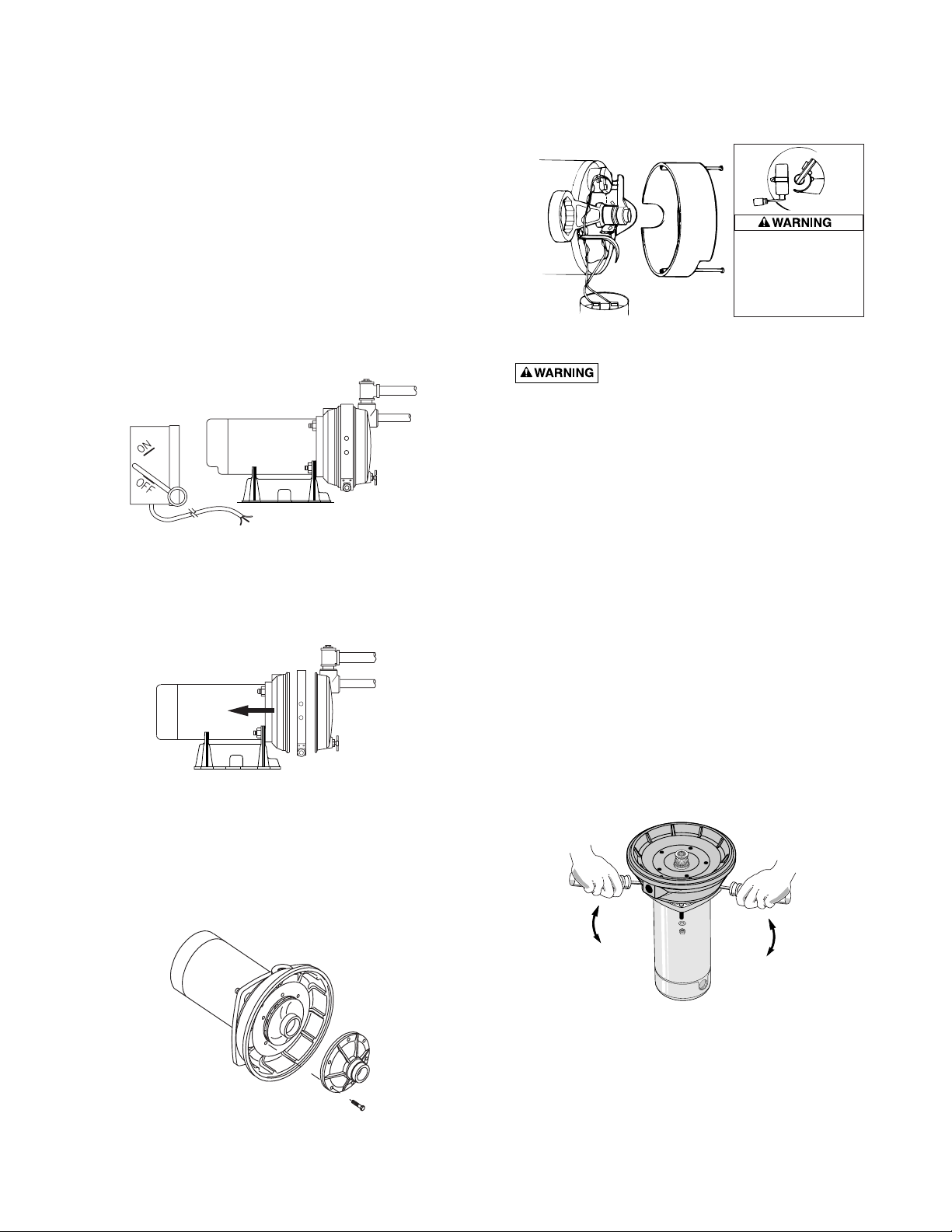

CLEANING/REPLACING IMPELLER
NOTICE: First, follow instructions under “Pump Disassembly”.
1. Remove four screws fastening diffuser to seal plate; re-
move diffuser (see Figure 13). Exposed impeller can now
be cleaned.
2. If impeller must be replaced, loosen two machine screws
and remove motor canopy (see Figure 14).
3. Capacitor voltage may be hazardous.
To discharge capacitor, hold insulated handle screw-
driver BY THE HANDLE and short capacitor terminals
together (see Figure 14). Do not touch metal screwdriver
blade or capacitor terminals. If in doubt, consult a quali-
fied electrician.
4. Unscrew capacitor clamp and remove capacitor. Do not
disconnect capacitor wires to motor.
5. Slide 7/16” open end wrench in behind spring loaded
switch on motor end of shaft; hold motor shaft with
wrench on shaft flats and unscrew impeller by turning
counterclockwise when looking into eye of impeller.
6. To reinstall, reverse steps 1 through 5.
7. See directions under “Pump Reassembly,” Page 10.
REMOVING OLD SEAL
1. Follow instructions under “Pump Disassembly”.
2. Follow steps 2 through 5 under “Cleaning/Replacing
Impeller.
3. Unscrew four nuts holding pump back half to motor.
Remove rotating half of seal by placing two screwdrivers
under back half of pump body and carefully prying up
(Figure 15). Back half of pump body will slide off shaft,
bringing seal with it.
NOTICE: Be sure you do not scratch or mar shaft; if shaft is
marred, it must be dressed smooth with fine emery or cro-
cus cloth before installing new seal. DO NOT reduce shaft
diameter!
8
845 0494
844 0494
Figure 14 – Hold Shaft
To avoid electrical
shock hazard, use
insulated-handle
screwdriver to short
capacitor terminals
as shown.
Figure 12 – Slide Motor Back
Figure 11 – Disconnect Power
Figure 13 – Remove Diffuser
889 0494
Figure 15 – Remove Seal plate

MAINTENANCE (Continued)

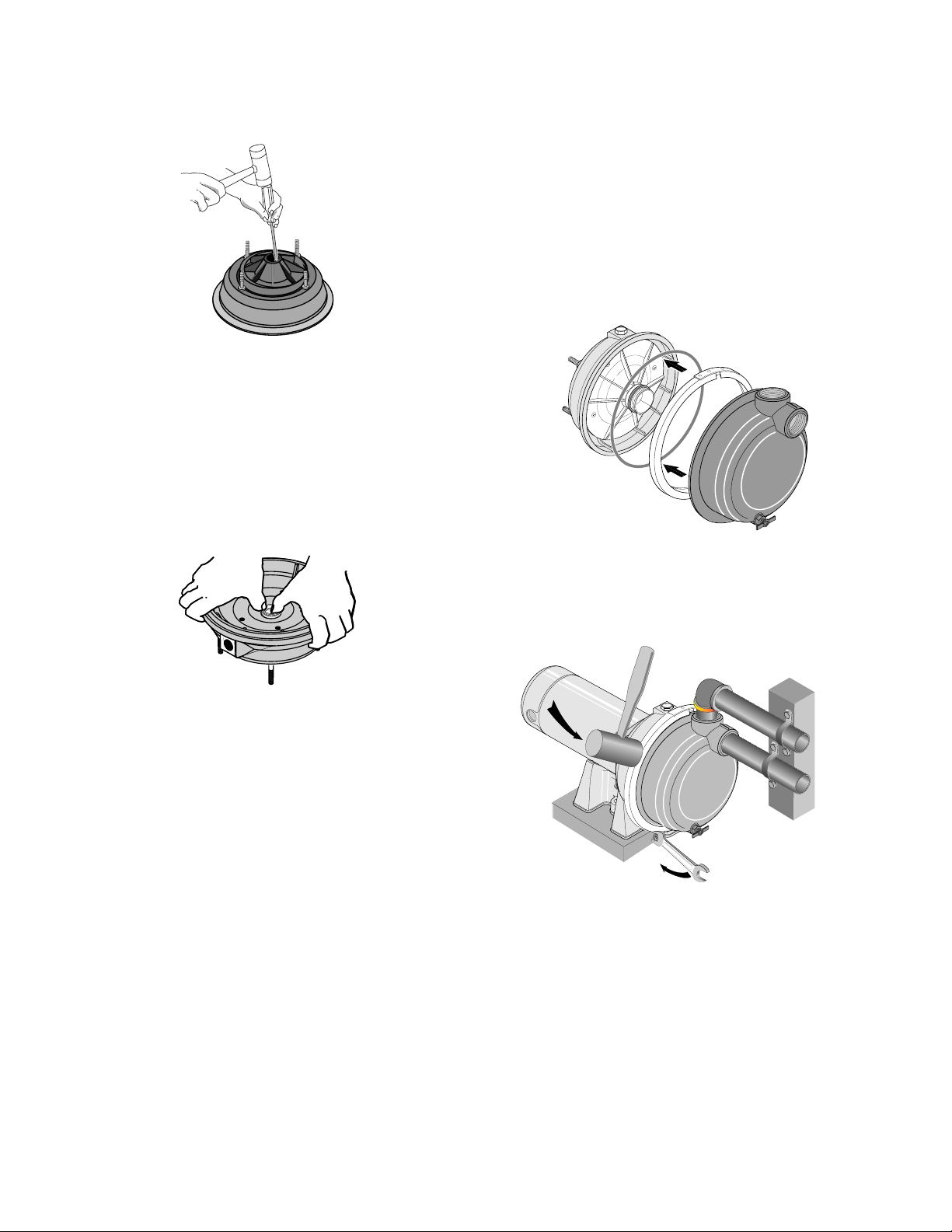

4. Place pump body half face down on flat surface and tap
out stationary half of seal (see Figure 16).
INSTALLING NEW SEAL
1. Wet outer edge of Rubber Cup on ceramic seat with liq-
uid soap. Be sparing!
2. Put clean cardboard washer on seal face. With thumb
pressure, press ceramic seal half firmly and squarely into
seal cavity in seal plate (see Figure 17). Polished face of
ceramic seat is up. If seal will not seat correctly, remove,
placing seal face up on bench. Reclean cavity. Seal should
now seat correctly.
3. If seal does not seat correctly after recleaning cavity, place
cardboard washer over polished seal face and carefully
press into place using a piece of standard 3/4” pipe as a
press.
NOTICE: Be sure you do not scratch seal face.
4. Dispose of cardboard washer and recheck seal face to be
sure it is free of dirt, foreign particles, scratches and
grease.
5. Inspect shaft to be sure it is free of nicks and scratches.
6. Reassemble pump body half to motor flange. BE SURE it
is right side up.
7. Apply liquid soap sparingly (one drop is sufficient) to in-
side diameter of rotating seal member.
8. Slide rotating seal member (carbon face first) onto shaft
until rubber drive ring hits shaft shoulder.
NOTICE: Be sure not to nick or scratch carbon face of seal
when passing it over threaded shaft end or shaft shoulder.
The carbon surface must remain clean or short seal life will
result.
9. Hold motor shaft with 7/16” open end wrench on shaft
flats (Figure 14, Page 8) and screw impeller onto shaft. Be
sure you do not touch capacitor terminals with
body or any metal object. Tightening impeller will au-
tomatically locate seal in correct position.
10.Remount diffuser on pump body half with five screws.
PUMP REASSEMBLY
1. Clean O-Ring and O-Ring groove.
2. Put O-Ring in groove on face of flange; put pump halves
together (see Figure 18).
3. BE SURE inside of clamp is clean. Place clamp on pump
halves; snug up. Alternately tighten screw and tap clamp
with mallet to seat O-Ring (see Figure 19).
4. Replace base mounting bolts.
5. Replace motor wiring; close draincock.
6. Prime pump according to instructions. See “Operation.”
7. Check for leaks.
9
477 0194
Figure 17 – Press in New Seal
479 0194
Figure 16 – Tap Out Seal
L
1
7
6
-
3
5
P
854 0494
Figure 18 – Assemble Pump
Figure 19 – Tap Clamp While Tightening
P
856 0494

TROUBLESHOOTING CHART
10
SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
Motor will not run 1. Disconnect switch is off 1. Be sure switch is on
2. Fuse is blown 2. Replace fuse
3. Starting switch is defective 3. Replace starting switch
4. Wires at motor are loose, 4. Refer to instructions on wiring. Check and tighten all wiring.
disconnected, or wired incorrectly
Capacitor voltage may be hazardous. To discharge
capacitor, hold insulated handle screwdriver BY THE HANDLE
and short capacitor terminals together. Do not touch metal
screwdriver blade or capacitor terminals. If in doubt, consult a
qualified electrician.
Motor runs hot and 1. Motor is wired incorrectly 1. Refer to instructions on wiring
overload kicks off 2. Voltage is too low 2. Check with power company. Install heavier wiring if wire
size is too small (See Electrical, Pages 5 and 6)
Motor runs but no *1. Pump in new installation did 1. In new installation:
water is delivered not pick up prime through:
a. Improper priming a. Re-prime according to instructions
b. Air leaks b. Check all connections on suction line
c. Leaking foot valve c. Replace foot valve
*2. Pump has lost prime through: 2. In installation already in use:
a. Air leaks a. Check all connections on suction line and shaft seal
b. Water level below suction b. Lower suction line into water and re-prime. If receding water level
of pump in well exceeds suction lift, a deep well pump is needed
3. Impeller is plugged 3. Clean impeller; see Maintenance
4. Check valve or foot valve is stuck 4. Replace check valve or foot valve
in closed position
5. Pipes are frozen 5. Thaw pipes. Bury pipes below frost line. Heat pit or pump house.
6. Foot valve and/or strainer are 6. Raise foot valve and/or strainer above well bottom
buried in sand or mud
Pump does not 1. Water level in well is lower than 1. A deep well jet pump may be needed (over 20 ft. to water)
deliver water to full estimated
capacity (Also 2. Steel piping (if used) is corroded or 2. Replace with plastic pipe where possible, otherwise with new
check point 3 limed, causing excess friction steel pipe
immediately above) 3. Offset piping is too small in size 3. Use larger offset piping
Pump leaks 1. Clamp loose 1. STOP PUMP, tighten clamp nut 1-2 turns. Alternately tighten nut and
around clamp and tap clamp with mallet to seat O-Ring. Do not overtighten
*(Note: Check
prime before look-
ing for other
causes. Unscrew
priming plug and
see if there is
water in priming
hole.)

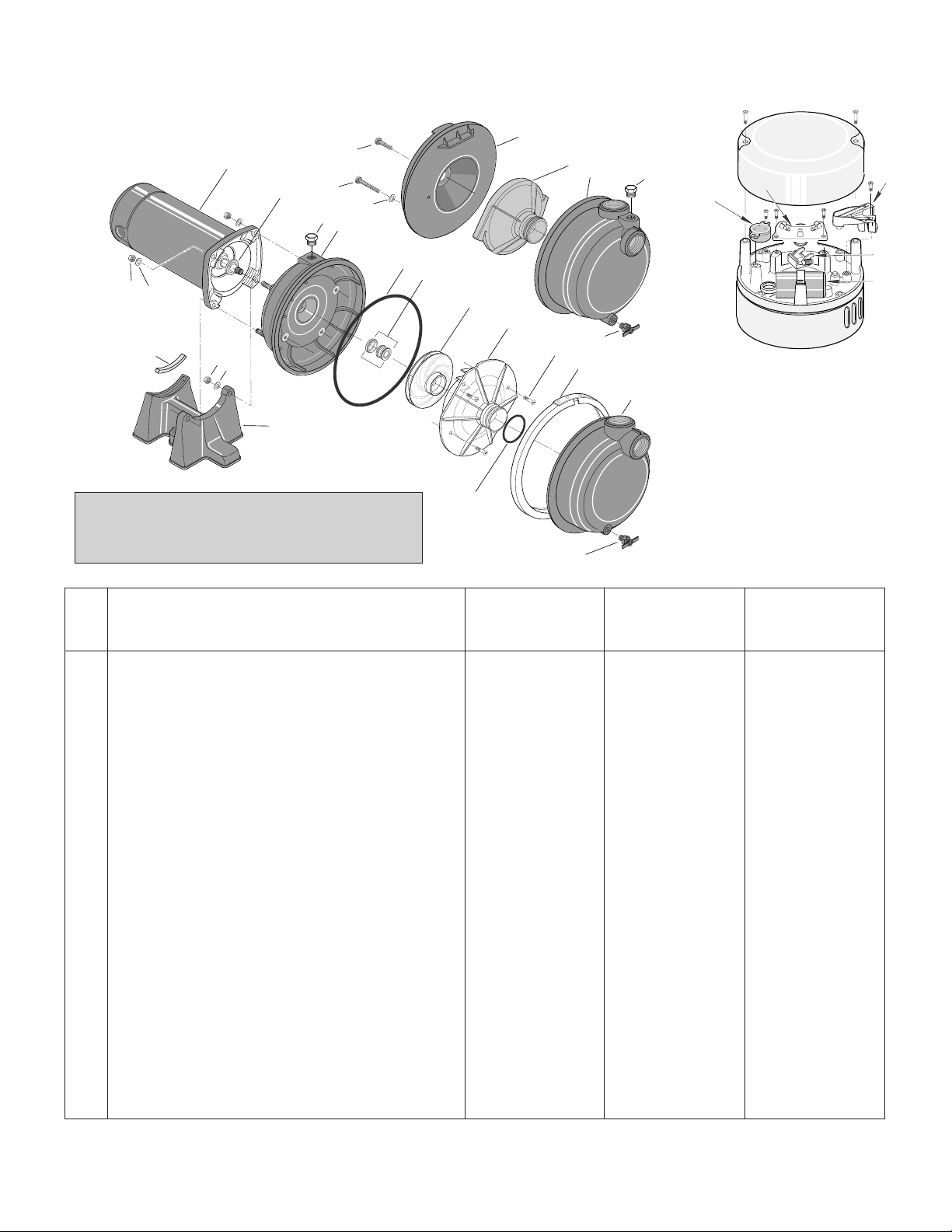

REPAIR PARTS
11
L
1
7
6
-
3
5
P
1
4306 0103
2
3
3
4
4
5
6
7
8
8A
9
10
11
11A
12
12
13
14
15
16
17
16 18
19
20
21
390.2622 390.262553 390.2623
115/230V 115/230V 230V
Key Part 60 Cy/1 Ph 60 Cy/1 Ph 60 Cy/1 Ph
No. Description 1 HP 1-1/2 HP 2 HP
1Motor J218-1029 J218-956C A100GSL
1A Overload Protector – U18-1342 U18-1406
1B Terminal Board – U18-1180 U18-1180
1C Contactor – U18-1098 U18-1098
1D Governor – U18-128 U18-128
1E Capacitor – U18-525 U18-525
2Slinger 17351-0009 17351-0009 17351-0009
3Priming Plug 1/2” NPT * * *
4Tank Body Back Half Complete L176-47P1 L176-47P1 C3-189P1
5O-Ring U9-399 U9-399 U9-228A
6Shaft Seal for 5/8" Shaft U109-6A U109-6A U109-6A
7Impeller C105-92PVB C105-92PBBB C105-214PFA
•Impeller Screw – – C30-51SS
8Diffuser C1-258PCA C1-258PCA –
8A Diffuser – – C1-274P
9Screw - #8 - 32 RH U30-869SS U30-869SS U30-542SS
(1 and 1-1/2 HP – 4 Req’d; 2 HP – 2 Req’d.)
•Lockwasher – – U43-21SS
10 "V" Clamp C19-54SS C19-54SS C19-37A
11 Tank Body Front Half (Incl. No. 12) C176-53PA C176-53PA –
11A Tank Body Front Half Complete (Incl. Nos. 3 and 12) – – C176-62PA
12 Draincock - 1/4 NPT U212-68T U212-68T U212-68T
13 O-Ring U9-226 U9-226 U9-393
14 Base C4-42P C4-42P C4-42P
15 Flat Washer 5/16 (2 Req’d.) * * –
16 Nut - 5/16 - 18 (4 Req’d.) * * –
17 Rubber Pad C35-11 C35-11 C35-11
18 Lock Washer - 5/16 (2 Req’d.) U43-11ZP U43-11ZP –
19 Capscrew, 3/8 - 16 x 1-3/4” (2 Req’d.) – – U30-77SS
20 Flat Washer 5/16 (2 Req’d.) – – U43-42SS
21 Capscrew, 3/8 - 16 x 1” (2 Req’d.) – – U30-74SS
• Not illustrated
* Standard hardware item. Purchase locally.
To order parts, call:
Sears Product Service, 1-800-366-7278
1A
L1
L2
1B 1C
1D
1E
Wiring omitted
for clarity

For the repair or replacement parts you need
Call 7 am - 7 pm, 7 days a week
1-800-366-PART
(1-800-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1-800-4-REPAIR
(1-800-473-7247)
For the location of a
Sears Repair Service Center in your area
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears
Maintenance Agreement or to inquire
about an existing Agreement
call 9 am - 5 pm, Monday-Saturday
1-800-827-6655
MAINTENANCE
AGREEMENT
America's Repair Specialists
REPAIR SERVICES
America's Repair Specialists
REPAIR SERVICES
America's Repair Specialists
REPAIR SERVICES
OWNER’S
MANUAL
Model No.
390.2622
390.262553
390.2623
The model number of
your Sprinkler Pump will
be found on a plate
attached to the side of
the pump body.
When requesting service
or ordering parts, always
give the following
information:
• Product Type
• Model Number
• Part Number
• Part Description
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
HYDROGLASS®
HIGH PRESSURE
SPRINKLER PUMP
®
