SECO-LARM SLI ENFORCER MVE-AHMPM-41NQ User manual

®
MVE-AHMPM-41NQ
4K HDMI Extender over IP
Manual
Features:
•Extends HDMI over one Cat5e/6 cable or
IP network
•
Supports One-to-One, and One-to-Many
applications
•
Power adapters and IR hardware included
•IR Support (20kHz~60kHz)
•
HDCP Compliant
•
Receiver (MVE-AHMPM-41NRQ) also
available separately
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.

ENFORCER 4K HDMI Extender over IP
2SECO-LARM U.S.A., Inc.
The MVE-AHMPM-41NQ 4K HDMI Extender over IP extends the range of HDMI signals by using an active
transmitter and receiver to send video and audio over a single Cat5e/6 cable. The
4K HDMI Extender over IP
supports IR signals using the included IR transmitter and receiver, allow
ing remote control use from one end
of an installation to control a device such as a media player or DVD player at the opposite end of the
installation. The MVE
-AHMPM-41NQ supports One-to-One, and One-to-Many installations, allowing the
connection of multi
ple units for extended range.
1x
Transmitter
1x
IR Transmitter
2x
Power adapters
1x
Receiver
1x
IR Receiver
1x
Manual
Model
Transmitter
MVE-AHMPM-41NTQ
Receiver
MVE-AHMPM-41NRQ
Maximum video resolution
4K@30Hz
Deep color
24-bit
Video formats supported
DTV/HDTV: 480i, 480p,576i,576p,720p,1080i, 1080p, 4K@30Hz
Range – 4K
Cat5
262ft (80m)
Cat5e
328ft (100m)
Cat6
393ft (120m)
IP addressing
Static
IR frequency
20kHz~60kHz
Operating voltage
5VDC
Power supply
2A@5VDC
Power consumption
6W
4W
Operating temperature
32°~140° F (0°~60° C)
Dimensions
47/16"x15/16"x311/16" (112x23x94 mm)
Weight
5.9-oz (170g)
Specifications:
Overview
Introduction:
Parts List:
*Input/output are reversed on the transmitter
Cat5e/6 Input *
5VDC
Power LED
Status LED
Network LED
HDMI Output*
IR Input*
Reset
Receiver shown

ENFORCER 4K HDMI Extender over IP
SECO-LARM U.S.A., Inc. 3
Installation:
Sample Applications — One-to-One:
Power
Adapter
HDMI Display
Transmitter
IR RX
Remote
Receiver
For maximum cable length,
see "Specifications"
IR TX
HDMI Source
Power
Adapter
Cable Legend:
HDMI
Power
IR
Cat5e/6
1. Determine the location where the 4K HDMI Extender over IP units will be installed as well as how much
Cat5e/6 cable will be necessary.
2.
Connect the transmitter to the HDMI output of the source device.
3.
Connect the transmitter and receiver:
a. If connecting One-to-One, connect one end of the Cat5e/6 cable to the transmitter and the other end
directly to the receiver.
b. If installing with a switch or router, connect one end of the Cat5e/6 cable to the transmitter and the
other end to a switch or router. Then, with a second Cat5e/6 cable connect the receiver to the other
end of the switch or router.
4.
Connect the receiver to the HDMI input of the display or other device.
5.
Connect one 5VDC adapter to the transmitter and the other to the receiver.
6.
If remote control is desired:
a. Install the IR transmitter extension to the IR OUT port of the transmitter
, pointing the IR transmitter at
the IR sensor of the device to be controlled.
b. Install the IR receiver extension to the IR IN port of the receiver, pointing the IR receiver in a direct
line of sight to where the remote control will be.
c. Point the remote control at the IR receiver when in use.
7.
Switch on the HDMI source and display to verify that the system is functioning properly. It may take up to
a minute to sync up the video stream.

ENFORCER 4K HDMI Extender over IP
4SECO-LARM U.S.A., Inc.

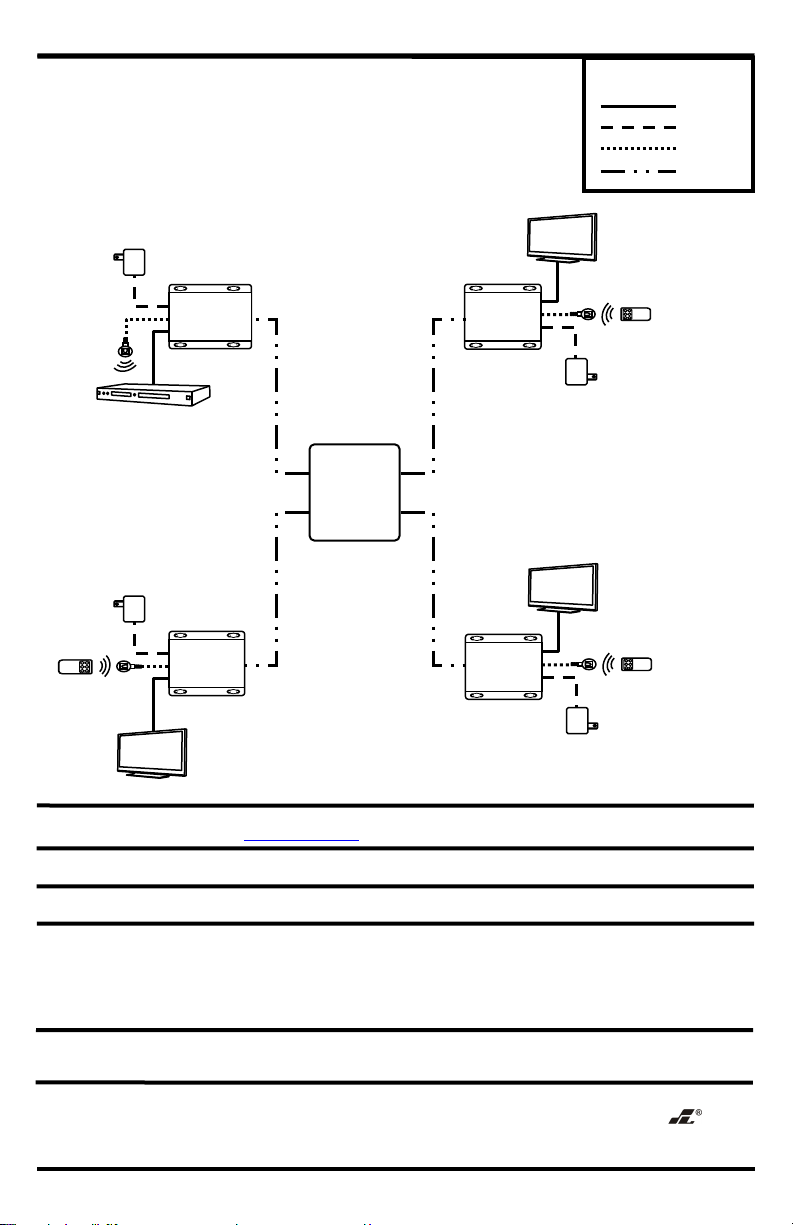

Sample Applications — One-to-Many, Switch/Router:
SECO-LARM
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Website: www.seco-larm.com
Phone: [phone] | [phone]
Email: [e-mail]
PICLN3
MI_MVE-AHMPM-41NQ_210524.docx
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the right to change specifications without
notice. SECO
-LARM is also not responsible for misprints. All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 202
1
SECO-LARM U.S.A., Inc. All rights reserved.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for one (1) year from the date of sale
to the original customer. SECO
-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is
returned, transportation prepaid, to
SECO
-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, negl
ect, repair or alteration, improper
or abnormal usage, or faulty installation, or if for
any other reason SECO-
LARM determines that such equipment is not operating properly as a result of causes other
than defects in material and workmanship. The sole obligation of
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replace
ment or repair
only, at
SECO-LARM’s option. In no event shall SECO-
LARM be liable for any special, collateral, incidental, or consequential personal or property damage of any kind
to the purchaser or anyone else.
IMPORTANT: Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and statutes related to
monitoring and recording audio and video signals. SECO-LARM will not be held responsible for the use of this product in violation of any current laws or statutes.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
For maximum cable
length, see
"Specifications"
HDMI Display
IR RX and Remote
HDMI
Display
Receiver
3
Power
Adapter
IR RX and
Remote
Power
Adapter
Receiver
2
LAN
Switch
Power
Adapter
HDMI Source
IR TX
Receiver
1
Power
Adapter
HDMI
Display
Transmitter
1
Cable Legend:
HDMI
Power
IR
Cat5e/6
IR RX and Remote
