Sector ERAD500/7DT User manual

Important Safety Advice
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of re, electrical shock, and
injury to persons, including the following:
IMPORTANT – The wall bracket supplied
with the appliance must be used.
WARNING – DO NOT USE THIS HEATER
IN THE IMMEDIATE SURROUNDINGS OF
A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a
room containing a bath or shower, it must be
so installed that switches and other controls
cannot be touched by a person using a bath
or shower.
Do not use outdoors.
Do not locate the heater immediately below
a xed socket outlet or connection box.
WARNING: In order to avoid overheating, do
not cover the heater. Do not place material
or garments on the heater, or obstruct the
air circulation around the heater, for instance
by curtains or furniture, as this could cause
overheating and a re risk.
NEVER cover or obstruct in any way the heat
outlet slots at the top of the heater or the air
inlet slots in the base of the heater.
The heater carries the Warning symbol
indicating that it must not be covered.
CAUTION - Some parts of this product
can become very hot and cause burns.
Particular attention has to be given where
children and vulnerable people are present.
This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
Installation and Operating Instructions
INSHUKP7RG Issue 0
7 Day Programmable Electric Radiators
Dimensions
(millimetres)
Model(s)Watt A B
ERAD500/7DT 500 503 104
ERAD750/7DT 750 503 104
ERAD1000/7DT 1000 671 104
ERAD1500/7DT 1500 741 104
ERAD2000/7DT 2000 911 104
Fig. 1
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintainance shall not
be made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate
and clean the appliance or perform user
maintainance.
Note that due care and consideration must
be taken when using this heater in series
with a thermal control, a program controller,
a timer or any other device that switches on
the heat automatically, since a re risk exists
when the heater is accidentally covered or
displaced.
If the supply cord is damaged it must be
replaced by the manufacturer or service
agent or a similarly qualied person in order
to avoid a hazard.
WARNING: Servicing and product
repairs should only be undertaken by the
manufacturers approved service agent or a
similarly qualied person, using only exact
manufacturer approved spare parts.
A means for disconnection must be
incorporated in the xed wiring of the
premises in accordance with the wiring
rules. The supply circuit to the heater must
incorporate a double pole isolating switch
having a contact separation of at least 3mm.
A
536
B
150
Min.
300 Min.
shelf
150 Min.

Operation
Switching On the Heater
The controls are located on the right hand side on top of the appliance.
The button marked ‘ ’ controls the electricity supply to the electronic
thermostat. An indicator beside the ‘ ’ button shows when the unit
is powered ‘ON’.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance with the
following code:
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
BLACK : PILOT WIRE
- see also ‘Pilot Wire Connection’.
The heater is tted with a length of exible cable type H05VV-F size 4
x 1.0mm2 for connection to the xed wiring of the premises through a
suitable connection box positioned adjacent to the heater.
The supply circuit to the heater must incorporate a double pole isolating
switch having a contact separation of at least 3mm.
Pilot Wire Connection
The BLACK control wire is designed to carry a signal from slot in or
wall mounted programmers. If, however a programmer is not being
used, the pilot wire should be isolated in accordance with the current
IEE Wiring Regulations.
IMPORTANT - DO NOT connect the BLACK pilot wire to earth. Care
should be taken with the installation of the pilot wire(s) as when
switching to background (set back) they become energised at 240V
although only at a current of less than 100mA. In every case a suitable
means of isolation must be provided for the pilot wire and marked
to indicate that two sources of supply may be present at the heater.
Where pilot wires are installed separately from the heater nal sub-
circuit they should be protected, double insulated and carry their own
integral earth continuity conductor.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing conductor
in the supply cord is deemed to provide the supplementary bonding
connection (see Regulation 544.2.5, 17th Edition I.E.E. Wiring
Regulations).
General
The heater is designed for wall mounting on the wall bracket supplied.
It should only be operated when in the upright position as shown -
see Fig. 1.
All models are splashproof to IPX4 standard and may be used in
bathrooms, however not in the immediate vicinity of baths, showers,
water connections, wash basins or swimming pools.
Before connecting the heater check that the supply voltage is the same
as that stated on the heater.
NOTE - Lit cigarettes, candles and oil burners, combined with the
convection effect of electric heaters can cause soot deposits to build
up on the surface directly above and to the sides of the heater. This
is not a fault of the heater. Extensive burning of candles or smoking
in the operating environment of this product can produce heavy
discolouration within a few months of use.
Wall Mounting
IMPORTANT – The wall bracket supplied with the appliance must
be used. The heater should be positioned observing the minimum
clearances stated around the heater - see Fig. 1 and Fig. 2.
DO NOT locate the heater immediately below a xed socket outlet
or connection box.
1. Remove wall mounting bracket from the back of the heater
by depressing the spring latch at the top of each bracket - see
Fig. 2.
2. Fix the wall bracket securely to the wall through the four screw
holes provided.
3. Present the heater to the wall bracket, and engage lower slots
in the back with bracket.
4. Raise the heater to upright position and push the heater onto
bracket to engage top latch.
Fig. 2
MAX
MIN
Fig. 3
Turn on the heater using the ‘ ’ button and rotate the thermostat knob
to the desired position. When the room temperature has reached the
desired level, the power to the elements will be reduced, the heater
will then maintain the room temperature at the chosen level.
NOTE - Should your heater fail to come on when the thermostat knob
is at a low setting, this may be due to the room temperature being
higher than the thermostat setting.
Background Temperature
When used in conjunction with a remote programming device
supporting a background/setback setting, the heater will automatically
operate at a room temperature setting of 50C less than the thermostat
setting when the programme is in background/setback mode.
Limiting the thermostat setting
Before wall mounting the product the installer may wish to limit the
heat selection knob movement for the operator. This may be achieved

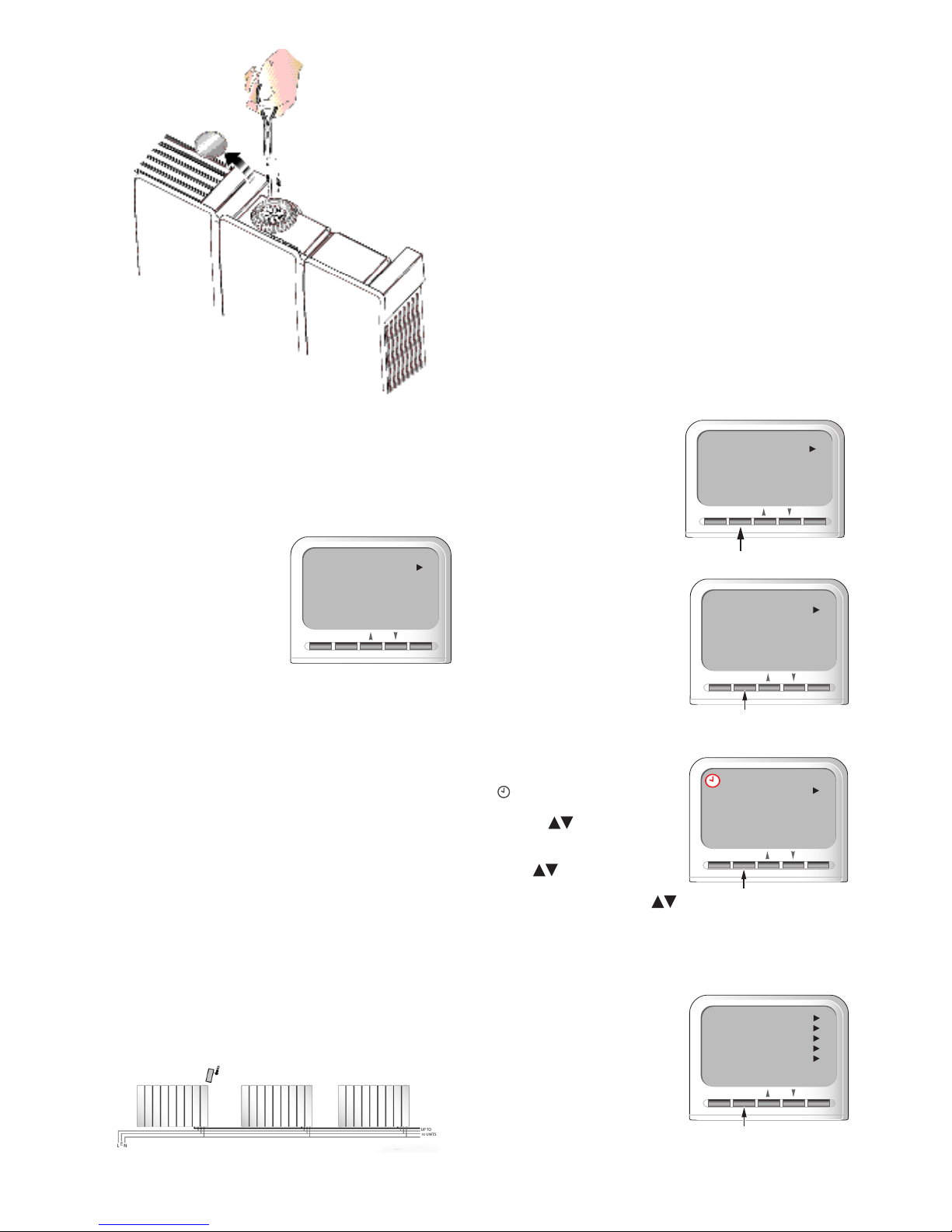

by unclipping the knob and removing the two plastic pins (see Fig. 4)
using pliers and inserting them in the preferred holes to limit the knob
movement. Replace the plastic cap.
Setting Desired Temperature (see Fig. 3)
The heater is tted with an adjustable thermostat enabling the room
temperature to be controlled by rotating the knob accordingly. The min
setting ‘ ’ represents a room temperature of approximately 50C and
may be used for protection against frost. The ‘MAX’ setting represents
a room temperature of approximately 300C. The ‘ ’ symbol glows when
the elements are actually heating.
D
255 Min.
C
C D
ERAD500 390 300
ERAD750 390 300
ERAD1000 560 300
ERAD1500 630 300
ERAD2000 800 300

Any 240V insulated cable may be used to link pilot wires around
the ring main. The signal current is low. Suitable connections would
be either an additional single core wire marked or colour coded
appropriately or use a 4 core cable throughout the heater ring.
Operating Instructions
The programmer can be programmed either inserted directly into the
heater or out of the heater. If choosing the latter option, the cassette
must be rst left in the heater for 2 days to charge the battery.
Remember that the battery only lasts for 24 hours.
Operating instructions for the 7-day timer/
programmer module
General
The HSP ELT Electronic panel heater is supplied with a 7-day
programmable controller pre-tted as standard. The 7 Day Timer
programmer offers either individual programming (each individual
heater has a programming
module) or group programming
from a master heater through the
pilot wire. Zone programming can
drive up to 10 slave heaters.
Two heating positions are offered:
comfort and off, with temperatures
set using the controls on the
heater.
For default Screen – see Fig. 5.
Individual radiator programming
Note: When the heater is individually controlled, the black pilot wire
in the mains supply cable should be isolated in accordance with the
current IEE wiring regulations.
Programming a Zone with multiple radiators
Where multiple radiators are installed, the radiator containing the
7-day timer programmer is the Master radiator and is connected
by the black pilot wire to the Slave radiators. The Master radiator
determines the Programme and heating levels for all the radiators
(Comfort and Off), but the actual comfort temperature should still be
set on each individual heater (see ‘Setting Desired Temperature’).
The master heater will switch between Comfort and Off according to
the programme.
Electrical Connection where Master Slave radiators are
installed
DO NOT connect the BLACK (PILOT) SIGNAL WIRE to earth.
When the programmer drives other heaters, connect the pilot wire
from the ‘MASTER’ unit to the pilot wire of a ‘SLAVE’ heater and then
from one ‘SLAVE’ heater to another (in series) – see Fig 6.
Problem Solving
In the event that no display appears on your 7-day timer do the
following: 1. Press any button to reactivate the display.
Failing this – 2. Return to the heater to charge battery (internal battery
lasts for 24 hours when timer is removed from heater). Display will
appear immediately but battery will be fully charged in 2 days.
Mode Selection
There are three different operating modes. Press MODE to cycle
through these:
MAN OFF - heating is
permanently Off – see Fig.
5. This is also the default
screen.
MAN ON – heating is permanently
On – see Fig. 7.
AUTO – runs the programmed
times – see Fig. 8.
MODE PROG ENTER
12:13
MAN OFF
M
T
W
T
F
S
S
Fig. 5
MODE PROG ENTER
00:00
MAN ON
M
T
W
T
F
S
S
Fig. 7
MODE PROG ENTER
00:00
AUTO ON
M
T
W
T
F
S
S
Fig. 8
Set Time
Press the PROG key once (from
default display) to set time. The ‘
’ appears – see Fig. 9 – on the
screen and the hours can be set
using the keys.
Press ENTER when nished
setting the hours. Set minutes
using the keys and press
ENTER. Then choose the day
from Mon to Sun using the
keys and press ENTER to exit.
Time and day are now set.
Set Programme
The timer can only be programmed
in 2 blocks i.e. 1st Block -
Weekdays: Mon-Fri Press PROG
twice – see Fig. 10. The Weekday
programs are now ready to be set
(starting with P1 ON, where P1
ON is the rst ON time setting) go
to a) below:
MODE PROG ENTER
00:00
MAN OFF
M
T
W
T
F
S
S
Fig. 9
Fig. 10
Fig. 4
Fig. 6
MASTERS LAVE SLAVE
MODE PROG ENTER
00:00
AUTO OFF
M
T
W
T
F
S
S
ON
P1

Safety - Overheat Protection
For your safety this appliance is tted with a thermal cut-out. In the
event that the product overheats for some reason, the cut-out prevents
excessive temperatures on the product by cutting the power to the
heater. Once the heater has cooled down, it will reset automatically,
it will continue to cycle on and off automatically until the reason for
overheating is removed.
Cleaning
WARNING – ALWAYS DISCONNECT FROM THE POWER SUPPLY
BEFORE CLEANING THE HEATER.
Before commencing cleaning, disconnect the electricity supply to the
appliance and allow it to cool.
The outside can be cleaned by wiping it over with a soft damp cloth
and then dried. Do not use abrasive cleaning powders or furniture
polish, as this can damage the surface nish.
To release heater from the wall bracket for cleaning or redecoration,
depress latch on both brackets (see Fig. 2) and hinge forward.
NOTE - Lit cigarettes, candles and oil burners, combined with the
convection effect of electric heaters can cause soot deposits to build
up on the surface directly above and to the sides of the heater. This
is not a fault of the heater. Extensive burning of candles or smoking
in the operating environment of this product can produce heavy
discolouration within a few months of use.
Recycling
For electrical products sold within the European
Community. At the end of the electrical products
useful life it should not be disposed of with
household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for
recycling advice in your country.
After Sales Service
Your product is guaranteed for two years from the date of purchase.
Within this period, we undertake to repair or exchange this product
free of charge provided it has been installed and operated in
accordance with these instructions. Your rights under this guarantee
are additional to your statutory rights, which in turn are not affected
by this guarantee.
Should you require after sales service you should contact our
customer services help desk on 0117 923 5375. It would assist us
if you can quote the model number, series, date of purchase, and
nature of the fault at the time of your call. The customer services help
desk will also be able to advise you should you need to purchase
any spares.
Please do not return a faulty product to us in the rst instance as
this may result in loss or damage and delay in providing you with a
satisfactory service. Please retain your receipt as proof of purchase.
GDC LTD
MILLBROOK HOUSE
GRANGE DRIVE
HEDGE END
SOUTHAMPTON
SO30 2DF
A division of GDC Group ltd.
TEL: [phone]
FAX: [phone]
Website: www.gdcgroup.co.uk
Republic of Ireland
Tel: [phone]
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC
[c] GDC Group Ltd,
All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of GDC Group Ltd.
2nd Block - Weekends:
Sat & Sun Press PROG twice and
then press MODE once – see Fig.
11.
The Weekend programs are now
ready to be set (starting with P1
ON, where P1 ON is the rst ON
time setting), go to a) below:
Fig. 11
a) set P1 ON time: Set the hours using and press ENTER. Then
set the minutes using and press ENTER.Note: Time in minutes
can only be set in 10 minute blocks.
Then set P1 OFF time: Set the hours using and press ENTER.
Then set the minutes using and press ENTER. If only one
program is required, press PROG now to return to default display OR
b) set P2 ON and OFF times: repeat procedure as ‘a)’
above.
c) set P3 ON and OFF times: repeat procedure as ‘a)’.
d) set P4 ON and OFF times: repeat procedure as ‘a)’.
After P4 Weekday OFF time has been set, the User will be prompted
to set P1 ON time for Weekends.
After P4 Weekend OFF time has been set the default Screen is
displayed.
At any time while programming the timer, pressing the PROG button,
this will exit to the default display. Timer must be in AUTO mode to
run Set Programs.
NOTE: To cycle quickly from weekdays to weekends press the MODE
button. There are 4 programs for weekdays and 4 for weekends.
Key Lock
To lock the keypad press ENTER
and release, then press MODE
within 1 second. The key symbol
will appear on the screen when the
keypad is locked – see gure 12.
To unlock the keypad repeat the
action above. If any of the buttons
on the keypad are pressed when it
is locked, thelight will automatically
come on.
The Advance Function
When in AUTO mode, if is
pressed for longer than 2 seconds
the program will advance to the
next programmed setting. When
the ADVANCE function is active
ADVANCE will be displayed on the
screen – see gure 13.
To cancel ADVANCE press for longer than 2 seconds e.g. If
present time is 14:00 and P1 ON is at 17:00 and P1 OFF is 19:00, if
is held for 2 seconds then ADVANCE appears on the screen. The
heater comes on and remains on until 19:00. ADVANCE disappears
from the screen at 17:00 as set program is then running.
MODE PROG ENTER
00:00
MAN OFF
M
T
W
T
F
S
S
Fig. 12
MODE PROG ENTER
00:00
AUTO OFF
M
T
W
T
F
S
S
ON
P1
MODE PROG ENTER
00:00
ON
AUTO
ADVANCE
M
T
W
T
F
S
S
Fig. 13
