SecuLock ND-S Series User manual

ND-S Series
S200, S201, S220
User Manual
A non-key door lock may be partially broken to open the door
when it malfunctions.
Retain this user manual for future reference after reading it
thoroughly.
Rim locks
ND-S
S200, S201, S220
Rim locks
User Manual

Safety Precautions 3
Products Specifications/Components 4
Parts Name 5
PIN-codes Activation / Deactivation 6
Card keys Activation / Deactivation 7
Remote Controllers Activation / Deactivation 8
Fingerprints Activation / Deactivation 9
Double Authorization Mode 10
Pre Authentication Mode 11
Opening Door / Locking Door
● Opening the Door from Outside 12
● Locking the Door from the Outside 12
● Opening the Door from Inside 13
● Locking the Door from Inside 13
Safety Lock Mode [Outdoors/Indoors] 14
Automatic / Manual Lock Mode 15
Volume Setting 16
Warning Alarms
● Fire Detection Alarm 17
● Intrusion Alarm 17
● 1min. Mischief Prevention 17
● Dead bolt Warning Alarm 17
● Low Battery 18
Trouble Shooting 19
CONTENTS
ㆍ The contents and images of this manual are subject to change without prior
notice to improve the quality of the products.

_ 3
ㆍ Read this manual carefully and use the product accordingly.
ㆍ This product was designated for the residential fire door, if it is used
for other purpose, the performance cannot be warranted for its original
purpose.
ㆍ Long-term exposure to direct sunlight, to moisture or to salinity may
cause deformation of the product.
ㆍ Make sure that the door is completely closed when going outside.
ㆍ Do not recommend installing in condensation environments. This may
cause problems with product performance.
ㆍ Do not disassemble and assemble the product in person.
ㆍ Do not use sharp objects like a drill, a pin and a screwdriver to push the
touch screen, as this can damage the product.
ㆍ Do not expose Pin-codes to an unauthorized person and change them
regularly.
ㆍ Do not operate the product with wet hands and do not allow water to
enter the product.
ㆍ Do not insert batteries with the positive and negative polarities
reversed. It may cause leakage, heat generation, explosion or fire.
ㆍ Replace all batteries immediately after they run out of power.
(Do not use old and new batteries at the same time.)
ㆍ Use the soft dry fabrics to clean the product.
ㆍ Do not use the product for other use.
Safety Precautions
ㆍ Installation of the product by an unauthorized person may result in malfunctions
of the product. Installation work must be performed in accordance with the
standards by authorized personnel only.
_ 3

_ 4
● Products Specifications
Model
Authentication Method
PIN-code
(up to 10)
Card key
(up to 30)
Fingerprint
(up to 100)
Emergency
Key (2ea)
Remote controller
(Optional Features)
S200
up to 5
S201
S220
DescriptionSpecification
Door Thickness 40~50mm
Rated Voltage DC6V (LR6 1.5V AA Alkaline battery only)
Operating Temperature -20℃~ 50℃
Temperature Sensor Operating Range 60℃ (±5℃)
MaterialAl, Zn, ABS
ㆍ If the door thickness is out of the standard specification, please be advised from an expert
for installation. The screws may differ according to the door thickness.
● Products Components
ㆍOuter body, Inner Body ㆍStrike, Spacer
ㆍAA batteries 4ea ㆍScrews
ㆍUser Manual ㆍInstallation Instruction / Installation Template
ㆍRemote Controller (Optional)
1.
2.
3.
4.
Registration of New Authentication Measures
While registering authentication measures such as PIN-codes, Card keys, Fingerprints
and remote controllers, the door has to be open. Before closing the door, test first if the
Dead bolt is operating properly by using [OPEN/CLOSE] button.
Registered authentication measures cannot be individually deleted. When registering
new authentication measures, all previously registered authentication measures will be
automatically deleted. (PIN-code, Card key, Remote Controller)
If there were no inputs for 7 seconds after pressing the button, the touch plate will
be off and the registration process will be cancelled.
The default PIN-code is “1234” to be operated during its initial setup.
※ Remote Controller is optional.
Products Specifications/Components

_ 5 _ 5
● Inner body
General Model Fingerprint Model
Fingerprint Reading Panel
(only for applied models)
Numeric Touch Plate
Card Key Touch Plate
Emergency Power Supply Terminal
Battery cover locking screw
● Be loosened Counter Clockwise to OPEN
● Be tightened Clockwise to CLOSE
button
Batteries
Thumb Turn button
Dead bolt
Sub latch bolt
[OPEN/CLOSE] button
Horizontal type
Vertical type
※All images shown are for illustration purposes only.
Their design and colors may differ in accordance with the model.
Parts Name
● Outer body

_ 6
● PIN-codes Activation
2
3
Beep
BeepBeep
Open the battery cover,
press the button shortly. When the Numeric touch
plate is on, enter the registered PIN-code with the
[ ] button and press the number [1].
1Open the battery cover, press the
button shortly. When the numeric
touch plate is on, enter the registered
PIN-code with the [ ] button.
only applied S220 model
2
3
Enter new PIN-code (4-12 digits)
on the numeric touch plate and
press the [ ] button.
Press the [ ] button one more time,
the touch plate will be off.
Repeat the process and as stated
above to register more PIN-codes.
4 2 3
● PIN-codes Deactivation
Open the battery cover, press the button shortly.1
2
3
4
When the Numeric touch plate is on, enter the registered PIN-code with the [ ] button.
Press the number [6] with the [#] for 3 seconds, then all registered PIN-codes will be deleted.
After deactivating all PIN-codes, the PIN-code reset as the default code “1234”.
PIN-codes Activation/Deactivation

_ 7
1
▶ To register more than a Card key, make sure to place next Card key until the touch plate is off.
2 Place Card keys
to the Card key
touch plate. The
sound beeps
when registration
of each card has
been done.
3
● Card keys Deactivation
_ 7
only applied S220 model
Press the number [2].
Place all Card keys to the
Card key touch plate.
The sound beeps when
registration of each card
has been done.
2 Press the number [7] and press
the [#] button for 3 seconds then all
registered Card keys will be deleted
with buzzer sound.
Open the battery cover, press the button shortly.
When the numeric touch plate is on,
enter the registered PIN-code with the [ ] button.
1Open the battery cover, press the button shortly.
When the numeric touch plate is on,
enter the registered PIN-code with the [ ] button.
Beep
After registering all Card keys,
Press the [ ] button to finish the process.
Beep
Card keys Activation/Deactivation
● Card keys Activation

_ 8
Beep Beep
Beep
Remote Controllers Activation/Deactivation
ㆍRemote controllers are not provided with a standard package.
● Remote Controllers Activation
Remote
Controller
①
[OPEN] button
Remote
Controller
②
[OPEN] button
Remote
Controller
…
[OPEN] button
2Press the [OPEN] button of Remote Controller.
Registering more than a Remote Controller,
press the [OPEN] button of each Remote Controller.
▶ To synchronize the password between the door lock and the remote control, you must
press the button of the remote controller at least 3 times when using it for the first time,
and after that, press once to open the door. When replacing the door lock battery,
the remote control must be synchronized.
Open the battery cover,
press the button shortly. When the Numeric touch
plate is on, enter the registered PIN-code with the
[ ] button and press the number [3].
1Open the battery cover, press the
button shortly. When the numeric
touch plate is on, enter the registered
PIN-code with the [ ] button.
only applied S220 model
Open the battery cover,
press the button shortly.
When the numeric touch plate
is on, enter the registered
PIN-code with the [ ] button.
1
2Press the number [8] and press
the [#] button for 3 seconds.
All registered Remote Controllers are
deleted with buzzer sound.
● Remote Controllers Deactivation
▶When the remote controller is registered newly, all pre-registered remote controllers
are deactivated.

_ 9 _ 9
only for Fingerprint models
Beep
Beep
Beep
Fingerprints Activation/Deactivation
ㆍFingerprint recognition may not be possible if the fingerprint is damaged.
ㆍFingerprint recognition may not be possible if sweat or moisture is on the fingerprint
or the fingerprint reading panel.
ㆍTo raise the recognition rate, we highly recommend you to add same fingerprints
in different conditions.
1Open the battery cover,
press the button shortly.
When the numeric touch plate
is on, enter the registered
PIN-code with the [ ] button.
2 Press number [4],
number ‘1 2 3’ will blink.
Press your finger on the panel
3 times, after the registration
the buzzer will sound.
3Press button to finish the process.
Open the battery cover, press the button
shortly. When the numeric touch plate is on,
enter the registered PIN-code with the [ ] button.
● Fingerprints Deactivation
1 2 Press the number [9] and press
the [#] button for 3 seconds.
All registered Fingerprints will be
deleted with the buzzer sound.
● Fingerprint Activation

_10
Double Authorization Mode
Open the battery cover, press the button to finish
the process, buzzer sound “Bi-ri-ri-rik”.
3
● Double Authorization Mode Activation
● Double Authorization Mode Deactivation
ㆍDouble Authorization Mode requires two different authentications registered to activate.
( e.g. [PIN-code] + [Fingerprint], [PIN-code] + [Card Key] )
1Touch the numeric touch plate gently,
then the touch plate turns on.
Enter the registered PIN-code.
2Press the [#] button twice then
press number [1].
Open the battery cover, press the button to
finish the process, buzzer sound “Bi-rik”.
3
1Touch the numeric touch plate gently,
then the touch plate turns on.
Enter the registered PIN-code.
2Press the [#] button twice and
then number [1] to deactivate
double authorization mode.
Only for models with more than one authorization
Bi-rik
Bi-ri-ri-rik

_ 11 _ 11

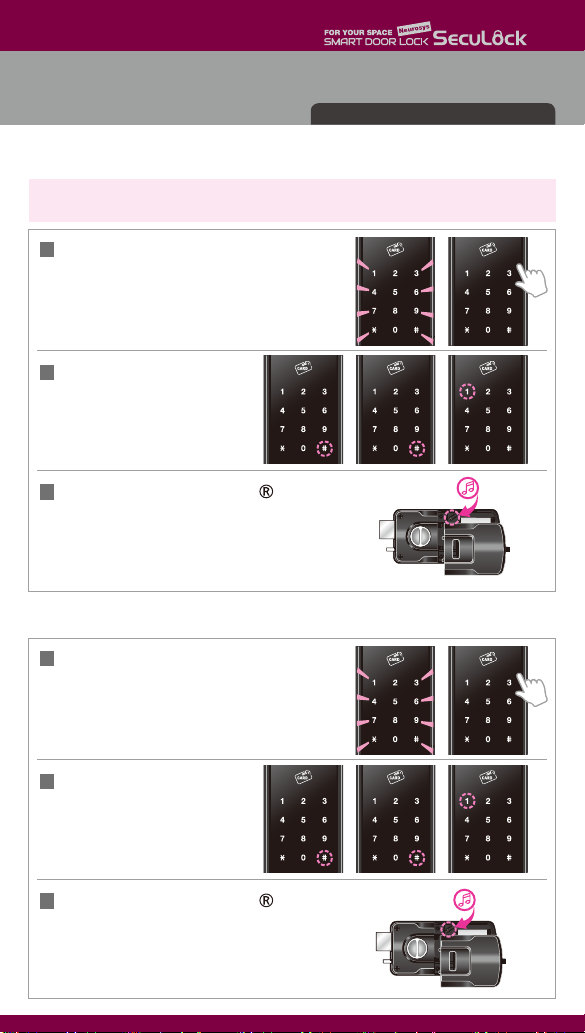

Pre Authentication Mode
● Pre Authentication Mode Deactivation
ㆍPre Authentication mode is default mode.
Please enter the PIN-code first to enter the setting mode.
Open the battery cover, press the button to finish
the process, buzzer sound “Bi-ri-ri-rik”.
1Touch the numeric touch plate gently,
then the touch plate turns on.
Enter the registered PIN-code.
2Press the [#] button twice then
press number [8].
3
Open the battery cover, press the button to
finish the process, buzzer sound “Bi-rik”.
1Touch the numeric touch plate gently,
then the touch plate turns on.
Enter the registered PIN-code.
2Press the [#] button twice and
then number [8] to deactivate
pre authentication mode.
3Bi-rik
Bi-ri-ri-rik
● Pre Authentication Mode Activation

Opening Door / Locking Door
_ 12

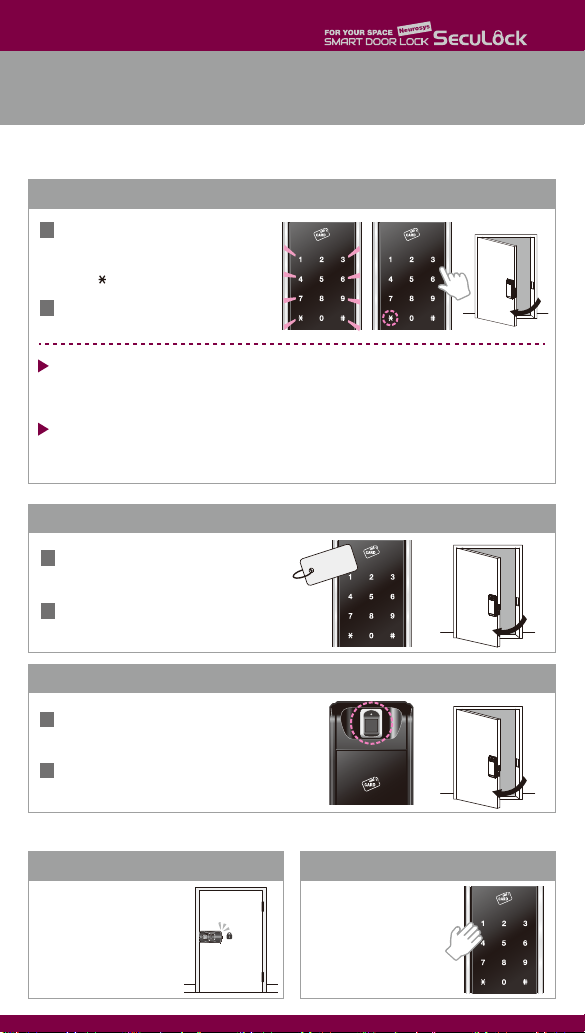

● Opening the door from outside
1
2
1
2The door will open with a
verification sound.
▶ ▶
Automatic Lock Mode Manual Lock Mode

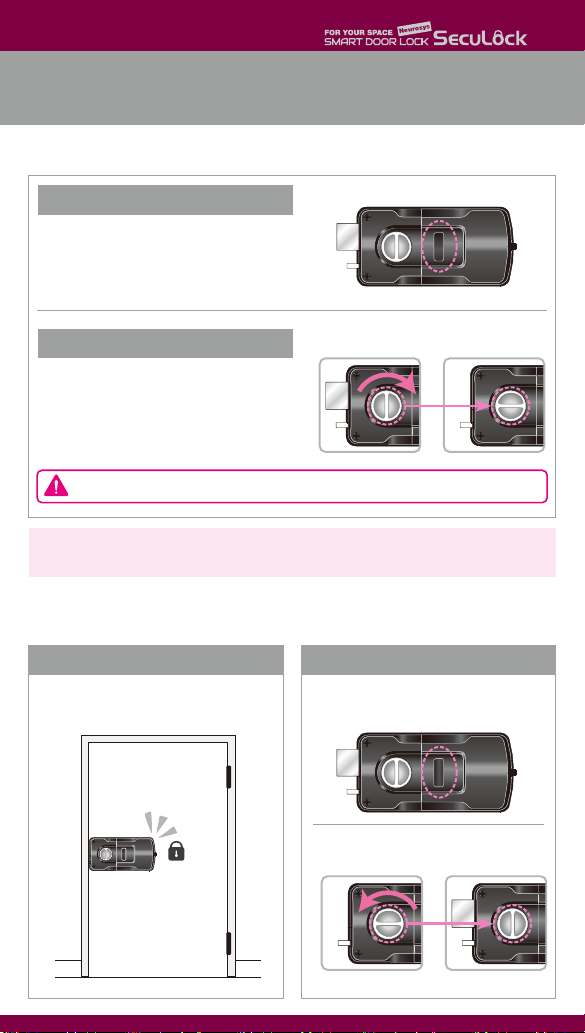

● Locking the door from outside
1
2
Security Random PIN-code function
This is a function to prevent the private PIN-code from exposing to other people,
any number can be entered before or (and) after the authentic PIN-code.
Silent Mode
Using PIN-codes
Using Card keys
Using Fingerprints (only for applied models)
Touch the numeric touch plate gently,
then the touch plate turns on.
Enter the registered PIN-code and
then [ ] button.
The door will open with a verification
sound.
This is a temporary function not to disturb the neighborhood owing to the button sound.
Refer to the page 16.
Place the Card key to the
Card key touch plate.
The door will open with
a verification sound.
Put your Fingerprint to
the fingerprint reading panel.
The door will be
locked automatically
when door closes.
When the door is
closed, touch the
numeric touch plate
for 3 seconds, then
the door will be locked.

Opening Door / Locking Door
_ 13
Familiarize yourself with how to use the [Thumb turn] button in case of an emergency.
▶Turn the [Thumb Turn] button of the
inner body clockwise when the door is
locked, then the door will open.
Using [OPEN/CLOSE] button
Using [Thumb turn] button
● Locking the door from inside
ㆍIf the door is not opened for 7 seconds after it is unlocked by using a button, the door
is locked automatically in the automatic locking mode.
▶Press the [OPEN/CLOSE] button when
the door is locked, the door will open.
▶
Automatic Lock Mode
The door will be locked automatically
when door closes.
▶
Manual Lock Mode
Press the [OPEN/CLOSE] button,
then the door will be locked.
▶Turn the [Thumb turn] button counter
clockwise, then the door is locked.
● Opening the door from inside

Safety Lock Mode [Outdoors/Indoors]
_ 14
● Outdoors
ㆍ It is a function to prevent intruders from opening doors by manipulating an internal handle
or button. Warning Alarm goes OFF for once. Warning Alarm will be released when
the door is opened using the authentication method registered from outside.
Activating Safety Lock Mode
When the door is locked, touch the numeric touch plate gently, then the touch plate
turns on. Enter the registered PIN-code.
Press [#] button and then number [0] until the buzzer “Beep” 3 times.
Beep~
Beep~
Beep~
● Indoors
ㆍ Door will not be opened by using authentication method from outdoors.
Activating Safety Lock Mode
Deactivating Safety Lock Mode
When the door is locked,.
press the [OPEN/CLOSE]
button of the inner body for
3 seconds to activate.
Press the [OPEN/CLOSE] button
of the inner body shortly,
safety lock mode is deactivated.
Press for 3 seconds
Presing shortly

_ 15
Automatic/Manual Locking Mode
● Manual Lock Mode
ㆍ
ㆍ
The door will not be locked automatically when door is closed.
Make sure that the door is completely closed when going outside.
ㆍAutomatic Lock Mode is the default mode. The door is automatically locked when
it closes. However, make sure that the door is completely closed when going outside.
2Touch the numeric touch plate,
enter the registered PIN-code.
3
1Press the [OPEN/CLOSE] button to make the
dead bolt come out when the door is open.
Press the [#] button twice and
then number [4], it will be activated
with a buzzer sound.
2Touch the numeric touch plate,
enter the registered PIN-code.
3
1Press the [OPEN/CLOSE] button
to make the latch bolt come out
when the door is open.
Press the [#] button twice and
then number [7], it will be activated
with a buzzer sound.
● Automatic Lock Mode

Volume Setting
_ 16
1
2
3
● Silent Mode
● Volume Setting
ㆍ
ㆍ
No sound
Touch the numeric touch plate gently,
then the touch plate turns on.
Press the [#] button.
Enter the registered PIN-code
with the [ ] button to open doors.
User can change the volume of the button sound.
Available only when the door is locked.
1When the numeric touch plate is on,
enter the registered PIN-code
with the [#] button.
2Press the number [3] to increase
and number [6] to decrease
the volume.
ㆍThis is a temporary function not to disturb the neighborhood.
3Press the [ ] button to finish
the process.

Warning Alarms
_ 17
Fire Detection Alarm Off
● Intrusion Alarm
Intrusion Alarm Off
● 1min. Mischief Prevention
If an attempt is made to open the door with invalid PIN-codes, Card keys,
and Fingerprints five times in a row, the warning alarm sounds and
the touch plate will not work for 1 minute.
● Dead bolt Warning Alarm
ㆍIf the warning sound alarms continuously, it requires to reinstall the door lock
for adjusting to the right position.
ㆍIf the inner body is exposed to direct heat for a long time, the fire detection
function may be activated.
When the sensor detects high temperature (60℃±5℃), the door will be automatically
unlocked with a loud alarm.
To deactivate the alarm, remove the battery, enter the registered PIN-codes, place the
Card keys to the Card key touch plate or put the registered Fingerprint.
If someone tries to break-in or damage the door by force while the door is locked,
it alarm goes off loudly.
To deactivate the alarm, remove the battery or enter the registered PIN-codes or place the
Card keys to the Card Key touch plate or place the registered Fingerprint.
A warning sound alarms 3 times when the Dead bolt is
misplaced or when it is not working properly.
normal
abnormal
● Fire Detection Alarm

Warning Alarms
_ 18
Warning Alarms
● Low Battery
Emergency Power Use
If the Low Battery alarm goes OFF, please replace all batteries.
The product will not operate if the batteries are fully discharged, please follow
the steps bellow.
1Prepare a 9V battery. Contact the 9V battery
to the emergency power supply terminal.
(located above the outer body handle.)
3When the door opens, please replace
the batteries immediately.
2When the numeric touch plate is on,
enter the registered PIN-code with
the [ ] button.
Please do not mix old
and new batteries.
Make sure batteries are
placed in correct poles.
Bi-rik Bi-rik Bi-rik Beep

Trouble Shooting
_ 19 _ 19
Trouble Shooting
● Trouble Shooting
Problem Trouble Shooting
Door Lock not
turning on
Cannot change
PIN-codes
Cannot change
Card keys
Cannot change
Fingerprints
Door won’t open
even the correct
PIN-code was given
Door doesn’t open
despite of the correct
Authentication
measures
Warning sound alarms
continuously while
operating
The door won’t be
locked automatically
When the product is not working properly, check the items below.
If you can’t solve the problem, please contact the service center for further assistance.
ㆍ
ㆍ
Make sure the batteries are placed in correct poles(+/-).
If the batteries are completely discharged, replace all batteries
with new ones. (LR6 1.5V AA Alkaline batteries only)
ㆍRegister PIN-codes again, refer to the user’s manual. (page 6)
ㆍRegister Card keys again, refer to the user’s manual. (page 7)
ㆍ
ㆍ
Make sure you entered the correct PIN-code.
Please check if the numeric touch plate were on when you
were entering the PIN-code.
ㆍ
ㆍ
Check if the batteries are discharged, if so, use 9V batteries
to open the door. (page 18)
Check the foreign object stuck between the door and the
door frame.
ㆍ
ㆍCheck if the batteries are discharged.
Reset to automatic locking mode. (page 15)
ㆍRegister Fingerprints again, refer to the user’s manual. (page 9)
ㆍ
ㆍThe latch bolt could have been misplaced.
It could be an alarm for low battery, please exchange all batteries.

http://www.seculock.co.kr/en/
NE v.2.2
Neurosys Co., Ltd.made in Korea
Operation Guide Rim Lock
Scan to play video
channel
