SEEK CSK-712CN User manual

LPRIPcamera
Usermanual
1Introduction
Thecamera adopts2.1 MegaPixel1/2.8 SONYExmorprogressivescanCMOSsensor,featuredWDR,lowillumination, highdefinition. SpecialLPR
technologyapplied:HighlightCompression(HLC)adjustable,multi-section shutter speeds, LEDilluminatorsbrightness adjustable,AGCadjustable,digital
displaysetting, automaticsnapshotand FTPupload, etc.
Easysetting:no needprofessionals, no needclientsoftware.BNCvideooutputon controlboardforconnection withamonitor.Manualsettingall thefunction
on controlboard insidecamera. ConnectNVRorcomputer, playback video, pauseand seelicenseplates clearly.
Applicablein:freeway, city road, countryroad, entrance/exitofcommunity, school, hospital, industrialpark,parkinglotorgarage,toll gate,etc.
Surveillance place
2TechnicalParameter
Video
sensor 1/2.8 SONY2.1 Mega pixelExmorprogressive CMOS sensor
Resolution max. Full HD/1080P(1920x1080)+ Full D1
Min. illumination color：0.05 Lux atF1.2 /LEDilluminatorON：0.001Lux atF1.2
WDR Y
video codec H.264 Main Profile @Level4.1 /Motion JPEG
streams FHD/1080P+ FullD1 + CVBS
Frame rate 25 fps/30fps
video stream H.264&M-JPEGvideo stream：video outmultichannelvideo atmax. Resolution. Framerateand video steam
adjustable，H.264support VBR/CBR
16：9 display support
ROI Y

Lens f= 6mm/8mm/12mm3MPfixed lens
Audio Two-wayaudio 1 channellinearinput, 1kΩ;1 channellinearoutput,half duplex
Network
Network port 1 RJ45，10/100Mself adaptive Ethernetport，1BNC，1 powersupplyport
network protocol IPv4, TCP/IP,UDP,HTTP,DHCP,RTP/RTCP/RTSP, FTP,UPnP,DDNS, NTP, IGMP, ICMP,etc
access agreement WEB, SDKAPI, ONVIF
Storage video PCorNVR
Snapshotimages TF cardand/orFTPupload
Safety Built-in watchdog In unusualcircumstancesauto resetthe systemto ensure the normaloperation.
remote reset network remote reset
General
OS Microsoft WindowsXP/Windows7
IE：Microsoft InternetExplorer6.x orabove
Videoout 1.0Vp-p,75Ω
Powersupply DC12V
Operating temperature -10℃—50℃
N.W. (approx.) 2.5KG
Size 12 （L）390mm×（W）140mm×（H）143mm

3. Installationandsetting
3.1.Connection computerand license plate recognition camera with 75ΩcoaxialcableatBNC port.
3.2. ConnectDC12Vpowersupply, if the uppercasing isopen, the indicatorlightison
3.3. When the image appearsin the monitor, adjustthe focusand Iris to getclearimage. Surveillance area:max. 5-8 meters wide.
3.4.Digital display:currenttrafficmodeand its parameters.
To selectvarioustrafficmode byRockerSwitch UPorDOWN.The indicatorisONforthe selected traffic mode. Five trafficmodesfollowing:
A1:normalmode
A2:30KM/H
A3:60KM/H
A4:90KM/H
A5:120KM/H
Traffic mode A1:no shutterspeedsandHighlightcompression function.
Traffic mode:A2, A3,A4,A5:highlightcompression andelectronic shutterspeed functionsare working atthe same time.
HLCintensityisadjustablebyRockerSwitch Left orRight.Setitsintensityatnight(ordaytimewhen necessary).Itautomaticallyshiftsaccording tothe setting value fromdaytime
to night. HLCintensity：E1-E6. WhentheintensitycomestoE6 atnight,it istheupmosthighlightcompression, theimageviewismuchdarker.Besuretosettoa
suitableintensityforbestviewlicenseplates. Factorydefault: E2 in daytime, E6 atnight.
3.5. Setshutterspeedsaccording to vehicle’sspeed. Ifthere’sghostimage, choose a higherspeed mode. Ifthe vehicle isnotmoving atall, choose the shutterspeed mode:A1 orA2.
3.6.When mainauxiliarylightsistoo strongortoo weak, setLEDbrightness value from00 to32byK1orK2. The biggervalue, thebrighterLEDilluminator.Butit hastobenot
too whitish license plates.Factorydefault: 00 in daytime. Adjustable. 20 atnight.Adjustable.
3.7.AGC setting. Enhance clearerimage oflicense plates. Digitaldisplay:C1--C5，when it comesto C5, it isclearestimage, butdarkerimage.
3.8. Externaltriggersignalinput: Inputexternalswitch signal.The camerawill automaticallytake snapshotpicturewhen there’ssignalinput.Snapshotimagescan be stored inTF
card orFTPupload todesignated computer.
3.9. Digitaldisplay:currenttrafficmode,HLCintensity,LEDluminance value,AGC.Circledisplaythem.Timeinterval: 5seconds. Digitaltubeisoffwhen
finishingsetting.Itis on again when pressinganybutton forre-set
3.10. ConnectPCorNVR via internetforlivevieworrecording when finish setting.
3.11. Default IP:192.168.1.4, username::system,password:systemIEport:6002
Initialize TFcard and setsnapshotparameters when logging in System.
3.12.NVRaccess protocol：ONVIF,port：8080

3.13 TFcardstorage,FTPuploadand imagecapturesetting
3.13.1. Log in camera’ssystembyIEbrowser.IP:192.168.1.4, username:system,password:systemIEport: 6002.

3.13.2 Log in system, forvideo recording, FTPset, “Configuration -Record -Ftp Set-Submit -Save .Step 1-6.
Use aninternalnetwork IPaddress (same network with camera)asFTPserver. Ifuntick “Record the 2nd Stream ,video recording main stream.
3.13.3. Log in system, forsnapshotimage, capture setting, “Configuration -Record -CaptureSet-Submit -Save Step 1-7.
Use aninternalnetwork IPaddress (same network with camera)asFTPserver.
Selectcapture stream.

5typesofcapturehandle:Storethe snapshotimagestoTFcard, orTothe FTPserver,orthrough alarmchannelupload, orTFcardand FTPupload,orTFcardand upload alarm
channel.
To store imagestoTFcard and FTPupload to a designated directory. Selectit in down menu.
3.13.4 Log in system.AlarmIn setting, “Configuration -Alarm-AlarmSet-Submit-Save . Step 1-8. ForsnapshotorRecordorAlarmto the CMS.

3.13.5 Log in system, formatTFcard. “Configuration -System-Disk Set-Format . Step 1-4.
3.13.6 Log in system. “Configuration -System-Advanced set-Restore “, restore camera if it isthe 1st time setting.Step 1-3.

3.13.7 Then, thecamera willcapture image and store imageswhen it isconnected with inductive loops, etc. Itsays “SignalAlarm... when live view.

3.13.8 Snapshotimagesby Video Motion Detection. Itisfortestpurpose.
Please be notedthatsnapshotby Motion Detectionismuch less accurate than byinductive loops, radar,etc. externaltriggerbecause ofpoorillumination atnight.
Log in System. “LiveView-VMD-Alarming Schedule -Linkage Action -ClearZone-Re-size VMDarea -Setup -Save “. Step 1-6.
(Alarming Schedule:Copyto “Everyday and Copy. )
Threshold:less value, more sensitive.

AfterfinishVMDsetting, it shows“MotionAlarm... when the carispassing through the virtualsquare area.
When live viewing, it says “Motion Alarm...when the carispassing through.

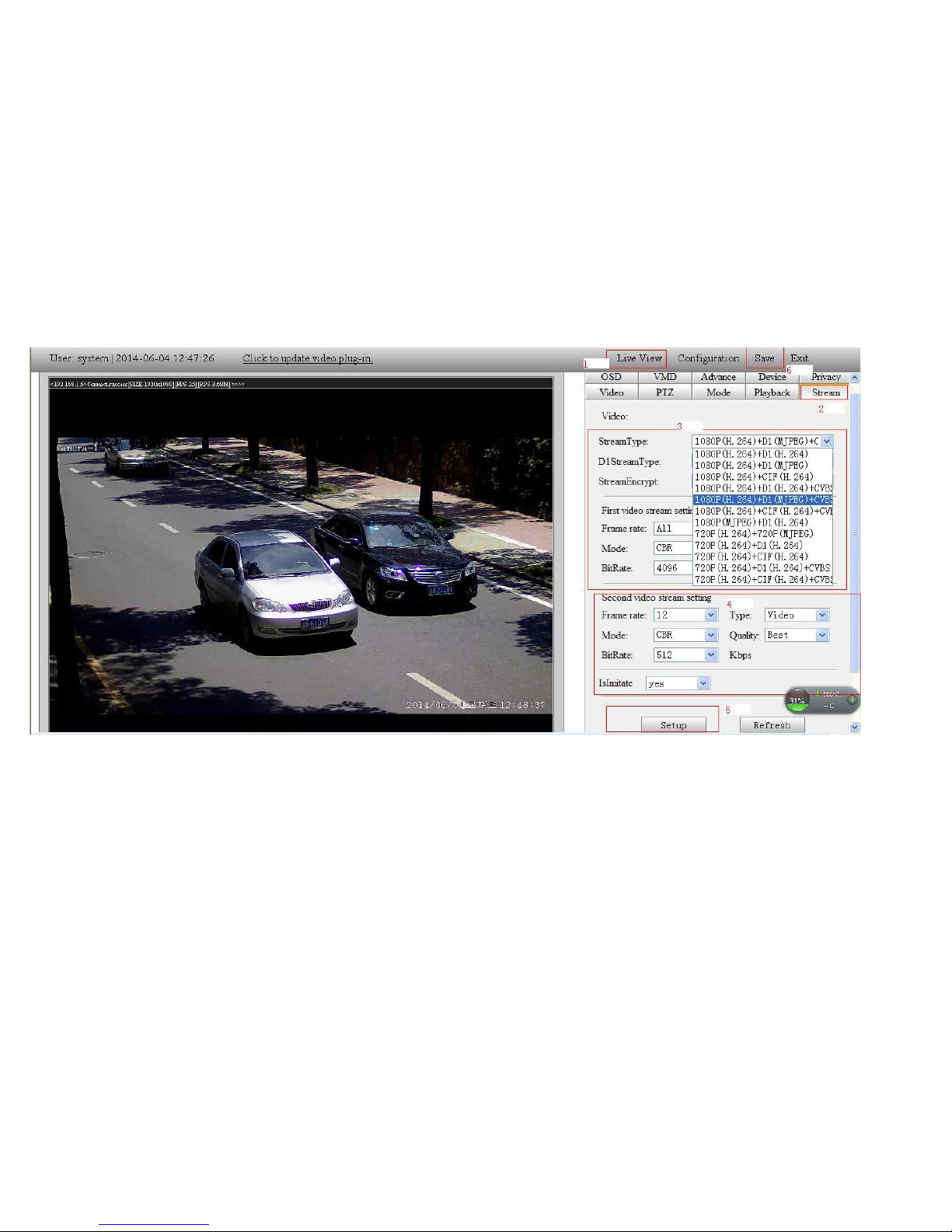

3.13.9 Ifyou prefer MJPEGassecond video stream, setting from “Live view-Stream-StreamType -Second video streamsetting-Setup -Save . Step 1-6
Remarks: WhensubvideostreamisMJPEG,can tsethigherframerateofrealtimeview.Thecamera can tproceedhighstream.Itwill restorefromtimeto
timebecauseofhighstream.

3.13.10 There arevariousvideo streamtype (main streamand sub stream)tomeetcustomer’srequirement.
“LiveView-Stream-StreamType -Setup -Save “.

3.13.11To applyNTSCTVsystem, setting from “Live view-Device -FormatType -Setup -Save . Step 1-5

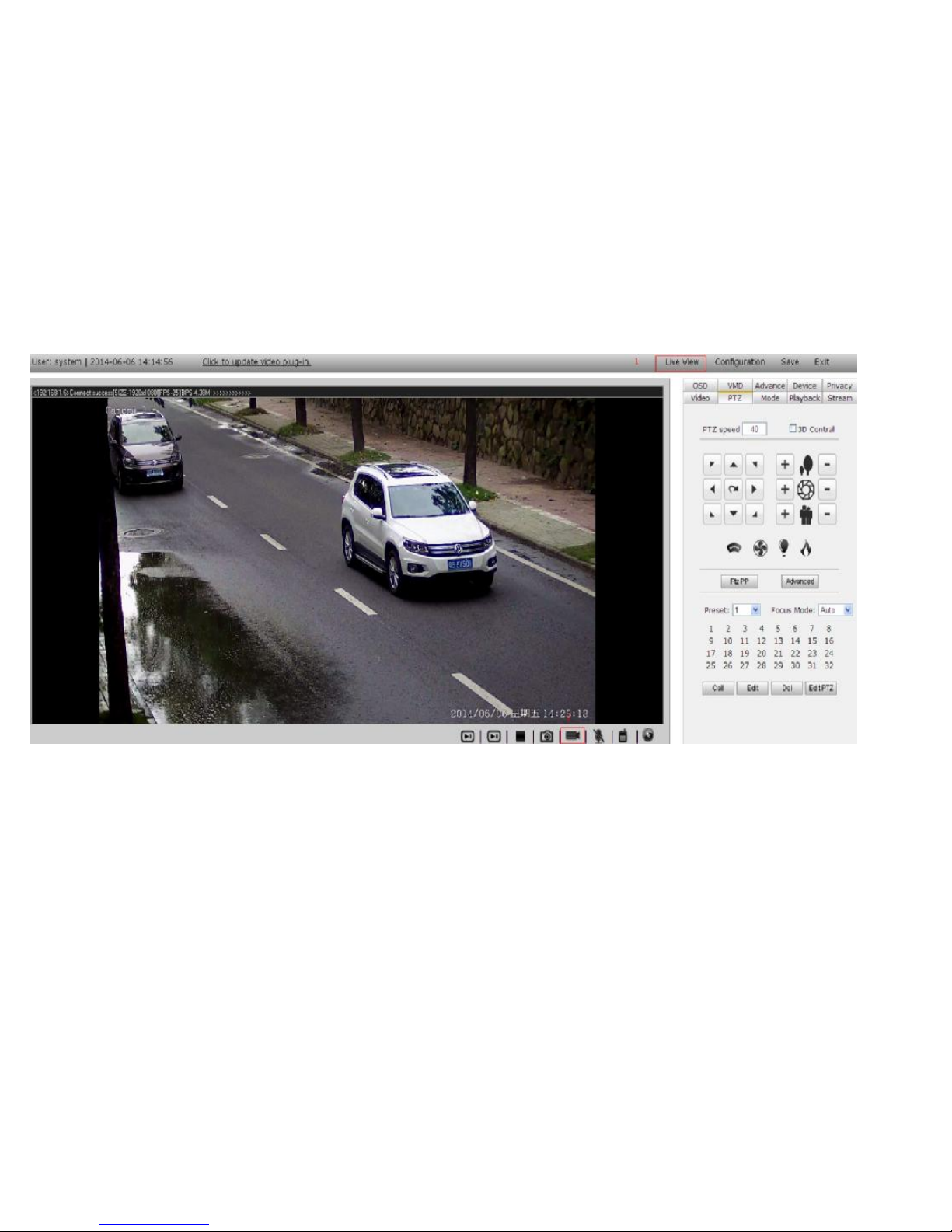

3.13.12Manualrecording, “LiveView ,Press recordingicon to start and stop. Find recording atD:/Record/Video on yourcomputer.Itisfortestpurpose.

3.13.13Manualsnapshotimages, “Liveview Press image icon to start capture . Find imagesatD:/Record/Image on yourcomputer. Itisfortestpurpose.

4problemand solution
Ifthere isanyproblemin thecamera, please tryto solve itasbelow..
problem solution
Licenseplateimage isnot
clearenough orobscure
1. Iftoo wide surveillance area.
2. Well focus
3. LEDilluminatorhasenough luminance.
4. Suitable HLCintensity.
5. Setsuitable shutterspeed forfastvehicle speed.
Tailing image 1. Setsuitable shutterspeed
2. NVRproceed too slowly.Replace an advancedNVR.etc.
Image whitish. 1 HLCintensity,AGC value,LEDbrightness value ison bestmatch.
2. WDRfunction ONin the daytime.
No network 1. Network isconnected.
2. Network protocoliscorrect.
5.Warranty:oneyearfromfactory shipment.
6. Factoryreservesthe righttorevise anytechnicalparameters withoutpriornotice.
