SEGUE VK-1904 User manual

© 2020
Order #XXXXX
Completed Assembly
*
**
*
Item
1,2,3,4
5,6,7,8
9
Qty.
1,1,1,1
1,1,1,1
2
Description
45” TSP46 Vertical Extrusion
45” TSP46 Horizontal Extrusion
Base Plate
2
1
4
3
5
9
9
6
78
Setups:
See TSP46 Assembly sheet for steps 1 thru 3.
1) Connect horizontals [5 to 6] and [7 to 8].
2) Connect verticals [1 to 2] and [3 to 4].
3) Connect horizontal and vertical assemblies together.
4) Attach base plates to verticals [1] and [3].
See Base Plate Attachment detail.
5) Install SEG graphics to assembled frame. See SEG
Installation sheet, for instruction.
6) Clamp lights to top of frame assembly. See Light
Connection detail.
Attach base plate knob to extrusions
[1] and [3], when packing.
1) Place key hole over fixed bolt on assembled
frame then slide down.
2) Turn knob into assembled frame to secure.
Base Plate Attachment
*
Fixed
Bolt
Threaded
Hole
push keyhole down
Key Hole
Base Plate
Assembled
Frame
Knob
Light Connection
Connect light to
horizontal where
desired and
tighten in place.
*
VK-1904 Sunrise
If you would like to tell us about your experience with your setup instructions please email us at [email protected]
SETUP INSTRUCTIONS

© 2020
Order #XXXXX
TSP46 Profile
All knobs must be tightened securely to ensure a proper connection.
Adjust connectors if necessary to
prevent gaps in connection.
Upper Horizontal Extrusion
Lower Horizontal Extrusion
Corner
Connector Corner
Connector
Corner
Connector
Corner
Connector
COMPLETED ASSEMBLY
Slide verticals over
lower connectors.
Then slide upper
connectors into
groove of verticals.
Tighten all knobs.
Corner Connection
3) Tighten all knobs to secure connection.
Disassembly
1) Loosen knobs on vertical extrusions.
2) Slide the vertical extrusions off of
corner connectors on lower and upper
horizontal extrusions.
1) Loosen knobs, then slide vertical extrusions onto
corner connectors of lower horizontal extrusion.
2) Slide corner connectors of upper horizontal
extrusion into grooves of vertical extrusions.
Disassembly
1) Loosen all knobs.
2) Slide connectors off of one extrusion.
3) Tighten knobs to prevent loss during
packing & shipping.
Keep straight connectors in groove of
extrusion. Do not remove connectors
during disassembly.

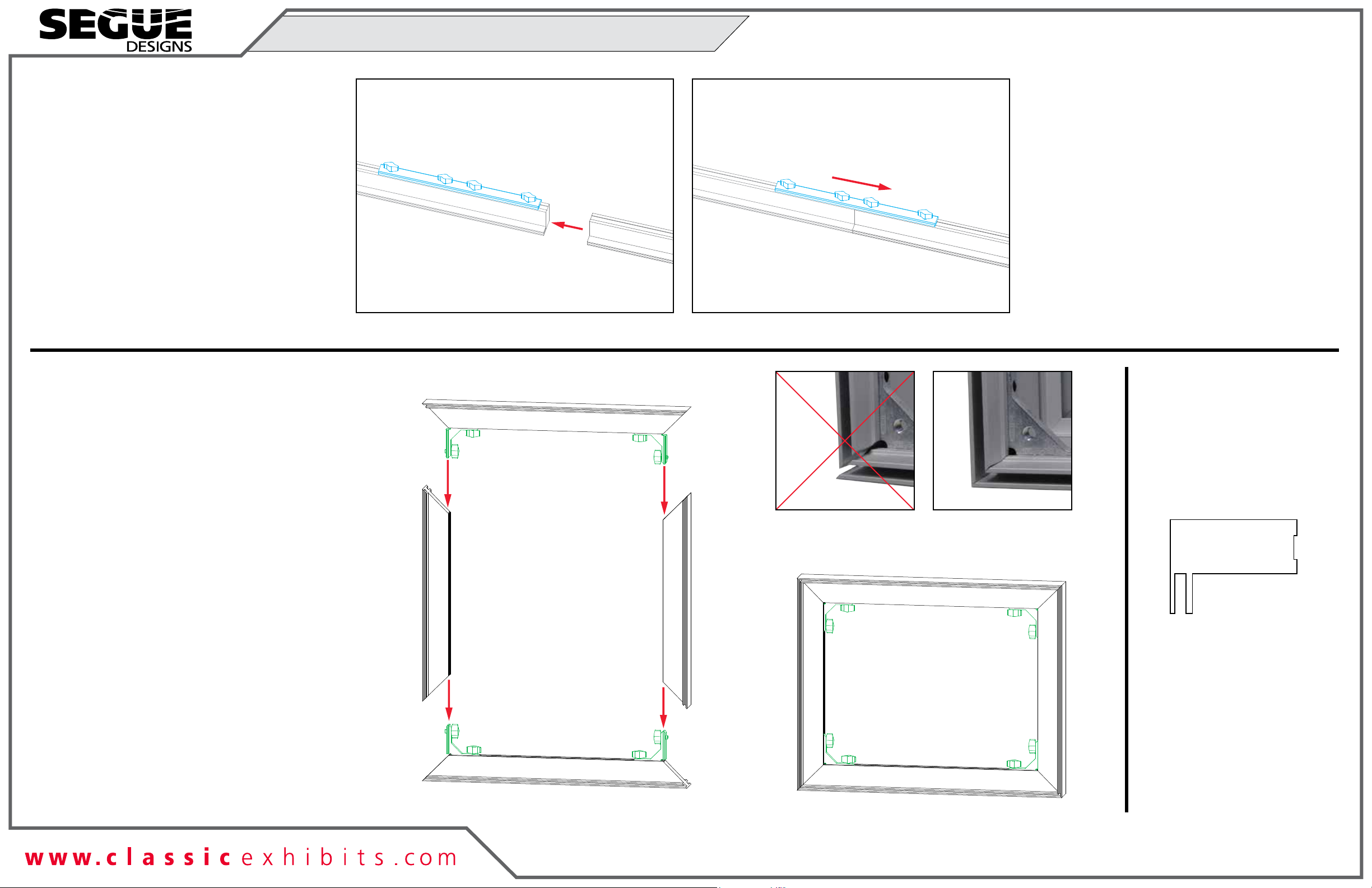

Straight Connection
3) Tighten all knobs to secure connection.
When assembling frame, first attach all straight
connectors, then attach corner connectors.
1) Place extrusions end-to-end.
Slide connector across seam of extrusions.
Tighten all knobs.
All knobs must be tightened securely to ensure a proper connection.
Straight Connector
2) Loosen all knobs, then slide straight
connector across the seam of extrusions.
TSP46 Frame Assembly

© 2020
Order #XXXXX
Graphic Removal
To remove the graphic
the frame, locate the fabric
pull tab.Gently pull up on the
tab to remove the fabric.
Step 1
Insert corner A. Turn edge of
graphic so silicon welt is
perpendicular to face of
graphic. Insert narrow side
of welt with fabric to outside
into the channel. Repeat for
other side of this corner.
Step 2
Repeat Step 1 for opposite
corner C, then insert corner
B, followed by corner D, to
complete the installation of
the corners.
Step 3
Once all corners are inserted,
press one silicon edge into
channel from corners and
work toward the center.
Make sure welt is fully inserted
into channel. Continue until
all sides are done. Smooth
out edges of graphic.
It is important to first insert
graphic into each alternate
corner then to the sides of
the frame. If this is not done,
graphic will not fit into the
frame correctly.
Corner A
Corner D
Corner B
Corner C
from
SEG Installation

© 2020
Case 1 of 1
Order #XXXXX
Locked layer contains
placeholder marks.
Graphics
Lights
Setup Hardware
Top View of Each Level
Level 1 (Bottom Level) Level 2
5,6 7,8
Level 3
1,2 4,3
Case Packing
