SEGUE VK-1900 User manual

www.classicexhibits.com
Step 1
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900 - General Layout
10’
10’
Plan View

www.classicexhibits.com
Step 2
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900 - General Information
The Tool Typical Connection
Horizontal Inline Connection (remove only one setscrew)
Base Plate Connection Vertical Connection
(remove only two setscrews)
Most Visionary Designs exhibits can be
assembled with the supplied Hex Key Tool.
Occasionally, a flat head screwdriver may
be required.
Most horizontal extrusion connections have a patented expandable lock. This lock inserts into
the groove of an opposing extrusion. Tightening the lock with the Hex Key Tool expands the lock
and creates a strong positive connection.
Remove only (1) setscrew when disassembling. Replace setscrew in
extrusion after assembling it. Before packing, replace setscrew in
extrusion to avoid losing it.
Attach base plate to round or square
vertical extrusion using the bolt provided.
Be careful not to strip the threads.
When vertical extrusions are packed in
portable cases rather than crates or
tubs, they must broken down into
smaller sections which then require
assembly.
Remove only (2) setscrews when
disassembling. Replace setscrews in
extrusion after assembling it. Before
packing, replace setscrews in extrusion
to avoid losing them.
Using Your Setup Instructions
The Visionary Designs Setup Instructions are created specifically for your
configuration. They are laid out sequentially, including an exploded view of
the entire display, and then a logical series of detailed steps to assemble the
main structure and components. We encourage you to study the instructions
before attempting to assemble your exhibit.
Each page reminds you to tighten the setscrews after disassembling your
exhibit to prevent loss of the locks and setscrews (see below in RED).
This is VERY IMPORTANT.
Cleaning and Packing Your Display
1) Use care when cleaning aluminum extrusion or acrylic inserts. Use only
non-abrasive cleaners.
2) When cleaning laminate inserts or countertops, use mild cleansers and a
soft material such as cotton.
3) Keep all display components away from extreme heat and long exposure
to sunlight to avoid warping and fading.
4) Retain all packing material. It will make re-packing much easier and will
reduce the likelihood of shipping damage.
Typical Connection (cont’d)
Numbered Label
Each extrusion contains a numbered label which
corresponds with setup instructions.
The label is located within a groove of the extrusion
(when possible). With Visionary Designs the labels
contain Black numbers unless otherwise specified.
Detail C EliateDDliateDDetail B
Detail A
Setscrews

www.classicexhibits.com
Step 3
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900 - SEG Graphic Installation
Graphic Removal
SEG Graphic: To Ensure Proper Fit
Corner A
Corner D
Corner B
Corner C
It is important to first insert graphic
into each alternater corner then to
the sides of the frame.
If this is not done, graphic will not fit
into the frame correctly.
Step 1
Insert corner A.
Turn edge of graphic so silicon welt
is perpendicular to face of graphic.
Insert narrow side of welt with fabric
to outside into the channel.
Repeat for other side of this corner.
Step 2
Repeat Step 1 for opposite corner
C, then insert corner B, followed by
corner corner D, to complete the
installation of the corners.
Step 3
Once all corners are inserted, press
one silicon edge into channel from
corners and work toward the center.
Make sure welt is fully inserted into
channel. Continue until all sides are
done. Smooth out edges of graphic.
To remove the graphic from
the frame, locate the fabric
pull tab.
Gently pull up on the tab to
remove the fabric.

www.classicexhibits.com
Step 1
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900 - Backwall Assembly

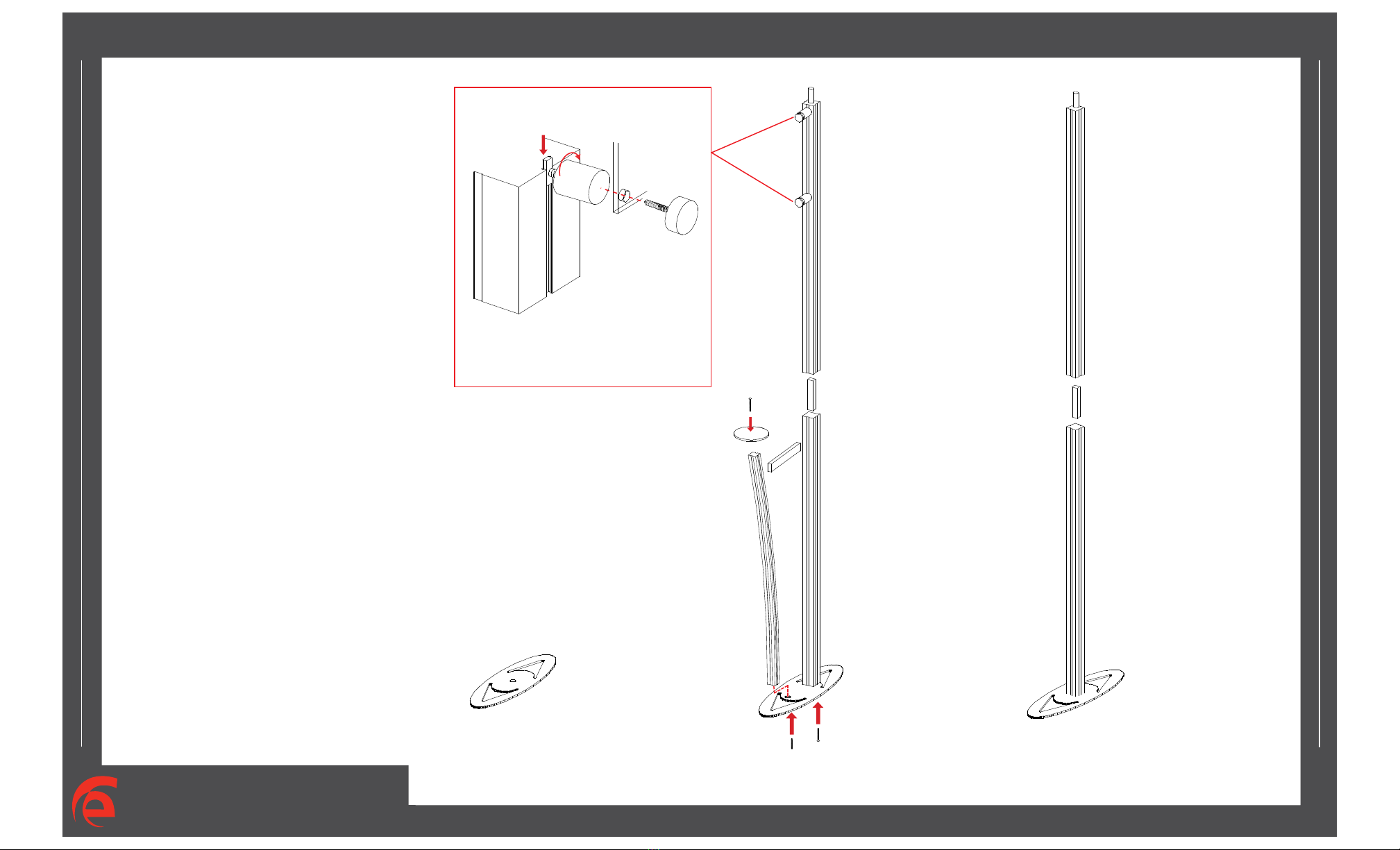

Steps:
1) Attach lower extrusions to base plate.
2) Attach upper verticals to lower verticals as shown.
3) Connect horizontal [5] between verticals [2 and 4].
4) Attach flange plate atop vertical [4] as shown.
Item
1/1a
2
3
4
4a
5
6
7
Description
Base Plate
41.5”h Vertical Extrusion
41.5”h Vertical Extrusion
41.5”h Vertical Extrusion
Flange Plate
10.107”w Horizontal Extrusion
41.5”h Vertical Extrusion
41.5”h Vertical Extrusion
Qty.
2/1
1
1
1
1
1
1
1
1
2
3
6
7
1
1a
4
4a
5
Graphic
Cap
Standoff
Barrel
Slide connector on back of standoff
barrels into groove of extrusion
and twist to secure in place. Secure graphic
to standoffs using screw caps.
Graphic Attachment
AA

www.classicexhibits.com
Step 2
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900

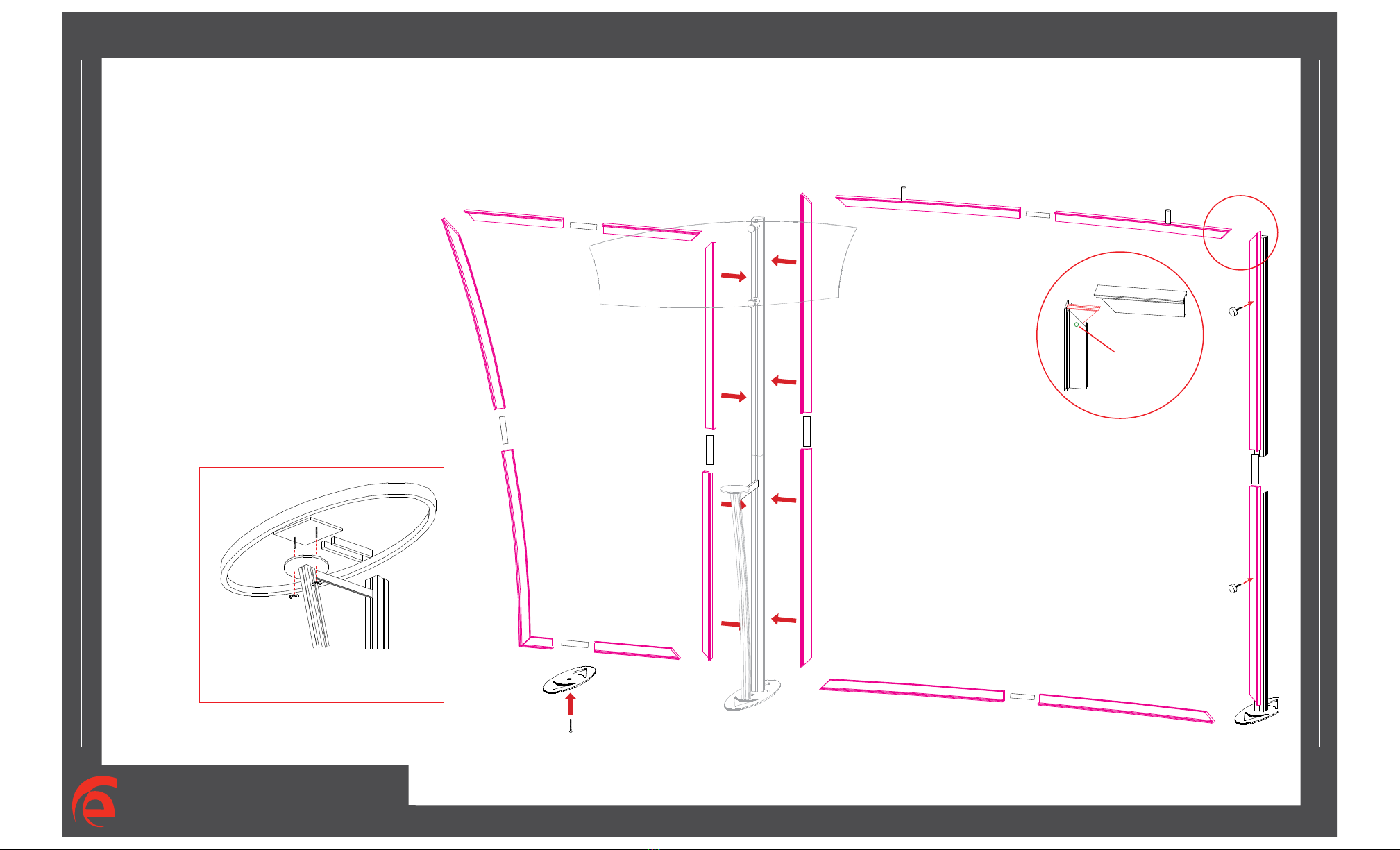

Steps:
1) Assemble SEG extrusions together [8 to 14].
2) Attach base plate [1] to bottom of assembled frame [14].
3) Lock verticals [12 and 13] to left side of verticals [2 and 3]
4) Assemble SEG extrusions together [15 to 22].
5) Secure right side of assembled frame to verticals [6 and 7]
and lock left side of assembled frame to right side of verticals
[2 and 3].
Item
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Description
34.92” Curved SEG Extrusion
34.92” Curved SEG Extrusion
19”w SEG Extrusion
19”w SEG Extrusion
35.9385”h SEG Extrusion
35.9385”h SEG Extrusion
24.242”w SEG Extrusion
41.5”h SEG Extrusion
41.5”h SEG Extrusion
32.263”w Curved SEG Extrusion
32.263”w Curved SEG Extrusion
41.5”h SEG Extrusion
41.5”h SEG Extrusion
32.263”w Curved SEG Extrusion
32.263”w Curved SEG Extrusion
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
9
11
12
13
14
15
16
17
18
19
20
21
22
Lock
Tighten setscrew
to secure
extrusions
TSV1 Lock Detail
10
Lock into groove
Lock into groove
Lock into groove Lock into groove
Attach to v4 on verticals
using screwcaps
Keyboard Shelf
Attachment
Wing nut
Insert screws located on underside
of counter into holes on flange plate
and secure with wing nuts.
A
C
C
B
D
C
C
E
E
- Backwall Assembly Cont’d

www.classicexhibits.com
Step 3
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900
Connections are made by holding the button
down and sliding the red tube into opposing
tube until the connection is made. To disassemble
push button and pull or twist extrusions apart.
Push-Button
Push-Button
66
6
6
Numbered Label
Using Your Setup Instructions





Cleaning and Packing Your Display


 
Steps:
1) Connect canopy pieces together as shown.
2) Apply pillow case graphic to assembled canopy
A
B
D
C
Push-Button
Push button then rotate
for packing purposes
E
F
- Canopy Assembly

www.classicexhibits.com
Step 4
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900

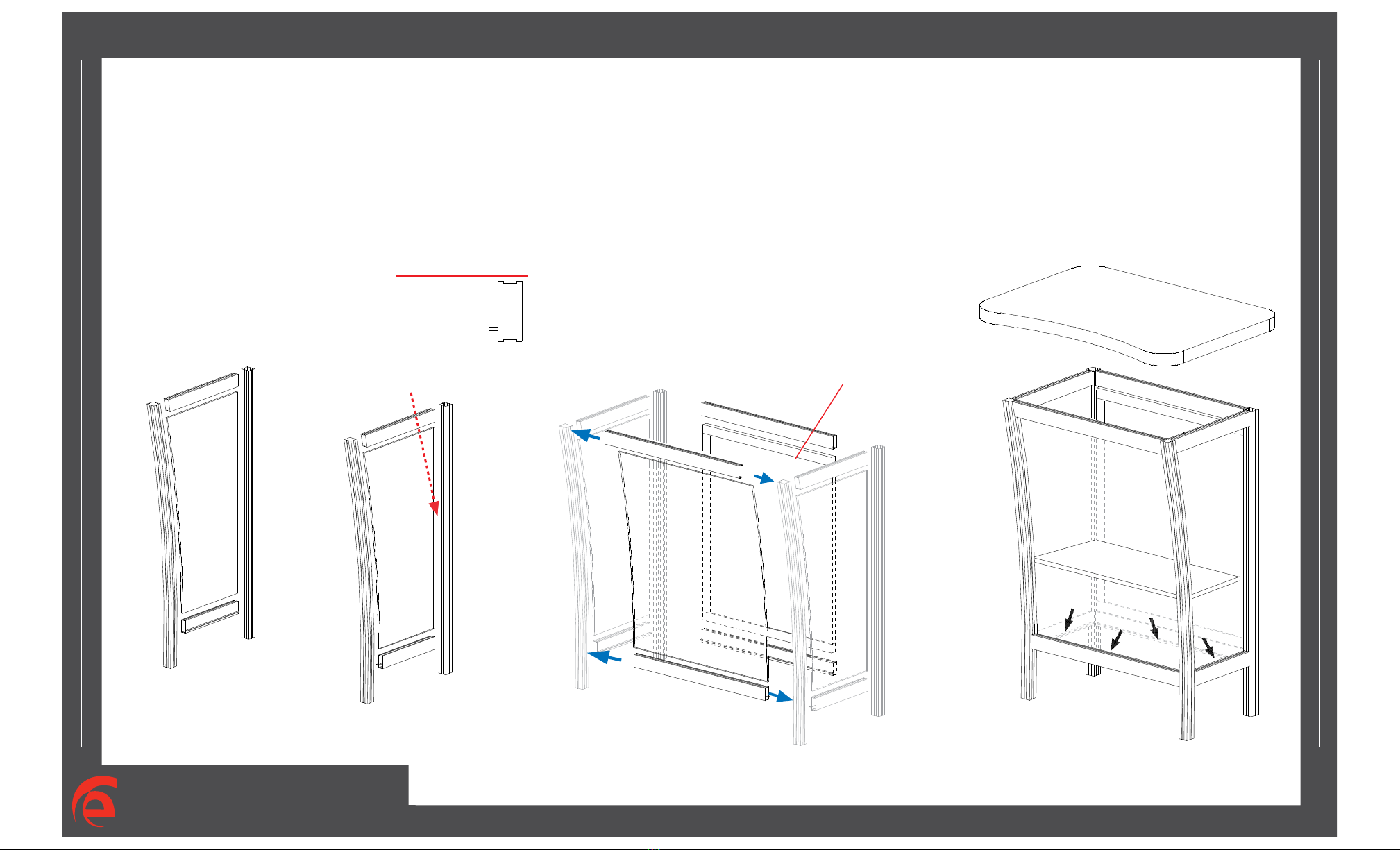

Steps:
1) Connect horizontal [31, 32 and 33] between side assemblies as shown.
2) Set floor atop lip of extrusions [31, 32 and 33].
3) Place counter top atop assembled pedestal.
Item
23
24
25
26
27
28
29
30
31
32
33
Description
38.2854” Curved Vertical Extrusion
38”h Vertical Extrusion
38”h Vertical Extrusion
38.2854” Curved Vertical Extrusion
11”w Horizontal Extrusion
14.567”w Horizontal Extrusion
11”w Horizontal Extrusion
14.567”w Horizontal Extrusion
23”w Horizontal Extrusion
23”w Horizontal Extrusion
23.505”w Horizontal Extrusion
Qty.
1
1
1
1
1
1
1
1
2
1
1
23
24
25
26
27
28
29
30
31
32
31
33
Door Hinges
Door Stop
Lock into
groove of #26
Door
Extrusions 27, 29
and 31 have a lip
for the floor to rest
upon.
**** Side assemblies must remain
assembled when shipping in jigged cases
Set floot atop lip
of extrusions
Counter Top
Lock into
groove of #26
- Pedestal Assembly

www.classicexhibits.com
Step 1
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900

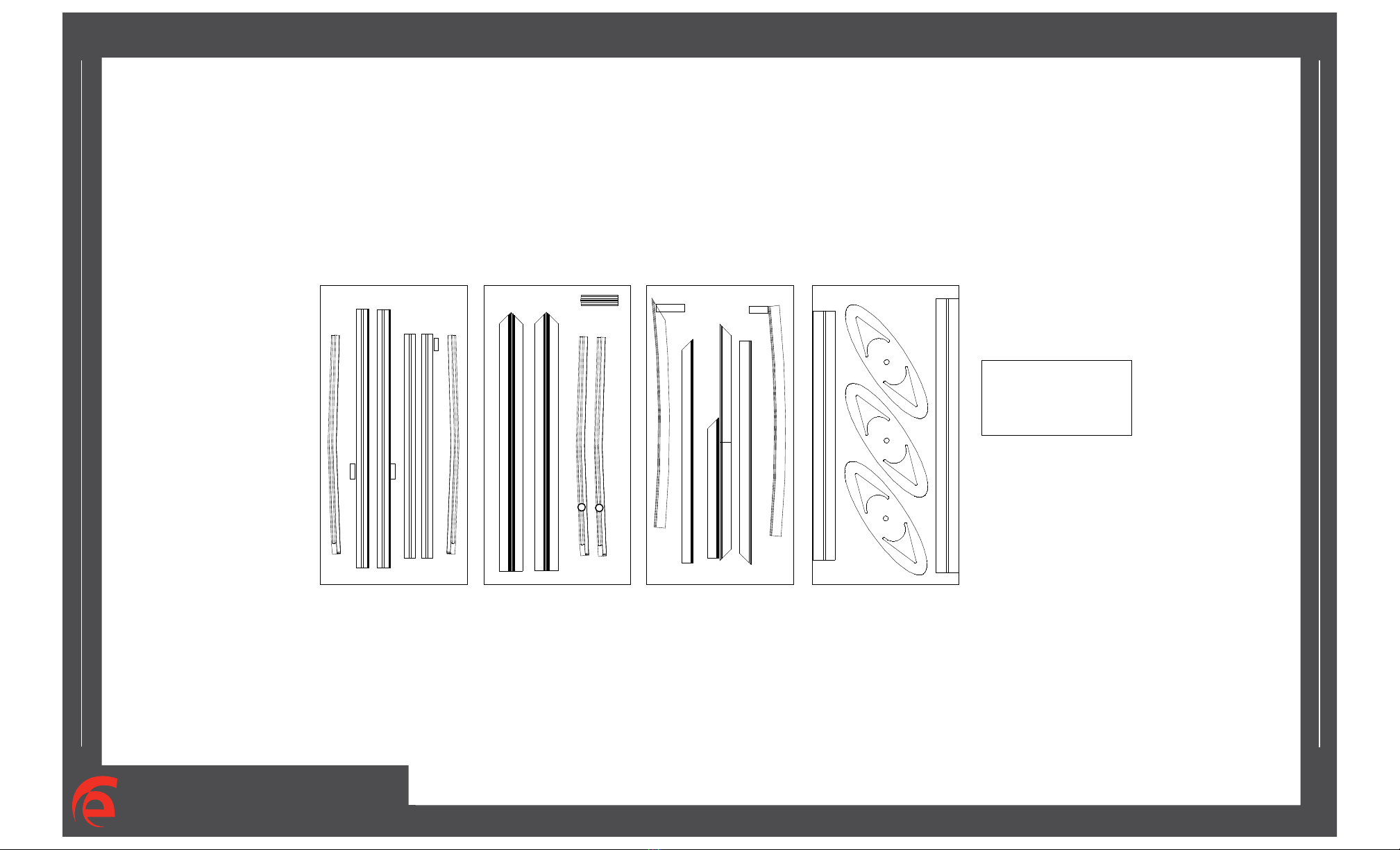

Top View of each Level
Level 1 Level 2 Level 3 Level 4
Setup Hardware
21
22
76
23
15
16
19
20
17
18
16a
15a
9
12
14
11
13
854
- Packing Instruction - Backwall Components - Case 1 of 3

www.classicexhibits.com
Step 2
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900

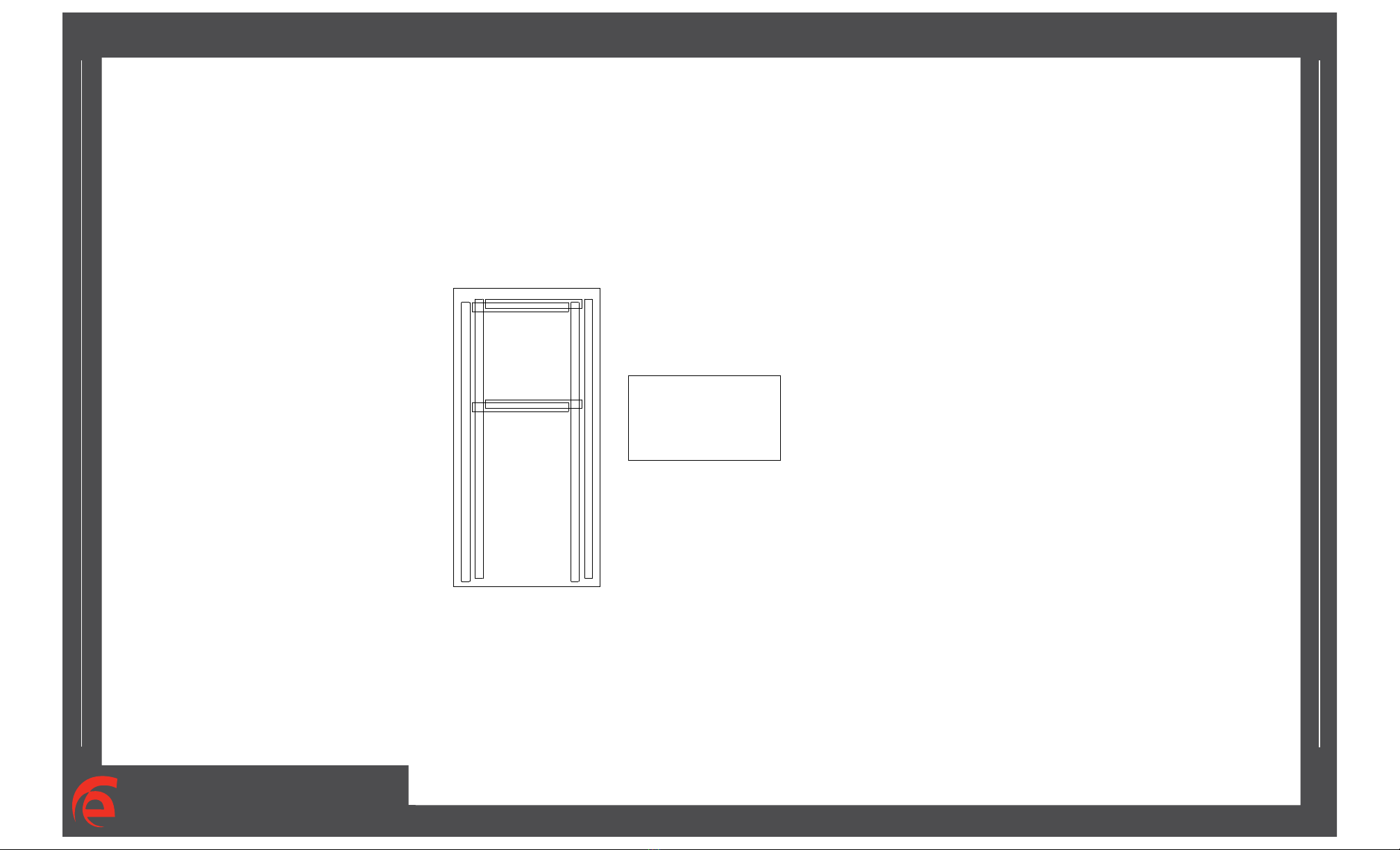

Top View of each Level
Level 1
Lights
Canopies
- Packing Instruction - Backwall Components - Case 2 of 3

www.classicexhibits.com
Step 3
866.652.2100
© 2012
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
Order# XXXXX - VK-1900
Top View of each Level
Level 1 Level 2 Level 3 Level 4
Floor
Door
Pedestal Side AssemblyPedestal Side Assembly
31/32 31/32
Counter Top
- Packing Instruction - Pedestal Components - Case 3 of 3
