SEI MAYFAIR FA9111 User manual

For assistance with assembly contact:
Southern Enterprises Inc.
Customer Service 1-800-633-5096
[email protected]
www.seidal.com
"MAYFAIR"PETITE FIREPLACE
FA9111 –PLANTATION OAK
FA9112-CLASSIC MAHOGANY
FA9113-ANTYIQUE WHITE
Assembly Instructions

A Quantity
of 10
CAM BOLT
B Quantity
of 14
WOOD DOWEL
C Quantity
of 10
CAM LOCK
D Quantity
of 4
FLAT HEAD LONG SCREW
E Quantity
of 8
SOCKET HEXAGON SCREW
F Quantity
of 1
SOCKET HEAD WRENCH
G Quantity
of 4
CAM NUT
Quantity
of 1
FIREBOX
SOLD IN A SEPARATE CARTON.
"MAYFAIR"PETITE FIREPLACE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Screws shown in actual size. Using a screw that is too long will cause damage.
Before beginning assembly, separate each type of screw. Carefully study the
screw diagrams below (SHOWN ACTUAL SIZE). You may receive extra

(1) Quantity
of 1
LEFT SIDE PANEL
(2) Quantity
of 1
RIGHT SIDE PANEL
(3) Quantity
of 1
UPPER FRONT PANEL
(4) Quantity
of 1
BOTTOM FRAME
(5) Quantity
of 1
TOP PANEL
(6) Quantity
of 4
LEG
(7) Quantity
of 2
WOOD HOLDER
Care and Cleaning Instructions:
Before using, wipe with a clean, dry cloth.
Periodically apply furniture wax to renew
the finish . Avoid rubbing or scratching the
surface with rough or abrasive objects.
For replacement parts or questions, please
Call Customer Service at 1-800-633-5096
Do not return product to store, please call
Manufacturer for assistance, questions or
Parts.
Assembly Tool Required
No.2 Phillips Screwdriver (Not Included)
"MAYFAIR"PETITE FIREPLACE
Parts List
Please review all parts and hardware before disposing of any packaging.
Call Customer Service if missing hardware. Do not return to store/retailer.
Screws shown in actual size. Using a screw that is too long will cause damage.
Before beginning assembly, separate each type of screw. Carefully study the
screw diagrams below (SHOWN ACTUAL SIZE). You may receive extra

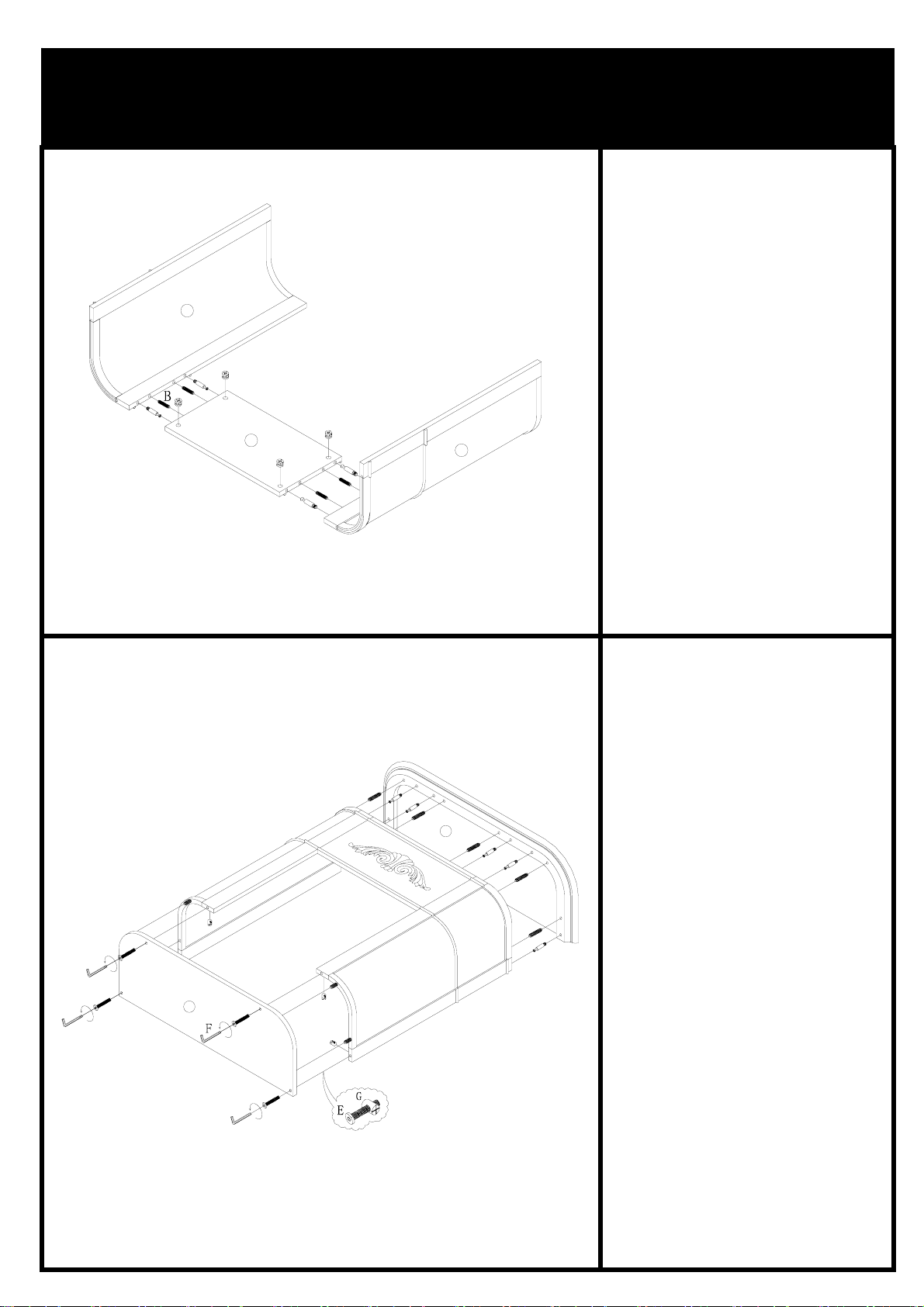

Figure 1
INSERT 4PCS WOOD DOWEL (B)
AND 4PCS CAM BOLT (A) INTO
PREDRILLED HOLES ON END OF
L&R SIDE PANEL(1&2) AND FIT
INTO CORRESPONDING HOLES
OF UPPER FRONT
PANEL(3),THEN INSERT 4PCS
CAM-LOCK (C) INTO BIG HOLES
ON EDGES OF UPPER FRONT
PANEL(3) WITH SLOT FOR
SCREWDRIVER FACING
OUTWARD,ROTATE CAM-LOCK
CLOCKWISE TO SESURE CAM
BOLT.AS FIGURE 1 SHOWN.
Figure 2
PLACE THE TOP PANEL (5) ONTO
THE UNIT, AND INSERT 6PCS
WOOD DOWEL (B) INTO L&R SIDE
PANEL(1&2) AND 6PCS CAM BOLT
(A) INTO TOP PANEL(5) FIT INTO
CORRESPONDING HOLE TO
ASSEMBLE TOP PANEL(5) AND
SIDE PANELS (1&2)
TOGETHER,THEN INSERT 6PCS
CAM LOCK(C) INTO THE BIG
HOLES ON L&R SIDE PANEL (1&2)
AND USE SCREWDRIVER
TIGHTEN IT. .
THEN INSERT 4PCS CAM NUT (G)
ONTO PREDRILLED HOLE OF SIDE
PANELS (1&2),USE 4PCS SOCKET
HEXAGON SCREW (E),THROUGH
CORRESPONDING HOLES TO
ASSEMBLE BOTTOM FRAME(4)
AND SIDE PANEL (1&2)
TOGETHER, THEN USE SOCKET
HEAD WRENCH (F) TO TIGHTEN
THEM. AS FIGURE 2 SHOWN.
"MAYFAIR"PETITE FIREPLACE
Assembly Instructions
C
C
C
B
B
B
A
A
A
A
32
1
F
F
F
G
G
G
E
E
E
E
B
B
B
A
A
A
5
4
B
B

Figure 3
INSERT 4PCS WOOD DOWEL (B)
INTO PREDRILLED HOLES ON
BOTTOM FRAME(4), USE 4PCS
SOCKET HEXAGON SCREW (E) TO
ASSEMBLE LEGS(6) AND UNIT
TOGETHER, THEN USE SOCKET
HEAD WRENCH (F) TO TIGHTEN
THEM. AS FIGURE 3 SHOWN.
Figure 4
INSERT THE FIREBOX FROM THE
BACK OF FIREPLACE. MAKE SURE
FIREBOX IS PRESSED TIGHTLY
AGAINST THE ASSEMBLED UNIT.
ATTACH WOOD HOLDER(7) ON
THE SIDES OF FIREBOX
W/SCREEN KIT. INSERT 4PCS
FLAT HEAD LONG SCREWS (D)
THROUGH PREDRILLED HOLES
ON WOOD HOLDER(7) AND
TIGHTEN INTO CORRESPONDING
HOLES ON BACK OF LEFT AND
RIGHT SIDE PANELS (1&2) AS
FIGURE 4 SHOWN.
We'd love to hear from you! Email us photos of our products in your home at [email protected] and
we might feature it on our site or use it to model one of our inspirational photos.
"MAYFAIR"PETITE FIREPLACE
Assembl
y
Instructions
6
B

Customer Service 1-800-633-5096
[email protected]
Southern Enterprises, Inc.
2915 Merrell Road
Dallas, Texas 75229
Missing or damaged hardware and/or parts will be replaced free of charge. We do not sell parts. Southern
Enterprises Inc. will provide replacement parts for only those items purchased within the last 9 months. If
this product has not been purchased from our retail affiliates (within 9 months), we are under no obligation
to provide parts or replacement merchandise. Parts will not be available for items arriving fully assembled.
Parts will be sent if available from SEI. The fireplace mantel will fit both gel fuel and electric firebox inserts.
Depending on the insert ordered only one insert will be included.
WARNING: positioning anything on top of your fireplace mantel poses a degree of risk especially in the case
of electronic appliances or equipment. If you elect to display a television we recommend that it be a slim
profile flat-screen and that it be positioned away from the front edge of the mantel where there is a degree
of heat generated from the firebox. You may also want to tether your flat screen tv to the wall behind it for
added safety and security. Manufacturer assumes no responsibility for items placed on top of a fireplace
mantel.
Customer Information
Name
Address
City/State/Zip Code
Phone Number
Please indicate where you purchased this item: Store/Website/Catalog
Please indicate color/size/style number:
StyleNo PartsLetter PartsDescription Quantity Needed
FA9111/12/13 - Parts Replacement Form
