Seifert 43251001 User manual

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 1 / 18
Table of Content 43251001
1. User manual 2 ..................................................................................................................................
2. Legal regulations 3 .........................................................................................................................
3. Safety instructions 4 ......................................................................................................................
4. Settings 5 .........................................................................................................................................
5. Functional principle 6 .....................................................................................................................
6. Technical data 7 ..............................................................................................................................
7. Performance graph 8 ......................................................................................................................
8. Mounting 9 .......................................................................................................................................
9. Mounting Principle 10 .....................................................................................................................
10. Cut Out Dimension 11 ...................................................................................................................
11. Dimension (H x W x D) 12 ............................................................................................................
12. Electrical Connection 13 ...............................................................................................................
13. Controller 14 ..................................................................................................................................
14. Wiring Diagram 15 ........................................................................................................................
15. Taking into Operation 16 .............................................................................................................
16. Trouble Shooting 16 .....................................................................................................................
17. Maintenance & Cleaning 16 .........................................................................................................
18. Transport & Storage 17 ................................................................................................................

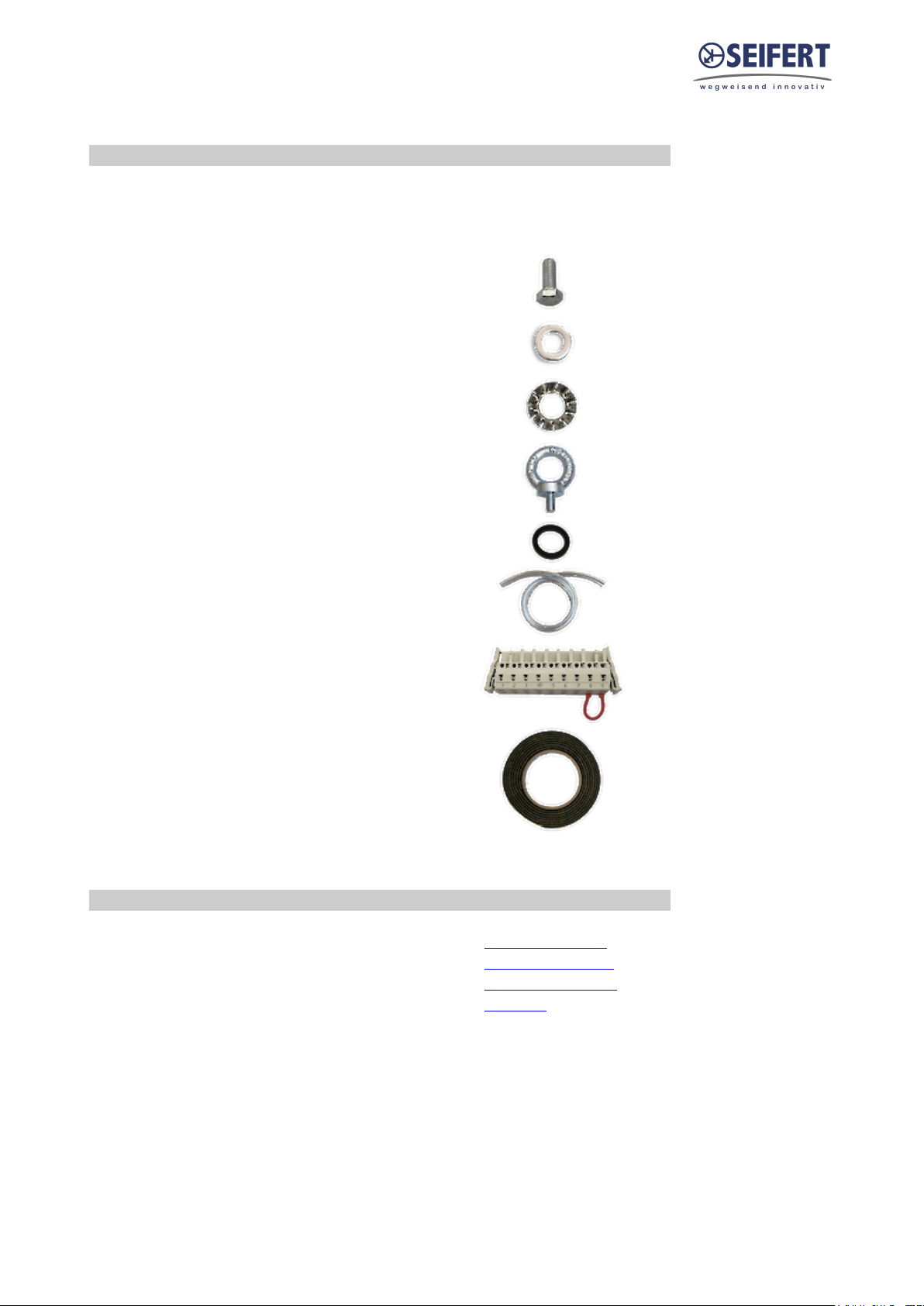

19. Parts supplied / Spare parts / Accessories 18 ..........................................................................

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 2 / 18
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures (stationary,
not moving) in order to protect temperature sensitive components in an industrial environment. To meet the
conditions of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 3 / 18
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 4 / 18
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified
personnel, using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 5 / 18
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air. The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air)
with a standard operating temperature ranging between 10°C and 55°C. Units can be ordered with an
additional electrical cabinet heater. For the cooling capacities and evironmental ratings please refer to the type
plate data.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 6 / 18
5. Functional principle

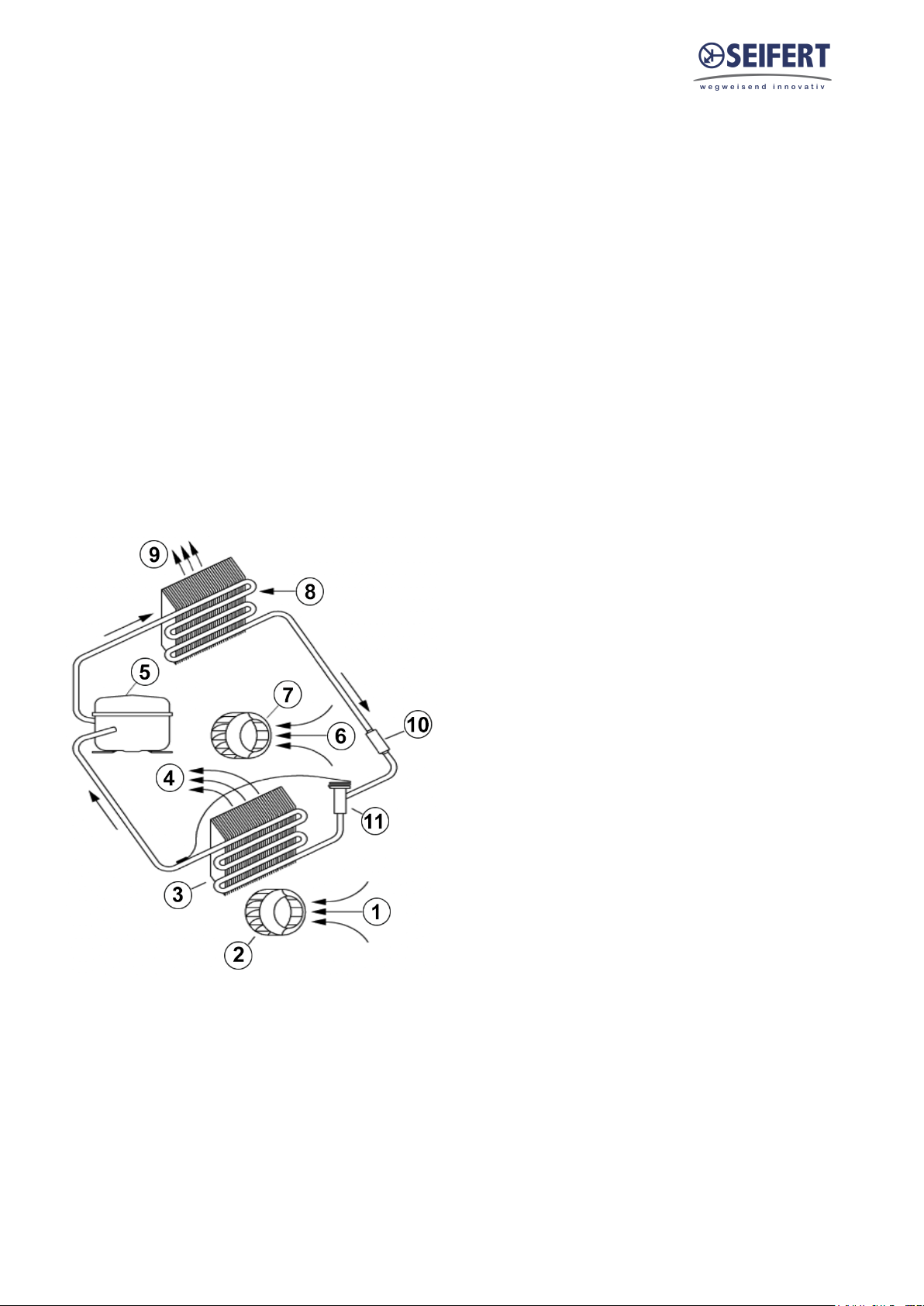

The cooling unit for enclosures works based on a refrigeration circuit consisting of four main
components: compressor (1), evaporator (2), condenser (3) and expansion device (4).
The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an
Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430). The compressor
compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes it through the
condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the liquid state it
then passes through the capillary pipe being a much lower pressure the refrigerant arrived to the evaporator
where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back into the
compressor completing the cycle.
Condensation management
In environments with humidity and low internal enclosure temperatures, condensation may form on the
evaporator coil. Standard cooling units 43XXX0XXX have a drain socket towards the bottom of the unit for
connection of the drain pipe.
Cooling units 43XXX1XX include an internal condensate evaporator based on self-regulating PTC cartridges.
Condensate is drained to an internal recipient where it evaporates when in contact with the cartridge surface.
Resulting steam is directed towards the condenser. The PTC heater cartridge is permanently connected. The
recipient has an overflow socket at the bottom of the unit, for which a drain pipe is supplied.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 7 / 18
6. Technical data
Order Number 43251001
Cooling capacity L35L35 2.5 kW
Cooling capacity L35L50 2.04 kW
Compressor type Rotary piston compressor
Refrigerant / GWP R134a / 1430
Refrigerant charge 850 g / 30 oz
High / low Pressure 29.5 / 6 bar
425 / 88 psig
Operating Temperature Range 10°C - 55°C
Air flow volume (system / unimpeded) Ambient air circuit: 750 / 1200 m³/h
Cabinet air circuit: 550 / 1200 m³/h
Mounting Wall mounted
Housing Material Mild steel, powder coated
Dimensions A x B x C (D+E) 1,230 x 500 x 340 mm
Weight 73 kg
Cut out dimensions 1,130 x 430 mm
Voltage / Frequency 120 V ~ 60 Hz
UL Voltage / Frequency 115 V ~ 60 Hz
Current L35L35 8.7 A
Starting current 45.1 A
Max. current 13.5 A
Nominal power L35L35 970 W
Max. power 1.27 kW
Fuse 16 A (T)
Short-circuit current rating 5 kA
Connection Connection terminal block
Ingress Protection IP 54 / TYPE 12
Approvals CE, cURus, cULus

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 8 / 18

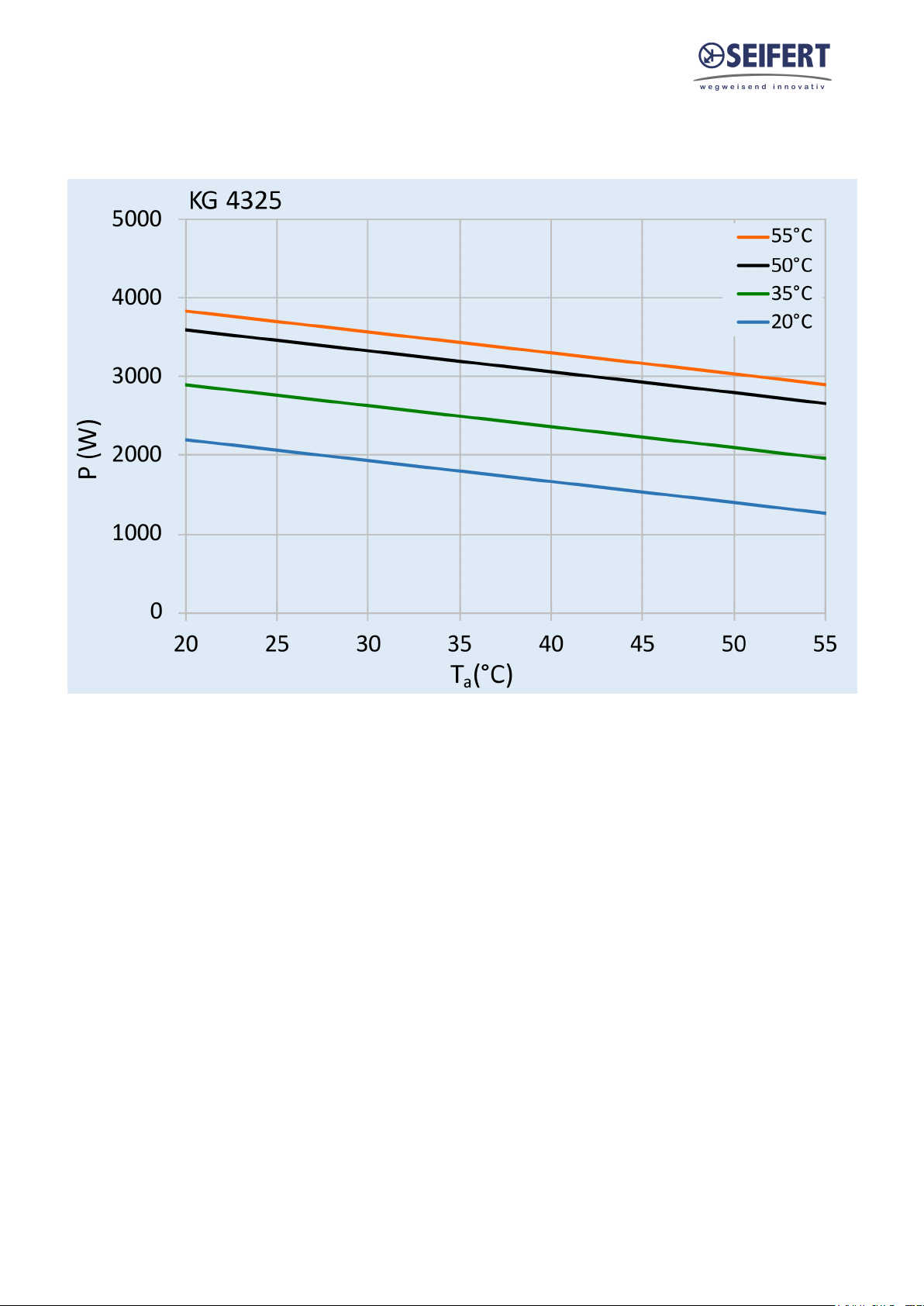

7. Performance graph

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 9 / 18
8. Mounting
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions.
Ensure that flows of air leaving and entering the cooling unit, internal and external, are not obstructed. It must
also be ensured in accordance with UL, that the air outlet is not blowing air directly at an equipment
operator. Should this be the case a barrier or duct shall be provided to redirect the airflow.
Cooling unit enclosure air suction hole must be installed in the highest possible point. When installing the unit
on a door ensure it can take the weight.
Before drilling the enclosure ensure the fixing elements and couplings will not interfere with the equipment
inside the enclosure itself. Disconnect power before starting any work inside the enclosure. Following this 1:1
Scale Drilling Template drill the holes and make the required cuts on the enclosure. This template may have
been affected by storage conditions, please check this template by verifying values of the largest dimensions
before drilling. Fit the sealing strip on the cooling unit on the side connected to the enclosure and follow the
installation diagram.
Note: In case of 19" rack mounted units please ignore the above mounting instructions.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 10 / 18

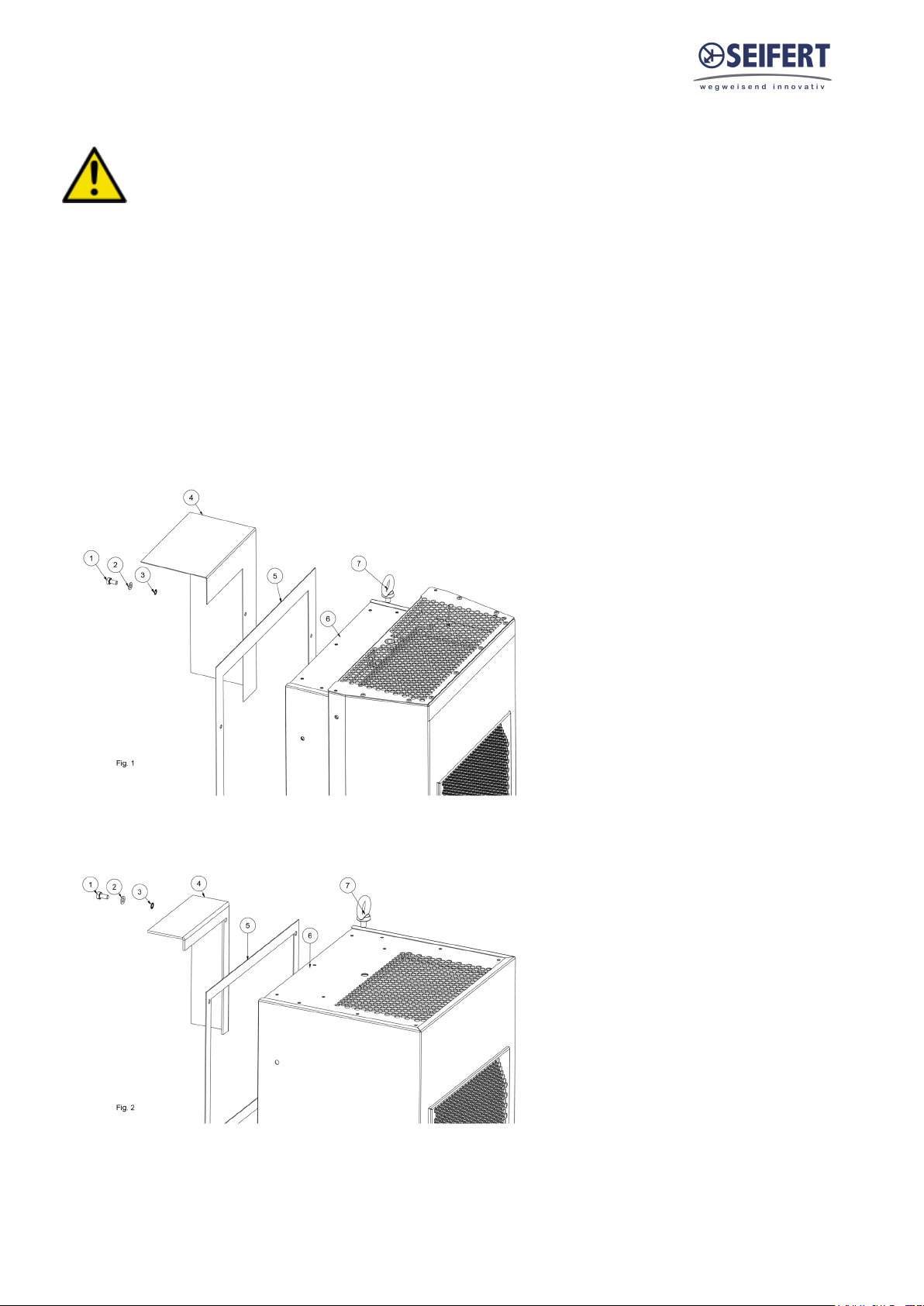

9. Mounting Principle
Do not use within the first 15 minutes after installation!
1 M6 screws
2 M6 flat washers
3 M6 toothed washers
4 Cabinet
5 Sealing tape
6 Cooling unit
7 Lifting hook
Fig. 1 Recessed
Fig. 2 External

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 11 / 18

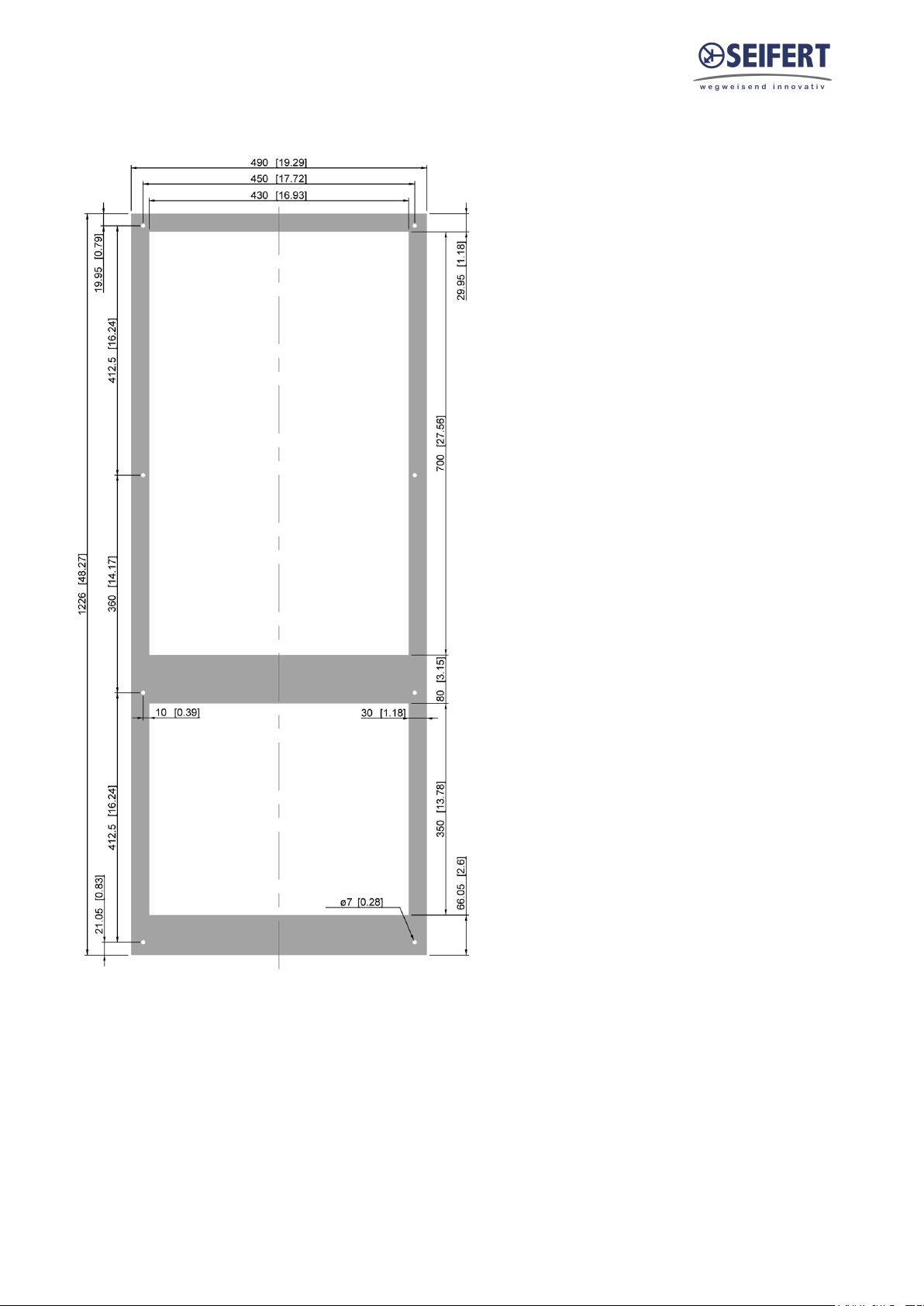

10. Cut Out Dimension

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 12 / 18
11. Dimension (H x W x D)

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 13 / 18
12. Electrical Connection
Door Switch
The unit can be switched on and of via a door contact switch. When delivered the door contact terminals are
bridged on the female connector. To connect the door contact switch remove the bridge and connect door
contact switch. The contact must be closed when the cabinet door is closed.
SCCR
Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods
how to modify the available short circuit current within a circuit in the panel.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 14 / 18
13. Controller
The unit is equipped with a temperature controller which regulates the function of the air-conditioning cycle.
At normal working conditions the display shows the temperature inside the enclosure. The cooling set point for
the interior of the enclosure (parameter St / St1) is pre-set at 35°C and can be adjusted between 20°C and
50°C.
To change the cooling set point St/St1:
1. Press ‘Set’ till St/St1 appears on the display
2. Press the Up/Down buttons to adjust the temperature setting
3. Press ‘Set’ to save the new setting
To change the heating set point St2 (units with internal heater only):
1. Press ‘Set’ till St1 appears on the display and release the button
2. Press again ‘Set’ till St2 appears on the display
3. Press the Up/Down buttons to adjust the temperature
4. Press set to save the new setting
Important Note: when changing settings ensure that: (St2 + 5K) < St1
The unit also has a potential free high temperature alarm relay (normally closed configuration) that is pre-set
to switch when the enclosure temperature exceeds 55°C. If necessary, the alarm relay configuration and the
set point can be changed via the controller’s parameters. Kindly contact your nearest service / sales partner
for further details on how to change these parameters.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 15 / 18
14. Wiring Diagram
C Controller
EB External Blower
CE Condensate evaporator
#1 Models with condensate evaporator
IB Internal Blowers
PC 9 Pole connector
CC 7 core cable
Mc Motor compressor
AT Auotransformer
1 115V L1
3 N / L2
4 Earth
6 Alarm P1
7 Alarm P2
8 Door T1
9 Door T2

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 16 / 18
15. Taking into Operation
Attention! The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately
lubricated the oil, which has been displaced during transport, must be allowed to flow back into it. The unit must
therefore be allowed to stand for at least 30 min. before being connected to the mains and taken into
operation. The unit / system must be protected with a MCB Type D or K.
Upon connection the internal fan will start working. If the temperature inside the enclosure is higher than the
set value of the controller both the compressor and external air fan start working. Once the air inside the
enclosure reaches the set temperature the compressor and external fan will stop.
The hysteresis is 3K, the minimum ON-time is 4 minutes, the minimum OFF-time is 3 minutes, for units with a
cooling capacity of more than 1 kW is it usually 7 minutes.
The unit is pre-set at 35°C, which is suitable for most of the electronic devices.
16. Trouble Shooting
Failure Condition Cause Solution
Unit
doesn't
cool
Internal fan does not work Power not connected. Verify power supply
Internal fan works, external fan
and compressor don't work
Enclosure temperature is below
setting temperature (St1) Verify values of parameter "St1"
Door switch contact is open Verify door switch
Controller doesn't work Replace controller
Internal fan works, external fan
and compressor don't work.
Display shows alternating OFF
and temperature
The sequence of the phases
inside the power supply
connector is incorrect
Change phases inside power
supply connector
Unit
doesn't
cool
External and internal fan work,
compressor does not work
Compressor motor electrical
failure
Have compressor replaced
by qualified service technician
Capacitor for compressor failed Replace capacitor
Compressor works, external fan
doesn't work
External fan needs to be
replaced Replace external fan
Enclosure
temperature
too hot
Compressor and fans (external
and internal) work all the time Cooling unit undersized Enclosure needs a cooling unit with higher capacity
Compressor and external fan
work in alternating mode
(ON / OFF)
Thermal compressor protector
triggered Verify if ambient temperature is too high, clean condenser
Refrigerant leakage Contact dealer / service centre
Excessive
condensate
Enclosure door open Ambient air gets into the
enclosure
Ensure door is closed, add a door switch and connect
it to controller
Enclosure door closed
Enclosure IP protection class
is below IP54 Seal all openings of the enclosure
Damaged or misplaced sealing
strip
Repair sealing strip accordingly
17. Maintenance & Cleaning
Always switch power supply off before starting any maintenance on the unit.
The cooling unit is generally maintenance free and can be operated without filters in most environments. For
units with filters these should be checked, cleaned and if necessary replaced on a regular basis. In addition the
unit should have regular functional tests (approx. every 2,000 hours depending on the grade of ambient
pollution).
Disposal
The unit contains R134a refrigerant and small quantities of lubricating oil. Replacement, repairs and final
disposal must be done according to the regulations of each country for these substances.

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 17 / 18
18. Transport & Storage
Malfunction due to transport damage
On delivery the carton box containing the unit must be examined for signs of transport damage. Any transport
damage to the carton box could indicate that the unit itself has been damaged in transit which in the worst case
could mean that the unit will not function.
The unit can only be stored in locations which meet the following conditions:
temperature range: - 40°C to + 70°C
Relative humidity (at 25°C): max. 95 %
Returning the unit
To avoid transport damage the unit should be returned in the original packing or in a packing case and must be
strapped to a pallet. If the unit cannot be returned in the original packing please ensure that:
A space of at least 30 mm. must be maintained at all points between the unit and the external packing.
The unit must be shipped in the same position as it was mounted.
󰾬The unit must be protected by shock resistant padding (hard foam corner pieces, strips or cardboard
corner pieces).

Version No. 1-7 - 13.06.2022 Doc. No. 9943251001 18 / 18
19. Parts supplied / Spare parts / Accessories
Description QTY Image
Instruction manual 1
CE Declaration 1
Mounting template 1
M6 * 16 bolts 8
A6.4 washer 8
M6 toothed washers 8
Lifting hook M8 x 12 1
PVC washer 1
Drain pipe 1
Female connector 1
Foam tape
Accessories:
Description Order no.
Fibre filter media EU2 SP-43250001-O-1
Washable aluminium filter SP-43250001-BF-1
Stainless steel filter holder incl. filter media SP-43250001-BG-1
Door contact switch 3100001
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems Inc. Seifert Systems Pty Ltd.
Albert-Einstein-Str. 3 HF09/10 Wilerstrasse 16 Bärnthal 1 Rep. Office 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
42477 Radevormwald Birzebbuga, BBG 3000 4563 Gerlafingen 4901 Ottnang 26100 Cremona RI 02852 3152 Victoria
Germany Malta Switzerland Austria Italy USA Australia
Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone]
[email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
