Seifert 42680001 User manual

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 1 / 18
Table of Content 42680001
1. User manual 2 ..................................................................................................................................
2. Legal Regulations 2 ........................................................................................................................
3. Safety Instructions 3 ......................................................................................................................
4. Settings 4 .........................................................................................................................................
5. Functional Principle 4 .....................................................................................................................
6. Technical Data 5 ..............................................................................................................................
7. Mounting 6 .......................................................................................................................................
8. Condensate management 8 ...........................................................................................................
9. Mounting Principle 9 .......................................................................................................................
10. Electrical Connection 10 ...............................................................................................................
11. Controller Layout Description 12 ................................................................................................
12. Wiring Diagram 13 ........................................................................................................................
13. Taking into Operation 14 .............................................................................................................
14. Trouble Shooting 15 .....................................................................................................................
15. Maintenance & Cleaning 16 .........................................................................................................
16. Maintenance 16 .............................................................................................................................
17. Transport & Storage 17 ................................................................................................................
18. Parts supplied / Spare parts / Accessories 18 ..........................................................................

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 2 / 18
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures (stationary,
not moving) in order to protect temperature sensitive components in an industrial environment. To meet the
conditions of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal Regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 3 / 18
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety Instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified
personnel, using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 4 / 18
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment,
and is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use. The unit has two completely separate
air circuits which ensure that the clean cabinet air does not come into contact with the ambient air which may
well be dirty or polluted. The cooling unit can dissipate large quantities of heat from electrical enclosures into
the ambient air and at the same time reduce the internal temperature to below that of the ambient air. The unit
works without problems in extreme ambient conditions (e.g. dusty and oily air). The operating temperature
range is between +20°C and +55°C. Units can be ordered with an additional electrical cabinet heater. For
the cooling capacities and evironmental ratings please refer to the type plate data.
5. Functional Principle
The cooling unit for enclosures works on the basis of a refrigeration circuit consisting of four main
components: compressor, evaporator, condenser and expansion device.
The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an
Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430). The compressor
compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes it through the
condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the liquid state it
then passes through the capillary pipe being a much lower pressure the refrigerant arrives to the evaporator
where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back into the
compressor completing the cycle.
1 Air intake cabinet side 6 Air intake ambient side
2 Radial fan cabinet side 7 Radial fan ambient side
3 Evaporator 8 Condenser
4 Air outlet cabinet side 9 Air outlet ambient side
5 Compressor 10 Filter dryer
11 Expansion device

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 5 / 18
6. Technical Data
Order Number 42680001
Cooling Capacity L35L35 400 W @ 50 Hz
425 W @ 60 Hz
Cooling Capacity L35L50 155 W @ 50 Hz
165 W @ 60 Hz
Compressor Rotary piston compressor
Refrigerant / GWP R134a / 1430
Refrigerant Charge 92 g / 3.2 oz
High / Low Pressure 20 / 13 bar
290 / 188 psig
Operating Temperature Range +10°C - +50°C
Air Flow Volume (System / Unimpeded) Ambient air circuit: 200 / 450 m³/h
Cabinet air circuit: 125 / 250 m³/h
Mounting Wall mounted / Recessed
Housing Material Mild steel, powder coated
Dimension A x B x C (D+E) 520 x 320 x 110 (25+85) mm
Weight 14.8 kg
Voltage / Frequency 230 V ~ 50/60 Hz
Current L35L35 1.6 A @ 50 Hz
1.5 A @ 60 Hz
Starting Current 3.2 A
Max. Current 1.9 A
Nominal Power L35L35 325 W @ 50 Hz
345 W @ 60 Hz
Max. Power 440 W
Fuse 6 A (T)
Short-Circuit Current Rating 5 kA
Connection Connection terminal block
Ingress Protection IP 54
Approvals CE, cURus, cULus

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 6 / 18
7. Mounting
Mounting preparations
Several points must be checked before the unit can be mounted. These checks must be made to ensure safety
and the trouble-free operation of the unit. These checks must be carried out with absolute thoroughness to
ensure that the unit works perfectly.
Check unit for transport damages
On delivery the carton box containing the unit must be examined for signs of transport damage. Any transport
damage to the carton box could indicate that the unit itself has been damaged in transit which in the worst case
could mean that the unit will not function.
Location and space requirements
The location of the cabinet must allow for sufficient air circulation to and from the unit.
Attention
Damage to the unit through incorrect mounting. The unit must be mounted according to the mounting template.
It is therefore also important to check, with the help of a spirit-level, that the cabinet is in a horizontal position.
The max. deviation from the vertical or horizontal is 3 degrees.
Air apertures
To provide adequate air circulation and avoid temperature layers from forming, ensure that air inlet and air
outlet are not partially or completely blocked by obstructions in the cabinet. It must also be ensured in
accordance with UL, that the air outlet is not blowing air directly at an equipment operator. Should this be the
case a barrier or duct shall be provided to redirect the airflow.
Sealing
󰾬To guarantee that the unit works perfectly ensure that:
the control cabinet is completely sealed to min. IP54 according to EN 60529
a good seal exists between the control cabinet and the unit
Danger through high voltage
Ensure that for the duration of the mounting operation the cabinet is disconnected from the electrical supply.
Therefore take the cabinet out of operation, following the relevant instructions, before mounting work begins
and take all precautions to prevent premature reconnection of the cabinet. When all mounting preparations are
complete the actual mounting operation can commence.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 7 / 18
Use of mounting template (not applicable for 19" rack mount units)
The supplied mounting template helps to mount the cabinet air conditioner quickly. Please proceed as follows:
Take the cabinet out of operation in the prescribed manner and secure it against unauthorized
reactivation
Fix the mounting template in the required position on the outer surface of the cabinet
Drill the holes and cut the apertures in the required positions in the surface of the cabinet and remove
the mounting template
Stick the self-adhesive unit seals on the outer surface of the cabinet for externally mounting and on the
inner surface of the cabinet for half in/half out mounting of the unit
The self-adhesive seals ensure a durable seal between the unit and the cabinet.
Mounting the unit
Only use the supplied material to mount the unit on the cabinet. Proceed as follows to secure the unit on the
cabinet:
Set the unit up on the cabinet
Screw the M6 hex. head screws together with the washers and locking washers into the M6 threaded
rivets in the uni
The resistance of the earth connection between cabinet and cooling unit must be < 0.1 Ω.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 8 / 18
8. Condensate management
Condensation drain (1) and oel & cleaning drain (2) pipe connection
The condensation drain (1) is in the base of the unit. The condensation drain pipe should be attached as
required e.g. in conditions of high humidity.

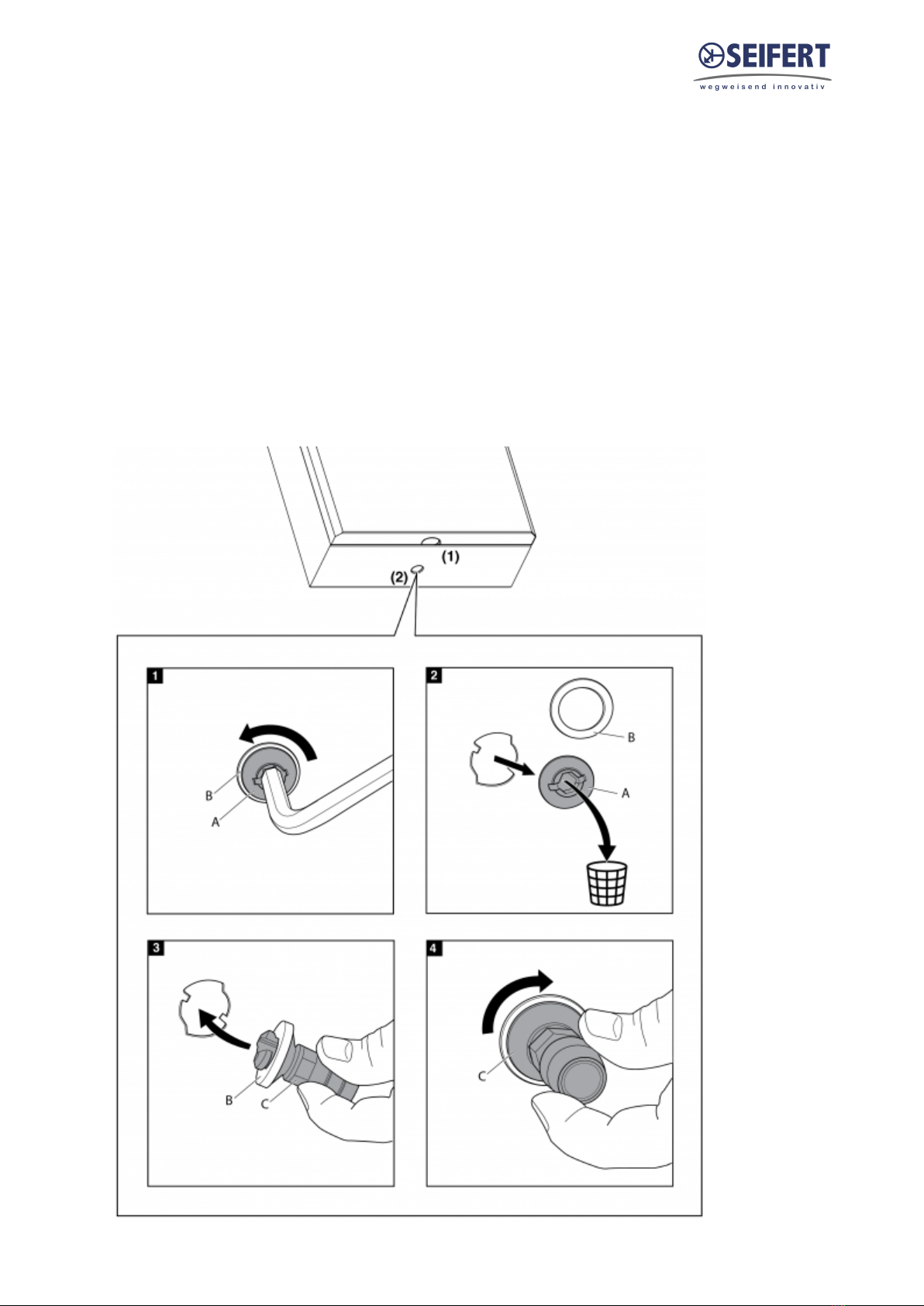

To install an oel & cleaning drain (2) pipe, please follow below steps:
Remove the plastic stopper from in the base of the unit (factory setting is locked)1.
Dispose the plastic stopper but keep the Slilicon washer 2.
Insert the drain connector 3.
Lock it clockwise and fix the oel & cleaning pipe onto it󰾬4.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 9 / 18
9. Mounting Principle
Do not use within the first 15 minutes after installation!
1 Mounting gasket
2 Mounting clip
3 M6 slotted set screw
4 Washer
5 Lock nut
Fig. 1 Recessed
Fig. 2 External

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 10 / 18
10. Electrical Connection
High electric voltage present. Installation, maintenance, cleaning and
any other work must be carried out by qualified personnel only. The
personnel must ensure that for the duration of this work the unit and
the cabinet are disconnected from the electrical supply and protected
against unauthorised/accidental reconnection.
Note: As soon as preperations are finished, mounting procedures may proceed.
Connection to the main electrical suppy
The mains connection is made via a connector / terminal block. To connect the unit to the mains proceed as
follows:
Take the control cabinet out of operation in the prescribed manner.
See the connection details on the circuit diagram.
Attention
Between contact T1 & T2 there is a 12V DC potential. These connections are to be connected to a door switch
only! If no door switch is used, these contacts are to be bridged and protected from unauthorized and/or
accidental external contact. Contacts P1, P2 & P3 are potential free and require an external power source if
wired to operate external components (indicator lamps, switches...). The load on these contacts is not to exceed
30V AC/DC, 5 A. If wired to external components it must be ensured that the wiring and connections are double
insulated and safe against touch and protected from unauthorized and/or accidental external contact.
Ensure that the correct polarity is maintained. The fans should have
clockwise rotation.
Fault warning connection
A fault warning contact for temperature in excess of the pre-set cabinet temperature is available and can be
connected as required. The operating current for this function must be less than 4A/30VDC, 4A/250VAC. The
fault warning is connected via terminals P1, P2 & P3 on the connection terminal block. The alarm temp.
adjustment range is between 25°C (left-hand stop) and 55°C (right-hand stop). The alarm temp. is preset at
50°C.
To change the alarm setting:
Remove the outer cover.
Remove the fixing screws from the PCB cover and the earth wire from inside it.
Lift off the PCB cover
Using a screwdriver turn the alarm temp. potentiometer on the PC-board slightly to the right (higher) or
the left (lower)
please note that the setting for the alarm signal must be at least 5°C higher than the setting for the
cabinet's internal temperature
Close the unit as prescribed
Check that the new setting meets requirements and if not repeat the above process.
Door contact switch connection
If required the unit can be switched on or off via a door contact switch (terminal T1&T2). When delivered the
door contact terminals are bridged.
To connect the door contact switch:

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 11 / 18
Remove the bridge from terminals T1 & T2.
Connect the door contact switch to terminals T1 & T2.
The contact must be closed when the cabinet door is closed.
SCCR
Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods
how to modify the available short circuit current within a circuit in the panel.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 12 / 18

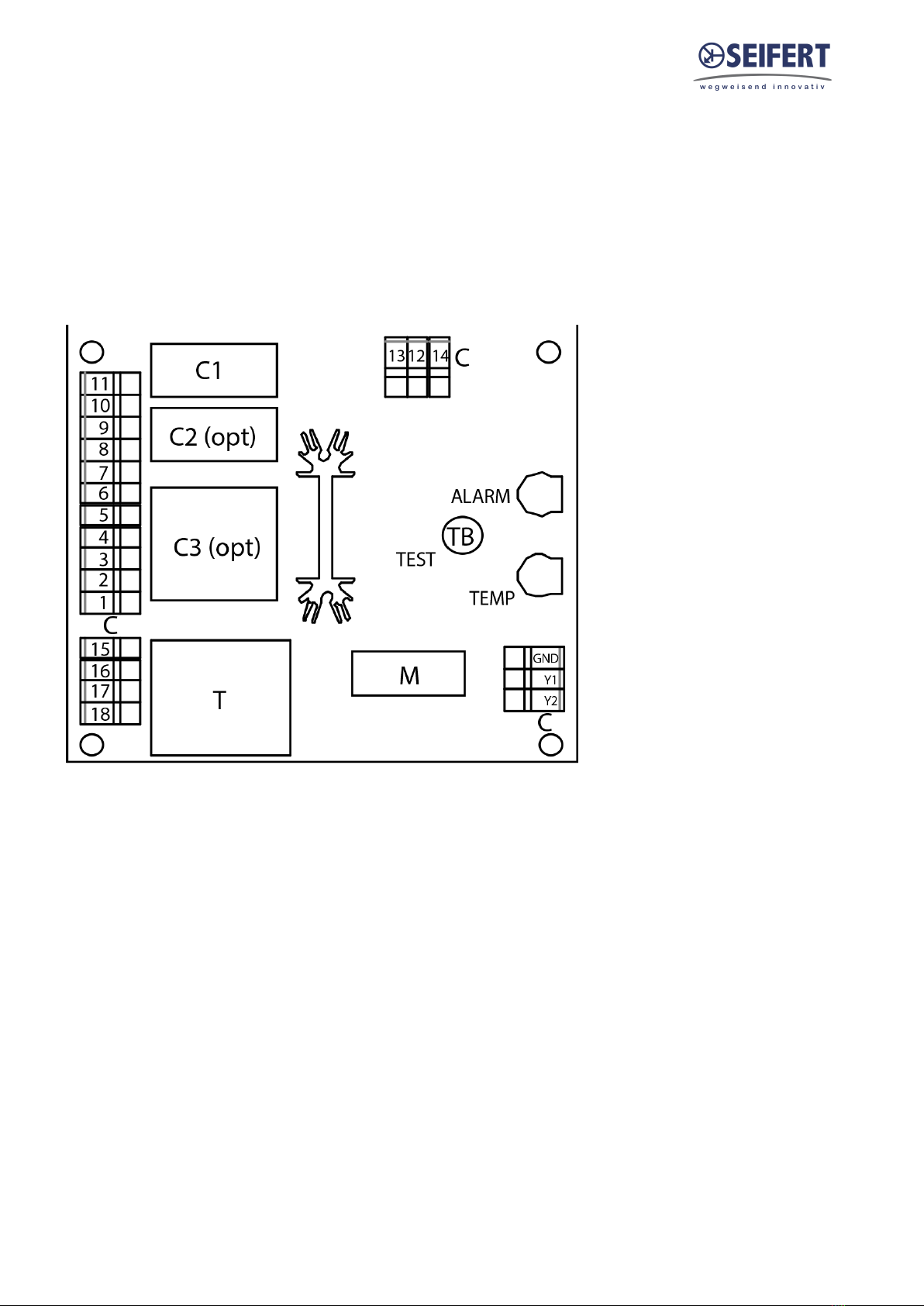

11. Controller Layout Description
C1,2,3 Fan capacitors
C Connection terminals
M Microcontroller
Alarm Potentiometer alarm temperature
Temp Potentiometer cabinet temperature
T Transformer
TB Test-button

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 13 / 18

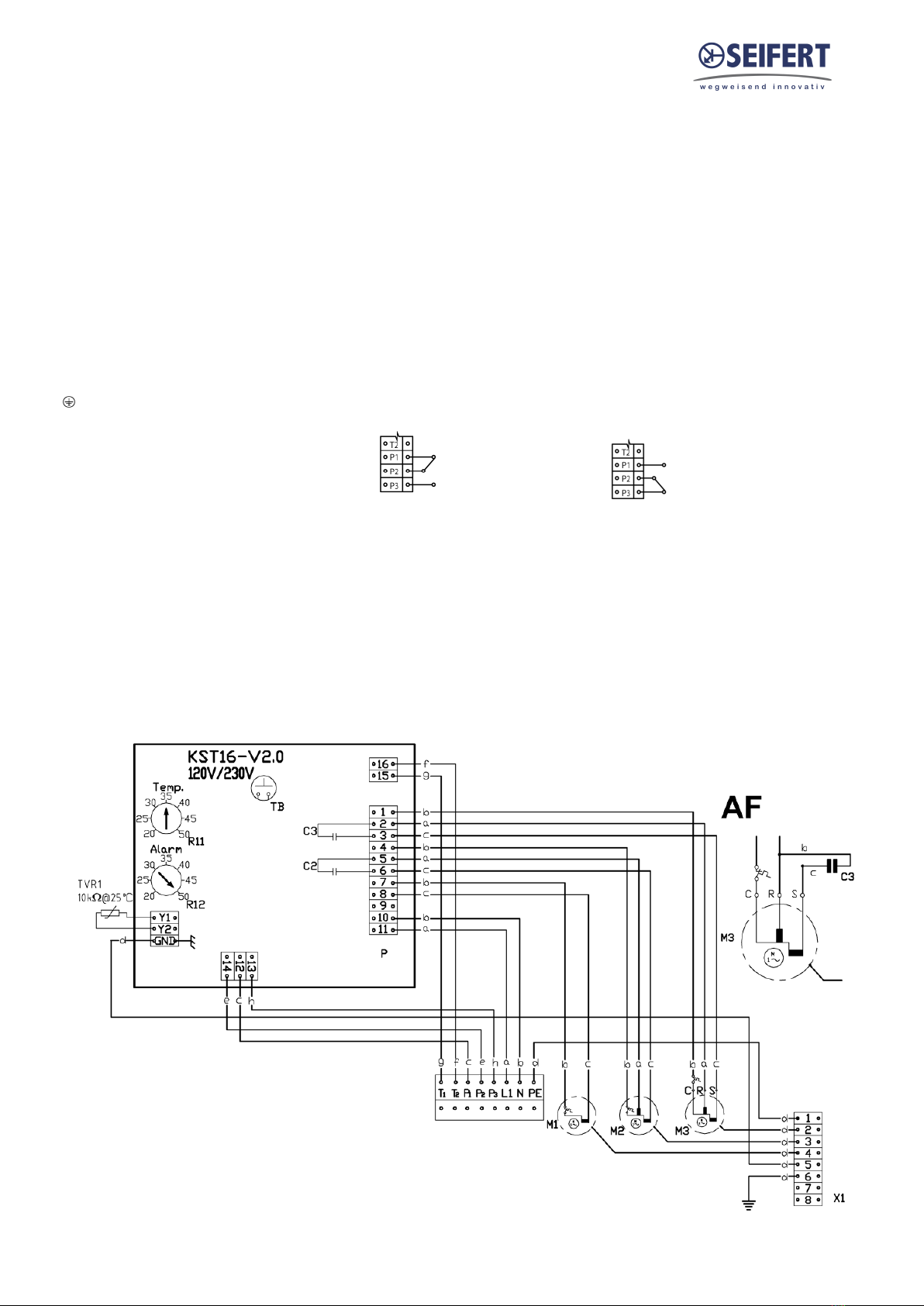

12. Wiring Diagram
M1 Radial fan cold side
M2 Radial fan warm side
M3 Compressor motor
C2 Capacitor for M2
C3 Capacitor for M3
TVR1 NTC temperature filter
P Connection terminal
TB Test button
X1 Earth connector
R11 Control temperature potentiometer
R12 Alarm temperature potentiometer
1 L1 Live, 230 V
2 N Neutral
PE Earth
4 T1 Door contact (bridged with T2)
5 T2 Door contact (bridged with T1)
Normal (with power ON) Alarm (with power ON)
6 P1 Alarm contact
7 P2 Alarm contact
8 P3 Alarm contact
AF Alternative fixing for M3/C3
ATT For wiring sequence, please refer to connector identifier next to connector block.
Cable colors Temperature settings
a black Position Temp °C Alarm °C
b blue 1 20 25
c brown 2 25 30
d green, yellow 3 30 35
e grey 4 35 40
f pink 5 40 45
g red 6 45 50
h violet 7 50 55

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 14 / 18
13. Taking into Operation
Attention!
The unit can be damaged by lack of lubricant.
To ensure that the compressor is adequately lubricated the oil, which has been displaced during transport, must
be allowed to flow back into it. The unit must therefore be allowed to stand for at least 30 min. after mounting
before being connected to the mains and taken into operation.
The unit / system must be protected with a MCB Type D or K.
The unit is controlled in relation to the cabinet internal temperature. A temperature sensor continuously
measures the temperature of the air which is drawn into the unit from the cabinet. The required cabinet temp.
can be set on the cabinet temperature potentiometer on the PC-board. The temperature adjustment range is
between 20°C (left-hand stop) and 50°C (right-hand stop). The potentiometer is factory pre-set at 35°C.
To adjust the cabinet internal temperature please proceed as follows:
Remove the fixing screws from the unit cover and the earth wire from inside it.
Lift off the cover.
Remove the PCB cover.
Using a screwdriver turn the cabinet temperature potentiometer on the PC-board slightly to the right
(higher) or to the left (lower)
Close the unit in the prescribed manner.
Check that the new adjusted values meet the necessary requirements. If necessary repeat the procedure. The
compressor together with the ambient radial fan are switched ON or OFF, depending on the cabinet internal air
temperature. Here the minimum shut-down time corresponds with the start-up delay. The cooling mode will
switch on as soon the desired temperature is reached. The start-up delay is depending on the unit size 3 or 7
min. The cooling mode will switch off as soon as the desired temperature is undercut by 3K (hysteresis) (KG
4266854 has a 5K hysteresis) and / or when the max. running time of 3 min. is reached.
When the test button is pressed the compressor and the ambient fan will run for 120-240 sec. regardless of the
cabinet temperature. During this period the green LED on the PC-board will blink twice as fast as normal. If the
test button is pressed during the 120-240 sec. test-run, the unit will return to its normal operational mode. The
test-run should only be repeated after a minimum compressor shut-down time of 10 min.
NOTE: 󰾬When the unit is taken into operation for the first time, a start-up delay of the cooling circuit for ca. 4-7
min. independent of temperature setting and actual cabinet temperature will take place.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 15 / 18
14. Trouble Shooting
Failure Reason Troubleshooting
Unit
doesn't
start
No power supply Check the electrical connection
Cabinet temperature is lower
than set point
Wait until the set point is reached. The unit will then
start automatically. If the set point of the cabinet
temperature is too high, reduce it accordingly.
Door contact is open Close the cabinet door or bridge the door contact.
Unit
doesn't
cool
Compressor is faulty Please get in contact with one of our service
partners.
The circuit breaker of the
compressor got activated
Check the cooling capacity. In case the
cooling capacity is too small, install the unit
at a different place or add another cooling unit.
The evaporator and / or
condenser are extremely dirty. Evaporator and /or condenser need cleaning
Evaporator
is iced up
Not enough refrigerant due to
leaking cooling circuit
Refill refrigerant and re-seal cooling circuit.
Please contact the manufacturer.
Ambient temperature is much
lower than the stated operating
temperature range
Install the unit at a different place. The ambient
temperature must be within the stated operating
temperature range.
The control cabinet is
not sealed properly. The control cabinet needs re-sealing.
Fan or fan capacitor on
the cold side are faulty Replace fan and/or fan capacitor.
Too much
condensate
Cabinet door not closed Ensure that cabinet door is closed properly
The cabinet is not
sealed properly The control cabinet needs re-sealing.
Incomplete gasket between
cooling unit and cabinet Please check gasket
Uneven air circulation
inside the cabinet
Cabinet air intake and air
outlet are blocked
Ensure that both are unblocked and that air
can circulate
Cabinet volume too big for
this cooling unit
Check the cooling capacity. In case the cooling
capacity is too small, install the unit at a different
place or add another cooling unit.
Condenser fan
doesn't work Fan is faulty Replace fan
Evaporator fan
doesn't work Fan is faulty Replace fan
Note: Before you contact one of our service partners please press the test button of the controller. Like this the
fans and the evaporator are getting switched on independent of the internal cabinet temperature. In cases of
emergency you can contact us under one of the tel. numbers stated on the last page.

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 16 / 18
15. Maintenance & Cleaning
Danger from electrical voltage
Maintenance and cleaning must be carried out by specialists (electricians). The
personnel must ensure that for the duration of this work the unit and the cabinet
are disconnected from the electrical supply and protected against unauthorised
reactivation.
Danger through incorrect work on the unit
The instructions in the cabinet manufacturer’s manual must be read.
Damage to the unit through incorrect maintenance and repair.
Maintenance and repair of the refrigerant circuit must be carried out by the
manufacturer or another specialist.
Unit service and cleaning
All units are virtually maintenance-free.
Note: Please check on our website under download / service and maintenance for our new videos.
However, the following points must be taken into account:
The service and cleaning of the unit must be undertaken by specialists. The personnel must ensure that for the
duration of the cleaning work the unit and the cabinet are disconnected from the electrical supply and protected
against unauthorized reconnection. The connections 1&2 and 3&4 are not low voltage (<50V).
Regularly check the condenser profile for dirt tests (approx. every 2,000 hours depending on the grade of
ambient pollution).
Should the condenser need cleaning:
Disconnect the whole plant from the mains.
Clean the condenser profile as required by blowing it out with compressed air.
In cases of extreme pollution a cleaning fluid must be used.
Danger from electrical voltage.
The unit must be removed from the control cabinet for wet cleaning! Instruction: Never use aggressive
cleaning fluids or materials.
Should fluid cleaning be necessary:
Disconnect the whole plant from the mains
Remove the unit from the cabinet
Ensure that the seals are not damaged
Remove the radial fan
Steam-clean the condenser profile or wash it with an environmentally safe cleaning fluid.
Instruction:After cleaning and drying the unit, there must be a two hour delay before the unit is taken back
into operation.
16. Maintenance
Attention! Only use original replacement parts when repairing the unit. This ensures that the unit functions
perfectly and remains safe. For further information and spare part ordering please contact us by email under on
one of the addresses stated on the last page.
Radial fan replacement: The normal working life of the fan is app. 40,000 working hours under normal

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 17 / 18
conditions. Should you still need to change the fan, please take note of the following:
Danger from electrical voltage
Maintenance work on the unit must be carried out by specialists (qualified electricians). The
personnel must ensure that for the duration of the work the unit and the cabinet are
disconnected from the electrical supply and protected against unauthorized reconnection.
Disconnect the unit from the mains
Remove the unit cover
Remove the fixing screws from the relevant fan
To replace the cold side fan the PC-board must also be removed
Disconnect the fan cable from the PC-board
Mount a new radial fan󰾬
Danger to the unit through incorrect work.
Make sure that the cabinet fan or the ambient fan are not misplaced in the unit as they are
different. Ensure that the correct polarity is maintained. The fans should have clockwise
rotation.
Replace the 4 fan fixing screws
Connect the fan cable to the PC-board and replace the board if necessary
Dispose the old fan according to the environmental laws and
regulations.
17. Transport & Storage
Malfunction due to transport damage
On delivery the carton box containing the unit must be examined for signs of transport damage. Any transport
damage to the carton box could indicate that the unit itself has been damaged in transit which in the worst case
could mean that the unit will not function.
The unit can only be stored in locations which meet the following conditions:
temperature range: - 40°C to + 70°C
Relative humidity (at 25°C): max. 95 %
Returning the unit
To avoid transport damage the unit should be returned in the original packing or in a packing case and must be
strapped to a pallet. If the unit cannot be returned in the original packing please ensure that:
A space of at least 30 mm. must be maintained at all points between the unit and the external packing.
The unit must be firmly fixed in the packing.
󰾬The unit must be protected by shock resistant padding (hard foam corner pieces, strips or cardboard
corner pieces).

Version No. 1-6 - 20.05.2021 Doc. No. 9942680001 18 / 18
18. Parts supplied / Spare parts / Accessories
1 x Control cabinet air conditioner
1 x CE Declaration of Conformity
1 x Instruction manual
1 x 2800 mm Unit seals 10 mm x 3 mm
6 x Slotted Studs M6 * 25
6 x Washers A6,4 DIN125
6 x Lock nuts M6 DIN985
6 x Mounting Clip
1 x Drain socket
1 x O ring
2 x Drain pipes
1 x Jubilee Clip
1 x Cable tie
1 x Connector
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems Inc. Seifert Systems Pty Ltd.
Albert-Einstein-Str. 3 HF09/10 Wilerstrasse 16 Bärnthal 1 Rep. Office 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
42477 Radevormwald Birzebbuga, BBG 3000 4563 Gerlafingen 4901 Ottnang 26100 Cremona RI 02852 3152 Victoria
Germany Malta Switzerland Austria Italy USA Australia
Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone]
[email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
