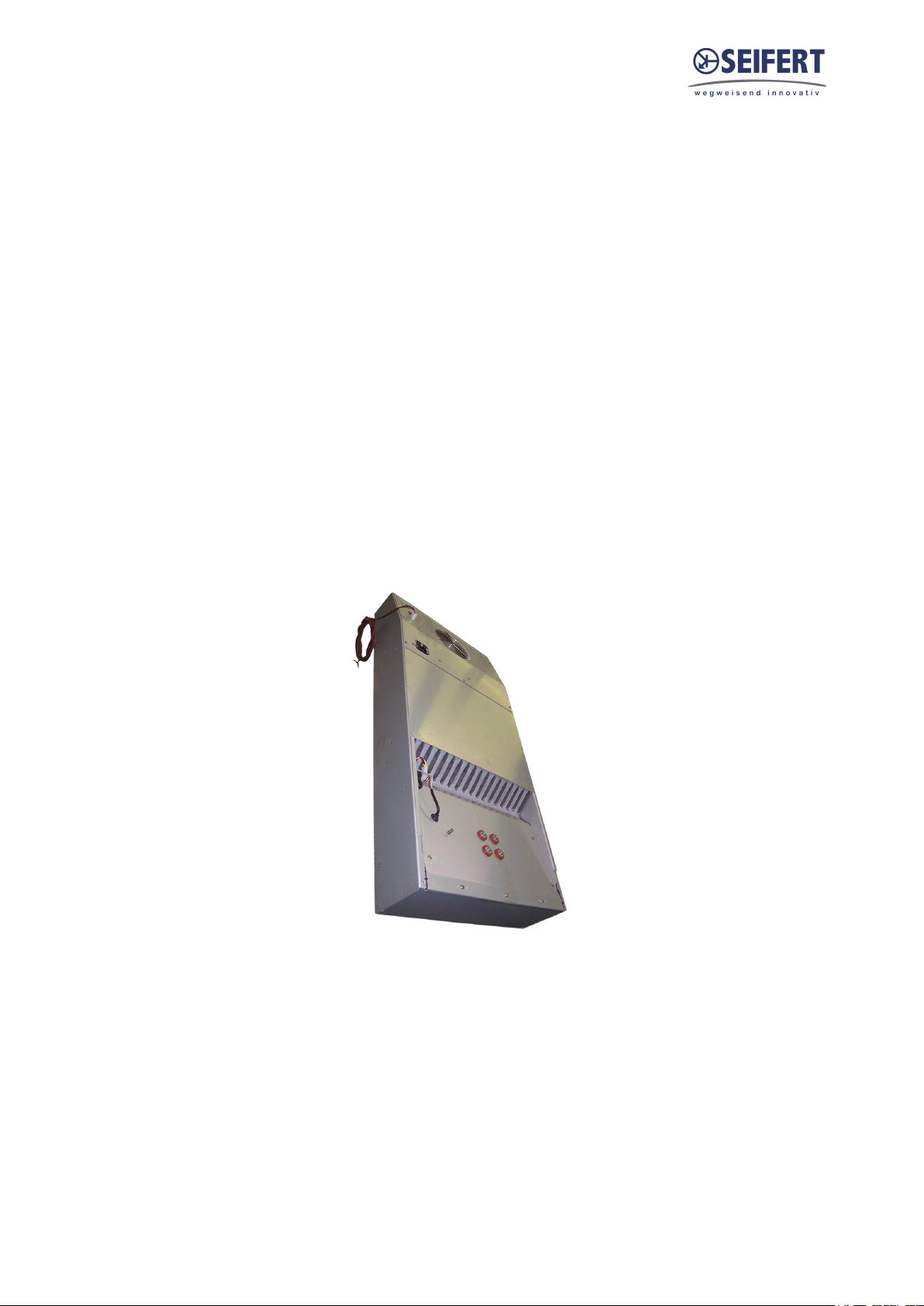

Seifert 5070048 User manual

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 1 / 11
Table of Content 5070048
1. User manual 2 ..................................................................................................................................
2. Legal regulations 2 .........................................................................................................................
3. Safety instructions 3 ......................................................................................................................
4. Technical functions 4 ......................................................................................................................
5. Functional principle 4 .....................................................................................................................
6. Technical data 5 ..............................................................................................................................
7. Mounting 6 .......................................................................................................................................
8. Electrical connection 7 ...................................................................................................................
9. Wiring diagram 8 .............................................................................................................................
10. Taking into operation 10 ..............................................................................................................
11. Trouble shooting 10 ......................................................................................................................
12. Maintenance & Cleaning 10 .........................................................................................................
13. Transport & Storage 11 ................................................................................................................
14. Parts supplied 11 ..........................................................................................................................

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 2 / 11
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Conditions of use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in order to
protect temperature sensitive components in an industrial environment. To meet the conditions of use, all the
information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not
covered by a specific pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of
the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 3 / 11
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified
personnel, using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 4 / 11
4. Technical functions
Air-air heat exchangers are intended as complementary accessories to large industrial equipment which include
a motor-operated fan or blower together with a heat exchanger module. These may also include an electric
heater. The fan or blower is intended to recirculate air and allow heat exchange. The heat exchanger is
designed for air heat transfer only.
Cooling function may be controlled by an on-board or remote controller or thermostat. Heating function, when
installed is provided by an electrical heating element. The unit seals the cabinet which ensures that the clean air
inside does not come into contact with the ambient air which may well be dirty or polluted. The unit is fit for
purpose within the rated/declared ambient conditions (e.g. dusty and oily air or high air temperatures between
-5°C and 55°C), also indicating the rated allowable ingress and environment.
Heat exchangers are used where the heat generated by energy losses in control cabinets must be conducted
away to protect temperature-sensitive components. The characteristic graph shown in the section “Performance
graph” applies to external (ambient) air as the coolant.
In air-to-air heat exchangers, the internal temperature of the control cabinet cannot be cooler than the ambient
temperature. There are natural limits to the cooling performance, dependent on the air supply temperature and
the requirement for a temperature difference of at least 5K. Unlike systems in which the heat generated is
allowed to escape by air convection through ventilation slots, with the heat exchanger, the clean air inside the
control cabinet is prevented from mixing with the air outside, which may well be unclean.
5. Functional principle
Functional principle
The heat exchanger is a cooling device that creates a heat-transfer through a large area of thin aluminium sheet
metal folded up in the heat exchanger core by means of forced convection. Used within an enclosure, it uses the
ambient air as cooling medium, thus avoiding the utilisation of refrigerant.
The cooling performance of the heat exchanger is dependant on the ambient (external) air temperature. The
internal fan is set to be always on. The external fan is controlled via a thermostat. When the cabinet
temperature increases beyond the pre-set thermostat temperature, the external fan is switched on and the heat
exchanger starts cooling. Cooling stops when the cabinet temperature cools below the pre-set temperature.
Switching difference is of 7K (+/-4K).

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 5 / 11
6. Technical data
Order Number 5070048
Heat exchanger performance 70 W/K
Temperature range -5°C - +55°C
Air volume flow (system / unimpeded) Ambient air circuit 500 m³/h
Cabinet air circuit 600 m³/h
Mounting Internal
Housing Material Aluminum
Dimension H x W x D 1,010 x 465 x 150 mm
Weight 21 kg
Cut out dimensions 420 x 230 mm / 420 x 195 mm
Voltage / Frequency 48 V DC
Starting current 5 A
Max. current 5 A
Max. power 200 W
Fuse 6.3 A (T)
Connection 2-pole connector
Ingress protection IP 55
Approvals CE, RoHS

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 6 / 11
7. Mounting
Danger from electrical voltage
The unit must be mounted by specialist personnel (qualified electricians). The personnel must ensure that the
cabinet is disconnected from the electrical supply for the duration of the mounting operation. Therefore take the
cabinet out of operation, following the relevant instructions before mounting work commences.
Danger through incorrect work on the unit. Only specialists are allowed to put the unit into operation.
Mounting preparations
Several points must be checked before the unit can be mounted. These checks must be made to ensure safety
and the trouble-free operation of the unit. These checks must be carried out with absolute thoroughness to
ensure that the unit works perfectly.
Transport damage check
On delivery the carton containing the unit must be examined for signs of transport damage. Any transport
damage to the carton could indicate that the unit itself has been damaged in transit which in the worst case
could mean that the unit will not function.
Location and space requirements
The location of the cabinet must allow for sufficient air circulation to and from the unit. The unit should be
mounted roughly horizontally. It is therefore advisable to check that the cabinet is in a horizontal position. The
max. deviation from the vertical or horizontal should not excess 20 degrees.
Sealing
To guarantee that the unit works perfectly ensure that, the control cabinet is completely sealed (to min. IP54 to
EN 60529) and a good seal exists between the control cabinet and the unit. If necessary the cabinet mounting
surface should be reinforced.

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 7 / 11
8. Electrical connection
High electric voltage present. Installation, maintenance, cleaning and
any other work must be carried out by qualified personnel only. The
personnel must ensure that for the duration of this work the unit and
the cabinet are disconnected from the electrical supply and protected
against unauthorised/accidental reconnection.
Connection to the main electrical supply
To connect the unit to the mains proceed as follows:
Take the control cabinet out of operation in the prescribed manner.
See the connection details on the circuit diagram.
Note the connections on the connector / terminal block from the following table
Terminal 48V DC
+ 1 Positive
- 2 Negative
Ensure that the correct polarity is maintained. The fans should have
clockwise rotation.
Connect the unit to the mains.
Take the control cabinet back into operation in the prescribed manner.
Power consumption and start-up current are stated on the data label and under technical data.

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 8 / 11

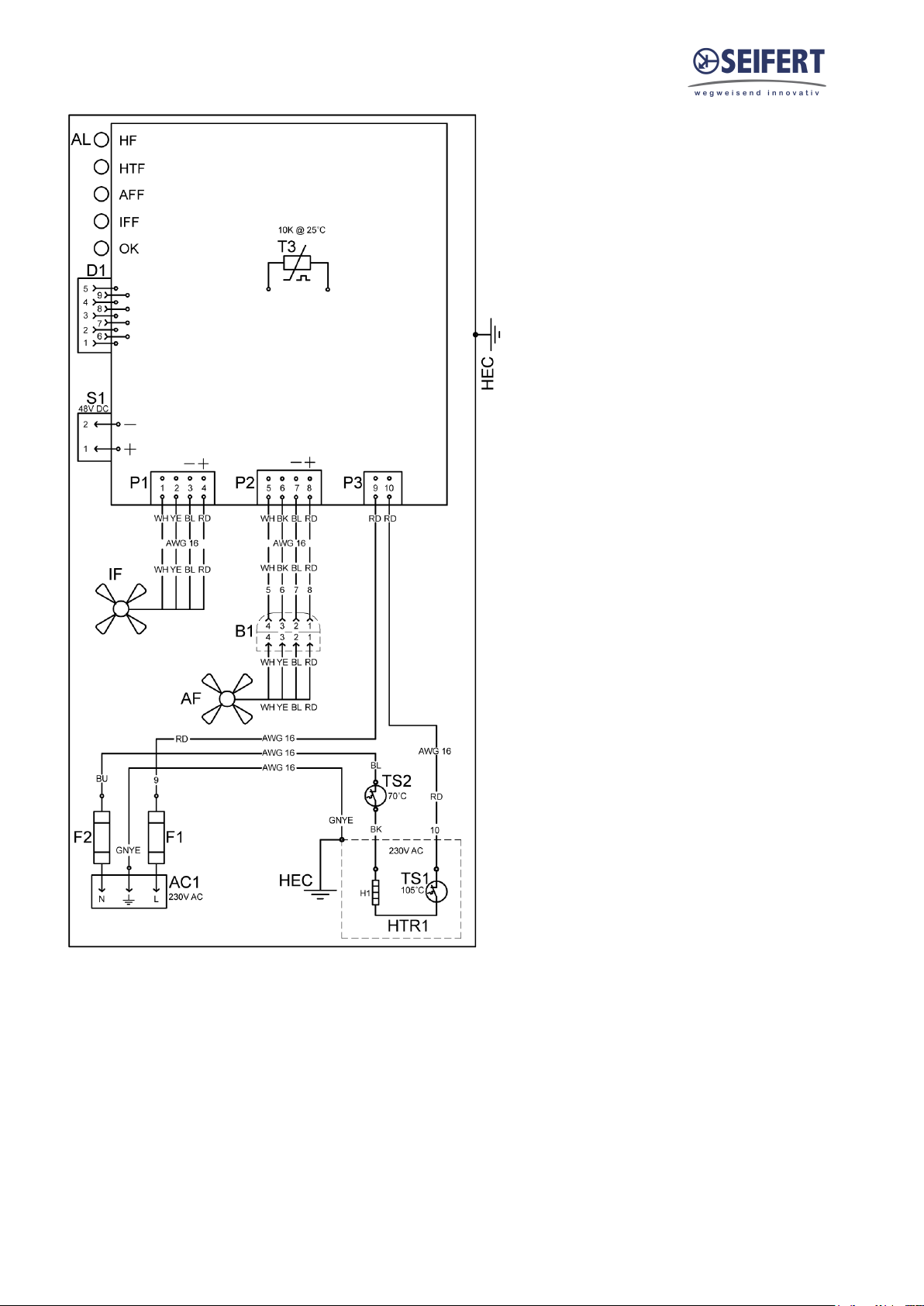

9. Wiring diagram
AL ALARM LEDs
OK LED 1 OK (green)
IFF LED 2 Internal fan alarm (red)
AFF LED 3 Ambient fan alarm (red)
HTF LED 4 High temperature alarm (red)
HF LED 5 Heater alarm (red)
LED 2, 3, 4 and 5 Thermistor alarm (red)
D1
Alarms interface connector
D-Type connector AMP 9 – pin D-Sub receptacle
Contact 1 Internal fan alarm NC
Contact 2 Internal fan alarm NO
Contact 3 Internal fan alarm COMMON
Contact 4 Ambient fan alarm NC
Contact 5 Ambient fan alarm NO
Contact 6 Ambient fan alarm COMMON
ALARM OUTPUTS WITH THE ABOVE CONFIGURATION
All OK
Internal fan alarm
Ambient fan alarm
High temp. alarm
Heater alarm
Thermistor alarm
LED 1 ON
LED 2 ON
LED 3 ON
LED 4 ON
LED 5 ON
LED 2 - 5 ON
All alarm relays closed
Int. fan alarm relay
actuated
Amb. fan alarm relay
actuated
No relay function
No relay function
No relay function
Location of alarms:
LEDs are fitted in the fan/ controller assembly and visible from inside of
customer enclosure.
T3 Internal air inlet temperature sensor
HEC Heat exchanger chassis
S1 48V DC supply interface connector.
S-Type AMP mate-n-lock 2 – pole cap
P1 4 – pole Internal fan interface connector
P-Type connector: WAGO cage-clamp
P2 4 – pole Ambient fan interface connector
P-Type connector: WAGO cage-clamp
P3 2 – pole Heater interface connector
P-Type connector: WAGO cage-clamp
IF Internal fan
B1 Ambient fan supply connector
B-Type connector: Mollex-fit Jr 4-pole
AF Ambient fan
TS1 Bi metallic Thermostat
TS2 Klixon
F1 Live phase fuse 6.3 A, 6.3 x 32mm, F-Type SPT fuse
F2 Neutral phase fuse 6.3 A, 6.3 x 32mm, F-Type SPT fuse
Sicherung Neutralleiter 6.3 A, 6.3 x 32mm, F-Typ SPT Sicherung
AC1 230V AC Heater supply connector, AC-Type connector, double fused IEC
300 connector
HTR1 Heater 1
H1 Heater element
CAUTION: DOUBLE POLE / NEUTRAL FUSING

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 9 / 11

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 10 / 11
10. Taking into operation
As described before the unit is controlled in relation to the cabinet internal temperature. The required cabinet
temperature can be set on the potentiometer on the controller.The temperature adjustment range is between
0°C (left-hand stop) and 60°C (right-hand stop). The thermostat is pre-set at 35°C.
To adjust the cabinet internal temperature proceed as follows:
Remove the MCB access plate on the front of the unit.
Using a screw driver turn the adjustment wheel on the potentiometer “TEMP” slightly to the right (higher)
or to the left (lower).
Please note that the setting for the alarm signal should be at least 5 - 10°C higher than the setting for the
cabinet internal temperature.
Check that the new adjustment meets the necessary requirements. If necessary, repeat the procedure. Inspect
and if necessary replace the MCB access plate sealing tape.
11. Trouble shooting
In case of a fault logon to our website www.seifertsystems.com to locate your nearest servicing office or find
your nearest contact in the chapter “contacts” in this manual.
12. Maintenance & Cleaning
Danger from electrical voltage
Maintenance and cleaning must be carried out by specialists
(electricians). The personnel must ensure that for the duration of this
work the unit and the cabinet are disconnected from the electrical
supply and protected against unauthorised reactivation.
Danger through incorrect work on the unit.
The instructions in the cabinet manufacturer’s manual must be
adhered to!
Damage to the unit through incorrect maintenance and
repair! Maintenance and repair must be carried out by the
manufacturer or another specialist.
Fan replacement
The rated life expectancy of the fan is L10 =30,000 hours under normal operating conditions.
To replace the internal or external fan, please proceed as following:
Remove the internal access panel by unscrewing the 10 fixing screws.
Disconnect the blower cables from the connectors.
Unscrew the four screws fixing the blower bracket to the cabinet.
Unscrew the fan from the bracket.
Re-assembly with the new blower is in reverse order.
Make sure that the blower cable length is the same as the one of the removed fan to ensure that the cable does
not come in contact with the blower while in operation. Make sure that the correct polarity is maintained. (Refer
to circuit diagram). Inspect and if necessary replace the internal access panel sealing tape.
In addition the unit should have regular functional tests (approx. every 2,000 hours depending on the grade of
ambient pollution).

Version Nr. 1-1 - 18.03.2020 Doc. Nr. 995070048 11 / 11
13. Transport & Storage
Malfunction due to transport damage
On delivery the carton containing the unit must be examined for signs
of transport damage. Any transport damage to the carton could
indicate that the unit itself has been damaged in transit which in the
worst case could mean that the unit will not function.
Storage conditions
The unit can only be stored in locations which meet the following conditions:
Temperature range: - 40°C to + 70°C
Relative humidity (at 25°C): max. 95%
Returning the unit
Damage to the unit through incorrect transport.
To avoid transport damage the unit should be returned in the original
packing or in a packing case and must be strapped to a pallet!
If the unit cannot be returned in the original packing please ensure that:
A space of at least 30 mm. must be maintained at all points between the unit and the external packing.
The unit must be firmly fixed in the packing.
The unit must be protected sufficiently by shock absorbing padding (hard foam corner pieces, strips or
cardboard corner pieces).
14. Parts supplied
1 x Heat exchanger
1 x Instruction manual
1 x EC Declaration
1 x Power cable
1 x Brass connection ¼” with washer
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems Inc. Seifert Systems Pty Ltd.
Albert - Einstein Str. 3 HF09/10 Wilerstrasse 16 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
42477 Radevormwald Birzebbuga, BBG 3000 4563 Gerlafingen RI 0285 3152 Victoria
Deutschland Malta Switzerland USA Australia
Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone] Fax [phone] Fax. [phone]
[email protected] [email protected] [email protected] [email protected] [email protected]
