Seifert 750621B001 User manual

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 1 / 17
Table of Content 750621B001
1. User manual 2 ..................................................................................................................................
2. Legal regulations 2 .........................................................................................................................
3. Safety instructions 3 ......................................................................................................................
4. Settings 4 .........................................................................................................................................
5. Functional principle 5 .....................................................................................................................
6. Technical data 6 ..............................................................................................................................
7. Performance graph 7 ......................................................................................................................
8. Mounting 8 .......................................................................................................................................
9. Mounting Principle 9 .......................................................................................................................
10. Cut out dimensions 10 ..................................................................................................................
11. Dimensions (H x W x D) 11 ..........................................................................................................
12. Controller 12 ..................................................................................................................................
13. Wiring diagram 13 .........................................................................................................................
14. Taking into operation 14 ..............................................................................................................
15. Maintenance & Cleaning 15 .........................................................................................................
16. Maintenance 15 .............................................................................................................................
17. Transport & Storage 16 ................................................................................................................

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 2 / 17
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in order to
protect temperature sensitive components in an industrial enviorment. To meet the conditions of use, all the
information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
󰾬
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 3 / 17
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified personnel,
using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 4 / 17
4. Settings
Air - water heat exchangers are intended as complementary accessories to large industrial equipment which
include a motor-operated fan or blower together with a cooling heat exchanger. These may also include an
electric heater. The fan or blower is intended to recirculate air and allow heat exchange. The heat exchanger is
designed for chilled water or anti-freeze/corrosion inhibitor mixed water from a separate source.
The cooling function may be controlled by an on-board or remote controller or thermostat, a thermostatically
controlled valve or an electrically controlled valve. Heating function, when installed is provided by an electrical
heating element. The unit seals the cabinet which ensures that the clean air inside does not come into contact
with the ambient air which may well be dirty or polluted. The unit is fit for purpose within the rated/declared
ambient conditions (e.g. dusty and oily air or high air temperatures between 34°F and 162°F), also indicating
the rated allowable ingress and environment.
Water quality
To ensure the maximum lifetime of an air-water heat exchangers, it is important to supply cooling water in
conformity with the VGB Cooling Water Guidelines (VGB-R 455 P). The cooling water used must be soft enough
to avoid scale deposits, but should not be too soft as this would corrode the heat exchanger. Where the cooling
water is cooled for reuse, part of the water has to be changed with fresh water to prevent the concentration of
hardness and salt content which makes the water more corrosive.
The main impurities and possible methods of eliminating them are given in the table below:
Pollution of the water Method of elimination
Mechanical impurities (dp > 2mm) Filtration of the water
Excessive hardness Softening of the water by ion
exchange
Moderate content of mechanical impurities
and hardness formers Addition of dispersants or stabilisers
Moderate content of chemical impurities Addition of passivators and inhibitors
Biological impurities (bacteria and algae) Addition of biocides
When the water is re-cooled, it is recommended that the water condition is maintained as close as possible to
the following list of hydrological data:
Hydrological data
pH-values 7 - 8.5
Carbonate hardness >3 <8 °dH
Free carbon dioxide 8 - 15 mg/dm³
Associated carbon dioxide 8 - 15 mg/dm³
Aggressive carbon dioxide 0mg/dm³
Sulphides free mg/dm³
Oxygen < 10 mg/dm³
Chloride ions < 50 mg/dm³
Sulphate ions < 250 mg/dm³
Nitrates and nitrites < 10 mg/dm³
COB < 7 mg/dm³
Ammonia < 5 mg/dm³
Iron < 0.2 mg/dm³
Manganese < 0.2 mg/dm³
Conductivity < 2200 µS/cm
Solid residue from evaporation < 500 mg/dm³
Potassium manganate consumption < 25 mg/dm³
Suspended matter < 3 mg/dm³
(part flow cleaning recommended) > 3 < 15 mg/dm³
(continuous cleaning) > 15 mg/dm³

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 5 / 17
5. Functional principle
The air inside the control cabinet is moved over a laminar heat exchanger through which a coolant medium
runs, making use of the counter-flow principle. The fan blows the warm air along the aluminium fins of the heat
exchanger; it cools down and is then returned into the cabinet. The heat exchanger fan runs constantly,
providing continuous circulation of the air in the cabinet. This circulation prevents hot spots within the control
cabinet. During this process, the coolant heats up and is returned to the coolant supply system at an increased
temperature.
In order to save operating costs, and in the interests of environmental protection, the water temperature can be
reduced by re-cooling systems or cold water sets so that it can be reused in the heat exchanger. This process
involves the water circulating in a closed circuit.
1. Air intake cabinet side
2. Radial fan cabinet side
3. Heat exchanger
4. Air outlet cabinet side
5. Water in
󰾬6. Water out

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 6 / 17
6. Technical data
Order Number 750621B001
Cooling capacity 95F/W50F (53 GPH) 700 W
Coolant Water, light oils or similar
Operating temperature range 1˚C - 60˚C
Air volume flow (system / unimpeded) 110 / 220 m³/h
Mounting Wandanbau / Halbeinbau
Housing Material Mild steel, powder coated
Dimension H x W x D 600 x 250 x 127 (37 + 90) mm
Weight 8.5 Kg
Voltage / Frequency 380/415 V 50 Hz 2~
400/460 V 60 Hz 2~
Starting current 1.0 A
Max. current 0.25 A
Max. power 35 W
Pressure water circuit 10 bar
Water connection Rp 3/8” - Innengewinde (mit optionalen Anschlüssen für
Rohrinnendurchmesser von 10 mm)
Fuse 1 A (T)
Connection 5-polige Anschlussklemme für Signale
4-polige Anschlussklemme für Spannung
Ingress protection IP 55 / Type 12, 3, 3R, 4, 4X
Approvals CE, cURus, cULus

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 7 / 17

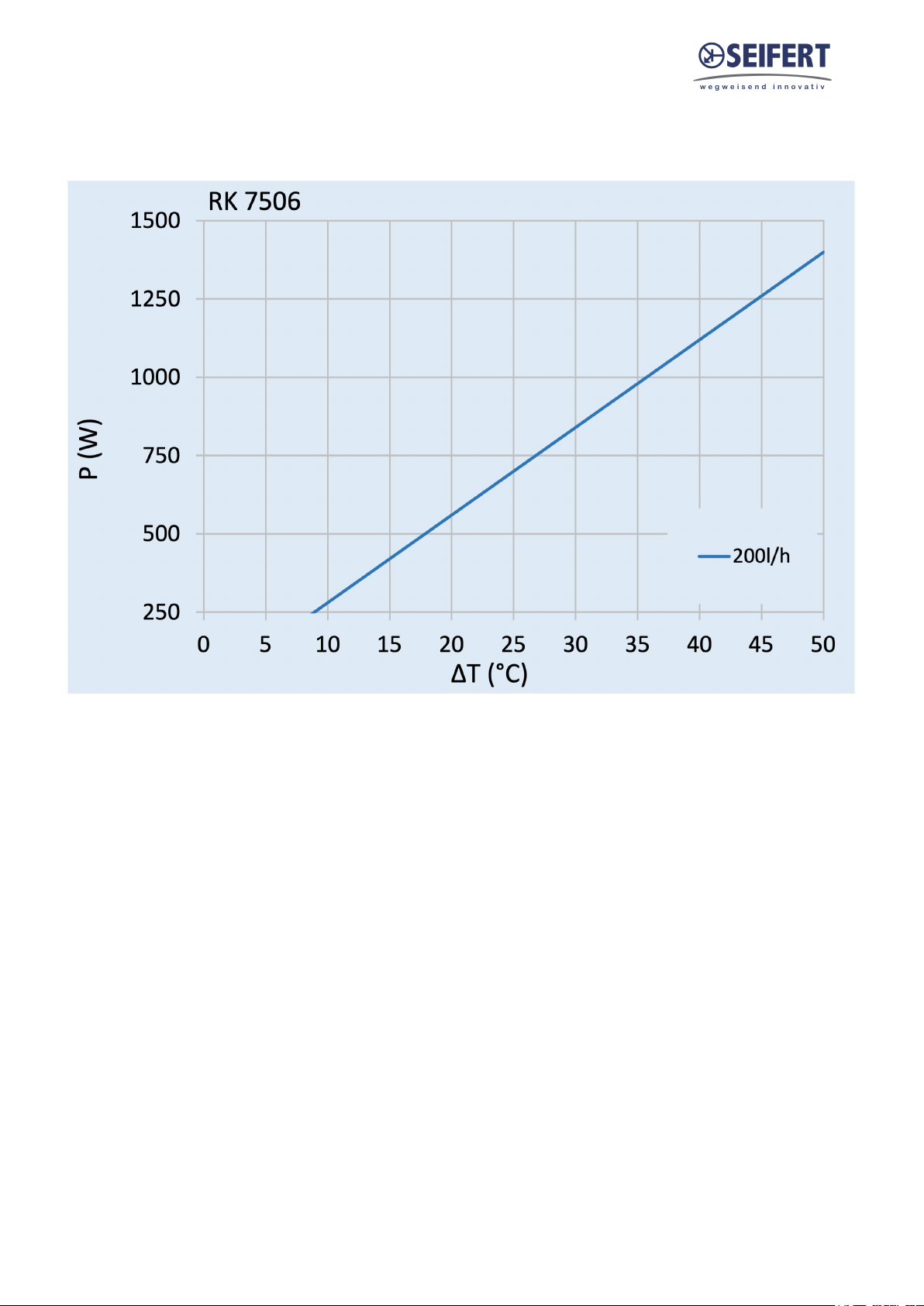

7. Performance graph

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 8 / 17
8. Mounting
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
Seifert heat exchangers have an extremely compact design and construction, giving them the advantage of
occupying very little space. In addition, the SLIMLINE HEX models can be mounted externally or recessed, as
required.
To achieve a good seal between the control cabinet and the heat exchanger, the unit's mounting surface on the
control cabinet may need to be reinforced. The air intake and outlet must not be obstructed by equipment
inside the control cabinet, so that the air is mixed thoroughly and thermal stratification is avoided.
For the heat exchanger to work perfectly, the cabinet must be completely sealed from its surroundings. An
imperfectly sealed control cabinet will result in an increased level of condensation. The control cabinet should
have a minimum of IP54 protection, in accordance with IEC 60 529.
Cooling medium connection
There are two pipe connection points in the bottom or in the top of the unit to connect the coolant supply. The
pipe connectors have a G3/8” or G1/2" female thread depending on version. Before connecting the coolant
circuit, note the flow direction of the coolant medium. Next to the pipe connectors, there are labels to identify
the inlet and outlet of the coolant medium. A small indent is also present in the housing next to the inlet port.
To empty the unit connect the water inlet pipe to a compressed air supply and route the water outlet pipe to a
location where the water can be drained. If a solenoid valve is installed on the unit this will be open if the unit is
turned off. Slowly open the compressed air supply till all the water in the heat exchanger is flushed out. Ensure
that the pressure of the system is below the rated pressure of the unit and fitting.

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 9 / 17

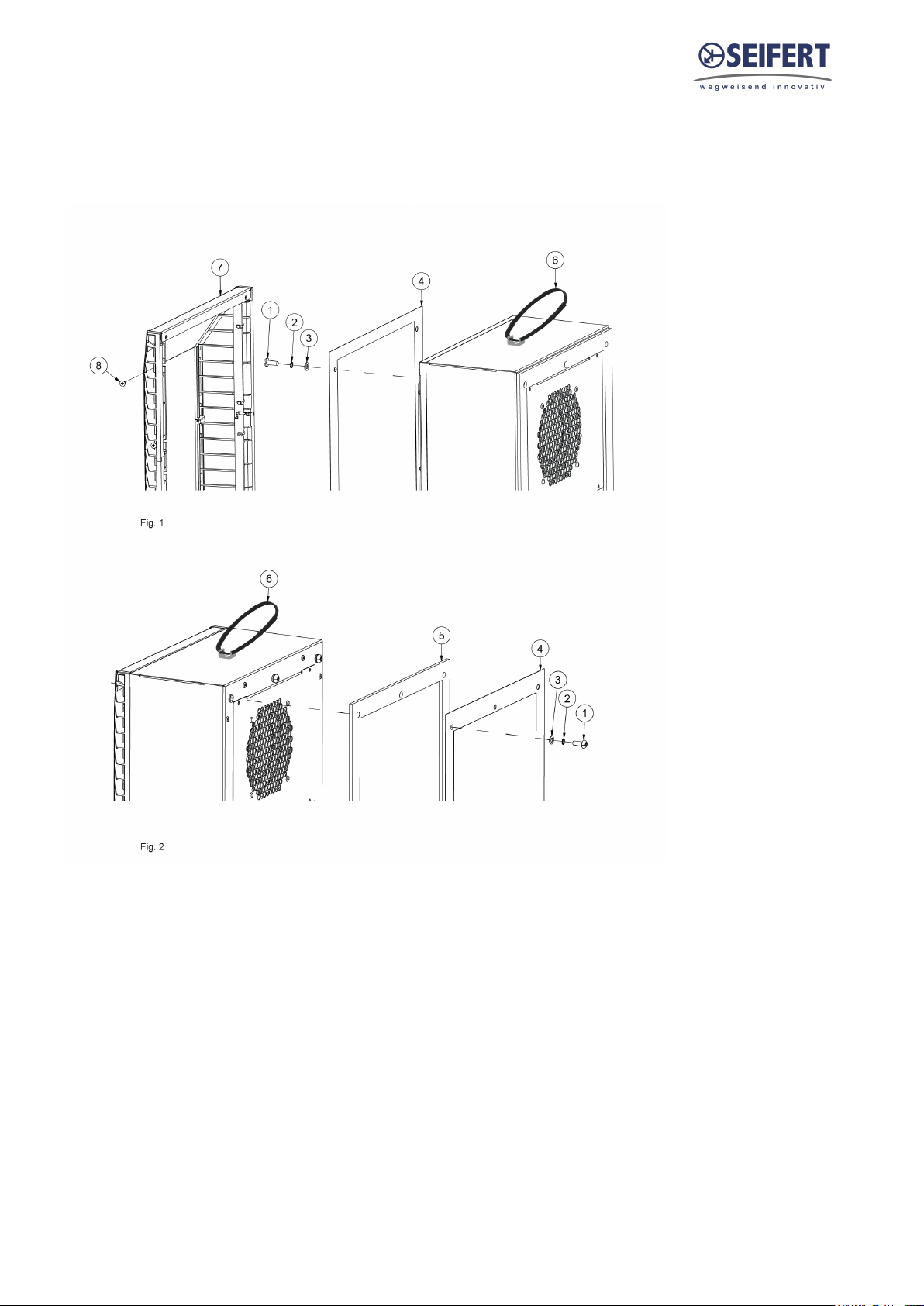

9. Mounting Principle

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 10 / 17

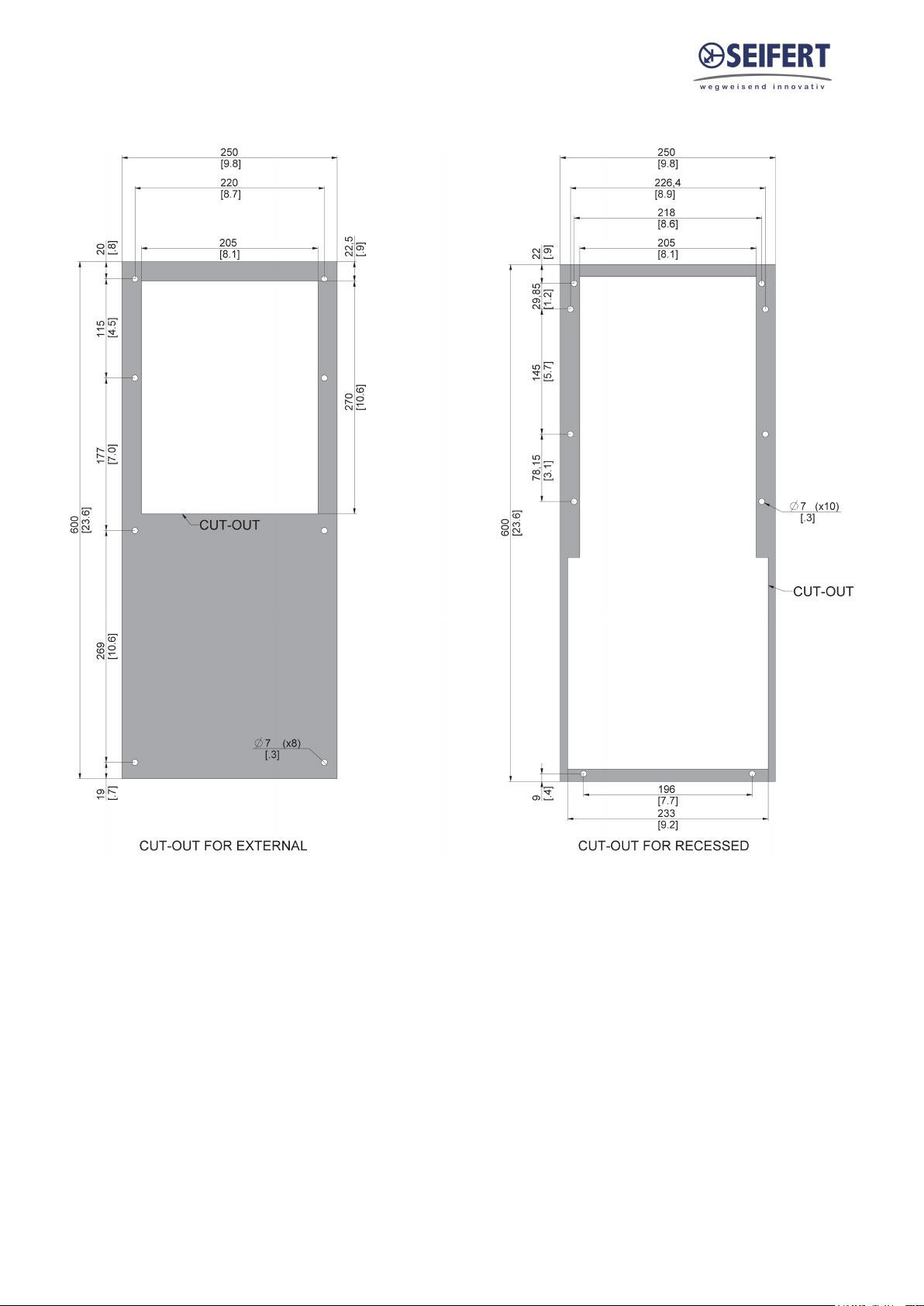

10. Cut out dimensions

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 11 / 17

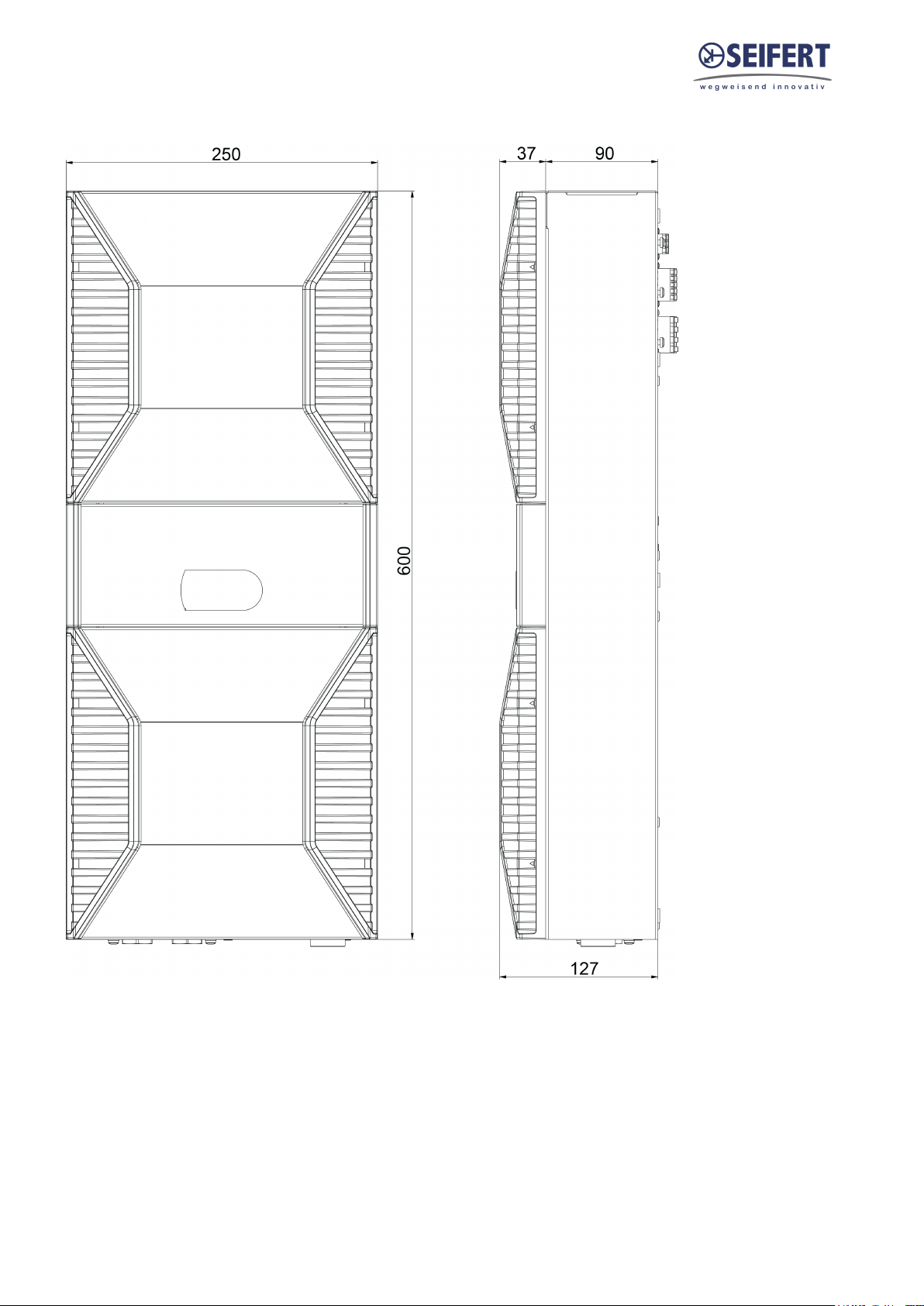

11. Dimensions (H x W x D)

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 12 / 17
12. Controller
Einstellen des Sollwerts
Der Temperatur-Sollwert kann zwischen 0°C und 60°C eingestellt werden. Der Sollwert wird durch den
Parameter St gesteuert. Die Standardeinstellung beträgt 25°C.
Änderung der Temperatureinstellung:
Drücken Sie die rote Set-Taste 1 Sekunde lang, bis St auf dem Display erscheint.
Drücken Sie die Tasten Up/Down, um den gewünschten Wert zu erreichen.
Drücken Sie die Set-Taste, um die neue Einstellung zu speichern.
Einstellen der Alarmwerte für hohe und niedrige Temperaturen
Der Sollwert für den Hochtemperaturalarm wird über den Parameter AH gesteuert. Die Standardeinstellung ist
55°C.
Der Sollwert für den Niedrigtemperaturalarm wird über den Parameter AL eingestellt. Die Standardeinstellung
ist 0°C.
Einstellen der Parameter
Drücken und halten Sie SET für 3-5 Sekunden, bis PS angezeigt wird.
Lassen Sie los und drücken Sie erneut kurz SET, um 0 anzuzeigen.
Drücken Sie den Pfeil nach oben, bis Sie den Wert 22 erreicht haben. Drücken Sie dann SET. (Dies ist das
Werkspasswort für den Zugriff auf die geschützten Parameter). Sobald Sie auf die Parameterliste
zugreifen, wird wieder PS angezeigt.
Drücken Sie die Tasten UP oder DOWN, um durch die verschiedenen Parameter zu blättern.
Drücken Sie SET, um bei Bedarf den gespeicherten Wert des ausgewählten Parameters anzuzeigen.
Drücken Sie auf UP/DOWN, um den Parameterwert bei Bedarf zu ändern.
Drücken Sie SET, um den aktuell angezeigten Wert zu speichern.
Wenn Sie mit der Einstellung der Parameter fertig sind, halten Sie SET 5 Sekunden lang gedrückt, um die
vorgenommenen Änderungen zu speichern. Die Anzeige kehrt zur Temperaturanzeige zurück. (Dieser
letzte Schritt muss korrekt ausgeführt werden, sonst gehen alle Parameteränderungen verloren).
Verhalten des digitalen Eingangs
Das Gerät kann über einen Türkontaktschalter (optional) ein- und ausgeschaltet werden. Im
Auslieferungszustand sind die Türkontakt Klemmen auf der Buchse gebrückt. Zum Anschluss des
Türkontaktschalters bitte die Brücke entfernen und den Türkontaktschalter anschließen. Der Kontakt muss
geschlossen sein, wenn die Schranktür geschlossen ist.
Achtung
Das Gerät kann durch falsche Einstellungen beschädigt werden. Ändern Sie keine anderen Werte als die oben
angegebenen. Das Einstellen anderer Werte kann zu fehlerhaftem Betrieb und zur Beschädigung des Geräts
führen.

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 13 / 17

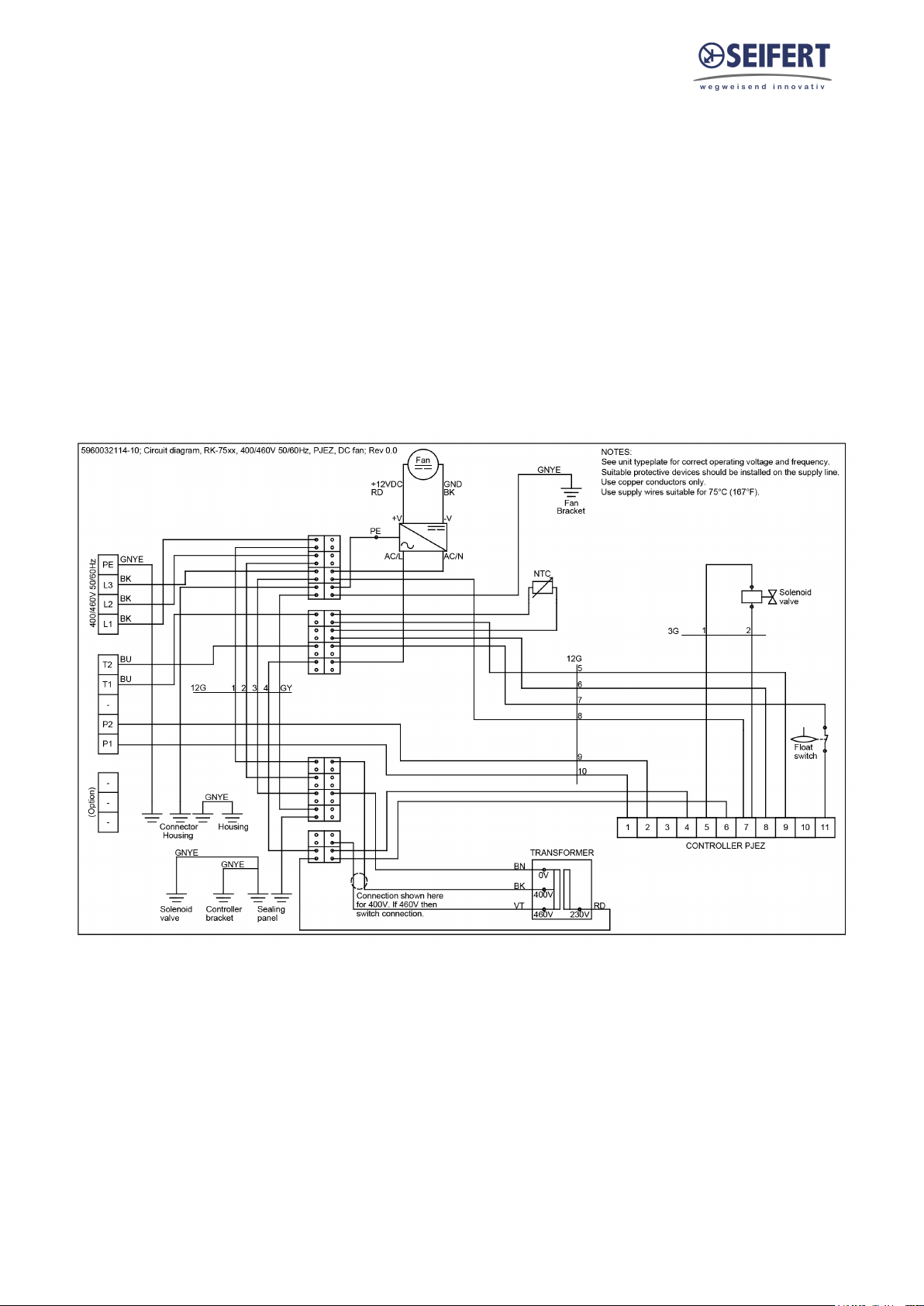

13. Wiring diagram
Zuleitung
PE
L3
L2
L1
Signalsteckverbinder
Türkontakt T2
Türkontakt T1
/
Alarmkontakt P2
Alarmkontakt P1

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 14 / 17
14. Taking into operation
The cooling performance of the heat exchanger is dependent on the water flow rate available from the supply.
The water flow is dependent on the water supply system to which the heat exchanger is connected and is
affected by various factors, such as conduit pressure, conduit diameter, etc.
1. Units without water flow regulator
These units do not have any automatic control functions.
2. Units with Solenoid valve
The solenoid valve is switched electrically. If the unit power is off, the valve is open.
3. Units with temperature controller
The unit is equipped with a temperature controller which regulates the function of the unit. On normal working
conditions the display shows the temperature inside the enclosure. The controller “set point” for the interior of
the enclosure (parameter St) is pre-set at 77°F and can be adjusted between +68°F and +122°F.
The High temperature alarm (parameter AH) is preset at 131°F.
Modifying controller parameters
1. Press the SET button for more than 3 sec. (if there are active alarms, mute the buzzer).The display shows the
parameter code ‘PS’ (password).
2. Only for parameters requiring password: Press the SET button to access the password setting, use the UP and
DOWN buttons to scroll the numbers until displaying, “22” (default password to access the parameters), press
the SET button to confirm the password
3. Use the UP and DOWN buttons to scroll the parameters. The LED corresponding to the category of
parameters will be on
4. Press SET to display the value associated with the parameter
5. Increase or decrease the value using the UP or DOWN button respectively
6. Press SET to temporarily save the new value
7. Press the SET button for more than 3 sec. to permanently save the new parameters and exit the parameter
setting procedure.
If no button is pressed for 60 sec. all changes made to the parameters, temporarily saved in the RAM, will be
cancelled and the previous settings restored. The cooling unit manufacturer is in no way liable for any
alterations the customer may make to the factory set parameters, unless the manufacturer has authorized the
customer in writing to change them.
This manual is intended as quick reference for controller, for a full controller manual or if you need to restore
the factory parameters please go to our website to download the full manual or to locate your nearest servicing
office.
4. Units with door switch
The unit can be switched on and off via a door contact switch (optional). When delivered the door contact
terminals are bridged on the female connector. To connect the door contact switch remove the bridge and
connect door contact switch. The contact must be closed when the cabinet door is closed.

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 15 / 17
15. Maintenance & Cleaning
The unit should have regular functional tests (approx. every 2,000 hours depending on the grade of ambient
pollution).
16. Maintenance
Every unit is given a performance test under load at the factory. The units are largely maintenance-free,
however, the following points should be observed:
1. Fan replacement
Before replacing the fan, the equipment must be switched off from the power supply (pull out mains plug or
connecting cable). The rated life time of the fan is L10 = 30.000 hours under normal operational conditions.
Should it become necessary to replace the fan, remove the support for the fan by loosening the 4 fastening
screws. To detach the fan from the fan support loosen a further 4 screws and the fan connecting cable.
When connecting the new fan, take care that the correct polarity is maintained.
2. Controller replacement
Before replacing the controller, isolate the equipment from the power supply (pull out mains plug or connecting
cable). Detach the controller from its support by unclipping the unit and the connectors.
When connecting the new controller make sure that the correct polarity is maintained.
3. Environmental protection
If the heat exchanger has reached its end of life state, we will dispose it if it is returned to us freight paid.
4. Maintenance work on the unit
All the maintenance operations described above should only be carried out by expert personnel. All work on the
cooling circuit should only be carried out at the factory.

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 16 / 17
17. Transport & Storage
Malfunction due to transport damage. During transport and storage the heat
exchanger must be kept in the position marked on the box and at a temperature
between -40˚F and 158˚F and a relative humidity of max. 95% (at 77°F). Check
the packaging has not been damaged during shipping.
Damage to the unit through incorrect transport. Please ensure that all liquid has
been removed prior any transport.
To avoid transport damage the unit should be returned in the original packing or in a packing case and must be
strapped to a pallet. If the unit cannot be returned in the original packing please ensure that:
A space of at least 1.18 inch must be maintained at all points between the unit and the external packing.
The unit must be firmly fixed in the packing.
The unit must be protected by shock -resistant padding (hard foam corners or cardboard corners).

Version Nr. 1-3 - 09.11.2022 Doc. No. 99750621B001 17 / 17
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems Inc. Seifert Systems Pty Ltd.
Albert-Einstein-Str. 3 HF09/10 Wilerstrasse 16 Bärnthal 1 Rep. Office 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
42477 Radevormwald Birzebbuga, BBG 3000 4563 Gerlafingen 4901 Ottnang 26100 Cremona RI 02852 3152 Victoria
Germany Malta Switzerland Austria Italy USA Australia
Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone] Tel.[phone]
[email protected] [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
