Seifert 8512RC00012-BZBG User manual

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 1 / 31
Table of Content 8512RC00012-BZBG
1. User manual 2 ..................................................................................................................................
2. Legal regulations 3 .........................................................................................................................
3. Safety instructions 4 ......................................................................................................................
4. Settings 5 .........................................................................................................................................
5. Functional principle 6 .....................................................................................................................
6. Technical data 7 ..............................................................................................................................
7. Performance graph 8 ......................................................................................................................
8. Mounting 9 .......................................................................................................................................
9. Mounting Principle 13 .....................................................................................................................
10. Cut Out Dimension 18 ...................................................................................................................
11. Electrical Connection 19 ...............................................................................................................
12. Controller 21 ..................................................................................................................................
13. Wiring Diagram 25 ........................................................................................................................
14. Taking into Operation 26 .............................................................................................................
15. Trouble Shooting 27 .....................................................................................................................
16. Maintenance & Cleaning 27 .........................................................................................................
17. Transport & Storage 29 ................................................................................................................
18. Parts supplied / Spare parts / Accessories 30 ..........................................................................

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 2 / 31
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures (stationary,
not moving) in order to protect temperature sensitive components in an industrial environment. To meet the
conditions of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 3 / 31
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 4 / 31
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified
personnel, using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 5 / 31
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air.
The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air) with a standard
operating temperature ranging between +10°C (50°F) and +60°C (131°F). Units can be ordered with an
additional electrical cabinet heater. For the cooling capacities and evironmental ratings please refer to the type
plate data.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 6 / 31
5. Functional principle
The cooling unit for enclosures works on the basis of a refrigeration circuit consisting of four main
components: compressor, evaporator, condenser and expansion device.
The circuit is hermetically sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an
Ozone Destruction Potential [ODP] of 0 and a Global Warming Potential [GWP] of 1430). The compressor
compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes it through the
condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the liquid state it
then passes through the capillary pipe being a much lower pressure the refrigerant arrives to the evaporator
where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back into the
compressor completing the cycle.

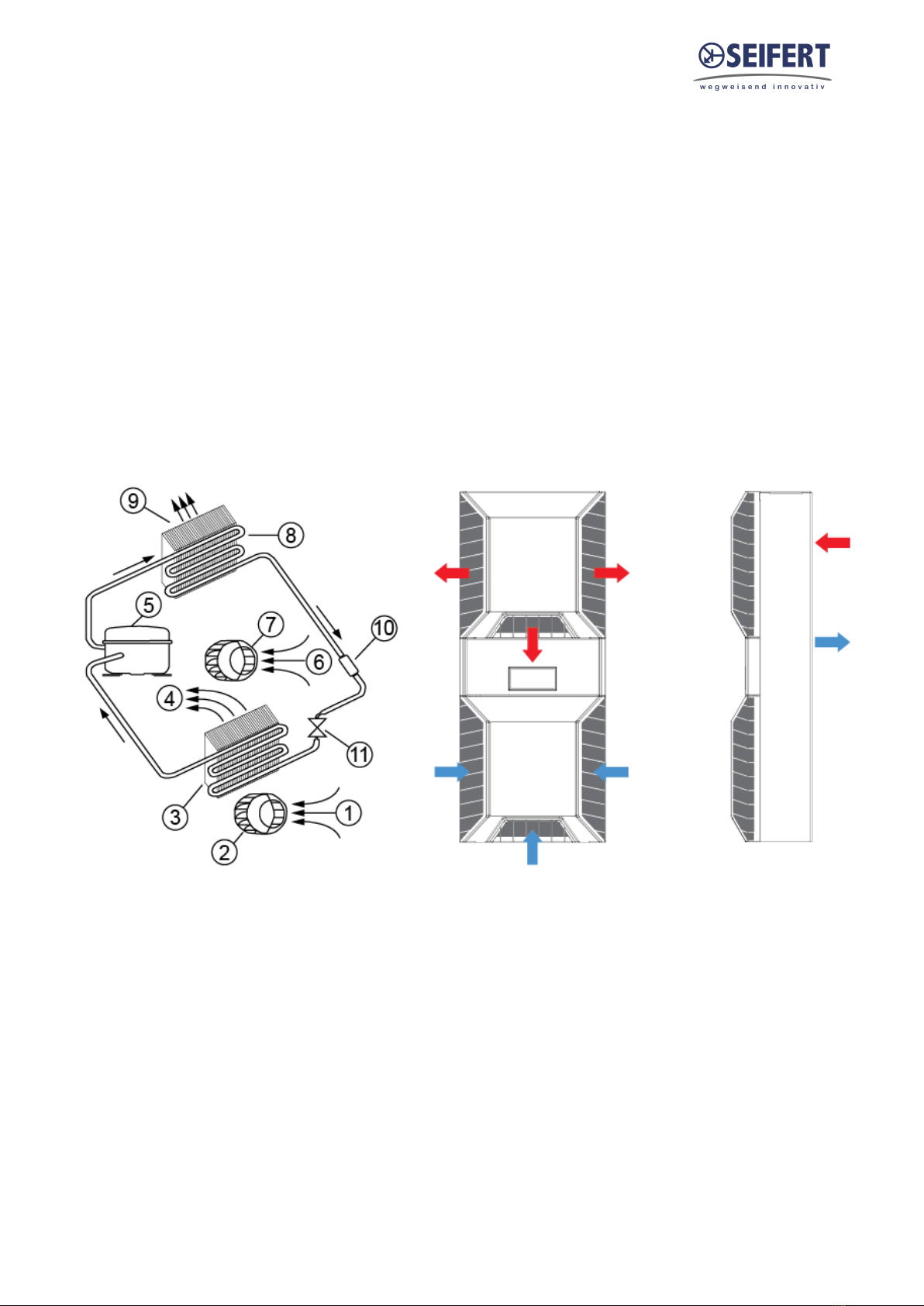

1 Air intake cabinet side 6 Air intake ambient side
2 Radial fan cabinet side 7 Air intake ambient side
3 Evaporator 8 Condenser
4 Air outlet cabinet side 9 Air outlet ambient side
5 Compressor 10 Filter dryer
11 Expansion device

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 7 / 31
6. Technical data
Order Number 8512RC00012-BZBG
Cooling capacity L35L35 1.2 kW @ 50 Hz
1.3 kW @ 60 Hz
Cooling capacity L35L50 950 W @ 50 Hz
1 kW @ 60 Hz
EER L35L35 1.68
Compressor type Rotary piston
Refrigerant / GWP R134a / 1430
Refrigerant charge 220 g / 7.8 oz
High / low Pressure 30 / 6 bar
435 / 87 psi
Operating Temperature Range 10°C - 60°C
UL temperature range 10°C - 60°C
Air flow volume (system / unimpeded) Ambient air circuit: 300 / 550 m³/h
Cabinet air circuit: 350 / 550 m³/h
Mounting Recessed
Housing Material Mild steel, powder coated
Dimensions A x B x C (D+E) 950 x 395 x 254 (151+103) mm
Weight 40 kg
Voltage / Frequency 230 V ~ 50/60 Hz
UL Voltage / Frequency 230 V ~ 60 Hz
Current L35L35 3.1 A @ 50 Hz
3.4 A @ 60 Hz
Starting current 15 A
Max. current 4.7 A
Nominal power L35L35 665 W @ 50 Hz
785 W @ 60 Hz
Max. power 1.1 kW
Fuse 15 A (T)
Max circuit ampacity 15 A
Short-circuit current rating 5 kA
Rated current compressor 2.5 A
Full load current fans 0.7 A
Connection 4 pole terminal for power
5 pole terminal for signals
Ingress Protection IP 55 / NEMA 12
Approvals CE, cURus, cULus

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 8 / 31

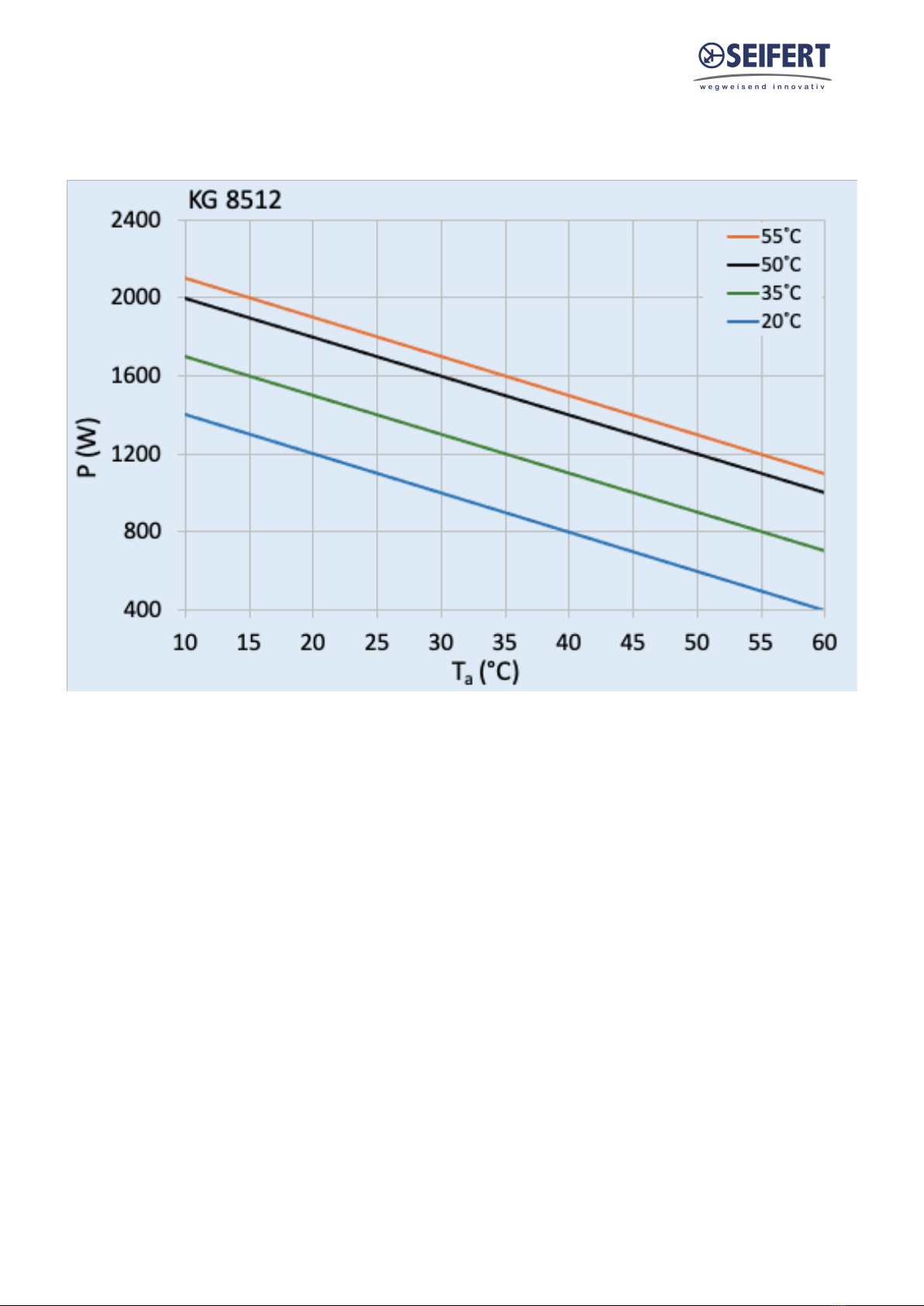

7. Performance graph

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 9 / 31
8. Mounting
Unpacking unit:
Please follow the below steps to unpack the unit.
STEP 1:
Stand the cooling unit upright with the pre-cut packaging opening facing up.
STEP 2:
Pull off the packaging opening.
STEP 3:
Hang the transport loop of the unit in the transport hook and lift it slightly.
STEP 4:
Pull off the packaging and slide out the tray with installation material and the short version of the operating
manual.
STEP 5:
Pull off the remaining packaging.
STEP 6:
The cooling unit can now be attached to the enclosure.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 10 / 31
Mounting:
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions.
Air inlets and outlets must be completely free from obstruction. Ensure that flows of air leaving and entering the
cooling unit, internal and external, are not obstructed. It must also be ensured in accordance with UL, that the
air outlet is not blowing air directly at an equipment operator. Should this be the case a barrier or duct shall be
provided to redirect the airflow.
Cooling unit enclosure air suction hole must be installed in the highest possible point.
When installing the unit on a door ensure it can take the weight. Before drilling the enclosure ensure the fixing
elements and couplings will not interfere with the equipment inside the enclosure itself. Disconnect power
before starting any work inside the enclosure.

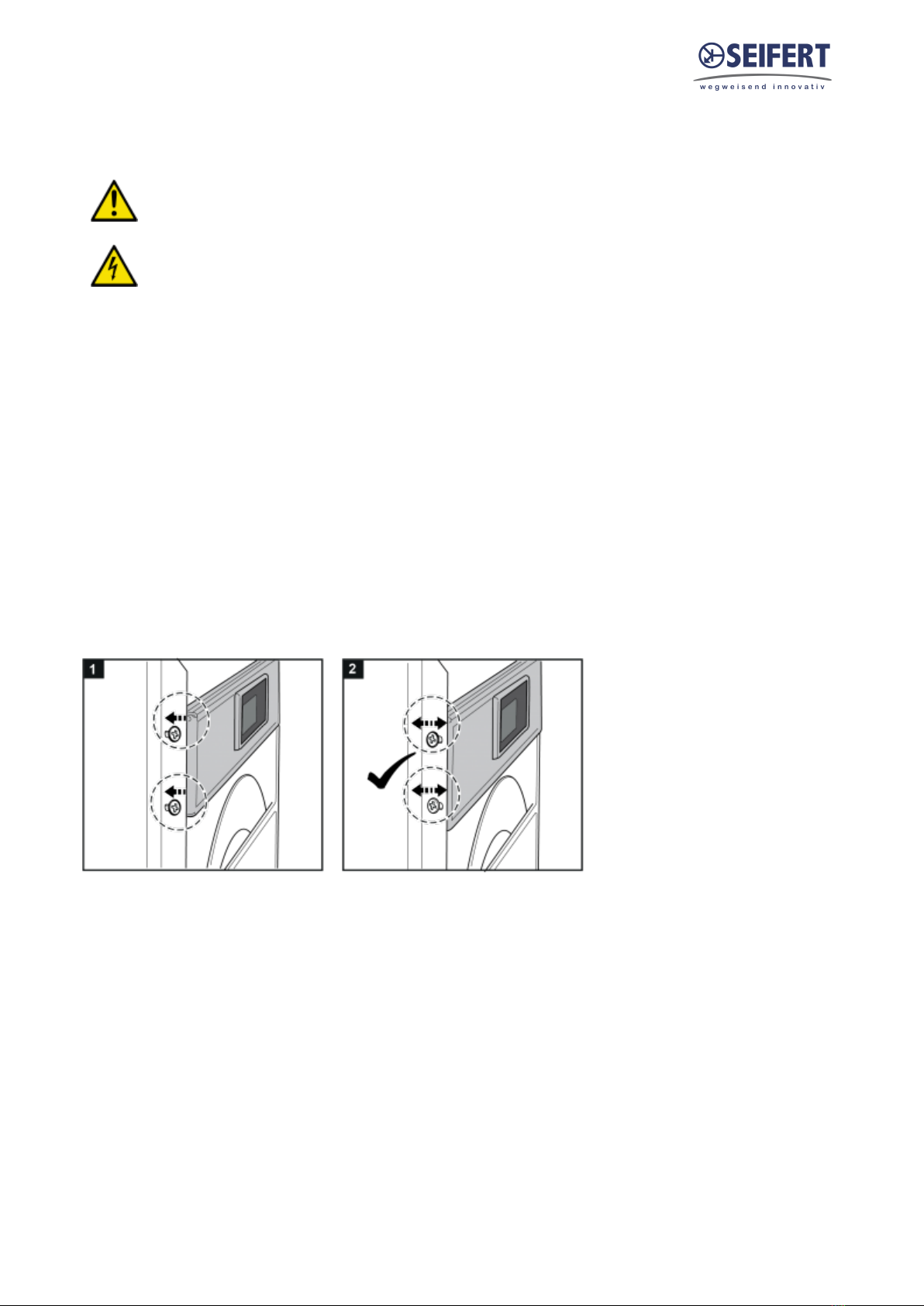

If the unit is mounted in a recessed position, the controller bracket can be pulled according to the wall thickness
of the enclosure outwards as per steps below.
.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 11 / 31
Cold air outlet duct:
When using a cold air outlet duct please follow the steps below.
Filter installation:
If you install / replace a filter please follow the steps below.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 12 / 31
Applying supplied tight tape
Condensate management:
High humidity and low temperatures inside the enclosure can lead to condensation on the evaporator.
Condensate that flows back into the enclosure can damage sensitive control electronics. The integrated
condensate evaporation of the cooling unit releases the condensate to the environment.
If too much condensation forms, the condensation is drained out of the cooling unit from the front through the
lower gill grilles. If this hose is removed, the cleaning drain MUST be open (see also point 13. Maintenance &
Cleaning).
In order to prevent the formation of excessive condensate, you should nevertheless:
- check the seals on regular intervals
- consider installing a door contact switch (order no. 3100001). This will prevent condensation forming
when enclosure door is left open.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 13 / 31
9. Mounting Principle

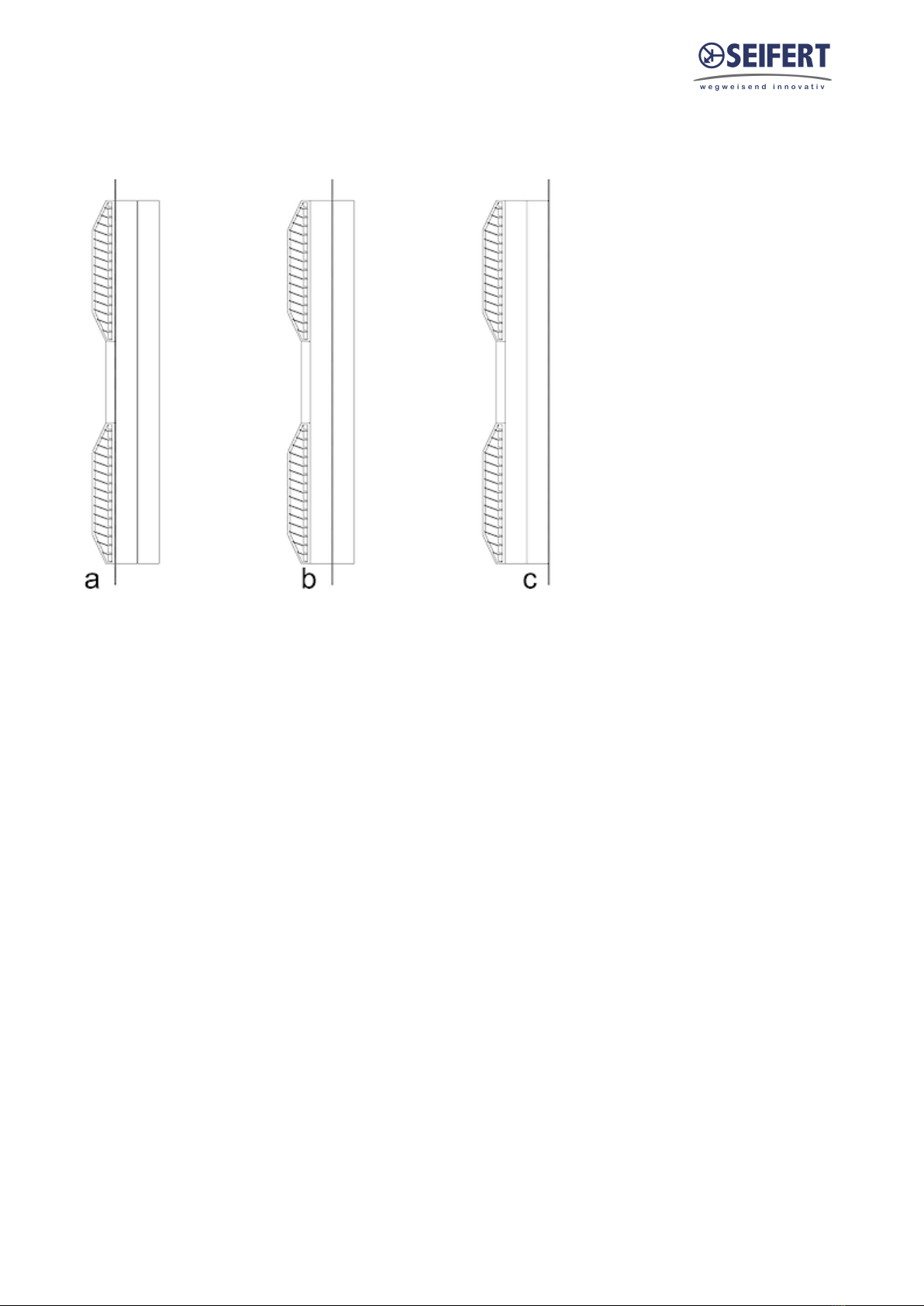

Fig.1
The cooling unit can be installed in 3 different positions: A = recessed, B = semi recessed, C = wall mounted

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 14 / 31
Mounting the unit in recessed position

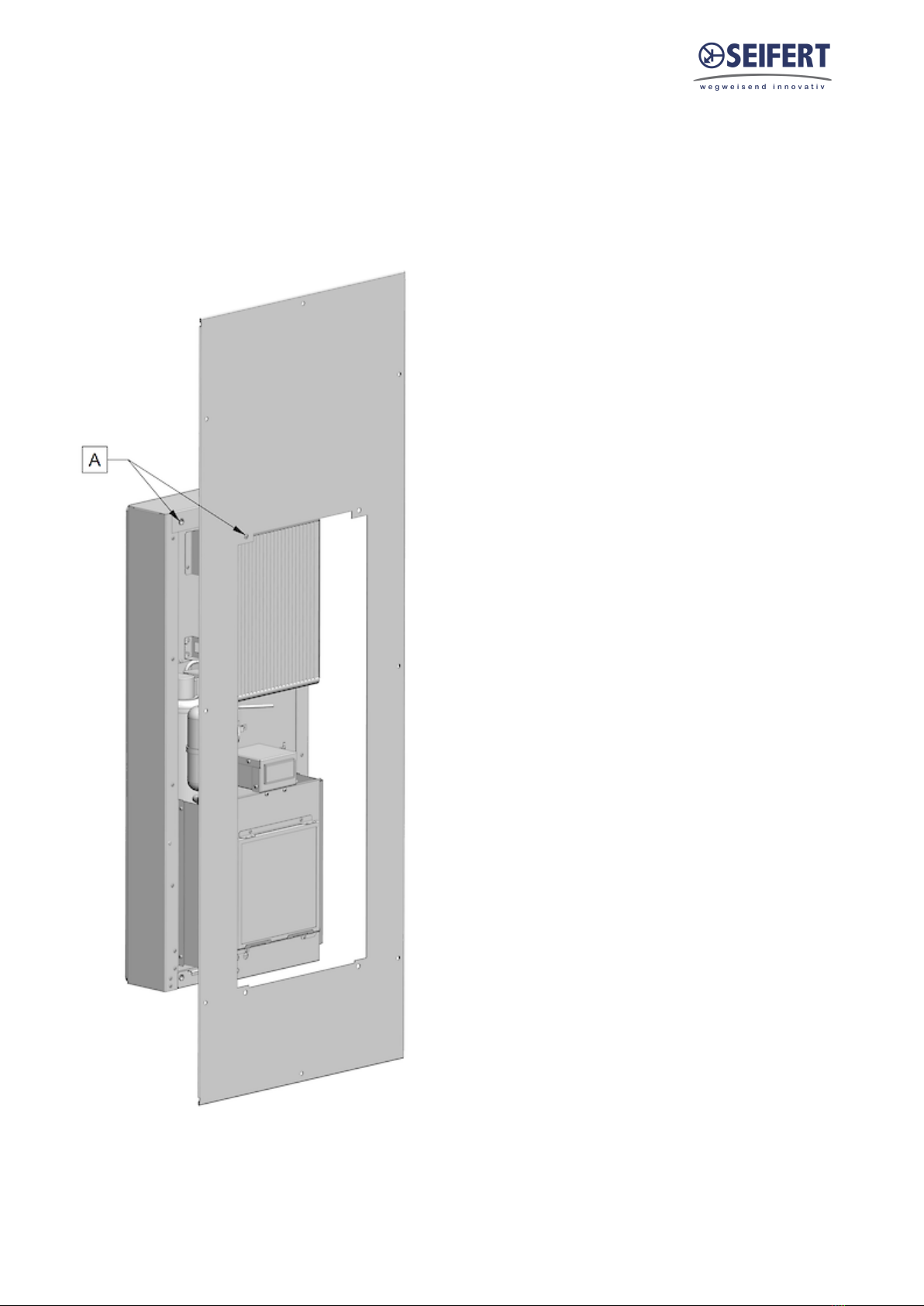

STEP 1: Mounting the interior side of the unit
[A] Mount the internal side of the unit into the enclosure by aligning the x4 M8 female threads to the 10mm
holes of the cutout as shown in the figure. A supporting bracket is available at the bottom of the housing to help
with centering the unit to the cutout.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 15 / 31
STEP 2: Fixing the mounting hardware
[B] Secure the internal side of the unit to the enclosure using the supplied x4 M8x120mm studs and M8 nuts. To
achieve an adequate seal between the enclosure and the unit, the nuts should be tightened to 4.5 Nm.
[C] The controller housing depth should be corrected according to the thickness of the enclosure walls by
adjusting the x2 screws on each side of the controller housing.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 16 / 31
STEP 3: Assembling the frame
[D] Fix the frame by using the M8 fasteners as shown below.
[E] With the frame secured, reattach the PE conductor to the tab indicated.
[F] In order to prepare for fixing the front covers, thread the x8 M4 screws into the M4 rivnuts on the front face
of the frame

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 17 / 31
STEP 4: Fixing the covers
Starting with the bottom cover align the cover to the sides and bottom of the frame and clip the covers onto the
M4 screws. [G] To secure the cover in place tighten the M4 screws with a screwdriver from the openings in the
side vents.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 18 / 31
10. Cut Out Dimension

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 19 / 31
11. Electrical Connection
Caution, risk of death
Unconnected and / or faulty protective conductor systems can lead to dangerous voltages and electric shocks
which can cause serious accidents.
Work on electrical connections may only be carried out by trained electrical engineers.
Door Switch
The unit can be switched ON and OFF via a door contact switch. When delivered the door contact terminals are
bridged on the female connector. To connect the door contact switch remove the bridge and connect door
contact switch. The contact must be closed when the cabinet door is closed.
It is possible to change the logic of the door switch (controller firmware rev. 1.2 or higher). This can be set by
changing the value of parameter c68. Refer to the table below and section Controller: Setting temperature units
(°C / °F), low temperature alarm, door contact logic section for more information.
c68 = 0 ON if closed - Door contact terminals bridged, or NC door switch connected
(contact must be closed when cabinet door is closed)
c68 = 1 (default) ON if open - Remove bridge, or NO door switch connected
(contact must be open when cabinet door is closed)
Alarm Contacts
Alarm contacts rated according to:
EN60730-1 8(4)A N.O., 6(4)A N.C., 2(2)A N.O./ N.C. @ 250Vac 100000 cycles
UL 873 8A resistive 2FLA 12LRA, pilot duty C300 @ 250Vac 30000 cycles
These contacts are not suitable for fluorescent loads (neon lights, etc.) that use starters (ballasts) with phase
shifting capacitors. Fluorescent lamps with electronic controllers or without phase shifting capacitors can be
used, depending on the operating limits specified for each type of relay.
SCCR
Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods
how to modify the available short circuit current within a circuit in the panel.

Version No. 1-14 - 30.12.2022 Doc. No. 998512RC00012-BZBG 20 / 31

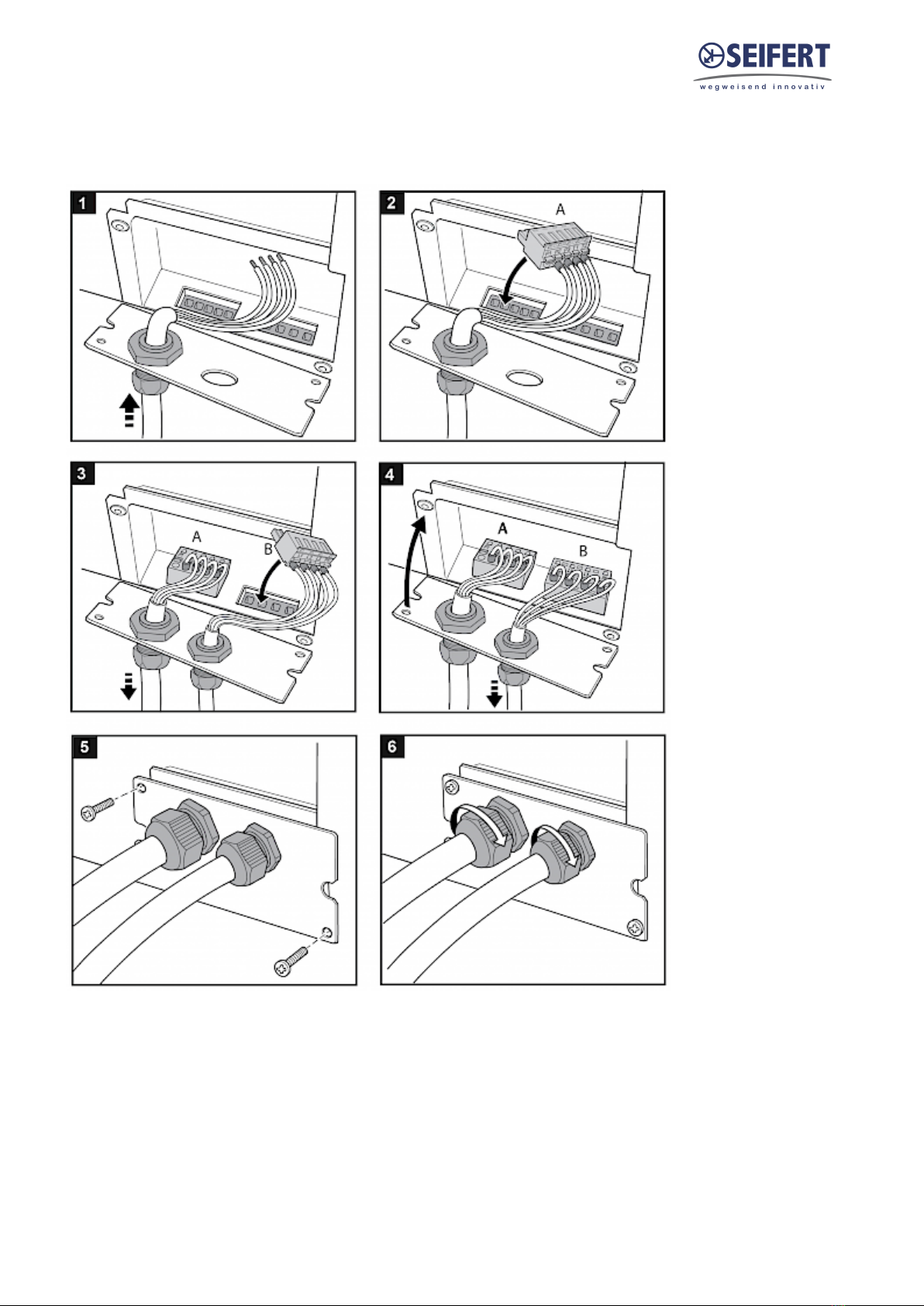

Connect unit:
Connect the cooling device according to the instructions below. The cable cross-section must correspond to the
required power for the current consumption, but max. 2.5 mm² / AWG 14.
