SELF-GUARD SG-1000 User manual

* Self-Guard : portable DVR (CCTV) *
( =DVR + Digital Camera + Monitor + Alarm + MIC + Speaker )
1. INTRODUCTION
Self-Guard is an extremely small audio and video recording system which can digitally compress and store
information such as, audio and video data. You can monitor any locations from anywhere, for the Self-Guard
transmits both the audio and video data to remote areas using the wireless transmit technology (Bluetooth). Self-
Guard is unique in the sense that it applies the idea of Ubiquitous, so you can access and communicate with
several SG units. Self-Guard is a user-friendly product and a necessity in these days when security comes to our
top priority. the manufacturer and a distributor of the Self-Guard products which are latest technology used
surveillance system featuring a digital video recorder with built-in CCD camera (pin-hole lens), microphones, and
LCD screen. It records digital audio and video onto internal flash memory triggered by motion, sensor, and audio
detection. You can use standard RS-MMC cards and USB memory devices for memory expansion and back up
data to USB memory devices. Bluetooth - enabling wireless transmit and receive of digitalized audio/video data
among the SG units. Every option in the menu is programmable by the user.
2. APPLICATION:

3. SYSTEM
4.STRUCTURE

5. TECHNOLOGY
As a security device, DVR systems need to be very stable and scalable. We have been developing not
only audio and video compression algorithm, but as well developing and designing hardware for digital
video processing consistant with CCTV systems. And also have developed IS-95 based portable and
wireless digital video camera and IMT-2000 terminals
Regulation system for traffic-law violations based on image processing algorithm
Tracking method of the position of target images in the security system
Local area defense system based on 3-dimensional tracking method of target image
Motion detection method using a class block in DVR(Digital Video Recorder)
Intrusion surveillance system using a pressure sensor and a cable
cutter established each meter in perimeter security control system
Image compression technology based on wavelet transform for image transmission
and storage in the DVR system
MPEG-4 based motion detection method
MPEG-4 based video/audio CODEC system and method
DVR system focused on stability, security and user-friendly interface
H/W and S/W development of CDMA/GSM terminal
Multimedia data compression and transmission
H/W and S/W of a fine point digital imaging internet transmission
Digital broadcasting system

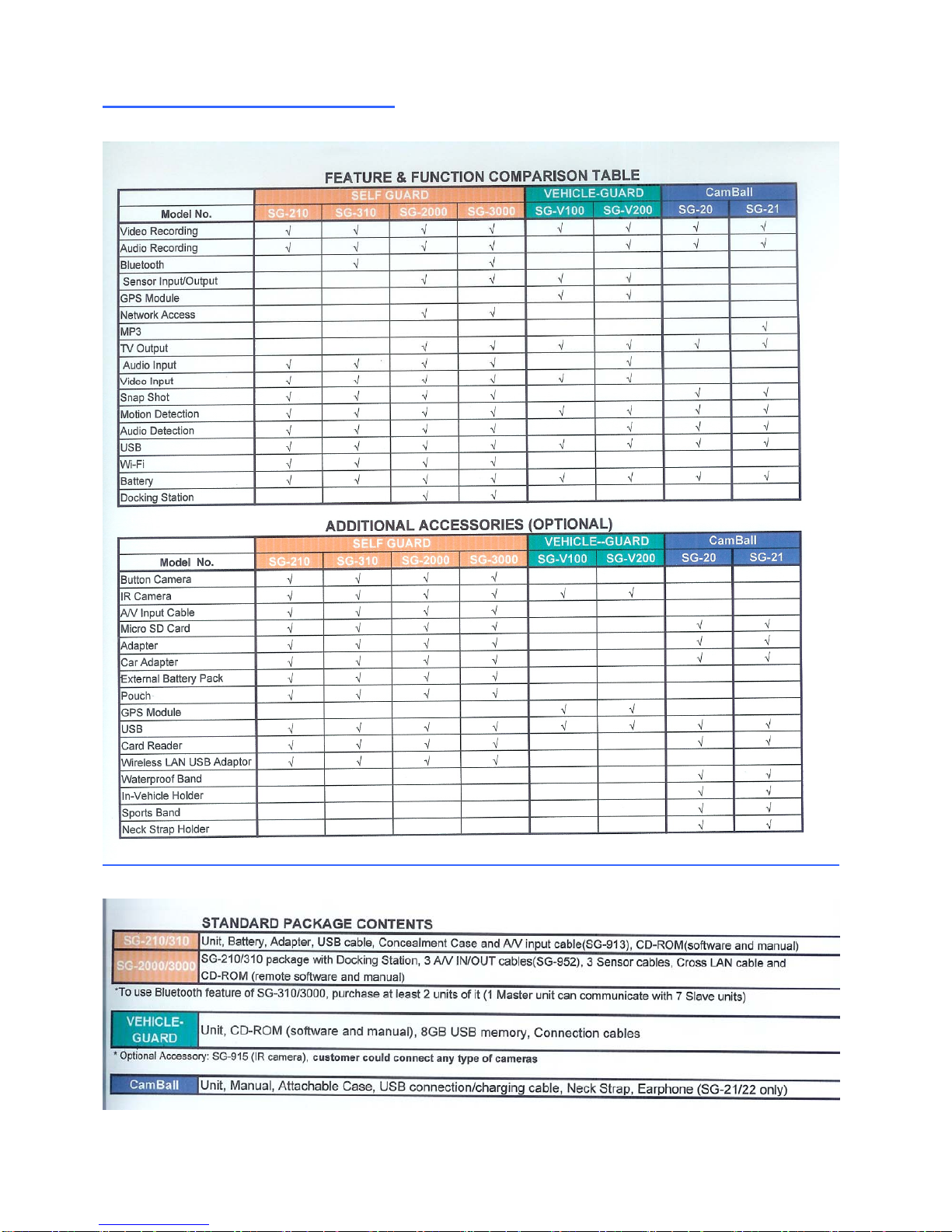

** MODEL & Functiom List **

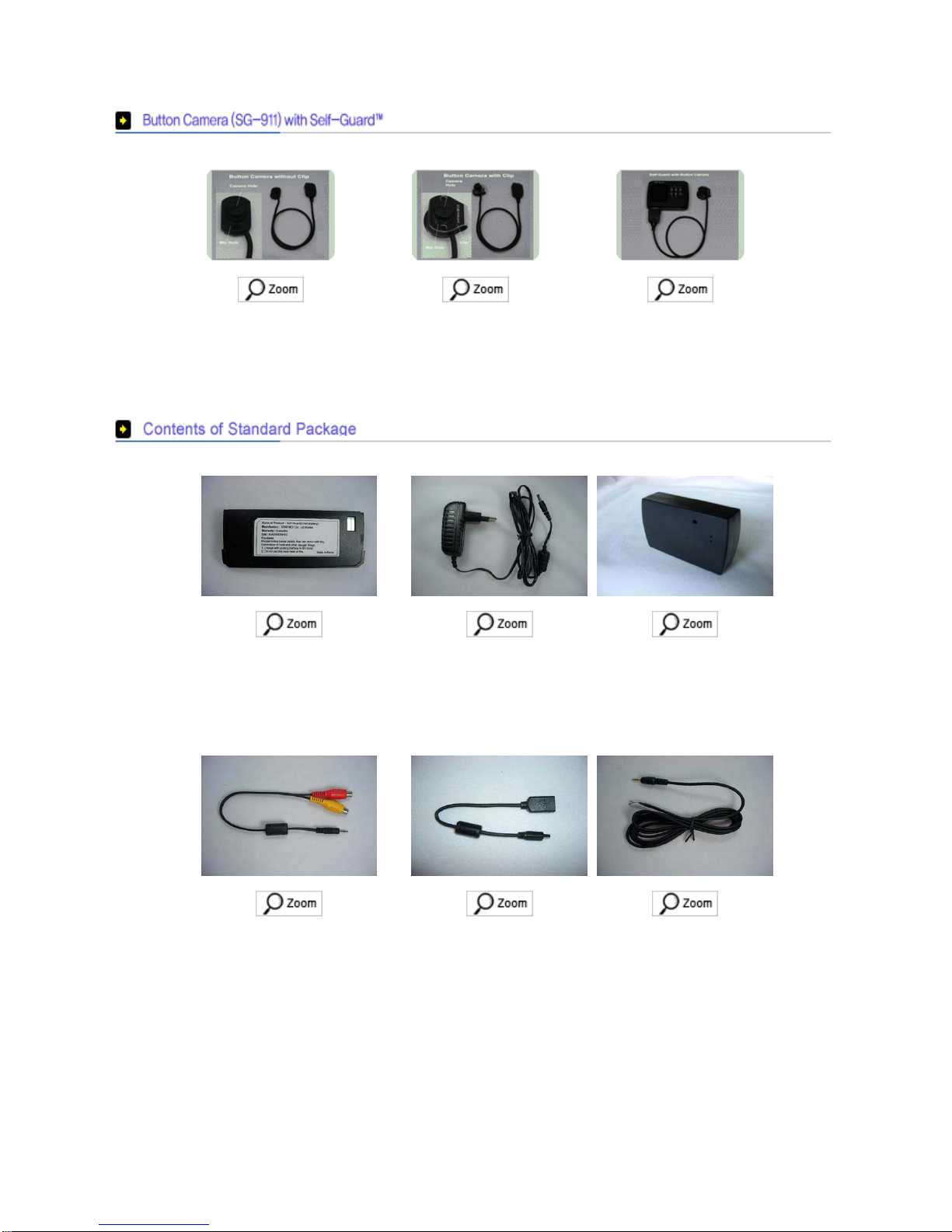

Package Contents

1. SPECIAL VERSION
SG-110 SG-210 SG-310
SG-100 + Video input SG-200 + Video input SG-300 + Video input
DESCRIPTION
SECTION SG-110 SG-210 SG-310 REMARKS
Internal Storage Device 128 MB Flash Memory (Up to 1GB) Built-in
Memory Expansion Removable RS MMC : 128MB to 1GB
Extensive Storage
Device & Data Back-up USB HDD, USB Memory Stick
Camera(Internal) 1 CCD Color (Up to 2EA) Built-in
Camera(External) 4 EA (NTSC/PAL) Ex)Button Camera
Light Sensitivity(Built-in
Camera) 1 Lux (Color) Under@ f1.2 CCD Camera
Lens(Built-in Camera) Angle(56 Degrees), Unlimited Focus Pin-Hole Lens
Resolution From 128 x 128 to 640 x 480 pixel Selectable
Display Speed 25 Fps
Recording Speed Up to 15 Fps Selectable
Video Output Built-in LCD 1.8 Inch
Audio Input/Output No 2 Built-in Microphones and 1 Speaker
Audio Detection No Yes Yes
Motion Detection Yes Yes Yes
Wireless Communication No No Yes Bluetooth
Search Date/ Time/ Motion

Display Date/ Time/ Frame
Compression Method Optimized Algorithm for Security
Storage Capacity
High Quality : 1-2 Days
Medium Quality : 2-5 Days
Low Quality : 5-10 Days
@1 Fps, 128MB Flash
Memory, 240X240
Pixels
(Indoor Use)
Recording Time
( by Battery)
Normal Mode(4.5 Hours)
Power Saving Mode(Up to 24 Hours)
Ultra Power Saving Mode(Up to 72 Hours)
Power Li-Ion Rechargeable Battery(3.7V DC, 1400mAh), Adaptor(5V DC, 2A)
Dimensions 85mm(W) x 55mm(L) x 22mm(D)
(3.34(W) x 2.16(L) x 0.86(D) inch)
Weight 150g (5.29 oz) - (Including Battery and Button Camera)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Humidity Under 80%

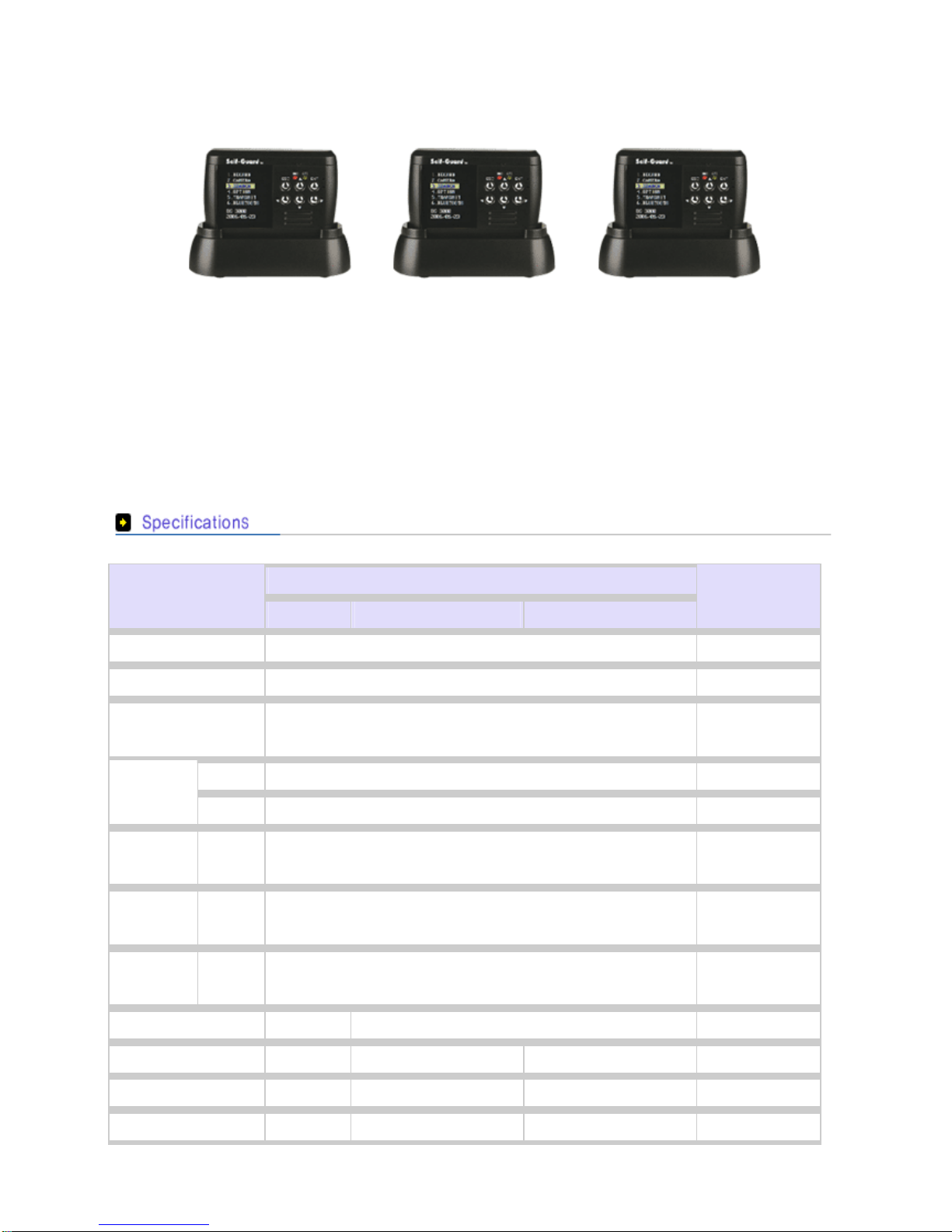

2. PROFESSIONAL VERSION
SG-1000 SG-2000 SG-3000
SG-100 + Network
+ Video input + TV out
+ Sensor in/out
SG-200 + Network
+ Video input + Audio input
+ TV out + Sensor in/out
SG-300 + Network
+ Video input + Audio input
+ TV out + Sensor in/out
DESCRIPTION
SECTION SG-1000 SG-2000 SG-3000 REMARKS
Internal Storage Device 128 MB Flash Memory (Up to 1GB) Built-in
Memory Expansion Removable Flash Memory : 128MB to 1GB
Extensive Storage
Device & Data Back-up USB HDD, USB Memory Stick
Built-in 1 CCD Color (Up to 2EA) Built-in
Camera External NTSC/ PAL (4EA)
Resolution NTSC/
PAL Up to 640 x 480 pixel Selectable
Display
Speed
NTSC/
PAL 25 Fps
Recording
Speed
NTSC/
PAL Up to 15 Fps Selectable
Audio Input/Output No 2 Internal Microphones, Speaker and External Audio Input
Motion Detection Yes Yes Yes
Audio Detection No Yes Yes
Wireless Communication No No Yes Bluetooth

Search Date/ Time/ Sensor
Light Sensitivity 1 Lux (Color) Under@ f1.2
TV(A/V) Output Built-in Color LCD, Monitor(NTSC/PAL) Output 1.8 Inch
Light Sensitivity(Internal
Camera) 1 Lux (Color) Under@ f1.2 CCD Camera
Storage Capacity
High Quality : 1-2 Days
Medium Quality : 2-5 Days
Low Quality : 5-10 Days
@1 Fps, 128MB
Flash Memory,
240X240 Pixels
(Indoor Use)
Display Data/ Time/ Frame
Lens(Internal Camera) Angle(56 Degrees), Unlimited Focus Pin-hole Lens
Remote Access LAN
Power Li-Ion Rechargeable Battery(3.7V DC, 1400mAh), Adaptor(5V DC, 2A)
Recording Time
( by Battery)
Normal Mode(4.5 Hours)
Power Saving Mode(Up to 24 Hours)
Ultra Power Saving Mode(Up to 3 Days)
Dimensions 85mm(W) x 55mm(L) x 22mm(D)
(3.34 x 2.16 x 0.86 inch)
Weight 116g (4.09 oz) - (Including Battery)
Operating Temperature -10°C to 50°C (14°F to 122°F)
Humidity Under 80%

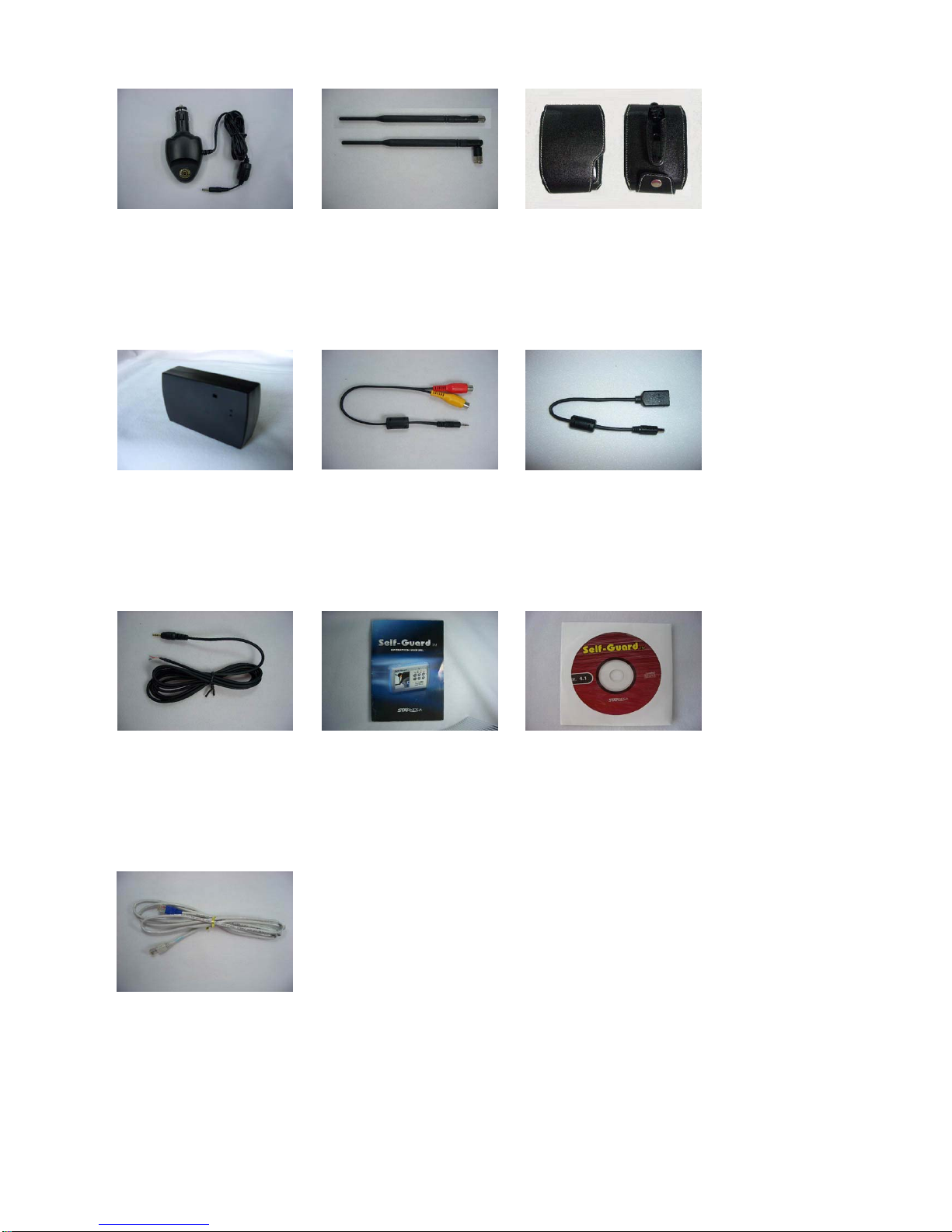

SG-932 SG-934 SG-946
Battery Adaptor
Concealing Case
...............................................................................................................................................
SG-952 SG-954 SG-956
Video In/Out Cable(Docking Station) USB Cable Sensor Cable(12~24V)
...............................................................................................................................................

SG-962 SG-964
Users Manual SW-CD Rom

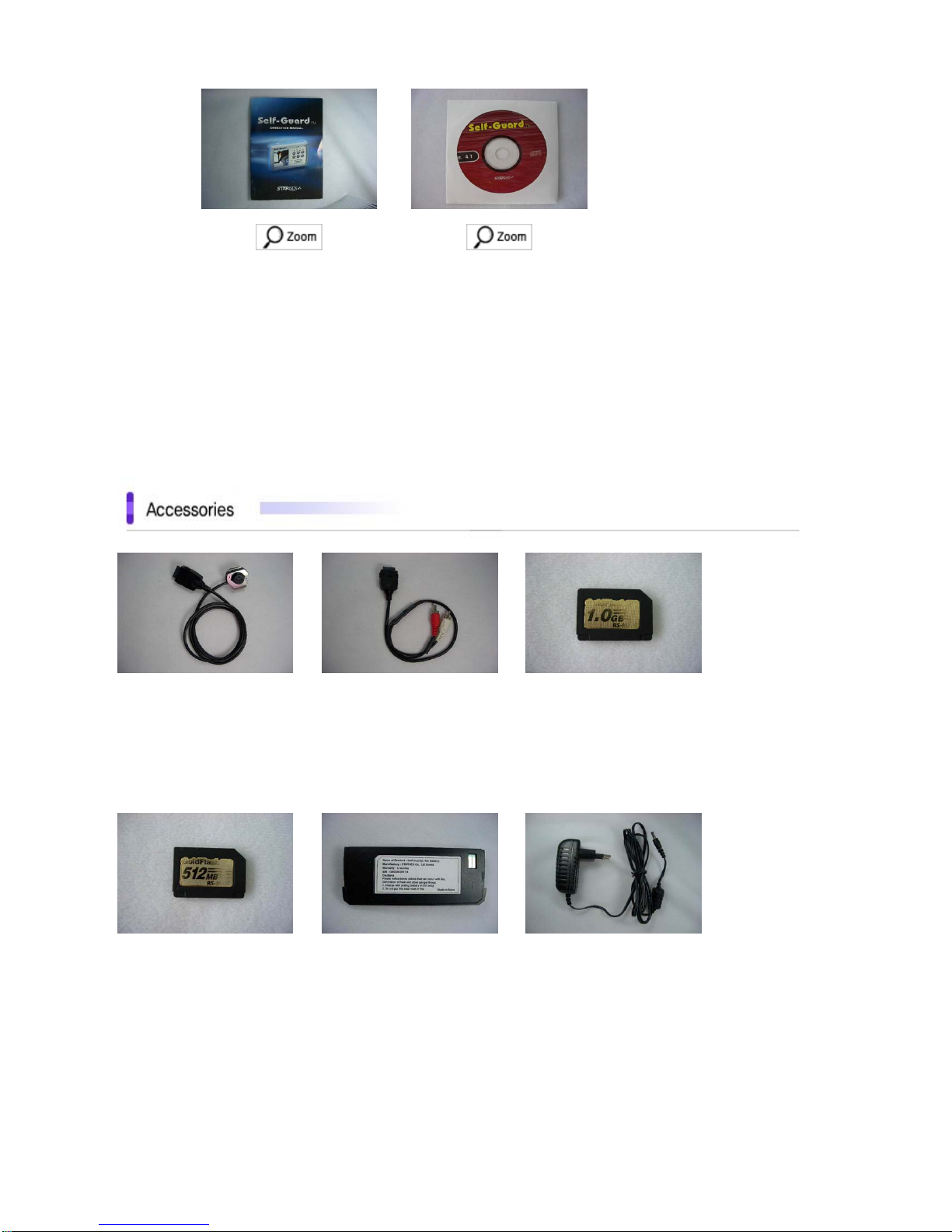

SG-911 SG-913 SG-922
Button Camera Video & Audio Cable with 5V RS-MMC 1GByte
...............................................................................................................................................
SG-924 SG-932 SG-934
RS-MMC 512MByte Battery Adaptor
...............................................................................................................................................

SG-936 SG-942 SG-944
Car Adaptor(12~24V) 4dB Dipole Antenna Pouch
...............................................................................................................................................
SG-946 SG-952 SG-954
Concealment Case Video In/Out Cable USB Cable
...............................................................................................................................................
SG-956 SG-962 SG-964
Sensor Cable Users Manual SW CD-ROM
...............................................................................................................................................
SG-958
Cross LAN Cable (1.5Meters)
