Selmo SMART PLUS PROGRAM User manual

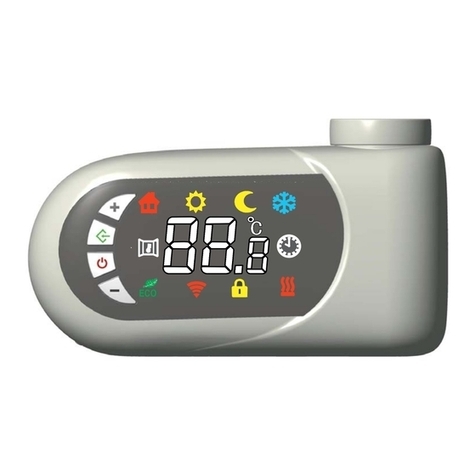

SMART PLUS PROGRAM is an electronic clock
thermostat for electric towel heaters based on fluid heat
transfer.SMART PLUS PROGRAM controls the room
temperature by means of an external sensor.
The series has the heating element attached toSMART
the thermostat.
The symmetry of the device enables both right and left
side coupling to the towel heater. The device is supplied
with a dedicated remote control that can be used for
defining a weekly program configurable for each day of
the week. The remote control is provided with a bracket
for anchoring it to a wall or to the towel heater
Twelve different types
of electric resistance
are available, from
100W to 1000W. The
device is available in
white and chromed
colours, and it can even be mounted on towel heaters with
mixed operation.
Operative modes:
Comfort, Night, Antifreeze, Chrono, Boost 2h, ECO ,,ASC
Open window detection, Fil-Pilote, Key lock.
Available colours:
- White
- Chromed
Page 1
SMART Program is a certified product:
SMART Program is compliant to the following standards:
- (<0,5W).Eco-design Directive for Energy-using Products, 2005/32/EC
-EN 60335-1:2012+A11:2014 -EN 60335-2-30:2009+A11:2012
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011 -EN 55014-2:1997+A1:2001+A2:2008
- (<0,5W).Eco-design Directive for Energy-using Products, 2005/32/EC
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Page 2
Product Electronic control for electric towel radiators
Applications Towel radiators
Insulation class Class I, Class II
IP le vel IP44
Maximum power See table below
Supply voltage 230VAC 50Hz
Size See picture below
Warranty 2 years
Standards -EN 60335-1:2012+A11:2014 -EN 60335-2-30:2009+A11:2012
-EN 60335-2-43:2003+A1:2006+A2:2008
-EN 61000-3-2:2014 -EN61000-3-3:2013 -EN 62233:2008
-EN 55014-1:2006+A1:2009+A2:2011
-EN 55014-2:1997+A1:2001+A2:2008
Approval mark CE
Case ABS+PS-VO
Environmental directives WEEE, RoHS
Operative modes Comfort, Night, Antifreeze, Stand-by, Chrono, Boost 2h,
ECO,ASC,Open window detection, Key lock
Thermostat status light
indicators
Mode LED (red, green, amber)
On/Stand-by LED (red, green, amber)
Connection to mains 3 cables (neutral, earth, live); 2 cables (live, neutral);
3 cables (live, neutral, Fil-Pilote); Swiss, UK, Italian plugs;
Schuko plug;
Available colours White (RAL 9016); Chrome.
Power (W) 100 200 250 300 400 500 600 700 750 800 900 1000
Length
(Heating element) class II
(mm) 350 350 350 350 370 410 465 520 560 600 670 730
Length
(Heating element) class I
(mm) 350 350 370 370 430 450 560 630 700 700 760 830
white
Heating
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Page 3
Product Remote control for electronic control
Applications Smart Plus Program thermostat
Colour White
Display LCD
Keyboard 7 keys
Temperature selection Digital
Operational mode
selection
Digital
Selectable operational
modes and functions
Comfort, Night, Antifreeze, Stand-by, Chrono, Boost
2h, ECO,ASC, Open window detection, Key lock
Selectable temperature range 10°C ÷ 32°C - 7°C in Antifreeze mode.
Operative
temperature range
-10°C ÷ +40°C
Battery 2 x 1,5V - AAA type
Signal transmission Infrared (2 transmitters)
Size 100x42x27mm(HxLxW)
Anchoring Wall anchoring through dedicated bracket.
Warranty 2 years
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Page 4
WARNING
RISK OF ELECTRIC SHOCK!
Disconnect power supply before proceeding with installation.
•Preserve with care the present instruction sheet and read carefully before using the
device.
• The present device has been designed for exclusive use on a towel radiator.
•The thermostat is designed for heating the liquid contained inside a towel radiator in
combination with a heating element. Any other use is forbidden.
• Before using, carefully ensure that the line voltage is the same as that specified for
the device (see technical specifications).
• Only use heating elements compatible with the type of used towel radiator.
• Disconnect power supply before cleaning or before performing maintenance of the
product.
In case of damage of the power supply cable shut down the device and do not
tamper with it. The damaged power supply cables can be replaced exclusively by
the manufacturer or by an authorized service center. Failure to comply with the
above rules could lead to compromised system safety and void the warranty.
• Store and transport the heating element exclusively in the protecting packaging.
• Replacement of the heating element can be done exclusively by the product
manufacturer.
• Children aged under 8 years old and people with reduced physical, sensory or
mental abilities, can use the device only under supervision. Children should not
play with the device.
Cleaning and maintenance meant to be carried out by the user should not be
done by children without supervision.
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

NO
SI
(1)
(2)
(3)
(4)
Page 5
Installation guide For authorized installer only
•Disconnect the device from power supply before proceeding with installation.
•Protect the device with a 30mA RCD circuit breaker
•Disconnect the device from power supply before proceeding with installation.
•Protect the device with a 30mA RCD circuit breaker
1) Insert the heating element in the threaded opening located on the bottom part of the
radiator.
2) Securely fasten the electric resistance to the body of the towel radiator with a 22mm wrench.
3) The special sheath ensures a secure mounting and eventually allows a slight supplemental
torsion to perfectly align the thermostat with the radiator.
4) Tilt the radiator as in fig. 3, making sure that the opening on top of the radiator is located on
the highest side.
WARNING. Do not lean the radiator on the electronic control!
5) Fill the radiator with the specific liquid.
6) Put the radiator back in vertical position and check the internal level of the liquid (fig. 4).
7) Ensure a proper fastening of the heating element in the radiator.
8) Connect the device to mains and start heating (the top opening of the radiator must remain
open!).
9) Set the maximal temperature and check the level of the internal liquid. Due to thermal
expansion the liquid could brim over the radiator.
10) Remove the exceeding liquid (be careful to avoid burns!) in order to keep the thermostat
dry and avoid the liquid reaching the border. When the level of the liquid stops growing wait for
additional 5 minutes then stop heating.
11) If necessary, top up the radiator before the liquid cools down (keep the temperature of the
internal liquid checked all the time).
12) Close the top opening of the radiator with the appropriate cap.
13)Hook the radiator to the wall.
14)Connect the device to the mains. For models having no plug it is necessary to install a
suitable omnipolar disconnection switch ensuring complete disconnection in case of category
III overvoltage (that means a switch with at least 3 mm of space between open contacts).
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

1.Smart Plus Program with “Fil-Pilote” function (Class II) can be remotely controlled by a
remote control unit supporting the “Fil-Pilote” standard. The brown wire is the Live wire
(L), the grey wire is the Neutral wire (N) and the black wire is used for receiving the Fil-
Pilote signal.
Do not connect the black wire to the ground.
2.Smart Plus Program without "Fil-Pilote" functionality (Class I) cannot be remotely
controlled. The brown wire is the Live wire (L), the blue wire is the Neutral wire (N) and the
yellow/green wire has to be connected to Earth.
Connessione al sistema Fil-Pilote
(solo per le versioni provviste di "Fil-Pilote")
Example
1
FASE NEUTRO
Termostat
classe II
Stazione
"Fil-Pilote"
230 Vac
50 Hz
Page 6
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Page 7
Bracket for anchoring
to the wall.
Anchoring pins.
Remote control
Screws.
Holes for connecting
the remote control
to the bracket.
Hooks for
anchoring
the bracket
to the screw
anchors.
Screw anchors for fixing the
bracket to the wall.
Double and
simultaneous
IR transitters.
Batteries
2xAAA 1.5v
Removable plastic case.
REMOTE CONTROL CHARACTERISTICS
Anchoring the remote control to the wall
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

User Manual
Sonda NTC
Page 8
IR receiver
Power cord
Heating element.
On/Stand-by button
"Mode" LED: red / green
/ amber.
A small light indication
showing the active
function / operating
mode.
1/2" GAS thread
for fastening to
the radiator.
"On/Stand-by" LED:
(red/green/amber) it
indicates the status of
the thermostat.
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Pulsante
[crono]
Pulsnte
[ + ]
Pulsante
[Mode]
Pulsante
[ECO]
Display
ECO
Page 9
[chrono]
button
[ + ]
button
[Mode] button
[Boost 2h]
button
[ECO] button
[ - ] button
Display button
[On/Stand-by]
button
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

User guide
2. Operational modes
Press the key on the remote control to select the desired operating mode. An icon[Mode]
on the display indicates the selected mode. The mode icons are shown in the following
table
To enter into the following two operating modes, see the dedicated section:
Comfort Crono
anti-Ice
User guide
Press the [On/Stand-by] button on the remote control or on the thermostat to turn
on the device or to switch to "Stand-by" mode
NOTES:- When the device goes into “Stand-by” mode it beeps twice for 0.5s.
- When the device is activated it beeps once for 1s
Turning on the device using the button on the thermostat will directly activate the
“Comfort” mode with a default selected temperature of 20°C. It is necessary to use the
remote control for further modifying the temperature or for changing the operating
mode.
Night
Fil-Pilote
Open Window
Detection
Eco Boost 2h
ECO
Page 10
Daily program in
"Chrono" mode
Clock
Operating mode
indication
"Open Window
Detection" function
"ECO" mode
“Key lock" icon
Remote control
.transmission indication
Selected temperature
Current day
of the week
ASC function
ASC
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Comfort Mode
The "Comfort" temperature corresponds to the desired temperature for the
room.
-Press the key until the "Comfort" icon is displayed.[Mode]
-Set the desired temperature using the and keys.[+] [-]
In "Comfort" mode, the “Mode” LED turns red.
Night Mode
The "Night" mode sets a value of temperature to a lower value than the one set
for the "Comfort" temperature.
It is suggested to use this operating mode during the night or when the room is
not occupied for 2 or more hours.
-Press the key until the display shows the " Night" icon.[Mode]
-Set the desired temperature using the and keys.[+] [-]
In "Night" mode, the “Mode” LED turns green.
Antifreeze Mode
In "Antifreeze" mode the device activates the heating element when the room
temperature falls below 7°C. It is suggested to set this operating mode when
the room is not occupied for several days.
-Press the key until the display shows the "Antifreeze" icon.[Mode]
In "Antifreeze" mode, the “Mode” LED blinks green.
Boost 2h Mode
The "Boost 2h" can be used for quickly warming the room.-To activate the
“Boost 2h” mode, press the corresponding key until the "2h" icon is
displayed.To exit this mode, press either the key or the[Boost 2h] [On/Stand-
by] key.
For safety reasons, the temperature will be automatically limited to 32°C.
In “Boost 2h” mode, the “Mode” LED blinks red.
Page 11
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Chrono Mode
This operating mode allows the definition of a weekly program configurable for
each day of the week.To enter into this mode, press the key until the[Mode]
display shows the "Chrono" icon.When the Chrono mode is active, the
“On/Stand-by” LED turns amber; the “Mode” LED turns green during the “Night”
period and it turns red during the “Comfort” period.
Configuring the hours sequence:
Press the key to start the programming procedure.[Chrono]
a)Set the time and day of the week.
-The blinking number shows the day of the week: press and keys to set[+] [-]
the correct day, then press to confirm.[Mode]
-Press the and keys to set the hour then press [Mode] to confirm and[+] [-]
proceed with the configuration of the minutes. -For configuring the minutes,
repeat the same procedure and confirm with the key at the end.[Mode]
b)Configuring the weekly program.
The procedure starts automatically from day 1, and requires specifying the
desired temperature (either “Comfort” or “Night”) for each hour of the day. This
is done by pressing for the current hour either the key (for setting the[+]
“Comfort” temperature) or the key (for setting the “Night” temperature). Once[-]
one of the two keys is pressed, the configuration process moves to the
following hour (for a total of 24 steps).
The "Comfort" temperature is represented with a filled rectangle while the
“Night” temperature is represented with an empty space.
Example
Comfort
Night
Page 12
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

Fil-Pilote Mode (only for models equipped with "Fil-Pilote" feature)
In this mode the device is managed by a remote control unit.
1.Press the key until the corresponding icon is shown on the display.[Mode]
2.Use the and buttons to select the desired temperature.[+] [-]
The remote Fil-Pilote control unit will configure the operational mode. The device operates
with the most advanced “Fil-Pilote” system with six commands, which allows the following
functions
1. Stand-by: power off the heating element, the device remains active.
2. Comfort: maintains the “Comfort” temperature set by the user.
3. Eco: maintains the room temperature 3,5°C below the “Comfort” temperature.
4. Antifreeze: maintains the room temperature at 7°C.
5. Comfort-1: maintains the room temperature 1°C below the “Comfort” temperature.
6. Comfort-2: maintains the room temperature 2°C below the “Comfort” temperature.
NOTE: When this operating mode is activated on models not equipped with the “Fil-Pilote”
feature, the device will operate in “Comfort” mode.
Key lock
This function allows locking the buttons of the device to avoid inadvertent modifications of the
settings.
All the keys are disabled except the button.[On/Stand-by]
Press together the and keys for 3 seconds to activate this mode.[Mode] [+]
To unlock the buttons repeat the procedure.
ECO Mode
In this mode the selected temperature is reduced of 3°C, independently by the other device
settings. This function allows reducing the energy consumption.
To activate/deactivate the “ECO” mode, press the corresponding key.[ECO]
In "ECO" mode, the “Mode” LED turns amber.
ASC FUNCTION
To enable the "ASC" function press the key until the "Crono" icon is shown on the[mode]
display.
-press simultaneously the keys and for at least three seconds.[ECO] [+]
-To disable this function, repeat the procedure.
OPEN WINDOW DETECTION FUNCTION
Press together the and keys for more than 3 seconds to activate the ”Open Window[ECO] [-]
Detection” function. To deactivate the function repeat the procedure.
The “Open Window Detection” function enables detecting of an open window by sensing a
sudden decrease of the temperature in the room. In such a case, the device deactivates the
heating element for a maximum of 30 minutes or until an increase of the room temperature
reveals that the window has been closed. At the end the device returns to the previous
operating mode.
Page 13
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018

DISPOSAL
This product may not be treated as ordinary household waste. It has to be disposed in
proper waste collection sites. In case of replacement it shall be returned to the
distributor.
Such an end-of-life treatment of the product will preserve the environment and will
reduce consumption of natural resources.
This symbol applied to the present product indicates the obligation to bring it to a proper
waste collection site, in order to let it be disposed according to 2002/96 / CE (RAEE -
WEEE) directives.
Repairs carried out by unauthorized personnel invalidate warranty
The manufacturer reserves the right to make any changes to the product described in this manual,
at any time, and without prior warning.
Accessory: To allow a mixed usage of the SMART
device, connect the T-piece to the towel
radiator, insert the SMART device into the
vertical manifold of the T-piece and connect
the return line of the heating circuit to the
orthogonal connector of the T-piece.
Available colours: White; Chromed
Page 14
Summary table of the "On/Stand-by" LED statuses
Green The device is in stand-by mode
Red The device is active
Amber The device is in “Chrono” mode
Summary table of the "Mode" LED statuses
-"Comfort": Red
- "Night": Green
- "Antifreeze": Blinking green
-"ECO": Amber
-"Boost 2h": Blinking red
- "Fil-Pilote": The colour depends by the operating mode configured by the
remote Fil-Pilote control unit (according to the previous list).
NOTES:
1) In case of interruption of the power supply, the thermostat returns to the previous
operating mode with the exception of “Boost 2h” and “Chrono” modes. The state of the
thermostat is saved few seconds after a function is activated.
2) The device will beep to confirm the reception of a signal from the remote control.
3) The device could fail in detecting an opened window e.g. if the thermostat is located on
an isolated area of the room and far from air currents or if the thermostat is placed close
to an external heating source, or if the temperature variation in the room is too slow.
4) “Mode” LED blinking amber: Indicates that the probe is defect; the device is deactivated.
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
Selmo Electronic
Via Pacinotti, 24 - 35030 Rubano www.selmo.it(PD) Italy- Tel [phone], Fax [phone] -
“SMART Plus Program ”
Electronic control for towel heaters
ENG
Comfort technology division
Selmo
Release 02 - June 2018
