SELT BORA User manual

11. Awnings
11.13 Side awning BORA
TECHNICAL AND OPERATIONAL DOCUMENTATION
INSTALLATION MANUAL,
OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE
(Translated from the original manual)
11.13
DT-E

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 2 / 29
PRODUCT NAME:
SUN PROTECTION SYSTEM
SIDE AWNING BORA
PRODUCT MANUFACTURER’S MARKING:
Manufacturer’s name:
SELT Sp. z o. o.
Manufacturer’s registered office:
45- 449 Opole, ul. Wschodnia 23A
Contact details:
Tel: [phone] (secretariat)
Fax: [phone]
Website:
www.selt.com
E-mail:
[email protected]
PRODUCT SAFETY MARKING:
The product meets the CE safety requirements.
THIS TECHNICAL AND OPERATIONAL DOCUMENTATION:
Is valid from: 19 March 2021
Is applicable to the above listed product versions.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 3 / 29
TABLE OF CONTENTS
TABLE OF CONTENTS.................................................................................................................................................................. 3
1 INTRODUCTION................................................................................................................................................................ 4
1.1 SAFETY GUIDELINES FOR THE PRODUCT................................................................................................................. 4
1.2 EXPLANATION OF SYMBOLS AND SIGNS ................................................................................................................. 4
1.3 TERMS AND DEFINITIONS ....................................................................................................................................... 5
1.4 SUBJECT, INTENDED USE AND CONTENTS OF THE DOCUMENTATION................................................................... 5
2 PRODUCT TECHNICAL INFORMATION.............................................................................................................................. 6
2.1 TECHNICAL PARAMETERS ....................................................................................................................................... 6
2.2 PRODUCT SPECIFICATION ....................................................................................................................................... 6
2.3 BORA SIDE AWNING CONSTRUCTION..................................................................................................................... 6
2.4 SIDE AWNING ELEMENTS........................................................................................................................................ 7
2.5 DIMENSIONS OF SIDE AWNING ELEMENTS ............................................................................................................ 8
3 TRANSPORT AND STORAGE OF THE PRODUCT ................................................................................................................ 9
3.1 COMPLETENESS AND QUALITY CONDITION OF THE DELIVERY ............................................................................... 9
3.2 GENERAL CONDITIONS FOR TRANSPORT AND STORAGE OF THE PRODUCT .......................................................... 9
3.3 OBLIGATORY DESCRIPTIONS TO BE PLACED ON THE PRODUCT PACKAGING ......................................................... 9
4 PRODUCT INSTALLATION............................................................................................................................................... 10
4.1 REQUIREMENTS FOR SAFE INSTALLATION OF THE PRODUCT AT HEIGHTS........................................................... 10
4.2 PREPARATION FOR INSTALLATION........................................................................................................................ 11
4.3 GENERAL REQUIREMENTS FOR SAFE INSTALLATION ............................................................................................ 11
4.4 INSTALLATION TOOLS ........................................................................................................................................... 11
4.5 BORA AWNING INSTALLATION –WALL BRACKETS AND PERMANENT BRACKETS ................................................ 11
4.6 GUIDELINES FOR INSTALLATION –CASSETTE BRACKET AND CASSETTE HANGER................................................. 14
4.7 BORA AWNING INSTALLATION.............................................................................................................................. 15
4.7.1 CASSETTE HANGERS INSTALLATION ............................................................................................................ 15
4.7.2 FIXED BRACKET INSTALLATION.................................................................................................................... 17
4.7.3 FIXED BRACKET INSTALLATION (NATURAL GROUND) ................................................................................. 17
4.7.4 WALL BRACKET INSTALLATION.................................................................................................................... 18
4.7.5 HANDLE REGULATION AND LOCKING IN THE BRACKET............................................................................... 18
4.8 MANUAL DRIVE..................................................................................................................................................... 19
5 SYSTEM OPERATION AND PRODUCT SAFETY................................................................................................................. 20
5.1 GENERAL REQUIREMENTS FOR OCCUPATIONAL HEALTH AND SAFETY ................................................................ 20
5.2 SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE.............................. 20
5.3 OPERATIONAL SAFETY........................................................................................................................................... 20
5.4 CONTROL OF SAFE USE OF THE PRODUCT ............................................................................................................ 21
6 SYSTEM USE AND MAINTENANCE ................................................................................................................................. 22
6.1 USING THE PRODUCT IN ACCORDANCE WITH ITS INTENDED USE........................................................................ 22
6.2 INSTRUCTION FOR NON-PROFESSIONALS............................................................................................................. 22
6.3 TECHNICAL INSPECTIONS, MAINTENANCE AND REPAIR ....................................................................................... 22
6.4 USE OF AWNING FABRICS ..................................................................................................................................... 23
7 GENERAL WARRANTY TERMS ........................................................................................................................................ 26
7.1 WARRANTY EXCLUSIONS ...................................................................................................................................... 26
8 COMPLAINT / TECHNICAL DEFECTS ............................................................................................................................... 27
8.1 COMPLAINTS......................................................................................................................................................... 27
8.2 TECHNICAL DEFECTS ............................................................................................................................................. 27
9 PRODUCT DISASSEMBLY / UTILISATION / DISPOSAL...................................................................................................... 28
10 MARKING AND LABELLING OF THE PRODUCT WITH CE MARK...................................................................................... 29
10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD .......................................................................................... 29
10.2 INFORMATION ACCOMPANYING THE CE MARKING ........................................................................................ 29

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 4 / 29
1INTRODUCTION
1.1 SAFETY GUIDELINES FOR THE PRODUCT
The product has been manufactured in accordance with the latest technical knowledge in the field of construction and
manufacturing and meets the safety requirements in accordance with the following standards.
The safe construction of the product was achieved thanks to:
No.
Subject
European Legal Basis
Polish Legal Basis
1
External blinds. Performance
requirements including safety
EN 13561:2015
PN-EN 13561:2015
2
Construction Products
Regulation (CPR)
Regulation (EU) no 305/2011 of
the European Parliament and of
the Council
Act of April 16, 2004 on building products
DZ. U [Journal of Laws] 2004, No. 92, item
881 as amended of (Dz.U. [Journal of Laws]
2016.1570; 2015.1165; 2016.542)
Related documents: Declaration of Performance.

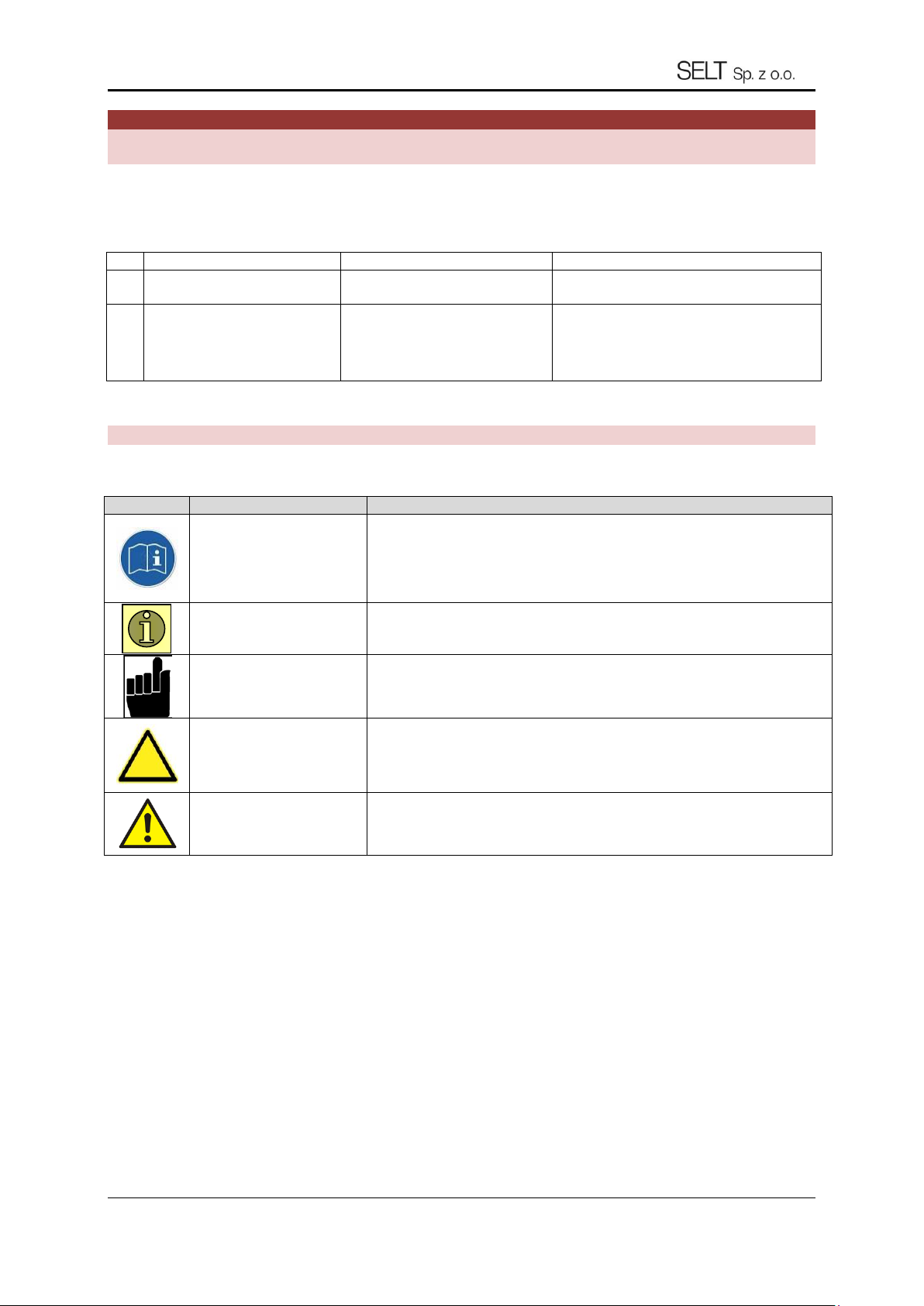

1.2 EXPLANATION OF SYMBOLS AND SIGNS
The following symbols (pictograms) indicate particularly important threats and safety information.
Pictogram
Pictogram meaning
Information
INFORMATION
Prior to using the product, its operating manual should be read
Following the operating manual guarantees:
- failure-free use of the product,
- warranty coverage against product defects.
Keep the operating manual for safety of people.
INFORMATION
No harmful or dangerous consequences for people or facilities.
NOTE !
A situation likely to cause product damage or other damage.
No threat for people.
WARNING !
Threat of danger
DANGER !
This symbol marks all safety information which, if not observed, could endanger
the life or health of persons. Health or life hazard. Risk: danger of serious injury
or death. Unsafe operation that may cause injury or damage to the product.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 5 / 29
1.3 TERMS AND DEFINITIONS
For the purposes of this documentation the following terms and definitions shall apply:
SIDE AWNING: a sun protection system fixed outside the building, vertically in relation to the ground with a side cover pull-
out system. It is also used as a cover separating part of the terrace or usable area.
AWNING FABRIC: Part of the product serving for protection from sun light, but also having a decorative function.
Manufactured from high quality materials is put into motion with manual control mechanism, assuring the product fulfills
its function.
1.4 SUBJECT, INTENDED USE AND CONTENTS OF THE DOCUMENTATION
This documentation covers the products manufactured by SELT Sp. z o.o.
This documentation applies to all types of side awning BORA.
User’s manual and instructions for safe use, with motor manual, should be handed over to the end
user.
IMPORTANT INSTRUCTION RELATED TO SAFETY
WARNING - IT IS VERY IMPORTANT TO PROCEED ACCORDING TO THIS MANUAL
TO ENSURE PEOPLE SAFETY.
KEEP THIS MANUAL
The documentation is valid jointly with the information concerning a specific product, which is available
on the website www.selt.com
This documentation includes:
important recommendations concerning product installation, use and maintenance.
important recommendations concerning product transport and storage.
tips following which will assure long-time and fault-free use of the product.
SELT shall not bear responsibility for damage resulting from failure to follow recommendations included in the
documentation.
In order to further improve the product, SELT SP. Z O.O. reserves the right to introduce changes which, while maintaining
the essential technical parameters, shall be deemed purposeful for improving product operation quality and safety of use.
SELT SP. Z O.O. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be
used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to
third parties.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 6 / 29
2PRODUCT TECHNICAL INFORMATION
Technical specification of the product is available after logging in on website www.selt.com
2.1 TECHNICAL PARAMETERS
SIDE AWNING BORA
Projection:
up to 4 m
Maximum projection
4 m
Minimum height
1,1 m
Maximum height
2 m
Roller tube diameter
70 mm
Manual drive
Spring levorotatory or dextrorotary
Construction colour
(powder coating) White, beige, brown, structural graphite,
silver
Fabric
awning fabric, c. 150 patterns
Application
External
Installation place
Wall, permanent mounting to the ground
The tolerance of the dimensions of the awning width is ± 2cm
Due to technological reasons, slight differences in colour shade are deemed acceptable and they are not a ground for
complaint.
2.2 PRODUCT SPECIFICATION
Products manufactured by SELT Sp. z o. o. have appropriate technical and operational parameters.
They have the following features:
They provide excellent sun protection for surfaces such as terraces and balconies.
It is also used as a cover separating part of the surface.
They protect against intense solar radiation.
They are aesthetic and durable structures.
Thanks to the simple construction and solid realization, they are used in commercial areas.
Awning fabrics manufactured on the basis of high-quality materials, covered with an impregnation that constitutes a
protective barrier and increases resistance to dirt.

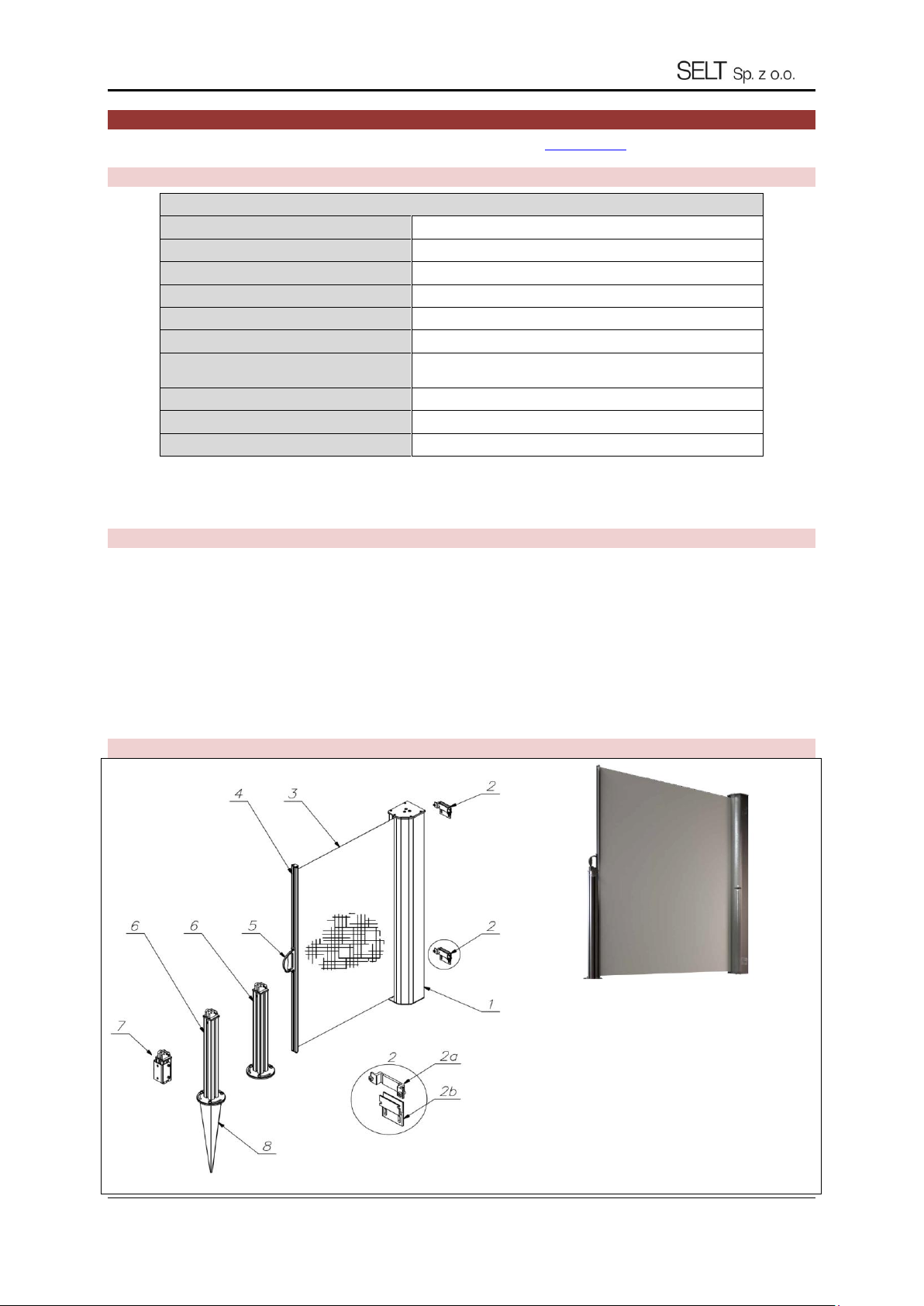

2.3 BORA SIDE AWNING CONSTRUCTION
1. Cassette
2. Cassette mounting bracket
2a. Cassette bracket
2b. Cassette hanger
3. Fabric
4. Front bar
5. Handle
6. Front post
7. Wall bracket
8. Ground mounting elements

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 7 / 29

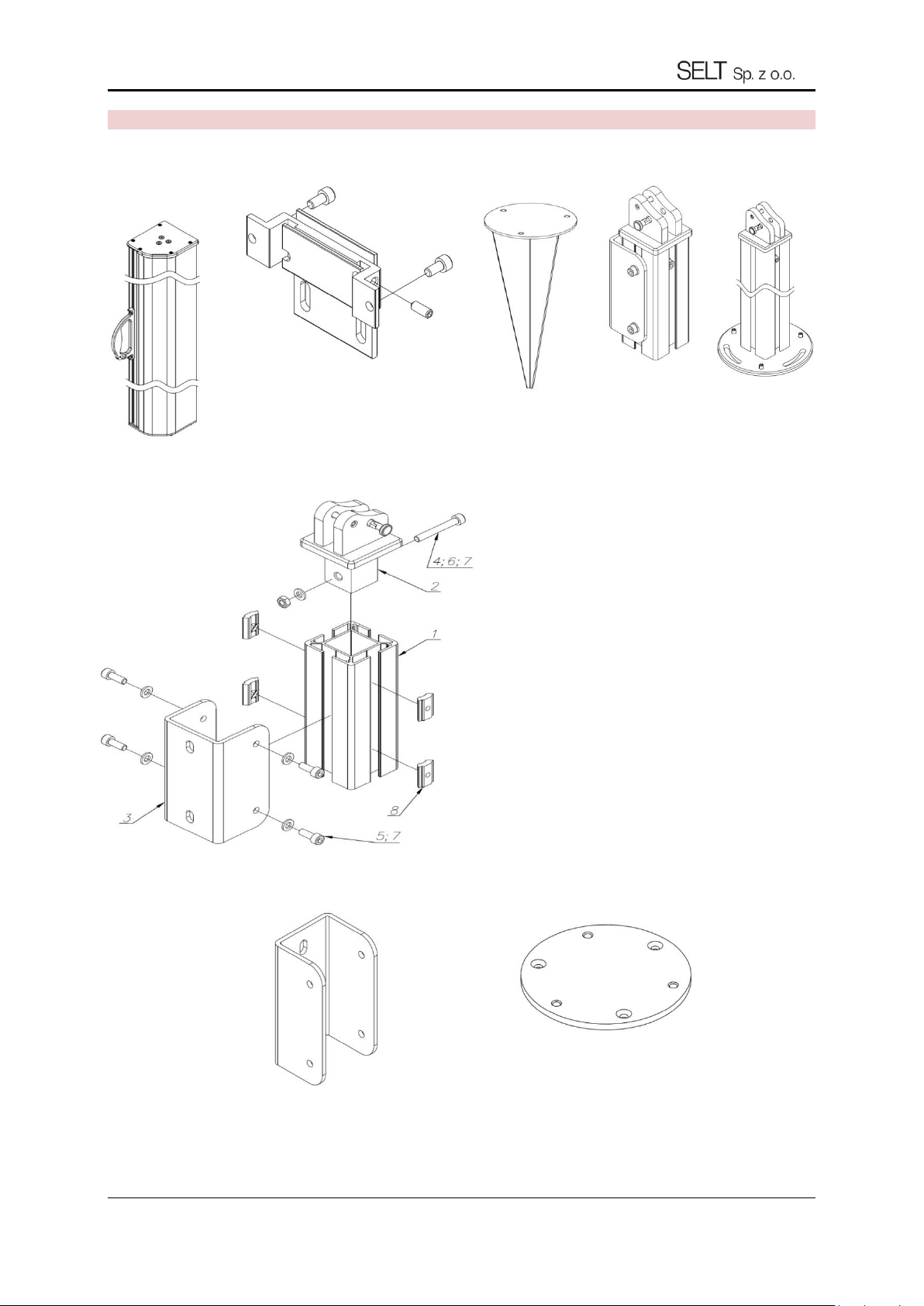

2.4 SIDE AWNING ELEMENTS
Cassette (on the
drawing: Left drive
side)
Cassette mounting bracket
Mounting for
natural ground
Wall bracket
Front post
Wall bracket elements
1) Windbreaker Bora Pole L=150 mm - 1 pc.
2) Handle bracket set- 1 pc.
3) Fixed wall bracket - 1 pc.
4) Screw M6x45 (DIN 912) - 1 pc.
5) Screw M6x16 (DIN 912) - 4 pcs.
6) Nut M6 (DIN 934) - 1 pc.
7) Pad 6 (DIN 125-1A) –6 pcs.
8) Mounting insert DSP M6 - 4 pcs.
Fixed wall bracket
Fixed footplate

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 8 / 29

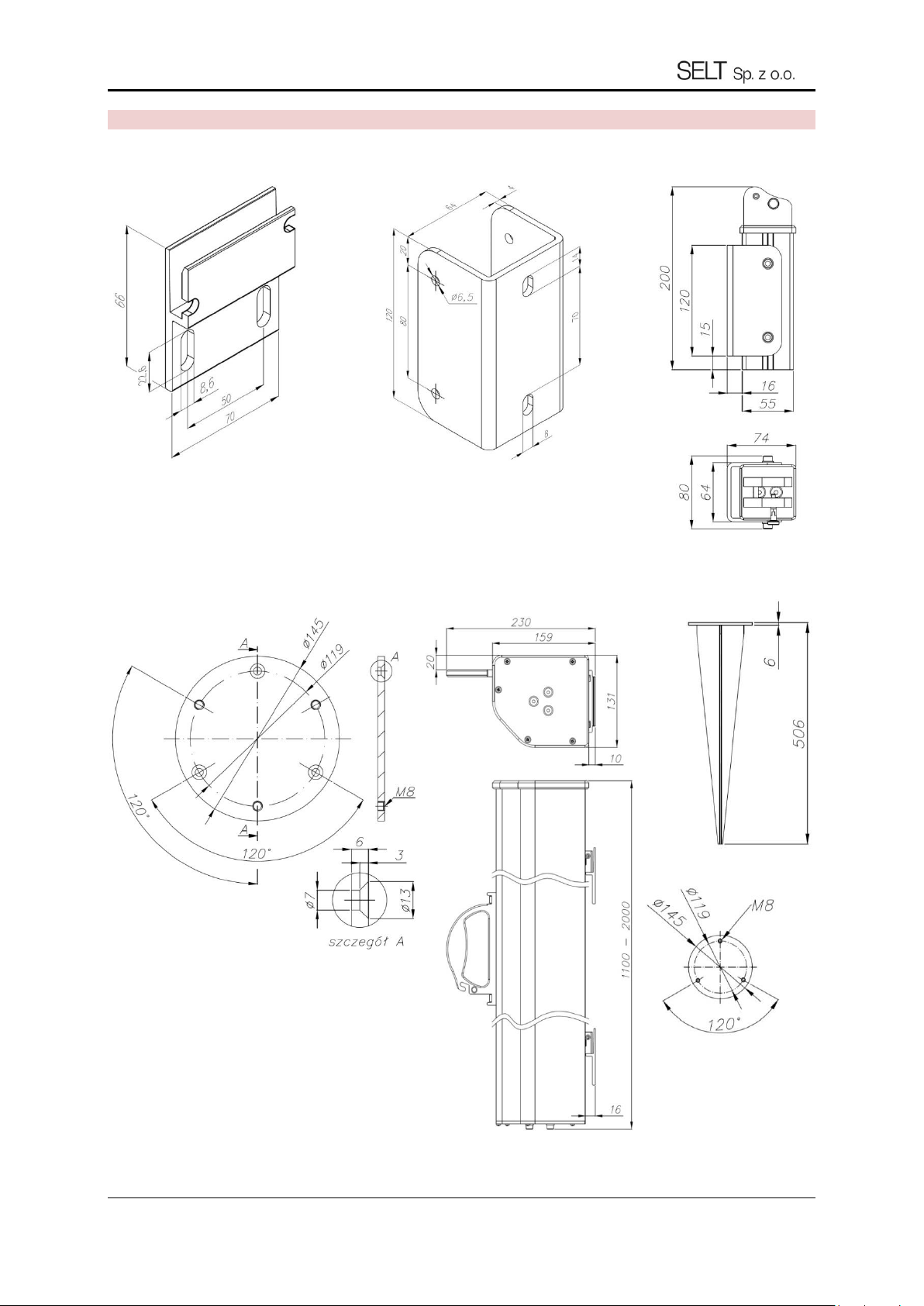

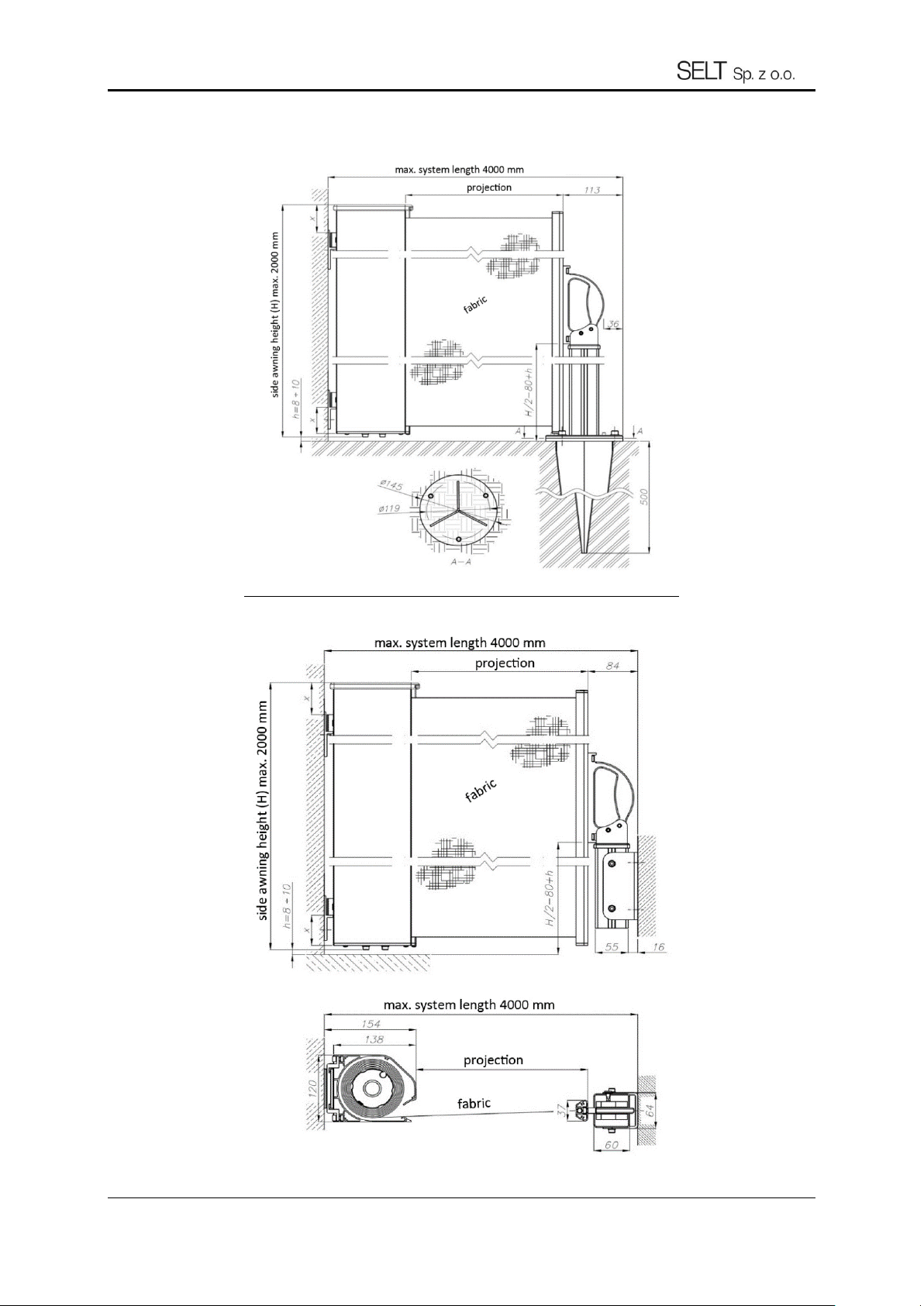

2.5 DIMENSIONS OF SIDE AWNING ELEMENTS
Cassette hanger
Fixed wall bracket
Wall bracket
Fixed footplate
Cassette
Mounting for natural ground

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 9 / 29
3TRANSPORT AND STORAGE OF THE PRODUCT
3.1 COMPLETENESS AND QUALITY CONDITION OF THE DELIVERY
SELT Sp. z o. o. makes every effort to ensure that the goods comply with the order. However, checking the completeness of
the product is the responsibility of the Buyer and should take place at the time of its receipt.
Any discrepancies should be immediately reported to the driver/warehouseman/assembly team and marked in the
acceptance report or on the WZ document under pain of loss of claims in this respect.
Checking the quality in terms of obvious defects is the responsibility of the Buyer and should take place at the time of
receipt of the goods. Apparent defects are mechanical damage, scratches, cracks, etc.
Quantitative discrepancies and possible replacement of parts with obvious defects SELT Sp. z o. o. undertakes to
supplement or replace it in the shortest possible time.
3.2 GENERAL CONDITIONS FOR TRANSPORT AND STORAGE OF THE PRODUCT
List:
the product is factory-packaged in a cardboard box to protect it from damage during storage, transport and
transport to the place of final assembly.
products for transport/storage should be set in accordance with the arrows indicated on the product packaging.
do not stack the products in more than two (2) layers because the packing material can be crushed, what in turn
may lead to permanent damage to the product.
products places on means of transport should be protected against relocation and damage during the transport
(e.g. with distance pieces, protecting belts etc.),
during transport the product should be protected against rain or snow.
storage locations should be dry, well-ventilated and protected against harmful impact of the weather (sun, rain,
etc.),
if product weight exceeds 25 kg its relocation to the final installation location should be carried out by at least two
persons.
3.3 OBLIGATORY DESCRIPTIONS TO BE PLACED ON THE PRODUCT PACKAGING
Prior to installation and use of the product please read carefully the operation and
maintenance manual available at the following website https://www.selt.com/dte-en

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 10 / 29
4PRODUCT INSTALLATION
This chapter contains general requirements concerning the product installation.
Correct assembly is a necessary condition for smooth operation of the product. SELT Sp. o.o. recommends using only
professional assembly crews, which guarantee the Purchaser that the conducted installation will be correct.
General requirements for safe installation
It is necessary to observe general rules of good building practice,
It is necessary to comply with applicable Occupational Health and Safety regulations concerning in particular
those applying to the safety of operation of electrical equipment and work on heights,
The product must be fixed mechanically (foams, adhesives or similar materials are not allowed as fixing
materials).
The product should be fixed to durable elements of the building (walls, lintels, steel structure, aluminum
structure, window joinery).
The base to which the wall and ceiling brackets of the product will be attached should be a solid structure
(concrete, brick, etc.).
Do not mount the product on elements that do not provide adequate load-bearing capacity.
Installation is made to even, dry wall surfaces with appropriate strength, made in accordance with the general
principles of building art.
In the case of metal structures joined together in accordance with the applicable rules for joining metals,
assembly is made to materials with appropriate wall thickness.
Before starting the assembly, remove all unnecessary elements from the assembly area.
Informative table
The manufacturer allows the installation of the product in the following types of substrate (wall bearing layer):
- reinforced or unreinforced concrete, class at least C20/25, non-cracked,
- concrete specified above having a layer of insulation with a thickness of up to 25 cm,
- wall at least 24 cm, of Mz solid bricks, NF format, with a strength of at least 20 MPa and a density of >1.8 kg/dm3
based on M2.5 - M9 mortar,
- wall at least 24 cm, of silicate blocks with a strength of at least 10 MPa and a density of >2 kg/dm3 based on M2.5 -
M9 mortar
- wall at least 17.5 cm, of silicate perforated blocks with a strength of at least 20 MPa and a density of >1.4 kg/dm3
based on M2.5 - M9 mortar
- wooden (wall/ceiling) beams, class of at least C24, without cracks, with a thickness of at least 100 mm
- wooden rafters, class of at least C24, without cracks, with a thickness of at least 70 mm
- walls made of silicate blocks (full or hollow) with a layer of insulation –to be consulted with an authorised designer,
- solid brick walls with a layer of insulation - to be consulted with an authorised designer,
- wall made of cavity ceramic hollow bricks without insulation or with a layer of insulation - to be consulted with an
authorised designer
- aerated concrete blocks - this substrate is not recommended.
The above list of substrates is only indicative. Each substrate suitability depends on the specific location and size of the
product, and must be selected by an authorized constructor.
4.1 REQUIREMENTS FOR SAFE INSTALLATION OF THE PRODUCT AT HEIGHTS
Product installation, due to a necessity of execution of works on heights, is classified to the particularly
hazardous works because it causes high risk of occurrence of threats for human health and safety - in
particular in case of fall from heights.
Obligation to ensure preparation of occupational health and safety plan during installation should be fulfilled by the
Purchaser. It is the Purchaser's responsibility to develop a health and safety plan during assembly. During assembly, the
Purchaser should comply with the health and safety regulations related to work at height, in particular:
direct supervision of execution by person appointed for this purpose (e.g. site manager, foreman),
proper protection equipment, in particular equipment protecting against fall from heights,
detailed guidance for employees working at heights,
the need to use: ladders with appropriate quality and safety certificates, scaffolding, safety clamps, platforms
with adequate resistance to the expected load.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 11 / 29
Work at heights requiring the use of personal protective equipment against falls from a height must be carried out by at
least 2 people.
4.2 PREPARATION FOR INSTALLATION
unpack the product and check if there are all components necessary for assembling,
prior to installation you should check whether the substrate has sufficient load capacity allowing safe assembly
and operation,
prepare a set of tools needed for self-assembly.
4.3 GENERAL REQUIREMENTS FOR SAFE INSTALLATION
The product should be protected against any stains made by e.g. silicon, mortar or mounting foam, which may
cause its damage,
Using any chemical substances containing bituminous substances or any other substances making reactions with
the product is forbidden,
The side awning cassette should be installed to the wall,
the wall bracket of the side awning should be installed to the wall,
The front post should be installed to hard ground (e.g. concrete, bricks),
The front post with natural ground mounting should be installed to natural subsoil.
As a standard, the awning is packed in bubble wrap, in critical places protected with polyurethane foam in
biodegradable foil, and the whole thing is packed in a multi-layer cardboard box in the position corresponding
to the awning attached to the wall. The awning can only be transported in this way. Another form of
transport may result in shifting the internal balance supports in the cassette and as a result in the appearance
of dark lines along the seams of the fabric.
Improper installation may cause hazardous situation for the user.

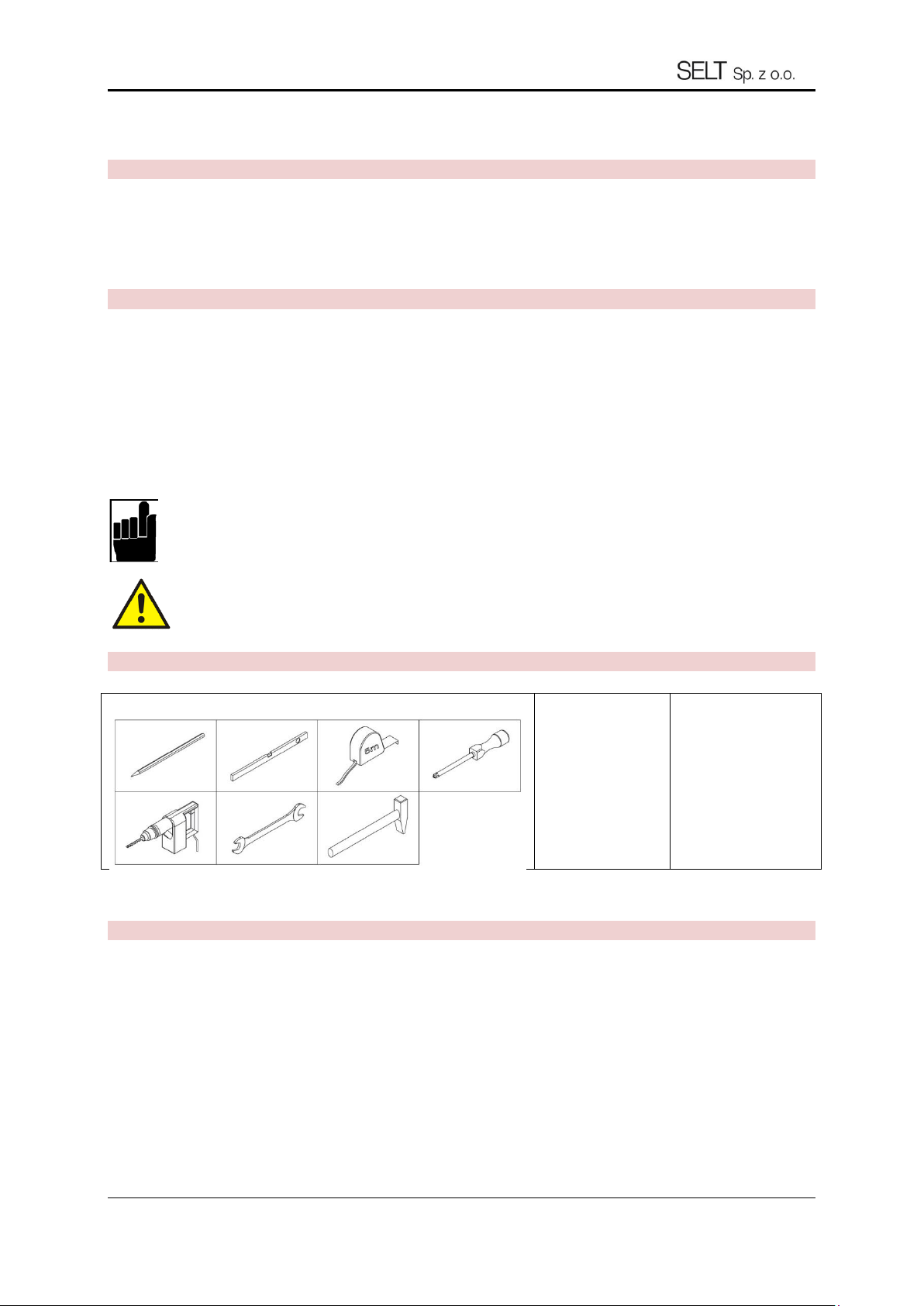

4.4 INSTALLATION TOOLS
drills
hammer drill,
ladder/scaffolding,
screwdriver,
hammer
measure tape,
pencil/marker,
spirit level,
ring/flat wrenches,
Allen keys,
anchors
4.5 BORA AWNING INSTALLATION –WALL BRACKETS AND PERMANENT BRACKETS
The side awning Bora can be installed in three configurations, according to the manner of fixing the bracket responsible for
fastening to the front bar:
Front post –mounting to hard ground (e.g. concrete) eith use of elements: front psot + fixed footplate.
Front post with mounting for natural ground - mounting for soft surface with use of elements: front post +
mounting for natural ground
Wall bracket –mounting to the wall

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 12 / 29
oExemplary manner of installation –concrete/foundation

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 13 / 29
oExemplary manner of installation –soft ground
oExemplary manner of installation - wall

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 14 / 29
4.6 GUIDELINES FOR INSTALLATION –CASSETTE BRACKET AND CASSETTE HANGER
Cassette bracket
After unpacking the product pay attention to the positioning of cassette brackets, which are set up according to
the height of the cassette.
Scheme of the cassette brackets
positioning
Cassette brackets positioning measures
Total height of the
awning H [mm]
up to
1300
1301 ÷ 1500
1501 ÷ 1800
1801 ÷ 2000
Location of the brackets
–distance X [mm] from
both of the cassette
edges
100
150
200
250
Delineation of the spots for cassette hangers
The easiest way of marking the spots for cassette hangers installation is to put them on the cassette brackets and read off
the dimension ‘Z’ (see picture below). Pay attention also to the proper distance from the ground.
Scheme of the cassette hangers positioning

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 15 / 29

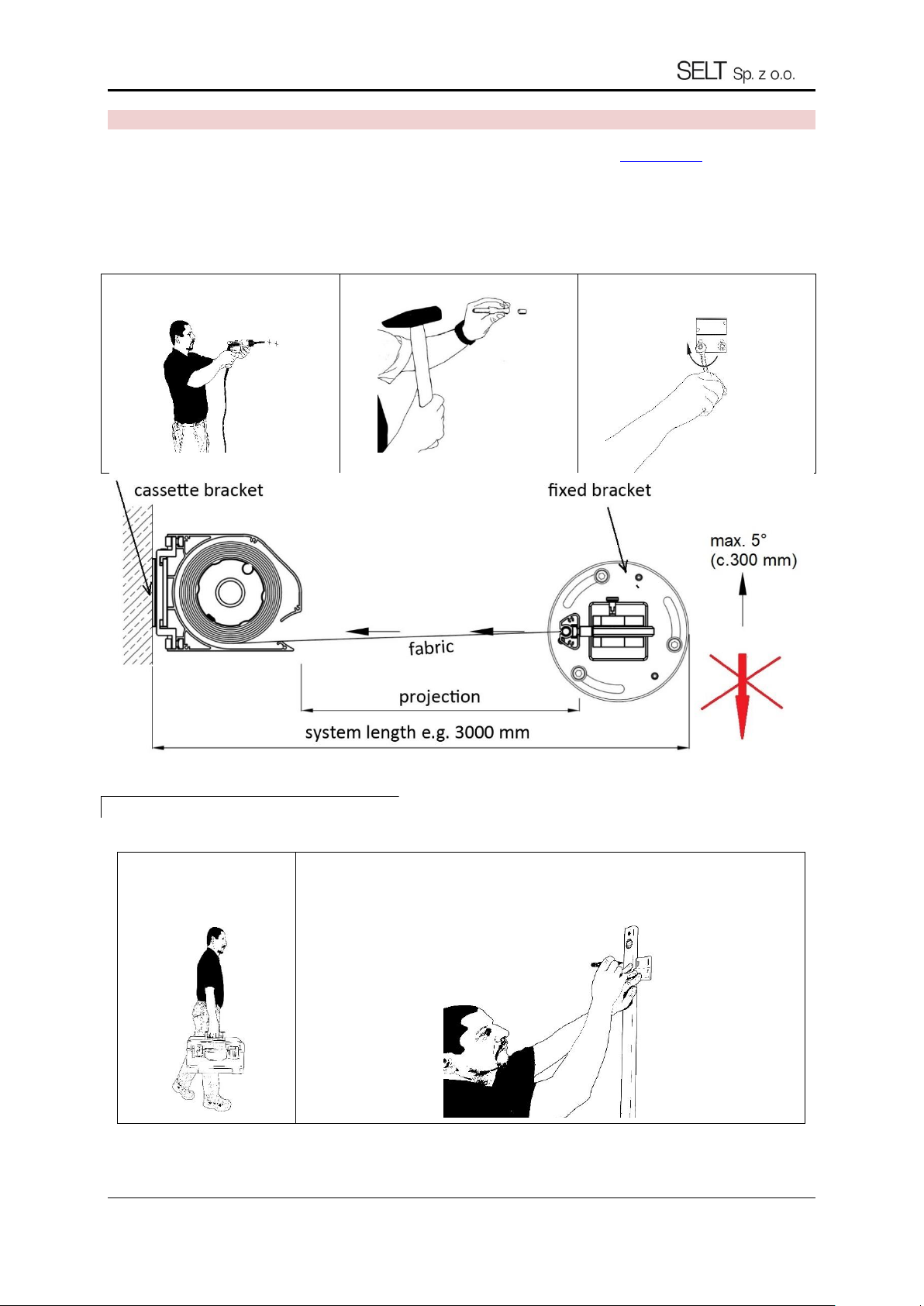

4.7 BORA AWNING INSTALLATION
Instructions for assembly, operation and safe use are available after logging in on website www.selt.com
Cassette mounting should be fixed in such manner, that rolling up and placement of the front bar in the cassette is aligned
(presented by two horizontal arrows on the drawing below).
Distance between the cassette hanger and the fixed/wall bracket cannot be longer than the system projection.
It is allowed to move the fixed bracket up to 5° (about 300 mm) in the direction shown below (see drawing). It is forbidden
to install the permanent mounting moved in the direction shown with the crossed out arrow.
1) Drill holes in the marked places.
2) Fix installation anchors.
3) Install the hanger.
1) Przygotować narzędzia
montażowe zgodnie z
wykazem.
2) Installation should begin with determining and marking the mounting location of
the cassette hanger. Use a spirit level to mark the vertical line on the wall, then apply
the hanger and mark the mounting holes.
4.7.1 CASSETTE HANGERS INSTALLATION

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 16 / 29

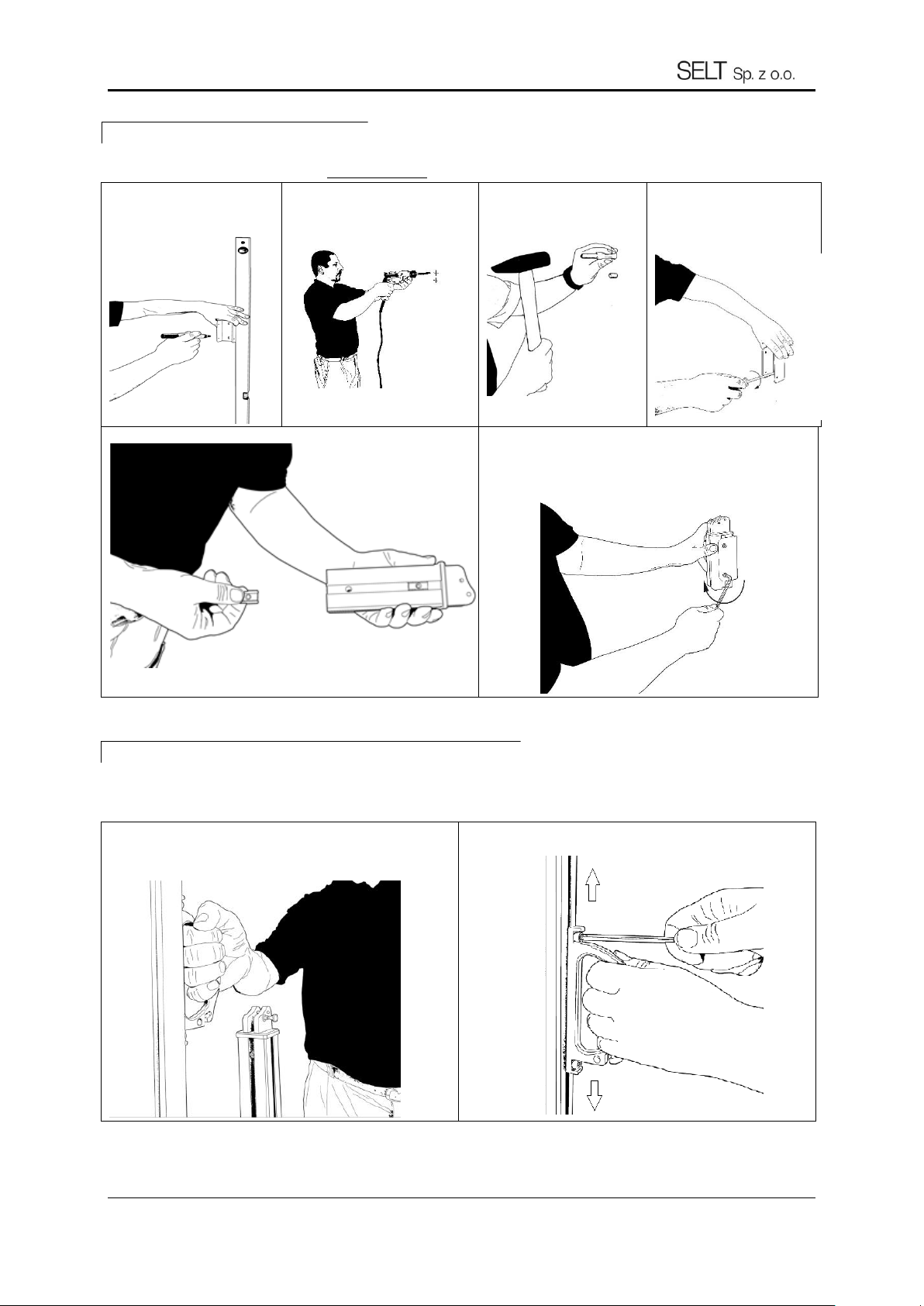

3) Based on the first
installed hanger (base),
mark installation place for
the second hanger. Pay
particular attention that the
hangers are in one vertical
level.
4) Drill in marked places.
5) Fix installation anchors.
6) Install the second
hanger.
7) Check the correctness of
hangers installation in
relation to each other.

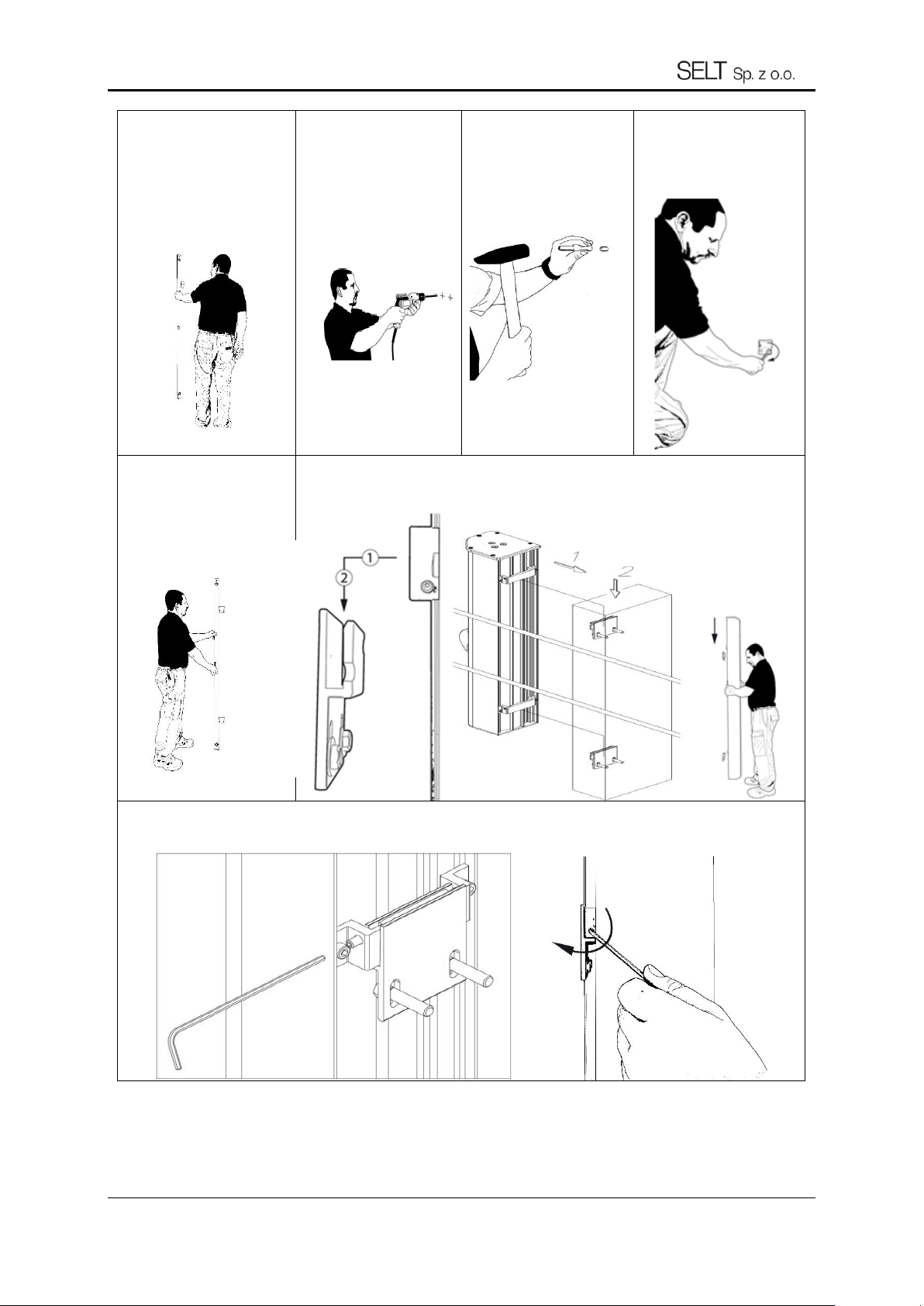

8) Put the cassette on the hangers by pressing it to the wall (to the hangers) and then
downwards (see drawing).
9) After setting up the cassette on the hangers secure it with set screws, which are located in the cassette bracket.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 17 / 29

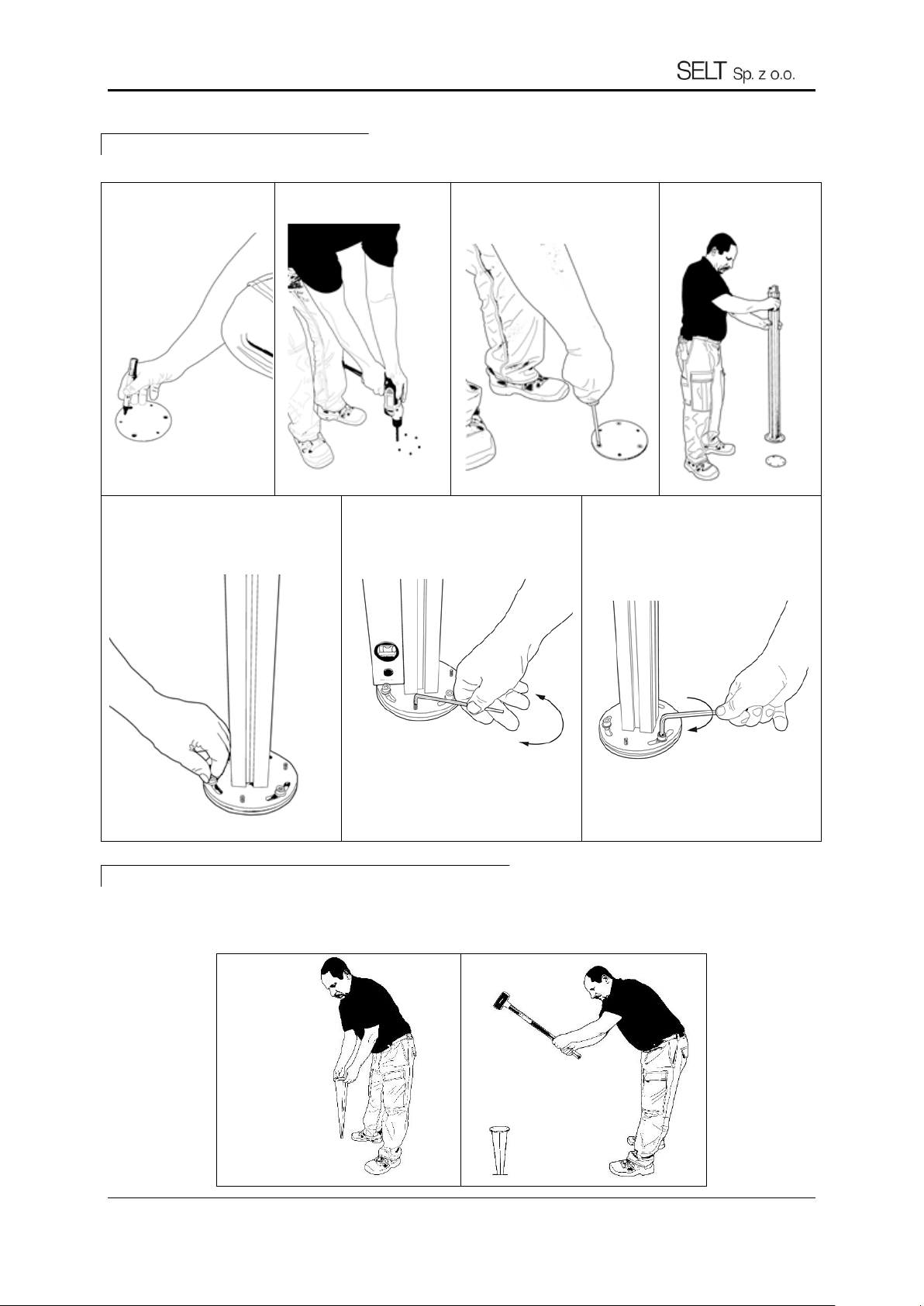

1) Mark installation holes
for the footing plate.
2) Drill holes, fix installation
anchors.
a)
3) Screw on the footing
plate.
4)
4) Set the front post on
the foot plate.
5)
5) Connect the elements with screws
and Allen key “6”.
6) Level the bracket horizontally using
set screws and Allen key “3”.
7) Screw down the fixed bracket.
Fixed bracket can be also mounted to soft ground, using the ‘mounting for natural ground’ element. In that case this
element is replacing the footing plate and is mechanically embedded to the ground. The fixed bracket is installed in the
same manner as described in point 4.7.2.
4.7.2 FIXED BRACKET INSTALLATION
4.7.3 FIXED BRACKET INSTALLATION (NATURAL GROUND)

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 18 / 29
Wall bracket should be screw into the fixed wall bracket, which should be installed to the wall in the first place.
1) Mark the position height
of the fixed wall bracket,
then mark installation holes.
2) Drill holes in marked places.
3) Fix installation anchors.
4) Install the fixed wall
bracket.
5) Slip the mounting inserts with the hole into the wall bracket.
6) Install the wall bracket to previously mounted fixed
wall bracket.
In order to properly stretch and arrange the fabric in the
awning and fit it with the handle bracket, it is NECESSARY to
adjust the position of the handle on the front bar.
The adjustment of handle placement is performed with an
Allen key.
4.7.4 WALL BRACKET INSTALLATION
4.7.5 HANDLE REGULATION AND LOCKING IN THE BRACKET

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 19 / 29

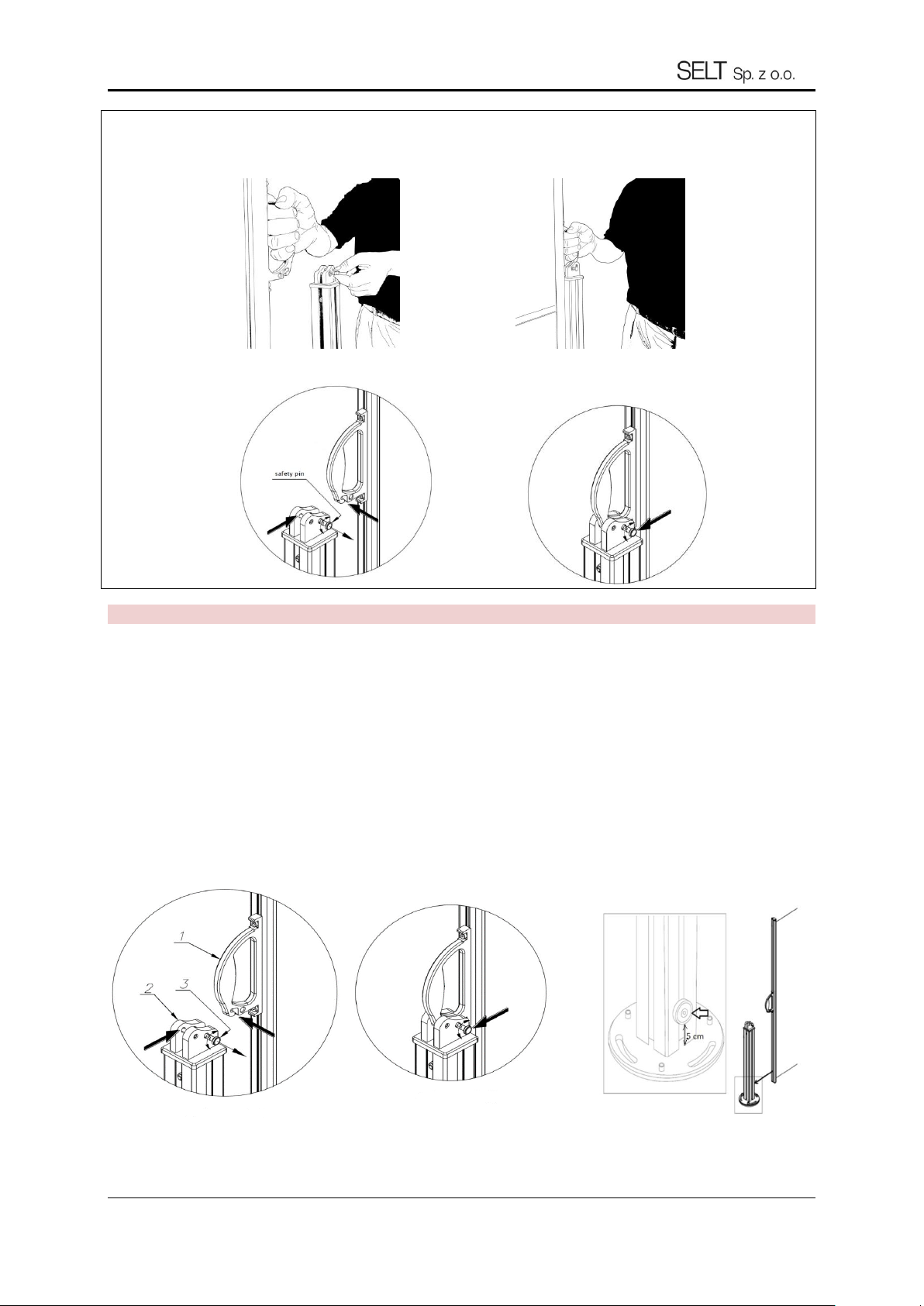

To lock the handle in the bracket: Before putting the handle in the bracket pull out the safety pin and set in „withdraw”
position with a 90° turn. Then hook the handle by its excision (pointed with an arrow on the drawing) to the pin. Hold the
handle and check correctness of the mounting. If the mounting is correct, release the safety pin. This element locks the
handle in the bracket and secures it from springing out.
4.8 MANUAL DRIVE
The Bora awning has a side cover pull system. The awning is opened and closed manually thanks to the torsion spring used
inside the awning, while maintaining the tension of the fabric. The awning is opened with a handle, which is then locked in
the handle bracket.
In order to properly lock the handle in the handle bracket, it is necessary:
Before putting the handle (pos.1) in the bracket (pos.2) pull out the safety pin (pos. 3) and set in „withdraw” position with a
90° turn. Then hook the handle by its excision (pointed with an arrow on the drawing below) to the pin. Hold the handle
and check correctness of the mounting. If the mounting is correct, release the safety pin (pos. 3). This element locks the
handle in the bracket and secures it from springing out.
The lower part of the front bar should be directed to the magnet located in the post of the permanent bracket (according to
the information on the drawing).
Locking the handle in the handle grip Directing the lower part of the
front bar to the magnet in the post
Closing the awning is done by releasing the handle lock and rolling it up manually until the front bar is placed in the awning
cassette.

DT-E 11.13 SUN PROTECTION SYSTEM –SIDE AWNING BORA
Eddition 7 / March 2021 / EN page 20 / 29
5SYSTEM OPERATION AND PRODUCT SAFETY
5.1 GENERAL REQUIREMENTS FOR OCCUPATIONAL HEALTH AND SAFETY
During transport, assembly and disassembly and during servicing and maintenance of the product you should
observe applicable occupational health and safety regulations and environmental protection rules.
The product should be maintained and repaired only by trained and authorized persons.
Product purchaser should ensure that person, which are entrusted with the operations related to the routine
operation, maintenance and hygiene have been familiarized with the user’s manual and are observing all
guidelines contained in this manual.
It is forbidden to clean the product in any other way than described in the point “Technical inspections,
maintenance and repair.”
All work must be carried out with due diligence, taking into account safety requirements.
Observe marking on the product (e.g. pictograms, arrows for movement direction).
Pay attention not to cover the marking with a coat of paint or damaged in a way that prevents its reading.
Please read this documentation carefully before using the product.
In the event of strong wind (exceeding the declared wind class) or heavy rain, the product should be rolled up
immediately - otherwise it will lead to permanent damage.
5.2 SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE
Specific safety requirements relate to children up to 42 months. Essential requirements for use are applicable in all
locations, to which children have access or where they could be present. Specific requirements for operation are applicable
also in all locations where the disabled people stay.
Prior to operation, the Purchaser should carry out an individual risk assessment for the operation of the
product with special attention paid to the safety of children and disabled people.
When determining the operational requirements of the product, it is important to take into account reasonably foreseeable
conditions of use and potential hazards.
Do not allow children to play with the control system of the side awning.
5.3 OPERATIONAL SAFETY
The product may only be used if there are no faults.
Recommendations and actions:
Product is safe providing use in accordance with the recommendations included in this documentation.
All works related to inspections and repair of the product should be carried out by a properly trained person
holding the necessary licenses.
When extending or folding the product, pay special attention that no object or person is in the working area of
the product (in the space between the cassette and the front bar),
Avoid contact of the awning fabric with hot objects (e.g. heaters, stoves, irons, etc.)
Forbidden actions:
It is not allowed to hold or hang or attach anything to the side awning. This may damage the system!
Keep out of the working area of the cassette and fabric while the system is operating.
It is forbidden to use the product inconsistent with the requirements of fire safety.
It is forbidden to exceed the operating parameters of the product specified in the technical and operational
documentation.
