SELT DAKAR User manual

11. Awnings
11.7 Terrace awning DAKAR
TECHNICAL AND OPERATIONAL DOCUMENTATION
INSTALLATION MANUAL,
OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE
(Translated from the original manual)
11.7
DT-E

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 2 / 28
PRODUCT NAME:
 TERRACE AWNING
DAKAR
PRODUCT MANUFACTURER’S MARKING:
 Manufacturer’s name:
SELT Sp. z o. o.
 Manufacturer’s registered office:
45- 449 Opole, ul. Wschodnia 23A
 Contact details:
Tel: [phone] (secretariat)
Fax: [phone]
 Website:
www.selt.com
 E-mail:
[email protected]
PRODUCT SAFETY MARKING:
The product meets the CE safety requirements.
THIS TECHNICAL AND OPERATIONAL DOCUMENTATION:
 Is valid from: 28 March 2022
 Is applicable to the above listed product versions.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 3 / 28
TABLE OF CONTENTS
TABLE OF CONTENTS .................................................................................................................................................................. 3
1 INTRODUCTION ............................................................................................................................................................... 4
1.1 SAFETY GUIDELINES FOR THE PRODUCT ................................................................................................................. 4
1.2 EXPLANATION OF SYMBOLS AND SIGNS ................................................................................................................. 4
1.3 TERMS AND DEFINITIONS ....................................................................................................................................... 5
1.4 SUBJECT, INTENDED USE AND CONTENTS OF THE DOCUMENTATION ................................................................... 5
2 PRODUCT TECHNICAL INFORMATION ............................................................................................................................ 6
2.1 TECHNICAL PARAMETERS ....................................................................................................................................... 6
2.2 PRODUCT SPECIFICATION ....................................................................................................................................... 6
2.3 DAKAR AWNING CONSTRUCTION ........................................................................................................................... 7
2.4 TYPES OF BRACKETS ................................................................................................................................................ 7
3 TRANSPORT AND STORAGE OF THE PRODUCT............................................................................................................... 8
3.1 COMPLETENESS AND QUALITY CONDITION OF DELIVERY ...................................................................................... 8
3.2 GENERAL CONDITIONS FOR TRANSPORT AND STORAGE OF THE PRODUCT .......................................................... 8
3.3 OBLIGATORY DESCRIPTIONS TO BE PLACED ON THE PRODUCT PACKAGING ......................................................... 8
4 PRODUCT INSTALLATION ................................................................................................................................................ 9
4.1 REQUIREMENTS FOR SAFE INSTALLATION OF THE PRODUCT AT HEIGHTS ............................................................. 9
4.2 PREPARATION FOR INSTALLATION ........................................................................................................................ 10
4.3 GENERAL REQUIREMENTS FOR SAFE INSTALLATION ............................................................................................ 10
4.4 INSTALLATION TOOLS ........................................................................................................................................... 10
4.5 INSTALLATION ....................................................................................................................................................... 10
4.5.1 DAKAR AWNING INSTALLATION – WALL BRACKETS .................................................................................... 10
4.5.2 DAKAR AWNING INSTALLATION – CEILING BRACKETS ................................................................................ 14
4.5.3 DAKAR AWNING INSTALLATION – ROOFING RAFTER BRACKETS................................................................. 14
4.6 ELECTRIC DRIVE ..................................................................................................................................................... 14
4.6.1 CONNECTION TO ELECTRICAL INSTALLLATION ............................................................................... 14
4.6.2 REMOTE OPERATION ............................................................................................................................. 15
4.6.3 START-UP AND ADJUSTMENT .............................................................................................................. 15
4.7 MANUAL DRIVE ..................................................................................................................................................... 16
5 SYSTEM OPERATION AND PRODUCT SAFETY ............................................................................................................... 17
5.1 GENERAL REQUIREMENTS FOR OCCUPATIONAL HEALTH AND SAFETY ................................................................ 17
5.2 SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE .............................. 17
5.3 OPERATIONAL SAFETY........................................................................................................................................... 17
5.4 CONTROL OF SAFE USE OF THE PRODUCT ............................................................................................................ 19
6 SYSTEM USE AND MAINTENANCE ................................................................................................................................ 20
6.1 USING THE PRODUCT IN ACCORDANCE WITH ITS INTENDED USE ........................................................................ 20
6.2 INSTRUCTION FOR NON-PROFESSIONALS ............................................................................................................. 20
6.3 TECHNICAL INSPECTIONS, MAINTENANCE AND REPAIR ....................................................................................... 20
6.4 USE OF AWNING FABRICS ..................................................................................................................................... 21
7 GENERAL WARRANTY TERMS ....................................................................................................................................... 23
7.1 WARRANTY EXCLUSIONS ...................................................................................................................................... 23
8 COMPLAINT / TECHNICAL DEFECTS .............................................................................................................................. 25
8.1 COMPLAINTS ......................................................................................................................................................... 25
8.2 TECHNICAL DEFECTS ............................................................................................................................................. 25
9 PRODUCT DISASSEMBLY / UTILISATION / DISPOSAL ................................................................................................... 26
10 MARKING AND LABELLING OF THE PRODUCT WITH CE MARK .................................................................................... 27
10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD .......................................................................................... 27
10.2 INFORMATION ACCOMPANYING THE CE MARKING ........................................................................................ 27

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 4 / 28
1 INTRODUCTION
1.1 SAFETY GUIDELINES FOR THE PRODUCT
The product has been manufactured in accordance with the latest technical knowledge in the field of construction and
manufacturing and meets the safety requirements in accordance with the following standards.
The safe construction of the product was achieved thanks to:
No. Subject European legal basis Polish legal basis
1 External blinds. Performance
requirements including safety EN 13561:2015 PN-EN 13561:2015
2
Construction Products
Regulation (CPR)
Regulation (EU) no 305/2011 of
the European Parliament and of
the Council
Act of April 16, 2004 on building products
DZ. U [Journal of Laws] 2004, No. 92, item
881 as amended of (Dz.U. [Journal of Laws]
2016.1570; 2015.1165; 2016.542)
3 Essential requirements for
machines
Directive 2006/42/EC of the
European Parliament and the
Council
Resolution of the Minister of Economy of 21
October 2008 DZ.U. [Journal of Laws] 2008
No. 199 item 1228) 1228 as amended (Dz.U.
Journal of Laws 2011.124)
Related documents: Declaration of Performance, Declaration of Conformity (only products with motor) and
instructions for installation, use of motors and control.
1.2 EXPLANATION OF SYMBOLS AND SIGNS
The following symbols (pictograms) indicate particularly important threats and safety information.
Pictogram Pictogram meaning Information
INFORMATION
Prior to using the product, its operating manual should be read.
Following the operating manual guarantees:
- failure-free use of the product,
- warranty coverage against product defects
Keep the operating manual for safety of people.
INFORMATION No harmful or dangerous consequences for people or facilities.
NOTE! A situation likely to cause product damage or other damage.
No threat for people.
WARNING! Threat of danger
DANGER!
This symbol marks all safety information which, if not observed, could endanger
the life or health of persons. Health or life hazard. Risk: danger of serious injury
or death. Unsafe operation that may cause injury or damage to the product.
WARNING! Threat to human life or health due to electric shock.
ENVIRONMENT Marking of electronic or electric equipment, which should be collected in the
designated points.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 5 / 28
1.3 TERMS AND DEFINITIONS
For the purposes of this documentation the following terms and definitions shall apply:
AWNING: Terrace awnings, as external sun protection screens are installed solely on the outside of the building for protection
from sun light for terraces, restaurant patios, balconies, shop windows etc. Rolling up and down of the awning fabric is
performed with the use of an electric control mechanism or manual crank.
AWNING FABRIC: Part of the product serving for protection from sun light, but also having a decorative function.
Manufactured from high quality materials is put into motion with manual or electric control mechanism, assuring the product
fulfills its function.
1.4 SUBJECT, INTENDED USE AND CONTENTS OF THE DOCUMENTATION
This documentation covers the products manufactured by SELT Sp. z o.o.
This documentation applies to all types of terrace awning .
User’s manual and instructions for safe use, with motor manual, should be handed over to the
end user.
IMPORTANT INSTRUCTION RELATED TO SAFETY
WARNING - IT IS VERY IMPORTANT TO PROCEED ACCORDING TO THIS MANUAL
TO ENSURE PEOPLE SAFETY.
KEEP THIS MANUAL
The documentation is valid jointly with the information concerning a specific product, which is available
on the website www.selt.com
This documentation includes:
 important recommendations concerning product installation, use and maintenance.
 important recommendations concerning product transport and storage.
 tips following which will assure long-time and fault-free use of the product.
SELT SP. Z O.O. shall not bear responsibility for damage resulting from failure to follow recommendations included in the
documentation.
In order to further improve the product, SELT SP. Z O.O. reserves the right to introduce changes which, while maintaining the
essential technical parameters, shall be deemed purposeful for improving product operation quality and safety of use.
SELT SP. Z O.O. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be
used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to
third parties.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 6 / 28
2 PRODUCT TECHNICAL INFORMATION
Technical specifications of the product are available after logging in on website www.selt.com
2.1 TECHNICAL PARAMETERS
TERRACE AWNING DAKAR
Projection: 1,6 m, 2,1 m, 2,6 m, 3,1 m 3,6 m
Maximum projection 3,6 m
Minimum width Projection + 0,4 m
Maximum width 6,0 m
Roller tube diameter 78 mm
Arms* Folding, aluminium, with springs and Flyer’s chain, folded
arms levelling
Tilt angle 5° - 40°
Optional hood No
Manual drive Crank 1,5 m; 1,8 m; 2,2 m
Electric drive Motor, motor with emergency override, remote control
receiver, weather sun-wind automation
Construction colour biały, beżowy, brązowy, srebrny, grafit struktura
Fabric ca. 150 pattersn
Valance**
3 shapes according to the template – shape modulus of D
and C variable due to different system widths; standard
height 21 (± 0,5cm), max. non-standard height 40 (± 0,5cm)
or straight 50 (± 0,5cm)
Application External
Mounting brackets Wall, ceiling, roof rafter
* - in the case of a non-standard valance over 21 cm, there is a likelihood of abrasions / damages related to its longer length (e.g.
abrasions against the facade, greater susceptibility to wind blows, etc.)
- in type C and D valances, depending on their width and type of fabric,
the technology may cause the lack of the "wave" effect at its ends.
The tolerance of the dimensions of the awning width is ± 2cm
Due to technological reasons, slight differences in colour shade are deemed acceptable and they are not a ground for
complaint.
Detailed data on the parameters of individual motors are available on the websites of motor manufacturers and on the
website:
www.selt.com → OUR OFFER → MOTOR, ELECTRIC, EQUIPMENT
The optional use of weather automation additionally protects the product against changing weather
conditions.
2.2 PRODUCT SPECIFICATION
Products manufactured by SELT Sp. z o. o. have appropriate technical and operational parameters.
They have the following features:
 They provide excellent sun protection for surfaces such as terraces and balconies.
 They protect against intense solar radiation.
 They are aesthetic and durable structures.
 Thanks to the simple construction and solid realization, they are used in commercial areas.
 The motors have an IP 44 degree of protection, which means that they are protected against water splashing onto the
casing from any direction.
 Increased functionality thanks to the use of wind and solar automation and radio control.
 Awning fabrics manufactured on the basis of high-quality materials, covered with an impregnation that constitutes a
protective barrier and increases resistance to dirt.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 7 / 28

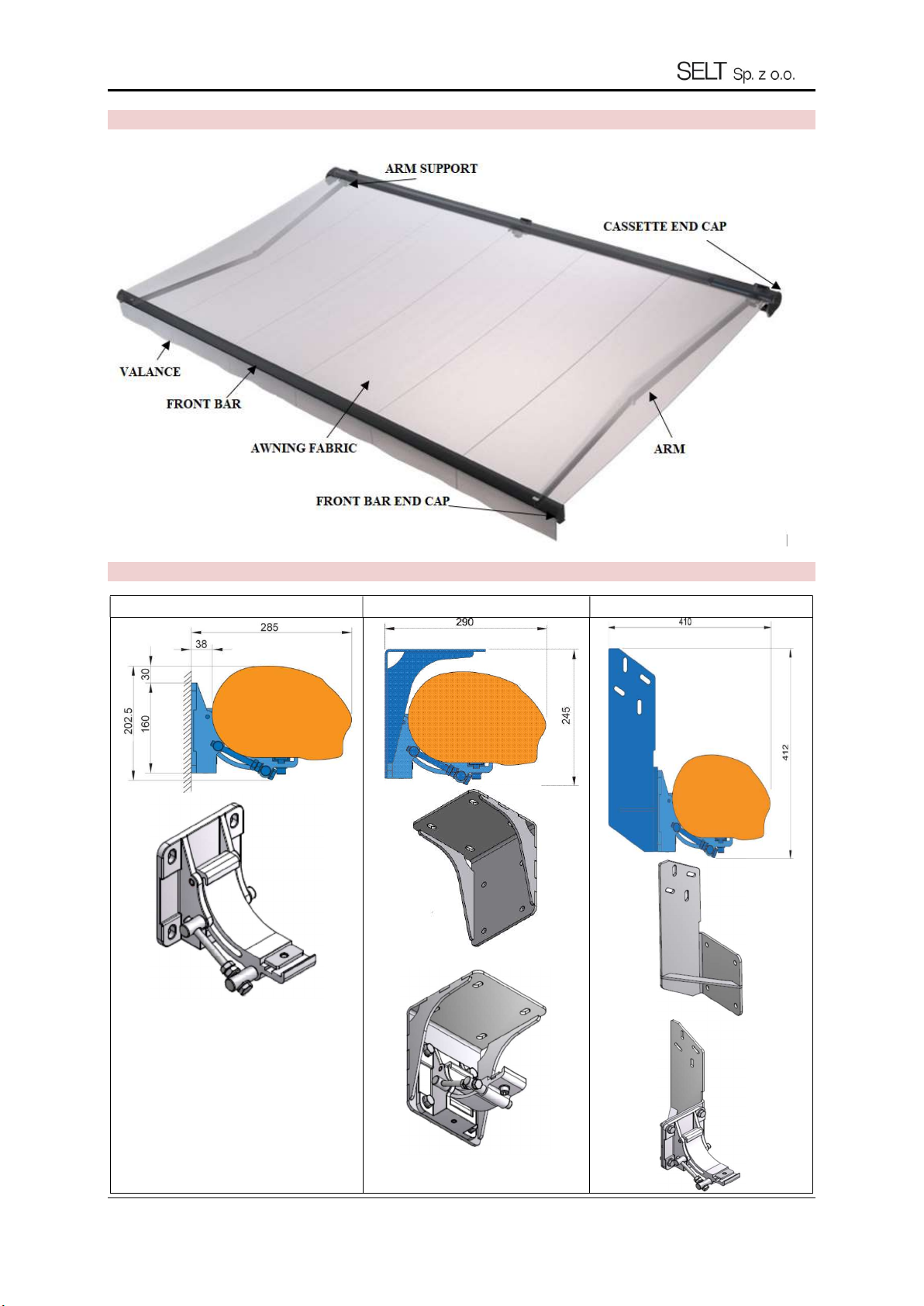

2.3 DAKAR AWNING CONSTRUCTION
2.4 TYPES OF BRACKETS
Wall
bracket
Ceiling bracket
Rafter bracket

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 8 / 28
3 TRANSPORT AND STORAGE OF THE PRODUCT
3.1 COMPLETENESS AND QUALITY CONDITION OF DELIVERY
SELT Sp. z o. o. makes every effort to ensure that the goods comply with the order. However, checking the completeness of
the product is the responsibility of the Buyer and should take place at the time of its receipt.
Any discrepancies should be immediately reported to the driver/warehouseman/assembly team and marked in the
acceptance report or on the WZ document under pain of loss of claims in this respect. Checking the quality in terms of obvious
defects is the responsibility of the Buyer and should take place at the time of receipt of the goods. Apparent defects are
mechanical damage, scratches, cracks, etc.
Quantitative discrepancies and possible replacement of parts with obvious defects SELT Sp. z o. o. undertakes to supplement
or replace it in the shortest possible time.
3.2 GENERAL CONDITIONS FOR TRANSPORT AND STORAGE OF THE PRODUCT
List:
 The product is factory-packaged in a cardboard box to protect it from damage during storage, transport and
transport to the place of final assembly,
 products for transport/storage should be set in accordance with the arrows indicated on the product packaging,
 do not stack the products in more than two (2) layers because the packing material can be crushed, what in turn
may lead to permanent damage to the product,
 products places on means of transport should be protected against relocation and damage during the transport
(e.g. with distance pieces, protecting belts etc.),
 during transport the product should be protected against rain or snow,
 storage locations should be dry, well-ventilated and protected against harmful impact of the weather (sun, rain,
etc.),
 if product weight exceeds 25 kg its relocation to the final installation location should be carried out by at least two
persons
3.3 OBLIGATORY DESCRIPTIONS TO BE PLACED ON THE PRODUCT PACKAGING
Prior to installation and use of the product please read carefully the operation and maintenance
manual available at the following website: https://www.selt.com/dte-en

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 9 / 28
4 PRODUCT INSTALLATION
This chapter contains general requirements concerning the product installation.
Correct assembly is a necessary condition for smooth operation of the product. SELT Sp. o.o. recommends using only
professional assembly crews, which guarantee the Purchaser that the conducted installation will be correct.
General requirements for safe installation
 it is necessary to observe general rules of good building practice,
 it is necessary to comply with applicable Occupational Health and Safety regulations concerning in particular
those applying to the safety of operation of electrical equipment and work on heights,
 The product must be fixed mechanically (foams, adhesives or similar materials are not allowed as fixing
materials).
 The product should be fixed to durable elements of the building (walls, lintels, steel structure, aluminum
structure, window joinery).
 The base to which the wall and ceiling brackets of the product will be attached should be a solid structure
(concrete, brick, etc.).
 Do not mount the product on elements that do not provide adequate load-bearing capacity.
 Installation is made to even, dry wall surfaces with appropriate strength, made in accordance with the general
principles of building art.
 In the case of metal structures joined together in accordance with the applicable rules for joining metals,
assembly is made to materials with appropriate wall thickness.
 Before starting the assembly, remove all unnecessary elements from the assembly area.
 Before starting the assembly, all mechanisms necessary for the operation of the drive should be immobilized.
Technical information
The manufacturer allows the installation of the product in the following types of substrate (wall bearing layer):
- reinforced or unreinforced concrete, class at least C20/25, non-cracked,
- concrete specified above having a layer of insulation with a thickness of up to 25 cm,
- wall at least 24 cm, of Mz solid bricks, NF format, with a strength of at least 20 MPa and a density of >1.8 kg/dm3
based on M2.5 - M9 mortar,
- wall at least 24 cm, of silicate blocks with a strength of at least 10 MPa and a density of >2 kg/dm3 based on M2.5 -
M9 mortar
- wall at least 17.5 cm, of silicate perforated blocks with a strength of at least 20 MPa and a density of >1.8 kg/dm3
based on M2.5 - M9 mortar
- wooden (wall/ceiling) beams, class of at least C24, without cracks, with a thickness of at least 100 mm
- wooden rafters, class of at least C24, without cracks, with a thickness of at least 70 mm
- walls made of silicate blocks (full or hollow) with a layer of insulation – to be consulted with an authorised designer,
- solid brick walls with a layer of insulation - to be consulted with an authorised designer,
- wall made of cavity ceramic hollow bricks without insulation or with a layer of insulation - to be consulted with an
authorised designer
- aerated concrete blocks - this substrate is not recommended.
The above list of substrates is only indicative. Each substrate suitability depends on the specific location and size of the
product, and must be selected by an authorized constructor.
4.1 REQUIREMENTS FOR SAFE INSTALLATION OF THE PRODUCT AT HEIGHTS
Product installation, due to a necessity of execution of works on heights, is classified to the particularly
hazardous works because it causes high risk of occurrence of threats for human health and safety - in
particular in case of fall from heights.
Obligation to ensure preparation of occupational health and safety plan during installation should be fulfilled by the
Purchaser. It is the Purchaser's responsibility to develop a health and safety plan during assembly. During assembly, the
Purchaser should comply with the health and safety regulations related to work at height, in particular:
 direct supervision of execution by person appointed for this purpose (e.g. site manager, foreman),
 proper protection equipment, in particular equipment protecting against fall from heights,
 detailed guidance for employees working at heights,
 the need to use: ladders with appropriate quality and safety certificates, scaffolding, safety clamps, platforms with
adequate resistance to the expected load.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 10 / 28
Work at heights requiring the use of personal protective equipment against falls from a height must be carried out by at least
2 people.
4.2 PREPARATION FOR INSTALLATION
 unpack the product and check if there are all components necessary for assembling,
 prior to installation you should check whether the substrate has sufficient load capacity allowing safe assembly
and operation,
 prepare a set of tools needed for self-assembly.
4.3 GENERAL REQUIREMENTS FOR SAFE INSTALLATION
 To avoid the risk of hand and fingers harm during opening and closing of the awning, the awning should be installed
on such height so that the lowest element of the awning after it is opened is at least 2200mm above the ground,
 The product should be protected against any stains made by e.g. silicon, mortar or mounting foam, which may
cause its damage,
 Using any chemical substances containing bituminous substances or any other substances making reactions with
the product is forbidden,
 In case of installation in public places, e.g. hospitals, schools, bording schools etc. The placement of switch/remote
control device should be marked according to health and safety regulations,
 In case of remotely operated awning, bracket for remote control should be installed in place not available for
children,
 Electrical installation, first programing of motor and specialized service can be conducted solely by specialized
service companies.
As a standard, the awning is packed in bubble wrap, in critical places protected with polyurethane foam in
biodegradable foil, and the whole thing is packed in a multi-layer cardboard box in the position
corresponding to the awning attached to the wall. The awning can only be transported in this way. Another
form of transport may result in shifting the internal balance supports in the cassette and as a result in the
appearance of dark lines along the seams of the fabric..
Improper installation may cause hazardous situation for the user..
4.4 INSTALLATION TOOLS
drills
hammer drill,
ladder/scaffolding,
screwdriver,
hammer
measure tape,
pencil/marker,
spirit level,
ring/flat wrenches,
Allen keys,
anchors.
4.5 INSTALLATION
Instructions for assembly, operation and safe use are available after logging in on
www.selt.com
SELT recommends the use of Fischer fixing products - selected depending on the type of substrate. Suggested
recommendations for selected substrates:
a) For non-cracked concreto class C20/25 and not higher than C50/60:
4.5.1 DAKAR AWNING INSTALLATION – WALL BRACKETS

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 11 / 28
 M10x110 A4 anchors set on injection mortar (Fischer FIS A M10x110 A4 anchors on FIS V resin or an equivalent
product from another manufacturer is recommended).
 Insertion depth in concrete 80 mm
 Distance from anchor axis to base edge: min. 45 mm in case of M10 anchor
 Minimum base thickness is 150 mm for M10 anchor
b) for Porotherm wall with insulation max. 15 cm:
 Thermax 16/170 M12 anchors with 20x200 sleeve mesh, embedded in injection mortar (Fischer FIS V resin)
c) for walls with solid brick or concrete with insulation max. 15 cm:
 Thermax 16/170 M12 anchors embedded in injection mortar (Fischer FIS V resin)

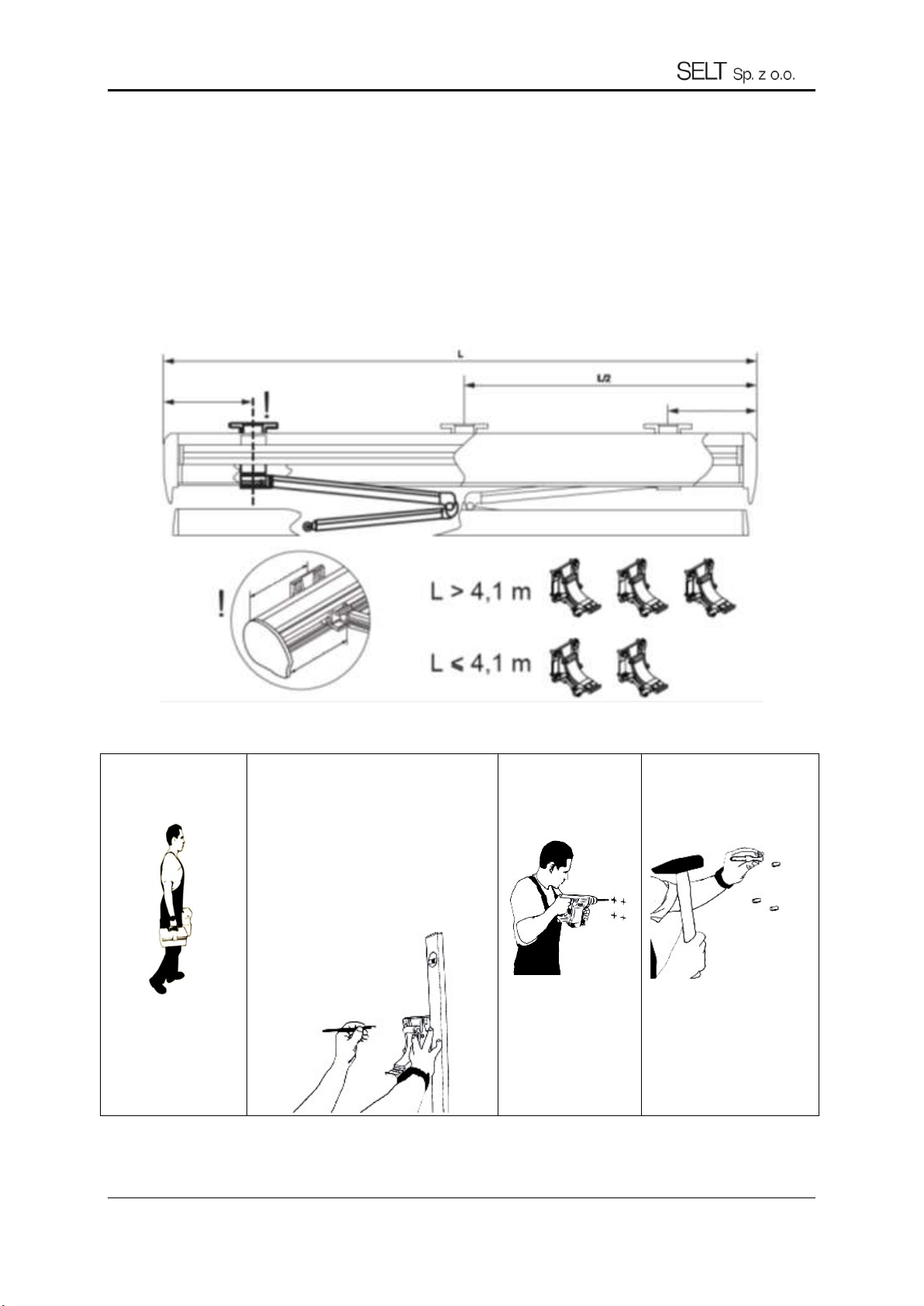

The required number of wall brackets depends on the length "L" of the awning:
Wall brackets should be installed in spots marked by the manufacturer in the rear part of the cassette (so that they are
"in the axis" of the symmetry of the arm brackets).
1) Prepare installation
tools according to the
list.
2) Installation should start from marking
places where the brackets will be fixed
to the wall. Using a spirit level, mark the
vertical line on the wall, then apply the
wall bracket and mark the mounting
holes. Wall brackets should be installed
in the spots marked by the manufacturer
in the rear part of the cassette (so that
they are "in the axis" of the symmetry of
the arm brackets).
3) Drill holes in the
marked places
4) Fix installation anchors

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 12 / 28
5) Screw the wall brackets
6) Based on the first installed bracket (base)
mark installation places for remaining ones –
pay paticular attention so that brackets are
installed at the same horizontal level and in
the same plane.
7) Drill holes in marked places 8) Fix installation anchors
9) Install remaining wall brackets 10) Place the awning on the wall brackets so that the construction
(cassette) of the awning is maximally pressed down (Note - before
installing the awning, check alignement of the wall brackets - the wall
surface should be of the same thickness in the installation section)
11) Secure the structural profile of the cassette with screws.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 13 / 28
12) Open the awning slightly 13) Use a spirit level to check if the arms close in one plane.
14) If necessary, adjust the level of the arms by unscrewing or tightening the internal M5 screw in the arm supports.
15) In order to change the inclination angle of the awning, fully unfold the awning, and then loosen the inner screw with a
wrench and the M10 Allenscrews securing the movable part of the wall brackets.
16) Using a wrench, losen (decrease the angle of inclination) or tighten (increase the angle of inclination) the adjusting
screw with the hex head. Tighten the inner screw.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 14 / 28
17) Use a spirit level to check if the front beam is levelled.
 Ceiling brackets should be installed in places corresponding to the arrangement of wall brackets - they are marked
with colored stickers by the manufacturer in the rear part of the cassette. Mounting the brackets should be carried
out in the same order and in the same way as the wall brackets.
 Pay special attention that the mounted ceiling brackets are in one line, ie at the same distance from the wall.
 To the already installed ceiling brackets fix the wall brackets using M10x35 screws with washers and nuts. Place the
awning on the wall brackets so that the construction is maximally pressed down. Secure the awning structure with
screws.
 Mounting of roof brackets should be carried out in the same order and in the same way as the wall brackets.
 Roof brackets should be mounted to the rafters in places corresponding to the arrangement of wall brackets - they
are marked with colored stickers by the manufacturer at the back of the cassette.
 Fix the brackets using wood fasteners.
 On the basis of the fixed first bracket (base), mark the places where the other roof brackets will be installed - pay
special attention that the installed roof holders are in one line.
 Remember to place the right/left roof brackets alternately for installation, i.e. starting from the right side of the
awning (when viewed from the front of the awning).
 To the already installed roofing brackets fix the wall brackets using M10x35 screws with washers and nuts. Place
the awning on the wall brackets so that the construction is maximally pressed down. Secure the awning structure
with screws.
4.6 ELECTRIC DRIVE
The installation must be performed by an electrician possessing appropriate permissions and professional experience. The
connection should be made in accordance with the previously elaborated, individual electric diagram and according to the
motor manual. There is a possibility of individual and group control with one or multi channel remote control.
Transmitters and receivers should be programmed according to the instructions attached to the motor.
When the awning starts working special attention should be paid to correct rolling up and down of the fabric and proper
functioning of limit switches in the motor.
List of steps:
 Connection to the electrical supply system,
 Connection to the elctrical control system
After the product is installed one may proceed to connecting the drive and control system to the previously prepared systems:
power supply and control systems. Connection to the power supply system should be made in accordance with the previously
elaborated individual electric diagram, including fire protection regulations.
The connection must take into account the environmental conditions in which the product will be used. The connection must
be made by a licensed electrician.
The electrical connection and setting of the motors must be carried out in accordance with the instructions of the motor
manufacturers.
The instructions are attached to the product and are also available on the websites of motor manufacturers and on the
website:
www.selt.com → OUR OFFER → MOTOR, ELECTRIC, EQUIPMENT
4.5.2 DAKAR AWNING INSTALLATION – CEILING BRACKETS
4.5.3 DAKAR AWNING INSTALLATION – ROOFING RAFTER BRACKETS
4.6.1 CONNECTION TO ELECTRICAL INSTALLLATION

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 15 / 28
Environmental conditions with increased risk:
environments with increased risk include bathrooms and showers, kitchens, garages, cellars, saunas, rooms for pets,
operating blocks of hospitals, hydrophores, heat exchangers, spaces limited by conductive surfaces, campsites, open areas,
etc.
In rooms and spaces with increased risk conditions, automatic devices should be used to turn off the power supply to the
damaged product, e.g. residual current devices. It is recommended to use in bathrooms, kitchens, garages and basements.
Must be used in swimming and shower pools, saunas, on construction sites, when powering outdoor devices, in farms and
horticulture, in camping and recreational vehicles and in rooms at risk of fire.
Residual current devices are only supplementary protection from direct contact, they cannot be the only means of protection.
The goal of their application is to supplement the protection in case other means of protection from direct fail or in case of
user’s carelessness.
During installation attention should be paid to usage safety rules, e.g. minimum height electrical appliances can be installed
at.
General guidelines for safe connection:
 The connection must be performed by electrician possessing appropriate permissions and experience,
 During connection health and safety regulations should be observed,
 Electrical connection and adjustment of motors should be performed according to the motor manufacturer’s
manual added to the product
 pay attention to the correct position of the power cable at the entrance to the product so that the water may be
drained and flow down the cable.
Incorrect connection of the motor can lead to product damage or create a hazardous situation.
The motors have thermal switches that turn off the drive after a few minutes of continuous operation
to protect against overheating. After switching off by the thermal protection, wait an appropriate
time depending on the type of motor and ambient temperature (several minutes) to be able to restart
it.
Remote operation programming (assigning remote control appliances, weather sensors and other operation elements)
should be performed according to the manufacturer’s manual added to the product. The method of using the motors is
included in a separate instruction manual, as well as on the manufacturer's website.
The product may be damaged if the central control does not function properly.
An interruption in the power supply or a failure of the installation may cause the central control to malfunction.
Awning motors are not designed for continuous operation. The integrated overheating protection shuts down the
motor after a few minutes of continuous operation. The motor restarts after several minutes. This is the time it takes
for the motor to cool down. This time depends on the ambient temperature.
Recommendations and actions:
 extreme position (up and down movement of the fabric) are protected by limit switches that needs to be adjusted
during the installation,
 person performing the adjustment of extreme positions should possess adequate electrical permissions, knowledge
and experience,
 adjustment of limit switches must be done in accordance with motor’s maintenance manual,
4.6.2 REMOTE OPERATION
4.6.3 START-UP AND ADJUSTMENT

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 16 / 28
 prior to the first start of the product electrical measurements should be performed by person holding adequate
permissions,
 do not start the motor without checking the correctness of system installation,
 after the awning is put into motion with a switch do not take off the casings, end covers, lean on the product, leave
tools on it,
 the effectiveness of zeroing the product and the electrical system should be checked at each new installation site.
When the awning starts working attention should be paid to:
 Correct rolling down and up of the fabric
 Correct activation of limit switches
Self-regulation of extreme position by an untrained person may lead to product damage.
4.7 MANUAL DRIVE
Awning opening is performed by making enough turns with the crank until the arms are opened, keeping the
fabric tension.
Awning closure – by turning the crank until gentle resistance is felt.
Gears 11:1 are not equipped with overturn protection (so called mechanical end stop).
During operation of awning with manual drive the force working on the crank is multiplied by gear mechanism and putting
too much force can lead to fabric damage, especially when closing the awning.
Do not allow the fabric to be rolled in the opposite direction (from the bottom of roller tube), since it may cause its ripping
off the roller tube, fabric damage or incorrect awning functioning.
Do not allow the fabric to be rolled in the opposite direction (from the bottom of roller tube), since it may cause
its ripping off the roller tube, fabric damage or incorrect awning functioning..
incorrect
correct

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 17 / 28
5 SYSTEM OPERATION AND PRODUCT SAFETY
5.1 GENERAL REQUIREMENTS FOR OCCUPATIONAL HEALTH AND SAFETY
 During transport, assembly and disassembly and during servicing and maintenance of the product you should
observe applicable occupational health and safety regulations and environmental protection rules.
 The product should be maintained and repaired only by a trained person with proper authorizations.
 Product purchaser should ensure that person, which are entrusted with the operations related to the routine
operation, maintenance and hygiene have been familiarized with the user’s manual and are observing all
guidelines contained in this manual.
 It is forbidden to clean the product in the other way than described in the point “Technical inspections,
maintenance and repair.”
 All work must be carried out with due diligence, taking into account safety requirements.
 Maintenance works and repair of the product should be carried out only when the product is disconnected from
the electrical power supply.
 Observe marking on the product (e.g. pictograms, arrows for movement direction).
 Pay attention not to cover the marking with a coat of paint or damaged in a way that prevents its reading.
 Without consulting the manufacturer or an authorized representative, it is not allowed to modify the electrical
design or change the configuration of the equipment.
 Please read this documentation carefully before using the product.
 The switch should be installed on a height conforming the national regulations applying to disabled people -
preferably at height min. 130 cm.
 In the event of strong wind (exceeding the declared wind class) or heavy rain, the product should be rolled up
immediately - otherwise it will lead to permanent damage
 It is recommended that the change of equipment configuration be consulted with SELT.
5.2 SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE
Specific safety requirements relate to children up to 42 months. Essential requirements for use are applicable in all locations,
to which children have access or where they could be present. Specific requirements for operation are applicable also in all
locations where the disabled people stay.
Prior operation the Purchaser should carry out an individual risk assessment for the operation of the
product with special attention paid to the safety of children and disabled people.
When determining the operational requirements of the product, it is important to take into account reasonably foreseeable
conditions of use and potential hazards.
Do not allow children to play with the roof controls. Remote control equipment should be kept away
from children.
Often inspect the system with respect to the signs of wear and tear or cable damages. Do not use the
product if repair is necessary.
5.3 OPERATIONAL SAFETY
The product may only be used if there are no faults.
Recommendations and actions:
 Product is safe providing use in accordance with the recommendations included in this documentation.
 Disconnect the product from the power supply before starting any work not related to the maintenance and
service of the product, performed on the facade of the building.
 All works related to inspections and repair of the product should be carried out by a properly trained person
holding the necessary licenses.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 18 / 28
 pay attention to all signs of wear and tear or damage to the electrical cables.
 If you notice signs of wear or damage to the electrical wires, do not use the product and immediately report the
fault to the supplier.
 Keep remote controls out of the reach of children.
 When extending or folding the arms of the product, pay special attention that no object or person is in the
working area of the product (in the space between the roller tube and the front bar).
 Avoid contact of the awning fabric with hot objects (e.g. heaters, stoves, irons, etc.)
 It is recommended to use motors with wind automatics that close the awning in case of gusts of wind, but it
should be remembered that wind automatics will never protect the awning against the risk of damage from
violent gusts of wind exceeding the "closing" settings.
Forbidden actions
 It is not allowed to hold or hang or attach anything to the awning. This may damage the system!
 Keep out of the working area of the arms and fabric while the system is operating.
 It is forbidden to use the product inconsistent with the requirements of electric shock and fire safety.
 It is forbidden to exceed the operating parameters of the product specified in the technical and operational
documentation.
 It is forbidden to store sharp objects or protruding parts near the system, which may catch on the front bar, arms
or awning fabric.
 It is forbidden to use a faulty or incomplete product (e.g. without a switch, etc.). the use of such a product may
cause its destruction, pose a threat to the health and life of the user.
 It is forbidden to make makeshift repairs.
 It is forbidden to use the product and electrical installation without valid and required inspections and
measurements.
 It is forbidden to remove the covers of the drive system and the electric motor.
 Do not touch moving parts when rolling or unrolling. This may cause crushing, cutting, pulling in, wedging between
e.g. the front bar and the arm or other structural elements of the system.
 There should be no obstacles within the system operation that could interfere with its operation or cause its
damage.
 Do not stay in the movement zone of the product during its operation.
 Do not expose the awning fabric to prolonged moisture.
Automatically controlled products may start up on their own. Make sure that no dangerous situation arises.
SELT Sp. z o. o. is not responsible for damage caused by improper use.
Operating the system out of sight can cause serious injury as well as damage to the system
WARNING !
Do not use the product in the event of strong gusts of wind, during snowfall, freezing rain because the
product may be destroyed or damaged and may endanger people in the vicinity (applies to products
installed outside the building).
STARTING THE PRODUCT IN FROST CONDITIONS MAY DAMAGE THE PRODUCT
In the event of any irregularities in the operation of the product, the Supplier of the product should be immediately notified.
The use of a damaged product and attempts to repair it yourself pose a threat to health and life and may void the warranty.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 19 / 28
5.4 CONTROL OF SAFE USE OF THE PRODUCT
The Buyer should:
a) where the safe use of the product depends on the conditions in which it is installed, submit the product to:
 initial inspection (after its installation and before it is put into operation for the first time),
 inspection when installed elsewhere.
b) ensure that the product exposed to conditions causing deterioration of its technical condition, which may result in
dangerous situations, is subjected to:
 periodic inspections and tests,
 special control in case of possible product-related safety deterioration and as a result of:
 modification works,
 natural phenomena,
 extended rest time,
 dangerous damage and accidents at work.
The above-mentioned checks may be carried out by specialized assembly groups with appropriate qualifications.

DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR
Edition 7/ March 2022 / PL strona 20 / 28
6 SYSTEM USE AND MAINTENANCE
6.1 USING THE PRODUCT IN ACCORDANCE WITH ITS INTENDED USE
The system should be used in accordance with its intended use specified by the manufacturer. If the product is used and
modified in a manner other than described in this documentation, then it is used incorrectly.
Unauthorized changes affecting the operational safety of the product are not allowed.
The correct use of the product includes:
 normal use or foreseeable use, which do not include e.g. risk taken by the user intentionally or deliberately,
 use of allowable values of operation parameters,
 compliance with recommendations related to the operation,
 conducting periodical inspections and maintenance of the product,
 compliance with the requirements set out in the section "Control of safe use of the product,”
 compliance with the requirements specified in point “Technical specification.”
In case of misuse:
 the product may endanger the operating personnel
 the product will be exposed to damages
 this may adversely affect its functionality
 Do not use the product during maintenance work (e.g. cleaning windows).
SELT Sp. z o.o. shall not be responsible for damages caused by misuse.
6.2 INSTRUCTION FOR NON-PROFESSIONALS
Read carefully this document before using the product.
Non-professionals are persons who carry out activities related to the current use and current inspections of the product.
In-depth knowledge of the documentation ensures failure-free operation of the product.
List of operations which can be carried out by non-professionals:
 current use:
- performing activities that do not affect the change of the product's operating parameters,
- switching on and off by pressing the control buttons,
 maintenance of the product is described in the further part of the documentation.
6.3 TECHNICAL INSPECTIONS, MAINTENANCE AND REPAIR
It is recommended to carry out periodic inspections of products by specialized assembly teams.
Inspections consist in checking the operation of the product, adjusting mechanisms and replacing elements that wear out
during its operation. The current maintenance of the system is carried out by the user on their own. Product maintenance
should be performed at least once a year by specialized assembly teams.
Inspections are performed for a fee.
Basic activities performed during the inspection:
 Checking:
 fixing of the product to structural elements,
 the technical condition of the moving parts of the product,
 the condition of the product's electrical wires and checking their connection to the electrical system,
 bolt and rivet connections,
 the technical condition of the fabric and gaskets,
 the fastening of the drive mechanism of the product (engine, crank gear),
 the effectiveness of the residual current circuit breaker.
 Checking Possible adjustment and improvement of fastening of the mentioned components
Products manufactured by SELT Sp. z o. o. do not require any special maintenance. Using the product in accordance with
the manufacturer's instructions ensures long-term and trouble-free operation for the system user. Ongoing maintenance
work should be carried out on a fully developed system.
