SELT CASABLANCA User manual

PRODUCT TECHNICAL AND OPERATIONAL DOCUMENTATION
INSTALLATION MANUAL
11. Awnings
11.8 Terrace awning CASABLANCA
11.8.1 Installation manual
Documentation no. 11.8.1 –EN
11.8.1
DTE

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 2 / 19
PRODUCT TECHNICAL AND OPERATIONAL DOCUMENTATION
Installation manual
11.8.1 DT-E
PRODUCT NAME
TERRACE AWNING
CASABLANCA
PRODUCT MANUFACTURER’S MARKING:
Manufacturer’s name:
SELT Sp. z o.o.
Manufacturer’s head office:
45- 449 Opole, ul. Wschodnia 23A
Website
www.selt.com
Plant address:
Wydział Produkcji Markiz
45- 449 Opole, ul. Wschodnia 23A
Contact details:
Tel: [phone] (secretariat)
Fax: [phone]
E-mail:
[email protected]
PRODUCT SAFETY MARKING:
Product conforms to CE safety requirements
This Technical and Operational Documentation:
Is valid from: 01 March 2016
Is valid for product versions designated above

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 3 / 19
Table of contents
1Introduction........................................................................................................................4
1.1 Product safety tips .......................................................................................................4
1.2 Notes on symbols and marks.......................................................................................4
1.3 Definitions...................................................................................................................4
1.4 Subject, designation and contents of the documentation.............................................5
2Product technical information............................................................................................6
2.1 Technical parameters...................................................................................................6
2.2 Casablanca awning construction .................................................................................6
2.3 Bracket types ...............................................................................................................7
3Product installation.............................................................................................................8
3.1 General requirements for safe installation...................................................................8
3.2 Requirements for safe installation at heights...............................................................8
3.3 Preparation to installation............................................................................................8
3.4 General guidelines for installation...............................................................................9
3.5 Installation tools ..........................................................................................................9
3.6 Casablanca awning installation –wall brackets ........................................................10
3.7 Casablanca awning installation –ceiling brackets ....................................................14
3.8 Casablanca awning installation –roof rafter brackets...............................................14
3.9 Electric drive..............................................................................................................15
3.9.1 Connection to electrical installation...................................................................15
3.9.2 Remote operation ...............................................................................................16
3.9.3 Start-up and adjustment......................................................................................16
3.10 Manual drive ..........................................................................................................17
4Final remarks....................................................................................................................18
4.1 Completeness and qualitative state of delivery .........................................................18
4.2 General conditions for transport and storage of the product .....................................18
5Marking and labelling the product with CE mark............................................................19
5.1 Product compliance with CE standard.......................................................................19
5.2 Information accompanying the CE mark...................................................................19

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 4 / 19
1Introduction

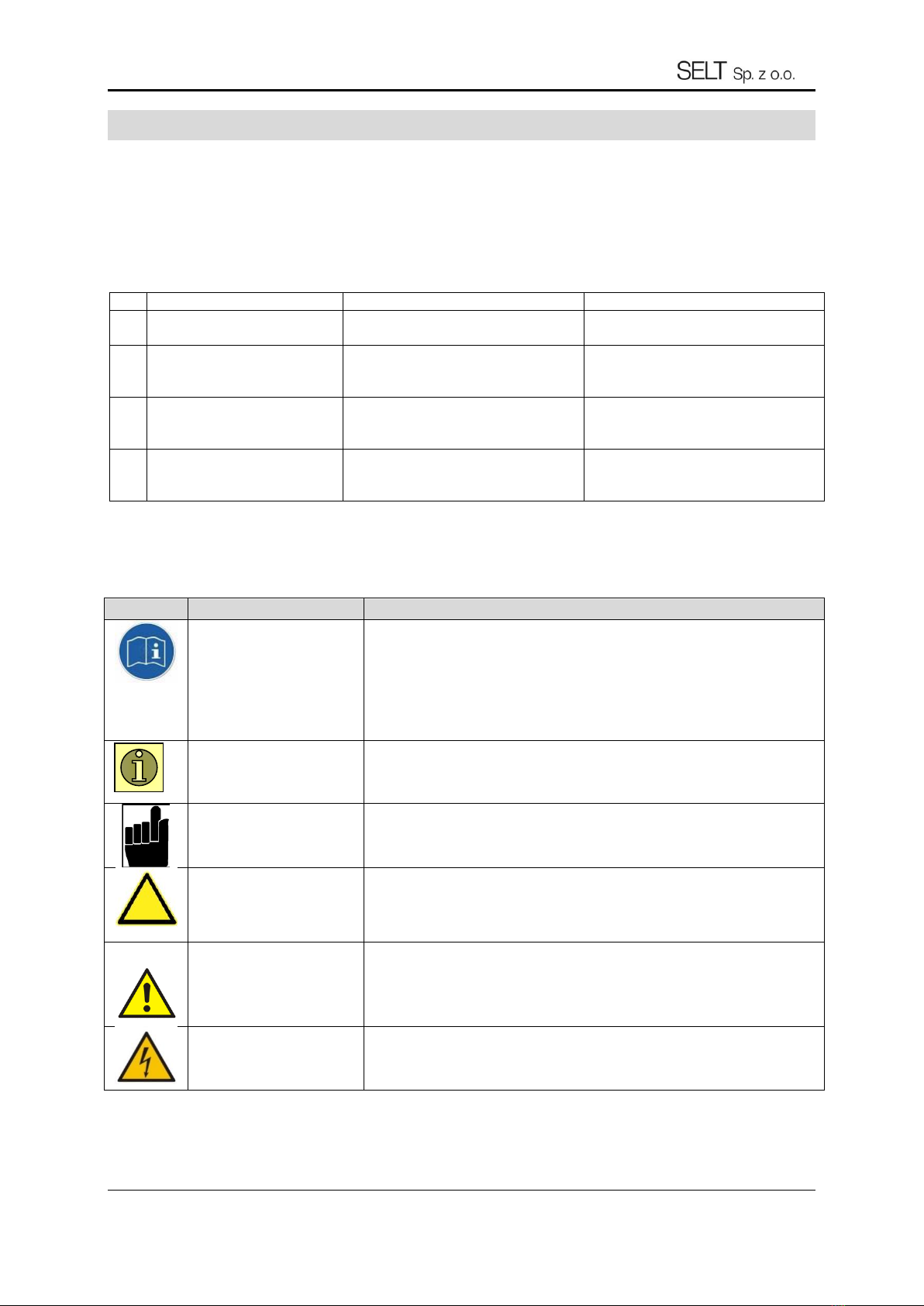

1.1 Product safety tips
The product was manufactured in accordance with the latest know-how in the area of constructing
and manufacturing technology and is delivered in condition assuring operational safety.
Safe product construction was achieved thanks to:
No.
Subject
European legal basis
Polish legal basis
1
External blinds. Performance
requirements including safety
EN- 13561:2004+A1:2008
PN- EN- 13561:2004+A1:2010
2
Construction Products
Regulation (CPR)
Regulation (EU) no 305/2011 of the
European Parliament and of the
Council
DZ. U [Journal of Laws] 2004, No. 92,
item 881 as amended of 25 June 2015,
DZ. U [Journal of Laws] 2015, No. 1165
3
Essential requirements for
machines
Directive 2006/42/EC of the European
Parliament and the Council
Resolution of the Minister of Economy
of 28 October 2008 DZ.U. [Journal of
Laws] 2008.1228
4
General product safety
Directive 2001/95/EC of the European
Parliament and the Council
DZ. U [Journal of Laws] of 12
December 2003, No. 229, item 2275 as
amended
1.2 Notes on symbols and marks
The below symbols (icons) denote particularly important information concerning threats and safety
Icon
Icon meaning
Information
INFORMATION
Prior to using the product, its operating manual should be read.
Following the operating manual guarantees:
- failure-free use of the product,
- warranty coverage against product defects.
Keep the operating manual for safety of people.
INFORMATION
No harmful or dangerous consequences for people or facilities.
ATTENTION!
A situation likely to cause product damage or other damage.
No threat for people.
WARNING!
Threat of danger
DANGER!
This symbol denotes all information concerning danger, failure
to observe which brings about threat to human life and health.
Risk: threat of serious injury or death. Dangerous operation
which may cause injuries or product damage.
WARNING!
Threat to human life or health due to electric shock.
1.3 Definitions
The terms and definitions used within this documentation shall mean:
Product: terrace awning CASABLANCA

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 5 / 19
Awning:
Terrace awnings, as external sun protection screens are installed solely on the outside of the building
for protection from sun light for terraces, restaurant patios, balconies, shop windows etc. Rolling up
and down of the awning fabric is performed with the use of an electric control mechanism or manual
crank.
Awning fabric:
Part of the product serving for protection from sun light, but also having a decorative function.
Manufactured from high quality materials is put into motion with manual or electric control
mechanism, assuring the product fulfills its function.
1.4 Subject, designation and contents of the documentation
Products manufactured by SELT SP. Z O.O. are the subject of this documentation.
This documentation is valid for all type of CASABLANCA terrace awning.
The documentation is valid jointly with the information concerning a specific
product, which is available on the website www.selt.com
The documentation is a component of product delivery and should be constantly stored in its
proximity.
The documentation includes:
important recommendations concerning product installation, use and maintenance,
important recommendations concerning product transport and storage,
tips following which will assure long-time and fault-free use of the product.
SELT SP. Z O.O. shall not bear responsibility for damage resulting from failure to follow
recommendations included in the documentation.
In order to further improve the product, SELT SP. Z O.O. reserves the right to introduce changes
which, while maintaining the essential technical parameters, shall be deemed purposeful for
improving product operation quality and safety of use.
SELT SP. Z O.O. with a head office in Opole shall hold the copyrights to this documentation. The
documentation cannot be used without permission, either partially or as a whole, for any concurrent
business activity nor can it be made available to third parties.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 6 / 19
2Product technical information
www.selt.com → PRODUCTS → AWNING → CASABLANCA

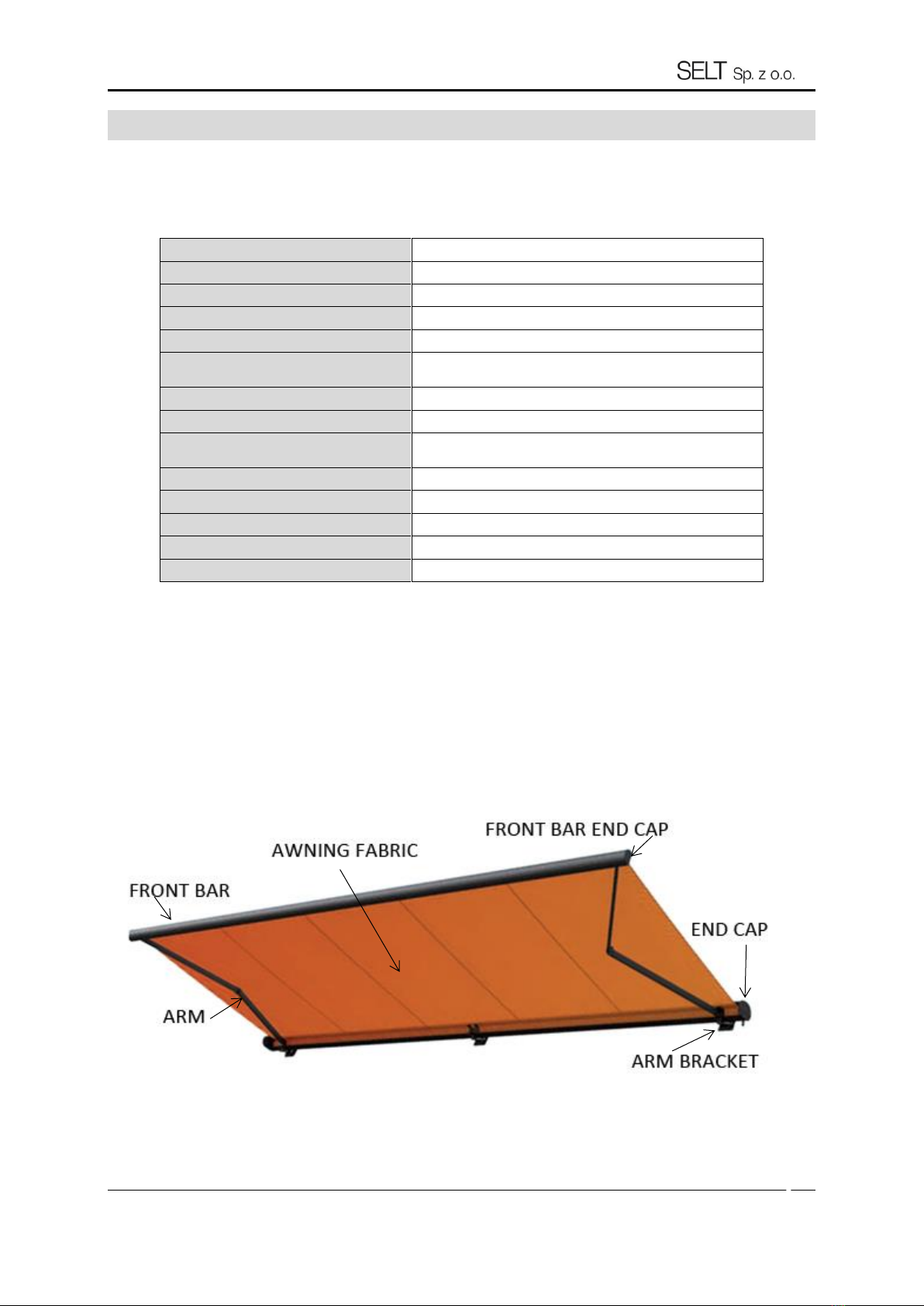

2.1 Technical parameters
Projection:
1,6 m, 2,1 m, 2,6 m, 3,1 m 3,6 m
Maximum projection
3,6 m
Minimum width
Projection + 0,4 m
Maximum width
6,0 m
Roller tube diameter
78 mm
Arms
Folding, aluminum, with springs and Flyer’s chain, folded
arms levelling.
Tilt angle
5° - 40°
Manual drive
Crank 1,5 m, 1,8 m, 2,2 m
Electric drive
Motor, motor with emergency override, remote control
receiver, weather sun-wind automation.
Construction colour
White, beige, brown, silver, structural graphite
Fabric
C. 140 patterns
Valance
No
Application
External
Mounting brackets
Wall, ceiling, roof rafter
The tolerance of external dimensions is ± 2cm
Due to technological reasons, slight differences in colour shade are deemed acceptable and they are not a
ground for complaint.
Motor technical data
www.selt.com → PRODUCTS → AUTOMATION → ALL → MOTORS
2.2 Casablanca awning construction

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 7 / 19

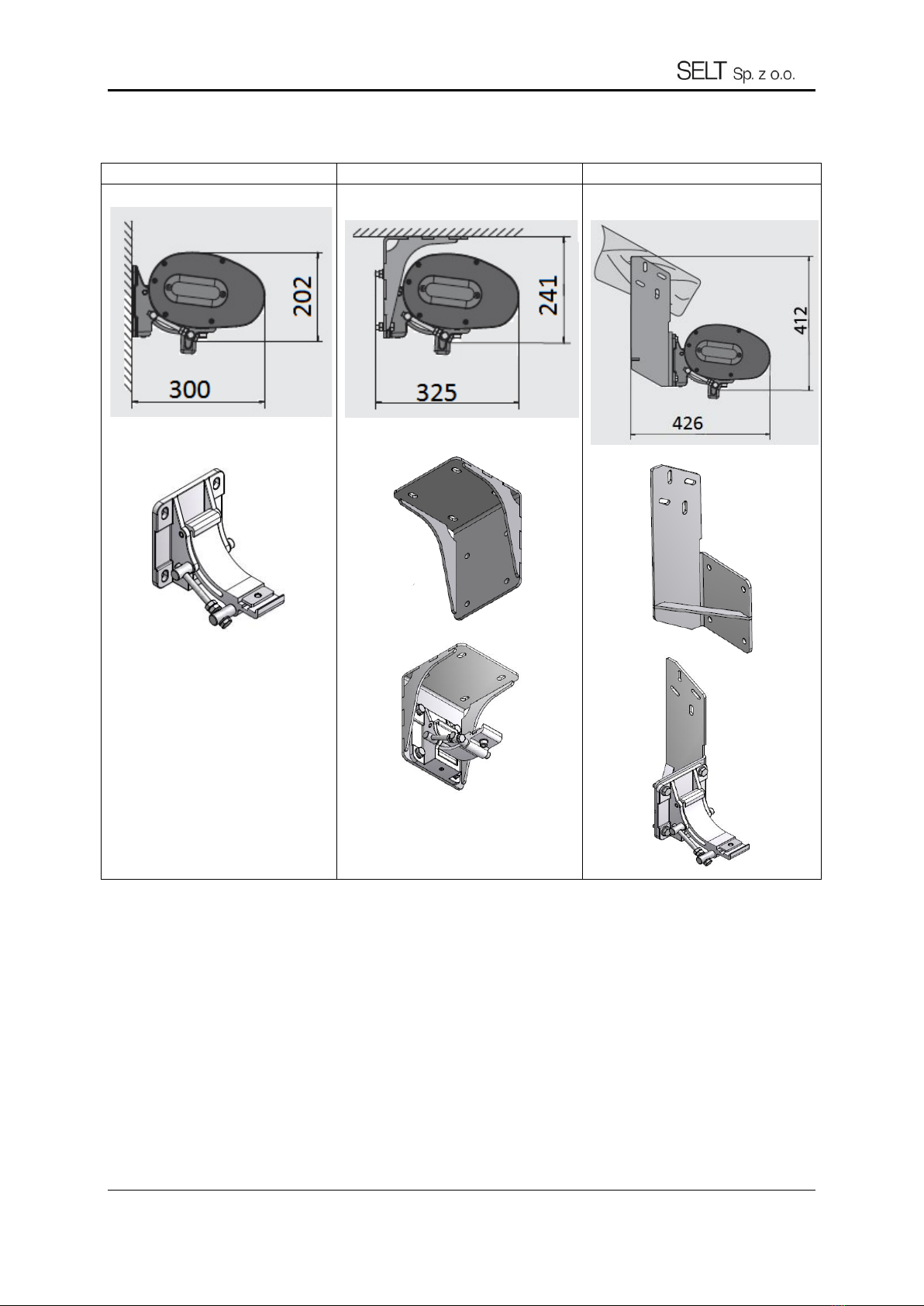

2.3 Bracket types
Wall bracket
Ceiling bracket
Roof rafter bracket

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 8 / 19
3Product installation
The following part covers general requirements of the product installation. Proper installation is
necessary for efficient operation of the product. SELT SP. Z O.O. recommends to use services of
skilled installation crews what guarantees the Purchaser proper installation.
3.1 General requirements for safe installation
it is necessary to follow general rules of construction art
it is necessary to follow health and safety regulations, especially concerning work with
electricity and at heights,
product should be installed on even and dry wall surfaces that at the same time ensure
proper strength and are completed according to general rules of building art,
before starting the installation remove all unnecessary elements from the installation area.
3.2 Requirements for safe installation at heights
Installation of the product, because it requires performing work at heights, is
particularly dangerous because it poses a high risk of danger to human health and
safety and in particular fall from height.
Opracowanie planu bezpieczeństwa i ochrony zdrowia podczas montażu należy do obowiązków
Nabywcy.
Preparation of a plan on health and safety during installation is the responsibility of the Purchaser.
Purchaser should determine specific requirements of health and safety when working at height, and
especially to ensure:
direct supervision of work execution by the designated person (e.g. the foreman),
adequate safeguards measures, in particular protective equipment against falls from height,
detailed instruction of employees performing work at heights.
Work at heights above 2 meters, requiring using personal protective equipment against falls from
height, must be performed by at least 2 people.
Work at heights should be organized and carried out in a way that does not force employees to lean
out of the railings or outline of a device on which they stand. The buyer has an obligation to ensure
that areas of work at heights can be accessed only by authorized and informed personnel. Health and
safety professionals should inform employees residing or staying at the conduct of such works or in
the vicinity of the site about conducted operations at heights and the necessary safety measures to
be applied during this work.
3.3 Preparation to installation
unpack product and check if it contains all necessary elements for installation,
make sure that the base where product will be mounted provides sufficient bearing capacity
for safe installation and operation of the product,
prepare set of tools necessary for installation.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 9 / 19
3.4 General guidelines for installation
The wall brackets should be installed on the back side of the cassette, on places marked by
the manufacturer (so that they are placed on the axis of arm brackets),
To avoid the risk of hand and fingers harm during opening and closing of the awning, the
awning should be installed on such height so that the lowest element of the awning after it is
opened is at least 2200mm above the ground,
The product should be protected against any stains made by e.g. silicon, mortar or mounting
foam, which may cause its damage,
Using any chemical substances containing bituminous substances or any other substances
making reactions with the product is forbidden,
In case of installation in public places, e.g. hospitals, schools, boarding schools etc. The
placement of switch/remote control device should be marked according to health and safety
regulations,
In case of remotely operated awning, bracket for remote control should be installed in place
not available for children,
Electrical installation, first programing of motor and specialized service can be conducted
solely by specialized service companies.
Awning installation, adjustment and test its testing can be carried out by service crew
or trained persons only. Person conducting the installation and first run is responsible
for appropriate fixing of the awning including fixing elements, allowing for its correct
operation and parameters.
Improper installation may cause hazardous situation for the user.
3.5 Installation tools
drills,
hammer drill,
ladder/scaffolding,
screw-driver,
hammer,
measure tape,
pencil/marker,
spirit level,
ring and flat
wrenches,
Allen keys,
anchors.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 10 / 19
3.6 Casablanca awning installation –wall brackets
For base –uncracked concrete C20/25 class and no higher than C50/60:
Anchors M10x110 A4, embedded on injection mortar (recommended anchors from Fischer
FIS A M10x110 A4 on resin FIS V360, embedment depth in concrete shall be 60 mm, or
equivalent product from different supplier).
Minimum base thickness is 150 mm for M10 anchor.
Effects on a single bracket are: calculation bending moment M= 3,38 kN; shearing force V=
0,46 kN.

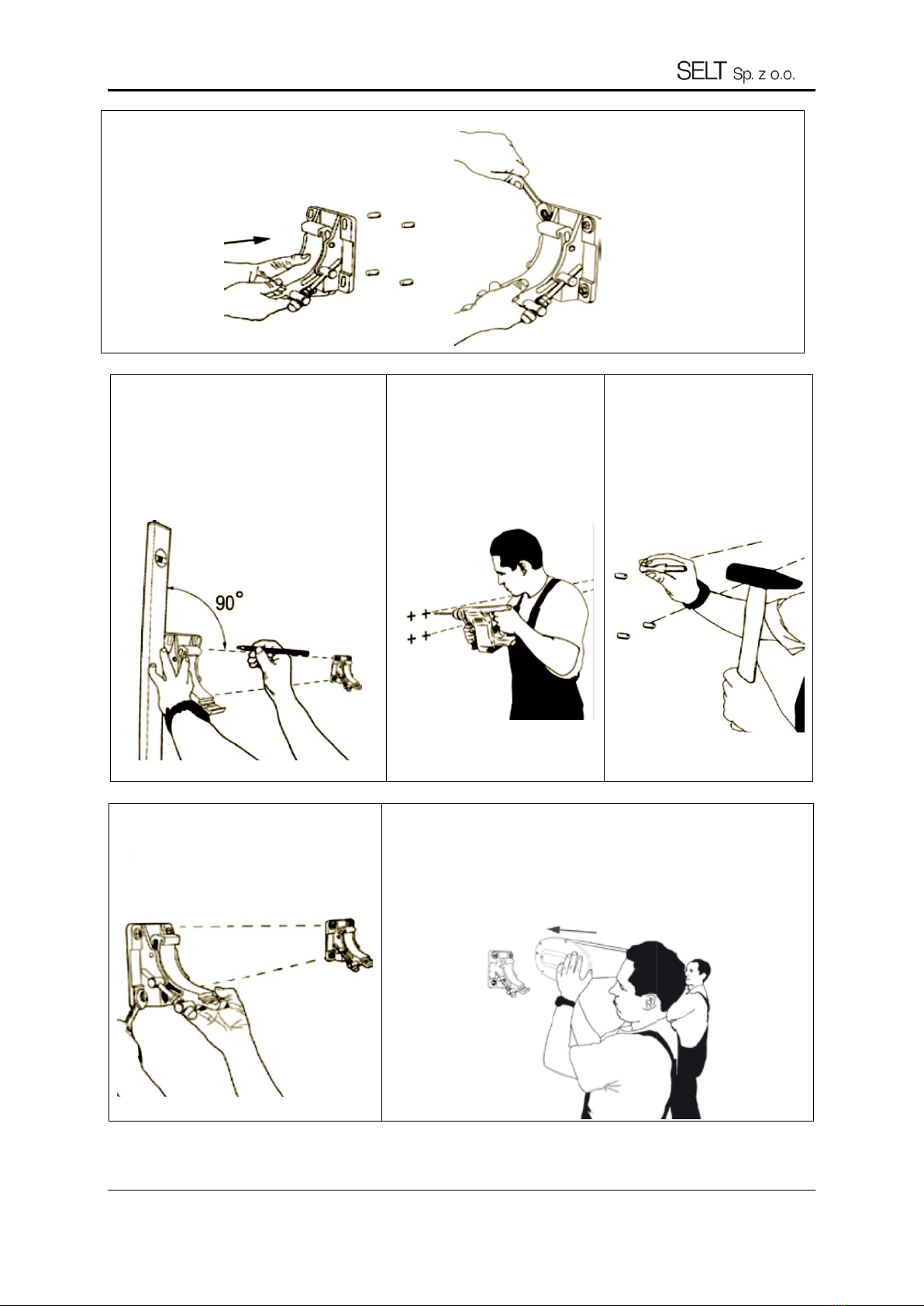

1) Prepare installation
tools according to the
list.
2) Start the installation with
marking installation spots for wall
brackets. Level the bracket
vertically with spirit level and mark
places for installation holes. The
wall brackets should be installed on
the back side of the cassette, on
places marked by the manufacturer
(so that they are placed on the axis
of arm brackets).
3) Drill in
marked places.
4) Fix
installation
anchors.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 11 / 19
5) Install wall bracket.
6) Based on the first bracket mark
installation places for remaining ones
–pay particular attention so that
brackets are installed at the same
horizontal level and in the same
plane.
7) Drill holes in marked
places.
8) Fix installation anchors.
9) Install remaining wall brackets.
10) Slide the awning on wall brackets so that the
construction is maximally pressed to the back (Note –
before placing the awning verify the alignment of brackets
–wall surface should be of the same thickness at
installation spots).

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 12 / 19
11) Secure the construction bar with screws.
12) Open the awning slightly.
13) With spirit level check if the arms close to one
plane.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 13 / 19
14) If necessary adjust the arm level by loosening or tightening the internal M5 screw in arm
brackets.
15) To change awning tilt angle open the awning completely, and then loosen the internal screw
and the M10 Allen screws, which are securing the wall brackets movable part.
16) Loosen (to decrease tilt angle) or tighten (to increase tilt angle ) the regulation hexagonal head
screw witch a wrench.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 14 / 19

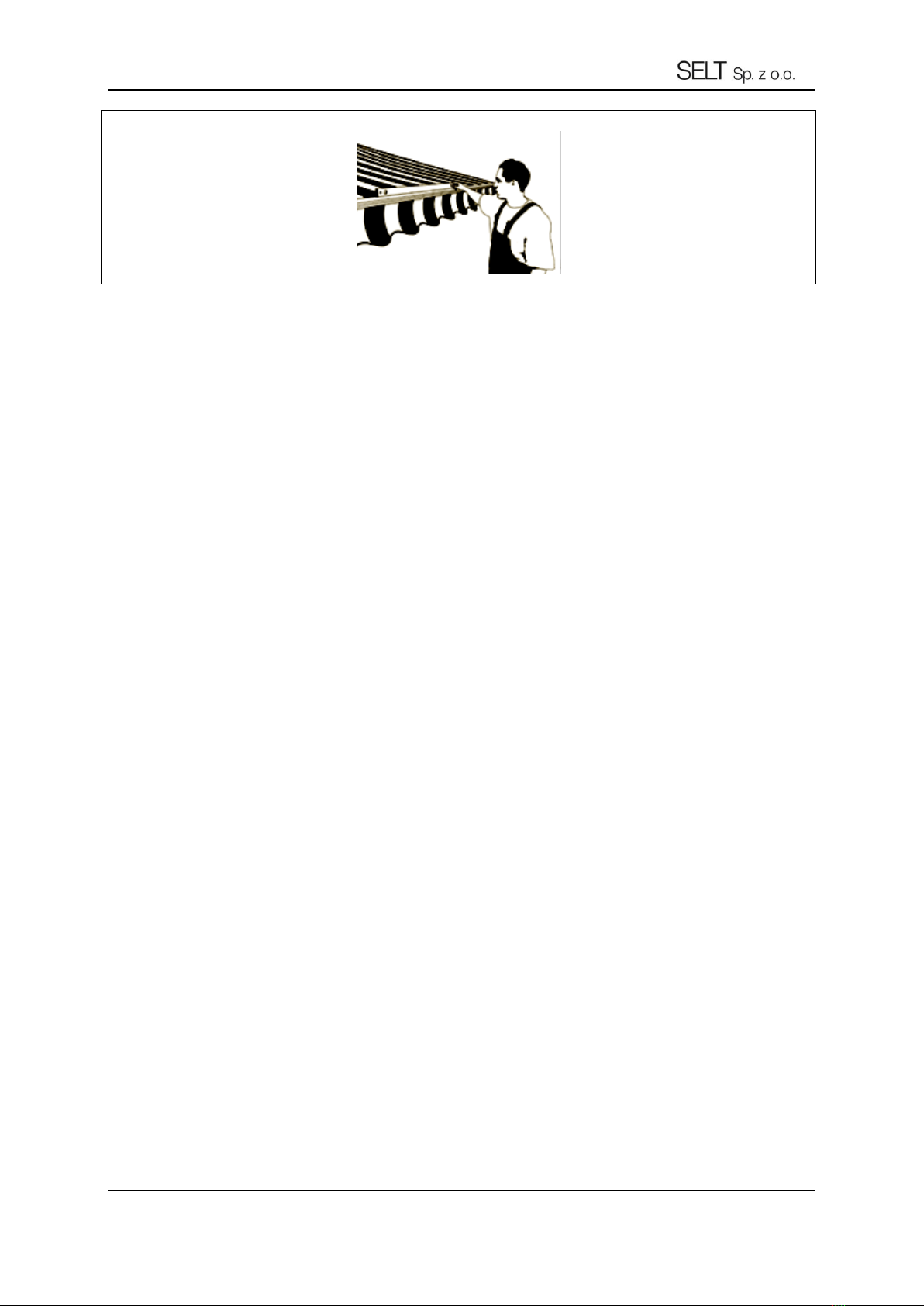

17) With spirit level check if front bar is levelled horizontally.
3.7 Casablanca awning installation –ceiling brackets
Install ceiling brackets on places according to the installation of wall brackets- they are
marked by the manufacturer on the back of the cassette with colored stickers. Brackets
should be installed in the same order and manner as wall brackets.
Make sure that ceiling brackets are aligned, i.e. in the same distance from the wall.
To the installed ceiling brackets install wall brackets with set of M10x35 screws with washers
and nuts. Slide the awning on wall brackets so that the construction is maximally pressed to
the back. Secure the construction with screws.
3.8 Casablanca awning installation –roof rafter brackets
Roof rafter brackets should be installed to roof rafters the closest to awning edge possible,
remaining brackets place in equal intervals.
Brackets should be installed in the same order and manner as wall brackets.
Install roof bracket with wood fixing elements.
Based on first installed roof rafter bracket (base) measure placement of the remaining
brackets –make sure that roof rafter brackets are aligned, i.e. in the same distance from
rafter edge.
Remember to install left and right roof rafter bracket alternatively, i.e. starting from awning
right edge (looking at the awning from the front).
To the installed roof rafter brackets install wall brackets with set of M10x35 screws with
washers and nuts. Slide the awning on wall brackets so that the construction is maximally
pressed to the back. Secure the construction with screws.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 15 / 19
3.9 Electric drive
The installation must be performed by an electrician possessing appropriate permissions and
professional experience. The connection should be made in accordance with the previously
elaborated, individual electric diagram and according to the motor manual. There is a possibility of
individual and group control with one or multi-channel remote control.
Transmitters and receivers should be programmed according to the instructions attached to the
engines.
When the awning starts working special attention should be paid to correct rolling up and down of
the fabric and proper functioning of limit switches in the motor.
The engine has a thermal switch, which turns off the drive after about 4 minutes of
continuous work to protect from overheating. After turning off by the thermal
protection appropriate time should pass before turning it on again, depending on
the type of engine and atmospheric conditions (several minutes).
List of steps:
Connection to the electricity supply,
Connection to the electrical control system.
3.9.1 Connection to electrical installation
After the product is installed one may proceed to connecting the drive and control system to the
previously prepared systems: power supply and control systems.
Connection to the power supply system should be made in accordance with the previously
elaborated individual electric diagram, including fire protection regulations.
Electrical connection and adjustment of motors should be performed according to the motor
manufacturer’s manual taking into account the environmental conditions in which the product will
be operated.
Regular environmental conditions:
Such conditions are found in e.g. apartments, offices, event and theatre halls, school classrooms
(excluding some laboratories) etc.
Environmental conditions of increased threat:
Bathrooms and showers, kitchens, garages, cellars, saunas, rooms for domestic animals, operating
theatres in hospitals, pump rooms, heat exchange rooms, spaces limited by conducing areas,
campsites, open spaces, etc. are regarded as environments with increased threat conditions.
In rooms and spaces where there are increased threat conditions, automatic devices for switching off
power supply to the damaged product should be used, e.g. residual current devices.
Residual current devices:
Recommended for use in bathrooms, kitchens, garages and cellars,
They are to be used obligatory at swimming and shower pools, saunas, construction sites,
while supplying appliances in open spaces, on agricultural and horticultural farms, on
campsites and in camper vans, as well as in rooms where there is fire hazard.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 16 / 19
Residual current devices are only supplementary protection from direct contact, they cannot be the
only means of protection. The goal of their application is to supplement the protection in case other
means of protection from direct fail or in case of user’s carelessness.
During installation attention should be paid to usage safety rules, e.g. minimum height electrical
appliances can be installed at.
General safe connections guidelines
The connection must be performed by electrician possessing appropriate permissions and
experience,
During connection health and safety regulations should be observed,
Electrical connection and adjustment of motors should be performed according to the motor
manufacturer’s manual added to the product.
Incorrect connection of the motor can lead to product damage or create a
hazardous situation.
3.9.2 Remote operation
Remote operation programming (assigning remote control appliances, weather sensors and other
operation elements) should be performed according to the manufacturer’s manual added to the
product.
3.9.3 Start-up and adjustment
Recommendations and actions:
extreme position (up and down movement of the fabric) are protected by limit switches that
needs to be adjusted during the installation,
person performing the adjustment of extreme positions should possess adequate electrical
permissions, knowledge and experience,
adjustment of limit switches must be done in accordance with motor’s maintenance manual,
prior to the first start of the product electrical measurements should be performed by person
holding adequate permissions,
do not start the motor without checking the correctness of system installation,
after the awning is put into motion with a switch do not take off the casings, end covers, lean
on the product, leave tools on it,
after each re-assembly in a new place the product and electrical installation earth circuit
should be checked.
When the awning starts working attention should be paid to:
Correct rolling down and up of the fabric,
Correct activation of limit switches.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 17 / 19
Self-regulation of extreme position by an untrained person may lead to
product damage.
3.10 Manual drive
Awning opening is performed by making enough turns with the crank until the arms are opened,
keeping the fabric tension.
Awning closure –by turning the crank until gentle resistance is felt.
Gears 11:1 are not equipped with overturn protection (so called mechanical end stop).
During operation of awning with manual drive the force working on the crank is multiplied by gear
mechanism and putting too much force can lead to fabric damage, especially when closing the
awning.

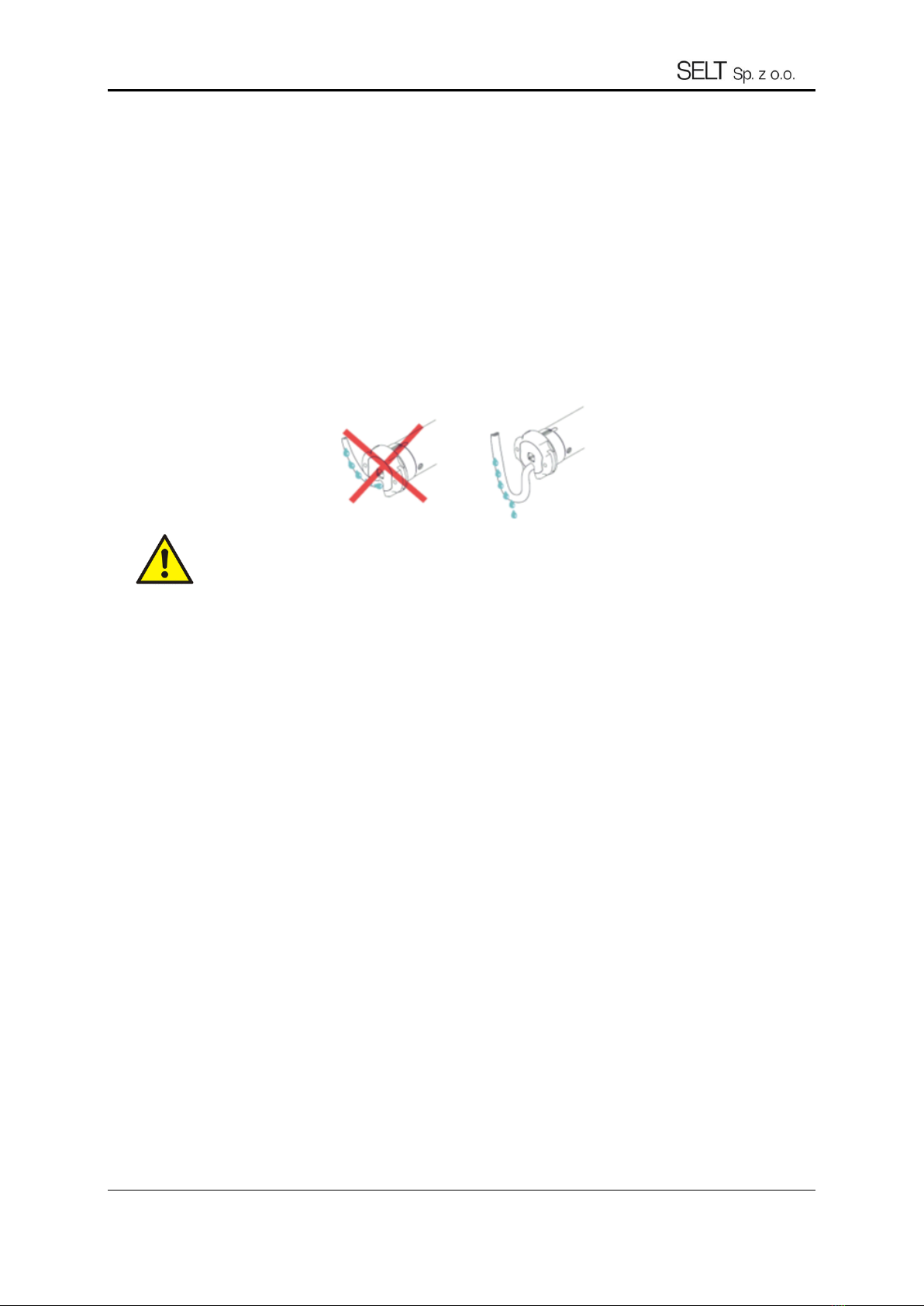

Do not allow the fabric to be rolled in the opposite direction (from the bottom of roller tube), since it
may cause its ripping off the roller tube, fabric damage or incorrect awning functioning.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 18 / 19
4Final remarks
4.1 Completeness and qualitative state of delivery
Awning is delivered with installed arms, fabric and wall brackets, with accompanying additional
packages.
Selt SP. Z O.O. makes every effort to ensure that the goods are produced in accordance with the
order. To check the completeness of the product is purchaser’s duty and it should be conducted at
the time of delivery. Any discrepancies of the product with the order should be reported immediately
to the driver/warehouseman/installers and noted in the proof of delivery at the risk of rejecting
claims regarding quantitative discrepancies. Checking the quality of the apparent defects should be
done by the purchaser at the time of delivery. As apparent defects are considered mechanical
damages, scratches, cracks, etc. Any discrepancies in quantity or possible replacements of parts
being the evident result of Selt SP. Z O.O. fault, the company agrees to supplement or replace in the
shortest possible time.
4.2 General conditions for transport and storage of the product
The product is factory-packed in a cardboard box to prevent its damage during
storage, transport and during its transportation to the place of final assembly,
For the transport purposes, the products should be set in accordance with the
arrows on the packaging,
Store the product in a way preventing the package from crushing, what in turn may
lead to product permanent damage,
Products placed on the means of transport must be secured against movement and
damage during transport (e.g. spacers, safety belts, etc.).
During transportation the products must be protected from the rain or snow,
Storage places should be dry, airy and protected from the harmful effects of
weather conditions (sun, rain, etc.),
Where the weight of the product exceeds 25kg and its transportation to the place of
final assembly must be carried out by at least two persons.

DT-E 11.8.1 TERRACE AWNING CASABLANCA
Edition: March 2016 / Issue 1
English
page 19 / 19
5Marking and labelling the product with CE mark
5.1 Product compliance with CE standard
Awnings manufactured by SELT company meet the essential requirements of the standard
introduced by the Polish Committee for Standardization as PN-EN 13561 what is confirmed by the
manufacturer’s declaration of performance and marking the product with the CE mark.
In order to maintain this condition and assure safe use and maintenance of the system, the
installation and operating manual (11.8.1) and instructions for safe use (11.8.2) must be observed.
5.2 Information accompanying the CE mark
a) Marking on the product:
SELT Sp. z o.o.
OPOLE, ul. Wschodnia 23A
EN 13561
b) Marking on the accompanying documents
SELT Sp. z o.o.
OPOLE, ul. Wschodnia 23A
POLAND
14
EN 13561
Awning CASABLANCA 600x310
For external use.
Wind load resistance:
1 class
DWU 02 / M / 2016
Awning CASABLANCA 600x360
for external use.
Wind load resistance:
1 class
DWU 19 / M / 2016
Pursuant to the regulations of the
Act dated of 29 July 2005 about
waste electrical or electronic
equipment, it is forbidden to place
used appliances marked with a
crossed out waste bin symbol jointly
with other waste. The User wishing
to dispose of electronic or electrical
equipment is obliged to take it to
the used equipment collection spot.
The above legal obligations were
introduced in order to reduce the
amount of waste due to used
electrical and electronic equipment
and to assure a proper level of
collection, recovery and recycling.
There are no dangerous elements in
the equipment which are of
particularly adverse effect on the
environment and human health.
