Silvercrest SPPB 5000 A1 User manual

POWER BANK SPPB 5000 A1
POWERBANK
Bedienungsanleitung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE--44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen:
03/2017 · Ident.-No.: SPPB5000A1-032017-3
IAN 286204
POWER BANK
Operating instructions
CV_286204_SPPB5000A1_95x140_LB6.indd 2 24.05.17 16:42

GB/ IE/ NI Operating instructions Page 1
DE/ AT/ CH Bedienungsanleitung Seite 17
Before reading, unfold the page containing the illustrations and
familiarise yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und
machen Sie sich anschließend mit allen Funktionen des Gerätes
vertraut.
CV_286204_SPPB5000A1_95x140_LB6.indd 3 24.05.17 16:42

CV_286204_SPPB5000A1_95x140_LB6.indd 4 24.05.17 16:42

SPPB 5000 A1 GB│IE│NI │ 1■
Contents
Introduction................................. 2
Information about these operating instructions...............2
Copyright ...........................................2
Notes on trademarks ..................................2
Intended use.........................................3
Warning notices ......................................3
Safety ..................................... 5
Basic safety instructions ................................5
Description of components .................... 7
Operation .................................. 7
Check package contents ...............................7
Disposal of the packaging ..............................8
Charging the power bank ..............................8
Checking the charge level ..............................9
Handling and use ........................... 10
Charging mobile devices with the power bank .............10
Using the power bank as a light. . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting ............................ 11
Storage when not in use ..................... 12
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Disposal................................... 12
Appendix.................................. 13
Technical data ......................................13
Notes on the EU Declaration of Conformity................14
Kompernass Handels GmbH warranty ...................14
Service ............................................16
Importer ...........................................16
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 1 24.05.17 16:26

SPPB 5000 A1
■ 2 │ GB│IE│NI
Introduction
Information about these operating instructions
Congratulations on the purchase of your new device. You have
selected a high-quality product. The operating instructions are part
of this product. They contain important information about safety,
usage and disposal. Before using the product, please familiarise
yourself with all operating and safety instructions. Use the product
only as described and for the range of applications specified.
Retain these instructions for future reference. Please also pass these
operating instructions on to any future owner.
Copyright
This documentation is protected by copyright. Any copying or re-
production, including in the form of extracts, or any reproduction of
images (even in a modified state), is permitted only with the written
authorisation of the manufacturer.
Notes on trademarks
USB®is a registered trademark of USB Implementers Forum, Inc.
The SilverCrest trademark and the retail name are the property of
their respective owner.
All other names and products may be trademarks or registered
trademarks of their respective owner.
.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 2 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 3■
Intended use
This device is an information technology device and is intended
exclusively for charging mobile devices that charge via a USB port
by default. The device can also be used as a light. The device is
not intended for any other purpose, nor for use beyond the scope
described.
The device is not intended for use in commercial or industrial
environments. The manufacturer accepts no responsibility for dam-
age caused by failure to observe these instructions, improper use
or repairs, unauthorised modifications or the use of unapproved
replacement parts. The risk is borne solely by the user.
Warning notices
The following types of warning are used in these operating instruc-
tions:
DANGER
A warning notice at this hazard level indicates an
imminently hazardous situation.
Failure to avoid this hazardous situation could result in serious
injuries or even death.
► Follow the instructions in this warning notice to avoid the risk
of serious injuries or death.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 3 24.05.17 16:26

SPPB 5000 A1
■ 4 │ GB│IE│NI
CAUTION
A warning notice of this hazard level indicates a risk
of property damage.
Failure to avoid this situation could result in property damage.
► Follow the instructions in this warning notice to prevent material
damage.
NOTE
► A note provides additional information that makes handling
the device easier for you.
This symbol can be found on the housing of the power bank.
► The power bank must never be charged and used for charging
a mobile device at the same time. The mobile device could be
damaged.
► Use only a USB mains adapter with an output voltage of 5V
and an output current of at least 2.1A to charge the power
bank.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 4 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 5■
Safety
This section contains important safety instructions for handling
the device. This device complies with statutory safety regulations.
Improper use may result in personal injury and property damage.
Basic safety instructions
■ Check the device for visible external damage before use. Do
not operate an appliance that has been damaged or dropped.
■ This device may be used by children aged 8 years and above
and by persons with limited physical, sensory or mental capa-
bilities, or lack of experience and knowledge, provided that
they are under supervision or have been told how to use the
device safely and are aware of the potential risks. Children must
not play with the device. Cleaning and user maintenance tasks
must not be carried out by children unless they are supervised.
■DANGER! Do not allow children to play with the packaging
material! Keep all packaging materials away from children.
There is a risk of suffocation!
■ Always place the device on a stable and level surface. It can be
damaged if dropped.
■ Do not expose the device to direct sunlight or high temperatures.
Do not cover the appliance during charging. Otherwise it may
overheat and be irreparably damaged.
■ Do not place the product near heat sources such as radiators or
other heat-generating devices.
■ Keep the device away from open flames (e.g. candles) at all
times.
■ The device is not designed for use in rooms with high tempera-
ture or humidity (e.g. bathrooms) or excessive dust.
■ Do not expose the device to water spray or dripping water, and
do not place liquid-filled objects such as vases or open drink
containers on or near the device.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 5 24.05.17 16:26

SPPB 5000 A1
■ 6 │ GB│IE│NI
■ Never expose the device to extreme heat. This particularly
applies to storage in a vehicle. Extreme temperatures can occur
in car interiors and glove compartments during long periods of
immobilisation. Remove electrical and electronic devices from
the vehicle.
■ Do not use the device immediately after moving it from a cold
room to a warm room. Always allow the device to acclimatise
before turning it on.
■ Never open the device housing. None of the components in the
device can be serviced or replaced by the user.
■ Do not make any unauthorised modifications or alterations to
the device.
■ All repairs must be carried out by authorised specialist compa-
nies or by the Customer Service department. Improper repairs
may put the user at risk. It will also invalidate any warranty
claims.
■ Turn the device off immediately and disconnect any connected
charging cables from the device if you smell fumes or notice
any smoke. Have the device checked by a qualified specialist
before using it again.
■ If you are using a USB power supply, the socket you use must
always be easily accessible so that the USB power supply can
be quickly disconnected from the socket in a hazardous situa-
tion. You should also observe the operating instructions for the
USB power supply.
■DANGER! Improper use of batteries can cause fires, explo-
sions, leakages or other hazards! Do not throw the device into
a fire, since the integrated battery may explode.
■ Comply with all restrictions or prohibitions on use for battery-
powered devices in locations with specific hazard risks, such as
petrol stations, aeroplanes, hospitals, etc.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 6 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 7■

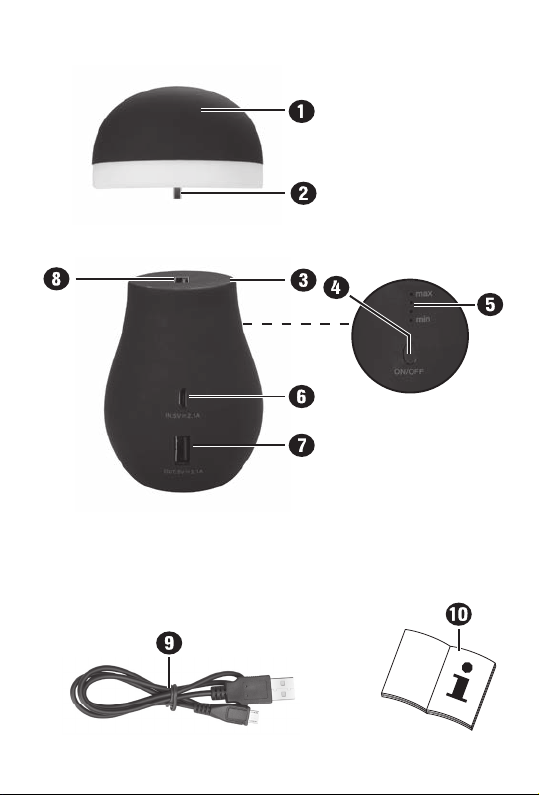

Description of components
(See fold-out page for illustrations)
Lighting attachment
USB plug (lighting attachment)
Power bank
ON/OFF button (ON/OFF)
Charge level LEDs
Micro-USB port (input: 5 V , 2.1 A)
USB port (outlet: 5 V , 2.1 A)
USB port for parallel charging or lighting attachment
Charging cable (USB to micro-USB)
Operating instructions (symbol)
Operation
Check package contents
(See fold-out page for illustrations)
The product includes the following components:
▯ Power bank SPPB 5000 A1
▯ Charging cable
▯ These operating instructions
♦ Remove all parts of the device from the packaging and
remove all packaging materials.
NOTE
► Check the package for completeness and signs of visible damage.
► If the delivery is incomplete or damage has occurred as a
result of defective packaging or during transport, contact the
service hotline (see section Service).
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 7 24.05.17 16:26

SPPB 5000 A1
■ 8 │ GB│IE│NI
Disposal of the packaging
The packaging protects the device from damage during
transport. The packaging materials have been selected
for their environmental friendliness and ease of
disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw mate-
rials and reduces the amount of waste that is generated. Dispose
of packaging materials which are no longer needed in accordance
with applicable local regulations.
Charging the power bank
Before using the power bank, the integrated battery must be fully
charged.
CAUTION
► The power bank must never be charged and used for charging
a mobile device at the same time. The mobile device could
be damaged.
► Due to the high battery capacity and bearing in mind the
charging time, the power bank must be charged using a USB
mains adapter.
► Use only a USB mains adapter with an output voltage of 5V
and an output current of at least 2.1A to charge the power
bank.
► Use only the supplied charging cable to charge/dis-
charge the power bank!
► Always disconnect the charging cable after charging/
discharging!
♦ Connect the USB plug of the charging cable to a suitable
a USB power supply (not supplied).
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 8 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 9■
♦ Connect the micro-USB plug on the charging cable to the
micro-USB charging port on the power bank.
♦ The current charge level is shown during charging by means
of the charge level LEDs .
LED display Charge level
One LED is flashing < 20%
One LED is on, the second LED is flashing 20–49%
Two LEDs are on, the third LED is flashing 50–74%
Three LEDs are on, the fourth LED is
flashing 75–97%
All LEDs are on 98–100%
Checking the charge level
You can also check the charge level of the power bank when it
is not charged or while it is being used for charging.
♦ Press the ON/OFF button briefly.The charge level LEDs
show the current charge level of the power bank for about
30 seconds.
LED display Charge level
All LEDs are on 98–100%
Three LEDs are on 75–97%
Two LEDs are on 50–74%
One LED is on 20–49%
One LED is flashing < 20%
All LEDs off 0%
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 9 24.05.17 16:26

SPPB 5000 A1
■ 10 │ GB│IE│NI
Handling and use
Charging mobile devices with the power bank
♦ Insert the micro-USB plug on the charging cable into the
micro-USB charging port on the mobile device, and insert
the USB plug into the USB port on the power bank.
♦ Press the ON/OFF button to start the charging process.
NOTE
► After removing the lighting attachment , you have the option
of charging a second device parallel to the first one. Keep in
mind that the capacity of the power bank diminishes faster
and the charging times become longer.
CAUTION
► If you charge two mobile devices simultaneously at the USB
ports ( +), the total power consumption of the two
mobile devices must not exceed 2.1 A.
♦ Press the ON/OFF button for approx. 3 seconds to start
the charging process at the USB port .
♦ During the charging process, the current charge level of the
power bank is shown via the charge level LEDs (see table
in the section "Checking the charge level").
♦ To stop charging, disconnect the charging cable from the
mobile device and the power bank. The charge level LEDs
switch off after about 30 seconds.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 10 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 11■
Using the power bank as a light
The power bank has a lighting attachment .
♦ Place the lighting attachment on the power bank.
♦ Press the ON/OFF button for approx. 3 seconds to switch
lighting attachment on or off.
NOTE
► The power consumption of the lighting attachment is
150 mA. When using the lighting attachment , the second
USB port may only be loaded with maximum 1.95 A.
Troubleshooting
The power bank does not charge
♦ Cable connection faulty. Check the connection.
A connected device will not charge
♦ The integrated battery is empty. Charge the battery.
♦ No connection to the device. Check the connection.
♦ Press the ON/OFF button to start the charging process.
♦ The charging current of the connected device is too low
(< 50 mA) or too high (> 2.1 A).
♦ The internal overcurrent protection has been triggered.
Disconnect the attached device and connect the micro-USB
charging port to a power source for a short while (see
section Charging the power bank).
Afterwards, the power bank can be used again.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 11 24.05.17 16:26

SPPB 5000 A1
■ 12 │ GB│IE│NI
Storage when not in use
♦ Store the device in a location which is clean, dry, dust-free
and not in direct sunlight.
♦ For long-term storage, the integrated battery should be fully
charged to extend its operating life.
Cleaning
CAUTION
Possible damage to the device.
There are no serviceable parts or parts requiring cleaning inside
the power bank. Moisture can cause damage to the device.
► To avoid irreparable damage to the device, ensure that no
moisture penetrates the device during cleaning.
► Do not use caustic, abrasive or solvent-based cleaning
materials. These can damage the surfaces of the device.
♦ Clean the housing of the device with a lightly moistened cloth
and a mild detergent only.
Disposal
The symbol on the left showing a crossed-out dustbin
means that this appliance is subject to Directive
2012/19/EU. This directive states that this device may
not be disposed of in normal household waste at the
end of its useful life, but must be brought to a specially set-up
collection point, recycling depot or disposal company.
This disposal is free of charge for the user. Protect the
environment and dispose of this device properly.
You can obtain further information from your local disposal company
or the city or local authority.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 12 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 13■
Appendix
Technical data
Power bank
Integrated battery (lithium ion) 3.7 V/5000 mAh/
18.5 Wh
Input voltage, current 5V ,2.1A
Output voltage, current 5V ,2.1A
Charging time for integrated battery approx. 3.5 hours
Working temperature 5°C–40°C
Storage temperature 0°C–45°C
Humidity (no condensation) 10%–70%
Dimensions (∅ x H) approx. 6.7 x 8 cm
Weight approx. 150 g
Lighting attachment
Input voltage, current 5 V , approx. 150 mA
Working temperature 5°C–40°C
Storage temperature 0°C–45°C
Humidity (no condensation) 10%–70%
Operating time
(fully charged battery) approx. 15 hours
Dimensions (∅ x H) approx. 8.3 x 6 cm
Weight approx. 60 g
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 13 24.05.17 16:26

SPPB 5000 A1
■ 14 │ GB│IE│NI
Notes on the EU Declaration of Conformity
This device complies with the basic requirements and
other relevant provisions of the Electromagnetic
Compatibility Directive 2014/30/EU and the RoHS
Directive 2011/65/EU.
The complete EU Declaration of Conformity is available from the
importer.
Kompernass Handels GmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of
purchase. If this product has any faults, you, the buyer, have certain
statutory rights. Your statutory rights are not restricted in any way
by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase.
Please keep your original receipt in a safe place. This document
will be required as proof of purchase.
If any material or production fault occurs within three years of the
date of purchase of the product, we will either repair or replace the
product for you at our discretion. This warranty service is depend-
ent on you presenting the defective appliance and the proof of
purchase (receipt) and a short written description of the fault and
its time of occurrence.
If the defect is covered by the warranty, your product will either be
repaired or replaced by us. The repair or replacement of a product
does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the
warranty. This also applies to replaced and repaired components.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 14 24.05.17 16:26

SPPB 5000 A1 GB│IE│NI │ 15■
Any damage and defects present at the time of purchase must be
reported immediately after unpacking. Repairs carried out after
expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict
quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults.The war-
ranty does not extend to product parts subject to normal wear and
tear or fragile parts such as switches, batteries, baking moulds or
parts made of glass.
The warranty does not apply if the product has been damaged,
improperly used or improperly maintained.The directions in the
operating instructions for the product regarding proper use of the
product are to be strictly followed. Uses and actions that are dis-
couraged in the operating instructions or which are warned against
must be avoided.
This product is intended solely for private use and not for commercial
purposes.The warranty shall be deemed void in cases of misuse or
improper handling, use of force and modifications/repairs which
have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the follow-
ing instructions:
■ Please have the till receipt and the item number (e.g. IAN
12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving
on the front page of the instructions (bottom left), or as a sticker
on the rear or bottom of the appliance.
■ If functional or other defects occur, please contact the service
department listed either by telephone or by e-mail.
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 15 24.05.17 16:26

SPPB 5000 A1
■ 16 │ GB│IE│NI
■ You can return a defective product to us free of charge to the
service address that will be provided to you. Ensure that you en-
close the proof of purchase (till receipt) and information about
what the defect is and when it occurred.
You can download these instructions along with many
other manuals, product videos and software on
www.lidl-service.com.
Service
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: kom[email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kom[email protected]
IAN 286204
Importer
Please note that the following address is not the service address.
Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE- 44867 BOCHUM
GERMANY
www.kompernass.com
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 16 24.05.17 16:26

SPPB 5000 A1 DE│AT│CH │ 17 ■
Inhaltsverzeichnis
Einführung ................................. 18
Informationen zu dieser Bedienungsanleitung ..............18
Urheberrecht .......................................18
Hinweise zu Warenzeichen ............................18
Bestimmungsgemäße Verwendung ......................19
Verwendete Warnhinweise. . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Sicherheit.................................. 21
Grundlegende Sicherheitshinweise ......................21
Teilebeschreibung........................... 23
Inbetriebnahme ............................ 24
Lieferumfang prüfen ..................................24
Entsorgung der Verpackung............................24
Powerbank laden ....................................25
Ladezustand prüfen ..................................26
Bedienung und Betrieb....................... 27
Mobile Geräte mit der Powerbank laden..................27
Powerbank als Beleuchtungskörper verwenden.............28
Fehlersuche ................................ 28
Lagerung bei Nichtbenutzung ................. 29
Reinigung ................................. 29
Entsorgung ................................ 30
Anhang ................................... 31
Technische Daten ....................................31
Hinweise zur EU-Konformitätserklärung ...................32
Garantie der Kompernaß Handels GmbH.................32
Service ............................................35
Importeur ..........................................35
IB_286204_SPPB5000A1_DE-95x140_LB6.indb 17 24.05.17 16:26
