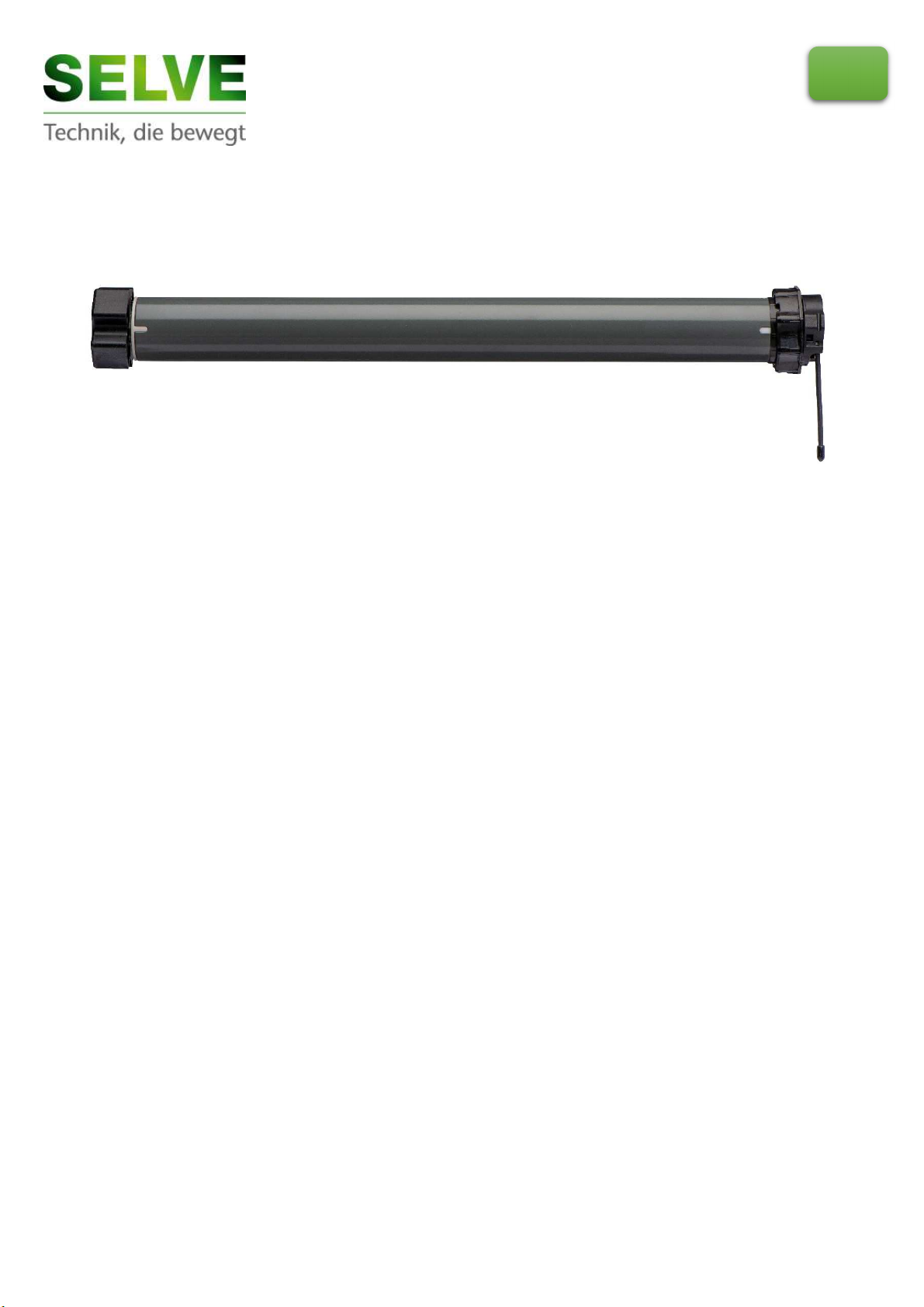

Selve Commeo SE Pro-RC User manual

GB
Quick Start Guide commeo / SE Pro-RC
Contents
1. Connection drive ................................................................................................................. 2
2. Set drive to initial operation and select (SE ECT-mode) ..................................................... 2
3. Funktion in the SE ECT-mode ............................................................................................. 3
3.1. Automatic setup-mode (bottom position, top stop/release) .......................................... 4
3.2. Manual setup-mode (bottom position, top position) ...................................................... 4
3.3. Manual setup-mode (bottom position, top stop/release) ............................................... 4
3.4. Programming/deleting transmitters ................................................................................ 5
3.5. Delete all transmitters in the drive .................................................................................. 5
3.6. Reset the drive in to the factory setting .......................................................................... 5
4. Reset drive with setting cable to factory settings ............................................................... 6
5. Delete all drives in the tansmitter ...................................................................................... 6
6. Set intermediate position ................................................................................................... 7
7. Set ventilation/tilt ............................................................................................................... 7
8. SE VE Service Hotline .......................................................................................................... 8
Release date 09/2019 Reserve technical changes
SE
Pro
-
RC

2
GB
1. Connection drive
Without external s itch / button With external s itch / button
PE
L1
N
M 1
~
N
PE
L
1 2 3 4 5
PE
L1
N
M 1
~
N
PE
L
L
0
1 2 3 4 5
2. Set drive to initial operation and select (SE ECT-mode)
Start SE ECT
-mode
Select the drive
Finish
With po er
failure
Status
-LED  no drive found
Status
-LED  drive found
after that, the status LED flashes slo ly
Status
-LED
goes off
or
Programmed transmitter
Note: In the further instructions, starting and ending the
SELECT-mode is indicated by this symbol.
1: PE, green-yello
2: L1, bro n
3: DOWN, black
4: UP, gray
5: N, blue
Receiver 1
Receiver 2
Receiver 3
Receiver x

3
GB
3. Funktion in the SE ECT-mode
Start SE ECT-
mode
Keypress Adjustment
Automatic setup-mode, deletion and automatic setting of
the end positions
in operation bottom position, top stop/release
(see 3.1.)
Manual setup-mode, deletion and manual setting of
the end positions
in operation bottom position, top position
(see 3.2.)
in operation bottom position, top stop/release
(see 3.3.)
Programming/deleting transmitters (see 3.4.)
Transmitter programmed  Status-LED lights up
Transmitter deleted  Status-LED lights up
Delete transmitter table in the receiver (see 3.5.)
Note: Can lead to errors in more learned transmitters.
Reset the receiver to the factory setting (siehe 3.6.)
Note: Can lead to errors in more learned transmitters.

4
GB
3.1. Automatic setup-mode (bottom position, top stop/release)
Start
Press and hold the buttons.
First drive top stop.
Finish
Drive automatically finds stop positions.
3.2. Manual setup-mode (bottom position, top position)
Start
6 s
Finish
Lo er end position Upper end position
3.3. Manual setup-mode (bottom position, top stop/release)
Start
6 s
Beenden
Lo er end position Upper end position
,
Auto-stop
or
or
or
3 s
3 s
or
or
3 s

5
GB
3.4. Programming/deleting transmitters
Start
Status-LED lights up
Transmitter programmed.
Finish
Status-LED lights up
 Transmitter deleted.
Note: Repeated presses ill transmitter programming and deleting alternately.
3.5. Delete all transmitters in the drive
Start
All transmitters in the drive are
deleted.
Finish
Note: Can lead to errors in more learned transmitters.
3.6. Reset the drive in to the factory setting
Start
The drive is in the factory setting. The end
positions and all transmitters are deleted.
Finish
Note: Can lead to errors in more learned transmitters.

6
GB
4. Reset drive with setting cable to factory settings
Connect setting
cable
> 12 s
The drive makes a short drive and is in
the factory delivery condition.
The end positions and all transmitters
are deleted.
Note: Can lead to errors in more learned transmitters
5. Delete all drives in the tansmitter
All drives and receivers are deleted from the transmitter.
Pressing
simultaneously

7
GB
6. Set intermediate position
Press and hold the
buttons
Release STOP save
the position
7. Set ventilation/tilt
Press and hold the
buttons
Release STOP save
the position
>3 s
>3 s

8
GB
8. SE VE Service Hotline
•Hotline: Phone [phone]
•Do nload the manuals
at www.selve.de or QRscan
SE VE GmbH & Co. KG
Werdohler Landstraße 286
D-58513 Lüdenscheid
Tel.: [phone]
Fax: [phone]
Internet: .selve.de
E-Mail: [email protected]e
