30K Motorcycle Bluetooth Communication System | 9
Product
Details
Package
Contents

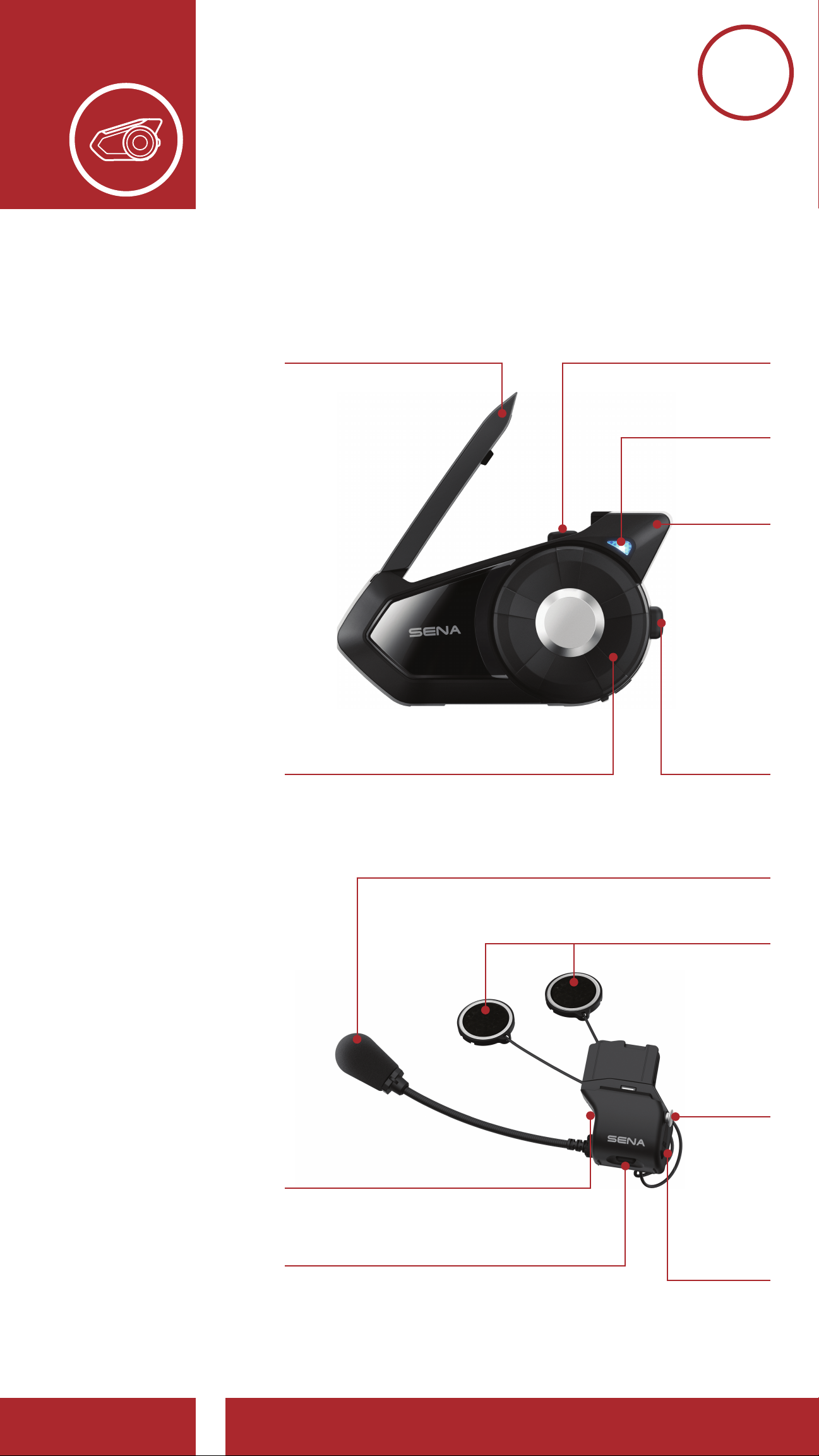

1.1 Product Details
1.1.1 Headset Main Unit
Mesh Intercom Antenna Mesh Intercom Button
Status LED
Bluetooth
Antenna
Phone
Button
Jog Dial
1.1.2 Universal Clamp Kit
Static Boom Microphone
Earbud Port
Speakers
Quick
Release
Button
MP3 Port
Microphone Port
Ambient Mode Button
Speaker Port
1. ABOuT ThE mOTOrCYCLE BLuETOOTh
COmmuNICATION SYSTEm wITh mESh INTErCOm™

MENU
1. ABOUT THE
MOTOrcyclE BlUETOOTH
cOMMUnicATiOn SySTEM
wiTH MESH inTErcOM™
30K Motorcycle Bluetooth Communication System | 10
Product
Details
Package
Contents

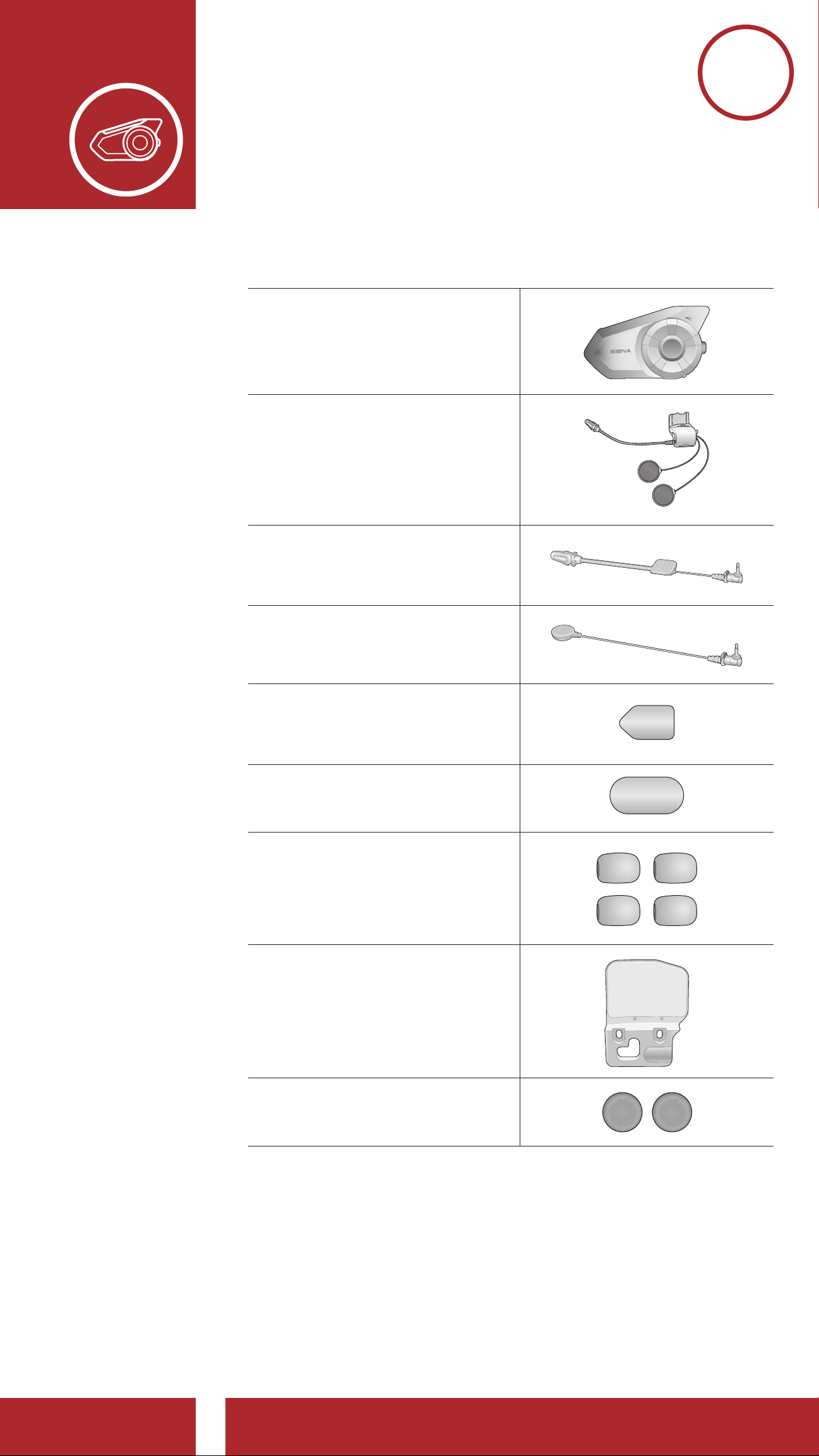

1.2 Package Contents
• 30K Headset Main Unit
• Universal Helmet Clamp
• Wired Boom Microphone
• Wired Microphone
• Hook and Loop Fastener
for Boom Microphone
• Hook and Loop Fastener
for Wired Microphone
• Microphone Sponges
• Glued Surface Mounting
Adapter
• Foam Speaker Covers

MENU
1. ABOUT THE
MOTOrcyclE BlUETOOTH
cOMMUnicATiOn SySTEM
wiTH MESH inTErcOM™
30K Motorcycle Bluetooth Communication System | 11
Product
Details
Package
Contents

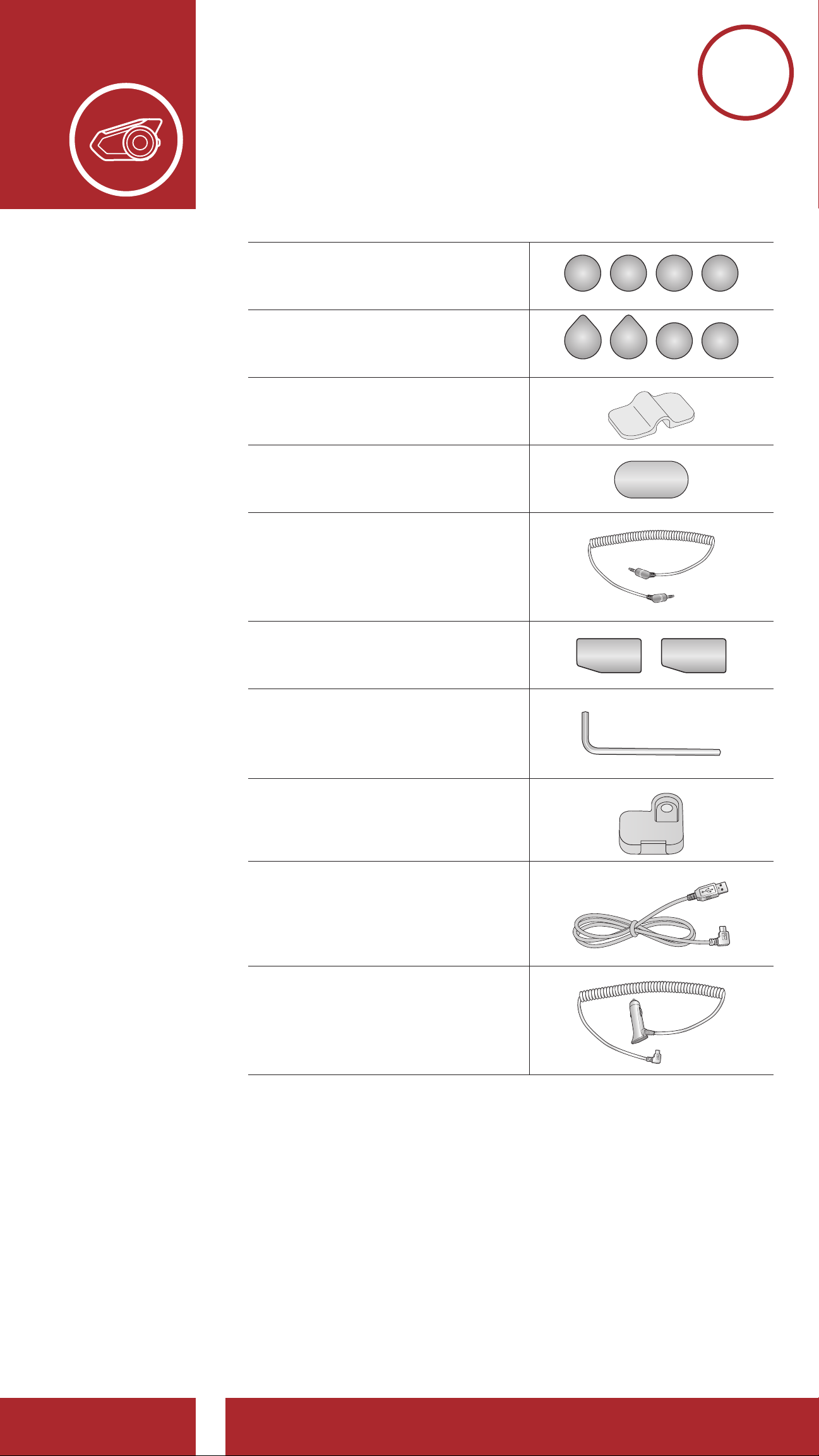

• Speaker Pads
• Hook and Loop Fasteners
for Speakers
• Boom Microphone Holder
• Hook and Loop Fastener for
Holder
• 2.5 to 3.5 mm Audio Cable
• Rubber Pads
• Allen Wrench
• Speaker Port Cover
• USB Power & Data Cable
(Micro USB Type)
• Cigarette Charger

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 12
2. InstallIng the
headset on
Your helmet
MENU
2.1 Helmet Installation
To securely install the headset on the helmet,
please follow this procedure.
1. Insert the back plate of the clamp unit between
the internal padding and the external shell of the
helmet, and tighten the two screws.
Clamp Unit
Allen Wrench
Fin
Hook FastenerFoam Speaker Cover
Note: Depending on the size and shape of your
helmet, you may need to change the thickness of
the rubber pad between the clamp plates using
the two extra rubber pads in the box. To increase
the overall thickness, attach the thinner one to
the original rubber pad or replace the original
rubber pad with the thicker one.
Clamp Unit
Allen Wrench
Fin
Hook FastenerFoam Speaker Cover
2. INSTALLING ThE hEADSET ON
YOur hELmET

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 13
2. InstallIng the
headset on
Your helmet
MENU
2. Place the helmet speakers along with the hook
and loop fasteners, centered to your ear, in the
ear pockets of the helmet. If the helmet has deep
ear pockets, you can use the speaker pads to
place the speakers closer to your ears.
Clamp Unit
Allen Wrench
Fin
Hook FastenerFoam Speaker Cover
Note:
• The speaker with the shorter wire is for the left
ear and the speaker with the longer one is for
the right ear.
• To enhance the audio quality, you can make use
of the foam speaker covers. Cover each speaker
with the foam and attach the hook fastener at the
back of the speaker. Then place the speakers in
the helmet as described above. Foam covered
speakers work most effectively when they are
slightly touching your ears.
Clamp Unit
Allen Wrench
Fin
Hook Fastener
Foam Speaker Cover

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 14
2. InstallIng the
headset on
Your helmet
MENU

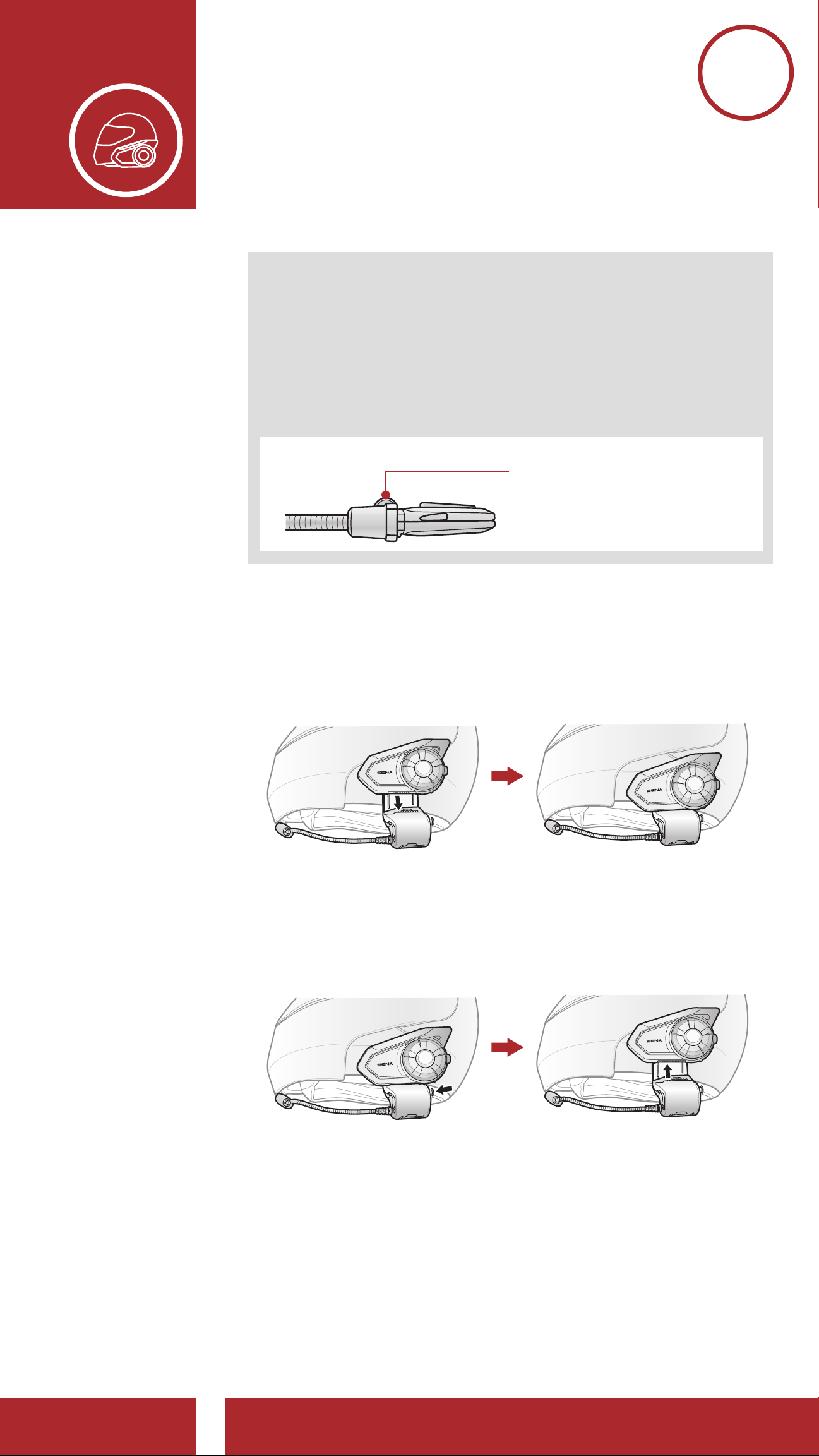

• Make sure that the microphone is located
properly close to your mouth when you
wear the helmet. Adjust the direction of
the microphone so that the n side of the
microphone is facing outward, away from your
lips.
Clamp Unit
Allen Wrench
Fin
Hook FastenerFoam Speaker Cover
3. Attach the headset main unit to the clamp unit.
Slide the main unit down onto the clamp unit
until it clicks rmly into the bottom portion of the
clamp unit.
4. To remove the main unit from the clamp unit,
press the Quick Release Button to slide it off the
clamp unit.

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 15
2. InstallIng the
headset on
Your helmet
MENU
2.2 Using the Glued Surface Mounting
Adapter
If you have any problem equipping the clamp
unit on the helmet for any reason, you may use
the glued surface mounting adapter to attach the
clamp unit on the external surface of the helmet.

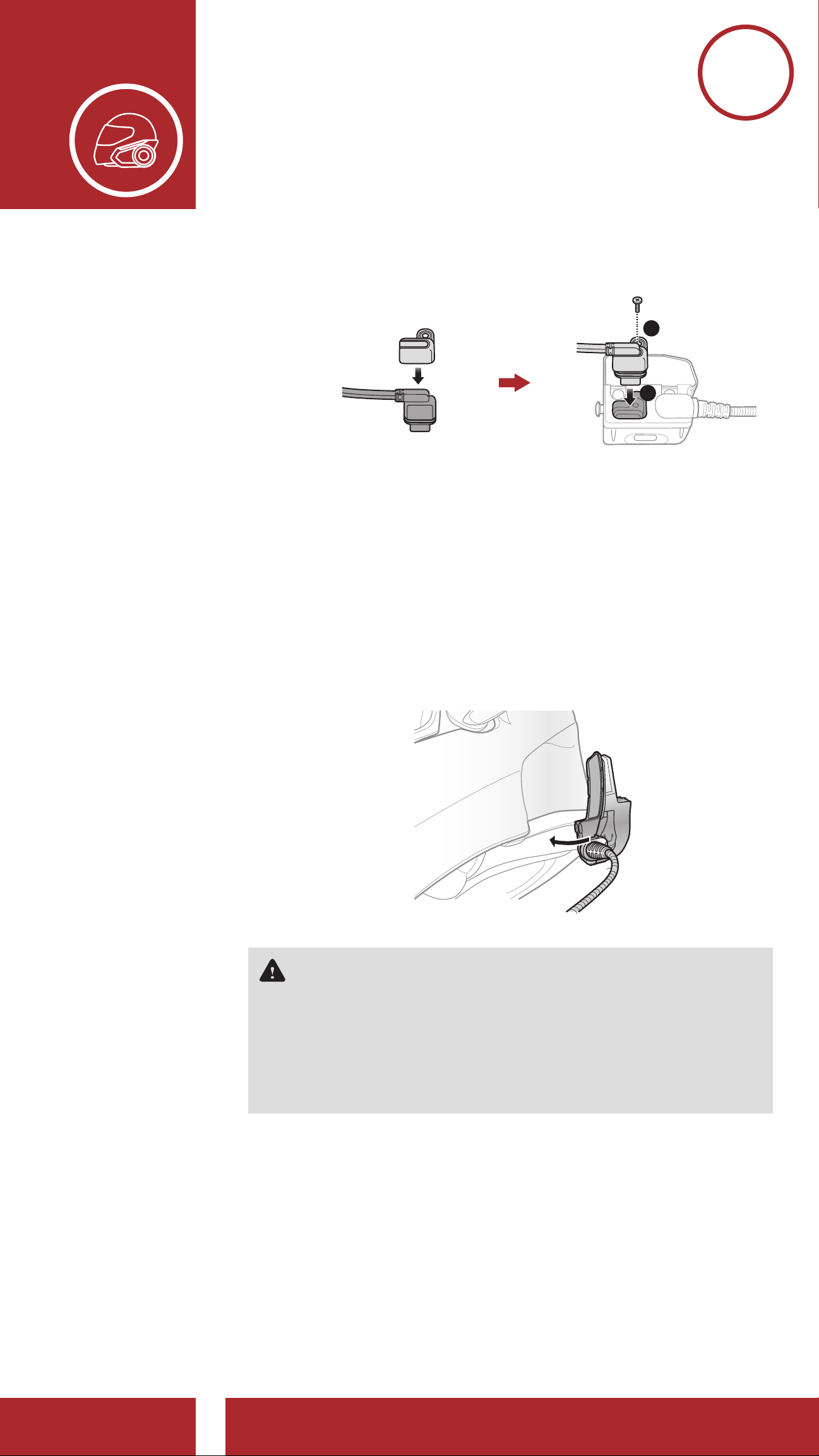

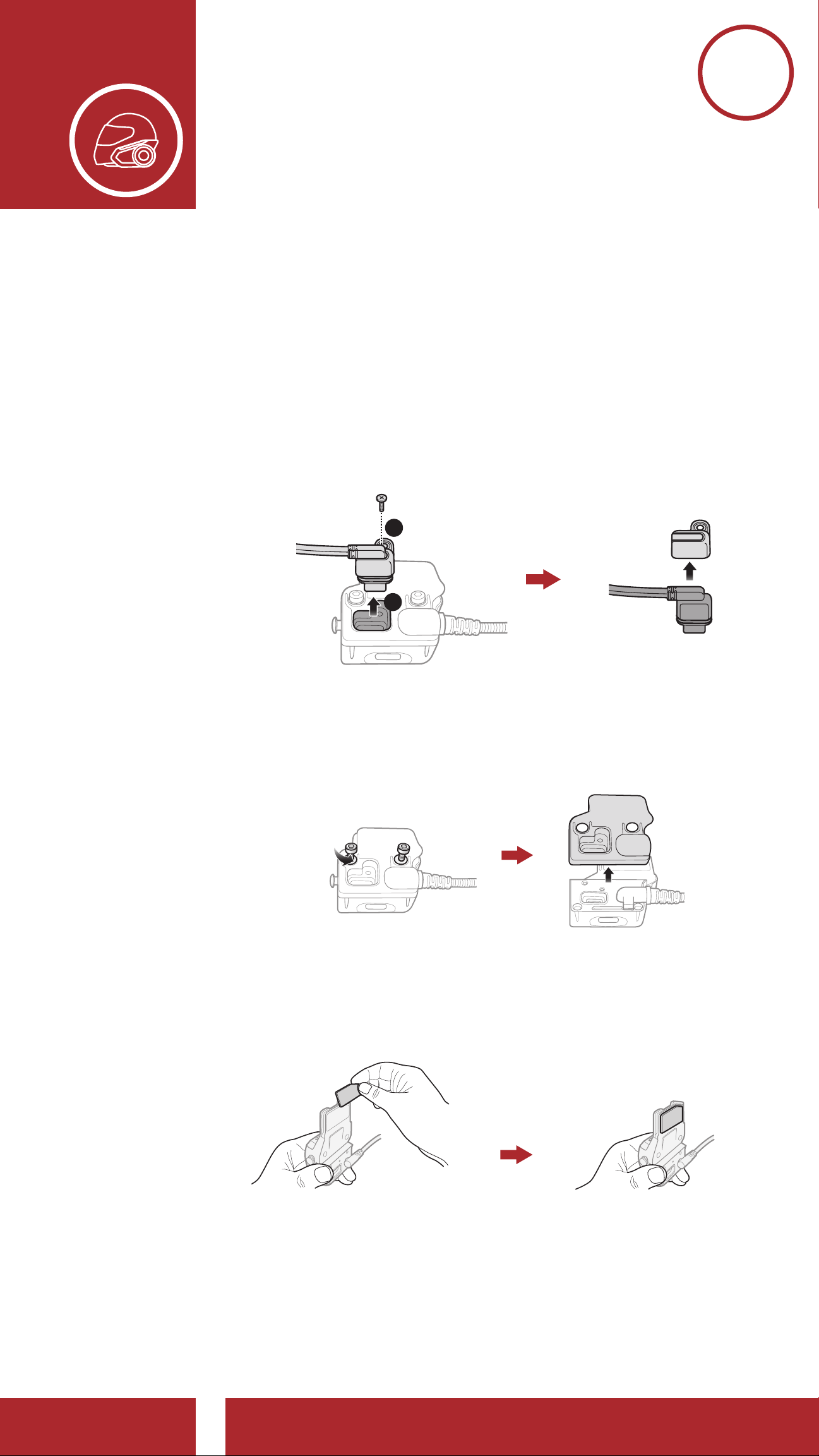

1. Remove the speaker unit.
1
2
1
2
2. Remove the back plate.
1
2
1
2

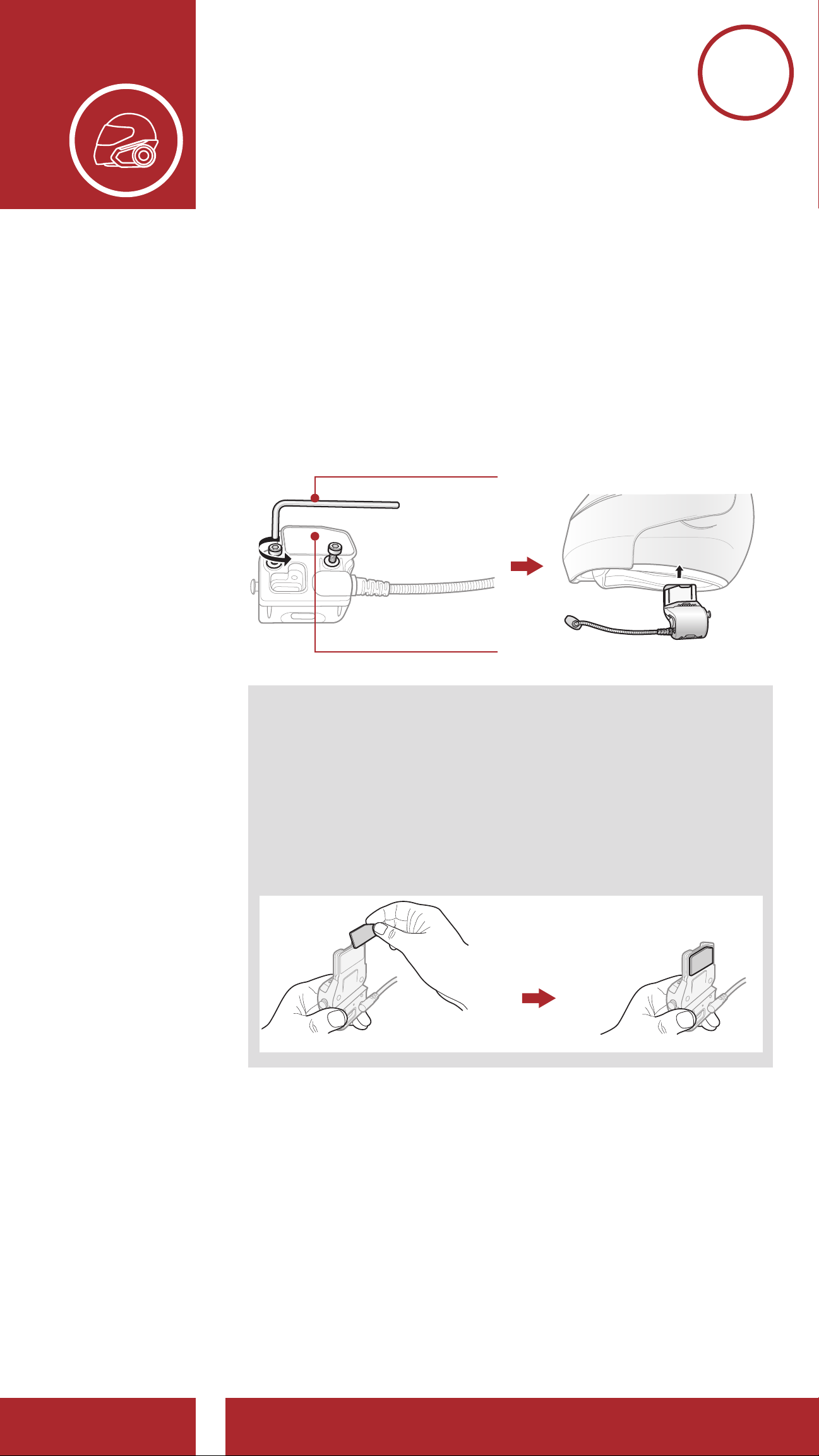

3. Remove the rubber pad and replace it with the
thicker rubber pad included in the package.
Clamp Unit
Allen Wrench
Fin
Hook FastenerFoam Speaker Cover
4. Hook on the adapter to the clamp unit then screw
in the glued external adapter to the clamp unit.

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 16
2. InstallIng the
headset on
Your helmet
MENU
5. Reconnect the speaker cable to the speaker port.
1
2
1
2
6. Locate a proper surface on the helmet to
attach the unit then clean the helmet surface
location with a moistened towel and allow to dry
thoroughly.
7. Peel off the cover of the adhesive tape of the
adapter and attach the unit on the proper surface
of your helmet.
Caution: Sena recommends using the
clamp unit. The glued surface mounting plate
is provided for convenience, but is not the
recommended mounting method. Sena is not
responsible for its use.

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 17
2. InstallIng the
headset on
Your helmet
MENU
2.3 Switching the Microphone
If you want to use a different microphone instead
of the static boom microphone, please refer to the
following steps.

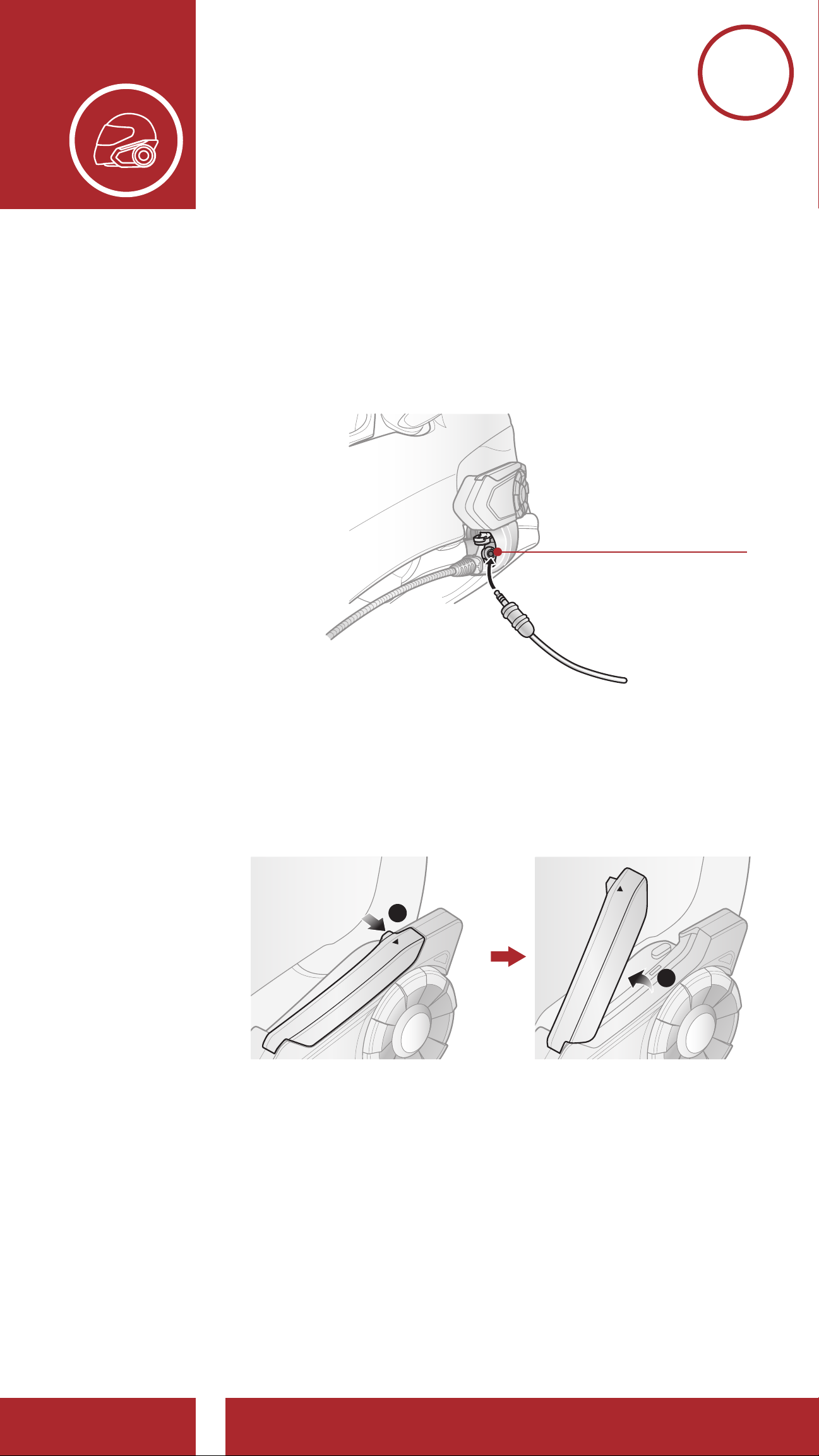

1. Remove the back plate of the clamp unit.
2. Connect the microphone according to your
helmet type.
3. Lock the microphone to the clamp.
4. Reattach the back plate to cover the microphone
and the speaker port.
Speaker Port
Microphone Port

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 18
2. InstallIng the
headset on
Your helmet
MENU

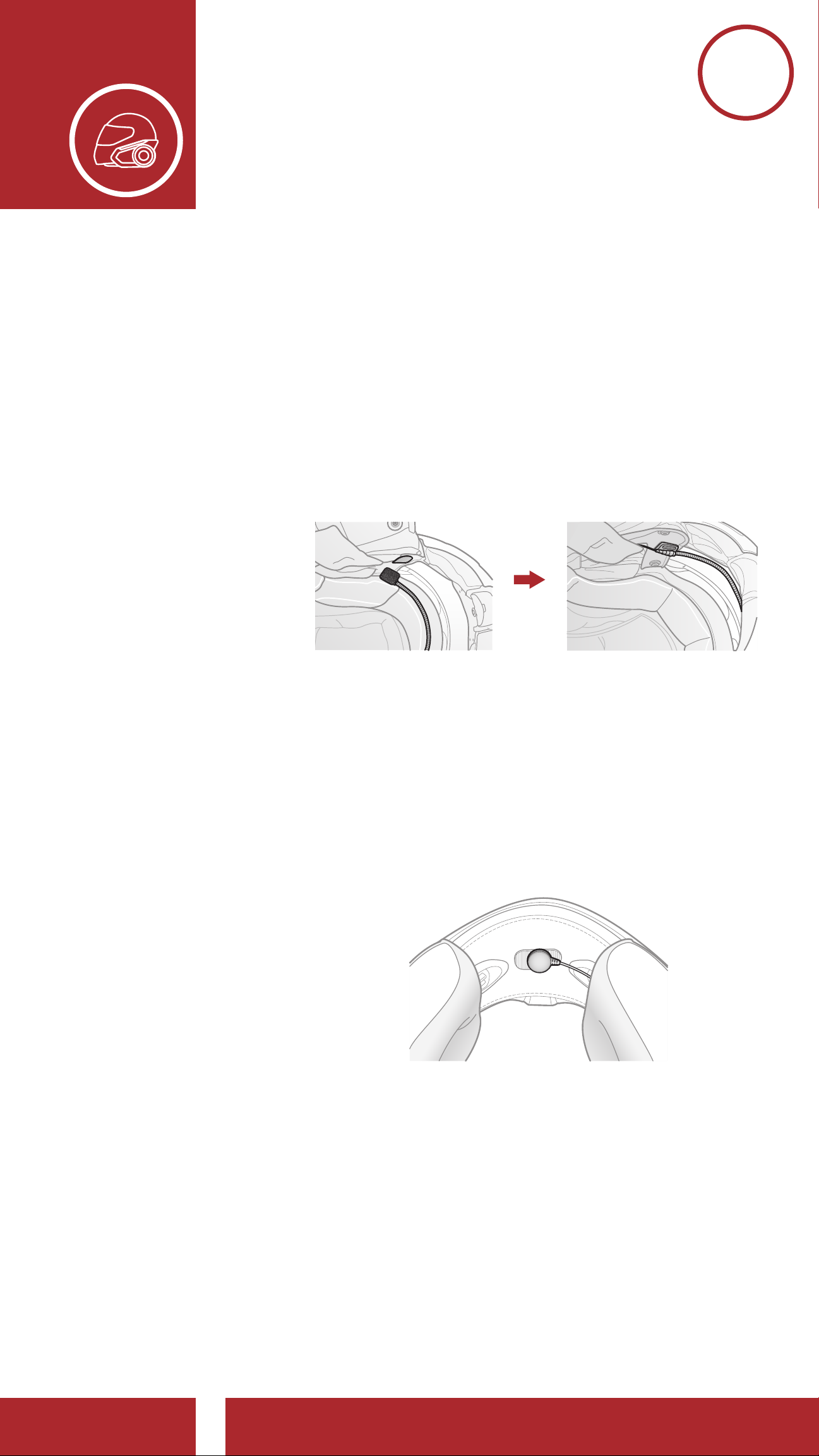

2.3.1 Wired Boom Microphone
When installing the included wired boom
microphone, place the hook and loop
fastener at the end of the boom microphone
between the internal helmet cheek pad and
the internal wall of the helmet shell. The
boom microphone should be mounted so it is
facing close to your mouth when you wear the
helmet.
Speaker Port
Microphone Port
2.3.2 Wired Microphone
In case of the wired microphone, attach the
enclosed hook and loop fastener for the wired
microphone to the inside of the chin guard for
full-face helmets. Place the wired microphone
on the hook and loop fastener and connect it
to the connector of the clamp unit.
Speaker Port
Microphone Port

Helmet
Installation
Using the
Glued Surface
Mounting
Adapter
Switching the
Microphone
Earbuds
External Mesh
Intercom
Antenna
30K Motorcycle Bluetooth Communication System | 19
2. InstallIng the
headset on
Your helmet
MENU
2.4 Earbuds
You can connect your earbuds to the clamp while
having the speakers connected to the clamp. The
sound of the earbuds will be active while the sound
of the outer speakers becomes inactive.
Earbud Port
2.5 External Mesh Intercom Antenna
Pull the Mesh Intercom Antenna outwards slightly
to unfold it.
1
2

Button
Functions
Powering On
and Off
Charging
Checking the
Battery Level
Volume
Adjustment
Downloadable
Sena Software
Configuration
Menu
30K Motorcycle Bluetooth Communication System | 20
3. GettinG Started
MENU
3.1 Button Functions
M
Ambient Mode Button
A
P
Mesh Intercom Button
Phone Button
Jog Dial
Mesh Intercom On/Off
Create Mesh Intercom
Join Existing Mesh
Accept Participant
Reject Participant
Answer/End Phone Call
FM Tuner On/Off
Speed Dial
Ambient Mode
Group Intercom
Voice Command
Increase/Decrease Volume
Play/Pause Music
Track Forward/Back
Scan Radio Stations
Enter Intercom Pairing Mode
Enter Voice Configuration Settings
3. GETTING STArTED
