Senna All Recall Focus Duo User manual
1. Introduction
All Recall Focus is a remote wireless device for control of focus on DSLR cameras. It is especially suitable
when using jibs, sliders and steadicams. The adjustable gear ring, strong motor, and wireless control panel
allow wireless focus control on any lens. Its matchless option of memorizing four different focus positions,
allows automatic recall at any point of shooting with simplistic memory buttons located on the ergonomic
control panel. The system comes with an additional speed reply function as well as recording and trigger
command for Cannon cameras.
1.1Features of All Recall Focus:
- Wireless Range: 300m line of sight
- Remote control of focus
- Memory: 4 points of focus recall and
- Speed reply option
- Adjustable gear ring: Universal gear ring fits any lens
- Night working mode
- Travel Focus Function: In/Out range calibration
- Remote recording and trigger command
1.2 Specifications:
Parameter
Description
Operating voltage
12VDC
Operating temperature
0 ÷ 45 °C / 32 ÷ 113 °F (or more if connected to power
adapters)
Battery
Rechargeable 12V, 1200 mAh
Motor power output
5VDC, 2A max.
Servo motor signal
5V PWM, 40 mA max.
Servo motor torque
≤16 kg /35 Ibs
Servo motor speed
0.19 sec/60° without load
Servo motor range
≤ 320°
IR remote control
Compatible with following Canon:
Canon 5D Mark II, Canon 5D Mark III, Canon 7D
Wireless frequency
431 ÷ 478 MHz, frequency is preset on 433 MHz and
cannot be changed on device, only in factory when
ordering, in steps of 200 KHz (235 channels)
RF modulation
GFSK
Wireless output power
20 mW
Wireless range
up to 300 m/1000 Ft. in open area
Transmitter dimension
3.1'' x 2.75'' x 4.3'' (W x H x D) without antenna
Receiver dimension
3.14'' x 1.77'' x 3.14'' (W x H x D) without antenna
All Recall Focus set includes:
Receiver
Transmitter
Focus motor gear
Rods (⌀15mm)
Camera plate
Receiver/transmitter charger
-
External spare battery
Infrared sensor (REC and trigger)
Adjustable gear ring
2 types of gears (small for DSLR,
bigger for movie cameras)
Spare battery charger
Warranty letter
User Manual
Packaging –Flight case
3. Mounting the All Recall Focus:
3.1 To mount All Recall Focus properly, please follow the steps:
1. Attach the rods on the camera plate
2. Mount your camera on the camera plate
3. Mount the receiver on the rods (it should be turned to the right, as shown on the picture above)
4. Mount the IR sensor for REC/trigger command on the left rod so that it stand right in front of the
sensor of your camera, as it is shown in the picture.
5. Mount the focus motor on the left rod (see the picture above)
6. Connect the motor with the receiver
7. Connect the IR sensor with the receiver
8. Mount the adjustable gear rings on the focus gear on your lens. (Pay attention that the rest of the ring
is turned in the opposite direction from the motor driver)
9. Make In/Out range calibration (See the charter In/out range calibration)
10. Connect focus gear to your lens’ gear. Pay attention: Motor gear spring must be tensed.
For larger lens, when you need longer rod to mount the focus motor gear, you can attach one rod to
another, like shown in the picture:
3.2 Antenna
It is recommended, after all equipment is installed, to turn antennas vertical on both devices. Otherwise
operating range may be decreased
3.3 Motor gear position adjustment:
The Focus motor gear can be adjusted in different positions to fit your lens. See the pictures.

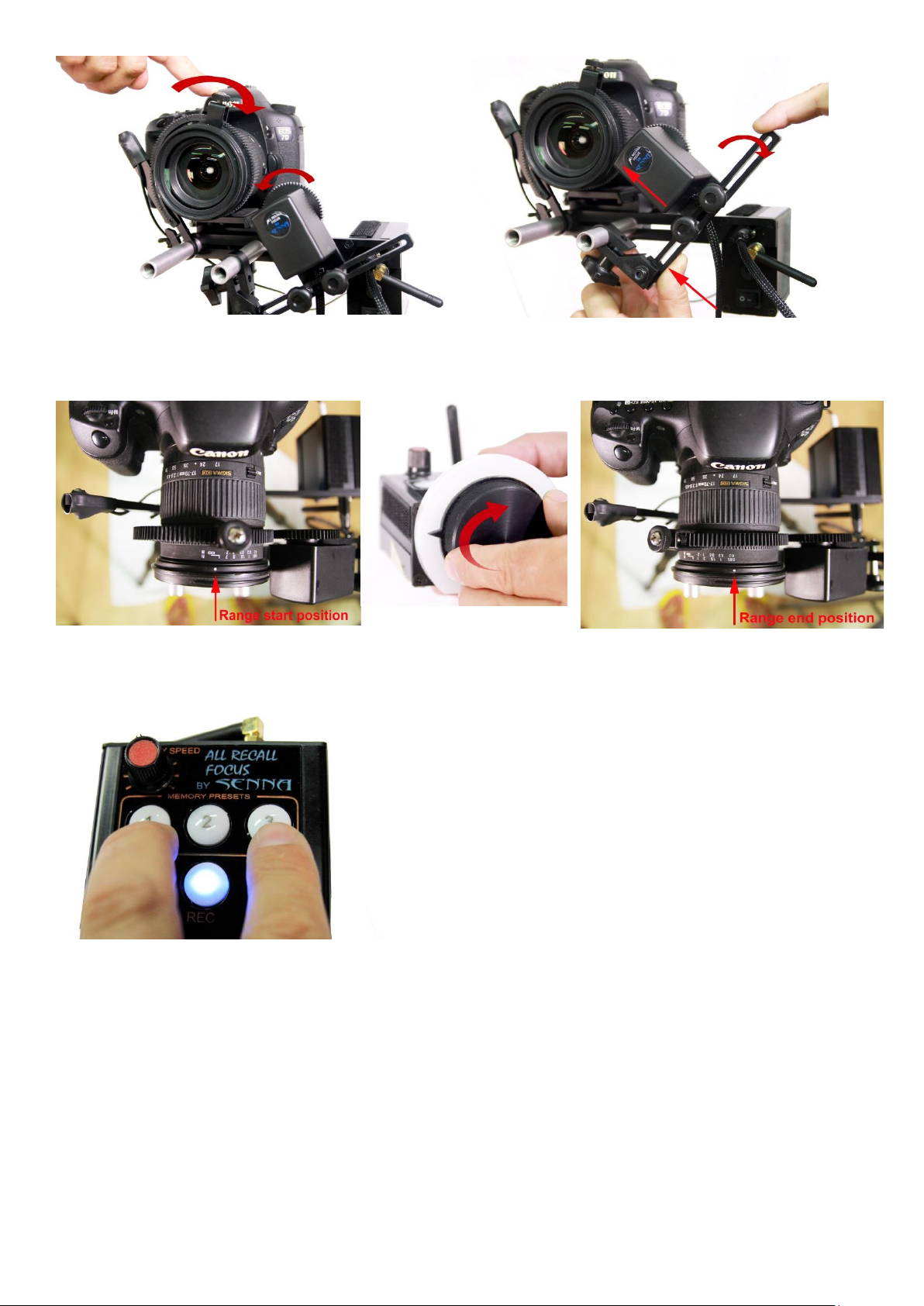

3.4 In/Out range calibration
All Recall focus motor gear has an extended range of 320°. If your camera lens has smaller focus gear range,
it is recommended that you make in/out range calibration, to protect your lens gear from being forced to
move beyond their physical range.
To make range calibration, please follow the steps:
1. Keep the focus gears separated from the lens
2. Turn the focus potentiometer to maximum
position
3. Shortly press memory buttons 1 and 3
simultaneously. (Focus motors now have full
operation range of 320°)
4. Now turn the focus potentiometer to minimum
position and pay attention in which direction All
Recall focus gear is turning.
5. Turn your lens’ focus gear in opposite direction
from the motion of All Recall focus gear until it
has reached the maximum position.
6. Connect motor 1 gear to the lens gear. Pay
attention that motor gear spring is tensed.
7. Turn the focus potentiometers slowly until you have reached the range-end position on your
camera lens. Then stop.
8. Shortly press memory buttons 1 and 3 simultaneously.
The range of focus motor is compatible to your lens range
and you can move it without fear of damaging the lens.
IMPORTANT! You need to repeat this procedure any time
you reattach the focus gear to the lens and also when you
change the lens.
You do not need to repeat the procedure if you have
turned the focus controller off for some time without
separating the gear from the lens.
When the transmitter is turned off, all the settings are
kept in memory.
Possible problem: After you have made range calibration, the motors gear does not spin.
Solution: When this happens, it means that you have probably changed motor gear polarity settings.
To return the motor gear polarity to default, please follow the instructions in the charter 3.5.1 Return
to default motor polarity settings.
If the motor still does not work, after you have changed the polarity, please contact our service.
3.5 Motor gear polarity
Motor-gear polarity is set to default.
If you would like to change the direction of motor-gears you should follow the steps:
1. Keep the transmitter off.
2. Press and hold the button 3.
3. While holding that button 3, switch the transmitter on.
4. Release the button 3.
5. Motor polarity has been changed.
IMPORTANT!
When the polarity is changed, the in/out range calibration must be done the opposite way, meaning that
minimum points should be changed with maximum positions and vice versa.
3.5.1 Return to default motor polarity settings:
To return to default motor-gear polarity settings, please follow the steps:
6. Keep the transmitter off.
7. Press and hold the button 1.
8. While holding that button 1, switch the transmitter on.
9. Release the button 1.
10. Motor polarity has been changed to default.
4. Transmitter
After the power switch on the transmitter and receiver is turned ON, transmitter will start establishing
wireless communication with receiver and memory buttons will flash.
When the memory buttons stop flashing, the light on REC button will continue to shine blue. Wireless
communication between transmitter and receiver is now established.
4.1 To check the status of transmitter’s
battery, please follow the steps:
1. Attach the digital voltmeter to the
transmitter as shown on the picture.
2. Read the battery voltage on the display.
If the voltage is under 10,0 batteries need
to be charged.
If the voltage is near 12,0 batteries are
fully charged.
4.2 Setting the night mode ring
To set the desirable light strength of Night mode
Ring, please follow the steps:
1. Press the REC button, before you switch the
transmitter ON.
2. Keep the REC button pressed and switch the
transmitter ON.
3. The night mode ring will start pulsing.
4. When the ring has reached the desirable strength of
light, release the REC button.
5. Night mode ring is now set to desirable light strength.
5. Receiver
After All Recall Focus receiver is turned on with a power switch, device will go through a short self-testing
and signal and power LED indicators will flash twice. After that, both LED indicators will turn on.
If the receiver fails to establish wireless communication, signal LED light will flash fast.
IMPORTANT! If you do not connect focus motors with transmitter, wireless communication cannot be
established.
6) Functions:
6.1 Changing focus
To move the focus gear on your camera lens, use the big potentiometer at the bottom side of the transmitter.
Position and speed of focus change directly correspond to potentiometer movement.
6.3 Focus memory
Follow the steps below to store 4 different positions of focus:
1. Move the focus potentiometer at the bottom size of the transmitter to reach the desirable position.
2. Press and hold the memory button 1 until all tree memory buttons turn red.
3. Position 1 is now stored in memory, and the memory button 1 shines red. (See the picture below)
4. Move the focus potentiometer at the bottom size of the transmitter to reach the desirable position
2. Press and hold the memory button 2 until all tree memory buttons turn red.
3. Position 2 is now stored in memory, and the memory button 2 shines red. (See the picture below)
7. Move the focus potentiometer at the bottom size of the transmitter to reach the desirable position
2. Press and hold the memory button 3 until all tree memory buttons turn red.
3. Position 3 is now stored in memory, and the memory button 3 shines red. (See the picture below)
10. Press shortly the previously stored memory button, so that its light indicator turns off. (No memory
button should be turned on!)
10. Move the focus potentiometer to the new desirable position. That is the 4th manual focus memory.
11. You have now stored 4 memory positions.
Memorizing 4 focus positions
6.3.1Changing of stored memory position
To save a new focus position on the memory button on which you have already stored one, follow
the steps:
1. Move the focus potentiometer at the bottom size of the transmitter to reach the new position.
2. Press a memory button again and hold it until all tree memory buttons turn red.
3. You have now changed previously stored memory position with the new one, and the memory button
shines red.
6.4 Memory recall
To recall a stored position follow the steps:
1. Shortly press the desired memory button.
2. Memory button will turn green and the gear will reach the stored focus position. (See the picture below)
* To recall the 4th position, follow the steps:
1. Press shortly the memory button which is turned on at that moment. No green light should be turned on.
2. When all memory buttons are turned off, 4th focus memory position is active. (See the picture)
Recalling the stored focus points
6.5 Recall Speed
The speed of change between different memory positions depends on the position of the speed recall
potentiometer. Left end position represents the slowest moving; right end position represents fastest moving.
You can adjust the recall speed during your work and the change will apply immediately.
6.6 Remote REC and trigger command
Communication between rec/trigger
sensor and the camera sensor
IMPORTANT! This option will not be available if
you do not connect the REC/trigger sensor with the
receiver, or if the sensor is not properly mounted (See
the charter mounting the All Recall Focus)
All Recall Focus is equipped with Canon remote controller.
To activate the rec/trigger sensor, please follow the steps:
1. Turn your DSLR camera on.
2. Press AF drive
3. Move the cursor to the third option (timer), as it is shown on the
4. Rec/Trigger command is activated.
6.7 New setup
When All Recall Focus is not in use for longer time, please turn it off to save the battery. When you turn it
on again, all the settings will be kept in memory and it is not necessary to store them again.
7. Batteries
Focus transmitter and receiver work on internal lithium batteries.
Batteries should be charged for 3 hours max.
The capacity of receiver/transmitter batteries is 4 working hours.
IMPORTANT!
DO NOT charge the batteries over night!
DO NOT leave the batteries to get empty completely! You will not be able to charge them again!
When All Recall Focus is not in use for a longer time, please turn it off to save the battery.
If the batteries are empty or broken, you can replace them with external spare battery which is included in
the set. Simply attach it with Velcro strip. See the pictures.
Attaching the spare battery to receiver and transmitter
The capacity of external battery is 4 working hours.
The spare battery should be charged for 3 hours max.
IMPORTANT! When being charged, spare battery should always be turned on.
Always turn the spare battery off when it is not in use or being charged. If it gets empty completely you may
not be able to change it again.
