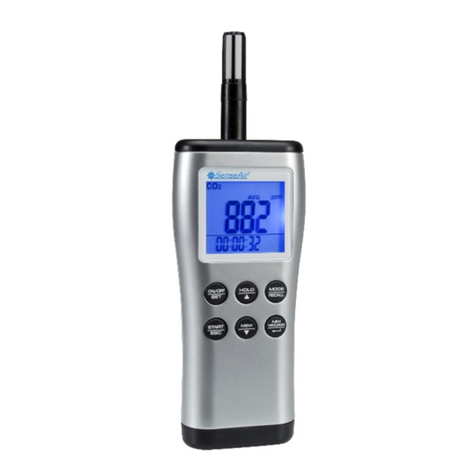

SenseAir pSense II User manual

SHORT INSTRUCTION MANUAL
General description
The is an accurate hand-held datalogger that displays & records relative
humidity, temperature, CO2 and calculated parameters such as dew point and wet bulb.
These short instructions are limited to a description of the main functions and installa-
tion of the device. The detailed instruction manual can be found on the internet at
www.senseair.se
Programming
Most of the settings, such as memory clear, CO2 alarm, units( C/ F), sampling rate,
pressure compensation and real time clock can be changed using the function keys.
Built-in CO2
sensor w/
calibration cap
Battery
compartment
Integrated probe
Tripod hole
Congratulations on your purchase of the new portable humidity, temperature and CO2
instrument. Please read these short instruction carefully before installing the device.
Press to turn the meter on. At power up,
it emits a short beep and performs a 28 sec.
countdown (Fig.1) for meter warm up, then
enters normal mode with real time clock
displayed (Fig.2). Date and time are
displayed in turns.
POWER ON/OFF
SET
ON/ OF F
CO2
AM
Fig.2
To power off, press again to turn off the
meter.
Operation
Fig.1
SET
ON/ OF F
Power Supply
The uses four AA re-chargable batteries as power source. To insert
(replace)the batteries, use the screwdriver enclosed to loose two screws and put in
the batteries in correct polarity with good contact.
Connection to PC or Laptop
Connect the via mini USB cable to a PC or Laptop. Recorded data can be
easily downloaded with the software enclosed.
Please charge the batteries for eight hours on first time use. To charge the
batteries, power off the meter and plug in the 9VDC adaptor enclosed. Wait until
"End" appears on LCD to indicate the charging process is completed
(approximately eight hours).
TAKING MEASUREMENT
The meter starts measurement when power on and update readings every second.
In the condition of operating environment change, it takes 30 seconds to respond
for C sensor. O2
NOTE: Do not hold the meter close to faces in case exhalation affects CO2
%rh
TEMP
O
C
AM
Press to switch to temperatures display (Fig.4,5,6).
The lower display shows the real time clock.
TEMP, DP, WBT
Press to switch the mode to CO2. User can get the
CO reading in ppm unit on main display (Fig.7). The 2
lower display shows the real time clock.
CO2 (CARBON DIOXIDE)
Fig.7
Fig.5
Fig.6
Press to switch to humidity display (Fig.3).The
lower display shows the real time clock.
HUMIDITY
Fig.3
CO2
AM
Fig.4
O
C
AM
DP
O
C
AM
WBT
MODE
RECALL
DATA HOLD
In normal display mode, press to freeze the
readings, "HOLD” icon is flashed on the left top of LCD
(Fig.8). All current readings are kept unchanged.
Press again to cancel the hold function.
Fig.8
BACKLIGHT
HOLD
NOTE:
The hold function is disabled in MIN/MAX/AVG mode.
START
ESC
Fig.9 Fig.10 Fig.11 Fig.12
%rh
HOLD
CO2
AM
CO2
MAX
CO2
AVG
HOLD
The backlight will be activated for 10 seconds by
pressing any key.
MIN/MAX/AVG REVIEW
This meter allows you to check the minimun, maximum,
average and the current value from the moment you
press the key. Under normal mode, each press of
displays the MIN, the MAX, the AVG and the current
value in sequence (Fig.9~11). To return to normal mode,
press to escape(Fig.12)
In the MIN/MAX/AVG mode, it shows the corresponding
readings on main display and the accumulated time of
this mode. The maximum time interval for this function
is 18h.
Press to switch the displayed parameters (Fig.13).
Distinguish the normal display and current review by
checking the time display format. In normal display, date
& time are displayed in turns. In current review, the lower
display is the accumulated time of how long you have
been in MIN/MAX/AVG mode.
MAX /AV G
MIN
NOTE:
“HOLD” & “MANUALLY RECORD” & “RECALL” functions are disabled in
MIN/MAX/AVG mode.
%rh
MAX
CO2
ALARM
The meter features audible alarm to give warnings when CO2 concentration exceeds
the limit. (See “Meter Setup” section for setting alarm threshold). It emits beeps
(about 80dB) when CO2 level goes over the set value and stops only when the
readings fall below the set value. It beeps again when value goes over the limit.
Fig.13
MODE
RECALL
MODE
RECALL
MODE
RECALL
DATE/TIME SETUP
When meter is powered on , hold down for more than two seconds until entering
meter setup mode. Press or key to select the program P80 (rtc) and press
key to enter.
First, choose the time format as 12hour or 24hour by pressing or and then
press to confirm. Second, choose the date format as Month-Day-Year or Day-
Month-Year by pressing or and then, press key to confirm. Now, start to
input the real time clock value from year, month, day, hour, minute to second. Press
or to select and then press to confirm. Press to return to normal.
SET
ON/ OF F
HOLD MEM
MAX /AVG
MIN
START
ESC
HOLD MEM
HOLD MEM
MAX /AVG
MIN
HOLD MEM
MAX /AVG
MIN
MAX /AVG
MIN
UNIT SETUP
When meter is powered on , hold down for more than two seconds until entering
meter setup mode. Press or key to select the program P50 (unit) and press
key to enter.
Press or to select or and then press to confirm. Press to return
to normal.
SET
ON/ OF F
MAX /AVG
MIN START
ESC
HOLD MEM
MAX /AVG
MIN
HOLD MEM oCoF
MAX /AVG
MIN
Functions Key
ON/OFF/SETUP
-Press to turn on or turn off the instrument
-In normal mode, press longer to enter setup mode.
-Press with HOLD key to disable sleep mode
HOLD/UP
-Freezes the current readings
-Cancels data hold function
-Selects unit or increases value in setup
MODE/RECALL
-Press to switch displayed parameter
-Press longer to enter memory recall
START/ESC
-Start automatic logging mode
-Exits setup/recall/logging
MEM/DOWN
-Press to manually record the reading
-Selects unit or decreases value in setup
MIN/MAX/AVG/ENTER
-Activates MIN,MAX,AVG function
-Saves and finishes settings
Display
Upper LCD
Lower LCD
CO2
HOLD
MIN/MAX
AVG
DP
TEMP
WBT
%rh
o o
C/ F
CAL
REC
RECALL
CO2
%rh
TEMP
DP
WBT
O
F
O
C
REC
Recall
AM
MAXMIN
HOLD AVGCAL
PM
Humidity/TEMP/CO2....reading
Real time clock display
Carbon dioxide reading
Readings are hold unchanged
Minimum/Maximum readings
Average reading
Low battery indicator
Dew point temperature
Temperature
Wet bulb temperature
Unit of relative humidity
Celsius/Fahrenheit temperature
In calibration status
In manual/automatic logging status
In manual records recall mode
PC connect port
9VDC adaptor port

AUTO POWER OFF
Fig.14
The meter turns off automatically after 20 minutes of inactivity.
To override the function, first, the meter is in power off status.
Hold down and for two seconds to turn on the meter
until “n” appears (Fig.14).
SET
ON/ OF F HOL D
NOTE:
Auto sleep function will be disabled during calibration &
auto recording mode. Auto sleep function WILL NOT be
disabled automatically via using adaptor.
The sensor has an automatic calibration function to secure long-term accuracy. If a
calibration is desired, press simultaneously for 3 seconds to turn on the
meter and enter calibration mode. Press or key to select 400ppm CO2
calibration (Outside Air calibration). Press to start and see“CAL” and CO2 value
blinking on LCD. Wait about 10 minutes until the blinking stops and the calibration is
completed and back to normal mode. While choose 0ppm CO2 calibration, remove
the cap from meter rear side and plug the CO2 CALIBRATOR pipe into the sensor
hole beneath. Wait about 10 min until the blinking stops and the calibration is
completed and back to normal mode.
MAX/AV G
Humidity Calibration
This meter can be calibrated either via 35% & 80% salt bottle or humidity generator.
o
The ambient condition is recommended as stable 25 C. While the meter is powered
off, plug the sensor probe into 35% salt. Press , , simultaneously for three
seconds to turn on the meter and enter calibration mode. Press or to select
35.0% calibration and press to start. “CAL” and calibrating value are blinking on
the LCD.
CAUTION:
Do not calibrate the humidity without the default calibration salt. Otherwise,
it will cause permanent damage. Contact SenseAir for calibration salt or
services.
Single point calibration will cause error code E11 or non-accurate reading.
Always do dual point calibration to complete a process. Suggest to calibrate
low humidity first.
CO2 Calibration
CAUTION:
Do not calibrate the meter in the air with unknown CO concentration.
2
Otherwise, it leads to inaccurate measurements.
Ensure the batteries are with fully charged during the calibration to prevent
frominterruption or failed calibration. When the accuracy becomes a concern
after long time usage, return to dealers for standard calibration.
Technical Data
Humidity/accuracy:
Trouble Shooting
Error Messages Solution
E01
E33
E02
E 03
E 04
E11
E 31
E32
E33
Temperature/accuracy:
CO2 /accuracy:
Storage and transit:
Operating limit for CO2:
Memory:
Dimensions (LxWxH):
Weight:
Battery type:
DC power type:
PC connection:
CO2 CALIBRATOR: 00-0-0022 Zero Calibration Kit
Optional Accessor y
Art.No.
Batter y low indicator
A battery low icon “ “ appears when the supplied power is too low to maintain a
functional operation. Please plug in the 9VDC adaptor enclosed to charge the batteries.
While charging the batteries, you still can power on the device and operate as usual.
SET
ON/ OF F START
ESC
MEM
HOLD MEM
MIN
When meter is powered on , hold down for more than two seconds until entering
meter setup mode. To exit setup, press to return to normal mode.
Press or key to select the program and press key to select.
The programmable setting flashes on display, press or key to select and
press key to confirm. To leave without saving, press key to return.
DATA LOGGING
The meter can automatically record HUMIDITY/TEMP/CO2 for long term environment
monitor. The memory capacity is 6000 points for each parameter. Users can set up
sampling rate from one second to 4hours, 59 minutes and 59 seconds. The factory
preset rate is 30 second.
START
ESC
REC
Fig.19
CO2
REC
AM
Repeat above to start another run of logging. While the logging
space is full, it shows “FULL”. To terminate data logging, press
for two seconds, -icon stops flashing.
Press key to switch to the mode you want to see. Except the
mode switching function, auto power off, MIN/MAX/AVG,
manual record, hold and recall functions are all disabled during
logging.
REC
START
ESC
MODE
RECALL
Meter Setup
SET
ON/ OF F
START
ESC
HOLD ME M
MAX/AV G
MIN
HOLD MEM
MAX/AV G
MIN START
ESC
P10, 99 points MEMORY clear
P11, choose yes or no
Note:
“ “is displayed while
memory is cleared.
P20, auto LOG data clear
P21, choose yes or no
Note:
“ “is displayed while
memory is cleared.
P30, CO2 ALARM setup
P31, choose from 100
to 9900
Note:
-Factory preset 1400ppm.
-Adjustable scale is every
100ppm
o o
P51, choose C or F
Note:
o
-Factory preset C
P50, Temp. UNIT setup
oCoF
P61, choose from
04:59:59 to
00:00:01
Note:
-Factory preset at 30 sec.
-The format is
hour:minute:second
P60, logging sampling RATE
P71, choose from
700 to 1990hpa
Note:
-Factory preset at 1013hpa
-The adjustable scale is
every 1hPa.
P70, PRESSURE compensation
MANUALLY RECORDING
REC
MEM
HOLD
MEMORY RECALL
In normal or hold mode, press key for more than two seconds until the -icon
flashes. Press or to scroll the memories. The memory sequential number
displays on main LCD first and reading comes after (Fig.16 &17). Press key to
switch the display parameter (Fig.18).The time displayed in memory recall mode is
the recording time of this entry.
Recall
HOLD ME M
Fig.15
REC
AM
MODE
RECALL
Fig.16
Recall
Fig.17
CO2
Recall
Fig.18
Recall
%rh
MODE
RECALL
After sampling rate is selected, press for two seconds under normal mode to start
logging. The -icon flashes to indicate the logging status and LCD main display
shows the real time value. Lower displays are real time clock (Fig.19).
To setup the sampling rate, when meter is powered on , hold down for more than
two seconds until entering meter setup mode. Press or key to select the
program P60 (rAtE) and press key to enter.
Press or to select the sample rate from hour, minute to second and then press
to confirm. Press to return to normal.
SET
ON/ OF F
MAX /AVG
MIN
START
ESC
HOLD MEM
MAX /AVG
MIN
HOLD MEM
The meter features a 99 point memory. In the normal or hold mode, press key
to start recording, the -icon and the main display will be flashed three times. The
memory sequential number will show on the main display with 99 points in maximum.
The data in the memory contains all parameters information and not only the displa-
yed parameter. When all 99 points memory are occupied, a “FULL” message will be
displayed on the screen. If you think the reading is changing too fast, you can press
key to freeze current reading first then manually record the data. This recording
function will be disabled in the MIN/MAX/AVG mode.
P40, CO2 ABC setup
P41, Choose on or off
Note:
-Factory preset ABC
function as ON
SET
ON/ OFF START
ESC
MEM
HOLD MEM
MAX/AV G
MIN
®
SenseAir AB
Stationsgatan 12
Box 96
820 60 Delsbo
Phone: [phone]
Fax: [phone]
0.1% to 99.9%/ ±3.0%(10~95%@25 °C), ±5% (other)
o o o
-20 to 60 C/+0.3 C@5~40 C
0 to 9999ppm/+(30ppm+5% of reading)@0~5000ppm
o
-20 to 60 C/10 to 90%rh, non-condensing.
o o
0 to 50 C, non-condensing / Electronics: -20 to 60 C
99 manual records, 18000 data logging records.
234x77x42 [mm]
200g
Four pcs AA re-chargable batteries
9VDC, 500mA (Standard accessory).
mini USB port
Turn off meter and re-start again
or re-charge the battery
Retry CO calibration
2
Put meter in normal condition
Put meter in normal condition
Solve the original data error
Retry humidity calibration
Return for repair
Return for repair
Return for repair
CO2 sensor is out of order
or the battery is too low
CO sensor is out of order
2
measured value is under range
measured value is over range
Original data error results in
this error (DP, WB)
RH calibration error
Temp. sensor or AD damaged
Memory IC damaged
RH sensor or circuit damaged
P81, choose 12 or 24
hour format
Note:
-Factory preset at 12H &
dd-mm-year format.
P80, REAL TIME CLOCK setup
choose DATE
format
Input Year/
Month/ Day
year
month
date
Input Hour/
Min./Sec.
Hour
Minute
Second
or
