Sensidyne 80570 Installation manual

REF 360-0138-01 (REV B)
NEPHELOMETER
OPERATION MANUAL
16333 Bay Vista Dr. • Clearwater, FL 33760 USA
800-451-9444 / 727-530-3602
www.Sensidyne.com • [e-mail]

Page 2 of 22 Nephelometer Operation Manual 360-0138-01rB
Copyright Notice
Sensidyne Nephelometer Operation Manual
© Copyright 2010 Met One Instruments, Inc. All Rights Reserved Worldwide.
No part of this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any other language in any form by any means
without the express written permission of Met One Instruments, Inc.
Technical Support
Should you require support, please consult your printed documentation to resolve your
problem. If you are still experiencing difficulty, you may contact a Technical Service
representative during normal business hours—7:30 a.m. to 4:00 p.m. Eastern Standard
Time, Monday through Friday.
Sensidyne, LP
16333 Bay Vista Drive
Clearwater, Florida 33760 USA
800-451-9444
727-530-3602
727-539-0550 [Main fax]
727-538-0671 [Service fax]
e-mail: [email protected]
web: www.Sensidyne.com

360-0138-01rB Nephelometer Operation Manual Page 3 of 22
Safety Notice
The contents of this manual have been checked against the hardware and software
described herein. Since deviations cannot be prevented entirely, we cannot guarantee
full agreement. However, the data in this manual is reviewed regularly and any
necessary corrections included in subsequent editions.
Faultless and safe operation of the product presupposes proper transportation, storage,
erection and installation as well as careful operation and maintenance. The seller of
this equipment cannot foresee all possible modes of operation in which the user may
attempt to utilize this instrumentation.
The user assumes all liability associated with the use of this instrumentation. The seller
further disclaims any responsibility for consequential damages.
NOTICE
CAUTION—Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
WARNING—This product, when properly installed and operated, is
considered a Class I laser product. Class I products are not
considered to be hazardous.
There are no user serviceable parts located inside the cover of this device.
Do not attempt to remove the cover of this product. Failure to comply with this
instruction could cause accidental exposure to laser radiation.
This system contains a laser operating at 655 nm. This wavelength is visible to the
naked eye and can cause damage to the eye if directly exposed. A protective housing
protects the unit. To avoid the possibility of accidental exposure, always power down
the system any time service or repair work is being preformed.
Repair of instrumentation manufactured by Met One Instruments should only be
attempted by manufacturer trained service personnel.

Page 4 of 22 Nephelometer Operation Manual 360-0138-01rB
Electrical & Safety Conformity
The manufacturer certifies that this product operates in compliance with the following
standards and regulations:
•FDA / CDRH This product is tested and complies with 21 CFR, Subchapter J, of
the health and Safety Act of 1968.
•European Community (CE) Directive 89/336/EEC
EN 55011 Group 1, Class B (Emissions) and EN 55082-1 (Immunity)
•IEC 60825-1 Ed.1.1 (1998-01)
•EN 60825-1 W/A11 (1996)
•US 21 CFR 1040.10
DISCLAIMER
THE SELLER ASSUMES NO RESPONSIBILITY WHATSOEVER, TO ANY PARTY WHOSOEVER, FOR ANY
PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH RECEIVED BY OR RESULTING FROM, IN WHOLE,
OR IN PART, THE IMPROPER USE, INSTALLATION, OR STORAGE OF THIS PRODUCT BY THE USER,
PERSON, FIRM, ENTITY, CORPORATION OR PARTY NOT ADHERING TO THE INSTRUCTIONS AND
WARNINGS IN THIS MANUAL, OR OTHERWISE PROVIDED BY THE SELLER OR FROM NOT ADHERING
TO ALL FEDERAL, STATE, AND LOCAL ENVIRONMENTAL AND OCCUPATIONAL HEALTH AND SAFETY
LAWS AND REGULATIONS.
THE SELLER SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL OR
OTHER DAMAGES RESULTING FROM THE SALE AND USE OF ANY GOODS AND SELLERS’ LIABILITY
HEREUNDER SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF ANY GOODS FOUND DEFECTIVE.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE OR FOR A
PARTICULAR PURPOSE WHICH ARE EXPRESSLY DISCLAIMED.

360-0138-01rB Nephelometer Operation Manual Page 5 of 22
Table of Contents
1. Safety ..................................................................................................................... 6
1.1. Safety Indicators........................................................................................................................6
2. Setting Up .............................................................................................................. 7
2.1. Unpacking..................................................................................................................................7
2.2. Familiarization ...........................................................................................................................8
2.3. General Information...................................................................................................................9
2.3.1. General Information ............................................................................................................9
2.3.2. Environmental Factors........................................................................................................9
2.3.3. Sheath Air ...........................................................................................................................9
2.3.4. Automatic Power Saving.....................................................................................................9
2.3.5. Selectable Sample Modes................................................................................................10
2.3.6. Utility Software..................................................................................................................10
2.4. Operation.................................................................................................................................11
2.5. Start Sample Event..................................................................................................................12
2.6. Select Key................................................................................................................................13
2.7. Set Environment Screen..........................................................................................................14
2.8. Set Sample Mode Screen........................................................................................................14
2.9. Zero Calibration.......................................................................................................................14
3. Trouble Shooting and Maintenance................................................................... 15
3.1. Errors and Alarms....................................................................................................................15
3.1.1. Battery Alarm ....................................................................................................................15
3.1.2. Laser Current Error...........................................................................................................15
3.1.3. Counter Error ....................................................................................................................16
3.1.4. Memory Error....................................................................................................................16
3.2. Battery Pack ............................................................................................................................17
3.3. Filter.........................................................................................................................................18
3.4. Service Schedule.....................................................................................................................19
3.5. Service Schedule Table...........................................................................................................19
3.6. Troubleshooting.......................................................................................................................20
4. Specification........................................................................................................ 21

Page 6 of 22 Nephelometer Operation Manual 360-0138-01rB
1. Safety
1.1. Safety Indicators
This manual uses a CAUTION and a WARNING indication.
Familiarize yourself with the following definitions for the meanings of these
indicators.
A CAUTION indicates a hazard and calls attention to a procedure that if not
correctly followed could result in damage to the instrument. Do not proceed
beyond a caution indicator without understanding the hazard.
A WARNING indicates a hazard to you and calls attention to a procedure that if
not correctly followed could result in injury or even death. Do not proceed beyond
a warning without understanding the hazard.

360-0138-01rB Nephelometer Operation Manual Page 7 of 22
2. Setting Up
2.1. Unpacking
When you unpack the Nephelometer and accessories, inspect the carton for
obvious damage. If the carton is damaged notify the carrier. Unpack everything
and make a visual inspection.
You should have the following:
1. Nephelometer
2. 100-240 VAC to 8.4 VDC Lithium Ion Smart Charger w/ power cord
3. USB Communications Cable
4. Zero Cap with storage bag
5. Operation Manual
6. Nephelometer Calibration Certificate
7. CD containing companion software
8. Sheath-Air Filter with storage bag
If any of the above components are missing contact your supplier.
Keep the carton and packing material for reuse.

Page 8 of 22 Nephelometer Operation Manual 360-0138-01rB
2.2. Familiarization

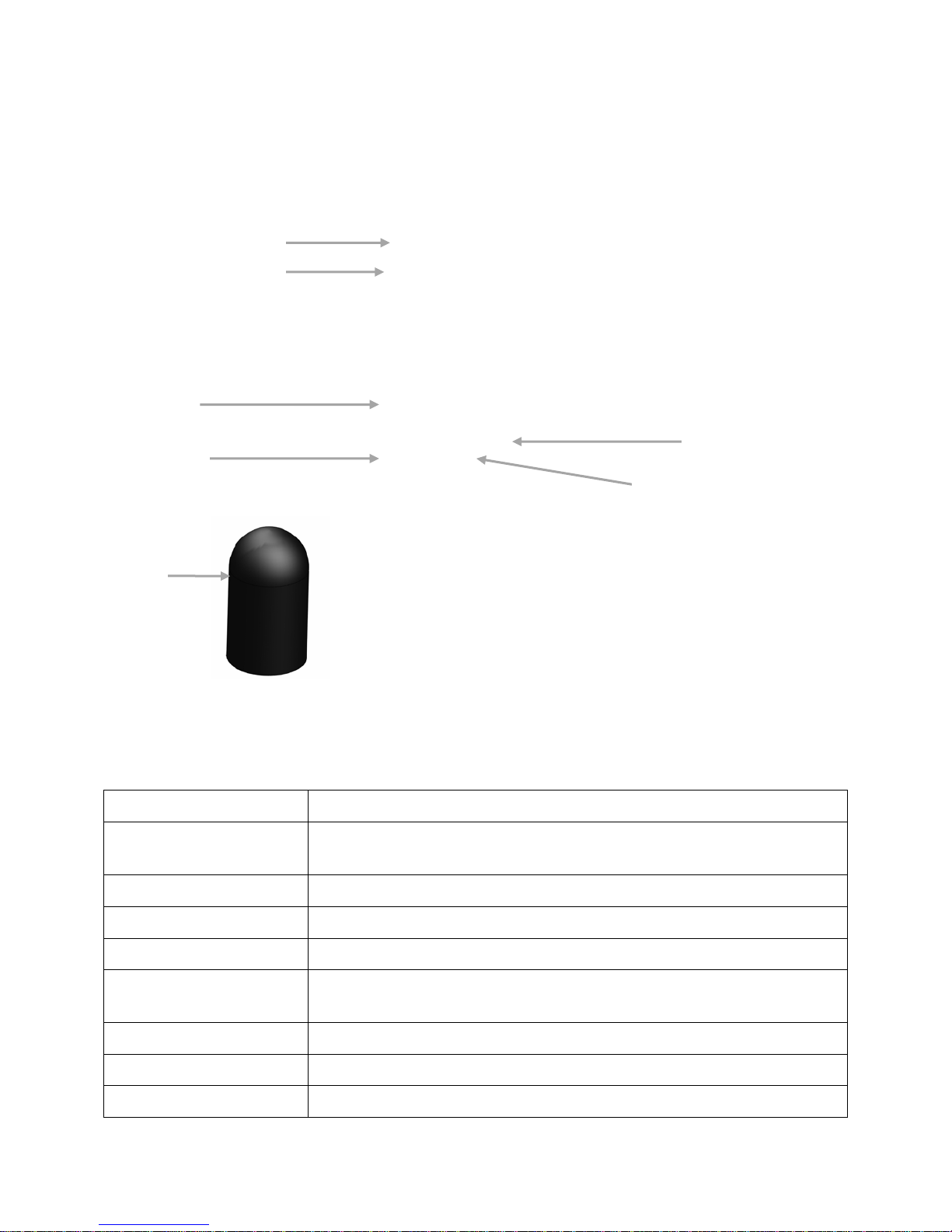

Item Description
Charging Jack Plug Lithium Ion charger module into the jack to charge the
batteries.
Protective Inlet Cover Protects the unit from dust entering inlet during storage.
Iso-kinetic Inlet Reduces count errors due to mismatched sample flow velocity.
Flow Adjust Adjusts the flow rate of the unit. Factory Set.
USB Port (not shown,
on reverse side) For downloading of data and unit set up.
ON/OFF Sample Button to turn unit ON and Off and to start new sample.
Select / Mode Button to select Environment and operation mode .
Zero Cap Rubber cap used for zeroing instrument.
Iso-kinetic Inlet
Flow Adjust
Charging Jack
Protective Inlet Cover
Zero Cap
ON/OFF / Sample
Select/Mode

360-0138-01rB Nephelometer Operation Manual Page 9 of 22
2.3. General Information
2.3.1. General Information
The Nephelometer measures particulate in the air using a laser engine.
Laser light is scattered by the particles in the view volume and detected by
a photo detector. This information is then multiplied by a K factor and
displayed on the screen and logged as a sample event.
The Nephelometer logs each sample event into memory; data is
transferred to a computer using the companion software. A cable is
supplied for connection to the USB port on the user’s computer. Each
sample event records a time, date, serial number, environmental setting
and an average concentration.
Several special features have been included in the 80570 that make it
easy to use.
2.3.2. Environmental Factors
Environmental Factors allow the user to match the Nephelometer to
specific conditions of the area to be monitored. Each Environmental
Factor has a name and a correction factor (K factor) for the specific
environment. These Environmental Factors provide the best accuracy,
and are particularly valuable when diverse environments are measured.
Ten Environmental Factors may be stored in the Nephelometer; the ten
factors are selected by using the companion software and selecting from
the 99 user created factors in the software, each with name, description,
and correction factor.
2.3.3. Sheath Air
Air is drawn in through the top mounted inlet and then the sample air is
surrounded by a sheath of clean filter air. This sheath protects the sensor
from contamination. The inlet may be closed to keep particulate out of the
sensor during periods when the unit is not in operation.
2.3.4. Automatic Power Saving
The unit will power down when the unit is not sampling and no key press
or communication activity for 5 minutes.

Page 10 of 22 Nephelometer Operation Manual 360-0138-01rB
.
2.3.5. Selectable Sample Modes
In MANUAL (M) mode a timed one minute measurement cycle begins and
upon completion of the measurement cycle, the collected data is stored.
During the measurement cycle the real time data is displayed, at the end
of the measurement cycle the average concentration is displayed until the
operator either pushes Start/Stop again or the Select button is
depressed.
In CONTINUOUS (C) mode samples are taken as above, however, the
unit will continue to make 60 second measurement cycles until the
Start/Stop sample key is depressed.
In STEL (S) mode 60 second samples are taken for a 15 minute period
and upon completion the unit will stop sampling.
2.3.6. Utility Software
The supplied software is designed to simplify set-up operations and to
download data records from the Nephelometer into a standard data file.
Refer to 360-0139-01 for software operation.
.

360-0138-01rB Nephelometer Operation Manual Page 11 of 22
2.4. Operation
The battery pack inside the Nephelometer should be charged for 2.5 hours prior
to use (WARNING: see section 3.2 – Battery Pack for instructions and safety).
Press the Start/Stop button to turn the unit on. The startup screen will appear
for 3 seconds followed by the main screen.
Startup Screen
Main Screen
The first line on the display shows the sample concentration in micrograms-per-
cubic-meter (ug/m3). The letter in parenthesis (M) at the right hand side of the
first line indicates the Sample Mode. This value will be M, C, or Sfor Manual,
Continuous or STEL modes respectively.
The second line on the display shows the ENVIRONMENTAL FACTOR NAME
and during operation will show status/progress. An operational progress bar is
displayed while the unit is sampling.
1,234 ug/m3 (M)
ENVIRONMENT 1
SENSIDYNE
NEPHELOMETER

Page 12 of 22 Nephelometer Operation Manual 360-0138-01rB
2.5. Start Sample Event
Before sampling, remove the zero cap (store cap in storage bag) and open the
protective inlet cover by sliding the hood down.
Press and release the Start/Stop key to start a sample event. The following
screens illustrate the operation of the MANUAL (M) sampling. If the Start/Stop
button is depressed during a measurement cycle, the measurement will stop and
data will not be stored for that measurement.
The concentration reading is updated every second.
After the sample event is complete the display will look as follows.
1,234 ug/m3 (M)
ENVIRONMET 1
12 ug/m3 (M)
███▌
0 ug/m3 (M)
|
0 ug/m3 (M)
STARTING
Progress Bar.
Open Inlet
Zero Cap

360-0138-01rB Nephelometer Operation Manual Page 13 of 22
2.6. Select Key
There are two parameters which can be set using the Select Key. One allows the
user to select the Environment factor and the other allows the user to select the
Sample Mode.
The Select Key can only be used when the unit is not sampling.
Pressing the Select key will display the Select screen. This screen allows the
user to choose which setting to change. The preference is given to the Set
Environment screen as this is the parameter likely to be changed the most.
The select screen is shown below.
Select Screen
Releasing the Select Key within 3 seconds will bring up the Set Environment
Screen
Holding the Select Key down for 3 seconds will change the display to Set
Sample Mode as shown below.
Sample Screen
Releasing the Select Key will bring up the Set Sample Mode screen
SET ENVIROMENT
SET SAMPLE MODE

Page 14 of 22 Nephelometer Operation Manual 360-0138-01rB
2.7. Set Environment Screen
Here the ENVIROMNENT setting can be changed.
Pressing the Select key will cycle the Environment setting through the available
selections.
The Main screen will be displayed after 3-seconds of no key presses.
Pressing the Start/Stop key at anytime will display the Main screen and start the
sample event.
Releasing the Select key will bring up the Set Sample Mode screen
2.8. Set Sample Mode Screen
Here the SAMPLE MODE setting can be changed.
There are three choices for Sample Mode.
Pressing the Select key will cycle the Sample Mode setting through the available
selections, Manual, Continuous and STEL.
The Main screen will be displayed after 3-seconds of no key presses.
Pressing the Start/Stop key at anytime will display the Main screen and start the
sample event.
2.9. Zero Calibration
The 80570-8200 software will place the unit into a zero calibration mode.
The display indicates the following when zero calibrating. This process is
completely automated and only requires the user to install the zero cap over the
inlet.
0 ug/M3
Zero Calibrating
SET SAMPLE MODE
MANUAL
SET ENVIROMENT
FIRE

360-0138-01rB Nephelometer Operation Manual Page 15 of 22
3. Trouble Shooting and Maintenance
There are no user serviceable parts inside of the unit.
3.1. Errors and Alarms
Certain operational failures are displayed and recorded in the Alarm Log. In the
event of one of the following errors, the error is shown on the second line of the
display. Typical display with error is shown below.
3.1.1. Battery Alarm
A low battery condition is checked for when the unit is sampling. When the
battery voltage goes below 6.0 volts the Sample will be stopped and Low
Battery will be displayed. This alarm is logged in the Alarm Log.
3.1.2. Laser Current Error
Laser current is measured (IOP) and if the current exceeds a preset value
the alarm is triggered. As the laser degrades, it takes more and more
current to maintain the same output level. When it fails altogether, the
current will go to maximum.
The unit will display SENSOR FAULT and operation will be suspended.
Only the Power button will be active to turn off the unit. This is due to the
nature of the fault. The unit is not capable of taking valid measurements if
this occurs. This alarm is logged in the Alarm Log.
1,234 ug/m3 (M)
SENSOR FAULT
1,234 ug/m3 (M)
Low Battery

Page 16 of 22 Nephelometer Operation Manual 360-0138-01rB
3.1.3. Counter Error
The output of the optical engine is a frequency. There is always frequency
of >1000 pulses per second regardless of actual concentration measured.
If the output falls below this value the sensor is no longer functioning
correctly.
The unit will display SENSOR FAULT and operation will be suspended.
Only the Power button will be active to turn off the unit. This alarm is
logged in the Alarm Log.
3.1.4. Memory Error
Each time a record is written to memory the memory is validated for
proper function. If this process fails the unit will no longer be able to
record new data records.
The unit will display MEMORY FAULT and operation will be suspended.
Only the Power button will be active to turn off the unit.
1,234 ug/m3 (M)
MEMORY FAULT
1,234 ug/m3 (M)
SENSOR FAULT

360-0138-01rB Nephelometer Operation Manual Page 17 of 22
3.2. Battery Pack
WARNING: There are no user serviceable components inside the
Nephelometer. Do not attempt to change the internal battery pack. The wrong
battery pack could cause serious damage, a fire, or explosion. The
Nephelometer should be sent to a service center where a factory qualified person
would change and properly dispose of the battery pack.
This device contains Lithium Ion battery technology and should only be charged
with the supplied 8.4 VDC Lithium Ion Smart Charger unit. Never connect a
power source greater than 8.4 VDC to this device.
When the battery is low enough to need charging, a “Battery Low” message is
displayed on the display and the pump will not turn on when the Start/Stop key
is pushed.
To charge the battery pack, plug the 8.4 VDC Lithium Ion Smart Charger unit into
an AC power outlet. The module is universal and will work with power line
voltages of 100 to 240 volts, 50 to 60 Hz. Take the barrel connector on the end of
the cord coming from the Charger module and plug it into the charger input
socket on the side of the Nephelometer (See section 2.2 Familiarization). To fully
charge a discharged battery pack should take around 2.5 hours.
NOTE: After the batteries are completely charged, the smart charger will stop
charging. The next time it is used, it must be disconnected from AC power, and
then reconnected to the AC outlet to restart the charge cycle.
The battery pack inside the Nephelometer when fully charged will power the
Nephelometer for about 10 hours of continuous use. Under normal intermittent or
manual operation however, there is considerably less battery drain and up to 25
hours of use is possible.
If the Nephelometer is to be used powered by its battery pack on a daily basis,
connect the charger after every few days of usage, or as needed.

Page 18 of 22 Nephelometer Operation Manual 360-0138-01rB
3.3. Filter
The Nephelometer has a 0.2 micron filter to produce the clean air for the sheath
system. This filter will normally need to be changed on an annual basis but may
require a more frequent change if used in extremely dirty environments.
Remove the filter element by unscrewing the filter holder cap. Replace filter and
install filter holder cap.

360-0138-01rB Nephelometer Operation Manual Page 19 of 22
3.4. Service Schedule
WARNING: There are no user serviceable components inside this instrument.
The covers on this instrument should not be removed or opened for servicing,
calibration or any other purpose except by a factory-authorized person. To do so
may result in exposure to visible laser radiation that can cause blindness.
Sensor, vacuum pump requires access to the inside of the Nephelometer and a
factory-authorized person must do this. Contact Sensidyne, LP for service
information, including a Return Material Authorization (RMA) Number.
Calibrating the Nephelometer requires specialized equipment and a skilled
technician. Sensidyne, LP maintains a calibration facility for calibrating particle
counters according to industry-accepted methods like ASTM and traceable
standards. The sensor in the Nephelometer should be calibrated on a yearly
basis.
3.5. Service Schedule Table
Item To Service Frequency Done By
Filter yearly Customer or Factory Service
Inspect pump Yearly Factory service only
Test battery pack Yearly Factory service only
Calibrate Sensor Yearly Factory service only

Page 20 of 22 Nephelometer Operation Manual 360-0138-01rB
3.6. Troubleshooting
WARNING: There are no user serviceable components inside this instrument.
The covers on this instrument should not be removed or opened for servicing,
calibration or any other purpose except by a factory-authorized person. To do so
may result in exposure to visible laser radiation that can cause blindness.
A factory-authorized person should perform replacement of the sensor, vacuum
pump, filter or any component inside the Nephelometer.
Symptom Possible Cause Correction
Does not turn on, no
display 1. Low battery
2. Defective Battery 1. Charge battery 2.5 hrs 2. Send to service center
Display turns on but
pump does not 1. Low Battery
2. Defective pump 1. Charge battery 2.5 hrs 2. Send to service center
Keypad functions do not
Work Loose connector or
defective component
inside
Send to service center
Sample result remains
at zero after sampling 1. Pump stopped
2. Laser diode bad 1. Send to service center 2. Send to service center
Sample result is lower
than normal
1. Something may be
stuck in the inlet
nozzle and blocking
the beam
2. Contaminated optics
in sensor
1. Blow into nozzle with a
can of ‘Aero Duster’.
2. Send to service center
Sample result is higher
than normal 1. Air leak in sensor
2. Noisy laser 1. Send to service center 2. Send to service center
Battery pack does not
hold a charge
1. Defective or worn out
battery pack
2. Defective power
cords
3. Defective charger
module or chords
1. Send to service center
2. Check with an Ohm-
meter
3. Contact your distributor
to get another charger
