SenTech SURACELL iSOBER 200 User manual



User’s Manual
New Type of Premium Breathalyzer

Introduction
With new Fuel Cell Sensor Technology SURACELL™, breathalyzer iSOBER 200 is
designed to high-quality professional use to check a person’s alcohol concentration fastly &
accurately.
The device has 2 operation modes to handle various measurement environments: passive
testing and automatic testing. The passive testing result will be displayed as 3 levels (0 -
Lo-Hi) according to the preset limit with using reusable blow cap. Automatic testing requires
to use disposable mouthpiece and result will be displayed as numbers until 0.100%BAC
(0.100 %BAC or more will be displayed as “HI”) So the user could select operating mode
along with their testing conditions.
With breathalyzer iSOBER 200, the alcohol levels of 12 people can be measured per
minute and the device has a manual sampling function so it is possible to check the alcohol
level of specific drinks or unconscious subject.
The blow cap and the disposable mouthpiece are easily replaceable for hygienic use, and
the built-in magnets make it attachable to the vehicle’s roof and preventing damage to the
equipment while the police conduct roadside tests. The LED lighting can also be used in
various ways at night operation.
Up to 5K measurement results can be recalled by connecting to PC software. The reminder
function also indicates the calibration warning and grace period of calibration warning,
making it much more convenient.
Parts name
2
Reusable blow cap
LED Lighting
Imprinted 3 decimal point
Magnet installed
(Rear side)
Micro USB port
for PC connecting
Lighting / Up button
White FND display
Power / Confirmation
/ Passive test button
Setting / Down button
Battery cover &
handle
Slotted screw
(e.g. Displaying
010 means 0.010%BAC)

Safety information : please read before using iSOBER 200
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
ㆍ
Always use genuine Sentech USA INC accessories. Use imitation items for the device may
not give you a proper result, or they may damage the device.
Recalibrating the device or modifying the device’s hardware and software from unofficial
sources may damage the device.
Wait at least 20 minutes after eating or drinking before testing. Alcohol remaining in the
mouth, or even excess saliva, may interfere with testing. This includes alcohol-based
mouthwash or similar products, which include any alcohol ingredient.
Avoid testing in high wind or enclosed spaces. Poor ventilation may also lengthen the time
required for warm-up between tests.
Do not blow smoke, saliva or other contaminants into the sampling hole, as the sensor may
become damaged.
Hold the device at straight to the subject for accurate results. The others may not give you
correct results.
Poor handling, physical impact, or electrical shock causes most premature device failures.
Do not store the device at extreme temperatures, direct sunlight, dirt and dust
Store the device beyond children’s reach.
Any service in regard to the device should be performed by authorized service partners.
Battery safety information
Do not disassemble the batteries!
Only replace with batteries of the same type, never use different types of batteries together
or used batteries with new ones.
Replace al the batteries at the same time!
Keep batteries out of children’s hands!
Do not use manganese batteries!
Do not attempt to recharge Alkaline batteries! There is a risk of explosion!
Do not insert the battery into the opposite electrode (see the diagram on the rear-side label)
Please remove all the batteries when not using it for a long period!
If it may cause to the leakage from batteries, please avoid contact with eyes, skin and
mucous membranes! If battery liquid comes in contact with any of these body parts, rinse
the affected region with a sufficient amount of clean water and seek medical attention
immediately!
3
Contents
iSOBER 200 1pc, Blow cap (Basic pack: 3pcs/Advanced pack: 10pcs), Disposable
mouthpiece 5pcs, Micro USB cable 1pc, Handstrap 1pc, User manual 1pc
*For the PC software download,
please visit at www.sentech-usa.com (or www.isoberusa.com) or contact the local service provider

*Manual sampling activation:
if the subject did not breathe out hard enough, or when checking the alcohol content of a
drink, press the power button once on “go” status. Manual sampling result will be always
displayed as 3 levels 0.00 (Zero), Lo (Low), Hi (High)
Unit operation
1. Press the power button
2. ~ 3. If you keep press the power button, “L” and the last test result will be displayed
4. Battery level will be indicated: High or Middle or Low
5. Warming up status
6. “go” means ready to test. Maintain a subject to be ready to blow
7. The test result will be displayed in 2 modes:
Passive mode (result in Zero- Low- High) or Automatic mode (result in numeric values)
*To set the testing mode, please check “Display mode setting” on Page 5.
7-1. 7-2. 7-3. Passive mode: 0.00 (Zero), Lo
(Low), Hi (High)
=>Attach the black blow cap and maintain a
subject to blow cap area 0.5~1 inch and blow
steadily into device’s sampling hole for at least 2
seconds until hearing click-crack sound.
7-A. 7-B. 7-C. Automatic mode: Numeric value
displaying until 0.10 % BAC
=>Remove the black blow cap and attach the
white disposable mouthpiece on the sampling
hole. blowing through the mouthpiece into the
unit for at least 2 seconds until hearing click-crack
sound.
* If the result is higher than 0.10 %BAC, display
will shows “HI” without numeric value
4
1.
7-1. 7-2.
Passive mode Automatic mode
7-A. 7-B. 7-C.7-3.
2. 3. 4. 5. 6.

Device setting menu can be entered by keep pressing on state
*If you want back to state in setting menu, keep pressing together
0. Last Result Check
1. Counting of Test Numbers Check
2. Display Mode Setting
last 12 hours
After calibration
*Alternating displays
000.300 = Tested 300 times
003.300 = Tested 3,300 times
0, Lo (Low), Hi (High) displaying
Total numbers
Passive mode
Automatic mode
*the lastest test result
*Dot on the display means the thousands
Numeric values: 0.000 ~ 0.099 %BAC
“HI” displaying: 0.100 %BAC or more
Device Settings
5

6
3. LED Lighting Mode Setting
All LED OFF
Only test result LED ON
*Refer to LED operation chart
Device off after 30 seconds
Device off after 60 seconds
Device off after 300 seconds
Device off after 600 seconds
Device off after 900 seconds
All LED ON
4. Automatic Device Off time Setting

Test result displaying 1 second
* Shorter displaying time means faster testing is available !
Test result displaying 2 seconds
Test result displaying 9 seconds
Remaining DAYS before
calibration required date
300 DAYS left until calibration

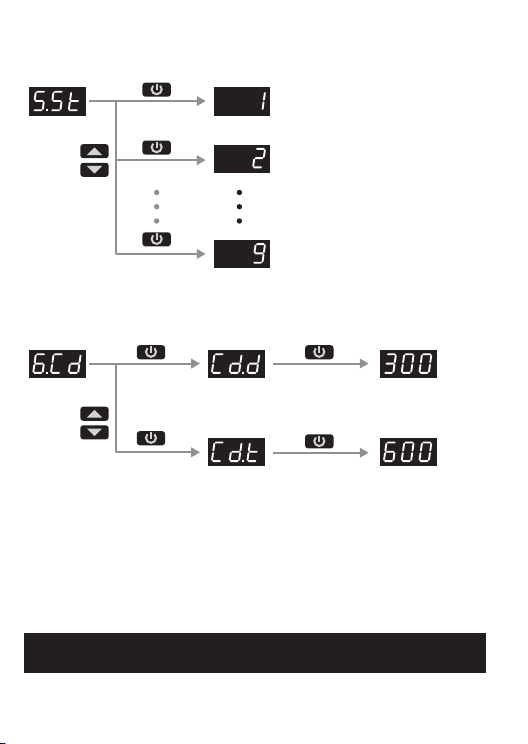

5. Test result displaying time Setting
7. Calibration reminder check
What if the device passed calibration DAYS or COUNTS?
->DAYS or COUNTS of grace period will be activated and the numbers of “remaining DAYS or COUNTS”
to the calibration lock will be displayed initially whenever the device is powered on
What if the device passed grace period of calibration DAYS or COUNTS?
->Device will be “calibration locked” so please contact local service provider
*Calibration lock: Device is locked and can not operate anymore so device needs to be
recalibrated to maintain its accuracy and sustainable operations
Remaining COUNTS before
calibration required date * In the COUNTS displaying, the number in the tens is omitted
ex) Displaying 200 means 2000 COUNTS
600 COUNTS left to calibration
7

8
Go to the previous mode on the setting menu
*Short cut key to go to mode: keep pressing together
Running out of batteries and need to replace batteries to the new one
*Replace all batteries at a time
Too low temperature to operate
the device. It will apprear below
than 23°F (-5 ℃)
DAYS of calibration grace period activated
CA.d and specific numbers left DAYS to calibration lock will be displayed alternatively
The device needs to have calibration service before calibration lock
Device is in calibration lock status. Contact technical service provider
COUNTS of calibration grace period activated
CA.t and specific numbers left COUNTS to calibration lock will be displayed alternatively
(001 = 10 COUNTS left)
The device needs to have calibration service before calibration lock
Closing to the calibration required DAYS (e.g. d.30 means 30 days left to calibration required days)
It will ONLY appear warming up status when the device is turned on
Closing to the calibration required COUNTS (e.g. t.99 means 990 test counts left to calibration
required counts) It will ONLY appear warming up status when the device is turned on
Battery level indication
It will ONLY apprear warming up status when the device is turned on
Device is under calibration grace period (DAYS or COUNTS)
Device need to have calibration service before calibration lock
Flow error: the breath sample was not strong enough
Blow strong and steady during sampling
USB cable is connected to the device
Err1 error: Pressure sensor damaged so contact technical service provider
PC software is connected to the device
Low battery level indication while the device is ready to blow status.
The status bar is moving and batteries need to be replaced
immediately * Low battery level indication could be displayed
under WHITE LED status due to power consuming on WHITE LED is
much bigger than other colors of LED
Too high temperatrue to operate
the device. It will apprear above
than 131°F (55 ℃)
Displays on iSOBER 200

Err2 error: Alcohol sensor damaged so contact technical service provider
Err3 error: Timer or battery for the timer damaged so contact technical service provider
Err5 error: Memory damaged so contact technical service provider
Err8 & Err9 error: Calibration error so contact technical service provider
Device is ready to OFF
Press power button once to off the device. Device OFF
SuracellTM sensor (Fuel Cell sensor)
AA Size Alkaline Battery 6EA
Or Rechargeable Battery 6EA
0.84 lb / 380 g (Including batteries)
10.86 X 1.75 X1.75 Inches / 276 X 44.5 X 44.5mm
Zero : Green / Low : Red / High : Blinking Red
0.000/Lo/Hi or Numeric values
Zero : 1 Beep sound
Low : Repeating short Beep sound
High : long Beep sound
Within 10 seconds
Within 2 seconds (at 0.000% BAC)
12 times / 1 minute
23 ℉~ 131 ℉(-5°C ~ 55°C)
14 ℉~ 140 ℉(-10°C ~ 60°C)
Blow cap (Replaceable & washable passive cone type)
Disposable individual packed mouthpiece
Adjustable 30 to 900 seconds
Adjustable 1 to 9 seconds
Every 5,000 tests or 12 months whichever comes first
(Factory Default)
Built-in Magnet
Reminder for calibration & Grace period
Manual LED lighting: White, Red blinking, Red, Red & blue
Sensor Type
Battery
Weight
Size
Test result
Warming up time
Time for analysis
Maximum test
Working temperature
Storage
Mouthpiece
Auto power OFF
Duration time for display
Calibration period
Additional Function
Specification
LED Alert
FND display
Buzzer alarm
9

10
1. Loosen the slotted screw anticlockwise with coin or appropriate tools and remove the Battery cover

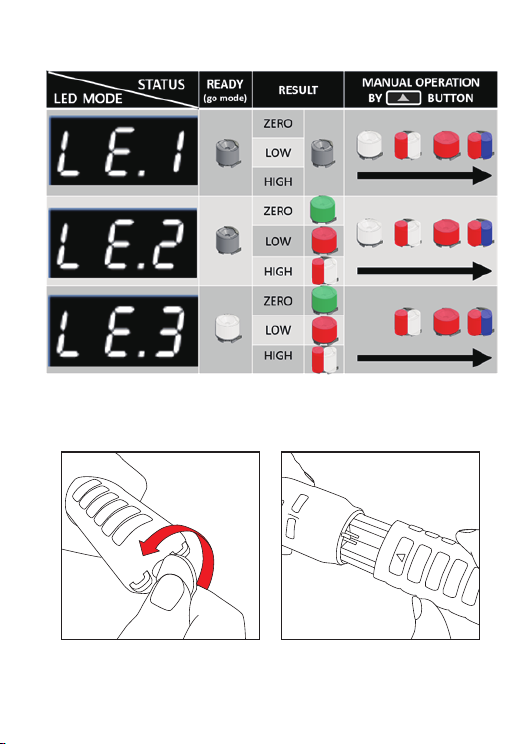

LED operation chart: LED mode setting & manual LED operation
Changing Batteries

2. Replace new six 1.5V Alkalnie Batteries (LR06,AA) or rechargeable batteries. Please make sure the insrting
3. Put the battery cover (Arrow upward) align the protrusion with the slot on the device and tighten clockwise
the slotted screw with coin or appropriate tools
batteries are the right ways (follow the batteries diagram on the rearside label)
Batteries position
Left side The Back side Right side
+
+
+
+
AA
+
AA
+
11
Warranty coverage
Limited ONE year warranty
Sentech USA INC warrants this product against defects in materials and workmanship under normal
use for a period of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser
(“Warranty Period”). Except as provided in the preceding sentence or applicable law, Sentech USA
INC provides this product “as is”. If a defect arises and a valid claim is received by Sentech USA INC
within the Warranty Period, at its option, Sentech USA INC will either (1) repair the product, (2)
exchange the product with a product that is new or which has been manufactured from new or
serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the
purchase price of the product. When a refund is given, the product for which the refund is provided
must be returned to Sentech USA INC and becomes Sentech USA INC’ property. This warranty is
limited to the original end-user purchaser and is not transferable to, or enforceable by, any subsequent
owner.

For warranty & recalibration service
Please contact;
SENTECH USA INC
20280 S.Vermont Ave. #200
Torrance, CA 90502
Tel [phone]
www.sentech-usa.com or www.isoberusa.com
[email protected]
Stay SOBER & Drive SOBER
Disclaimers
Sentech USA INC makes no warranties, express or implied, as to the ability of this product to determine whether, or the extent to which,
a test subject’s mental or physical functioning, or judgment, may be impaired by blood alcohol including whether the test subject is
intoxicated under any definition of that word. Sentech USA INC expressly disclaims any liability for direct, indirect, incidental, special, or
consequential damages of any nature under any legal theory. Any act or failure to act based on a reading from this product shall be at the
test subject’s or user’s own risk. Sentech USA INC assumes no responsibility for consequences to or of test subjects who use this product
and later are shown to have been under the influence of alcohol or to have had their judgment or any mental or bodily function impaired
by alcohol. Correlation between breath alcohol content and blood alcohol concentration depends on many variables, including
environmental factors (such as air quality, wind, humidity, temperature, etc.) and health conditions of the test subject. A low BAC reading
does not mean that the test subject’s physical or mental performance or judgment (including reaction times) can respond to an
emergency. The concentration of alcohol in the blood of a test subject cannot be exactly determined by using a breath alcohol screening
product.
Sentech USA INC does not warrant that the operation of the product will be error-free. Sentech USA INC is not responsible for any
consequences arising from failure to follow instructions or relating to the product’s use. This warranty does not apply: (a) to consequences
caused by accident, abuse, tampering, misuse,flood, fire, earthquake or other external causes; (b) to consequences caused by operating
the product outside the permitted or intended uses described by Sentech USA INC; (c) to consequences caused by service performed by
anyone who is not a representative of Sentech USA INC or Sentech USA INC Authorized Service Provider; or (d) to a product or part that
has been modified to alter functionality or capability without the written permission of Sentech USA INC.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR
IMPLIED. AS PERMITTED BY APPLICABLE LAW, SENTECH USA INC SPECIFICALLY DISCLAIMS ANY AND ALL STATUTORY OR
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS. IF SENTECH USA INC CANNOT
LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH
WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION OF THE EXPRESS WARRANTY AND TO THE REPAIR OR
REPLACEMENT SERVICE AS DETERMINED BY SENTECH USA INC IN ITS SOLE DISCRETION.
No Sentech USA INC reseller, agent, or employee is authorized to make any modification, extension, or addition to this
warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not
be affected or impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, SENTECH USA INC
IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES UNDER ANY LEGAL
THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE OR INCOME; LOSS OF ACTUAL OR
ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS FROM A CONTRACT); LOSS OF THE USE OF MONEY; LOSS OF
ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL, OR LOSS OF
REPUTATION.
Some countries, states and provinces do not allow the exclusion or limitation of incidental or consequential damages or allow
limitations on how long an implied warranty or condition may last, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. This Limited
Warranty is governed by and construed under the laws of the country in which the product purchase took place.
