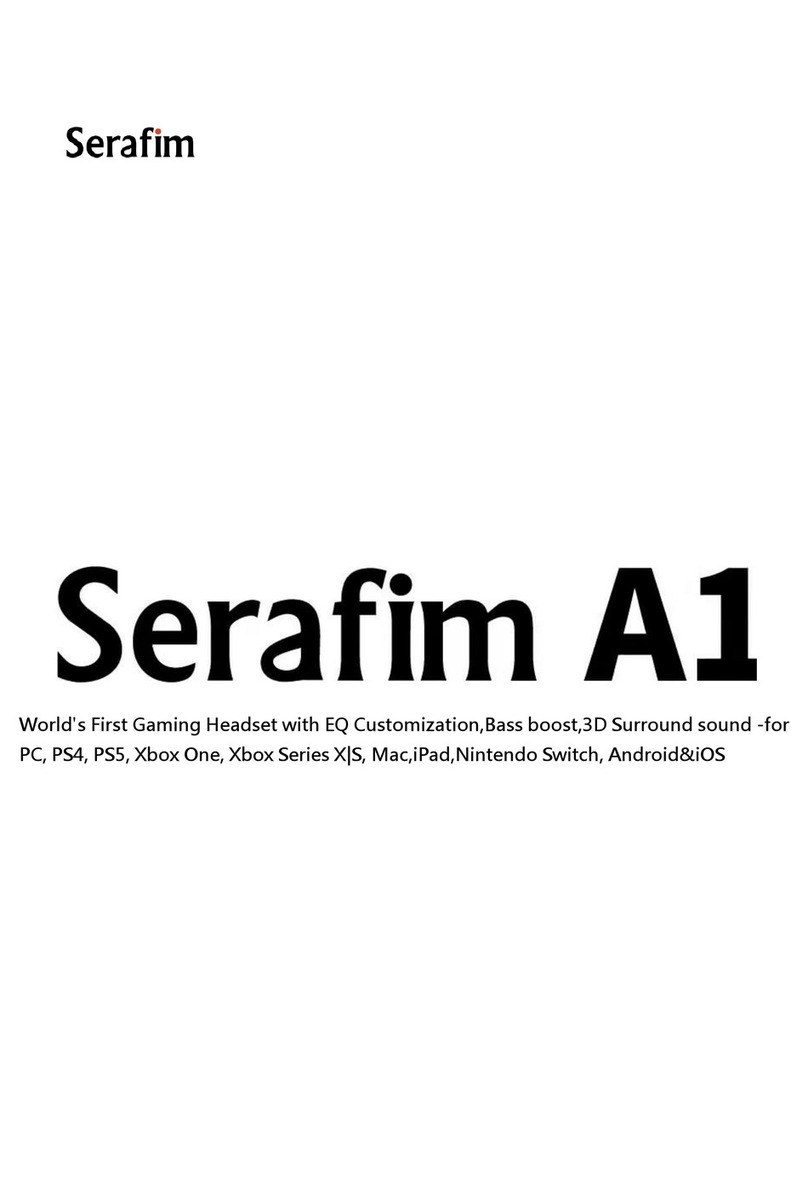

Serafim A1 User manual

Serafim A1
Serafim A1 User Manual

Serafim A1
CONTENTS
English............................................................................................................................1
繁體中文........................................................................................................................7
Compliance Information ..............................................................................................13

Serafim A1
1
English
Package Contents
A. Headphone
B. Audio Box
C. 3.5mm audio source output cable and headphone LED light USB power supply
cable
D. Detachable microphone
E. 2 In 1 3.5mm Audio Cable Female To Male
F. Micro USB charging cable

Serafim A1
2
A. Main power switch (the RGB cycle light will appear when it is turned on, and the
blue light will be steady when the Bluetooth is connected)
B. 3D surround function turns on the indicator light
C. Bass enhanced function indicator
D. Headphone LED light power supply USB interface (this interface only provides
the power supply function of the headphone LED light)
E. 3.5mm audio output interface
F. Volume up key
G. Volume down key
H. Microphone mute switch
I. Micro USB charging port
J. Bass enhancement function switch key
K. 3D surround function switch key
L. Headphone LED light switch key
A. Adjustable headband with
padded head
B. Circular RGB Logo light
C. Soft foam ear cushions
D. Detachable microphone (note
that the microphone interface is
directional)
Audio Box main power light introduction
Bluetooth connection: Blue is always on.
No Bluetooth connection: RGB cycle
light.
Low battery warning: red light flashes.
Charging: Red is always on, the red light
is off when the battery is full
Serafim Audio
Box
Component Names
Headphone

Serafim A1
3
Disclaimer
Copyright©
© Serafim Tech. Inc. All rights reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or any without the
express written permission of Serafim Tech. Inc.
For any future information please visit Serafim official website:
https://www.serafim-tech.com
you encounter any problems we would be glad to answer all your
concerns at
FB Fan page Online customer service
Warranty
This product has one-year Serafim warranty service, only in these following cases should
not be content into warranty of Serafim:
1. The product is repaired, modified or altered, unless such repair, modification or
alteration is authorized in written form by Serafim.
2. In all cases the commencement date for the period is one year since the actual day
of purchase, as reflected on the authorized reseller's or distributor’s invoice / receipt
provided to you.
※If part of the description is different from the picture due to factors such as the official
software upgrade of Serafim Audio APP or the change of product appearance, Shuoqing
Technology will not be liable and reserves the right of final interpretation

Serafim A1
4
Platform connection
Android/iOS
Use the 3.5mm adapter or the 3.5mm interface on the device to connect it to use
Xbox one/Xbox series s/ Xbox series x
PlayStation 4/ PlayStation 5/ Nintendo Switch
Use the 3.5mm audio cable connector to connect to the game controller
PC/Laptop/ Mac/Linux
Use the included 2 In 1 3.5mm Audio Cable to connect to the 3.5mm interface or
directly use the 3.5mm audio cable to connect to it.

Serafim A1
5
Serafim Audio APP Features
Android / iOS
1. Download and install Serafim Audio from the mobile phone to
Google Play/APP Store.
2. After turning on the Bluetooth function of the phone and the power
of Serafim Audio Box, tap Serafim Audio to log in and it will
automatically search for device pairing.
3. After entering Serafim Audio, you can turn on the equalizer and
adjust the EQ equalizer parameters, as well as the 3D and BASS
functions according to your needs.
4. After adjusting the equalizer parameters, press the "+" icon to enter a
name to save the current solution. Swipe left on the name of the
saved plan to delete the plan.
The parameters set by the Serafim Audio APP will be changed according to the
user's button adjustment on the Serafim Audio Box
When the Serafim Audio APP is closed, the Serafim Audio Box will be defined by
the parameters adjusted by the last APP

Serafim A1
6
Specifications
Headphone
Driver: Dynamic, 50mm with neodymium
magnets
Type: Circumaural, Closed back
Frequency response: 20Hz–2kHz
Impedance: 21 Ω
Sound pressure level: 109dBSPL/mW
(1kHz)
T.H.D.: < 15%
Weight: 310g
Weight with mic: 320g
Cable length and type: USB charge cable
(1m)
Connector: Headphone-3.5mm (4-section
type)+USB
Microphone
Element: Electret condenser microphone
Polar pattern: Omnidirectional,
Noise-cancelling
Frequency response: 100Hz-10000 Hz
Sensitivity: -42±3 dB
Impedance: 2.2kΩ
Audio Box
Battery capacity: 550mAh
usage time (headphone LED off): 8hr*
usage time (headphone LED on): 3.hr*
Charging time: 3hr(0%-100%)
Weight: 70±2 g
Cable length: 1 m
Safety Notes
*If you encounter problems with the correct operation of the device, and the troubleshooting
does not help, please unplug the device and contact our online customer service, or go to
https://serafim-tech.com/contact for support. Do not try to disassemble or repair this device
yourself under any circumstances, otherwise the warranty will be invalid.
*In order to maintain the sound quality of the device, when using the device and charging at the
same time, do not charge with low-current power sources, such as low-voltage charging devices,
computer USB ports.. etc.
*Keep the device away from liquid or any humid environment. Operate this device within the ideal
temperature range (0°C (32°F) to 40°C (104°F)). If the temperature is out of the ideal range, turn
off the device until the temperature returns to the ideal range.
*Do not use it at excessive volume for a long time, otherwise it may damage your hearing. In
addition, the laws of some countries/regions stipulate that in an environment that affects hearing
and has a sound volume of 86 decibels, you may not stay for more than 8 hours a day. Therefore,
it is recommended that if you want to use the headset for a long time, turn down the volume as
much as possible. Please be sure to maintain your hearing health.
*Audio Box has a built-in rechargeable lithium battery. Generally speaking, the service life of this
battery is usually related to usage habits. If you think the included rechargeable lithium battery is
exhausted (low battery), please try charging first. If the battery cannot be charged smoothly after
many attempts, the battery may be out of use. Do not disassemble and replace the battery by
yourself.
*The use time will vary due to factors such
as user habits or volume

Serafim A1
7
繁體中文
內容物介紹
A. 耳機本體
B. Audio Box
C. 3.5mm 音源線與耳機 LED 燈USB 供電線
D. 可拆式麥克風
E. 1分2音源線
F. Micro USB 充電線

Serafim A1
8
A. 主電源開關 (開啟後會呈現 RGB 循環燈，藍芽連接後會藍燈恆亮)
B. 3D 環繞功能開啟顯示燈
C. Bass 增強功能顯示燈
D. 耳機LED 燈供電 USB 接口 (此接口只有提供耳機 LED 燈供電功能)
E. 3.5mm 音源輸出接口
F. 音量增加鍵
G. 音量減少鍵
H. 麥克風靜音開關
I. Micro USB 充電接口
J. Bass 增強功能開關鍵
K. 3D 環繞功能開關鍵
L. 耳機 LED 燈開關鍵
A. 可調整式附軟墊頭帶
B. 循環式 RGB Logo 燈
C. 柔軟泡綿耳墊
D. 可拆式麥克風 (注意麥克風
接口有方向性)
Audio Box 主電源燈號介紹
藍芽連線中:藍色恆亮。
無藍芽連線:RGB 循環燈號。
低電壓警示:紅燈閃爍。
充電中:紅色恆亮，電池充滿紅燈熄
滅。
Serafim Audio
Box
外觀部件介紹
耳機本體

Serafim A1
9
版權說明
Copyright©
© Serafim Tech. Inc. All rights reserved.
碩擎科技股份有限公司保留所有權利，未經碩擎科技股份有限公司（以下簡稱「碩
擎科技」）的明確書面許可，本手冊的任何部分，包括其中所述的產品和軟體，
均不得複製、傳輸、轉錄、存儲在檢索系統中，或為其他利用。
有關資訊更新，請造訪碩擎科技官方網站：
https://www.serafim-tech.com
如果您遇到任何問題，我們將很樂意在 [email protected] 回答您的所有
疑慮。
FB 粉絲專業 線上客服
產品保固
本產品享有一年的碩擎科技保修服務，只有在以下情況下不再納入碩擎科技的保
修服務範圍：
1. 本產品經過非碩擎科技授權之維修、修改、規格更改、零件替換或其他非碩
擎科技書面授權之行為。
2. 在所有情況下，保修服務的開始日期為自實際購買之日啓一年，依據在授權
經銷商或分銷商提供給您開具的發票或收據上。
※因Serafim Audio APP 官方軟體升級或產品外型變更等因素造成部分說明
與圖片相同一致時，碩擎科技不承擔責任，保留最終解釋權。

Serafim A1
10
平台連接方式
A. Android/iOS
使用 3.5mm 轉接頭或是裝置上的 3.5mm 接口接上即可使用
B. Xbox one/Xbox series s/ Xbox series x
PlayStation 4/ PlayStation 5/ Nintendo Switch
使用 3.5mm 音源線接頭接上遊戲手把 3.5mm 接口即可使用
C. PC/筆記型電腦/ Mac/Linux
使用內附的 1分2音源線接上 3.5mm 接口或是直接使用 3.5mm 音源線接
上即可使用

Serafim A1
11
Serafim Audio APP 功能介紹
Android / iOS
1. 手機至 Google Play/APP Store 下載安裝 Serafim Audio。
2. 開啟手機藍芽功能和 Serafim Audio Box 電源後點選 Serafim Audio 登入
後會自動搜尋裝置配對。
3. 進入 Serafim Audio 後可開啟等化器可依需求調整 EQ 等化器參數，和 3D
與BASS 功能。
4. 調整好等化器參數後按下”+ ”圖示可以輸入名稱以儲存當下的方案。在已
儲存的方案名稱往左滑動可以刪除方案。
Serafim Audio APP 設置的參數會依使用者在 Serafim Audio Box 上按鍵
調整做變動
當Serafim Audio APP 關閉時，Serafim Audio Box 會以最後 APP 調整的
參數作定義

Serafim A1
12
產品規格
耳機本體
驅動單體: 50MM 釹制
類型: 封閉式耳罩
頻率回應: 20Hz - 2000Hz
阻抗: 21Ω
聲壓級: 109dBSPL/mW (1kHz)
T.H.D.: < 15%
重量: 310 g
重量（含麥克風）: 320 g
線長: 耳機（1 m）
接頭: 耳機－3.5mm 接頭 (4 段式)+USB
麥克風
組件: 駐極體電容式麥克風
指向性型式: 全指向，非降噪
頻率回應: 100Hz-10000 Hz
感度: -42± 3dB
麥克風阻抗: 2.2kΩ
Audio Box
電池容量: 550mAh
使用時間 (耳機 LED 關閉): 約8hr*
使用時間 (耳機 LED 開啟): 約3hr*
充電時間: 大約 3hr(0%-100%)
重量: 70±2 g
線長: 1 m
*使用時間會因使用者習慣或音量大小等因素
而改變
注意事項
*若在正確操作裝置方面遭遇問題，且疑難排解並無幫助，請拔下裝置並與我們得線上客服連絡，
或是前往 https://serafim-tech.com/contact 尋求支援。請勿在任何情況下嘗試自行拆解或維
修此裝置，否則保固將失效。
*為了保持裝置的聲音品質，在使用裝置且同時在充電時，請勿以低電流電源充電，如低電壓充
電裝置、電腦 USB..etc
*保持裝置遠離液體或任何潮濕環境。在理想溫度範圍（0°C (32°F) 至 40°C (104°F)）内操作
此裝置。如果溫度超出理想範圍，請關此裝置，直到 溫度回復至理想範圍。
*切勿長期以過大音量使用，否則可能損害你的聽力。此外，部分國家/地區法律規定，在對 聽
力造成影響、音量達 86 分貝環境下，每日不得待超過 8 小時。因此建議您如要長時間使用耳
機，盡可能將音量調低。請務必維護你的聽覺健康。
*Audio Box 內建可充電式鋰電池。一般來說，這種電池的使用壽命通常與使用習慣有關。如果
你認為隨附的充電鋰電池電量已耗盡（低電量）， 請先嘗試充電。若經過多次嘗試仍無法順利充
電，電池可能已無法使用，切勿自行拆解更換電池。

Serafim A1
13
NCC 使用警語
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功
率或變更原設計之特性及功能。低功率射
頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至
無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、
科學及醫療用電波輻射性電機設備之干擾。
*減少電磁波影響，請妥善使用
FCC
Federal Communications Commission
Statement
This device complies with FCC Rules Part
15. Operation is subject to the following
two conditions:
• This device may not cause harmful
interference.
• This device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and
found to comply with the limits for a class
B digital device, pursuant to Part 15 of
the Federal Communications Commission
(FCC) rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation. If this
equipment causes harmful interference to
radio or television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by doing one or more of the
this manual following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
FCC Caution
Any changes or modifications not
expressly approved by the party
responsible for compliance could void the
user‘s
authority to operate the equipment.
The antenna(s) used for this transmitter
must not be co-located or operating in
conjunction with any other antenna or
transmitter.
Radiation Exposure Statement
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End users
must
follow the specific operating instructions
for satisfying RF exposure compliance. To
maintain compliance with FCC
exposure compliance requirement, please
follow operation instruction as
documented

Serafim A1
14
Product name
Product S/N
Purchase date
Customer
name
Store name
Purchase
amount
