SERAJ NANOX Manual

PROMOTING NANOBUBBLE TECHNOLOGY
Operation and
Maintenance
Instructions
NANOBUBBLE GENERATOR
NANO Technology

Designed by Hamid Nasr
1
If you have questions or need to
order serajnanotech,s nanobubble
generator Replacement parts and
products, please use the following
contact information:
Saturday to Wednesday 8:00 a.m. to 5:00 p.m.
[phone]
[email protected]
www.serajnanotech.com
seraj_nanotech
Tehran

This guide provides operation
and maintenance instructions
for this product.
Consult serajnanotechnology
with any questions regarding
this equipment.
This manual contains important
information that will help you in
operating and maintaining this
product.
Please retain it for future reference.
Warnings and safety instructions
for Nanox Nanobubble Generators
and other related products which
available at
http:// www.serajnanotech.com
or call [phone] for
additional free copies of these
instructions.
This guide contains important
informations about the operation,
maintenance, and safe use of this
product.
This information should be given to
the owner and / or operator of this
equipment after installation.
NANOX nanobubble generator
is for INDOOR USE ONLY. If it
must be installed outside, a
minimum coverage is a full roof.
Safety Instructions Attention Installer Attention User
PROMOTING NANOBUBBLE TECHNOLOGY

This product is not intended for use by persons
(including children) of reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a
person responsible for their safety.
General
Warnings
PROMOTING NANOBUBBLE TECHNOLOGY

Specificatins
Model
Outer dimensions
Weight
Capacity
Materials
Viscosity limit
Heat-resisting
NANOX
201cm ×245cm×210cm
Approx. 1100 kg
Adjustable up to 60 lit/s.
Stainless Steel 304, PE , Iron
12 mPa・s
Up to 50℃
NANOBUBBLE GENERATOR
NANO Technology

Please DO NOT try to disassemble
the machine
Make sure NOT to use loose
electrical outlet
Make sure to connect the ground
wire attached to the plug
Caution
Make sure the machine is set on
secure place.
Make sure the hoses are
connected to the right places.
All the valves have been factory
adjusted with tap water. Make
necessary adjustment when you
are using other liquids
Operation
PROMOTING NANOBUBBLE TECHNOLOGY

NANOX nanobubble generator include 5 gas flow meter. Each
gauge can adjust the entry gas flow rate of 1 reactor. In order to
attain the optimum performance of the nanobubble generator, the
liquid pressure should be above 3.5 bar which can be detected by
the liquid pressure gauges(5 of them are installed in the generator
to detect the liquid pressure gauge before each reactor)
Each reactor module has the capacity of 40 m3/hr that can operate
separately.
For the proper operation of the generator :
Adjust the oxygen ow meter between 10 to 17 lit/min. it is
recommended to adjust oxygen ow meter at 15 lit/min to get
35 ppm of dissolved oxygen.
General
Descriptions Oxygen pressure should be
above 4 bar.
Online D.O. meter indicates
the effect of gas flow meter
on dissolved oxygen.
Going above 20 lit/min would
lead to error indication by
online D.O. meter because of
40 ppm limitation of
dissolved oxygen detection.
For the adjustment of Clean
online D.O. meter, please
read the full manual
instruction provided by the
company
Caution :
PROMOTING NANOBUBBLE TECHNOLOGY

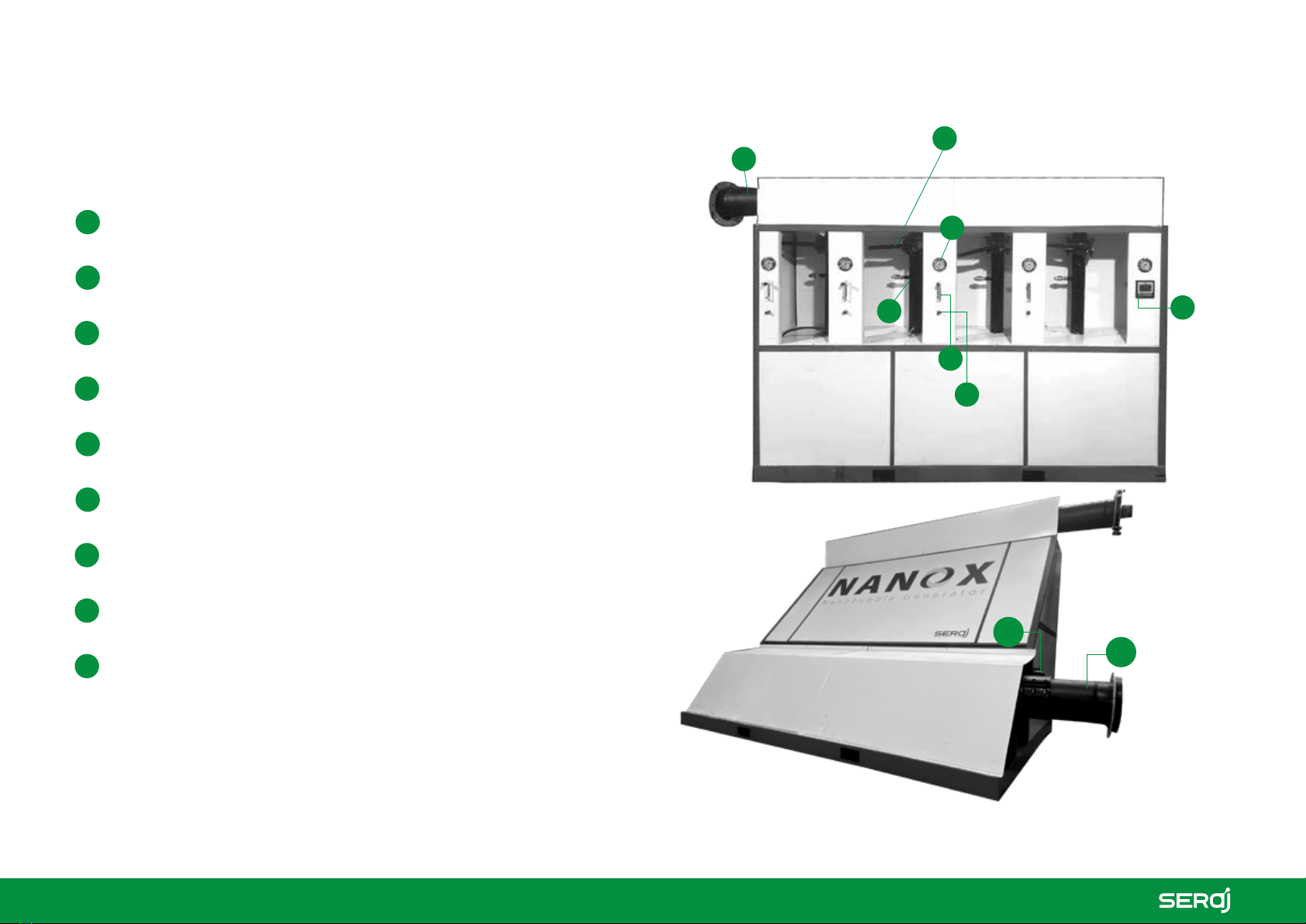

Entry Collector
Liquid Control Valve
Oxygen Injection Location
Liquid Pressure Guage
Oxygen Rotameter(Flowmeter)
Oxygen Input to Rotameter
Dissolved Oxygen Indicator
Dissolved Oxygen Sensor
Output Collector
1
2
3
4
5
6
7
8
9
PROMOTING NANOBUBBLE TECHNOLOGY
1
2
4
5
7
3
6
89

www.serajnanotech.com
seraj_nanotech
[phone]
[email protected]
THANK YOU

www.serajnanotech.com
seraj_nanotech
[phone]
[email protected]


Entry Collector
Liquid Control Valve
Oxygen Injection Location
Liquid Pressure Guage
Oxygen Rotameter(Flowmeter)
Oxygen Input to Rotameter
Dissolved Oxygen Indicator
Dissolved Oxygen Sensor
Output Collector
1
2
3
4
5
6
7
8
9
1
2
4
5
7
3
6
89
