Serato TERMINAL MIX 4 User manual

VERSION 1.1.1
QUICK-START
GUIDE
RELOOP
TERMINAL MIX 4

VERSION 1.1.1
Installation and Setup
The Reloop Terminal Mix 4 is a class compliant USB plug and play device for Mac,
however requires drivers for Windows. You will nd these on the installation cd
provided within your Reloop Terminal Mix 2.
NOTE: Please ensure you have the latest available drivers AND rmware updates,
which may be required in order to be compatible with Serato DJ. Please go to
http://serato.com/dj/support
1. Download and install the latest version of Serato DJ from http://serato.com/dj/
downloads
2. After installing drivers, connect your Reloop Terminal Mix 4 to an available USB
Port.
3. Open Serato DJ.
Serato DJ Activation
To nd out how to activate Serato DJ by either starting your free 14 day trial, or
purchasing a license for Serato DJ, click here for the most up to date information.

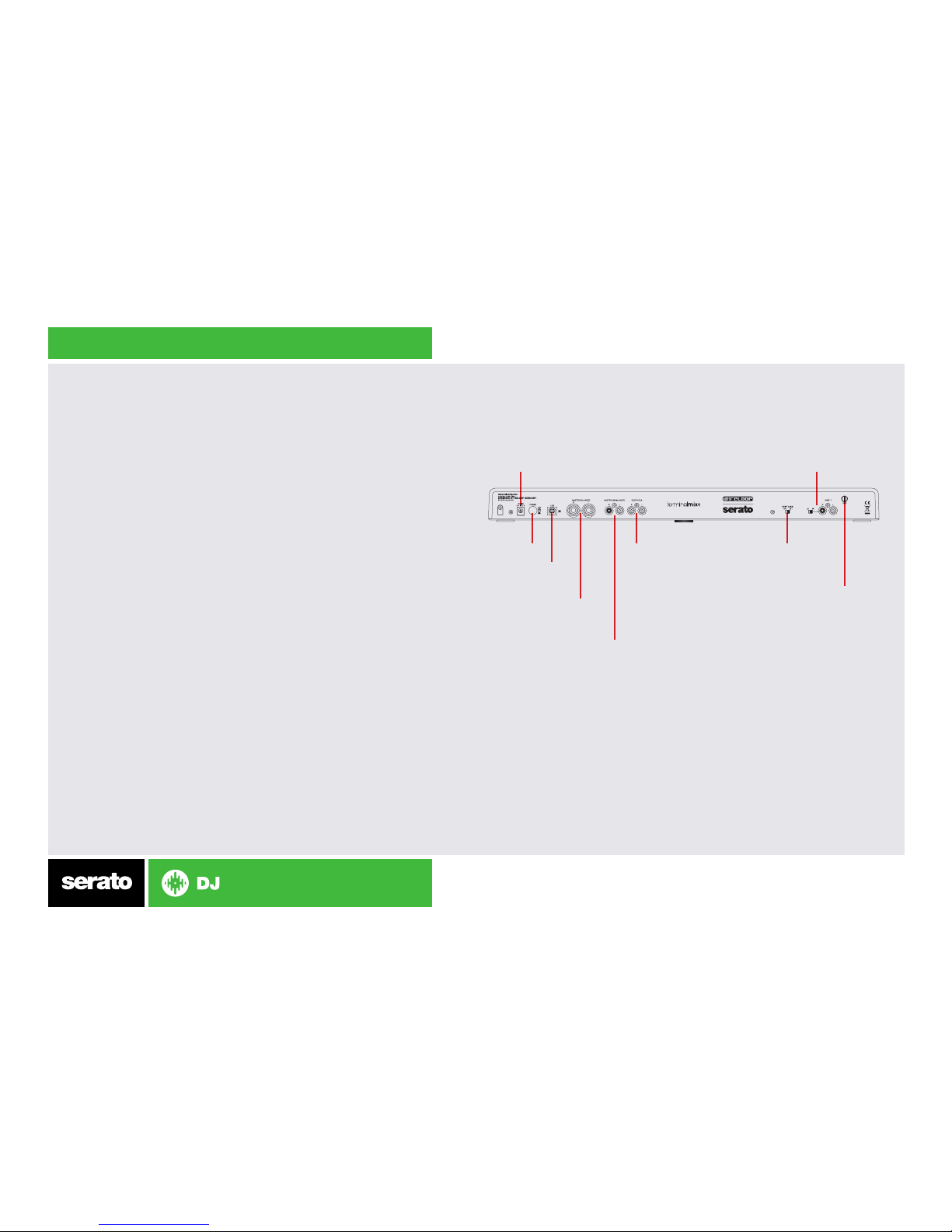

Power button
ON/OFF Booth RCA out Select ‘Line’ for CDJ/Digital
audio or ‘Phono’ for turntable
Ground your external input
source here if necessary
Balanced jack output
(speakers out here)
Insert USB cable here
(goes to laptop)
Insert power cable here
Unbalanced RCA Out (speakers out here)
RCA Input (Input for external Line or Phono option)

VERSION 1.1.1
Looping
You have up to 8 loops per track in Serato DJ, and the choice between either
manual or auto loops. You can choose whether you have 4 loops (and 4 cuepoints)
showing on screen, or 8 loops. To switch between Manual and Auto looping, click
(Manual) or (Auto) onscreen. You can also half or double the loop length in
either manual or auto modes. Press the 1/2X button to half the loop length, hold the
2X button to double the loop length, or you can use the Loop Length Knob to do
the same.
NOTE The IN/OUT buttons are shift functions of the 1/2X and 2X buttons. You will
need to hold SHIFT while pressing these buttons to use IN/OUT for manual loops.
Reloop Terminal Mix 4 Control Manual Loop Mode
1/2X + SHIFT Set loop in point (Loop not active)
1/2X + SHIFT Adjust loop in point (Loop active)
2X + SHIFT Set loop out point (If loop in point is set)
2X + SHIFT Adjust loop out point (Loop active
Loop Length (Click Knob) Exit Loop (Loop Active)
NOTE The best way to edit the in and out points of a manual loop is with the jog
wheel/platter on your Reloop Terminal Mix 4.
Reloop Terminal Mix 4 Control Auto Loop Mode
Loop Length (Click Knob) Auto Loop ON/OFF
Loop Length (Twist Knob) Half Auto Loop Length
NOTE You can also save a loop to the next available free loop slot in the software.
To do this, either click the button in the manual/auto loop tab or click on an
available loop slot. Your loops are saved to the le and recalled the next time it is
loaded. They are not lost if the le is moved or renamed.

VERSION 1.1.1
DJ-FX
The DJ-FX in Serato DJ are powered by iZotope™. Click the FX tab
to open the FX panel. Select either 1, 2, 3, 4 or M to assign the selected effect bank
to a deck or Master Output. To activate an effect, click the ON button on your FX
UNIT in the software, or the FX1 ON button on your controller. You can adjust effect
parameters by using either software controls, or the FX1/FX2/FX3 knobs/buttons
on the controller.
There are two available modes in the DJ-FX. Single FX Mode allows you to select
one effect per FX bank, and has multiple parameters that can be adjusted. Multi
FX Mode allows you to select up to three effects per FX bank, and adjust only
one parameter, the FX Depth. The same effects available in Single FX mode are
available in Multi FX mode, as well some additional presets.
You can select between the two FX modes by clicking either the Single FX mode
button or Multi FX mode button
Reloop Terminal Mix 2 Control Single FX Mode Multi FX Mode
FXSEL 1 Button Effect On/Off Slot 1 Effect On/Off
FX1 Knob Adjust Parameter 1 Adjust Slot 1 FX Parameter
FXSEL 2 Button Adjust Parameter 2 Slot 2 Effect On/Off
FX2 Knob Adjust Parameter 3 Adjust Slot 2 FX Parameter
FXSEL 3 Button Adjust Parameter 4 Slot 3 Effect On/Off
FX3 Knob Adjust Parameter 5 Adjust Slot 3 FX Parameter
SHIFT + FXSEL 1-3 Buttons Select Effect Select Effect in Slots 1-3
TAP Tap to the desired FX tempo. To return to AUTO mode, press
and hold
Tap to the desired FX tempo. To return to AUTO mode,
press and hold
BEATS Adjust Beats Multiplier Adjust Beats Multiplier
*NOTE:* Use SHIFT + RANGE to assign FX UNIT 1 to the Active Deck. Use SHIFT + KEYLOCK to assign FX UNIT 2 to the Active Deck.

VERSION 1.1.1
Serato Video
Serato Video is a software plugin for Serato Software which adds the ability to
playback and mix video les, use effects and fader transitions with your Serato DJ
Controller, an additional MIDI controller or your mouse/keyboard.
For more information on Serato Video click here.
MIDI
The MIDI control feature in Serato DJ provides the ability to map Serato DJ
software functions to MIDI controller functions such as keyboards, triggers, sliders,
and knobs. Integrating MIDI controllers into your Serato DJ setup can improve live
performance usability, such as hitting pads on a MIDI controller to trigger Loops
and Cue Points.
For more information download the Serato DJ manual here.
NOTE You can not MIDI Map your Terminal Mix 2, you will need to connect an
additional MIDI controller to use these MIDI functions.

VERSION 1.1.1
12345678910111213
14
15
16
17
18
19
20
21
22
23 24 25 26 27 28 29 30 3132 33 34 35
36
37
38
39
40
41 42
43 44

VERSION 1.1.1
NOTE: SHIFT button is used with other buttons that have shift modier functions.
#Reloop Terminal Mix
4 Control
Serato DJ Function Shift Modication
1 CHANNEL FADER Adjusts channel volume
2 CROSSFADER Crossfades between the two channels
3 VU METER LED representation of Master Output
4 TRAX Scroll through currently focused area (library/crates/etc)
5 LOAD Load track to selected deck Activate Fader Start for that channel
6 FILTER LP/HP lter combo adjust
7 CUE CHANNEL Cue selected channel in headphones
8 DECK Select Active Deck 1/3 (Left Deck) or 2/4 (Right Deck)
9 PLAY/PAUSE Play/Pause
10 CUE Temporary Cue Jump to start of track (more than 2 Sec elapsed) Previous
track (less than 2 sec elapsed)
11 CUP Stutter Play
12 SYNC Sync On Sync Off (Press twice to return to Absolute Pitch when in
Relative Mode)
13 SHIFT/DEL The SHIFT button is used with other buttons that have shift modier
functions.
14 PLATTER Scratch or Jog deck Beat Skip
15 HOLD Toggle between Scratch or Jog Fast Library Scroll when used with Jog Wheel
16 SAMPLER 1-3 Trigger Samples 1-3 (Left Deck) or 4-6 (Right Deck) Stop Samples 1-3 (Left Deck) or 4-6 (Right Deck)
17 SCISSORS Not Mapped
18 HOT CUE 1-4 Adds or triggers Cue Points 1-3 Delete Cue Points 1-3
19 TEMPO FADER Adjust Tempo When in Sync mode, used to disable the Pitch Fader
temporarily and change the zero position

VERSION 1.1.1
#Reloop Terminal Mix
4 Control
Serato DJ Function Shift Modication
20 LOOP LENGTH (Knob) Auto Loop On/Off or Exit Manual Loop (Click Knob) Auto Loop Length
(Twist Knob)
Loop Roll On/Off (Click Knob) Change Loop Roll Length
(Twist Knob)
21 FXSEL 1-3 (Buttons) Slots 1-3 Effect On/Off
22 KEYLOCK Keylock On/Off Assign FX UNIT 2 to Active Deck
23 OFFSET LED If you switch the deck and move the pitch fader the value will be
stored. The LED shows whether the pitch fader is at its initial value when
setting back.
24 RANGE Cycles through available Tempo Range options Assign FX UNIT 1 to Active Deck
25 FX 1-3 (Knobs) Adjust Slots 1-3 FX Parameters
26 BEATS Adjust Beats Multiplier
27 TAP (Button) Tap to the desired FX tempo. To return to AUTO mode, press and hold
28 GAIN Adjust channel gain
29 EQs Adjust Low/Mid/High
30 PHONES Adjusts headphone volume
31 MASTER Adjusts master volume
32 BOOTH Adjusts booth volume
33 CUE MIX Adjusts between Cue and Master in your headphones
34 SAMPLE VOL Adjusts the master volume of the sample player
35 LOOP LENGTH (Knob) Auto Loop On/Off or Exit Manual Loop (Click Knob) Auto Loop Length
(Twist Knob)
Loop Roll On/Off (Click Knob) Change Loop Roll Length
(Twist Knob)
36 2X Double Loop Length Loop Out/Adjust Loop Out Position
37 LOOP MOVE Loop Shift left/right (Twist Knob) or Reloop (Click Knob)
38 1/2X Halve Loop Length

VERSION 1.1.1
#Reloop Terminal Mix
4 Control
Serato DJ Function Shift Modication
39 HOT CUE 4 Adds or triggers Cue Points 4 Deletes Cue Point 4
40 SAMPLER 4 Select Sample Bank
41 CRATES Cycle REC/FX/SP-6 Panels Cycle SP-6/FX/REC panels
42 VIEW Cycle view modes Switches between 2 and 4 decks
43 BACK Toggles focus between library/crates/open panels
44 PREP Loads track to prepare area Open Prepare Panel
NOTE: #28 LOAD When used with SHIFT, activates Fader Start for each deck. This means the track will stop when the channel fader is down, and the track will start
when the channel fader is up. The LOADbutton will ash when Fader Start is activated.
Using the Tool Tips
Click on the icon to enable Tool Tips. This is located in between the MIDI and
setup button in the top right hand corner of the screen. Tool Tips provide a handy
way to learn the various features of Serato DJ.
Move the mouse over a section of the screen to bring up a context sensitive tool
tip. Holding the mouse over the button with Tool Tips turned on will show you a
list of all keyboard shortcuts.
For more information about how to use Serato DJ, please go to our website www.
serato.com or refer to the Serato DJ Software Manual. For more information on
your controller, please refer to the hardware manual.
