SereneLife SLPAC8 User manual

SLPAC8
PortableAirConditioner
FanandDehumidifier

www.SereneLifeHome.com 2
CONTENT
Important Safety Tips
Precautions...........................................................................................................................3
Product Introduction
Main Parts and Components..........................................................................................4
Control Panel and Remote Controller.........................................................................6
Product Operation
Placement and Installation.............................................................................................7
Operation Method.............................................................................................................9
Clean and Maintenance
Drainage Method.............................................................................................................10
Maintenance......................................................................................................................11
Common Failures and Diagnosis
Intelligent Error Detection............................................................................................12
Fuse Parameters................................................................................................................12
Troubleshooting...............................................................................................................13

3
Important Safety Tips
Precautions
Please read the Manual carefully before operating the machine:
•This machine is for household use only.
•This machine is for indoor use only. Please place it in dry environment.
•Check power cord frequently. When power cord, plug or A/C is damaged,
please don’t operate. If the power cord is not long enough, power
extension cable can be used. Cable should not scatter at places where
power cord may be pulled out or people may be stumbled.
•The A/C should be away from heat source and avoid direct sunlight.
•Turn o the A/C before unplugging.
•Turn o and unplug the A/C before removing or cleaning it, or replacing
its parts or when it is not used.
•Clean the A/C according to the Manual.
•Voltage of the A/C should meet requirements. Any damage incurred by
incorrect power isn’t included in the warranty.
•Children are not allowed to play with the A/C. This appliance is not
intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•Don’t insert your ngers or any hard object to wind guide bar of the air
outlet.
•Don’t place the A/C at any place with water or other liquid.
Prevent water or liquid from entering the A/C.
•Don’t repair the A/C by yourself. Any possible hazard incurred by
maintenance of laypeople will violate the warranty. If the supply cord is
damaged, it must be replaced by professional maintenance personnel.
•Please use the accessories provided by the A/C manufacturer; otherwise,
the A/C may be damaged.
•Suggest using environmental temperature for the air conditioner
(Cooling): 15°C-35°C or 59°F-95°F.
www.SereneLifeHome.com

4
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
Special Warning:
•Place the A/C on even ground and install it vertically, so as to ensure
normal operation of the compressor.
•The A/C should be at least 50cm away from surrounding objects.
Keep air inlet and outlet smooth.
•Don’t use the A/C beside gasoline or any other inammable liquid.
•Don’t use spraying agent and other solvent or ammable substances
near the A/C; otherwise, its plastic may deform and electric parts may be
damaged.
Power
•The plug should be in good condition and can’t be damaged.
Don’t replace the plug with power plug.
•In order to run the A/C, plug the power cord rst, and then press the
power key.
Product Introduction
MAIN PARTS AND COMPONENTS
1. Handle
2. Control panel
3. Louver
4. Caster
5. Air outlet
6. Air inlet
7. Drainage nozzle
8. Remote controller
9. Exhaust duct assembly
10. Window sealing plate assembly
www.SereneLifeHome.com

5
8
10
9
Sleep
2
3
4
1
5
7
6
www.SereneLifeHome.com

SPEED
Cool Fan
Dry High Low POWER
TIMER MODE
6
Control Panel and Remote Controller
1. Power key
Press the key to turn ON/OFF the A/C.
2. Mode key
Press the key to choose cool, fan and dry.
3. Temperature/ time adjusting key
Press the key at cooling mode to increase/
reduce the setting temperature; press it at
timing mode to adjust time; press Up and
Down keys simultaneously to switch
Fahrenheit and Centigrade degree
temperature.
4. Speed key
Press the key to choose high/ low spee d.
5. Timer key
Press the key at standby mode to set ON time.
Press this key at ON mode to set OFF time.
6. Temperature/ Time Display Window
Displays the adjusted temperature and time
7. Remote controller receiving window
It is used to receive signal of the remote controller.
8. °C/°F switching key
Press the key to switch °C and °F
9. Sleep key
In the cooling mode, the sleep mode can be selected by this key
1
8
2
3
5
4
9
www.SereneLifeHome.com

7
Product Operation
Placement and Installation

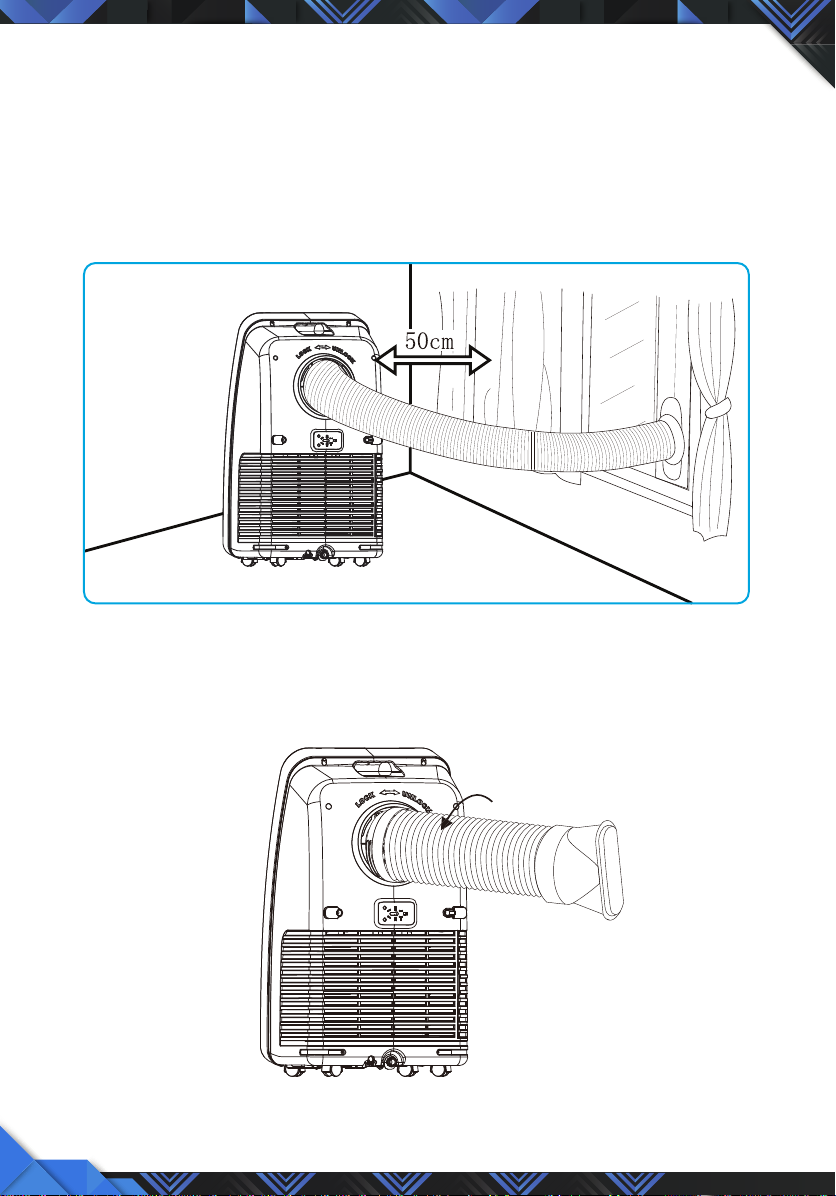

Placement
•Place it at even and dry place, and keep it at least 50cm away from its
surrounding object.
Installation
•Screw the exhaust duct assembly in the air outlet behind the panel
(counterclockwise).
www.SereneLifeHome.com

8
•Insert the air exhaust hose into the window sealing plate, adjust opening
width of window so that the window can match with the sealing plate
properly; length of the sealing plate is adjustable.
Incorrect Installation
•It’s important to keep the exhaust duct smooth. Incorrect installation will
aect work of the A/C.
•Prevent the exhaust duct from sharp bending.
•Ensure air can ow smoothly in the duct.
Warning:
The exhaust duct is designed especially
for this model. Don’t replace or lengthen it;
otherwise, it will result in failure.
Notice:
Max. developed length of the exhaust duct is 1,500mm. It’s better to
shorten it while use and keep it in horizontal position during installation.
www.SereneLifeHome.com

9
OPERATION METHOD
Cooling Mode
•When the A/C enters cooling mode automatically or cooling mode is
selected after power ON, the cooling indicator lamp lights up.
•Press Up/Down key to adjust setting temperature (16°C~30°C)(60°F~86°F).
•Press Speed key to choose High/Mid/Low speed.
Fan Mode
•When pressing mode key or choosing Fan mode by pressing the remote
controller, the wind indicator lamp lights up.
•Press Speed key to choose High/Mid/Low speed.
•Temperature can’t be set.
Dehumidication Mode
•When pressing mode key or choosing
dehumidication mode by pressing the
remote controller, the dehumidication
indicator lamp lights up.
•Remove the dehumidication water wedge,
insert water manifold, place the other end
of the water manifold into the water vessel
or drainage passage, as shown in the right
gure.
•After entering the dehumidication mode,
if room tempearture≥17°C (62°F), the compressor is ON. Then control as
follows: when room temperature ≤15°C (59°F), the compressor is OFF;
when temperature increases to room temperature≥17°C (62°F), the
compressor will start again (in order to protect the compressor, it will be
restarted 3min. later).
•In dehumidication mode, the fan is defaulted to run at low speed, and
wind speed can’t be adjusted.
•Temperature can’t be set.
Note : When use dehumidify function, should remove
exit pipe components, otherwise, it will cause worse dehumidify
performance, and appear “FL” water full alarm
www.SereneLifeHome.com

10
Sleep mode (optional function)
•Under cool mode, pressing sleep mode key on the remote controller or
pressing time key and down key together on the machine, it will start
sleep mode with low wind speed and can’t be adjusted. Pressing the
sleep mode key again or pressing time key and down k ey together on
the machine to quit the sleep mode.
•If you press the wind speed key under the sleep mode, the screen will
display ”SL”
Timer Mode
•In standby state, press the Timer key to set ON time. Press Up and Down
keys to set ON time (0~24H), and the timer indicator lamp lights up.
•In ON state, pressure the timer key to set OFF time. Press Up and Down
keys to set OFF time (0~24H), and the timer indicator lamp lights up.
Clean and Maintenance
DRAINAGE METHOD
This product is equipped with automatic water vaporization system.
The condenser is cooled with the circulating of condensing water, so as
to improve cooling eciency and save energy.
•If the internal vessel is full of water, the
display screen will display “FL”, and the
compressor stops working automatically.
After power o, unscrew the water cover,
pull out the water plug to drain o water,
and it will become normal after being
restarted.
www.SereneLifeHome.com

11
MAINTENANCE
Notice: In order to avoid electric shock, please turn o the A/C and unplug
before maintenance or repair.
CLEANING
•Unplug before cleaning.
•Wipe with soft semi-dry cloth. Don’t use chemical reagent, such as
benzene, alcohol and gasoline etc; otherwise surface of the A/C and even
the whole A/C will be damaged.
•Prevent water from spattering in the A/C.

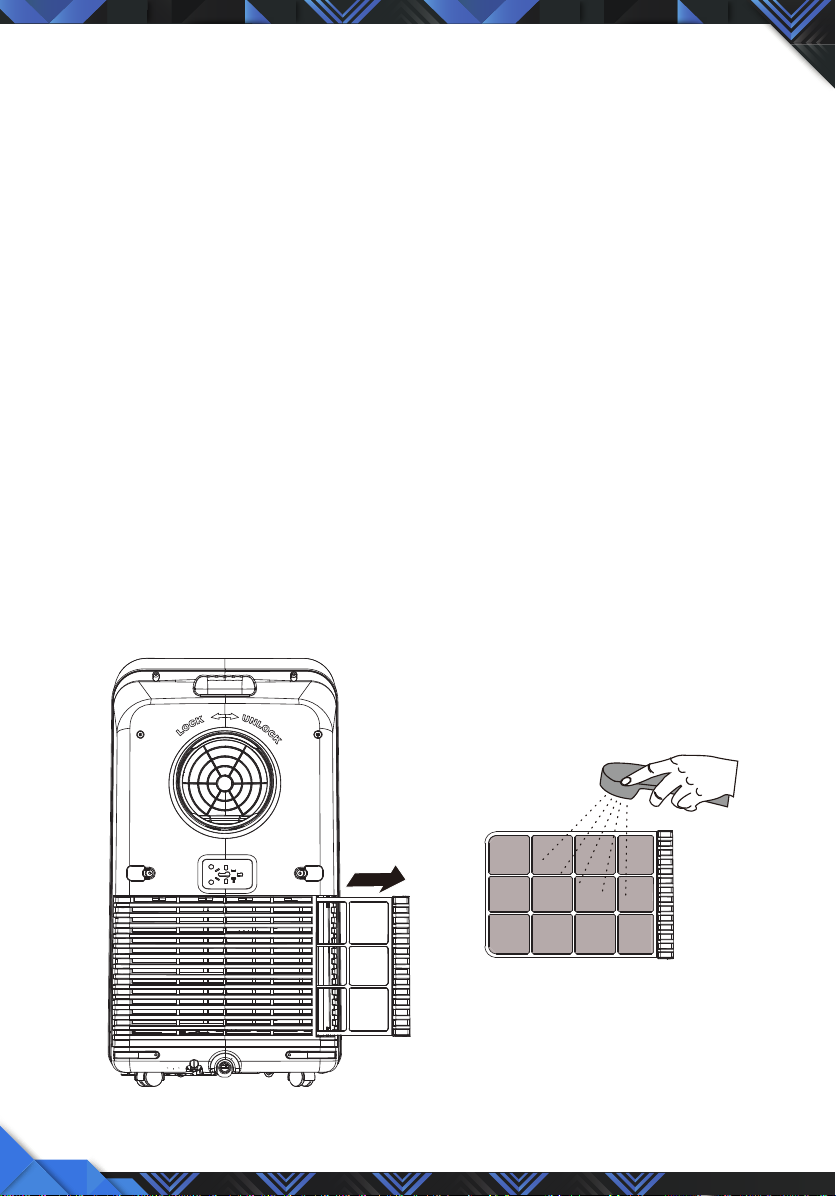

FILTER SCREEN
•Wash the lter screen once every two weeks. If it is blocked by dust,
eciency of the A/C will be reduced.
•Take out the air inlet grille and pull out the lter screen at both sides
according to the direction shown in the following gures.
•Put the lter screen into the warm water (about 40°C or 104°F) added with
neutral detergent, dry it at a shady place after cleaning.
www.SereneLifeHome.com

12
SEASONAL CLEANING
If the A/C will not be used for a long time:
•Pull out the water plug to drain.
•Run the A/C in fan mode for 2H till the inside is dry.
•Turn o the A/C and unplug.
•Wash the lter screen and reassemble it.
•Dismantle the exhaust duct and keep it properly.
•Cover the A/C with a plastic bag and place it at a dry place.
Common Failures and Diagnosis
Intelligent Error Detection
FUSE PARAMETERS
•Voltage: 250VAC
•Current: 3.15A
Error-detecting code Multi-functional defection
E1 Error of the coil’s temperature sensor
E2 Error of indoor temperature sensor
E4
Anti-freezing protection: temperature of the coil is too low
and the whole A/C is o. When temperature excesses 8°C
or 46.4°F, the protection is released and previous working
state is recovered.
www.SereneLifeHome.com

13
Troubleshooting
In case of any of the following trouble, please contact professional
maintenance personnel in time.
Notice: When there is any abnormal to the A/C, turn it o and unplug, and
then contact professional maintenance personnel.
The above technical parameters are subject to change without notice.
The A/C do e s n ’ t
work
No display
Reset circuit breaker on AC cord
The display panel d i s p l a ys
“ FL ”
Restart the A/C after power off and
draining, then it will become no
r
m a l
Time OFF function is s t a
r
t e d The A/C can be
restarted 3 m i nu t e s
after being turning o ff .
The A/C s t a
r
t s
f
r
e qu e n t l y
Direct s un li gh t Draw the c u
r
t a i n
Doors and windows keep open;
there
are lots of p e op l e
or
heat source in room
Close doors and windows, remove heat
source
Filter screen is very d i
r
t y Clean or replace i t
Air inlet or air outlet is b l o ck e d Remove the s t e m
Big noise of t h e
A/C The A/C
is placed un e v e n l y
Place it at even and firm ground,
avoid s h a k i ng
The compressor
doesn’t work
Its delay protection is s t a
r
t e d
Wait for 3min., turn on a ft e
r
temperature decreases
TROUBLE CAUSE SOLUTION
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact you local government for information regarding
the collection systems available.
If electrical appliances are disposed of in landlls or dumps,
hazardous substances can leak into the groundwater and
get into the food chain, damaging your health and well
-being. When replacing old appliances with new ones, the
retailer is legally obligated to take back your old appliance
for disposals at least free of charge.
www.SereneLifeHome.com
