SereneLife SLBCAM10.5 User manual

WirelessVideo&CameraBabyMonitorSystem
SLBCAM10.5-SLBCAM11
with Digital LCD Screen
SLBCAM10.5 SLBCAM11

www.SereneLifeHome.com
2
OPERATING MODE
The sober design of our product easily integrates with all interiors and allows
you to keep a watchful eye on your babies. Communication between transmit-
ter and receiver through radio waves at a max distance of 260 m (distance in
open eld). The digital connection provides transmission without interference.
The camera is equipped with infrared LEDs that automatically switch on in
case of insucient light conditions. Choose from eight integrated melodies to
activate a lullaby on the transmitter. The two-way intercom allows you to talk
and soothe your baby. You can check the temperature in your baby’s room at
any time thanks to the built-in transmitter thermometer. The monitor has a
portable battery, so you can always keep it on hand.
Before using this product, carefully read the precautions for use and
charge completely the monitor battery.
PRECAUTIONS FOR USE
This baby monitor satises all needs and complies with the rules related
to this type of product. When used according to the instructions
described in this manual, the product is safe.
Read carefully this manual with special attention to the following points:
• The installation must be made by an adult.
• This product is not a toy. Do not allow children play with it.
• This baby monitor does not replace adult supervision.
• Do not place the camera or cables inside the bed or at the child’s reach.
Leave at least 1 meter distance.
• Keep cables out of children’s reach.
• Do not use the baby monitor near water or near a source of heat.
• Use exclusively the adapters supplied with the product.
• Do not touch the connectors with sharp or metal objects.
• Do not attempt to open the casings.

PACKAGE CONTENT
DESCRIPTION
Monitor view
1. Monitor X1
2. Camera X1
3. Power adapter X2
1. LCD display
2. LED for in Charging
3. LED power indicator
4. Key Power On/O
5. Key menu/OK
6. Key Return - undo.
7. Key volume –
8. Key volume +
9. Key brightness +
10. Key brightness –
11. Key Music
12. Key intercom
13. Microphone
14. Loudspeaker
15. Power Connector
www.SereneLifeHome.com
3

www.SereneLifeHome.com
4
CAMERA VIEW
Before installing the camera, test the device to make sure that position is
suitable. Check the correct signal reception. If necessary, move the camera
to improve reception.
1. Light sensor
2. Camera lens
3. Infrared LED
4. Power LED
5. Microphone
6. Loudspeaker
7. Paring key
8. Key power on/o
9. Temperature sensor
10. Power connector
Connect the camera power
to the transformer supplied.
The blue LED turns on to
indicate that it is running.

Connect the monitor power.
The display turns on for a few
seconds to indicate battery
charge level. We recommend
that you completely recharge
the battery before rst use.
Push the power key up to turn
the monitor and camera on
1. Signal level
2. Temperature measured in child’s room
3. Playhead of a melody in progress
4. Alarm activated
5. Level of battery charge
6. Activated intercom function
7. Date and time
www.SereneLifeHome.com
5
PACKAGE CONTENT
MAIN SCREEN

MAIN MENU
To access, press « menu ». This menu contains 6 icons:

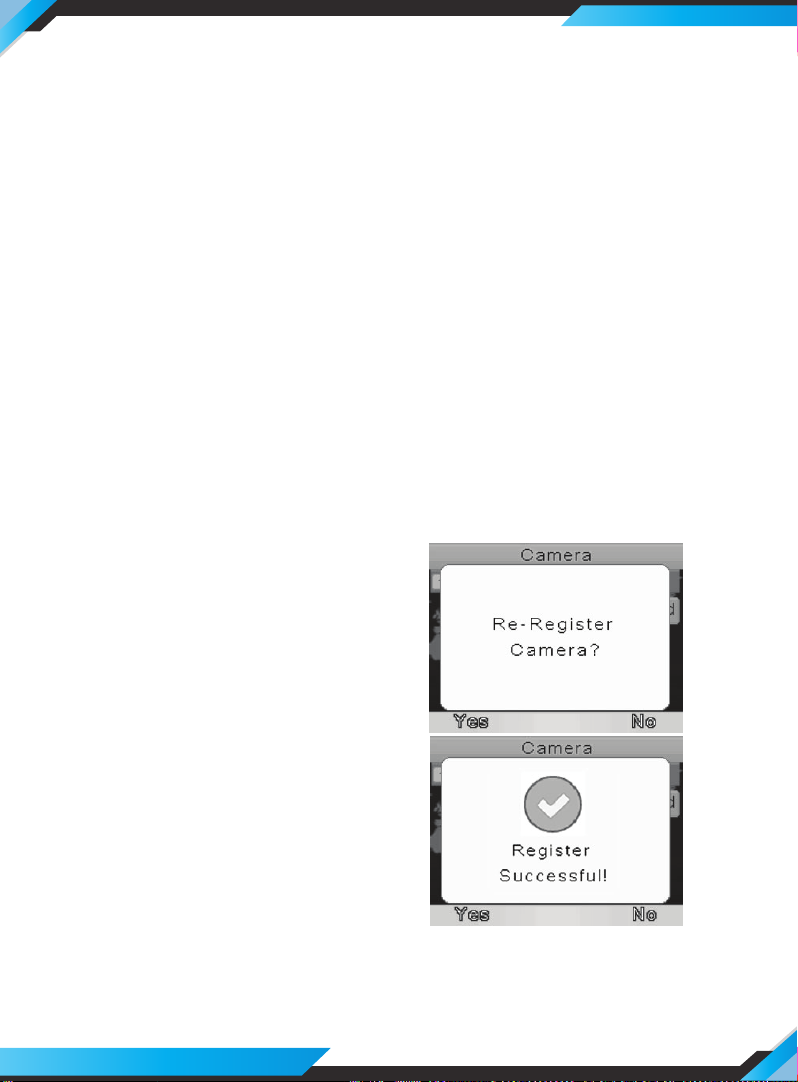

PARING WITH CAMERA
The display and the camera are paired at the factory. You don’t need to
repeat this procedure unless they both loose connection. In this case, do as
follows.
• Press the key “menu” to enter the
main menu.
• Select the icon “camera.”
• Press “OK” to enter the menu.
• Press “OK” again to start recording.
A message appears asking if you
want to re-register the camera.
Press “YES”.
• You now have 10 seconds to press
the paring key of the camera.
• A message conrms the successful
completion of the operation.
MUSIC PLAYING
Press the music key to activate a lullaby on the camera, Press this key again to
stop the melody.
1 Camera
2 Alarm
3 Setting
4 VOX setting
5 Languages
6 Information
Press the key « up » and « and » to select
the option.
www.SereneLifeHome.com
6

INTERCOM FUNCTION
Press the PTT Key to activate the intercom function. The icon displayed
indicates that the microphone is active. Keep this key pressed until you have
nished speaking. Do not release too quickly not to interrupt the conversation.
VOLUME
When the camera is operating, you can press Volume + key on monitor to
increase and press Volume – key to decrease the audio volume from the
camera.
ALARM
This option allows setting one or more alarms.
ADVANCED PARAMETERS

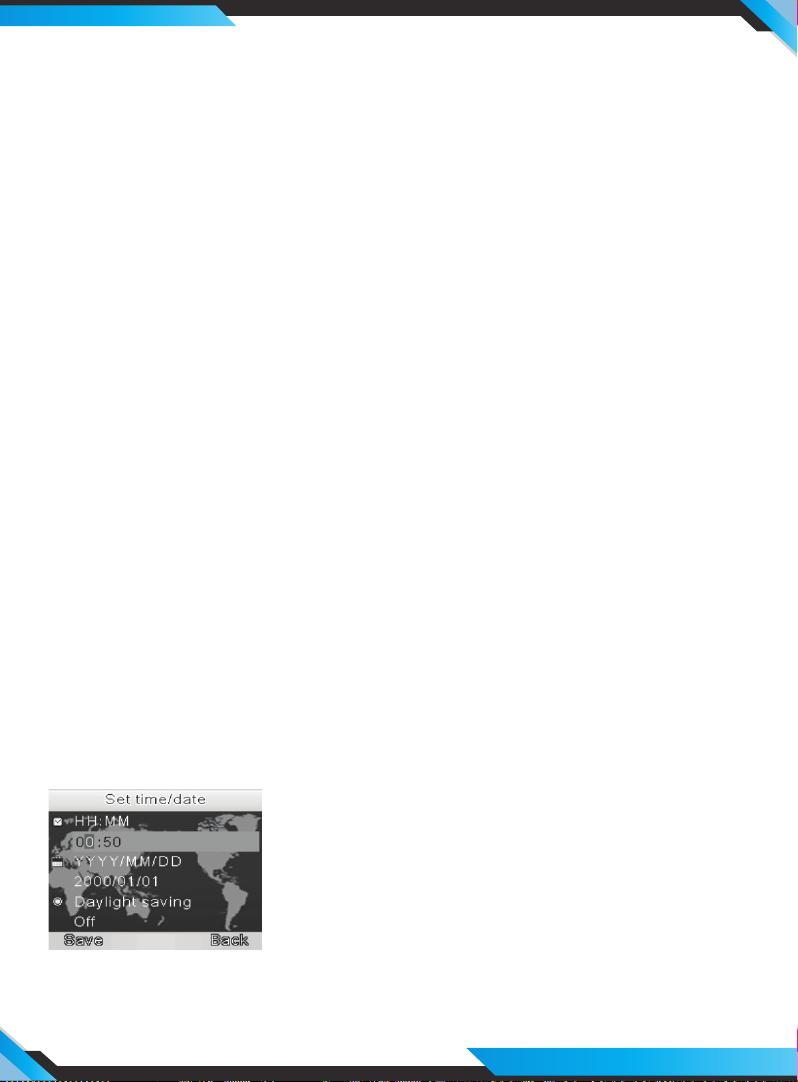

• Date and Time: Allows s etting of date and time of your product.
• When settings are nished, press « Done ».
• Temperature scale: Celsius or Fahrenheit degrees.
• Anti-ickering: the ickering is due to articial lighting. In Europe, use 50Hz.
Choose the alarm that you wish to change
and press « change ».
• To activate the alarm, press the key “Up”
• To change the line, press the key “right”
• To change time, press “Up/Down”
• Press to switch to minutes “Left/Right”
• When settings are nished, press « Done ».
www.SereneLifeHome.com
7
• To change the line, press the key “right”
• To change time, press “Up/Down”
• Press to switch to minutes “Left/Right”
• To activate summer time, select the line with the
key ”right”
and press “Down

• Display backlight: to set screen lighting and length of activity
VOX
• VOX sensitivity: to set the VOX mode sensitivity. The more sensible it is,
the more the display will turn on at the slightest noise.
LANGUAGES
CLEANING AND MAINTENANCE
• Do not clean with abrasive or corrosive substances.
• Use a slightly moistened soft cloth.
• Do not spray with aerosol as this will damage the interior of the product.
• Avoid direct contact with camera lens.
• Fully charge the battery before rst use.
• Recharge the battery at least once every 3 months.
• Do not install the product with a at battery.
• Recharge far from humidity.
• Do not expose to rain.
• Never open the casing to prevent the risk of electric shock
Choosing a menu language:
English/French/Spanish/Portugues/Italian/Deutsch
www.SereneLifeHome.com
8
• System mode: Allows the activation of the VOX
mode. The VOX mode automatically puts the
display in sleep mode to save battery.
It reactivates automatically, when it detects
noise in the baby’s room.
This product can expose you to a chemical or group of checmicals, which
may include ”Nickel Carbonate” which is known in the state of California to
cause cancer, birth defects, or other reproductive harm. For more info, go to
https://www.p65warnings.ca.gov/.

SLBCAM10.5 - SLBCAM11
Wireless Video & Camera Baby Monitor System With Digital LCD Screen
Features:
• Professional Home Baby Video Monitor
• Long Lasting, Heavy Duty Baby Monitor System
• Wireless & Portable Baby Monitoring
• Convenient, Reliable, Secure
• Built-in Microphones & Speakers
• Two-Way Communication Enabled
• Extended Wireless Range, 2.4 GHz Video Transmission
• 2.0’’ -inch Color Digital LCD Display Screen
• User-Friendly Control Interface
• Night Vision Illumination
• Baby Monitor Features Built-in Rechargeable Battery
• Compact Monitor System with Sound Activation
• Simple Setup & Hassle-Free Operation
• Adjustable Camera Viewing Angle, 45° Degree Rotation
• Built-in Thermometer for Room Temperature Monitoring
• Button-Activated Musical Melodies & Lullabies for Soothing Comfort
• Used for Monitoring Your Child in Any Room of the House
What’s in the Box:
• Camera
• Baby Monitor
• (2) USB Wall Power Adapters
Technical Specs:
• Wireless Operation Range: Up to 850’ ft.
• Image Processor: 0.3 MP, Color CMOS
• Camera Resolution: 640 x 480 Pixels
• Built-in Rechargeable Battery: 3.7V, Li-Po 540mah
• Power: 110V (5V Power Adapter)
• Camera Dimensions (L x W x H): 2.6’’ x 1.0’’ x 4.2’’ -inches
• Monitor Dimensions (L x W x H): 2.4’’ x 0.7’’ x 4.7’’ -inches
