Subject: FRP-250 External Brix Check
In this setting when a corresponding touch pad is pressed water or syrup will be dispensed for a fixed duration in
order to check your ratios using funnel & standard brix cup.
1EXTERNAL BRIX MODE
• With the key switch still in the “OFF” position, press and hold the F1 key pad button for the left side or F5 for the right while
turning the key switch back to the “ON” position for 3 seconds.
• Upon releasing the F1 or F5 button the 4 LEDs around the key pad area should now be illuminated. If not illuminated the
unit is not in external brix mode, repeat previous step until successful.
2CHECKING BRIX
• Place the funnel and standard brix cup under the dispense point of the water or syrup
being tested and press its key pad button. (Use the illustration above for reference.) The
water or syrup will be dispensed for a fixed duration in order to check your ratios.
NOTE: Use of a funnel is recommended to direct the syrup and water into the
correct chambers of the cup.
• Remove the brix cup from the dispenser and tap on the counter 3 times to remove
bubbles. Then place on a level surface. The correct carbonated or non-carbonated
water volume should be even with the syrup volume level + / - 2 bandwidths.
NOTE: If Brix ratio is not within this range, please submit a Service Request. Service will
come to the location and perform the actual brixing of the fountain machine.
ON
OFF
Key Switch F1 or F5 Key Pad
Hidden
Key Pad
External
Brix Mode
Flavor Shot
Key Pad
S1 S3
S2 S4
S5 S7
S6 S8
F1
F2 F4
F3
N1 N3
S12 S10
S11 S9
S16 S14
S15 S13
F5
F6 F8
F7
N4 N6
S1, S2, S3, S4, F1 S5, S6, S7, S8, F2, F3 S9, S10, S11, S12, F6, F7 S13, S14, S15, S16, F5
= Syrup = Carbonated Water = Non-Carbonated Water
Hidden on Non-Flavor
Shot Units
LED LED
LED LED
LED LED
LED LED
Hidden on Non-Flavor
Shot Units
10/13
FUNNEL
Standard Brix Cup
SYRUP
WATER

Instructions
Manitowoc Beverage Systems Sellersburg, 2100 Future Drive, Sellersburg, IN 47172, Tel: [phone], www.manitowocbeverage.com

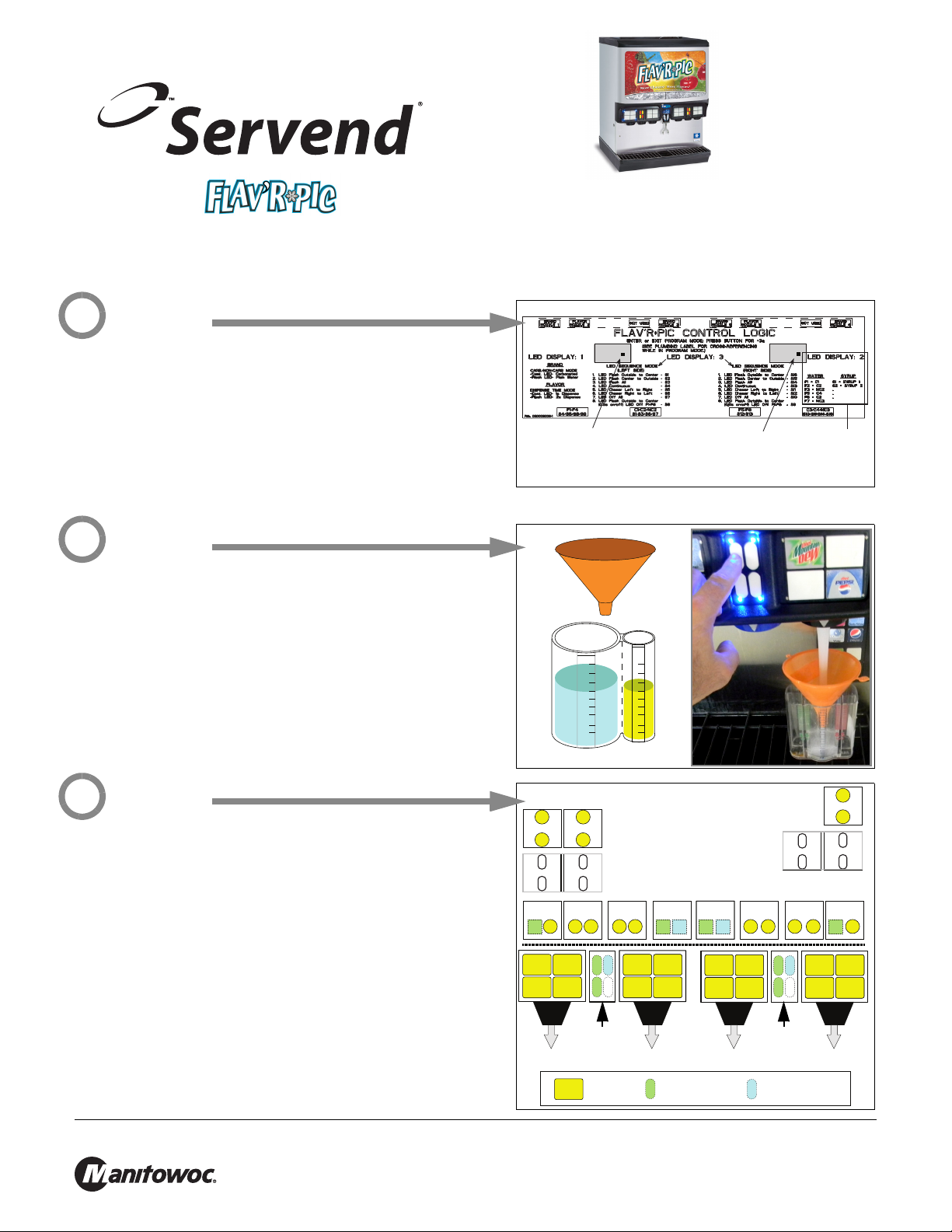

Subject: FRP-250 Brixing
If the merchandiser and splash panel are on the front of the unit, remove them. Merchandiser removal will give you access to the syrup and
water valves. Splash panel removal will give you access to the plumbing label located on the foam front and/or in the Plumbing section of the
Use & Care Manual. This label will be needed to identify valve and corresponding key pad locations.
1BRIX MODE
Mode 2 puts your Flav'R-Pic into brix mode, follow the steps below to put a
board into brix mode.
• Choose a control board, if brixing drinks for N1 (Nozzle 1) or
N3 use the left control board, if brixing drinks for N4 or N6 use
the right control board. Beverage dispense points are
designated by a black nozzle.
• Press the program button and hold for 3 seconds or until the
LED displays 1. Press the program button again until 2 is
displayed on the control board LED display.
2 CHECK BRIX
NOTE:
Use of a funnel is recommended to direct the syrup or water
into the correct chamber of the cup.
• Place the funnel and standard brix cup under the dispense point of
the water or syrup being tested and press its key pad button. The
water or syrup will be dispensed for a fixed duration in order to
check your ratios.
• Remove the brix cup from the dispenser and tap on the
counter 3 times to remove bubbles. Then place on a level
surface. The correct carbonated or non-carbonated water volume
should be even with the syrup volume level + / - 2 bandwidths.
3ADJUST BRIX
• Clockwise movement of the valve brix nut adjustment screw
increases the flow rate and counter clockwise restricts the
syrup or water flow. Use the illustration on the right for valve
location reference.
• When finished, move on to another nozzle or if brixing is
complete, return the control board to the dispense mode by
pressing the program button and holding for 3 seconds or until
the LED displays 0.
• Replace the splash panel and merchandiser.
SYRUP
WATER
FUNNEL
Standard Brix Cup
0
2
Brixing
Info
Left Side
Program
Button
Right Side
Program
Button
10/13
S5
S4
F2
F1
S9
S8
F3
F4
C1 S1 S2 S3 S6 S7 C2 NC2 C3 NC3 S11 S10 S15 S14
Valve
Valve
Valve
ValveValveValveValveValveValveValve
Valve Valve
Valve Valve
C4 S16
F6
F5
F7
F8
S13
S12
S1 S3
S2 S4
S5 S7
S6 S8
F1
F2 F4
F3
N1 N3
S12 S10
S11 S9
S16 S14
S15 S13
F5
F6 F8
F7
N4 N6
S1, S2, S3, S4, F1 S5, S6, S7, S8, F2, F3 S9, S10, S11, S12, F6, F7 S13, S14, S15, S16, F5
= Syrup = Carbonated Water = Non-Carbonated Water
Valve
Hidden on Non-
Flavor Shot Units
Hidden on Non-
Flavor Shot Units
Flavor Shots
Flavor Shots
