ServiceMASTER Clean KING COBRA 1200 PRO 120V Operating instructions

KING COBRA
®
1200 PRO Model 120V
INFORMATION
&
OPERATING
INSTRUCTIONS
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Before each use, remove the spray tool from the hose, and check to make sure the spray nozzles are securely
tightened to the spray tool. A loose nozzle could fly off during use.
3. Keep machine from rain and snow, extremes in temperatures, and store in a heated location. Use the ma-
chine indoors. Do not use outdoors.
4. Never allow the spray to remain fixed in one spot.
5. Use approved chemicals only. NO SOLVENTS.
6. Wear gloves or use rags when removing quick disconnects to prevent burns.
7. Never use water above 130º F/54º C in the solution tank.
CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTION MANUAL
MODEL: KC-1200-500-S
2/08 revised 9/10 FORM NO. 56041961

2 - FORM NO. 56041961
IMPORTANT SAFETY INSTRUCTIONS:
This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other
than normal residential housekeeping purposes.
When using any electrical appliance, basic precautions should always be followed, including the following:
NOTE: Read all instructions before using this machine.
WARNING!
To reduce the risk of fire, electric shock, or injury:
•
Before each use, remove the spray tool from the hose, and check to make sure the spray nozzles are securely
tightened to the spray tool. A loose nozzle could fly off during use.
•Never use solvents.
•Do not leave the machine unattended when it is plugged in. Unplug the unit from the outlet when not in use, and
before servicing.
•To avoid electric shock, do not expose to rain or snow. Store, and use, indoors.
•Do not allow the machine to be used as a toy. Close attention is necessary when used near children.
•Use only as described in this manual. Use only the manufacturer’s recommended attachments.
•Never add water over 130 °F/54 °C to the solution tank.
•If the machine is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it
to a service center.
•Do not pull by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or
corners. Do not run the machine over the cord. Keep the cord away from heated surfaces. To unplug, grasp the plug,
not the cord.
•Do not handle the plug, the cord, or the machine with wet hands.
•Extension cords must be 12/3 and no longer than 50 feet.
•Do not use with a damaged cord or cord end. If the cord or unplug becomes damaged have it repaired immediately
by an authorized service center.
•Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything
that may reduce air flow.
•Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or any health
endangering dusts. Do not use the machine to pick up flammable or combustible liquids such as gasoline or use it in
areas where they may be present.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Connect to a properly grounded outlet only.
•Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure, or chemical content.
Use caution.
•Always read chemical MSDS sheets before use.

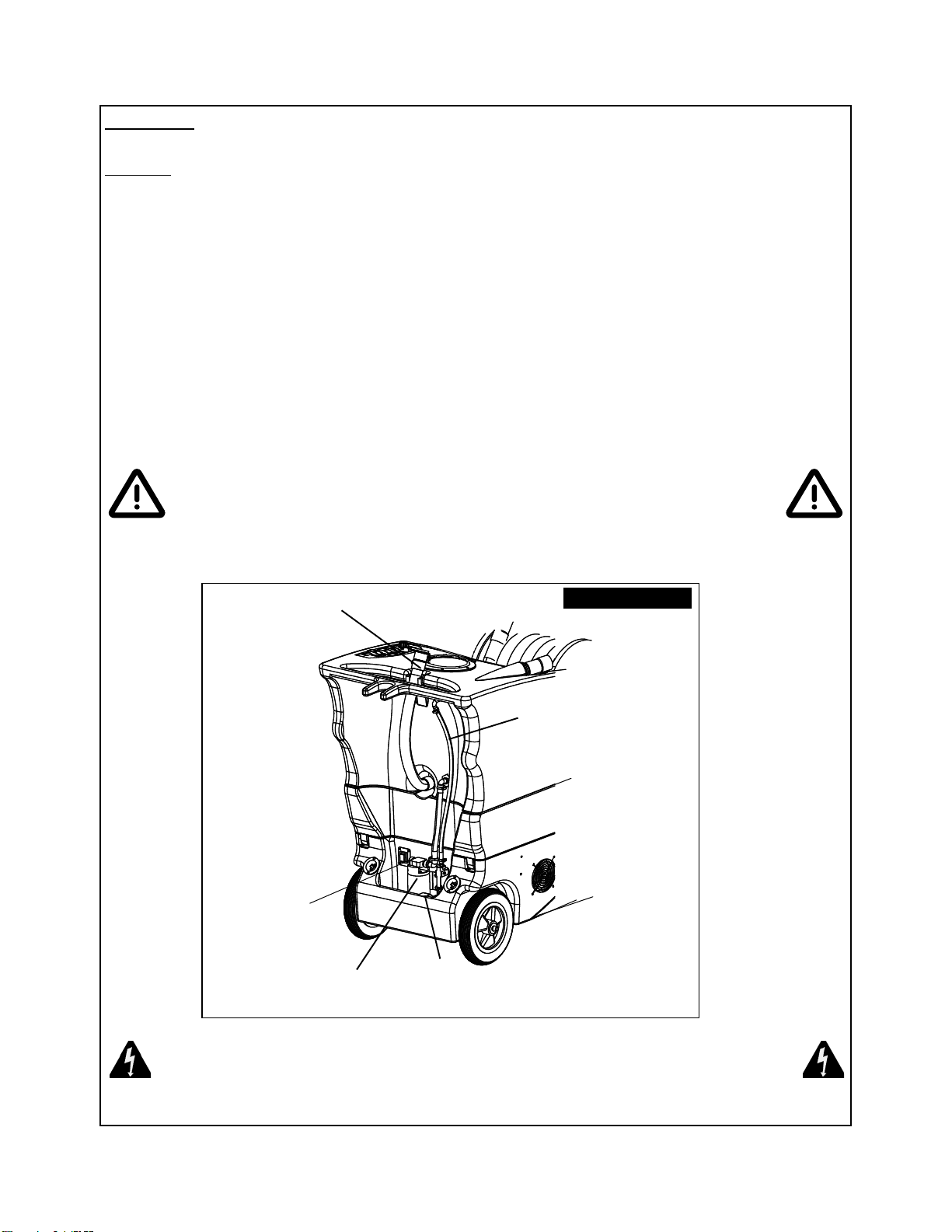

FORM NO. 56041961 - 3
Record the serial number and model of your new extractor here:
(and be sure to register your purchase to activate your warranty)
Serial Number: __________________ Model: KING COBRA-1200 PRO_#19210
Purchase Date:_____________
Write the name and phone number of your distributor:
INSPECTION:
Carefully unpack and inspect your KING COBRA-1200 PRO for shipping damage. Each machine is tested and inspected
before shipping. Any shipping damage incurred is the responsibility of the carrier. You should notify the carrier immediately if
you notice damage to the box or to the machine or parts.
CLEANING SOLUTIONS:
Select a proper pre-spray for the surface to be cleaned, and apply the pre-spray. Use a neutral pH rinse or detergent (6 to
10 pH) in the King Cobra to prevent premature wear of the pumps, seals, and other components. Damage caused by the
use of improper or strong chemicals is not covered by warranty. Powdered chemicals are not recommended.
MAINTENANCE:
For optimum performance, flush the machine with clear water at the end of each working day. Once a month, minimum,
run a flushing compound through the machine to break up any mineral or chemical build-up that may have formed. The
vacuum motor, pump motors, and the pumps do not require any scheduled maintenance; however, the motors may require
replacement brushes after 1000 - 1500 hours, and the high pressure pumps and unloader valves may require rebuild kits
after 500 -1000 hours (refer to machine part list for numbers). Clean the body with an all purpose detergent, and protect it
with an automobile interior polish. Lubricate the wheels, castors, and quick disconnects with an all purpose silicone spray.

4 - FORM NO. 56041961
Hoses
Vacuum
Hose
Connection
Wheel
Switches
Base
Compartment
Latch
Solution
Tank
1200 PSI
Quick
Disconnect
500 psi
Quick Disconnect
500 psi
Gauge
500 psi
Pressure
Adjust
Knob

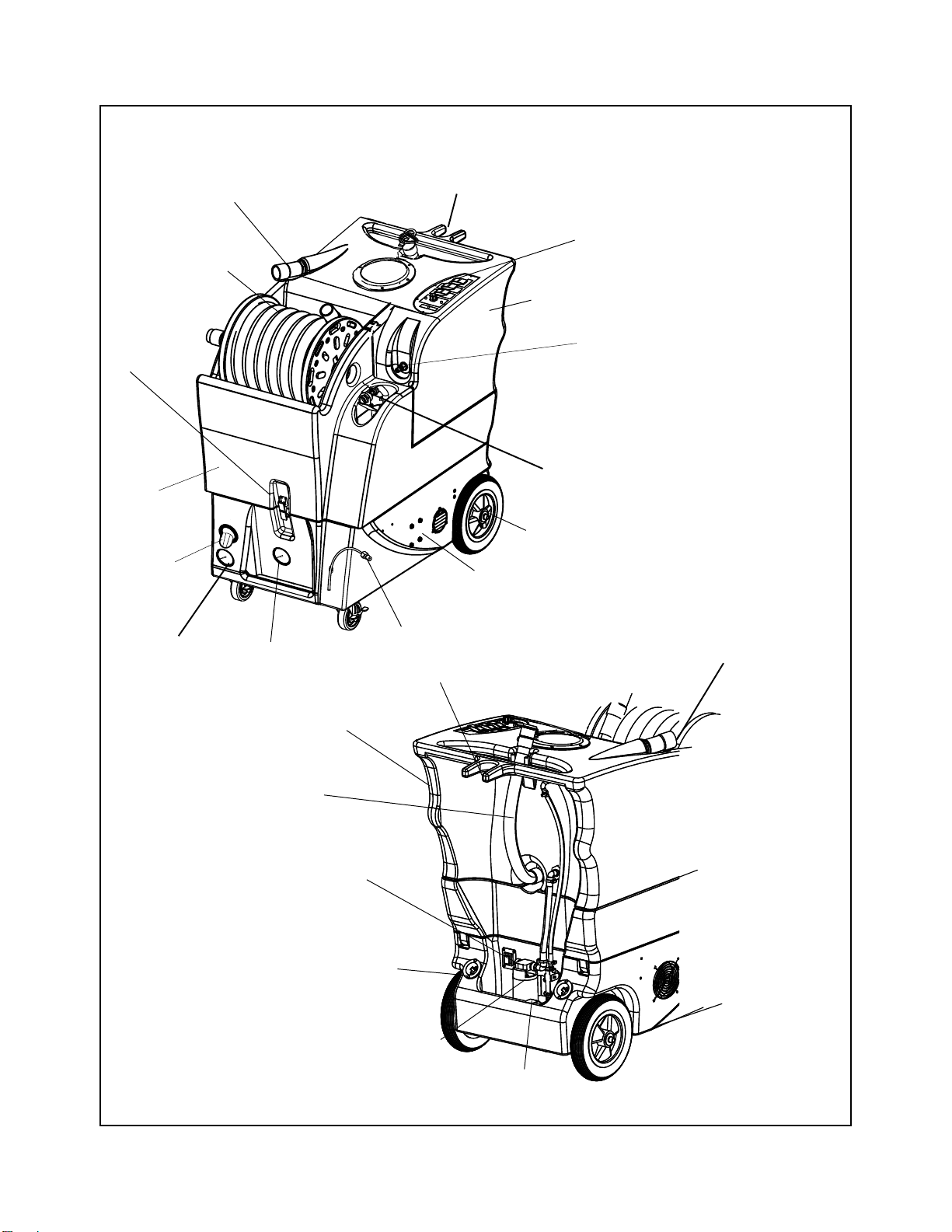

KNOW YOUR MACHINE
1200 psi
Gauge
Recovery Tank
Dump Hose
Auto-Dump
Pump
Power
Cord
Receptacle
Power Prime
Pedal
Recovery
Tank
Wand Holder
Wheel
Vacuum Hose
Connection
Recovery
Tank
Auto-fill
Hose
Connector
Wand Holder
Dump
hose
connection

FORM NO. 56041961 - 5
SWITCH PLATE
This green light will turn on when the two power cords are plugged into separate
circuits. Try different outlets with one cord until you can get a green light, otherwise a
circuit breaker in the wall may trip.
This switch allows you to select either the 1200 psi pump without heat or the 500
psi pump and heat. *NOTE: Both the 1200 psi pump and the heat exchanger can not
operate at the same time. This switch allows you to select the pump, but it does not turn
on either pump.
This light will turn on when the switch is set to the 1200 PSI pump.
This switch turns on the vacuum.
This switch turns on the solution pump - either 1200 psi or 500 psi, depending on where
you have set the pump selection switch (2).
This last switch turns on the automatic pump-out pump. Use this when you want the
machine to automatically pump out the recovered solution.
This light will turn on when you have selected heat instead of the 1200 psi pump.
1
2
3
4
5
6
7
HEAT
OO
II
I
O
1200 P.S.I.
O
I
I
U.S. PRODUCTS
1
5
4
3
26
7

6 - FORM NO. 56041961
1200 PSI HIGH PRESSURE WASHER
1 Before each use, inspect the machine, hoses, and cleaning tools for cleanliness and completeness. Make sure the hoses
are in good condition and the spray nozzle(s) is tight.
2. When not using the auto-dump feature, just make sure the brass cap is screwed tightly on the hose connector fitting on the
rear of the machine. If you choose to use the auto-dump, connect the dump hose to brass hose fitting on the back of the
machine, and place the open end of the hose in a drain. Make sure the drain hose (recovery tank) is closed, and the lid is
tight on the recovery tank.
REFER TO THE AUTO-FILL AND AUTO-DUMP INSTRUCTIONS ON THE FOLLOWING PAGES.
3. If you choose to use the auto-fill feature, connect the fill hose to the auto-fill connector (located over the solution tank fill
hole). Turn on the water source, and allow the tank to fill with water. When using the auto-fill system, the auto-fill float will
automatically turn on and turn off as the tank empties and then fills. NOTE: If you are not going to use the auto-fill system,
just fill the tank with water and cleaning chemical. Follow chemical directions regarding dilution and mixing. Do not use
harsh chemicals; they may damage seals in pumps and valves, and cause the pump to wear prematurely.
NOTE: Never use water with a temperature exceeding 130 °F / 54 °C.
REFER TO THE AUTO-FILL AND AUTO-DUMP INSTRUCTIONS ON THE FOLLOWING PAGES.
4. Pre-spray the area to be cleaned, with a pump-up sprayer, while the tank is filling. Follow chemical directions.
5. Connect the solution hose (from the reel) to the 1200 PSI Quick Disconnect on the front of the tank, below the switch plate.
6. Plug in the two power cords. Do not connect both cords to the same outlet. The green, ‘separate circuit’ locator light (1)
on the switch plate should light up. If the locator light does not come on, check the circuit breaker box in the wall, and/
or try different outlets until it does turn on. Although all systems in the machine may work correctly if you are not on two
circuits, a circuit breaker in a wall panel may trip. If you make sure the green light is turned on, you will prevent tripped
circuit breakers. Turn on the 1200 PSI pump by placing the HIGH PRESSURE/HEAT selection switch (2) in the UP position,
to select the 1200 PSI Pump. NOTE: both the 1200 PSI pump and the heat can not operate at the same time. NOTE: this
switch (2) is off when it is set to the middle position and neither the 1200 PSI pump nor the heater is selected.
8. Prime the 1200 psi pump using the ‘power prime’ system: turn on both the pump and the vacuum (3), cover the hole in the
vacuum hose barb on the top of the machine with your hand, then depress the Power Prime Pedal (located on the back of
the machine). This will pull trapped air through the pump and into the recovery tank, priming the pump. You should notice
a change in the ‘tone’ of the pump (smoother, with less rattle), and the water being pulled into the recovery tank will change
from a white, sputtering flow to a clear, solid stream. NOTE: priming requires a full Holding tank, and it may take between
20 to 90 seconds. Once the pump has primed, release the Power Prime Pedal, and turn both the pump and the vacuum off.
Momentarily depress the Power Prime pedal again to release any built-up back pressure. Proceed to Step 9.
SET-UP and OPERATION
REFER TO THE DIAGRAMS ON THE PREVIOUS PAGE
CAUTION: Use care when handling hazardous chemicals.
CAUTION: Never leave the machine running when you are not actively using it.
CAUTION: Always use a defoamer when foaming occurs to prevent vacuum motor damage.
DANGER: Do NOT use solvents, or any chemicals that may be flammable, explosive or combustible.

FORM NO. 56041961 - 7
OPERATION OF THE 1200 PSI PUMP CONTINUED:
9. Your machine has two solution outputs. The solution output for the 1200 psi pump is a quick disconnect located just below
the fill hole on the holding tank, on the front face of the machine (the 500 psi outlet is a quick disconnect on the end of a
short length of hose, on the front of the base section of the machine). Attach the solution spray hose from the reel to the
1200 psi solution quick disconnect. Attach the vacuum hose on the reel to the hose barb on the front of the recovery tank.
Pull the hoses out from the reel. Attach the other ends of the hoses to the cleaning tool.
10. Turn on the vacuum (3) and turn on the Automatic pump-out pump (5),if you have set-up the dump hose. Begin cleaning.
11. When the job is finished, turn off the water source (if you are using the auto-fill feature), and turn off the pumps. Disconnect
the vacuum hose from your cleaning tool, and vacuum any remaining solution from the holding tank into the recovery tank.
12. Completely drain the recovery tank by pouring the dirty water out through the drain hose on the rear of the machine.
Disconnect the solution hose from the cleaning tool, and reel the hoses onto the hose spool.
13. Unplug the power cords.
14. Clean the machine and the tool. Never store your machine outside, and keep it from getting too hot or too cold.
SET-UP and OPERATION
500 PSI AND HEAT
1. Before each use, inspect the machine, hoses, and cleaning tools for cleanliness and completeness. Make sure the
recovery tank drain hose is closed, and the lid is tight on the recovery tank. Make sure the hoses are in good condition and
the spray nozzle(s) is tight.
2. If you choose to use the auto-dump feature, connect the dump hose to brass hose fitting on the back of the machine, and
place the open end of the hose in a drain. Make sure the drain hose, on the rear of the recovery tank, is closed and the lid
is tight on the recovery tank. If you choose not to use the auto-dump feature, make sure the brass cap is screwed onto the
hose connector on the back of the machine and the dump pump switch is turned off.
REFER TO THE AUTO-FILL AND AUTO-DUMP INSTRUCTIONS ON THE FOLLOWING PAGES.
3. If you choose to use the auto-fill feature, connect the fill hose to the auto-fill connector (located over the solution tank
fill hole). Turn on the water source, and allow the tank to fill with water. NOTE: Do not turn the water pressure on high;
just turn the water on. When using the auto-fill system, the auto-fill float will automatically turn on and turn off as the tank
empties and then fills. If you are not going to use the auto-fill system, just fill the tank with clean water and a liquid cleaning
chemical. Follow chemical directions regarding dilution and mixing. CAUTION: Do not use harsh chemicals in your King
Cobra 1200 Pro; they may damage seals in pumps and valves and could cause the pump to wear prematurely. NOTE:
using warm water in the tank may improve the efficiency of the heat exchanger when cleaning with heat, but never use
water with a temperature exceeding 130 °F / 54 °C.

8 - FORM NO. 56041961
Operation:
• Attach a 3/4” garden hose to the auto fill valve, and connect the other end of the hose to your water source.
• Make sure the float that hangs from the auto fill valve into the tank is free of obstruction and can move freely.
• Turn on the water supply. NOTE: Do not turn the water pressure on high; just turn the water on.
• The auto-fill float will automatically shut-off the flow of incoming water when the tank is nearly full, and it will allow the valve to open
again once the water level has dropped to a predetermined level.
AUTO-FILL
AUTO-FILL
AUTO-FILL HOSE
CONNECTION

FORM NO. 56041961 - 9
Operation:
Before each use: if necessary, unscrew the stainless steel filter at the bottom of the recovery tank and clean it. Also make sure the
float in the recovery tank is clean.
• Attach a 3/4” garden hose to the dump pump outlet fitting on the back of the base of the machine.
Refer to illustration below.
• Run the other end of the hose into a drain.
• Turn ON the dump pump switch (switch is located on the switch panel on the top of the machine).
• NOTE: the dump pump is ‘self-priming.’ You should see water start to flow within 30 seconds of the
pump turning on, if the water level in the tank is high enough to activate the float switch. If water does not begin to flow, check the filter
to see if it is plugged with debris.
After each job: run clear water though the dump pump to wash out any chemical residue. Remove and clean the stainless steel filter
in the bottom of the tank. Reinstall the filter once it is clean. Clean and empty the recovery tank.
AUTO-DUMP
Dump
Pump
Drain Hose
AUTO-DUMP
Power
Prime
Hose
Power
Prime
Pedal
DANGER: DO NOT USE SOLVENTS, OR ANY CHEMICALS THAT MAY BE FLAMMA-
BLE, EXPLOSIVE OR COMBUSTIBLE.
CAUTION: always use a defoamer in the recovery tank to prevent water or foam from entering
the vacuum motor.
Dump Hose
Connection
DANGER: always unplug the King Cobra from the electrical outlet(s) before cleaning or
maintaining. Certain internal components are electrically live, even with switches in their OFF
position.

10 - FORM NO. 56041961
18
16
17
32
31
36
65
66A
61
32
64
66
65A
15
14
47
20 21
22
23
24
32
33
5
4
34
35
3B
12
12A
11
10
48
51
95
89
98
91
90
93
100
31
110
110A
12
43
110B
82
83
104
102
83
105
78
79
121
122
123
128
127
124
138
139
140
142
143
80
99
102
135A
75
136
24
137
130
70
92
92
140
113
114
116
95
84
94
75
75
146
135
133
110
110A
12
43
to item
#20
30
29
28
26 27
25
67
6
7
}
72
the complete assembly
2
3
103
1
37
41 46
49
49
39
31
31
106
108
111
111A
8
31
9
107
revise 9/10

FORM NO. 56041961 - 11
ITEM PART No. DESCRIPTION
94 SYP1 Priming hose, for 500 psi
95 928 Louver, 3”, includes screws
98 FP534 Hose, heater to outlet
99 925 Hose Assembly, 32”, bypass
100 1581A Hose, ¼” x 24” pump to heater
102 1553 “T”, brass/ 1/4 npt
103 237 Cap with chain
104 FP373 1200 psi pump & motor, complete
105 1062 Receptacle, power cord
106# 957 Pump, auto-dump
107# 1324 Hose Connector, dump pump out
108# 1325 Elbow, nylon, auto-dump in
110 4405A Relay, 20 Amp
110A 2025 Heat sink plate
110B 1579 Rectifier, bridge
111 1164 Valve, power prime
111A 1299 Pedal, power prime
113 FP507 500 psi pump, complete, no motor
114 1582 Motor, for 500 psi pump
116 FP509 Unloader complete, 500 psi
121 2084A Wheel, 10”
122 27A Axle cap
123 910-20.75 Axle, 1/2” X 20-1/2”
124 1158 Plate, pump mounting
127 2015 Guard, fan
128 2014 Fan, cooling, 100CFM
130 BKCR-TEAL Base compartment, teal
133 1081 Elbow, 90 degree, pump inlet
135 905 Castor, 4”
135A 905A Brake, for castor
136 1413 Clip Holder, for hose
137 FP416 Hose assy, 500 psi, outlet
138 1043A Gasket, 93.5”
139 219 Quick disconnect, male
140 91 Elbow, 90º
142 2166 Gauge, 1200 psi pressure
[ ]# 1506 Hose-Pump to Gauge
143 908A Latch
146 2165 Gauge, 500 psi pressure
[ ]# 1506 Hose-Pump to Gauge
[ ] = Not Shown
# = New or revised since last update
1 1303 Switch Plate
2 78 Light, green, 1200 psi pump
3 78B Light, red, heat
3B 227 Light, green, dual circuit
4 56220001 Switch, 3-way; ON-OFF-ON
5 FP345 Switch, ON/OFF, with actuator
6 FP364 Elbow, PVC, includes ball float
7 929B Filter, ball float
8# 2068 Float-Auto-Dump
9# 230 Cord Retainer
10 805 Chain, lid retaining
11 1074 Gasket, recovery lid
12 2086A Lid, and ring, 6”
12A 1156 Screw, 8-32 x 1-1/8”
14 937 Bushing, PCV
15 2069 Filter, Auto-fill
16 1060C Plug, drain hose
17 1130 Strap, Velcro
18 1060B Hose, drain
20 91 Elbow, 90 degree, brass, 1/4 mpt
21 1141 Washer, S/S
22 1146 Pipe, S/S, 1/4 mpt both ends
23 1143 Spacer, insulated
24 45 Quick Disconnect male, 1/4 pt
25 1184 Hose connector, inlet water supply line
26 1533 Connector, male garden hose
27 1571 Bushing, 1” x 1/2”
28 1534 Elbow 1”, 90º
29 2170 Locknut, 1”
30 1320A Bracket, Auto-fill valve mounting
31 1518 Hose clamp, 2-1/4”
32 907 Hose Barb, 1-1/2” hose
33 1137 Adaptor, ABS, 1-1/2”
34 HKCR-TEAL Holding Tank, teal
35 VKCR-TEAL Recovery Tank, teal
36 FP414 Reel, with hoses, complete
37 1309 Hose, power prime outlet, 3/8” X 21.25”
39# 946A Hose-1/2 x 17
41 1115 Elbow, 90º, 3/8” hose X 1/4 mpt
46# 1113 Elbow, 90º, 1/2” hose X 1/2 mpt
47 92B Nipple, PVC, 1/2 npt
48 207A Filter, Pump inlet
49# 1347 Clamp, nylon
51 FP388 Cord Wrap, black
61 1131 Elbow, PVC, 1-1/2”
64 926 Manifold, vacuum
65 FP323 Vacuum motor, w/gasket, complete
65A 959 Gasket, vac motor
66 430 Vacuum hose, 1-1/2” X 7.75”
66A 1136 Vacuum hose, 1-1/2” X 25, clear
67 1310A Float, Auto-fill, high temp.
70 1280 Elbow, brass, 1/4 fpt X 1/4 fpt
72 1530 Junction, fluid direction
75 220 Quick disconnect, female, open
78 219 Quick Disconnect, male, open
79 220 Quick Disconnect, female, open
80 1309 Hose, power prime inlet, 32”
82 1164 Valve, pressure regulator, 1200 psi
83 92A Nipple, S/S, 1/4 mpt
84 1057B Power Cord
89 455 Bracket, heater mount
90 399 Thermostat switch
91 76A Hose Clamp, 3”
92 FP420 Hose, Pump to Gauge, complete
93 FP512 Heat Exchanger, complete
1160K Valves & O-rings, 1200 psi pump
1159B Pump complete, no motor, 1200 psi motor
1160A Plunger & seals, 1200 psi pump
1159 Motor, 1.5HP for 1200 psi pump
FP469 Hose assy, solution w/swivel, 16-1/2”, no reel
Also requires tool #1157.
FP256 Heat repair kit, includes cutout, bimetallic switch,
& heat sink grease
FP508 Pump & motor complete, 500 psi
FP641 25 ft. solution hose with 16-1/2” hose assy
FP256 Heat repair kit, bimetallic switch, & heat sink grease
FP372 Pump with hose, unloader, cam &
Bearing; no motor, 1200 psi pump
MISCELLANEOUS PARTS
ITEM PART No. DESCRIPTION
revise 9/10

SPECIFICATIONS:
Rotomolded Body:
Vacuum:
VAC Shutoff:
Pump:
Heat:
Capacity:
Cords:
Size:
Auto dump:
Wheels:
Hoses:
Plus:
Lifetime Warranty
7.2” 3-stage, 140” of water lift
Ball Float
Positive displacement, fully adjustable 0-500 psi &
Positive displacement, 1200 psi, 2.2 gpm
2000 Watts, adjustable up to 212 °F
16 gallon solution tank; 14 gallon recovery tank
Two, detachable 12/3, hospital grade plugs
39” H X 21” W X 36” L
5 gpm
10”, locking, non-marking
25 ft hoses on a reel (patent pending)
Auto-fill and a Power Prime system for the 1200 psi
pump
NOTES:
The ServiceMaster Company
860 Ridge Lake Blvd.
Memphis, TN 38120
800-756-5656 (Tech Support)
Date: 5-2010 REV G
